Up to 60kW
Laser Power
6 Models
Range
Sheet + Plate
Applications
Not sure which fiber laser is right for you?
Our AI can help you compare machines, find parts, and explore your options.
Advantages
Why Choose Fiber Laser?
Ultra-High Power Range
From 2kW compact sheet lasers to 60kW heavy plate systems. Match the laser power to your material and throughput requirements.
Sheet and Plate Versatility
Compact enclosed sheet lasers, mid-format exchange-table systems, and large-format gantry platforms cover every flat sheet and plate application from thin gauge to heavy plate.
Lower Operating Costs
No laser gas, fewer consumables, and less maintenance than CO2 systems. Fiber lasers reduce cost per part across every shift.
Full Canadian Support
Machines stocked in Ontario. ACM provides installation, commissioning, operator training, preventive maintenance, and emergency repair.
Featured
F Master - Maximum Performance
Six bed sizes to 12.2 m, 3kW to 60kW, 200 m/min positioning
Han's F Master
Models
G3015F, G4020F, G6020F, G6025F, G8025F and G12025F
Available laser power
3kW, 6kW, 12kW, 20kW, 30kW, 40kW, 60kW
Working areas
3,100 x 1,550 mm (5'x10') up to 12,200 x 2,550 mm (40'x8')
Max positioning speed
200 m/min
Our Machines
The Complete Fiber Laser Lineup
Each system is engineered for specific applications. Compare specs to find the right fit.
Precise and flexible fiber laser cutting system with exchange table
J Series - Precise and Flexible
The J Series is an easy to use fiber laser cutting system featuring a double exchange workbench and gantry dual-drive structure. Available in multiple wattages and configurations the J Series has the flexibility to meet most any high production application. Its carbon steel welded bed with heat treatment delivers reliable dimensional accuracy, while the integrated cabinet design fits inside a single 40HQ shipping container for efficient delivery and installation.
- Model
- J Series
- Available laser power
- 2kW to 40kW
- Working area
- 3,100mm x 1,550mm (5'x10') up to 6,200mm x 2,600mm (8'x20')
- Max positioning speed
- 120 m/min
Compact and budget friendly fiber laser cutting machine

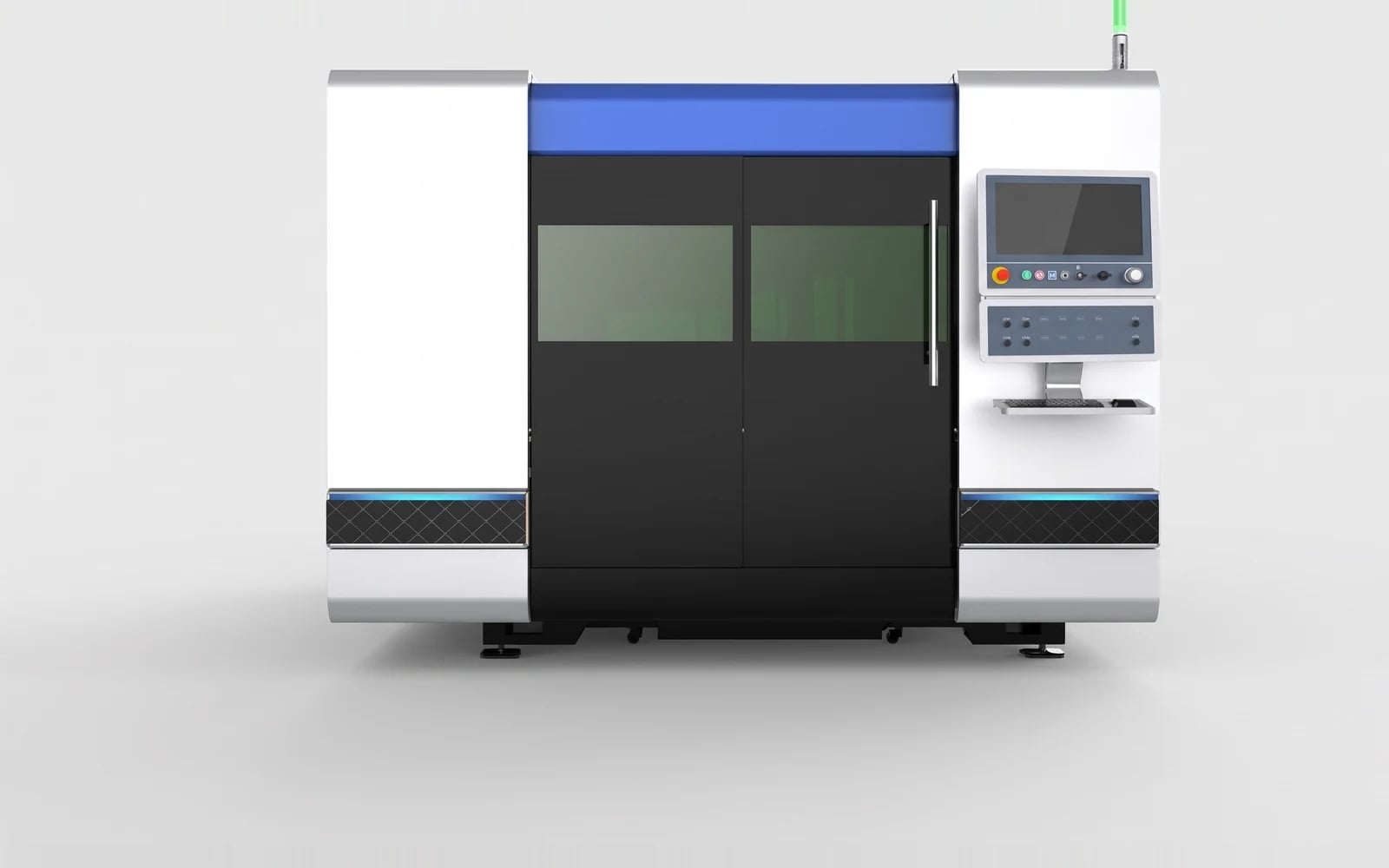

O PRO - Compact Value Laser
The O PRO is Han's single-platform enclosed fiber laser, and it is the one we recommend to shops that want a straightforward fully enclosed machine in a compact footprint. It comes in two bed sizes: the G3015-O PRO, which cuts a 3,100 x 1,550 mm sheet at up to 120 m/min, and the larger G4020-O PRO for shops that need a bigger table. Both run laser power from 3kW to 20kW. Sliding doors on the front and right sides open the table for loading, four laser-protected windows let the operator watch the cut without opening the machine, and control is through a handheld pendant and touchscreen running Han's 1201 bus-based CNC.
- Models
- G3015 and G4020
- Working area
- 3,100mm x 1,550mm (5'x10') or 4,100mm x 2,050mm (6'x12')
- Available laser power
- 3kW, 6kW, 12kW, 20kW
- Max positioning speed
- 120 m/min
Large format, high power gantry fiber laser cutting system
S PRO A/G - Large Format Gantry Laser
The S PRO-A/G is a large-format linear rail fiber laser cutting system built for heavy plate processing at 10kW and above. Available in cutting widths up to 4 metres and lengths up to 30 metres, it delivers stable thick-plate cutting with a modular bed design that simplifies shipping and installation. G-series models include an integrated bevel cutting head for weld preparation.
- Models
- G6025, G8025, G13025, G26025, G30025
- Available laser power
- 12kW, 20kW, 30kW, 40kW, 60kW
- Working area (width)
- 2,600 mm (options: 3 m, 3.5 m, 4 m)
- Working area (length)
- 6.1 m to 30.1 m (extendable)
Fiber laser cutting system
FiberBlade - Compact Messer Laser
The Messer FiberBlade is an industrial fiber laser cutting system designed for high-speed, high-precision cutting of sheet and plate metal in production manufacturing environments. Available in flexible bed sizes from 5'x10' up to 8'x24' and with laser wattages up to 20kW.
- Bed sizes
- 3015 (5'x10'), 4020 (6.5'x13'), 6020 (6.5'x20'), 6025 (8'x20'), 6525 (8'x24')
- Laser power range
- 2 kW to 20 kW fiber laser
- Laser source
- IPG or MAX Photonics fiber laser
- Cutting head
- Precitec Procutter 2.0 (up to 20kW)
Large-format fiber laser processing system
Element 400L - Large Format Shuttle
The Element 400L is the powerhouse of large format laser processing systems. With laser bevelling, inkjet marking, pinstamp marking, dual head laser cutting, and laser/plasma combination cutting, the Element 400L is the right choice for heavy cutting applications up to 10'x55'. Designed for fabricators needing a customizable, full-featured cutting platform with Global Connect CNC control.
- Max table size
- Up to 10'x55'
- Processes
- Laser cutting, laser bevelling, inkjet marking, pinstamp marking, dual head laser, laser/plasma combo
- Laser power
- Two fiber lasers up to 20 kW
- CNC control
- Global Connect
Brands
The Fiber Laser lines we carry
Every machine above is supported from Cambridge, Ontario. Explore the full lineup from each manufacturer.
Side by Side
Compare Systems
See how each platform stacks up across the specs that matter most.
F Master - Maximum PerformanceFeatured
- Best For
- Maximum power and largest beds
- Application
- Sheet/Plate
- OEM
- Han's Laser
- Max Laser Power
- 60kW
- Processing Range
- Up to 12.2x2.55 m
J Series - Precise and Flexible
- Best For
- Budget with exchange table
- Application
- Sheet
- OEM
- Han's Laser
- Max Laser Power
- 20kW
- Processing Range
- Up to 3.1x1.55 m
O PRO - Compact Value Laser
- Best For
- Compact single-platform entry
- Application
- Sheet
- OEM
- Han's Laser
- Max Laser Power
- 20kW
- Processing Range
- Up to 3.1x1.55 m
S PRO A/G - Large Format Gantry Laser
- Best For
- Large format gantry
- Application
- Heavy Plate
- OEM
- Han's Laser
- Max Laser Power
- 60kW
- Processing Range
- Up to 30.1x2.6 m
+2 more machines — view full table on desktop
| Specification | F Master - Maximum PerformanceFeatured | J Series - Precise and Flexible | O PRO - Compact Value Laser | S PRO A/G - Large Format Gantry Laser | FiberBlade - Compact Messer Laser | Element 400L - Large Format Shuttle |
|---|---|---|---|---|---|---|
| Best For | Maximum power and largest beds | Budget with exchange table | Compact single-platform entry | Large format gantry | High-production sheet | Heavy plate, large format |
| Application | Sheet/Plate | Sheet | Sheet | Heavy Plate | Sheet/Plate | Heavy Plate |
| OEM | Han's Laser | Han's Laser | Han's Laser | Han's Laser | Messer | Messer |
| Max Laser Power | 60kW | 20kW | 20kW | 60kW | 20kW | 2x 20kW |
| Processing Range | Up to 12.2x2.55 m | Up to 3.1x1.55 m | Up to 3.1x1.55 m | Up to 30.1x2.6 m | 5'x10' to 8'x20' | Up to 10'x55' |
Applications
Industries We Serve
Fiber Laser systems are trusted across diverse industries and production environments.
FAQ
Fiber Laser Questions
Answers to common questions about our fiber laser products.
A fiber laser uses a solid-state laser source to cut metal with extreme precision and speed. Unlike CO2 lasers, fiber lasers have no mirrors or gas to maintain, resulting in lower operating costs and higher reliability.
ACM is an authorized dealer for Messer Cutting Systems and Han's Laser. Messer offers industrial sheet and plate lasers (FiberBlade, Element 400L). Han's Laser provides enclosed plate lasers from 2kW to 60kW.
From compact 5'x10' (3015) beds for job shops up to 30-metre gantry systems for heavy plate production. ACM carries enclosed shuttle-table lasers, open-bed gantry systems, and everything in between to match your floor space and throughput requirements.
Mild steel, stainless steel, aluminum, copper, brass, and other metals depending on laser power and material thickness. Higher-power models (20kW and above) cut thick carbon steel at production speeds.
From 2kW on compact sheet lasers up to 60kW on the Han's F Master and S PRO. Messer systems offer up to dual 20kW heads on the Element 400L. The right power level depends on your material type, thickness, and throughput targets.
Yes. Machines are stocked in Ontario. ACM provides full installation, commissioning, operator training, preventive maintenance, and emergency repair for all fiber laser systems.
Guides
Maintaining your Fiber Laser
Written by the people who install and service these machines.
Tube laser capacity: diameter is not the number that stops the job
Buyers specify a tube laser on diameter. The number that actually decides which machine they need is the weight of the tube, and the same 150 mm section can weigh 107 kg or 254 kg on a six metre stick.
Doug RobinsonBuying a piece of equipment begins with properly understanding a problem
Nobody wants to buy a machine. They want to solve a problem. The specification you have written is your own diagnosis of that problem, and it is worth twenty minutes to check before you spend six figures.
Doug RobinsonFiber laser capacity: maximum thickness is not the number to specify on
Every fiber laser carries two thickness numbers for mild steel, and most machines get specified on the wrong one. The maximum tells you what the laser can sever on a clean sample. The production-ready figure tells you what it will run on your floor, on the steel you actually buy.
