9 Systems
Full Lineup
Up to 10'×55'
Max Table Size
Multi-Process
Plasma + Bevel + Oxy
Not sure which plasma is right for you?
Our AI can help you compare machines, find parts, and explore your options.
Advantages
Why Choose Plasma?
Versatile Thickness Range
Cut diverse metal types and thicknesses from thin sheet to heavy plate. Plasma handles mild steel, stainless, aluminum, and non-ferrous metals.
Multi-Process Capable
Combine plasma with bevel cutting, oxyfuel, drilling, tapping, and marking on the same gantry. One machine, multiple processes.
9 Platform Options
From the compact MetalMaster 3.0 to the heavy-duty MPC2000. Entry-level, precision, large-format, and multi-process configurations available.
Advanced CNC Control
Messer Global Connect with 18.5" touchscreen, Industry 4.0 connectivity, real-time diagnostics, and production tracking.
Featured

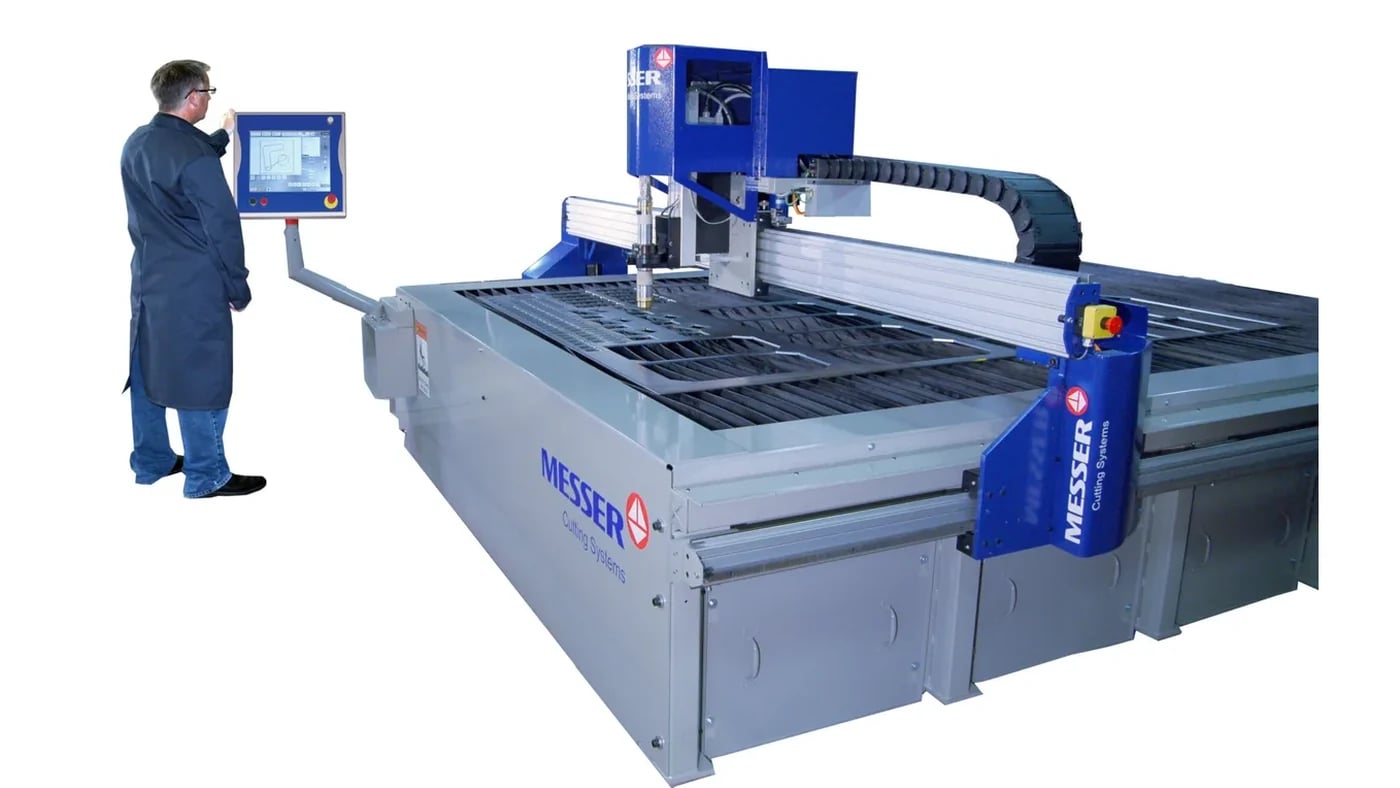

MetalMaster 3.0
Reliable plasma cutting - widths up to 5' and lengths up to 10' with plasma and oxy-fuel options
MetalMaster 3.0
Cutting widths
5'
Cutting lengths
10'
Maximum material thickness
Up to 6″ (process dependant)
Plasma systems supported
Hypertherm and equivalent industrial plasma systems
Our Machines
The Complete Plasma Lineup
Each system is engineered for specific applications. Compare specs to find the right fit.
Durable unitized plasma/oxyfuel machine
EdgeMax
Durable unitized steel table/frame with optional plasma or oxyfuel capabilities and optional water table. Full capture bearing assemblies and low-mass aluminum beam powered by dual brushless AC motors. Rapid acceleration, precise motion, highly stable platform.
- Frame
- Unitized steel table/frame
- Beam
- Low-mass aluminum
- Motors
- Dual brushless AC
- Water table
- Optional
High-precision plasma cutting machine
MetalMaster Evolution
The MetalMaster Evolution is a high-speed, multi-process unitized plasma cutting system built for demanding fabrication environments. With cutting widths up to 10' and expandable lengths up to 50', it delivers +/-0.002" accuracy at positioning speeds up to 1,700 IPM. The standard Slagger® self-cleaning table eliminates manual slat maintenance, and the modular platform supports expansion into oxyfuel, drilling, bevelling, pipe cutting, and marking.
- Cutting widths
- 6' (1.8 m), 8' (2.4 m), and 10' (3 m)
- Cutting lengths
- 10' expandable in 5' increments up to 50' (15.24 m)
- Material thickness
- 26 gauge to 3"
- Materials
- Mild steel, stainless steel, aluminum
Compact plasma and multi-process cutting system
Xcel Plasma
The Xcel Plasma delivers exceptional cutting precision and quality for plasma operations, coupled with rapid positioning and the highest acceleration capabilities. It minimizes unproductive intervals and features a built-in self-cleaning table. A versatile and compact plate processing platform designed for plasma cutting of material up to 2" thick with bed sizes from 6'x10' up to 10'x55'. Multiple process options including plasma, oxyfuel, and marking.
- Material thickness
- Up to 2" thick
- Table sizes
- 6'x10' up to 10'x55'
- Self-cleaning table
- Standard (built-in)
- CNC control
- Global Connect
High-productivity unitized plasma system
Element 400U
Developed with the ultimate in productivity and part quality in mind. True Industry 4.0 paperless factory connectivity. The Element 400 Unitized delivers exceptional speed, acceleration, and precision for high-volume plasma cutting operations.
- Top speed
- Up to 5,511 IPM
- Acceleration
- 1G
- Drive
- Helical rack and pinion (smooth, vibration-free)
- Rapid speed
- 2,600 IPM
Cost-effective plate cutting system
Platemaster
The Platemaster offers a cost-effective solution for plate cutting. Robust, floor-mounted rails made from 90 lb/yd crane rail stock and sturdy end trucks for smooth dual box beam movement. Available in multiple machine widths and lengths for flexible plate processing.
- Rail
- Floor-mounted, 90 lb/yd crane rail stock
- Beam
- Dual box beam
- Plasma
- Up to 800 amps
- Oxyfuel
- Included
Heavy-duty gantry cutting machine
Titan III
The Titan III incorporates an innovative end truck configuration that effectively isolates electronics from the cutting area, ensuring robust performance in demanding environments. Built for heavy-duty operations where heat, dust, and sparks are constant factors.
- Key feature
- Electronics isolated from cutting area
- Design
- Innovative end truck configuration
- Cutting widths
- 6' to 16'
- Cutting lengths
- Up to 150'
Large format gantry cutting system
Element 400G
The Element 400 Gantry features a rack-and-pinion drive system, large cutting areas, and customizable configurations. A versatile gantry platform for multi-process operations including plasma and oxyfuel cutting.
- Drive system
- Rack-and-pinion
- Cutting area
- Large format, customizable
- Cutting widths
- 6' to 16'
- Cutting lengths
- Up to 150'
Heavy-duty multi-process plate processing system
MPC2000
A heavy-duty workhorse plate processing system offering precision plasma, plasma beveling, oxyfuel, drilling (up to 2.5"), tapping, and markers, integrated on a single gantry. Ensures clean, precise cuts and holes with high accuracy. Featuring linear motion ways and reliable AC servo drives.
- Processes
- Precision plasma, plasma beveling, oxyfuel, drilling, tapping, markers
- Process heads
- 4
- Drilling capacity
- Up to 2.5" diameter
- Motion
- Linear motion ways
See everything we carry from Messer Cutting Systems.
Applications
Industries We Serve
Plasma systems are trusted across diverse industries and production environments.
FAQ
Plasma Questions
Answers to common questions about our plasma products.
A plasma cutting system uses a high-temperature, electrically ionized gas to cut through electrically conductive metals. It offers high cutting speeds and versatility across a wide range of materials and thicknesses.
ACM offers 9 Messer plasma platforms ranging from the compact MetalMaster 3.0 to the heavy-duty MPC2000 multi-process system. Options include entry-level, precision, large-format, and multi-process configurations.
Yes. Most Messer plasma platforms support multi-process configurations including oxyfuel, drilling, tapping, milling, and marking on the same gantry.
Yes. ACM provides full installation, commissioning, operator training, preventive maintenance, and emergency service from our Ontario base.
Plasma cutting handles mild steel, stainless steel, aluminum, and other conductive metals in a wide range of thicknesses depending on the power supply configuration.
Plasma is faster and more versatile on thin to medium materials and can cut non-ferrous metals. Oxyfuel excels on thick carbon steel with lower consumable costs. Many Messer platforms support both processes on the same machine.
Guides
Maintaining your Plasma
Written by the people who install and service these machines.
Buying a piece of equipment begins with properly understanding a problem
Nobody wants to buy a machine. They want to solve a problem. The specification you have written is your own diagnosis of that problem, and it is worth twenty minutes to check before you spend six figures.
Doug RobinsonPlasma cutting machine maintenance: what actually causes the service call
Most plasma service calls trace back to three preventable things. Here is what to check every morning, which grease to use, and the one part you should never grease at all.
Adam Bender
