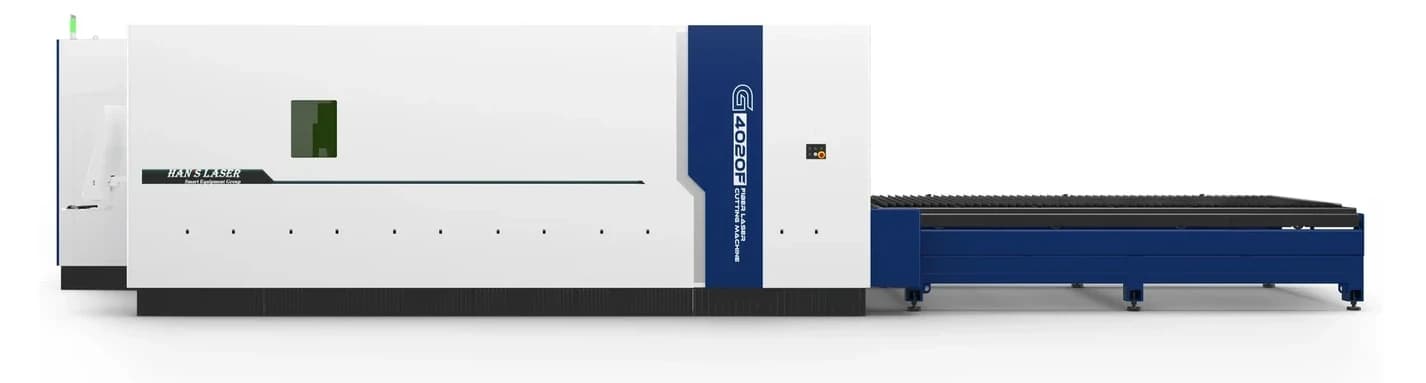

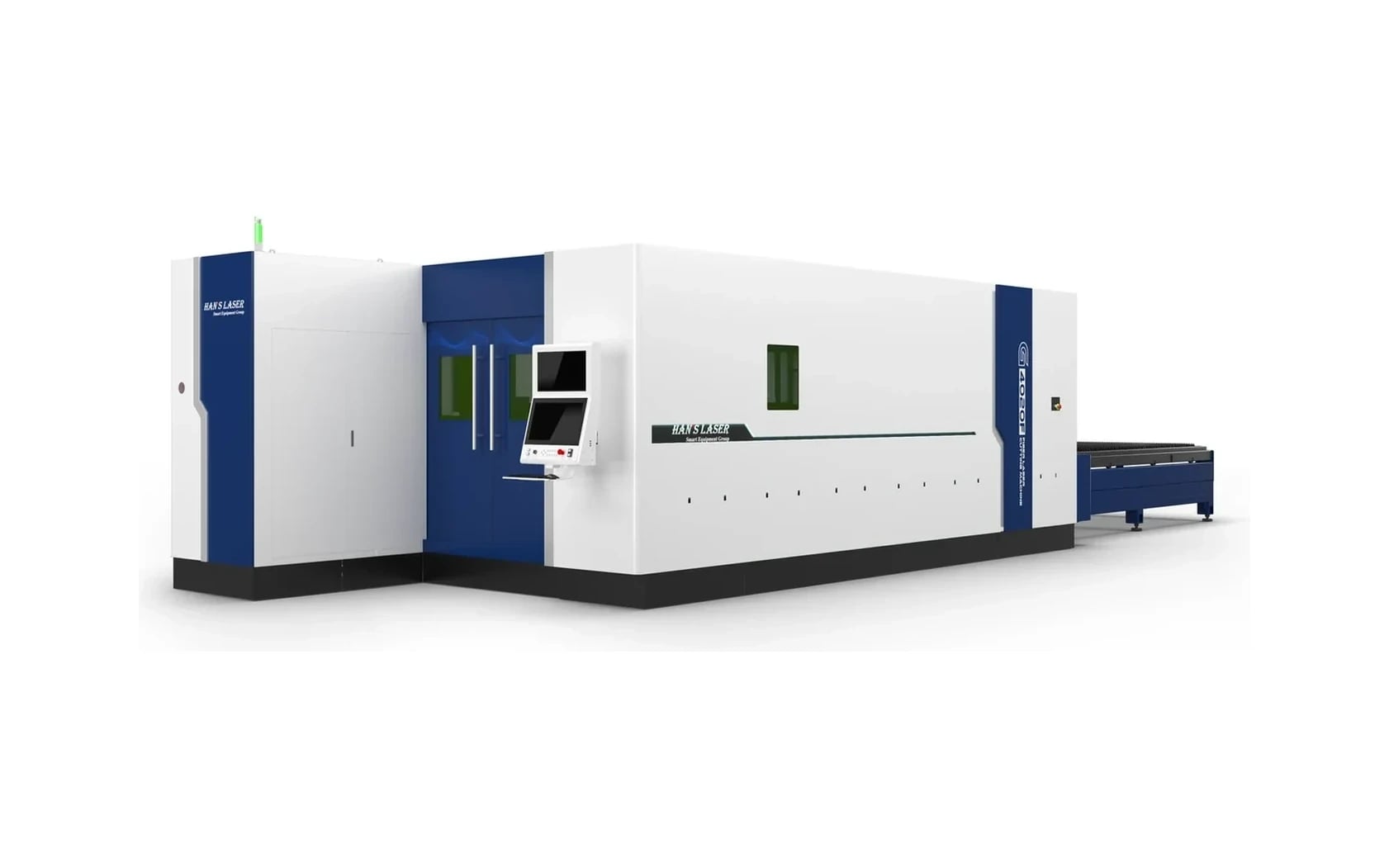

Fiber Laser
F Master - Maximum Performance
by Han's Laser
Six bed sizes to 12.2 m, 3kW to 60kW, 200 m/min positioning
G3015F, G4020F, G6020F, G6025F, G8025F and G12025F
Models
3kW, 6kW, 12kW, 20kW, 30kW, 40kW, 60kW
Available laser power
3,100 x 1,550 mm (5'x10') up to 12,200 x 2,550 mm (40'x8')
Working areas
Not sure if the F Master - Maximum Performance is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops that want one platform to cover thin sheet through heavy plate
- High-volume production where table switching drives throughput
- Fabricators running 20kW and above on medium and thick carbon steel
- Operations cutting long or oversize plate up to 12.2 m
- Stainless and aluminum work where surface finish matters
Models
G3015F, G4020F, G6020F, G6025F, G8025F and G12025F
Available laser power
3kW, 6kW, 12kW, 20kW, 30kW, 40kW, 60kW
Working areas
3,100 x 1,550 mm (5'x10') up to 12,200 x 2,550 mm (40'x8')
Max positioning speed
200 m/min
Key Features
F Master - Maximum Performance Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Han's 1201plus real-time controller with Rexroth servo motors and high-precision reducers
- Gantry-welded bed with cross-rib reinforcement, annealed and precision machined for long-term accuracy

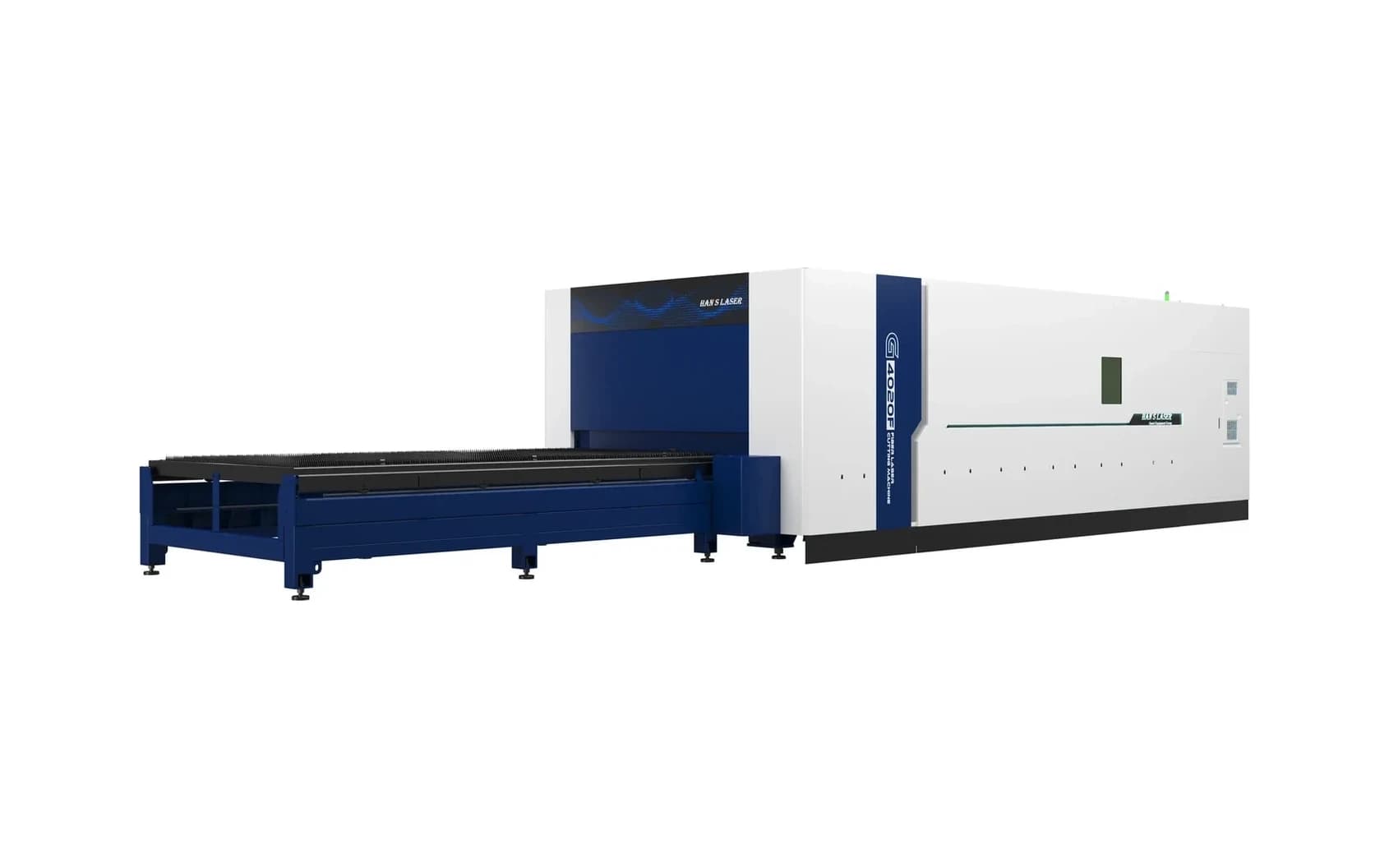

- Dual-motor heavy-duty worktables with rapid switching, and both tables can leave the cutting zone at once
- Fully automatic lubrication, gas pressure detection and high-precision filtration
Ease of Operation

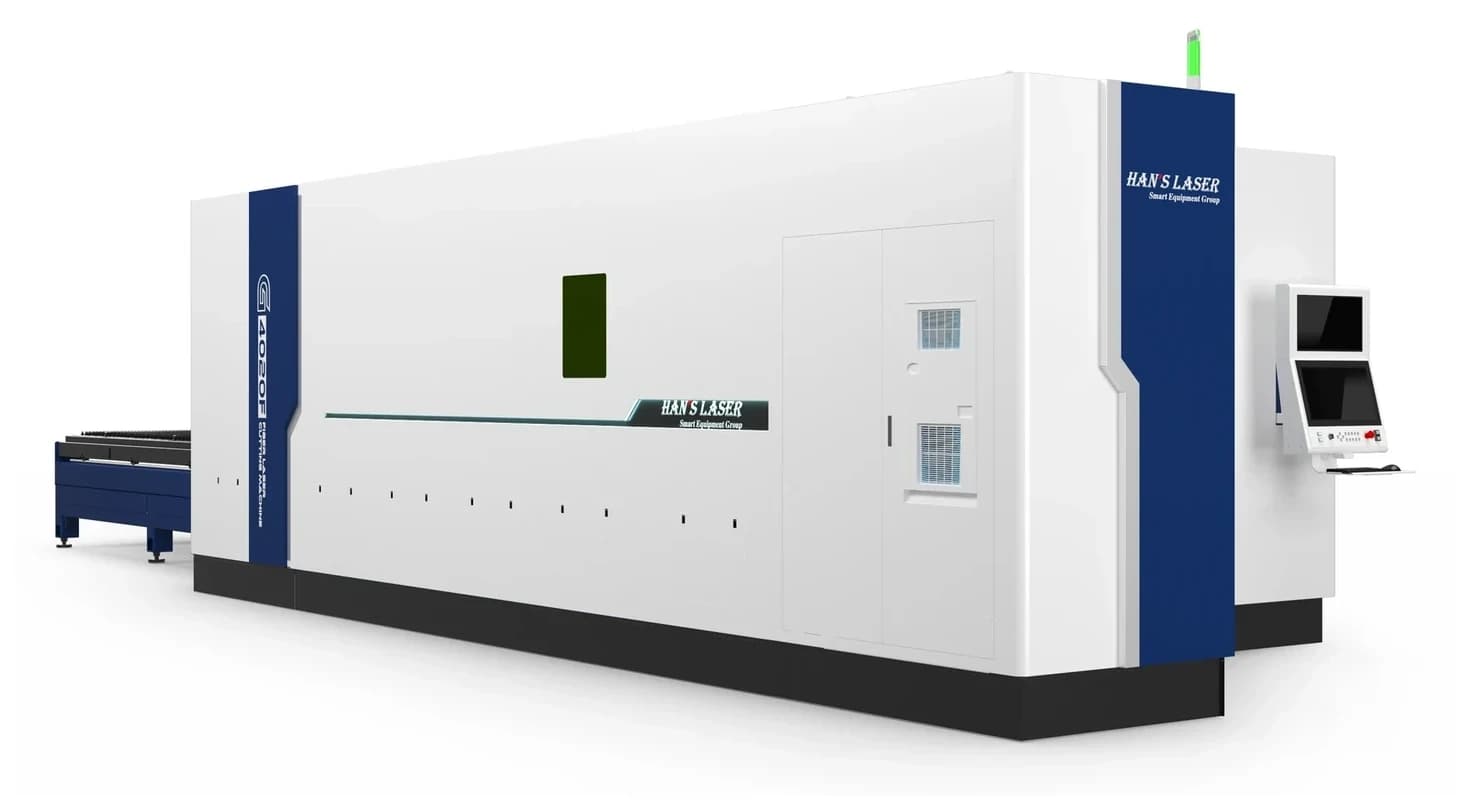

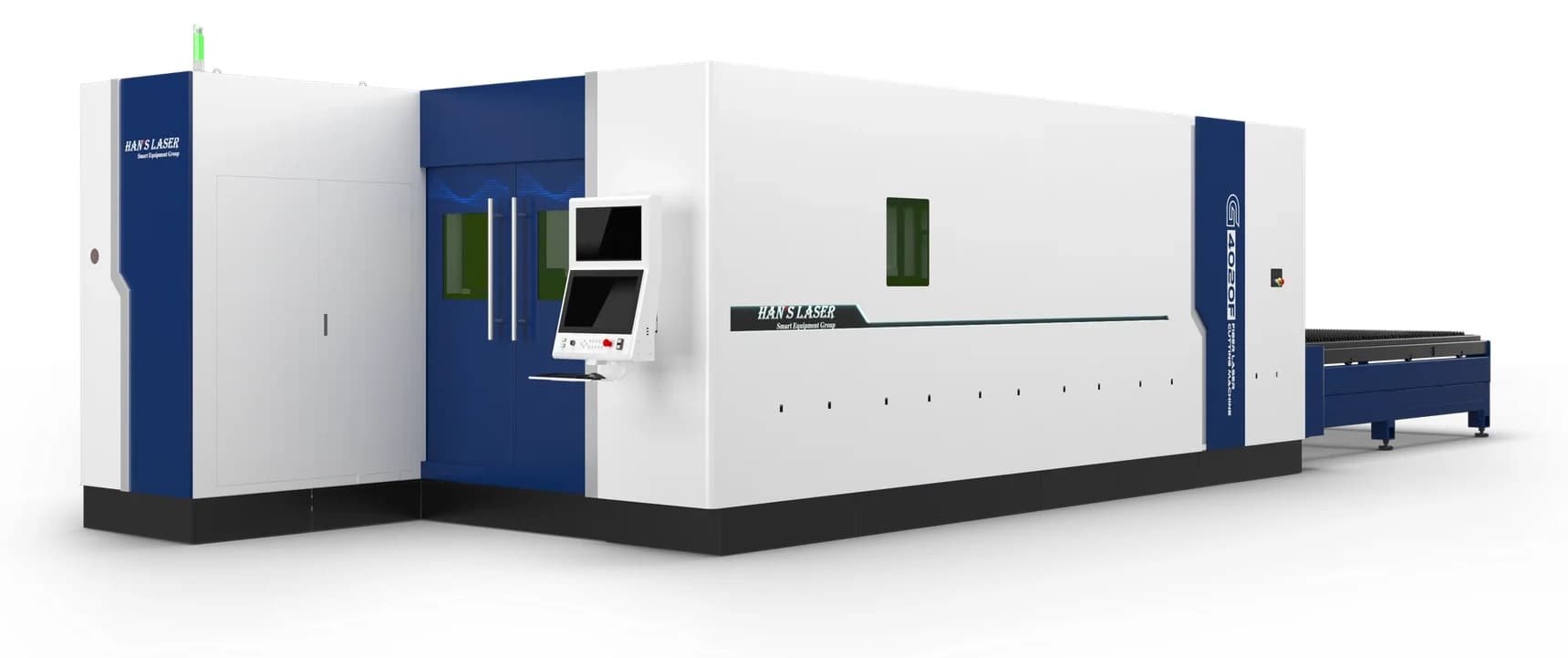

- Fully enclosed behind OD6+ laser glass with an automatic rising and falling safety door
- Visual human detection and safety light curtains with real-time monitoring, alarm and stop
- Electric ergonomic console adjustable for height and angle
- Han's 1201plus intelligent system with standalone MES, online CAM, quotation and a process database
Built-In Extras

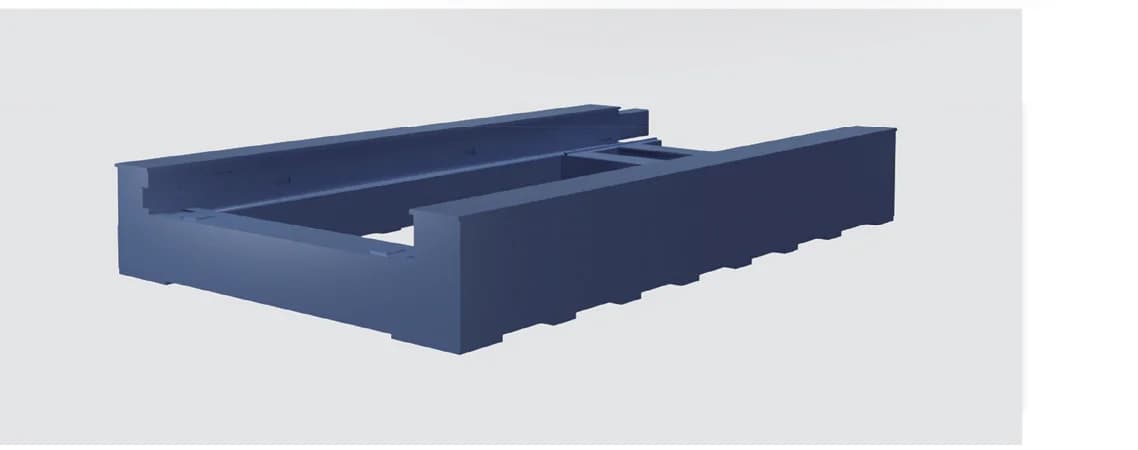

- Hollow-structure machine bed rated for ultra-high power up to 60kW
- Zoned dust extraction that distributes air volume by processing zone
- Extruded aluminum gantry on an optimised frame for high dynamic performance
Gallery
F Master - Maximum Performance in Detail
Video
See the F Master - Maximum Performance in Action
Full Specifications
Han's F Master Technical Details
Complete specifications, standard features, and optional upgrades.
- Models
- G3015F, G4020F, G6020F, G6025F, G8025F and G12025F
- Available laser power
- 3kW, 6kW, 12kW, 20kW, 30kW, 40kW, 60kW
- Working areas
- 3,100 x 1,550 mm (5'x10') up to 12,200 x 2,550 mm (40'x8')
- Max positioning speed
- 200 m/min
- Max acceleration
- 3.5G on the G3015F, 3G on the G4020F and G6020F, 2.5G on larger beds
- Accuracy
- +/- 0.03 mm/m
- Repeatability
- +/- 0.02 mm
- Max sheet weight
- 2,200 kg to 15,300 kg per table (model dependent) for up to 2.25" thick material
- Controller
- Han's 1201plus real-time controller with Rexroth motors
- Enclosure
- Fully enclosed with OD6+ laser glass and automatic rising/falling safety door
- Bed design
- Hollow structure supporting up to 60kW
| Models | G3015F, G4020F, G6020F, G6025F, G8025F and G12025F |
| Available laser power | 3kW, 6kW, 12kW, 20kW, 30kW, 40kW, 60kW |
| Working areas | 3,100 x 1,550 mm (5'x10') up to 12,200 x 2,550 mm (40'x8') |
| Max positioning speed | 200 m/min |
| Max acceleration | 3.5G on the G3015F, 3G on the G4020F and G6020F, 2.5G on larger beds |
| Accuracy | +/- 0.03 mm/m |
| Repeatability | +/- 0.02 mm |
| Max sheet weight | 2,200 kg to 15,300 kg per table (model dependent) for up to 2.25" thick material |
| Controller | Han's 1201plus real-time controller with Rexroth motors |
| Enclosure | Fully enclosed with OD6+ laser glass and automatic rising/falling safety door |
| Bed design | Hollow structure supporting up to 60kW |
- Fully enclosed behind OD6+ laser glass with an automatic rising and falling safety door
- Visual human detection and safety light curtains with real-time monitoring, alarm and stop
- Extruded aluminum gantry on an optimised frame for high dynamic performance
- Han's 1201plus real-time controller with Rexroth servo motors and high-precision reducers
- Hollow-structure machine bed rated for ultra-high power up to 60kW
- Gantry-welded bed with cross-rib reinforcement, annealed and precision machined for long-term accuracy
- Dual-motor heavy-duty worktables with rapid switching, and both tables can leave the cutting zone at once
- Zoned dust extraction that distributes air volume by processing zone
- Electric ergonomic console adjustable for height and angle
- Fully automatic lubrication, gas pressure detection and high-precision filtration
- Han's 1201plus intelligent system with standalone MES, online CAM, quotation and a process database
- Lifting worktable
- Bevel cutting
- Automatic nozzle centring
- Scratch-resistant loading

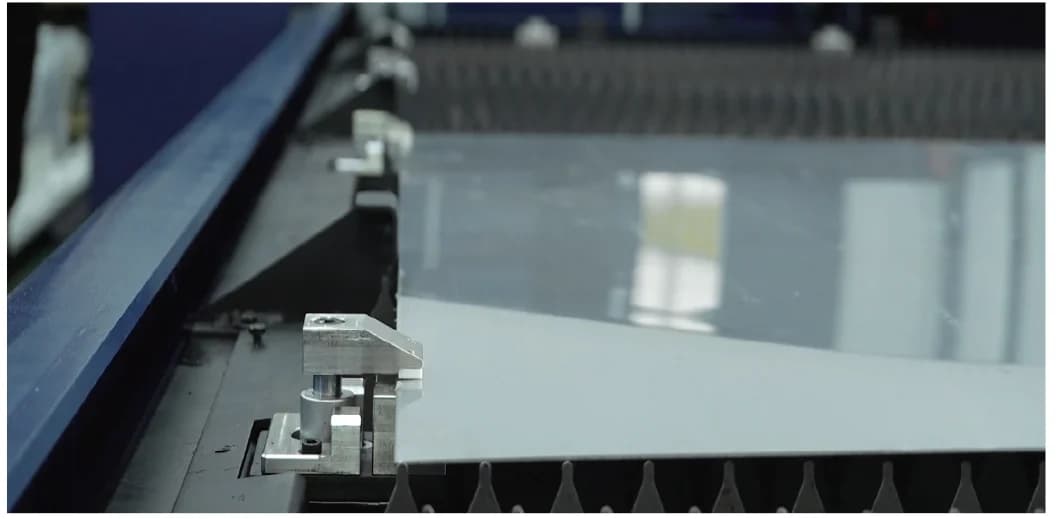

- Pneumatic clamping
- Automation, from tower storage and load/unload through to full production cells
- High-volume sheet and plate cutting for general fabrication
- Thick carbon steel processing at 20kW and above
- Stainless steel and aluminum plate where scratch-free handling matters
- Long-format plate cutting on the 8.2 m and 12.2 m beds
- Shipbuilding and heavy industrial plate processing
FAQ
F Master - Maximum Performance Questions
Answers to common questions about the F Master - Maximum Performance.
From 3kW up to 60kW. The hollow-structure bed is built for the whole range, so the same platform handles thin sheet at the low end and heavy plate at the top without thermal deformation.
Six. 3,100 x 1,550 mm (G3015F), 4,100 x 2,050 mm (G4020F), 6,100 x 2,050 mm (G6020F), 6,100 x 2,550 mm (G6025F), 8,200 x 2,550 mm (G8025F) and 12,200 x 2,550 mm (G12025F).
Positioning speed is 200 m/min across every model. Acceleration is 3.5G on the G3015F, 3G on the G4020F and G6020F, and 2.5G on the larger beds.
