AC Machinery

Sheet & Plate Fiber Laser

S PRO A/G - Large Format Gantry Laser

by Han's Laser

Linear rail gantry laser, up to 60kW, cutting areas to 30m x 4m

G6025, G8025, G13025, G26025, G30025

Models

12kW, 20kW, 30kW, 40kW, 60kW

Available laser power

2,600 mm (options: 3 m, 3.5 m, 4 m)

Working area (width)

Financing Available
S PRO A/G - Large Format Gantry Laser

Not sure if the S PRO A/G - Large Format Gantry Laser is right for your application?

Our AI can help you compare machines, find parts, and explore your options.

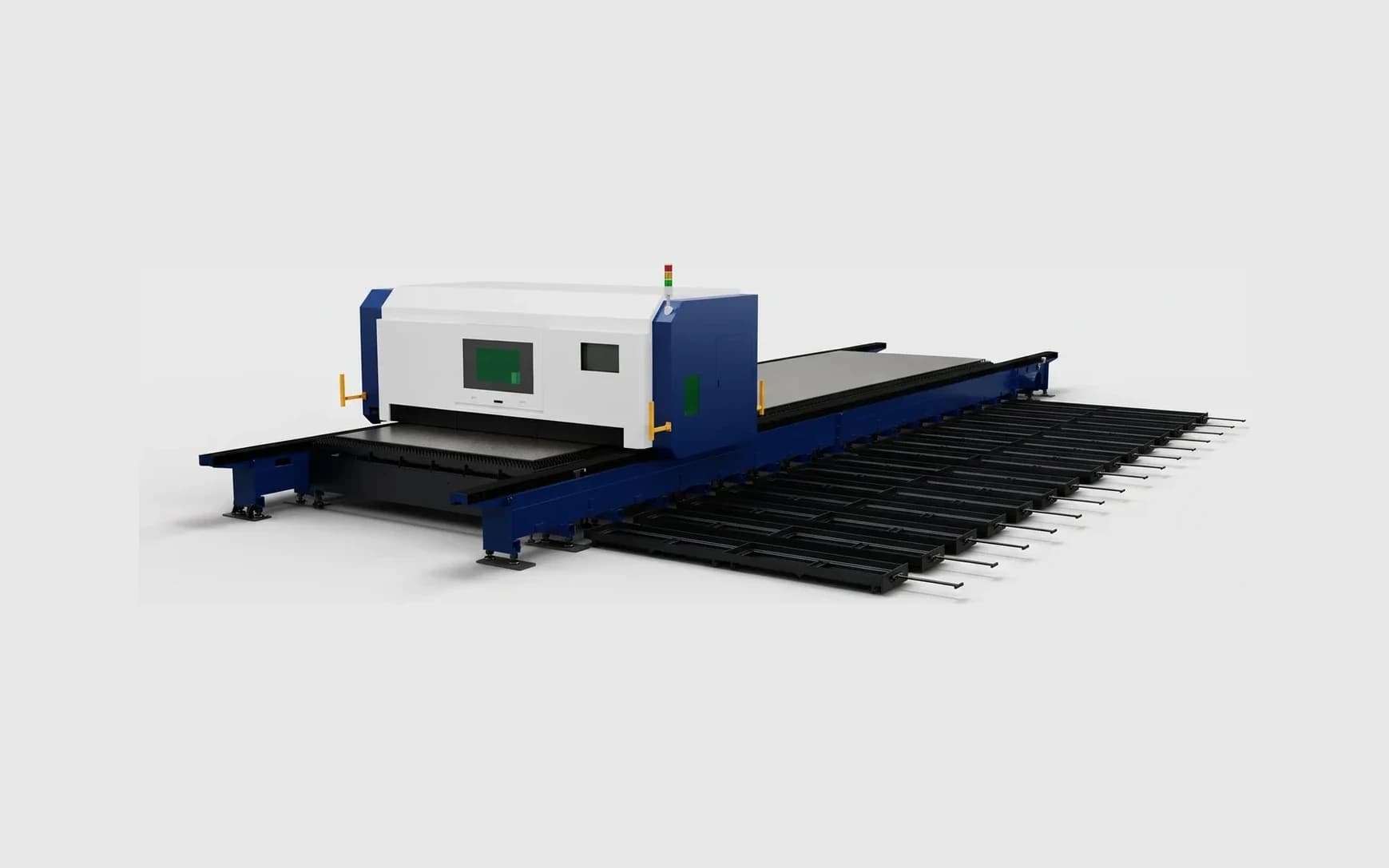

S PRO A/G - Large Format Gantry Laser — detail view

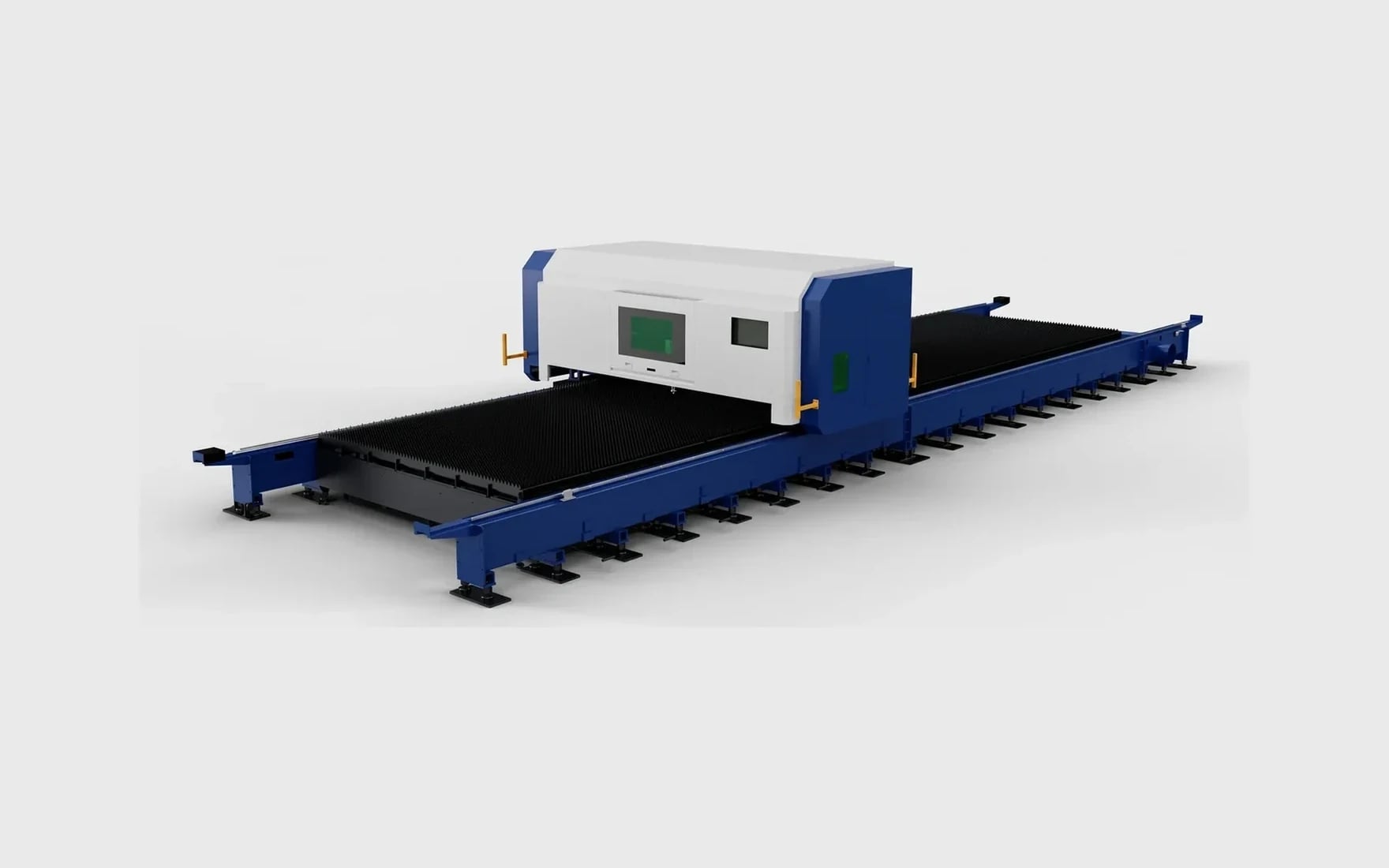

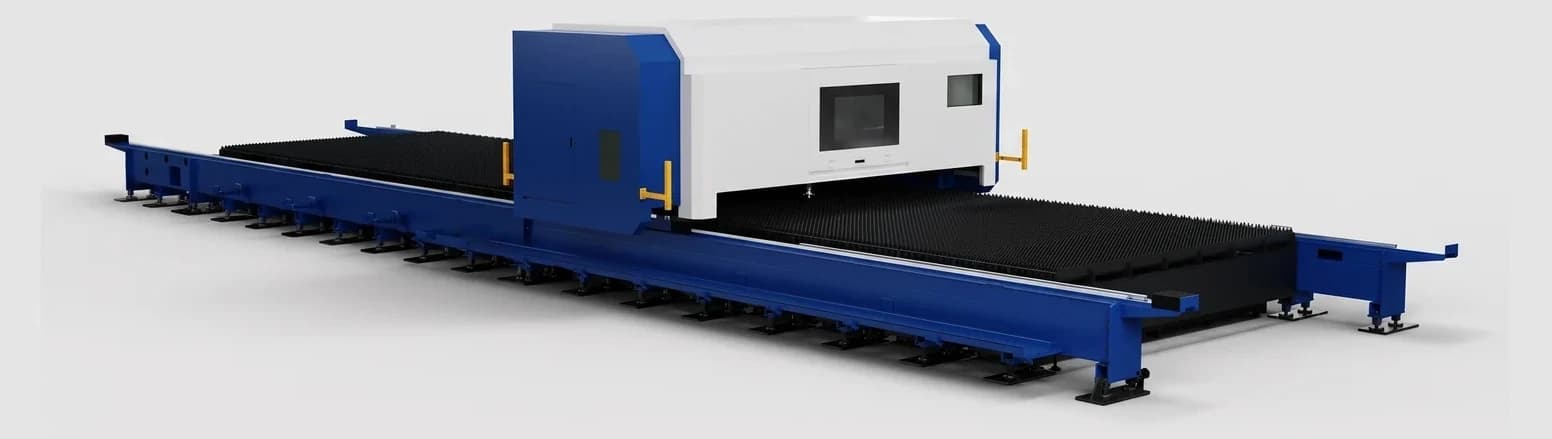

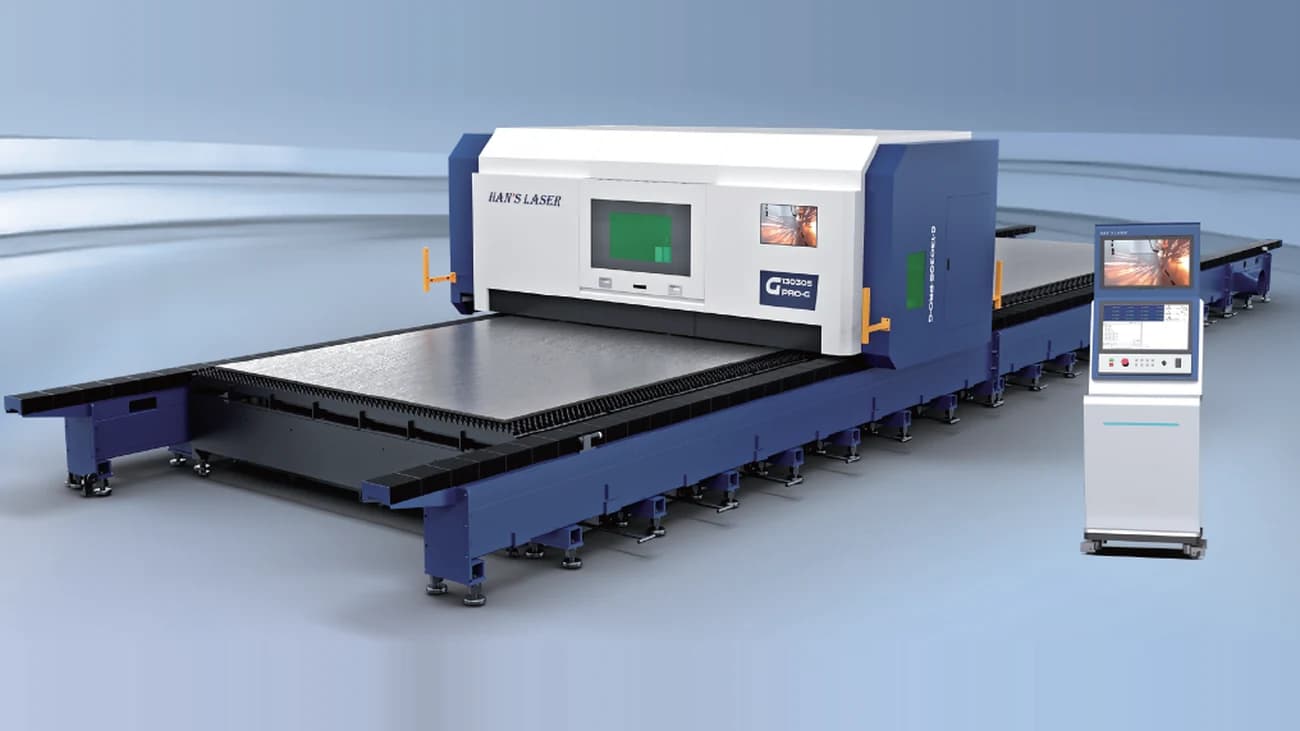

Large format, high power gantry fiber laser cutting system

The S PRO-A/G is a large-format linear rail fiber laser cutting system built for heavy plate processing at 10kW and above. Available in cutting widths up to 4 metres and lengths up to 30 metres, it delivers stable thick-plate cutting with a modular bed design that simplifies shipping and installation. G-series models include an integrated bevel cutting head for weld preparation.

Ideal For

  • Facilities processing oversized plate up to 30 metres long and 4 metres wide
  • Heavy industry operations needing stable thick-plate cutting at 10kW to 60kW
  • Shipyards and steel structure fabricators requiring bevel cutting capability
  • Operations seeking modular equipment that ships and installs efficiently

Models

G6025, G8025, G13025, G26025, G30025

Available laser power

12kW, 20kW, 30kW, 40kW, 60kW

Working area (width)

2,600 mm (options: 3 m, 3.5 m, 4 m)

Working area (length)

6.1 m to 30.1 m (extendable)

Key Features

S PRO A/G - Large Format Gantry Laser Features

Standard features that set this machine apart in demanding manufacturing environments.

Precision & Performance

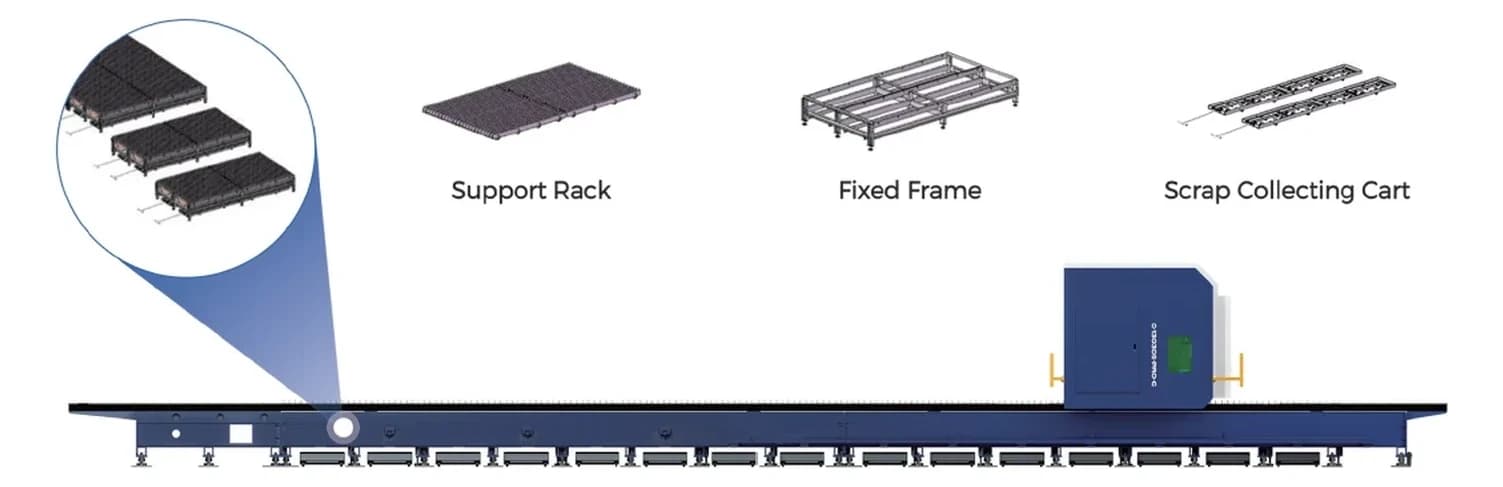

  • Modular linear rail bed with segmented design for easy maintenance and long service life
  • Extruded aluminum beam optimised by finite element analysis for high rigidity at reduced weight
  • Bed and workbench designed separately to avoid thermal deformation during cutting
  • Adaptive telescopic beam-to-pallet connection for long-term cutting stability

Ease of Operation

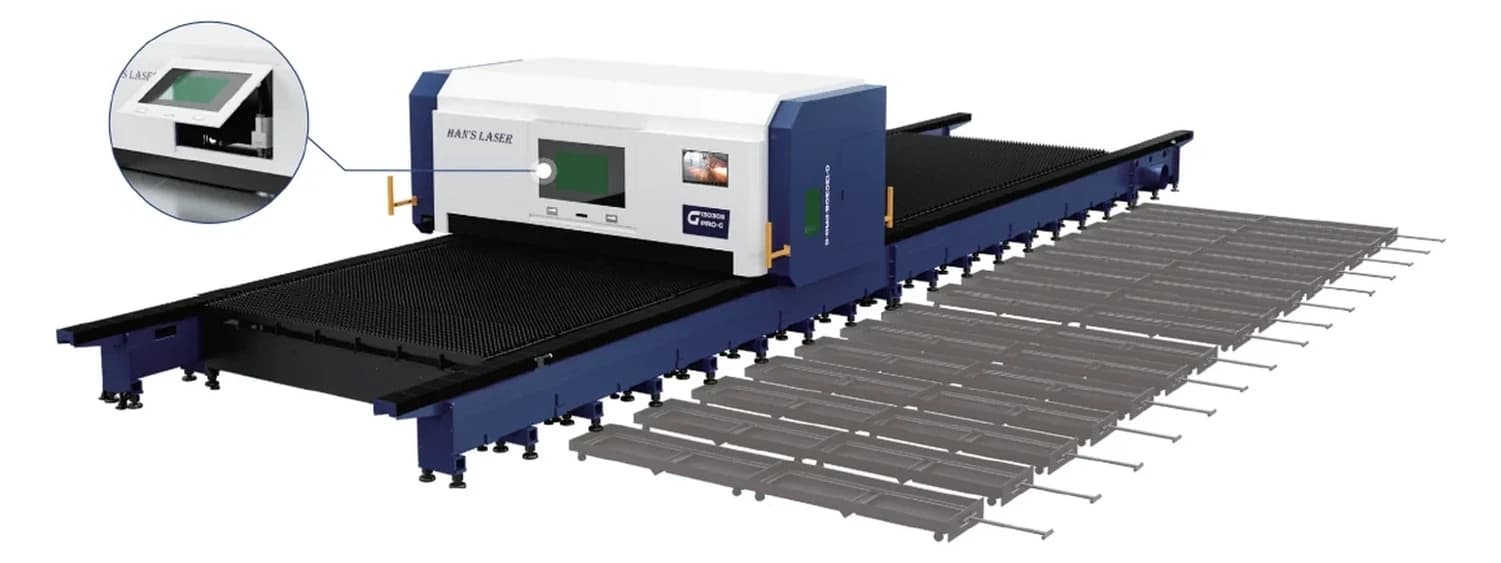

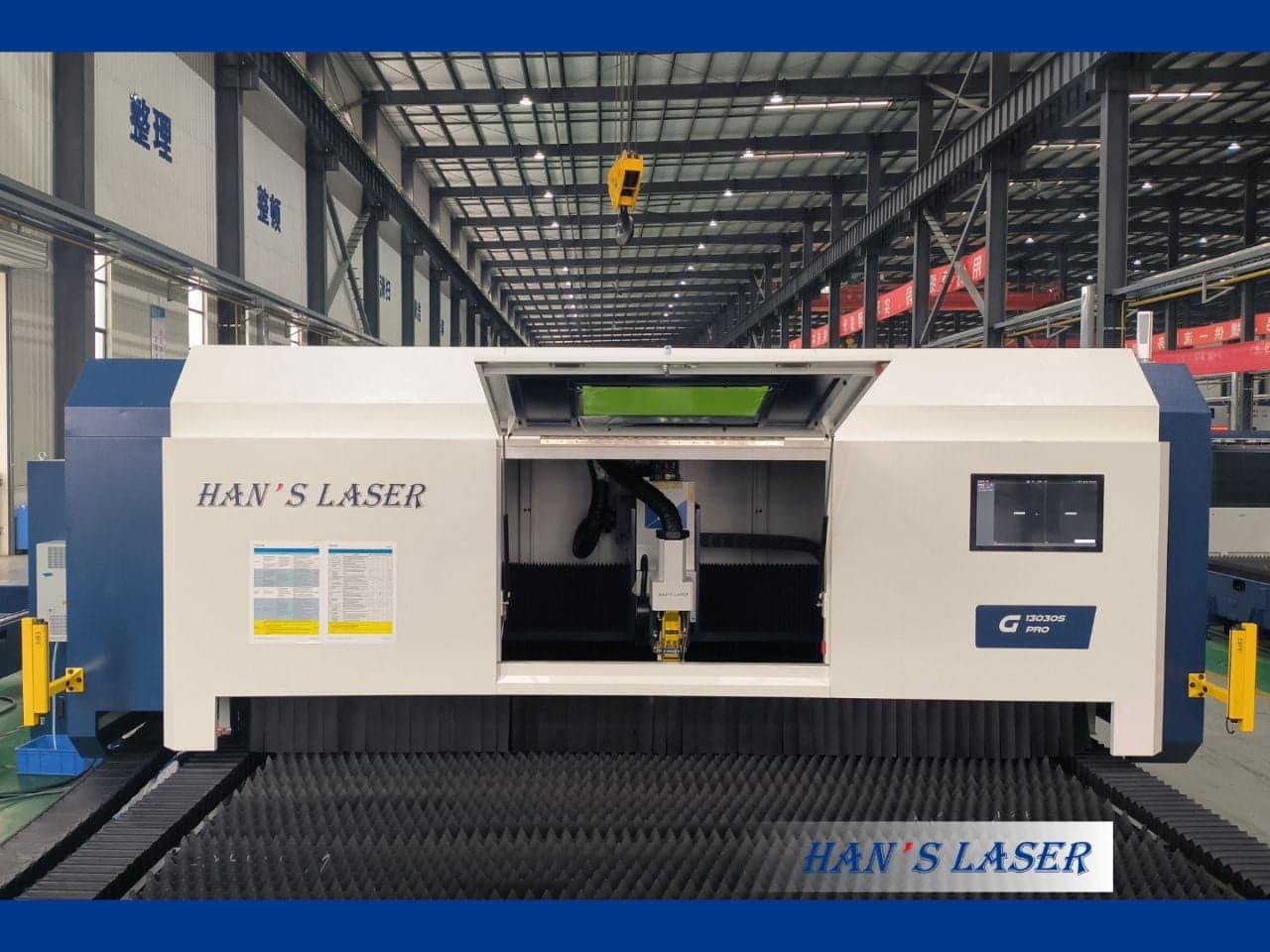

  • Gantry cover with OD 5+ laser glass windows for operator eye and skin protection

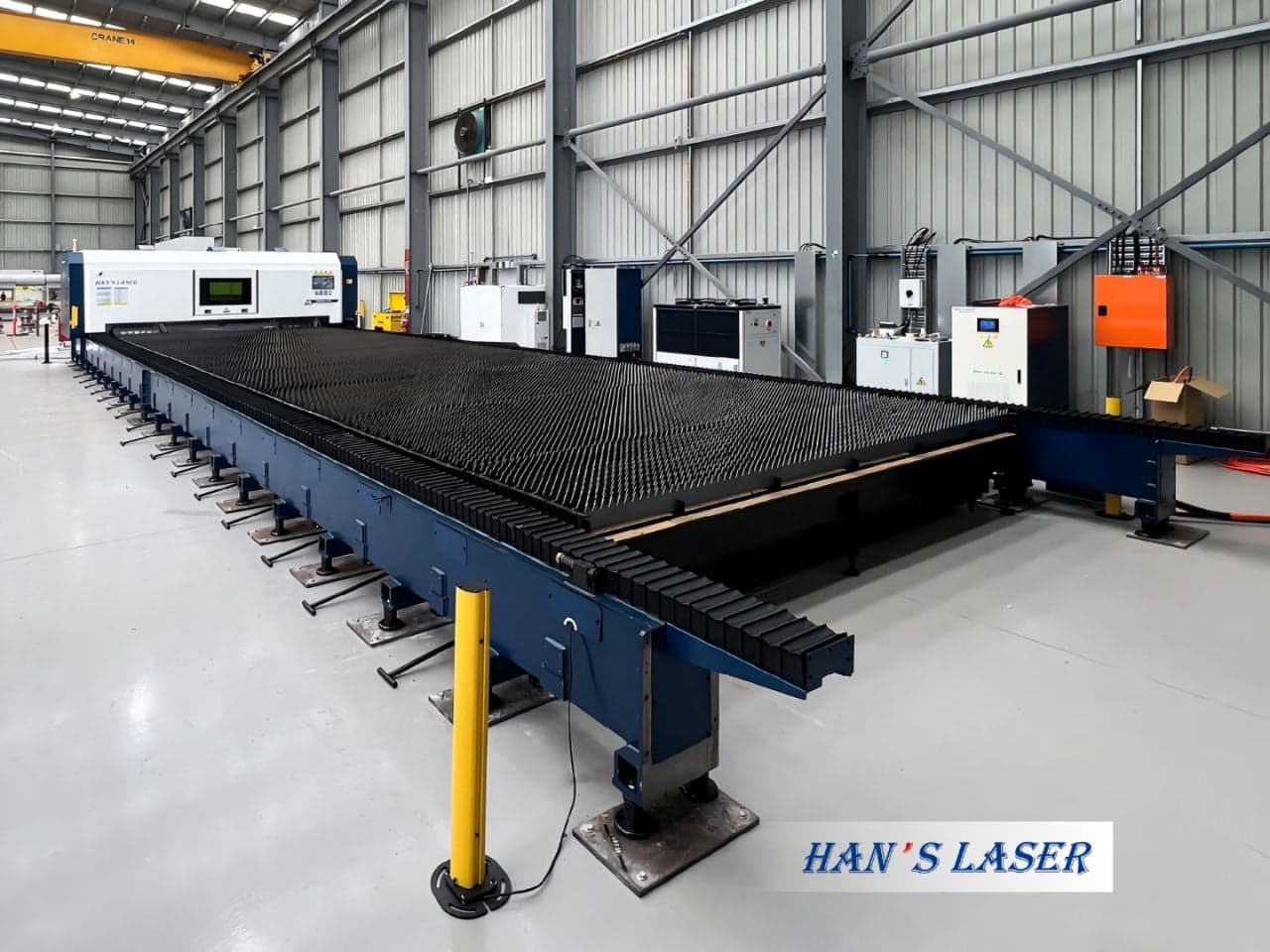

  • Spliced bed ships in standard containers for efficient overseas transportation and on-site installation
  • Independent unit workbench with separate foot supports, easy to disassemble and maintain

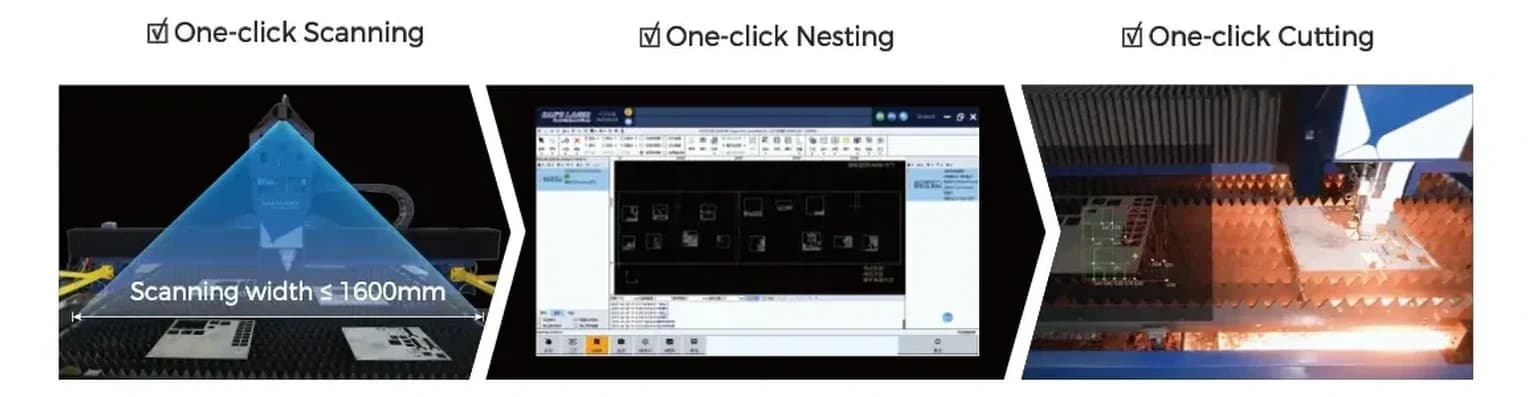

  • Intelligent remnant sheet processing with automated vision inspection and contour recognition
  • Operator console with monitor screen for real-time cutting process viewing
  • 32-key handheld control box for simplified operating procedures

Video

See the S PRO A/G - Large Format Gantry Laser in Action

Full Specifications

Han's S PRO-A/G Technical Details

Complete specifications, standard features, and optional upgrades.

Models
G6025, G8025, G13025, G26025, G30025
Available laser power
12kW, 20kW, 30kW, 40kW, 60kW
Working area (width)
2,600 mm (options: 3 m, 3.5 m, 4 m)
Working area (length)
6.1 m to 30.1 m (extendable)
Max positioning speed
80 m/min
Precision
0.05 mm/m
Repeatability
0.03 mm/m
Max sheet weight
7,200 kg to 36,000 kg (model dependent)
Bevel cutting
Available on G-series models (self-developed swinging head)
Bed design
Modular spliced bed (fits standard shipping containers)
Beam construction
Extruded aluminum with finite element optimised inner cavity
Workbench
Independent unit design, separated from bed to prevent thermal deformation
  • Modular linear rail bed with segmented design for easy maintenance and long service life
  • Extruded aluminum beam optimised by finite element analysis for high rigidity at reduced weight
  • Bed and workbench designed separately to avoid thermal deformation during cutting
  • Gantry cover with OD 5+ laser glass windows for operator eye and skin protection
  • Spliced bed ships in standard containers for efficient overseas transportation and on-site installation
  • Independent unit workbench with separate foot supports, easy to disassemble and maintain
  • Adaptive telescopic beam-to-pallet connection for long-term cutting stability
  • Intelligent remnant sheet processing with automated vision inspection and contour recognition
  • Operator console with monitor screen for real-time cutting process viewing
  • 32-key handheld control box for simplified operating procedures
  • Full machine enclosure (upgrade from standard gantry cover)

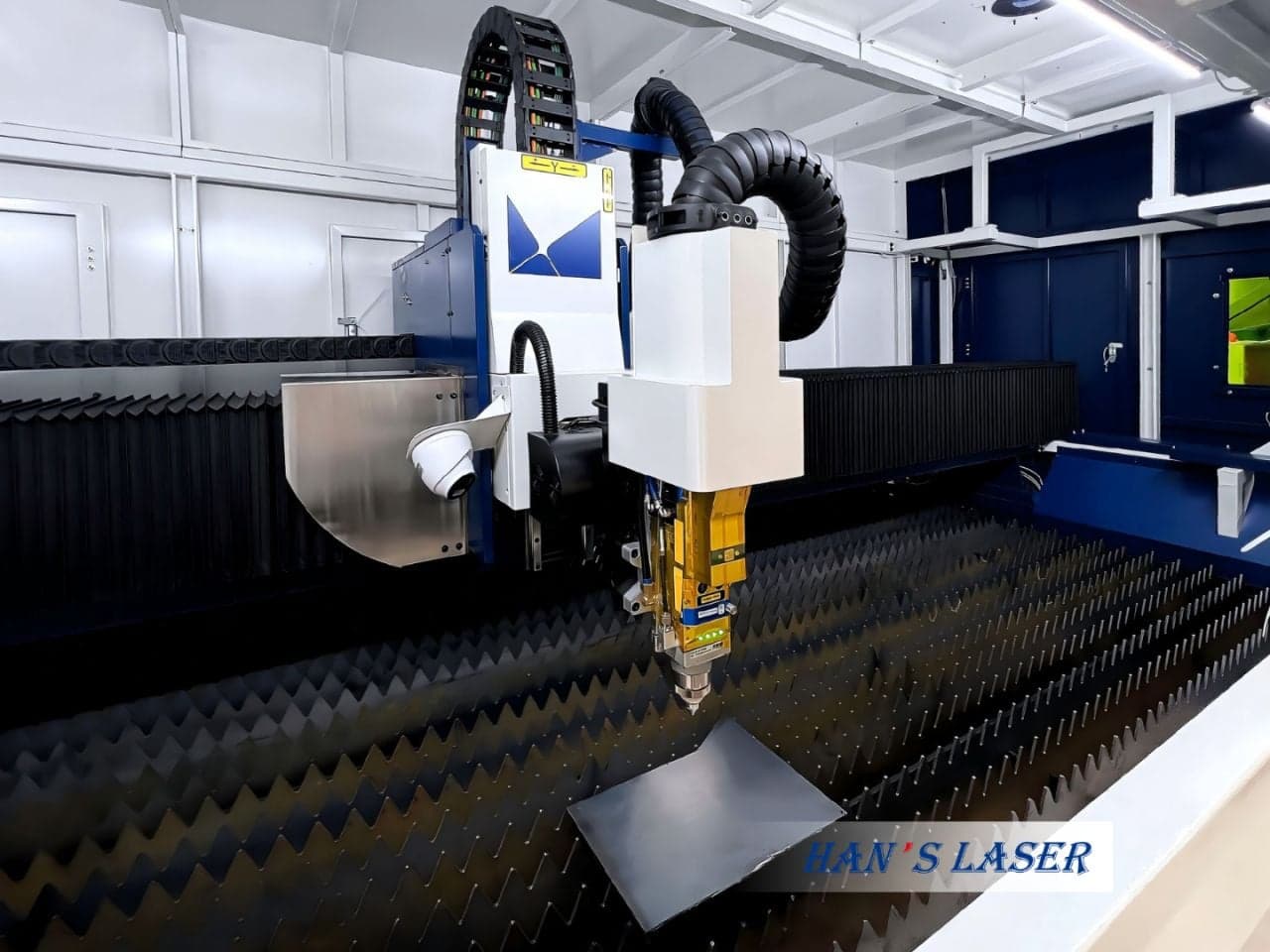

  • Bevel cutting head with follower, compensation, and automatic vertical detection algorithms (G models)
  • Extended bed lengths beyond 30 metres for special applications
  • Width options: 3 m, 3.5 m, or 4 m configurations
  • Steel structure fabrication requiring large-format plate cutting
  • Shipbuilding and heavy industry plate processing
  • Wind energy, oil and gas, and infrastructure plate work
  • Thick plate cutting at 10kW and above for industrial automation
  • Large-format bevel cutting for weld preparation on structural steel

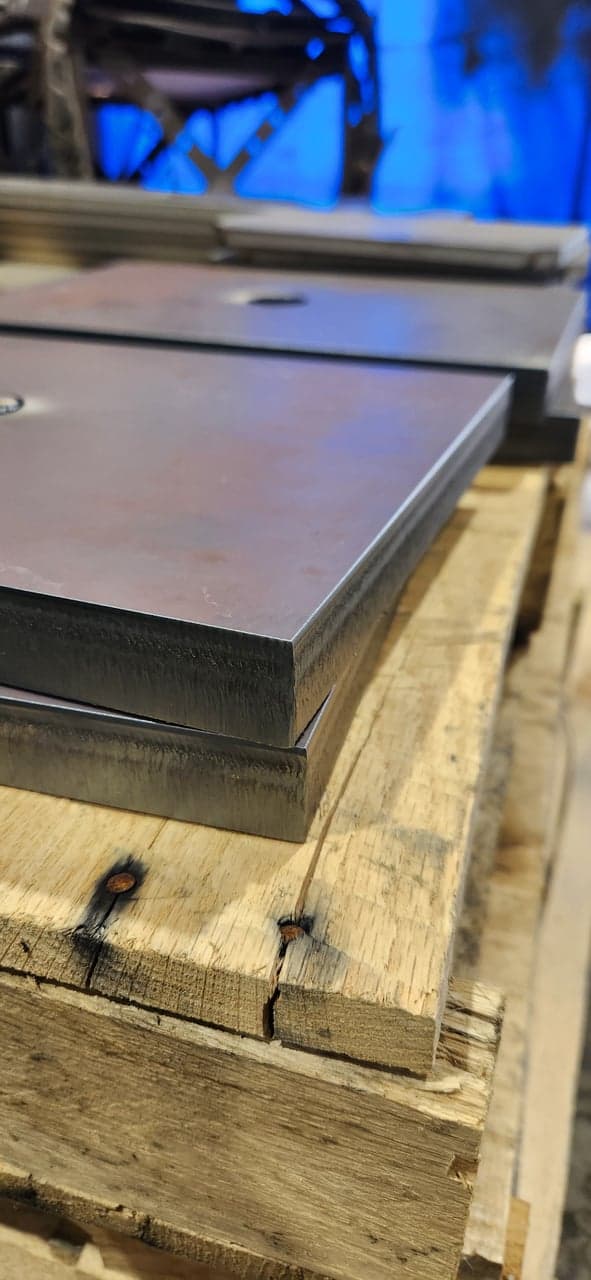

How thick can each laser power cut, and how well?

From AC Machinery's own fiber laser cut quality guide. In each cell, the first figure is the thickest plate the laser cuts at quality (a glossy or quality edge with oxygen; burr free or minor burr with nitrogen), and the second is the production cutting limit. Where the guide rates it, thicker plate can be cut up to a maximum capacity, more slowly.

Chart: for each fiber laser power, the thickest mild steel cut at quality with oxygen and the production cutting limit.

Charts show wattages available for a series of models

12 kW1" · 1-1/2"3/8" · 1/2"1" · 1-3/8"1" · 1-3/8"
20 kW1-3/8" · 2"5/8" · 13/16"1-1/4" · 2"1-1/4" · 1-1/2"
30 kW1-1/2" · 2-3/8"13/16" · 1"1-1/2" · 2-3/8"1-1/2" · 2-3/8"
40 kW2" · 2-3/4"1-3/8" · 1-1/2"2" · 2-3/4"2" · 2-3/4"
60 kW2-3/8" · 3-1/8"1-3/8" · 2"2-3/8" · 3-1/8"2-3/8" · 3-1/8"

Above 13/16" in mild steel with oxygen, laser-grade plate is needed for a quality cut. These figures are for optimal conditions and may differ in your shop: clean plate free of rust and paint, a clean focus lens, and assist gas at 99.95% oxygen or 99.99% nitrogen. Treat this as a general guide; we confirm speeds and edge quality for your material before you buy. Gauges are Manufacturers' Standard for sheet steel.

Ask us about your material and thickness

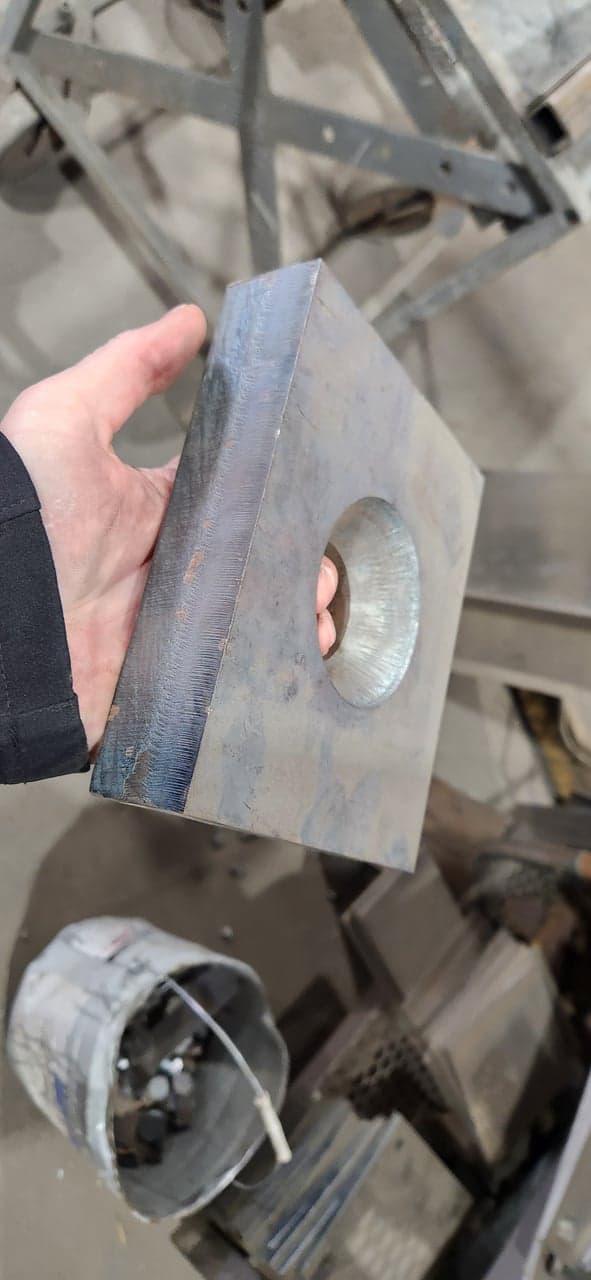

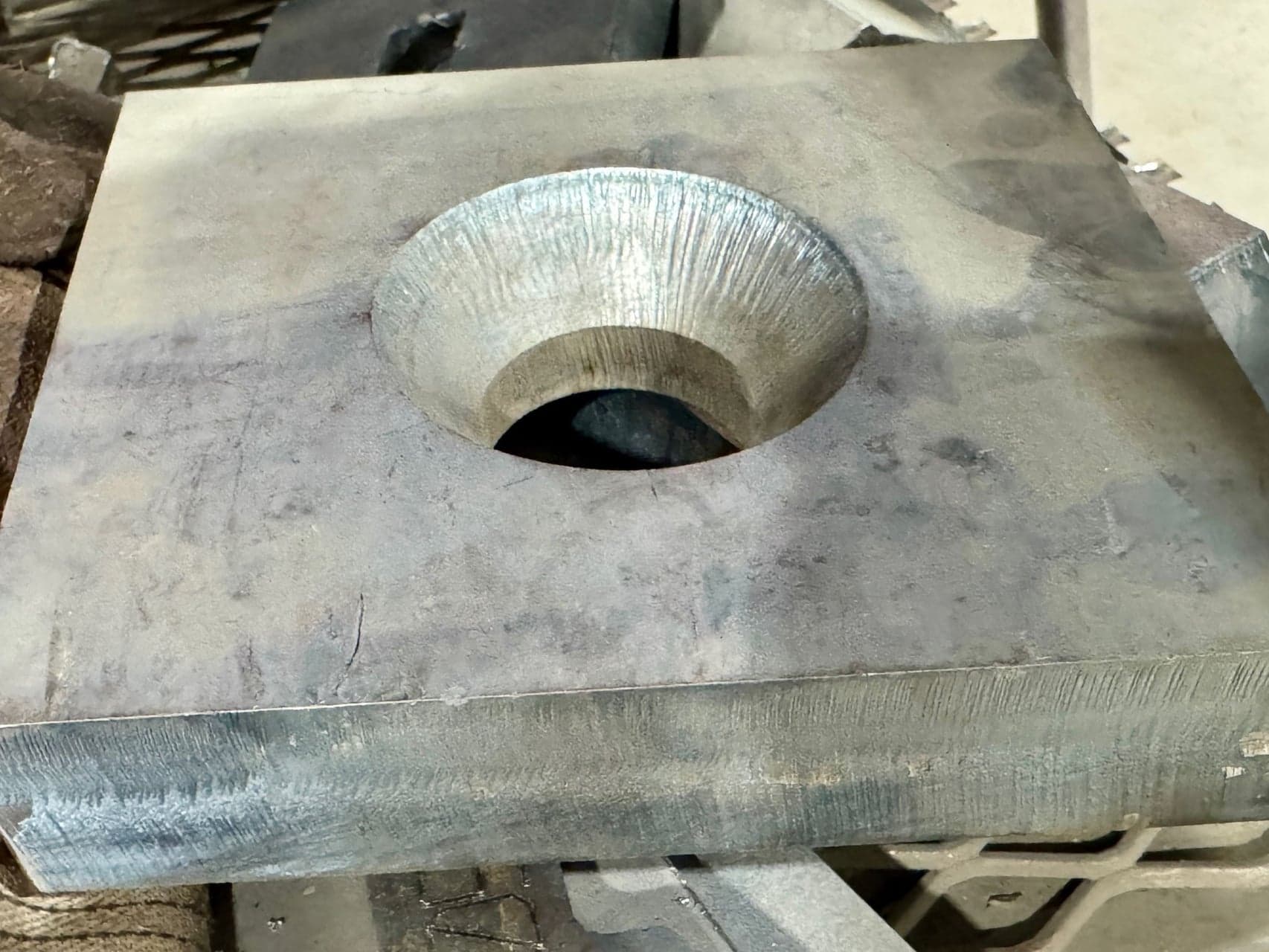

S PRO only: bevel cutting

The S PRO cuts bevels at 30° and 45° as well as straight edges, from 4 mm (5/32") in mild steel and 5 mm (3/16") in stainless steel. The thickest bevel rises with power: at 40 kW and 60 kW it bevels mild steel up to 60 mm (2-3/8") and stainless steel up to 50 mm (2"), with 70 mm (2-3/4") stainless at 30° for small batches and sampling only. Ask us about your power and thickness. (Source: ACM's S PRO bevel cut speed charts, from the manufacturer's bevel cutting tables, factory test data for reference only.)

Warranty: 2 years parts and labour on the whole machine, including travel. What our warranty covers

FAQ

S PRO A/G - Large Format Gantry Laser Questions

Answers to common questions about the S PRO A/G - Large Format Gantry Laser.

The S PRO-A/G is available with 12kW, 20kW, 30kW, 40kW, and 60kW fiber laser sources, making it suitable for a wide range of thick-plate cutting applications.

The largest standard model (G30025) offers a 30.1 m x 2.6 m working area. Width options of 3 m, 3.5 m, and 4 m are available, and bed length can be extended beyond 30 metres.

Yes. G-series models include Han's self-developed swinging head with bevel follower, compensation, and automatic vertical detection algorithms for weld preparation cuts.

Ready to Discuss the S PRO A/G - Large Format Gantry Laser?

Our team has 19+ years of experience helping Canadian manufacturers find the right cutting and processing equipment.

19+

Years in Business

50+

Machine Models

900+

Happy Customers

Call 905-581-1191
Ext 1: SalesExt 2: ServiceExt 3: Parts & Consumables

Request a Quote

Tell us about your application and we'll recommend the right configuration for your operation.

Financing Available

Flexible payment options on qualifying equipment.

Or email us at [email protected]

Related

Explore More Sheet & Plate Fiber Laser Systems

Compare specifications and find the right machine for your application.

Financing

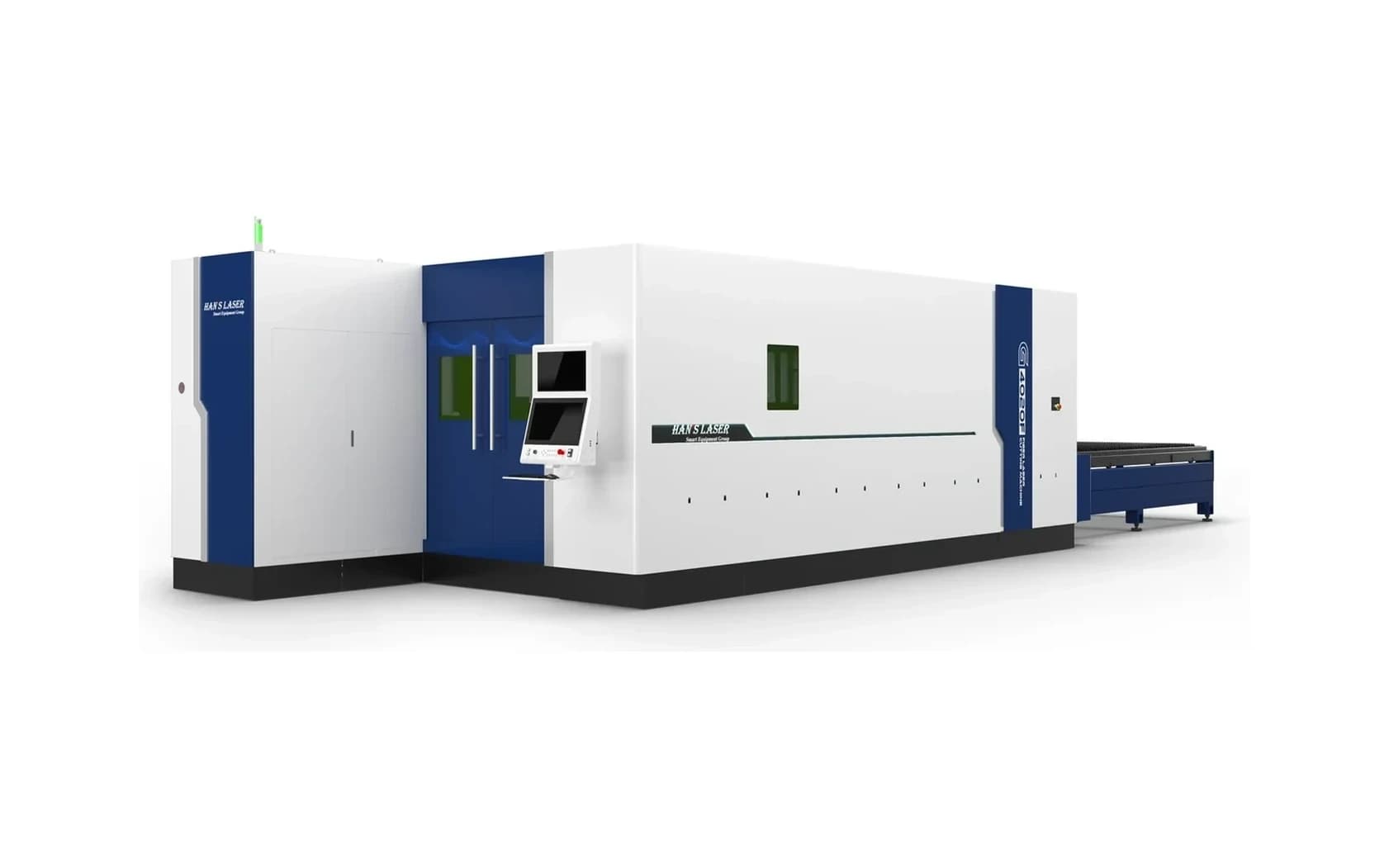

F Master - Maximum Performance

Fiber laser cutting system for Maximum performance

F Master - Maximum Performance

The F Master is the top of Han's enclosed fiber laser range and the machine we point at shops that want one platform to cover thin sheet through heavy plate. Six bed sizes run from 3,100 x 1,550 mm up to 12,200 x 2,550 mm, with laser power from 3kW to 60kW. A hollow-structure bed carries the full power range without thermal deformation, and an extruded aluminum gantry driven by the Han's 1201plus controller and Rexroth motors holds +/- 0.03 mm/m accuracy at 200 m/min positioning. The machine is fully enclosed behind OD6+ laser glass with an automatic rising and falling safety door.

View Details
Financing
J Series - Precise and Flexible

Precise and flexible fiber laser cutting system with exchange table

J Series - Precise and Flexible

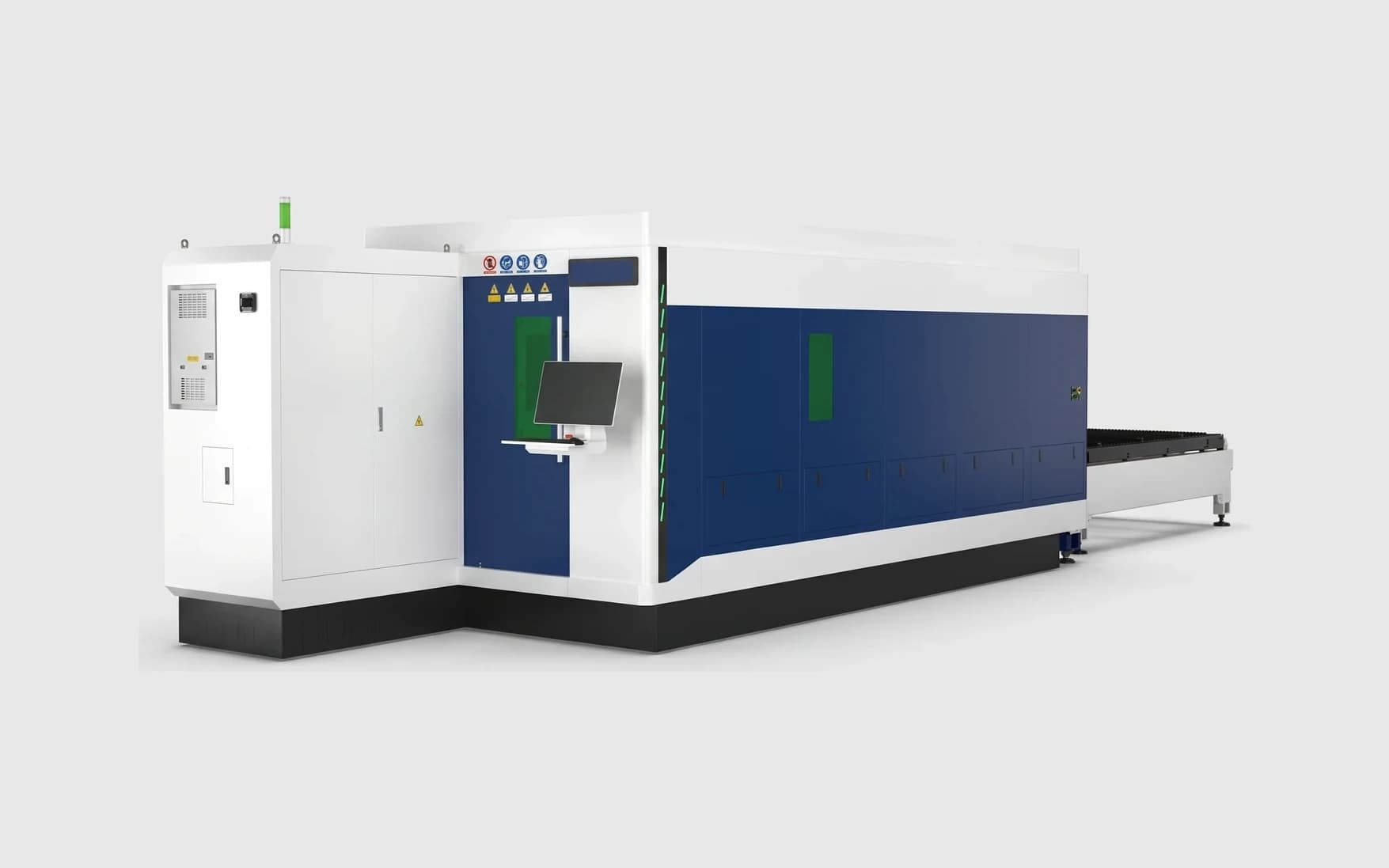

The J Series is an easy to use fiber laser cutting system featuring a double exchange workbench and gantry dual-drive structure. Available in multiple wattages and configurations the J Series has the flexibility to meet most any high production application. Its carbon steel welded bed with heat treatment delivers reliable dimensional accuracy, while the integrated cabinet design fits inside a single 40HQ shipping container for efficient delivery and installation.
