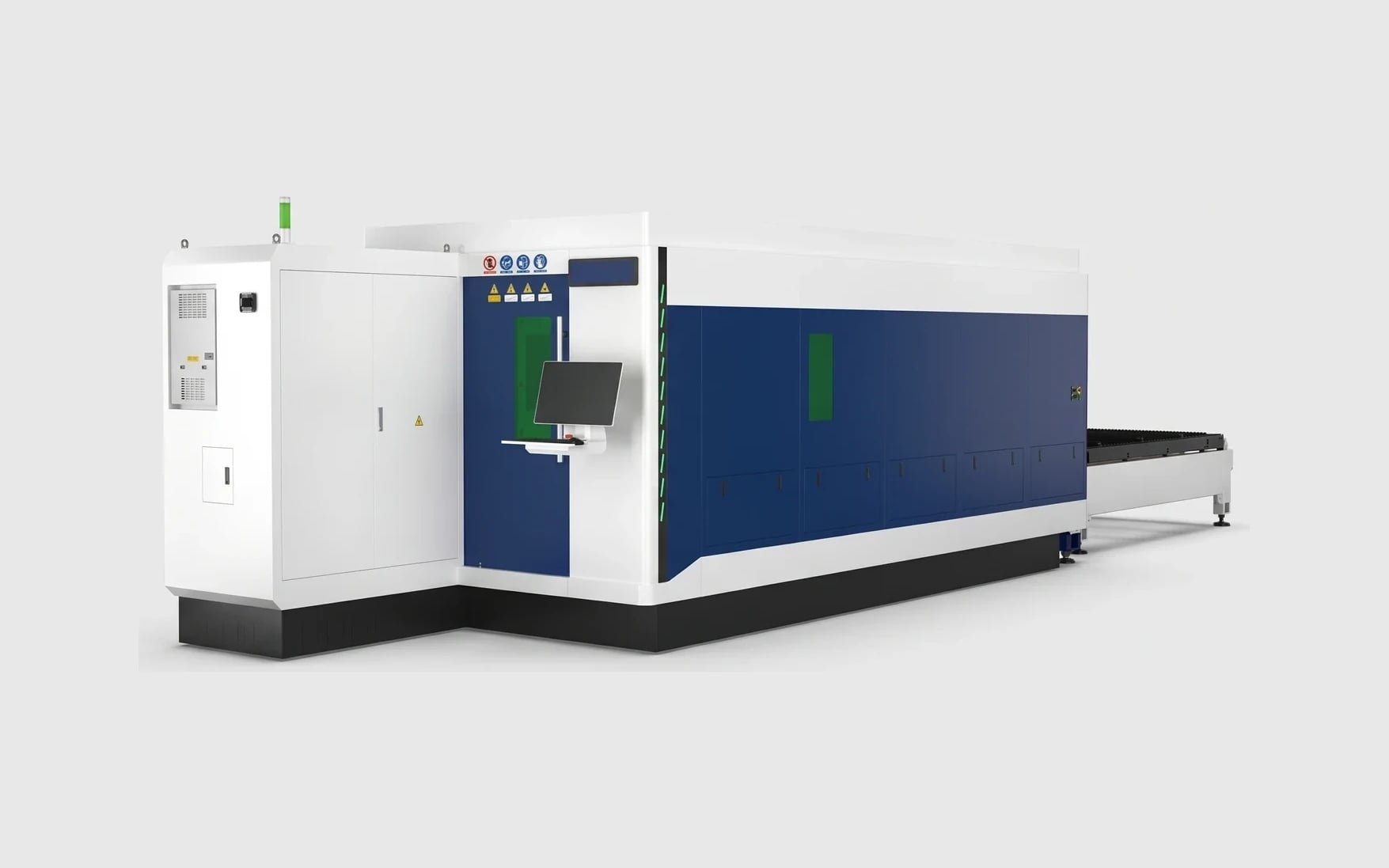

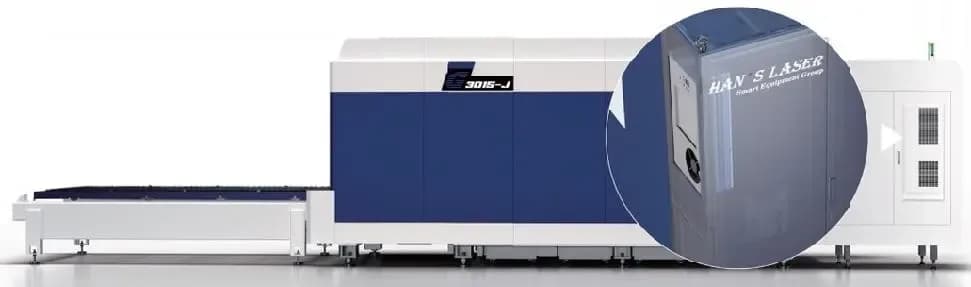

Fiber Laser
J Series - Precise and Flexible
by Han's Laser
Double exchange table laser: 2-40kW, 120m/min, 2g, fits in 40HQ container
J Series
Model
2kW to 40kW
Available laser power
3,100mm x 1,550mm (5'x10') up to 6,200mm x 2,600mm (8'x20')
Working area
Not sure if the J Series - Precise and Flexible is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Operations needing efficient delivery (fits in a single 40HQ container)
- High speed shuttle for maximum productivity
- Processing sheets up to 1.5" with 2kw to 40kw
- Medium to high production where performance and value is desired
Model
J Series
Available laser power
2kW to 40kW
Working area
3,100mm x 1,550mm (5'x10') up to 6,200mm x 2,600mm (8'x20')
Max positioning speed
120 m/min
Key Features
J Series - Precise and Flexible Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Gantry dual-drive structure for stable, accurate motion

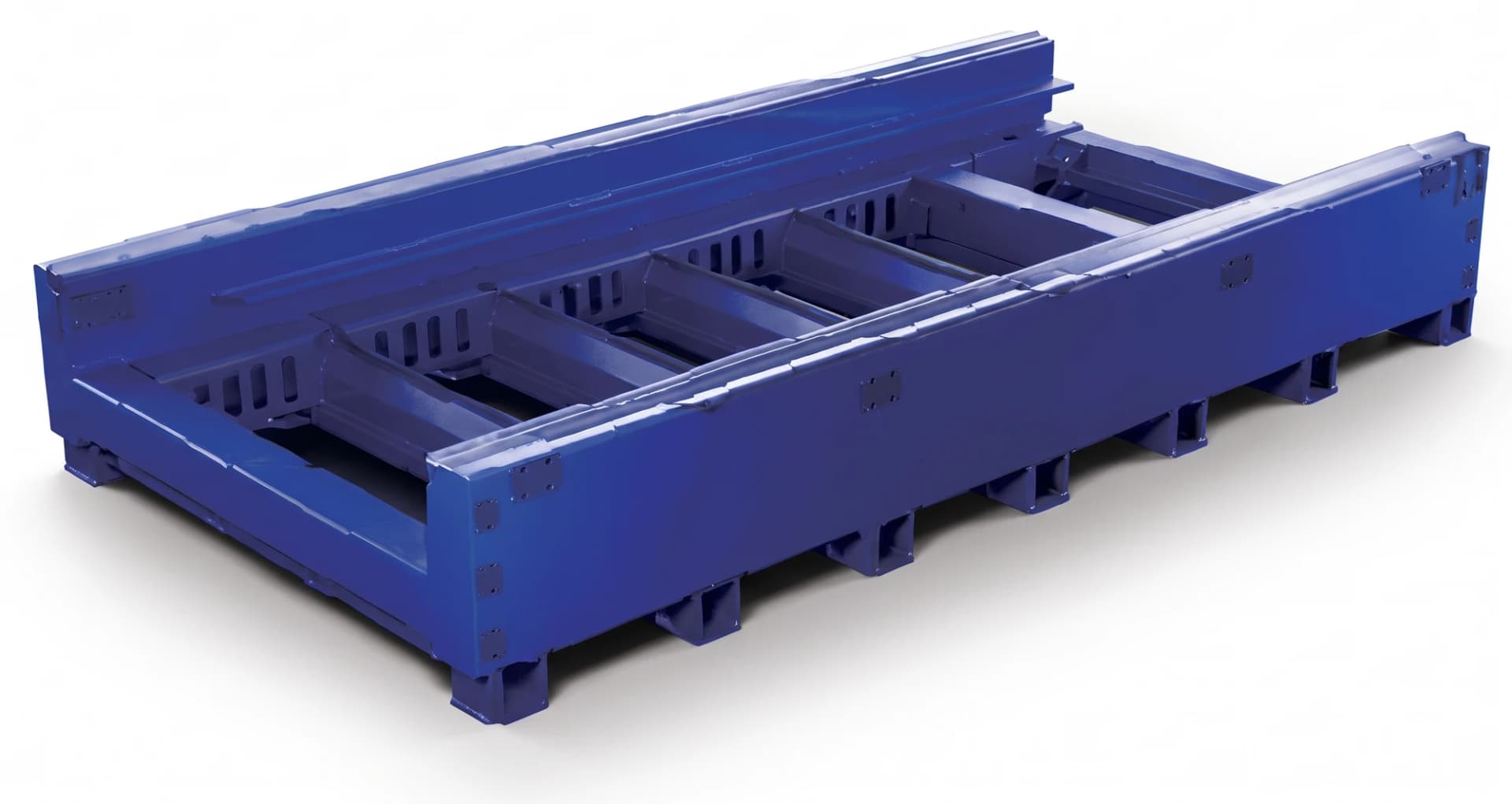

- Carbon steel welded bed with annealing heat treatment for long-term stability
Ease of Operation

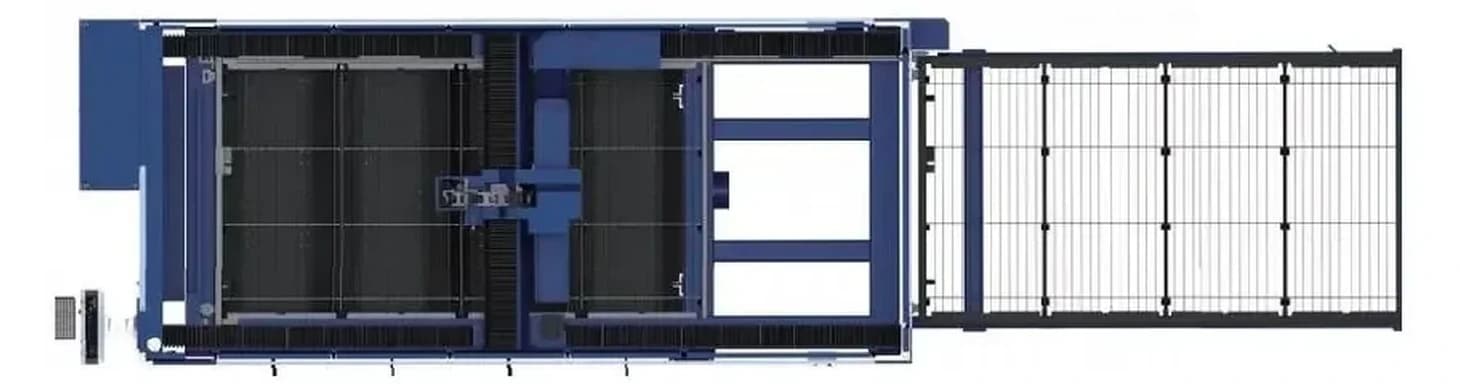

- Double exchange workbench for continuous production (load one table while cutting on the other)

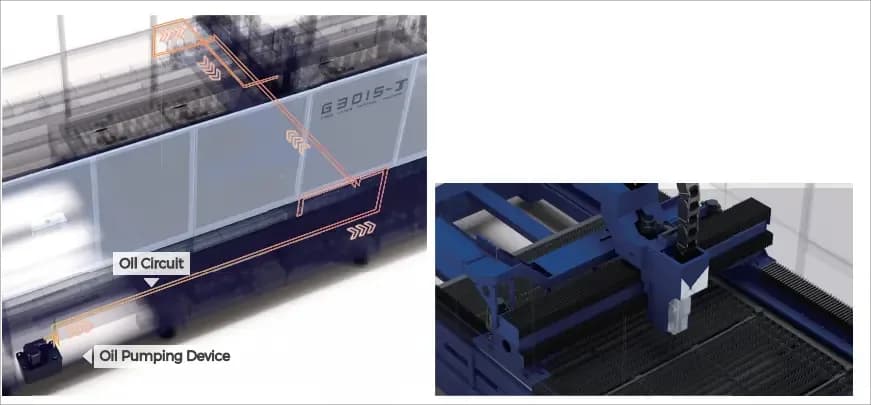

- Automatic oil pumping system for simplified maintenance and extended machine life

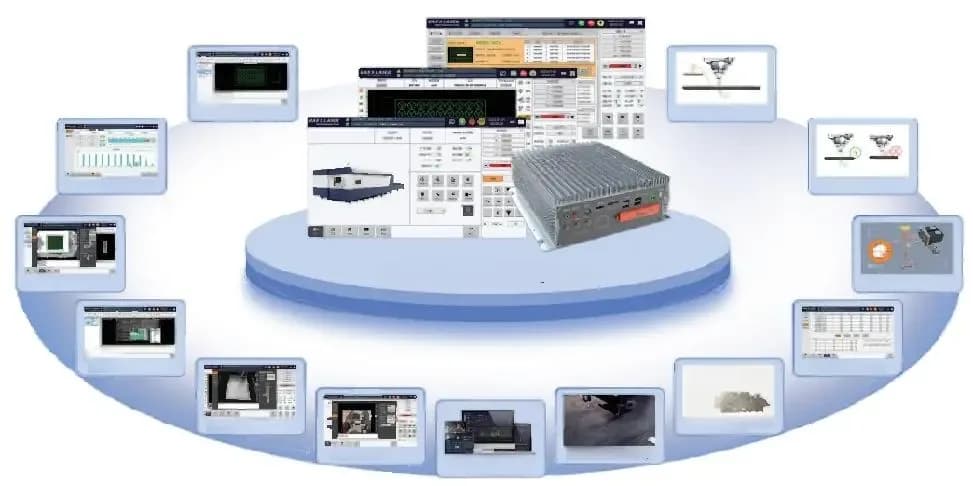

- Independently developed control system with remote assistance and software-only upgrades
Built-In Extras
- Compact design fits in a single 40HQ shipping container
- Accommodates inch-gauge (American Standard) sheet sizes
- Integrated cabinet with industrial-grade air conditioning for electrical safety
- Hollow bed design effectively reduces thermal effects during cutting
Gallery
J Series - Precise and Flexible in Detail
Full Specifications
Han's J Series Technical Details
Complete specifications, standard features, and optional upgrades.
- Model
- J Series
- Available laser power
- 2kW to 40kW
- Working area
- 3,100mm x 1,550mm (5'x10') up to 6,200mm x 2,600mm (8'x20')
- Max positioning speed
- 120 m/min
- Max acceleration
- 2.0G
- Positioning accuracy
- +/-0.05 mm
- Repeatability
- +/-0.03 mm
- Electrical requirement
- 3-phase / 380V / 60Hz
- Overall dimensions
- 9,000 mm x 2,300 mm x 2,200 mm (L x W x H)
| Model | J Series |
| Available laser power | 2kW to 40kW |
| Working area | 3,100mm x 1,550mm (5'x10') up to 6,200mm x 2,600mm (8'x20') |
| Max positioning speed | 120 m/min |
| Max acceleration | 2.0G |
| Positioning accuracy | +/-0.05 mm |
| Repeatability | +/-0.03 mm |
| Electrical requirement | 3-phase / 380V / 60Hz |
| Overall dimensions | 9,000 mm x 2,300 mm x 2,200 mm (L x W x H) |
- Double exchange workbench for continuous production (load one table while cutting on the other)
- Gantry dual-drive structure for stable, accurate motion
- Carbon steel welded bed with annealing heat treatment for long-term stability
- Hollow bed design effectively reduces thermal effects during cutting
- Integrated cabinet with industrial-grade air conditioning for electrical safety
- Automatic oil pumping system for simplified maintenance and extended machine life
- Independently developed control system with remote assistance and software-only upgrades
- Compact design fits in a single 40HQ shipping container
- Accommodates inch-gauge (American Standard) sheet sizes

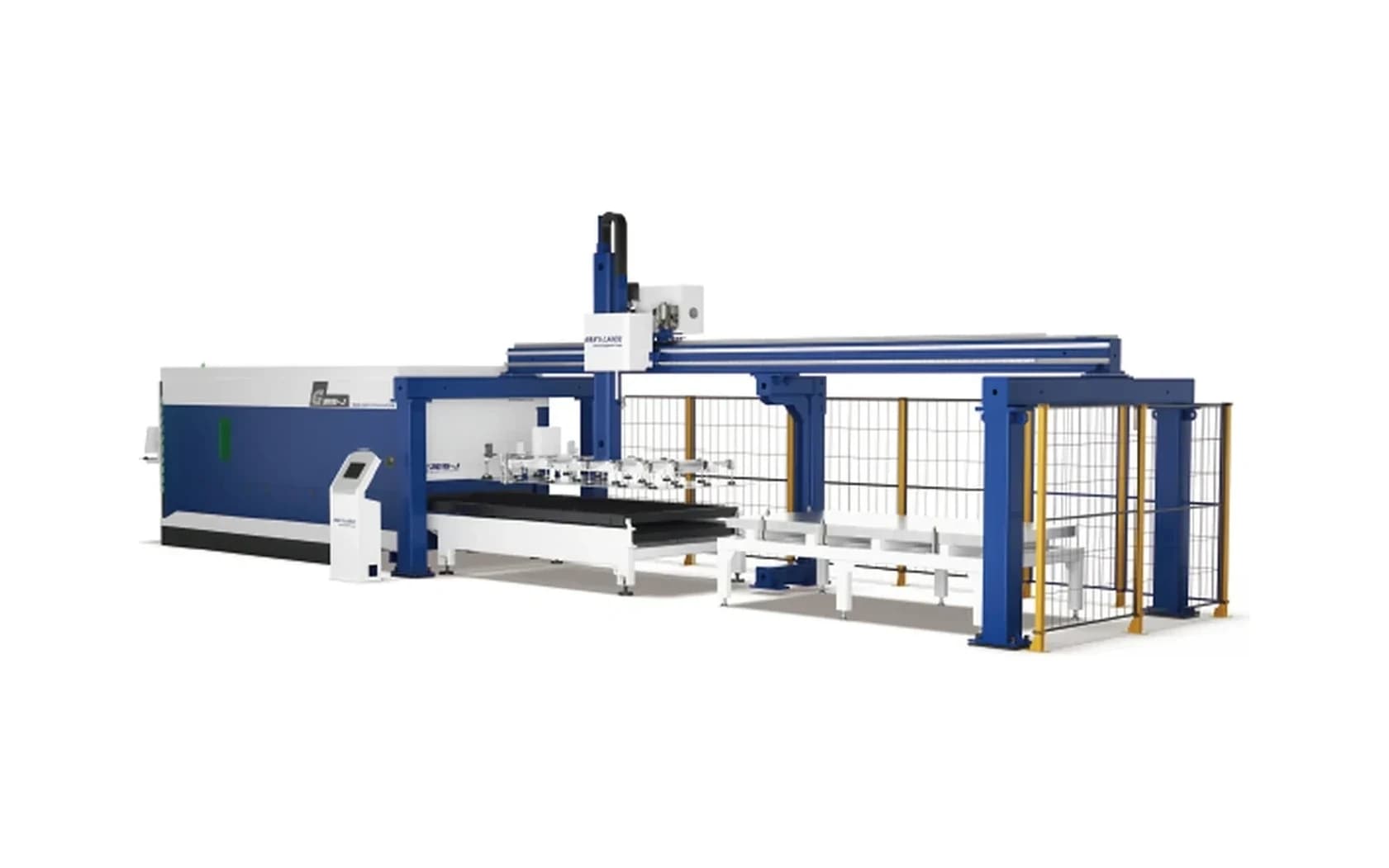

- Simple loading system for reduced labour costs and faster material handling
- Extended format options from 3 to 12 metres
- General sheet metal fabrication for small and mid-size shops
- Budget-conscious operations entering fiber laser cutting
- Job shops needing exchange table productivity at an accessible price
- Facilities with space constraints (single container delivery and setup)
FAQ
J Series - Precise and Flexible Questions
Answers to common questions about the J Series - Precise and Flexible.
Yes. The double exchange workbench is standard, allowing you to load material on one table while cutting on the other for continuous production.
The 3015 J supports laser power from 2kW to 20kW, with format options from 3 to 12 metres available.
Ready to Discuss the J Series - Precise and Flexible?
Our team has 19+ years of experience helping Canadian manufacturers find the right cutting and processing equipment.
19+
Years in Business
50+
Machine Models
900+
Happy Customers
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Financing Available
Flexible payment options on qualifying equipment.
Or email us at [email protected]
Related
Explore More Fiber Laser Systems
Compare specifications and find the right machine for your application.
Fiber laser cutting system for Maximum performance
F Master - Maximum Performance
The F Master is the top of Han's enclosed fiber laser range and the machine we point at shops that want one platform to cover thin sheet through heavy plate. Six bed sizes run from 3,100 x 1,550 mm up to 12,200 x 2,550 mm, with laser power from 3kW to 60kW. A hollow-structure bed carries the full power range without thermal deformation, and an extruded aluminum gantry driven by the Han's 1201plus controller and Rexroth motors holds +/- 0.03 mm/m accuracy at 200 m/min positioning. The machine is fully enclosed behind OD6+ laser glass with an automatic rising and falling safety door.
Compact and budget friendly fiber laser cutting machine
O PRO - Compact Value Laser
The O PRO is Han's single-platform enclosed fiber laser, and it is the one we recommend to shops that want a straightforward fully enclosed machine in a compact footprint. It comes in two bed sizes: the G3015-O PRO, which cuts a 3,100 x 1,550 mm sheet at up to 120 m/min, and the larger G4020-O PRO for shops that need a bigger table. Both run laser power from 3kW to 20kW. Sliding doors on the front and right sides open the table for loading, four laser-protected windows let the operator watch the cut without opening the machine, and control is through a handheld pendant and touchscreen running Han's 1201 bus-based CNC.
Large format, high power gantry fiber laser cutting system

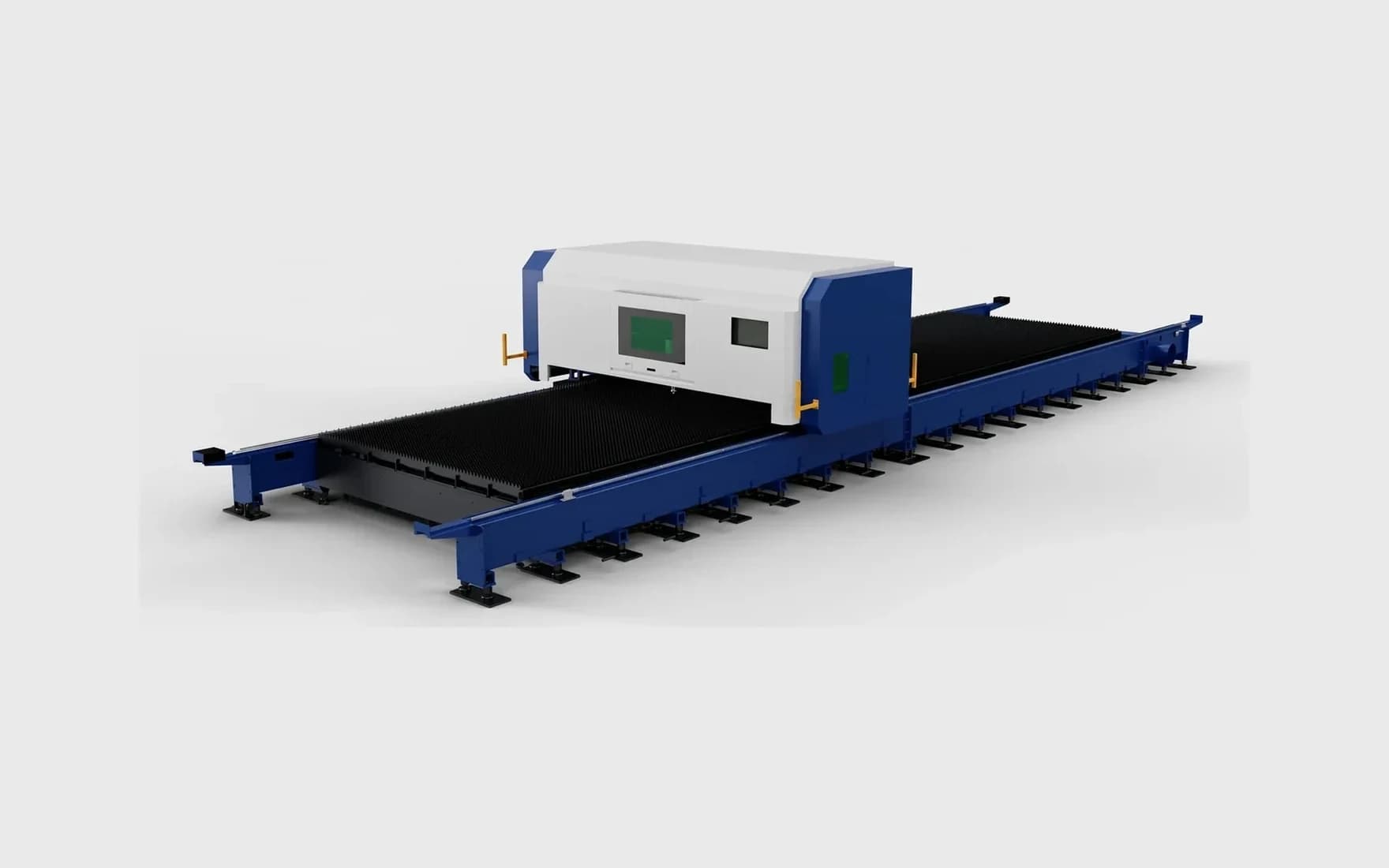

S PRO A/G - Large Format Gantry Laser
