Fiber Laser
Element 400L - Large Format Shuttle
Large-format laser processing, up to 10'x55', multi-process
Up to 10'x55'
Max table size
Laser cutting, laser bevelling, inkjet marking, pinstamp marking, dual head laser, laser/plasma combo
Processes
Two fiber lasers up to 20 kW
Laser power
Not sure if the Element 400L - Large Format Shuttle is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Heavy cutting applications requiring large format tables
- Multi-process operations (laser + plasma on same gantry)
- Fabricators needing bevel cutting capability
- Operations requiring marking and identification on parts
Max table size
Up to 10'x55'
Processes
Laser cutting, laser bevelling, inkjet marking, pinstamp marking, dual head laser, laser/plasma combo
Laser power
Two fiber lasers up to 20 kW
CNC control
Global Connect
Key Features
Element 400L - Large Format Shuttle Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation

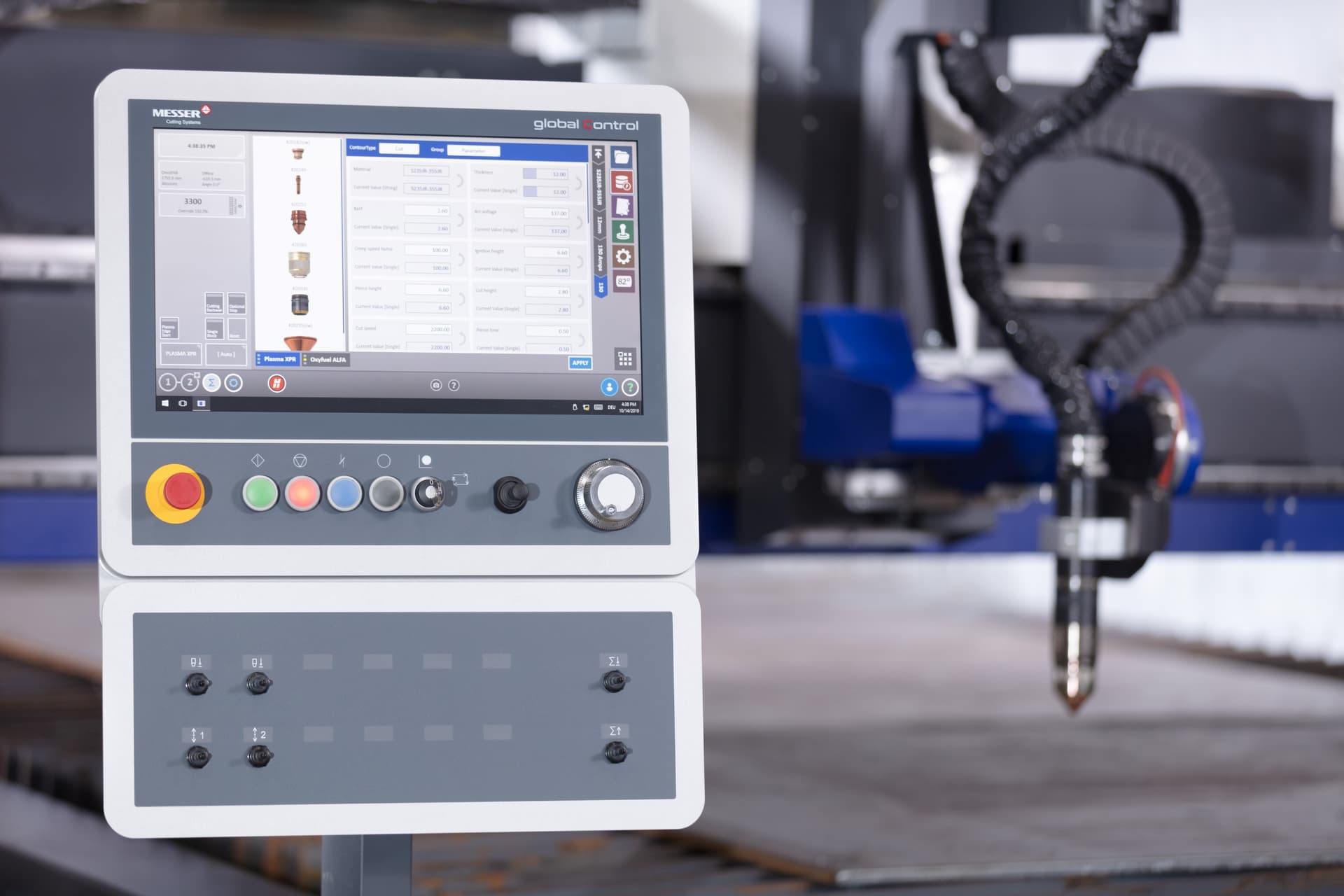

- Global Connect CNC control
- Industry 4.0 connectivity
- Two-tray shuttle table with 2" material capacity
- Production viewing cameras for remote monitoring
- Precitec ProCutter 2.0 laser heads with sealed optics and auto-focus
- Automatic plate alignment system
- Scan-cut and zip-cut productivity modes
Safety & Reliability
- Safety enclosure rated to meet Canadian safety requirements
- Battery backup and surge protection
Cutting Capability
- Two fiber lasers up to 20 kW
- Laser bevelling capability
- Inkjet and pinstamp marking
- Dual head laser cutting
- Laser/plasma combination cutting
- IPG Photonics fiber lasers up to 20 kW
Built-In Extras
- Slagger self-cleaning zoned downdraft exhaust table
- Laser Edge Machining (LEM) capability
Gallery
Element 400L - Large Format Shuttle in Detail
Video
See the Element 400L - Large Format Shuttle in Action
Full Specifications
Element 400 Laser Technical Details
Complete specifications, standard features, and optional upgrades.
- Max table size
- Up to 10'x55'
- Processes
- Laser cutting, laser bevelling, inkjet marking, pinstamp marking, dual head laser, laser/plasma combo
- Laser power
- Two fiber lasers up to 20 kW
- CNC control
- Global Connect
- Drilling
- Up to 1/2" diameter
- Industry connectivity
- Industry 4.0 / IoT
- Maximum cutting thickness
- 2"
- Acceleration
- 1.0G
- Maximum positioning speed
- 140 m/min (5,511 in/min)
- Standard table
- "Slagger" self-cleaning downdraft table
- Shuttle table capacity
- 2" (50 mm) material capacity
| Max table size | Up to 10'x55' |
| Processes | Laser cutting, laser bevelling, inkjet marking, pinstamp marking, dual head laser, laser/plasma combo |
| Laser power | Two fiber lasers up to 20 kW |
| CNC control | Global Connect |
| Drilling | Up to 1/2" diameter |
| Industry connectivity | Industry 4.0 / IoT |
| Maximum cutting thickness | 2" |
| Acceleration | 1.0G |
| Maximum positioning speed | 140 m/min (5,511 in/min) |
| Standard table | "Slagger" self-cleaning downdraft table |
| Shuttle table capacity | 2" (50 mm) material capacity |
- Two fiber lasers up to 20 kW
- Laser bevelling capability
- Inkjet and pinstamp marking
- Dual head laser cutting
- Laser/plasma combination cutting
- Global Connect CNC control
- Industry 4.0 connectivity
- Slagger self-cleaning zoned downdraft exhaust table
- Two-tray shuttle table with 2" material capacity
- Safety enclosure rated to meet Canadian safety requirements
- Production viewing cameras for remote monitoring
- IPG Photonics fiber lasers up to 20 kW
- Precitec ProCutter 2.0 laser heads with sealed optics and auto-focus
- Automatic plate alignment system
- Scan-cut and zip-cut productivity modes
- Laser Edge Machining (LEM) capability
- Battery backup and surge protection
- Plasma bevel units: Deltae, Bevel-R, Manual Plasma Stripping
- Various plate markers: Plasma, Air Scribe, Ink-Jet, Telesis Pinstamp
- Digital and analog video cameras
- Material handling automation with storage/retrieval tower system
- Gas feed assemblies with filters, shut offs, regulators
- Programming and nesting software
- Drilling up to 1/2" diameter
- Messer dust collector systems
- Exhaust ducting kit
- Heavy cutting applications requiring large format tables
- Multi-process operations (laser + plasma on same gantry)
- Fabricators needing bevel cutting capability
- Operations requiring marking and identification on parts
FAQ
Element 400L - Large Format Shuttle Questions
Answers to common questions about the Element 400L - Large Format Shuttle.
Its large cutting envelope (up to 10' x 55'), heavy-duty gantry construction, and support for high-power laser, combination laser/plasma cutting, and bevelling make it suited to plate work that exceeds the capacity of standard fiber laser systems.
Yes. The platform supports laser cutting, laser bevelling, plasma cutting, plasma bevelling, oxyfuel cutting, inkjet marking, and pinstamp marking — configurable to match your production requirements.
