Up to 12kW
Laser Power
3 Series
Range
20-660 mm
Tube Diameter
Not sure which tube laser is right for you?
Our AI can help you compare machines, find parts, and explore your options.
Advantages
Why Choose Tube Laser?
Full Diameter Range
From 20 mm small tubes to 660 mm heavy-duty pipe, three purpose-built series cover every tube and profile size for structural, mechanical, and precision fabrication.
High-Speed Tube Processing
Positioning speeds up to 120 m/min and rotational speeds up to 150 rpm deliver fast cycle times across all tube shapes and materials.
Automated Feeding Options
Semi-automatic and fully automatic bundle silo feeding enable unattended production runs, reducing labour and increasing throughput.
Full Canadian Support
Machines stocked in Ontario. ACM provides installation, commissioning, operator training, preventive maintenance, and emergency repair for all tube laser systems.
Featured

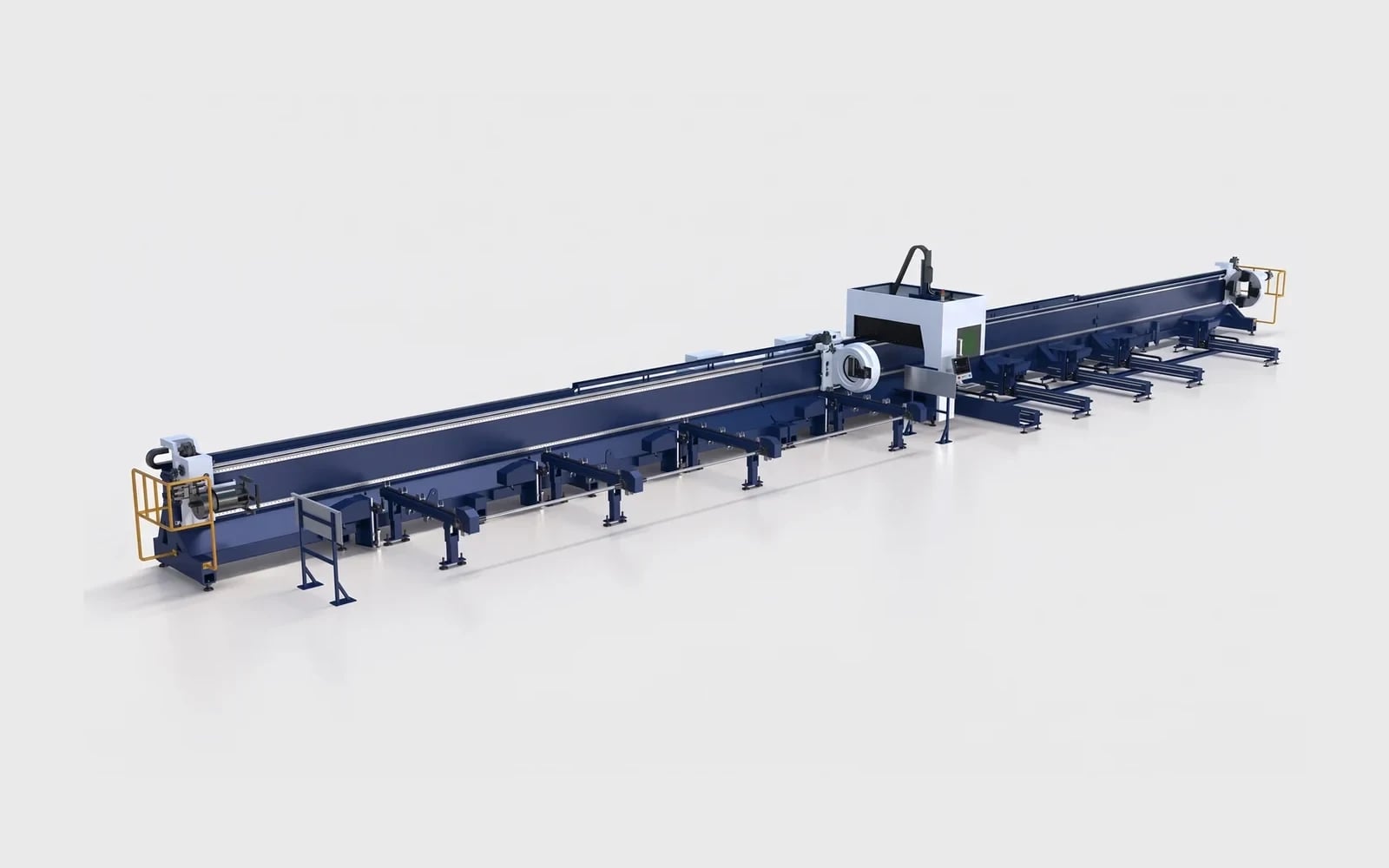

TX Series - Heavy Duty Large Tube
Heavy-duty tube laser: up to 660mm diameter, 2,500kg capacity, bevel option
Han's TX Series
Models
TX12036T, TX12050T, PX12066F
Processing range (round)
40-360 mm (TX12036T), 50-500 mm (TX12050T), 80-660 mm (PX12066F)
Processing range (square)
40-350 mm (TX12036T), 50-500 mm (TX12050T), 80-450 mm (PX12066F)
Max speed
60 m/min (TX), 40 m/min (PX)
Our Machines
The Complete Tube Laser Lineup
Each system is engineered for specific applications. Compare specs to find the right fit.
Professional fiber laser tube cutting system
PLT Series - High Speed and flexible
The PLT Series is a professional mid-range fiber laser tube cutting system for cutting carbon steel, stainless steel, copper, and aluminum alloy in square, round, oval, and special-shaped profiles. With modular configurations supporting 6, 9, or 12-metre tube lengths and optional semi-automatic or fully automatic feeding, it covers a wide range of tube processing requirements.
- Models
- PL2T-06, PL2T-09, PL3T-06, PL3T-09, PL3T-12
- Round tube diameter
- 20-240 mm (PL2T), 20-360 mm (PL3T)
- Square tube side length
- 20-240 mm (PL2T), 20-350 mm (PL3T)
- Max positioning speed
- 100 m/min (PL2T), 80 m/min (PL3T)
Small and medium tube fiber laser cutting system
PD Series - Up to 180mm (7") diameter
The PD Series is designed for efficient processing of small and medium-diameter tubes up to 180 mm. With laser power from 1kW to 4kW and modular feeding options from manual through fully automatic, it provides an accessible entry point for tube laser cutting with the precision and throughput needed for production environments.
- Models
- P6010D, P6018D, P8018D, P10018D
- Laser source power
- 1kW, 2kW, 3kW, 4kW (customisable)
- Max machining range
- 20-180 mm diameter (optional: 20-110 mm)
- Max rotational speed
- 120 rpm (optional: 150 rpm)
High-speed fiber laser tube cutting system
F1 Tube Laser - High speed for small tube
The F1 is a high-speed fiber laser tube cutting system built for small-diameter round and square tube, angle iron, and channel steel from 10 to 120 mm. With traverse speeds to 150 m/min, 1.5 G acceleration, and fully automatic loading that changes material in seconds, it is engineered for high-volume small-tube production. Short-tail and zero-tail cutting keep scrap to a minimum, while a precision square-bore chuck and optional weld detection protect part quality. ACM stocks, installs, and supports the F1 across Canada from our Cambridge, Ontario facility.
- Tube range (round)
- 10-120 mm diameter
- Tube range (square)
- 10-120 mm
- Profile range
- Equal channel steel 5#-8#, equal angle steel 5#-8#
- Max traverse speed
- 150 m/min (Y-axis)
See everything we carry from Han's Laser.
Side by Side
Compare Systems
See how each platform stacks up across the specs that matter most.
TX Series - Heavy Duty Large TubeFeatured
- Best For
- Heavy-duty large tubes
- Max Tube Diameter
- 660 mm
- Max Laser Power
- 12kW
- Max Tube Length
- 12,000 mm
- Max Load Capacity
- 2,500 kg
PLT Series - High Speed and flexible
- Best For
- Professional mid-range tubes
- Max Tube Diameter
- 360 mm
- Max Laser Power
- 12kW
- Max Tube Length
- 12,200 mm
- Max Load Capacity
- 850 kg
PD Series - Up to 180mm (7") diameter
- Best For
- Small/medium tubes
- Max Tube Diameter
- 180 mm
- Max Laser Power
- 6kW
- Max Tube Length
- 12,200 mm
- Max Load Capacity
- 260 kg
F1 Tube Laser - High speed for small tube
- Best For
- —
- Max Tube Diameter
- —
- Max Laser Power
- —
- Max Tube Length
- —
- Max Load Capacity
- —
| Specification | TX Series - Heavy Duty Large TubeFeatured | PLT Series - High Speed and flexible | PD Series - Up to 180mm (7") diameter | F1 Tube Laser - High speed for small tube |
|---|---|---|---|---|
| Best For | Heavy-duty large tubes | Professional mid-range tubes | Small/medium tubes | — |
| Max Tube Diameter | 660 mm | 360 mm | 180 mm | — |
| Max Laser Power | 12kW | 12kW | 6kW | — |
| Max Tube Length | 12,000 mm | 12,200 mm | 12,200 mm | — |
| Max Load Capacity | 2,500 kg | 850 kg | 260 kg | — |
Applications
Industries We Serve
Tube Laser systems are trusted across diverse industries and production environments.
FAQ
Tube Laser Questions
Answers to common questions about our tube laser products.
Depending on the model, tube diameters range from 20 mm up to 660 mm. Square profiles up to 500 mm and tube lengths up to 12 metres are supported across the range. The PD Series covers small and medium tubes (up to 180 mm), the PLT Series handles mid-range (up to 360 mm), and the TX Series processes heavy-duty pipe (up to 660 mm).
Carbon steel, stainless steel, aluminium alloy, and copper (model dependent). The fiber laser source cuts all standard metals used in tube and pipe fabrication.
Yes. ACM stocks Han's Laser tube cutting systems and provides full installation, commissioning, operator training, preventive maintenance, and emergency repair from our Cambridge, Ontario facility.
Yes. Both the TX Series and PLT Series offer optional bevel cutting heads with up to +/-45 degree capability for structural steel and pipe welding applications.
All three series offer semi-automatic and fully automatic feeding options. The PLT and PD Series support bundle silo-based automatic loading for unattended production runs.
Guides
Maintaining your Tube Laser
Written by the people who install and service these machines.
Tube laser capacity: diameter is not the number that stops the job
Buyers specify a tube laser on diameter. The number that actually decides which machine they need is the weight of the tube, and the same 150 mm section can weigh 107 kg or 254 kg on a six metre stick.
Doug RobinsonBuying a piece of equipment begins with properly understanding a problem
Nobody wants to buy a machine. They want to solve a problem. The specification you have written is your own diagnosis of that problem, and it is worth twenty minutes to check before you spend six figures.
Doug RobinsonFiber laser maintenance: a shorter daily list, and less room for error
A fiber laser asks less of the operator each morning than a plasma table does. The items that remain are the ones protecting the most expensive parts of the machine, including one that tells you it is failing before your cut quality drops.
Adam Bender
