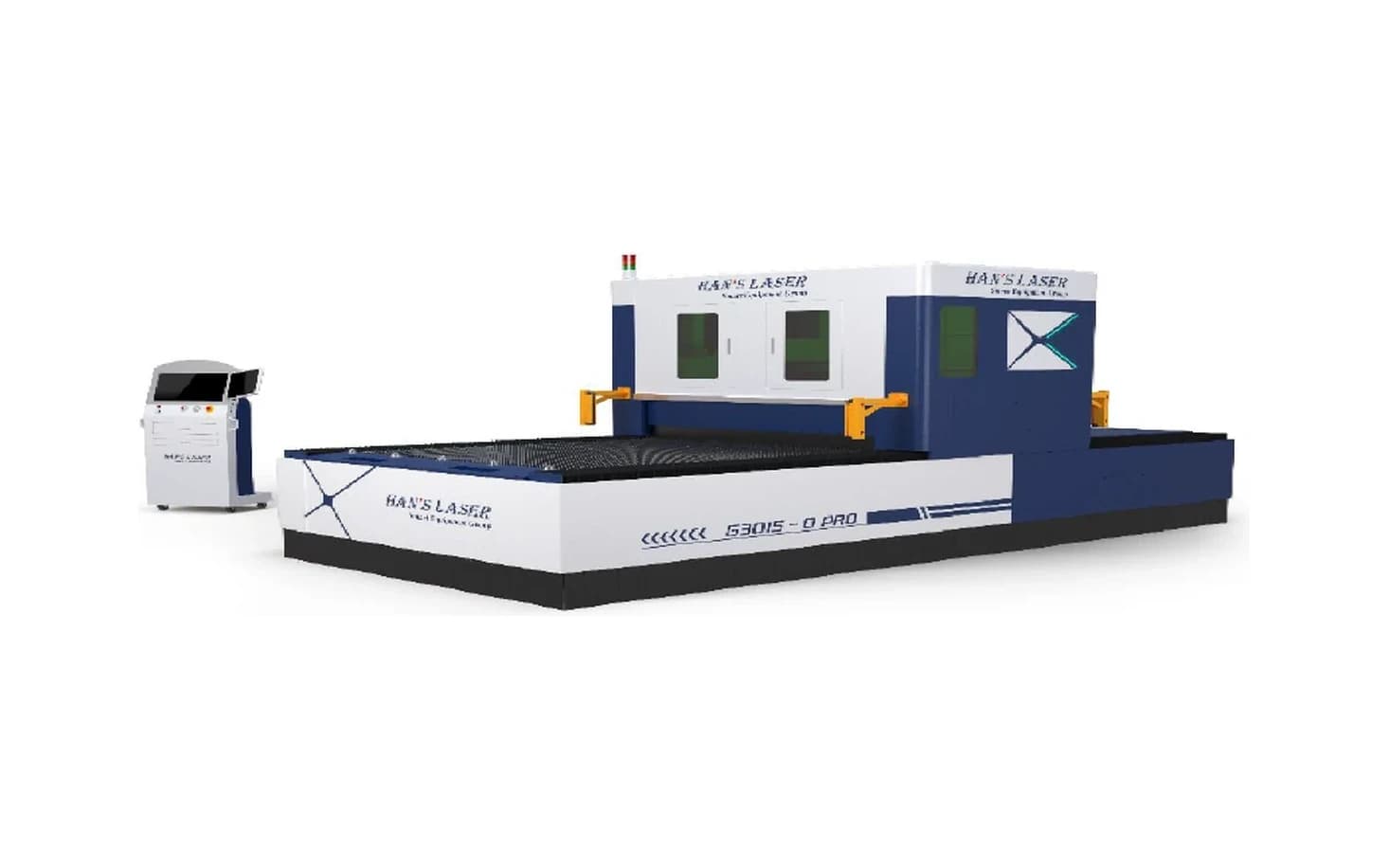

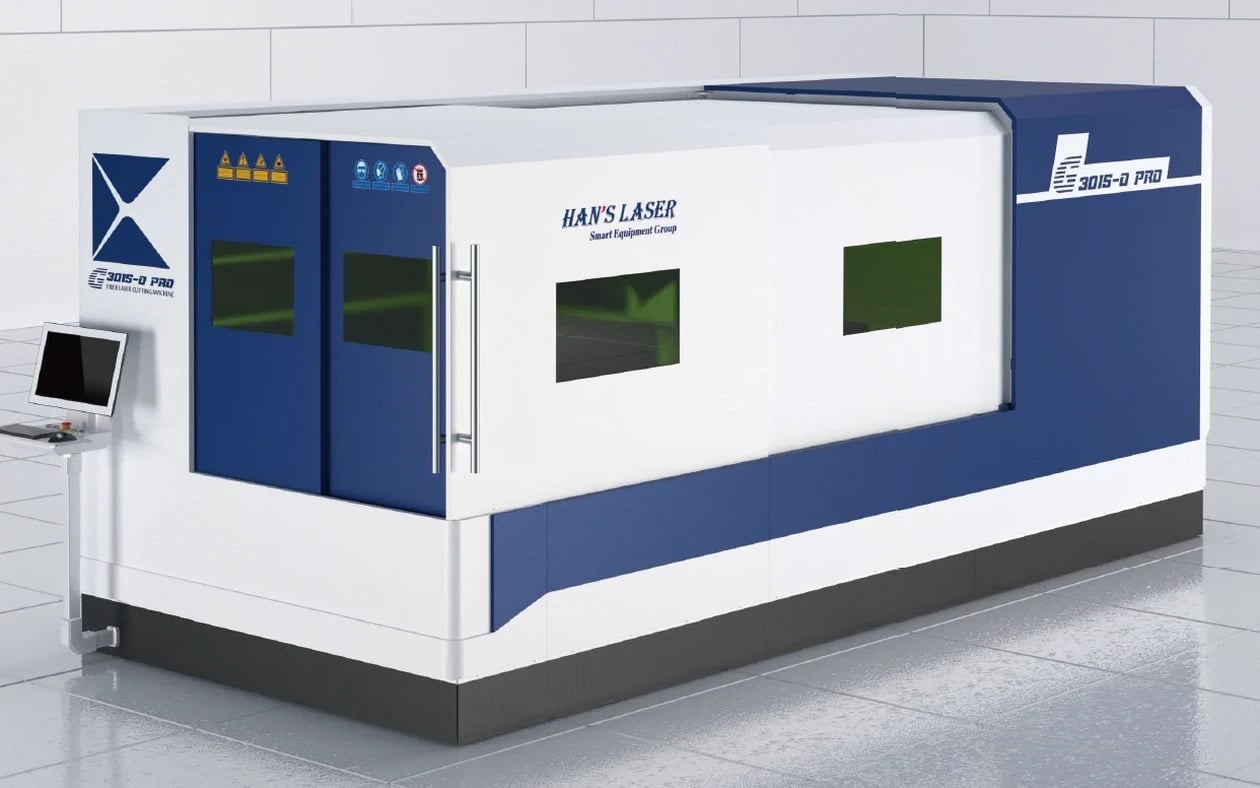

Fiber Laser
O PRO - Compact Value Laser
by Han's Laser
Single-platform enclosed fiber laser in two bed sizes, 3kW to 20kW
G3015 and G4020
Models
3,100mm x 1,550mm (5'x10') or 4,100mm x 2,050mm (6'x12')
Working area
3kW, 6kW, 12kW, 20kW
Available laser power
Not sure if the O PRO - Compact Value Laser is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops adding their first enclosed fiber laser
- Plants where floor space is tight
- Operators who want simple handheld and touchscreen control
- Shops desiring to move from plasma cutting to laser cutting
Models
G3015 and G4020
Working area
3,100mm x 1,550mm (5'x10') or 4,100mm x 2,050mm (6'x12')
Available laser power
3kW, 6kW, 12kW, 20kW
Max positioning speed
120 m/min
Key Features
O PRO - Compact Value Laser Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Sliding access doors on both the front and the right side for easy material handling

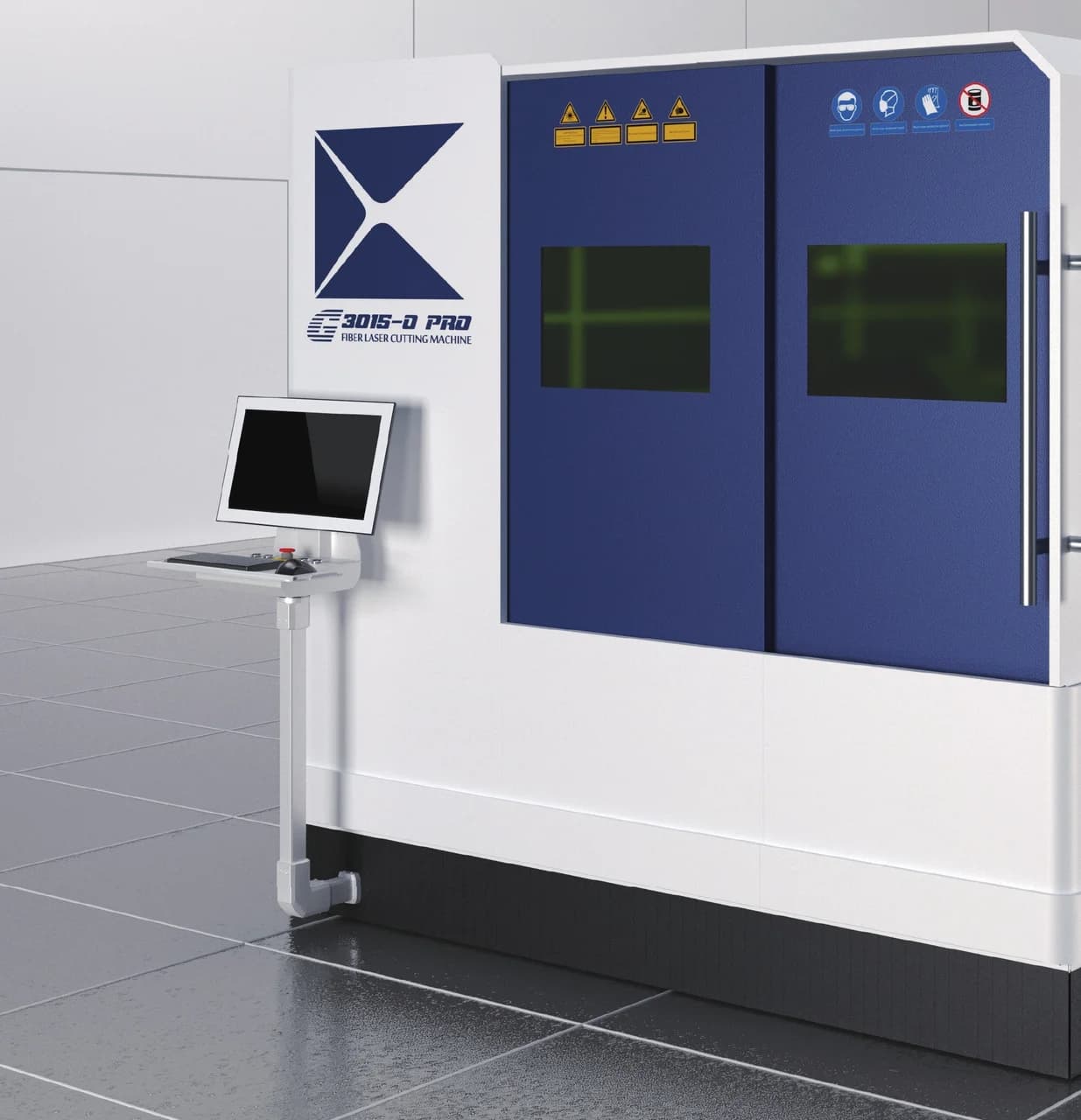

- Handheld controller and touchscreen interface for quick setup and control

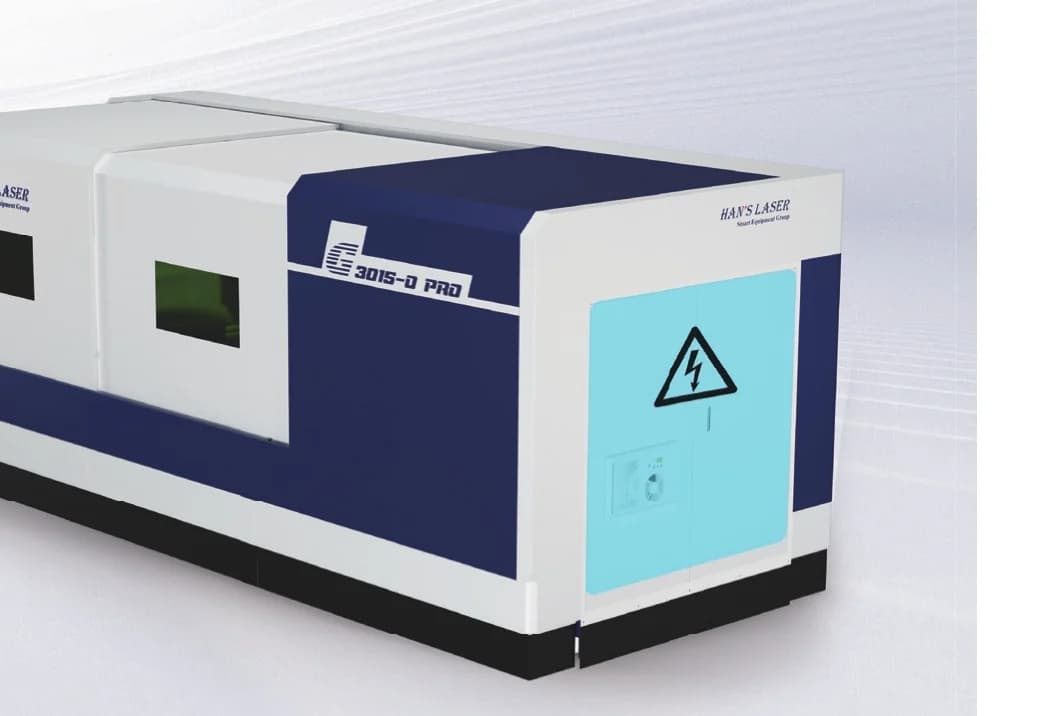

- Integrated control cabinet with an industrial-grade air conditioner holding a constant temperature
- Han's 1201 bus-based CNC with remote diagnostics and software-only upgrades
Safety & Reliability

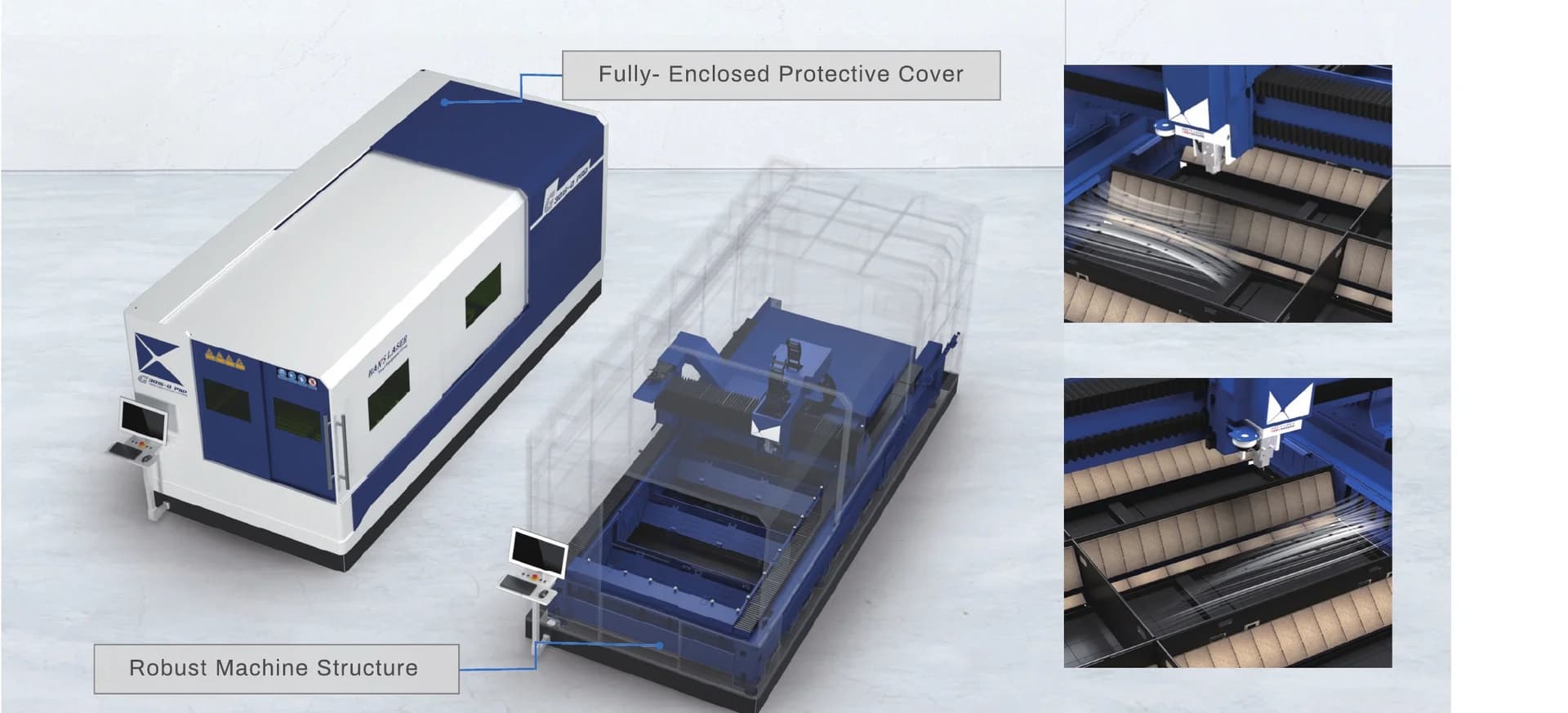

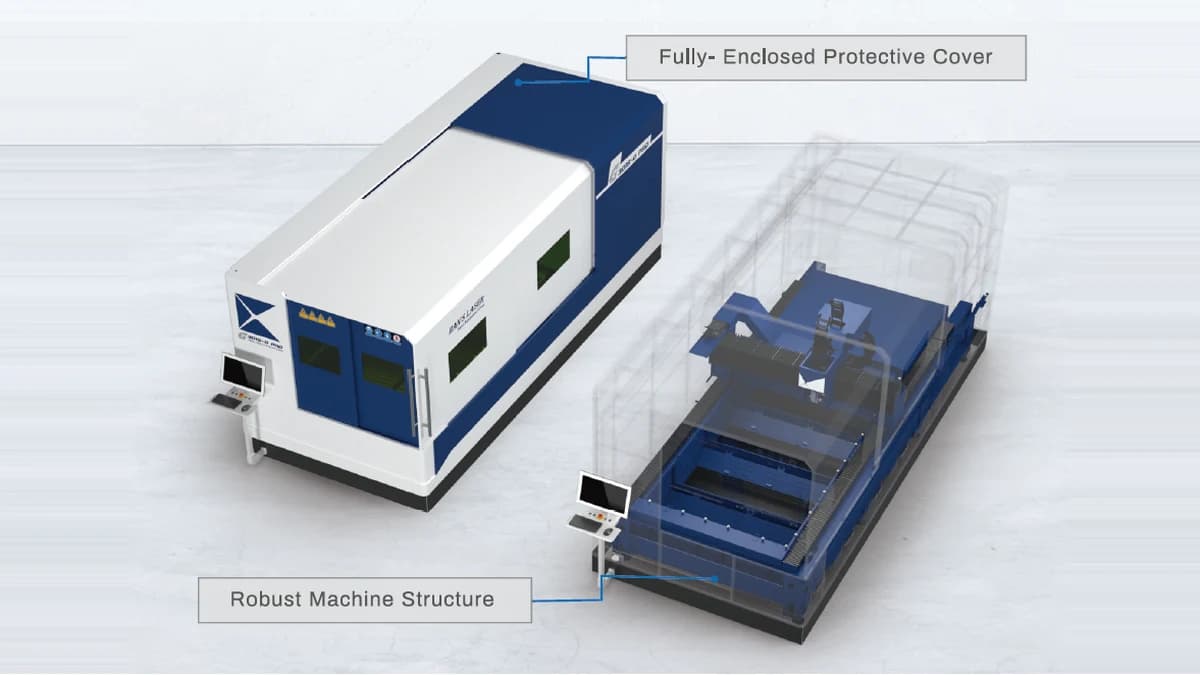

- Fully enclosed protective cover that contains laser radiation and improves fume extraction
- Sealed design with synchronised high-sealing dampers for low-smoke, efficient extraction
Built-In Extras
- Reduced cabinet wiring lowers short-circuit risk

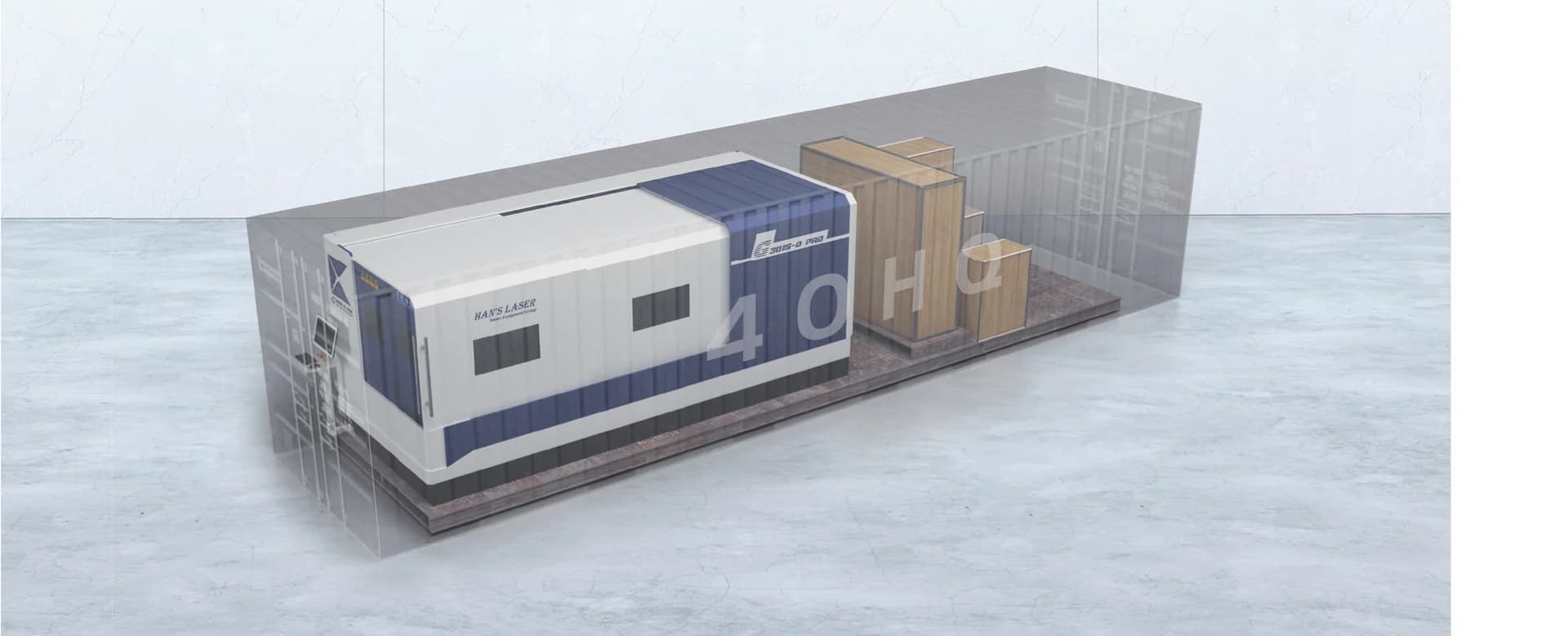

- Compact footprint and flexible layout, shipping in one 40HQ container

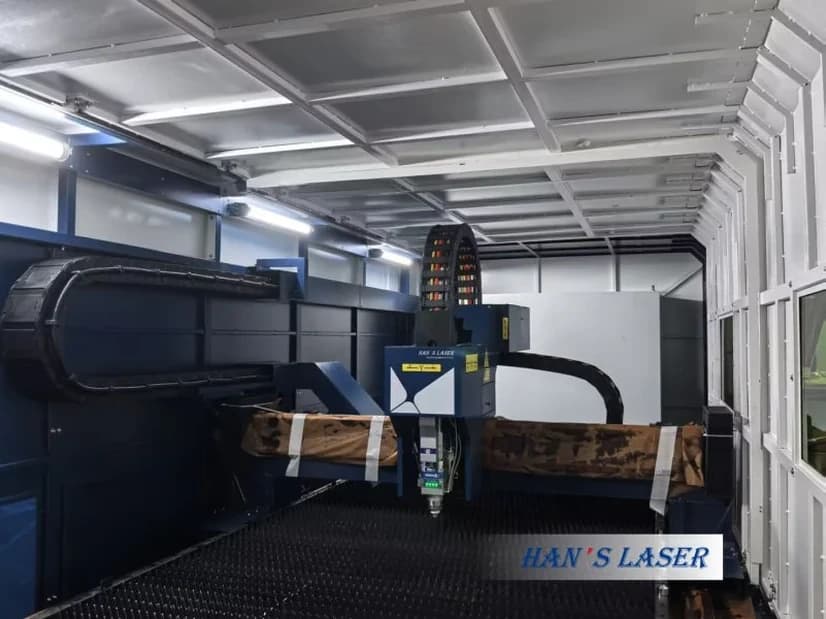

- Rack and pinion guide rails as standard, for simpler maintenance and long-term cutting precision
- Four laser-protected observation windows for watching the cut in progress
Gallery
O PRO - Compact Value Laser in Detail
Full Specifications
Han's O PRO Technical Details
Complete specifications, standard features, and optional upgrades.
- Models
- G3015 and G4020
- Working area
- 3,100mm x 1,550mm (5'x10') or 4,100mm x 2,050mm (6'x12')
- Available laser power
- 3kW, 6kW, 12kW, 20kW
- Max positioning speed
- 120 m/min
- Max acceleration
- 1.8G
- Repeat positioning accuracy (X/Y)
- +/- 0.03 mm
- Controller
- Han's 1201 bus-based CNC system
- Enclosure
- Fully enclosed protective cover with four laser-protected observation windows
- Access
- Sliding doors on the front and right sides
- Guide rails
- Rack and pinion, standard
- Shipping
- Single 40HQ container
| Models | G3015 and G4020 |
| Working area | 3,100mm x 1,550mm (5'x10') or 4,100mm x 2,050mm (6'x12') |
| Available laser power | 3kW, 6kW, 12kW, 20kW |
| Max positioning speed | 120 m/min |
| Max acceleration | 1.8G |
| Repeat positioning accuracy (X/Y) | +/- 0.03 mm |
| Controller | Han's 1201 bus-based CNC system |
| Enclosure | Fully enclosed protective cover with four laser-protected observation windows |
| Access | Sliding doors on the front and right sides |
| Guide rails | Rack and pinion, standard |
| Shipping | Single 40HQ container |
- Fully enclosed protective cover that contains laser radiation and improves fume extraction
- Sealed design with synchronised high-sealing dampers for low-smoke, efficient extraction
- Sliding access doors on both the front and the right side for easy material handling
- Four laser-protected observation windows for watching the cut in progress
- Handheld controller and touchscreen interface for quick setup and control
- Integrated control cabinet with an industrial-grade air conditioner holding a constant temperature
- Reduced cabinet wiring lowers short-circuit risk
- Rack and pinion guide rails as standard, for simpler maintenance and long-term cutting precision
- Han's 1201 bus-based CNC with remote diagnostics and software-only upgrades
- Compact footprint and flexible layout, shipping in one 40HQ container
- General sheet metal cutting in carbon steel, stainless and aluminum
- Job shop work across mixed short runs
- Parts production on a 3 x 1.5 m or larger sheet
FAQ
O PRO - Compact Value Laser Questions
Answers to common questions about the O PRO - Compact Value Laser.
The G3015-O PRO has a 3,100 x 1,550 mm working area, which covers a standard 3 x 1.5 m sheet with room to spare. The larger G4020-O PRO takes a bigger sheet for shops that need more table.
3kW, 6kW, 12kW and 20kW across the O PRO series.
Sliding doors on the front and the right side open the table for loading and unloading, and four laser-protected observation windows let you watch the cut without opening the machine.
