Forming & Tube Bending
Bend profiles, pipe, and tube into precise curves and complex shapes.
6 Machine Lines
Complete Range
Up to 1,600 t
Press Capacity
3-60 mm
Plate Thickness
Not sure which forming & tube bending is right for you?
Our AI can help you compare machines, find parts, and explore your options.
Advantages
Why Choose Forming & Tube Bending?
Complete Forming Capability
From heavy structural profile bending to precision CNC tube forming, dishing, flanging, and plate straightening - ACM supplies the full Akyapak range so shops can handle every forming operation in-house.
CNC Precision on Tube & Pipe
The ABM series delivers servo-controlled bending with ±0.1° repeatability, 3D bend preview, and three-die capability - eliminating trial bends and reducing scrap on production tube work.
Code-Ready Head Forming
BMB-P dishing presses and BMB flanging machines are purpose-built for ASME, PED, and naval code work - with stress-relieved frames and heat-treated dies that deliver consistent profiles on every head.
Scalable Across Shop Size
The APK angle roll range spans from 5.4 HP compact units to 214 HP heavy-duty machines, and APSM straighteners come in 5, 7, or 9-roll configurations - matching capacity to budget at every level.
Featured
APK Heavy
Heavy-duty hydraulic 3-roll profile bending machines for structural steel, pipe, and complex section forming up to HEB 1000
Akyapak APK Heavy Series Angle Roll
Series models
APK 1000, 800, 550, 360, 300, 280
Drive system
3 separate hydraulic motors
Motor power range
37–214 HP (APK 280–APK 1000)
Roll diameter range
26–34" (660–864 mm)
Our Machines
The Complete Forming & Tube Bending Lineup
Each system is engineered for specific applications. Compare specs to find the right fit.
hydraulic/mechanical profile bending machine
APK Medium

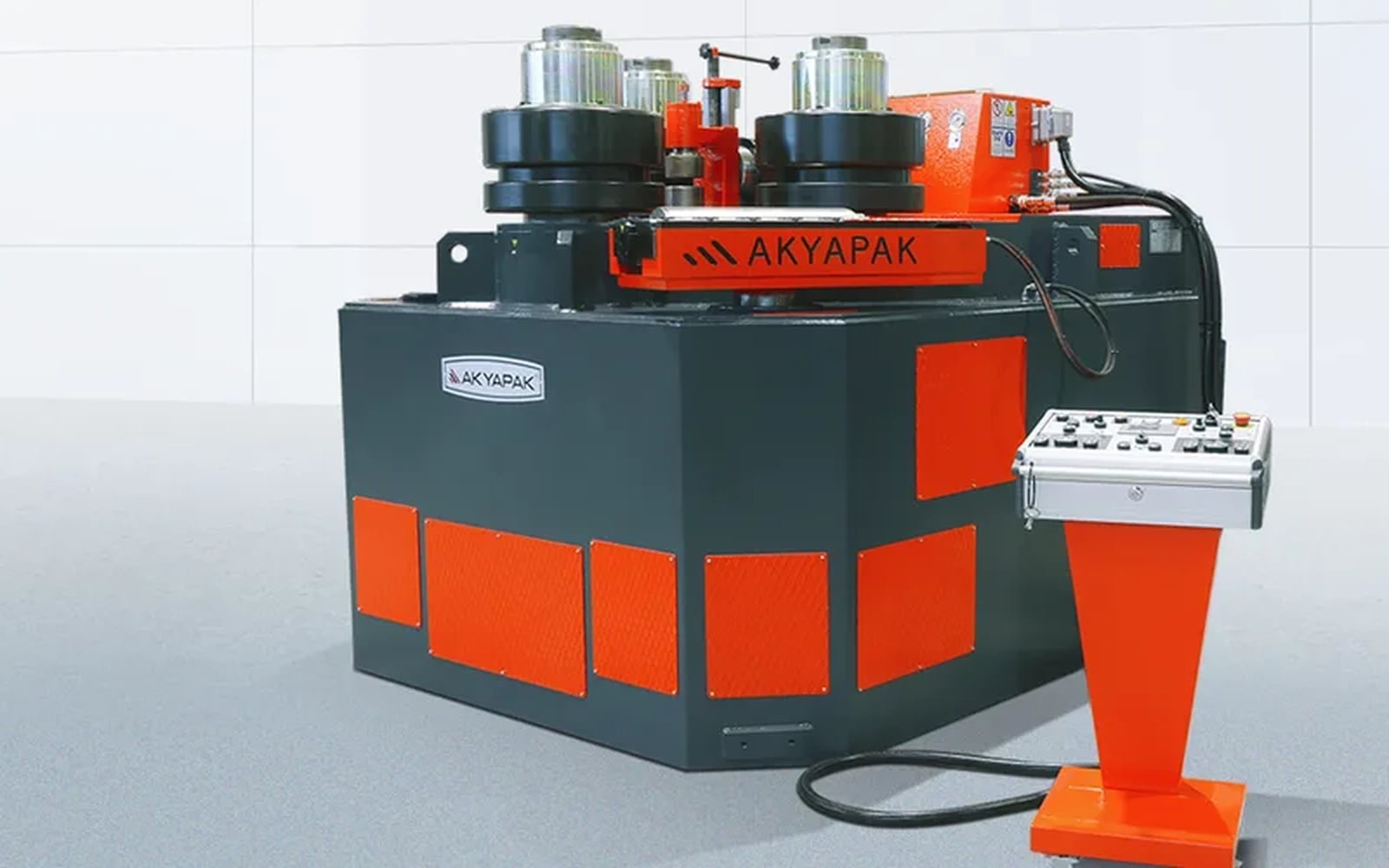

The Akyapak APK Medium Series brings professional-grade profile bending capability to shops that need versatility without the footprint of a heavy-duty machine. Six models range from the compact APK 61 at 5.4 HP to the APK 240 at 40 HP, handling angles, T-sections, flat bar, square bar, rounds, tubes, and channels across a broad capacity range. All models feature a St-52 steel construction body, hardened and ground 42CrMo4 special-steel shafts, hydraulically moveable lower rolls, digital position display, and both horizontal and vertical working orientations. Rolls are driven by a hydraulic motor through a planetary gearbox for smooth, controllable forming. ACM supplies every APK Medium model from Ontario with tooling packages, installation, and dedicated after-sales support.
- Series models
- APK 240, 180, 121, 101, 81, 61
- Drive system
- Hydraulic motor + planetary gearbox
- Motor power range
- 5.4–40 HP (APK 61–APK 240)
- Roll diameter range
- 6.97–21.65" (177–550 mm)
CNC/NC tube and pipe bending machine
ABM
The Akyapak ABM Series covers the full spectrum of tube and pipe bending — from the all-electric ABM E-25 multi-stack bender to the heavy-duty ABM 76 CNC 3 with three-die servo control. These machines bend mild steel, stainless steel, aluminium, and similar materials into simple or complex shapes with repeatable accuracy across both high-volume production and single-piece work. CNC models feature servo-controlled bending, feeding, shifting, and turning axes, a 15-inch colour touchscreen with 3D bend preview, YBC programming mode, and automatic tube length calculation. NC models provide a cost-effective semi-automatic option for shops with moderate throughput requirements. The ABM range serves automotive, furniture, HVAC, insulation, and general fabrication applications where bend quality and repeatability are critical. ACM provides the full ABM range from Cambridge, Ontario with die packages, mandrel tooling, installation, and training.
- Series models
- ABM 76 CNC 3, 76 CNC 1, 76 NC, 50 CNC, 38 CNC, E-25
- Max tube diameter
- 76 mm (3") on ABM 76 models
- Max wall thickness
- 3 mm
- Bending degree
- 180° max
hydraulic dishing press
BMB-P
The Akyapak BMB-P is purpose-built for forming dished heads — the concave end caps used in pressure vessels, storage tanks, boilers, and process equipment. Available in capacities from 150 to 1,600 metric tons with working diameters from 20 inches to 33 feet, the BMB-P uses oversized heat-treated dies and a stress-relieved high-alloy steel frame to deliver consistent dish profiles with minimal springback. Models above 250 metric tons incorporate pre-stressed tie-rods and side shoulders for added rigidity under extreme forming loads. The main control screen is designed around a user-friendly interface that reduces learning time — operators achieve accurate, repeatable results without years of specialised dishing experience. Cylinder bodies, piston groups, and critical hydraulic components are heat-treated and chromium-plated for long service life under continuous production duty. ACM supplies BMB-P dishing presses from Ontario with application engineering, die selection guidance, and full lifecycle support.
- Press capacity range
- 150–1,600 metric tons
- Working diameter range
- 20"–33' (500 mm–10 m)
- Frame construction
- High-alloy steel, MIG welded, stress relieved
- Die material
- Special steel, heat-treated
hydraulic flanging machine
BMB

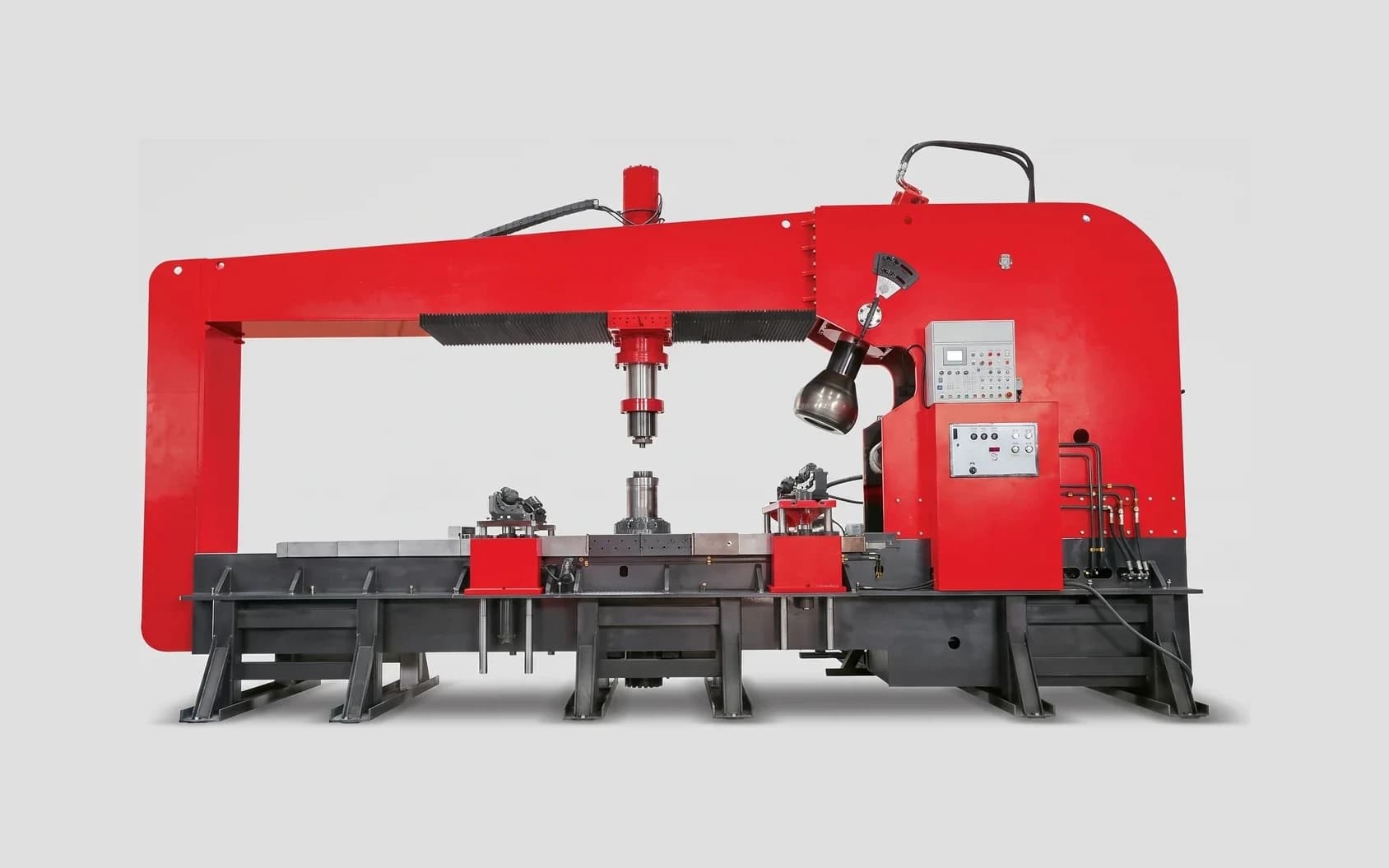

The Akyapak BMB flanging machine turns flat or pre-dished blanks into finished flanged heads with controlled edge profiles — a critical operation in pressure vessel, tank, and process equipment manufacturing. The electro-welded, stress-relieved frame and proportional hydraulic controls deliver precise, low-vibration flanging across a working diameter range of 20 inches to 33 feet, handling material from 14 gauge to 2 inches cold and up to 4 inches when hot-formed. Both upper and lower head holders are independently driven by hydraulic motors and cylinders, while a radial-piston hydraulic motor powers the knuckle roll for high-speed rotation and consistent torque throughout the flanging pass. The flanging roll itself is driven by three hydraulic cylinders for both vertical and horizontal movement, sliding between the two main bodies for precise edge control. Designed for simplicity, the BMB can be operated effectively by personnel without extensive metal forming experience. ACM provides BMB flanging machines from Cambridge, Ontario with die packages, process guidance, and dedicated service support.
- Working diameter range
- 20"–33' (500 mm–10 m)
- Thickness range (cold)
- 14 ga–2" (1.9–50 mm)
- Thickness range (hot)
- Up to 4" (100 mm)
- Frame construction
- High-alloy steel, electro-welded, stress relieved
multi-roll plate straightening machine
APSM

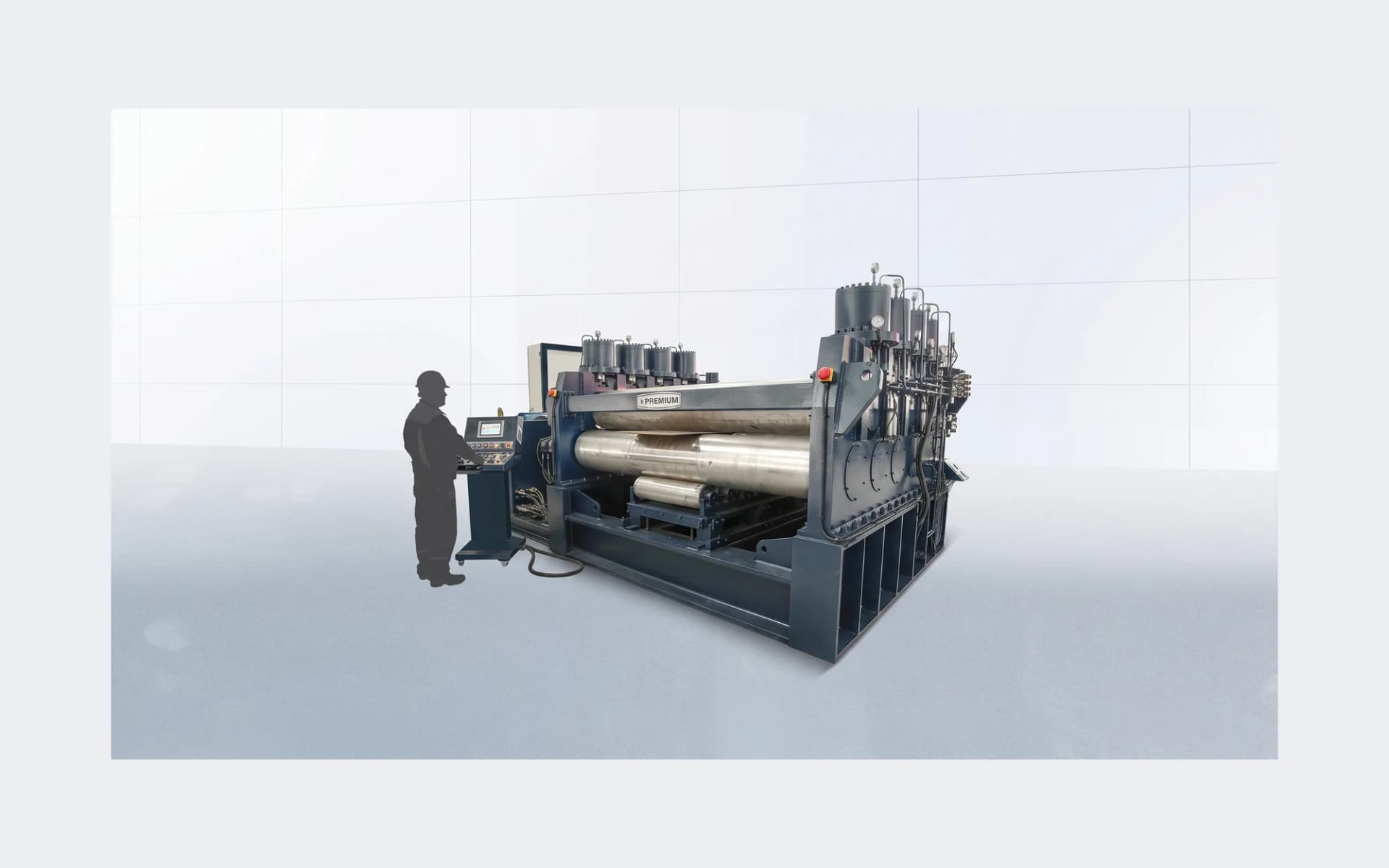

The Akyapak APSM removes bow, wave, and edge buckle from steel plate and sheet — delivering the flatness that downstream cutting, welding, and fabrication processes demand. Available in 5-roll, 7-roll, and 9-roll configurations with working lengths from 1,000 mm to 3,000 mm, the APSM handles material thicknesses from 3 mm to 60 mm across widths up to 3,000 mm. Nine-roll machines straighten plate in a single pass, while 7-roll models require three to four cycles and 5-roll models five to six — allowing shops to balance throughput against capital cost. Straightening rolls are manufactured from special steel with spherical roller bearings, mounted in a St-52 welded steel frame designed in 3D and tested through advance engineering analysis. Motor power ranges from 3 HP on the smallest model to 150 HP on the largest, with variable-speed bottom roll rotation as standard. ACM supplies the full APSM range from Ontario with installation, operator training, and ongoing service.
- Configuration options
- 5-roll, 7-roll, or 9-roll
- Working length range
- 1,000–3,000 mm (39"–118")
- Plate thickness range
- 3–60 mm
- Max plate width
- 3,000 mm (118")
See everything we carry from Akyapak.
Side by Side
Compare Systems
See how each platform stacks up across the specs that matter most.
APK HeavyFeatured
- Best For
- Heavy structural bending
- Machine Type
- 3-roll angle roll
- Capacity Range
- 37-214 HP
- Working Range
- Up to HEB 1000
- Control
- HMI / NC / CNC
- Models in Series
- 6
APK Medium
- Best For
- Versatile shop bending
- Machine Type
- 3-roll angle roll
- Capacity Range
- 5.4-40 HP
- Working Range
- Up to W6×25#
- Control
- Manual / NC / CNC
- Models in Series
- 6
ABM
- Best For
- Precision tube forming
- Machine Type
- CNC tube bender
- Capacity Range
- Up to Ø76 mm tube
- Working Range
- Up to 180° bends
- Control
- CNC touchscreen
- Models in Series
- 6
BMB-P
- Best For
- Vessel head dishing
- Machine Type
- Hydraulic press
- Capacity Range
- 150-1,600 t
- Working Range
- 20"-33' dia
- Control
- HMI with diagnostics
- Models in Series
- Multiple tonnages
+2 more machines — view full table on desktop
| Specification | APK HeavyFeatured | APK Medium | ABM | BMB-P | BMB | APSM |
|---|---|---|---|---|---|---|
| Best For | Heavy structural bending | Versatile shop bending | Precision tube forming | Vessel head dishing | Head flanging | Plate straightening |
| Machine Type | 3-roll angle roll | 3-roll angle roll | CNC tube bender | Hydraulic press | Flanging machine | Multi-roll straightener |
| Capacity Range | 37-214 HP | 5.4-40 HP | Up to Ø76 mm tube | 150-1,600 t | 14 ga-4" plate | 3-60 mm plate |
| Working Range | Up to HEB 1000 | Up to W6×25# | Up to 180° bends | 20"-33' dia | 20"-33' dia | 1-3 m width |
| Control | HMI / NC / CNC | Manual / NC / CNC | CNC touchscreen | HMI with diagnostics | Hydraulic proportional | Digital display |
| Models in Series | 6 | 6 | 6 | Multiple tonnages | Multiple sizes | 40+ configurations |
Applications
Industries We Serve
Forming & Tube Bending systems are trusted across diverse industries and production environments.
FAQ
Forming & Tube Bending Questions
Answers to common questions about our forming & tube bending products.
ACM supplies the full Akyapak forming and bending range: APK Heavy and Medium series angle rolls for bending structural profiles and tube, ABM series CNC tube benders for precision pipe and tube forming, BMB-P hydraulic dishing presses for pressure vessel head forming, BMB flanging machines for finishing dished heads, and APSM plate straightening machines for correcting flatness in sheet and plate.
Angle rolls (APK series) use three driven rolls to curve structural profiles - angles, beams, channels, flat bar, and large-diameter tube - into arcs, rings, and spirals. Tube benders (ABM series) use rotary-draw or mandrel bending to form smaller-diameter pipe and tube around a fixed radius with precise bend angles. Angle rolls handle heavier sections; tube benders deliver tighter tolerances on pipe and tube.
Dishing forms a flat plate blank into a concave dish shape - the end cap of a pressure vessel or tank. Flanging forms the straight edge of that dished blank into a controlled curved flange (the knuckle radius). They are separate operations because each requires different tooling, force application, and control. Many shops pair a BMB-P dishing press with a BMB flanging machine for a complete in-house head forming line.
Yes. The APK Heavy series handles round tube and pipe up to 24" SCH80 (on the APK 1000) in addition to angles, beams, channels, T-sections, flat bar, and square tube. Special rolls for tubes and pipes are available as optional tooling.
Yes. ACM handles complete installation, commissioning, operator training, tooling consultation, and ongoing service for all Akyapak forming and bending equipment from our Cambridge, Ontario facility. We serve fabricators across Ontario and Eastern Canada.
