Forming & Tube Bending
ABM
by Akyapak

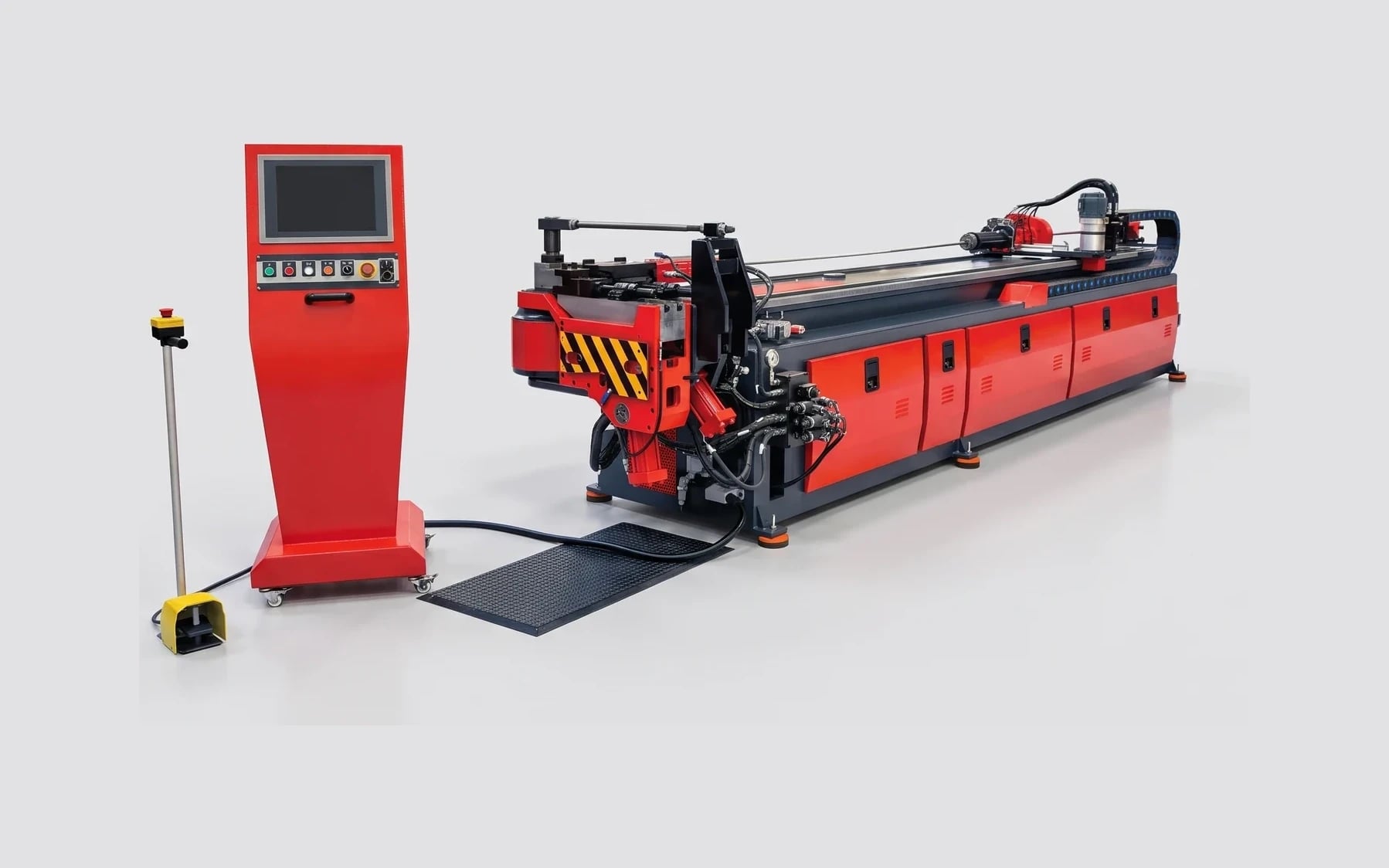

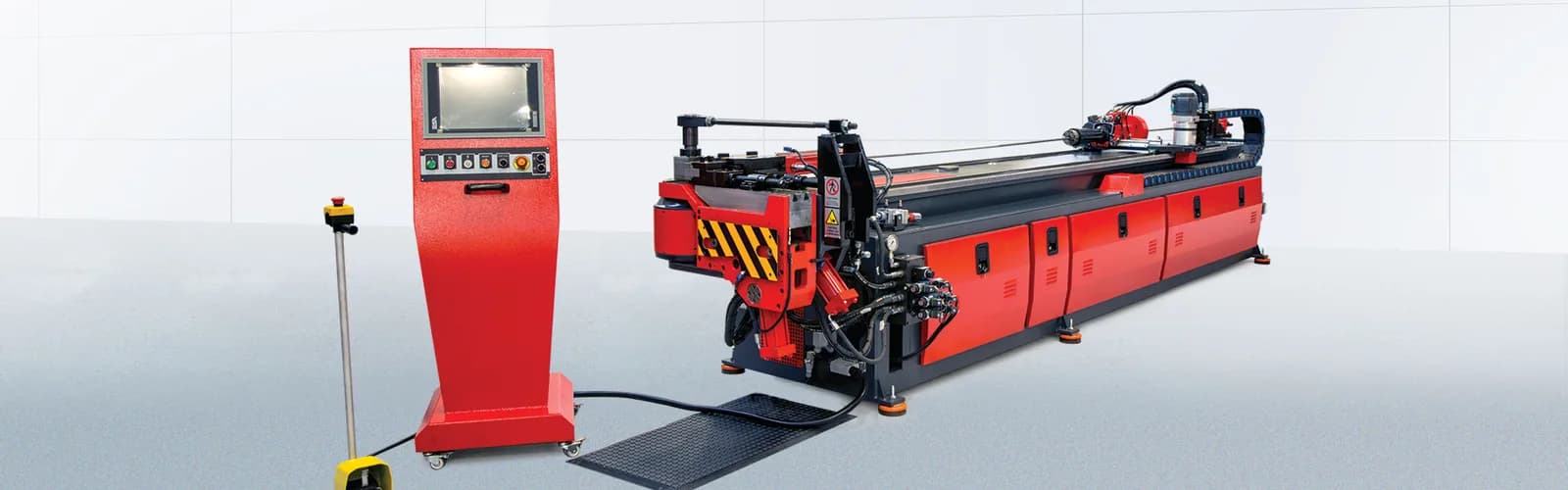

CNC and NC tube bending machines for precision forming of pipe and tube up to 76 mm diameter
ABM 76 CNC 3, 76 CNC 1, 76 NC, 50 CNC, 38 CNC, E-25
Series models
76 mm (3") on ABM 76 models
Max tube diameter
3 mm
Max wall thickness
Not sure if the ABM is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops that bend tube and pipe across multiple radii in a single program and need three-die CNC flexibility
- Production environments running serial tube bending where ±0.1° repeatability and automatic sequencing reduce cycle time
- Fabricators seeking an entry point into CNC tube bending with the ABM 38 CNC or a budget-friendly NC option with the ABM 76 NC
Series models
ABM 76 CNC 3, 76 CNC 1, 76 NC, 50 CNC, 38 CNC, E-25
Max tube diameter
76 mm (3") on ABM 76 models
Max wall thickness
3 mm
Bending degree
180° max
Key Features
ABM Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Servo-controlled bending, feeding, shifting, and turning axes deliver precise, repeatable bends on every cycle
- Operates with or without mandrel — supporting both thin-wall precision bends and standard structural tube
- Hydraulic assistant axes and servo axis speed control from the operator panel for fine-tuning each bend sequence
- ABM E-25 all-electric model provides mandrel-free multi-stack bending with full servo control on every axis
Ease of Operation
- Three-die capability on ABM 76 CNC 3 and ABM 50 CNC eliminates tool changeover between different bend radii in a single program
- 15-inch colour touchscreen with Akyapak-engineered interface, 3D bend preview, and YBC programming mode
- Automatic tube length calculation built into the part program reduces setup time and material waste
- Step-by-step and fully automatic working modes accommodate both prototyping and serial production
Built-In Extras
- Bends mild steel, stainless steel, aluminium, copper, and similar materials in simple or complex shapes
- Spiral bending capability on select diameters for coil and helix applications
- Unlimited angle capability with rolling system for producing bends beyond 180°

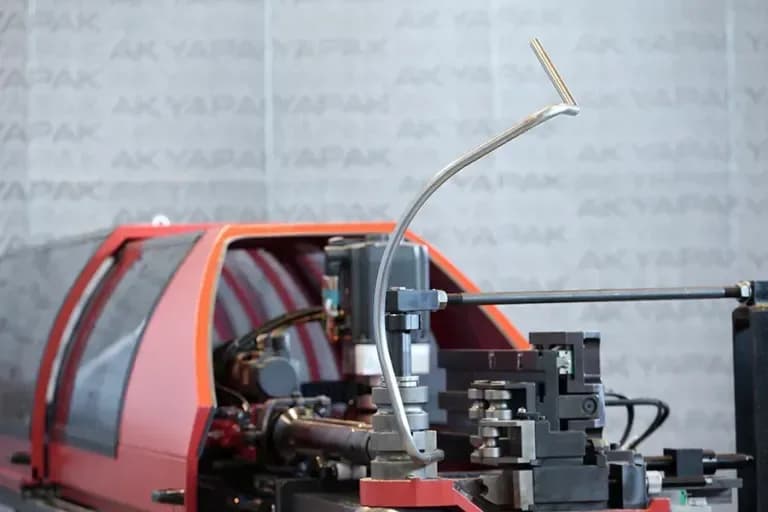

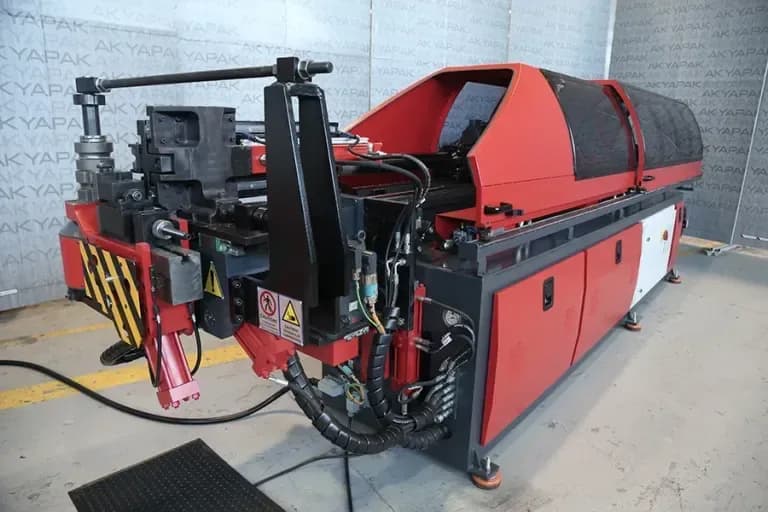

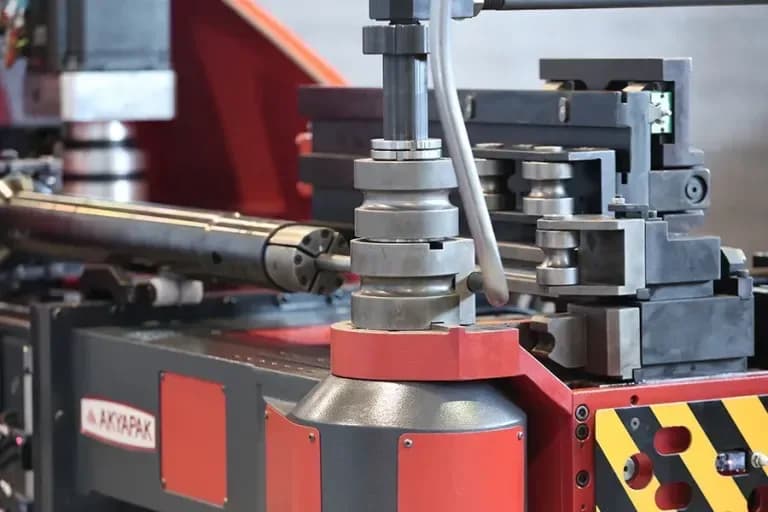

Gallery

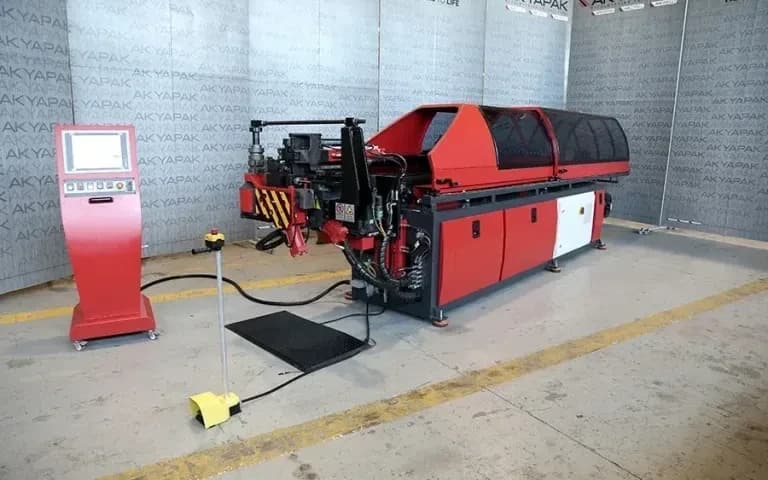

ABM in Detail
Full Specifications
Akyapak ABM Series CNC Tube Bending Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Series models
- ABM 76 CNC 3, 76 CNC 1, 76 NC, 50 CNC, 38 CNC, E-25
- Max tube diameter
- 76 mm (3") on ABM 76 models
- Max wall thickness
- 3 mm
- Bending degree
- 180° max
- Max bending radius
- 260 mm (ABM 76)
- Total power
- 5.5–7.5 kW
- Max hydraulic pressure
- 140–180 bar
- Feeding speed
- Up to 1,000 mm/sec (CNC models)
- Bending speed
- Up to 90°/sec (CNC models)
- Working tolerance (feed)
- ±0.1 mm (CNC models)
- Working tolerance (bend)
- ±0.1° (CNC 3 / CNC models)
- Control
- 15" colour touchscreen PC
- Certifications
- CE, ISO 9001-2015, TSEK, TURQUM
| Series models | ABM 76 CNC 3, 76 CNC 1, 76 NC, 50 CNC, 38 CNC, E-25 |
| Max tube diameter | 76 mm (3") on ABM 76 models |
| Max wall thickness | 3 mm |
| Bending degree | 180° max |
| Max bending radius | 260 mm (ABM 76) |
| Total power | 5.5–7.5 kW |
| Max hydraulic pressure | 140–180 bar |
| Feeding speed | Up to 1,000 mm/sec (CNC models) |
| Bending speed | Up to 90°/sec (CNC models) |
| Working tolerance (feed) | ±0.1 mm (CNC models) |
| Working tolerance (bend) | ±0.1° (CNC 3 / CNC models) |
| Control | 15" colour touchscreen PC |
| Certifications | CE, ISO 9001-2015, TSEK, TURQUM |
- Servo-controlled bending, feeding, shifting, and turning axes deliver precise, repeatable bends on every cycle
- Three-die capability on ABM 76 CNC 3 and ABM 50 CNC eliminates tool changeover between different bend radii in a single program
- 15-inch colour touchscreen with Akyapak-engineered interface, 3D bend preview, and YBC programming mode
- Automatic tube length calculation built into the part program reduces setup time and material waste
- Operates with or without mandrel — supporting both thin-wall precision bends and standard structural tube
- Hydraulic assistant axes and servo axis speed control from the operator panel for fine-tuning each bend sequence
- Step-by-step and fully automatic working modes accommodate both prototyping and serial production
- Bends mild steel, stainless steel, aluminium, copper, and similar materials in simple or complex shapes
- Spiral bending capability on select diameters for coil and helix applications
- Unlimited angle capability with rolling system for producing bends beyond 180°
- ABM E-25 all-electric model provides mandrel-free multi-stack bending with full servo control on every axis
- Upper protection cover for operator safety
- Additional die sets for custom bend radii
- Tube punching system
- Online modem connection / CD-ROM backup
- Automotive exhaust, chassis, and roll cage tube forming
- Furniture manufacturing — chairs, tables, shelving, and display frames
- HVAC ductwork, piping, and refrigeration tube bending
- Handrail, balustrade, and architectural tube fabrication
- Hydraulic and pneumatic line forming for industrial equipment
- Shipboard and marine piping installations
