Forming & Tube Bending
APK Heavy
by Akyapak

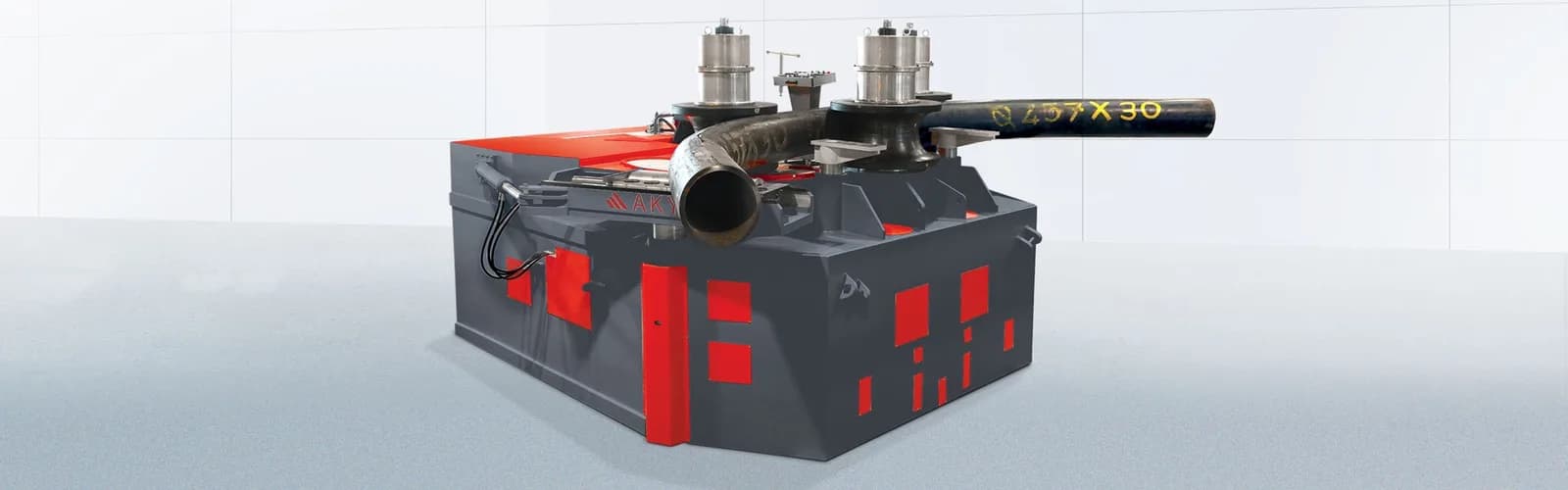

Heavy-duty hydraulic 3-roll profile bending machines for structural steel, pipe, and complex section forming up to HEB 1000
APK 1000, 800, 550, 360, 300, 280
Series models
3 separate hydraulic motors
Drive system
37–214 HP (APK 280–APK 1000)
Motor power range
Not sure if the APK Heavy is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Heavy fabrication shops that bend large structural profiles, pipe, and plate on a daily basis
- Facilities forming HEB, HEA, and wide-flange beams into curves for structural and architectural applications
- Operations requiring the widest capacity range — from 37 HP entry point to 214 HP flagship — with a single machine platform
Series models
APK 1000, 800, 550, 360, 300, 280
Drive system
3 separate hydraulic motors
Motor power range
37–214 HP (APK 280–APK 1000)
Roll diameter range
26–34" (660–864 mm)
Key Features
APK Heavy Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

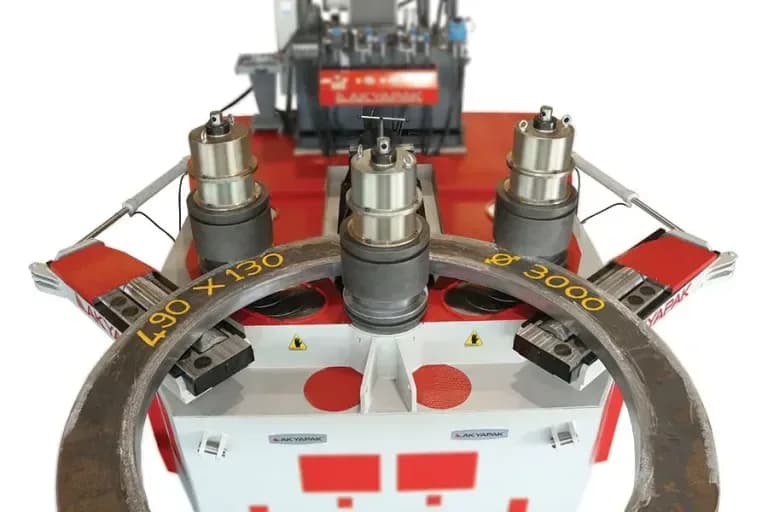

- Three rolls independently driven by separate hydraulic motors — two bottom rolls move independently for slip-free 3-roll bending
- Infinitely variable speed of rotation for precise control across different material grades and section sizes
- Hardened and ground special-steel shafts with heavy-duty bearings for consistent accuracy under high forming loads

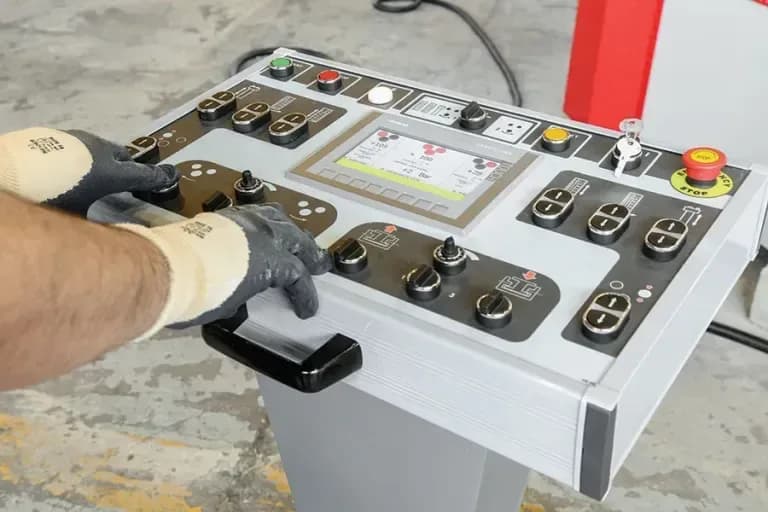

- Separate moveable control panel with Siemens HMI for convenient operator positioning
Cutting Capability
- Side supporters move in three directions to reduce deformation and facilitate pre-bending on both edges
- Handles the full range of structural profiles — angles, T-sections, channels, beams, flat bar, rounds, tubes, and square sections
Built-In Extras
- St-52 welded steel construction body with enlarged roll diameters for minimum flexion and reduced material deformation
- Hydraulically adjustable guide rolls keep workpieces aligned through the forming zone on all models
- Lower rolls hydraulically moveable up and down with digital position display for repeatable setups

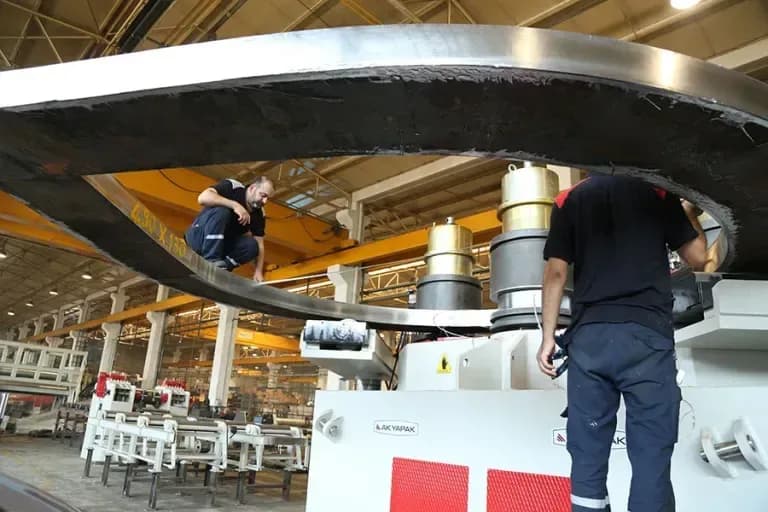

- Spiral bending capability and ring rolling for architectural and industrial curved-section applications
Gallery

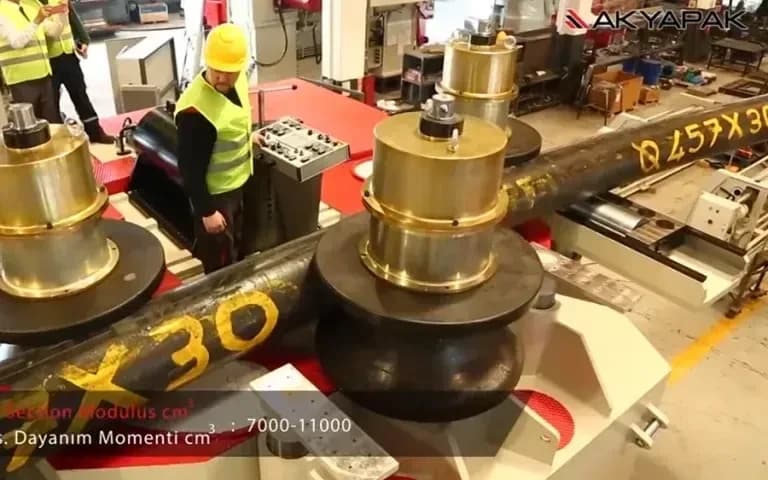

APK Heavy in Detail
Full Specifications
Akyapak APK Heavy Series Angle Roll Technical Details
Complete specifications, standard features, and optional upgrades.
- Series models
- APK 1000, 800, 550, 360, 300, 280
- Drive system
- 3 separate hydraulic motors
- Motor power range
- 37–214 HP (APK 280–APK 1000)
- Roll diameter range
- 26–34" (660–864 mm)
- Max section modulus
- 671 in³ (APK 1000)
- Bending speed
- 0–23 ft/min (variable)
- Max angle leg out
- L8×8" × 1-1/4" (APK 1000)
- Max beam hard way
- W40×211# (APK 1000)
- Max tube
- 24" SCH80 (APK 1000)
- Machine weight range
- 40,785–188,000 lbs
- Working orientation
- Horizontal
- Power supply
- 400 V / 50–60 Hz
- Certifications
- CE, ISO 9001, TSEK, TURQUM
| Series models | APK 1000, 800, 550, 360, 300, 280 |
| Drive system | 3 separate hydraulic motors |
| Motor power range | 37–214 HP (APK 280–APK 1000) |
| Roll diameter range | 26–34" (660–864 mm) |
| Max section modulus | 671 in³ (APK 1000) |
| Bending speed | 0–23 ft/min (variable) |
| Max angle leg out | L8×8" × 1-1/4" (APK 1000) |
| Max beam hard way | W40×211# (APK 1000) |
| Max tube | 24" SCH80 (APK 1000) |
| Machine weight range | 40,785–188,000 lbs |
| Working orientation | Horizontal |
| Power supply | 400 V / 50–60 Hz |
| Certifications | CE, ISO 9001, TSEK, TURQUM |
- St-52 welded steel construction body with enlarged roll diameters for minimum flexion and reduced material deformation
- Three rolls independently driven by separate hydraulic motors — two bottom rolls move independently for slip-free 3-roll bending
- Infinitely variable speed of rotation for precise control across different material grades and section sizes
- Hydraulically adjustable guide rolls keep workpieces aligned through the forming zone on all models
- Lower rolls hydraulically moveable up and down with digital position display for repeatable setups
- Side supporters move in three directions to reduce deformation and facilitate pre-bending on both edges
- Hardened and ground special-steel shafts with heavy-duty bearings for consistent accuracy under high forming loads
- Separate moveable control panel with Siemens HMI for convenient operator positioning
- Handles the full range of structural profiles — angles, T-sections, channels, beams, flat bar, rounds, tubes, and square sections
- Spiral bending capability and ring rolling for architectural and industrial curved-section applications
- Special rolls for tubes, profiles, and angles
- Special tooling system for bending H, I, and U profiles
- NC Playback Control System
- CNC Graphic Control System with Siemens HMI
- Joystick control
- Digital display for hydraulic guide rolls
- Motors in variable voltage and frequency
- Structural steel curved framing for commercial and industrial buildings
- Pipe and tube bending for process piping, handrails, and architectural metalwork
- Ring rolling for flanges, wind tower sections, and pressure vessel components
- Bridge and infrastructure curved-section fabrication
- Shipyard and marine structural forming
- Heavy equipment frame and chassis bending
