Forming & Tube Bending
APSM
by Akyapak

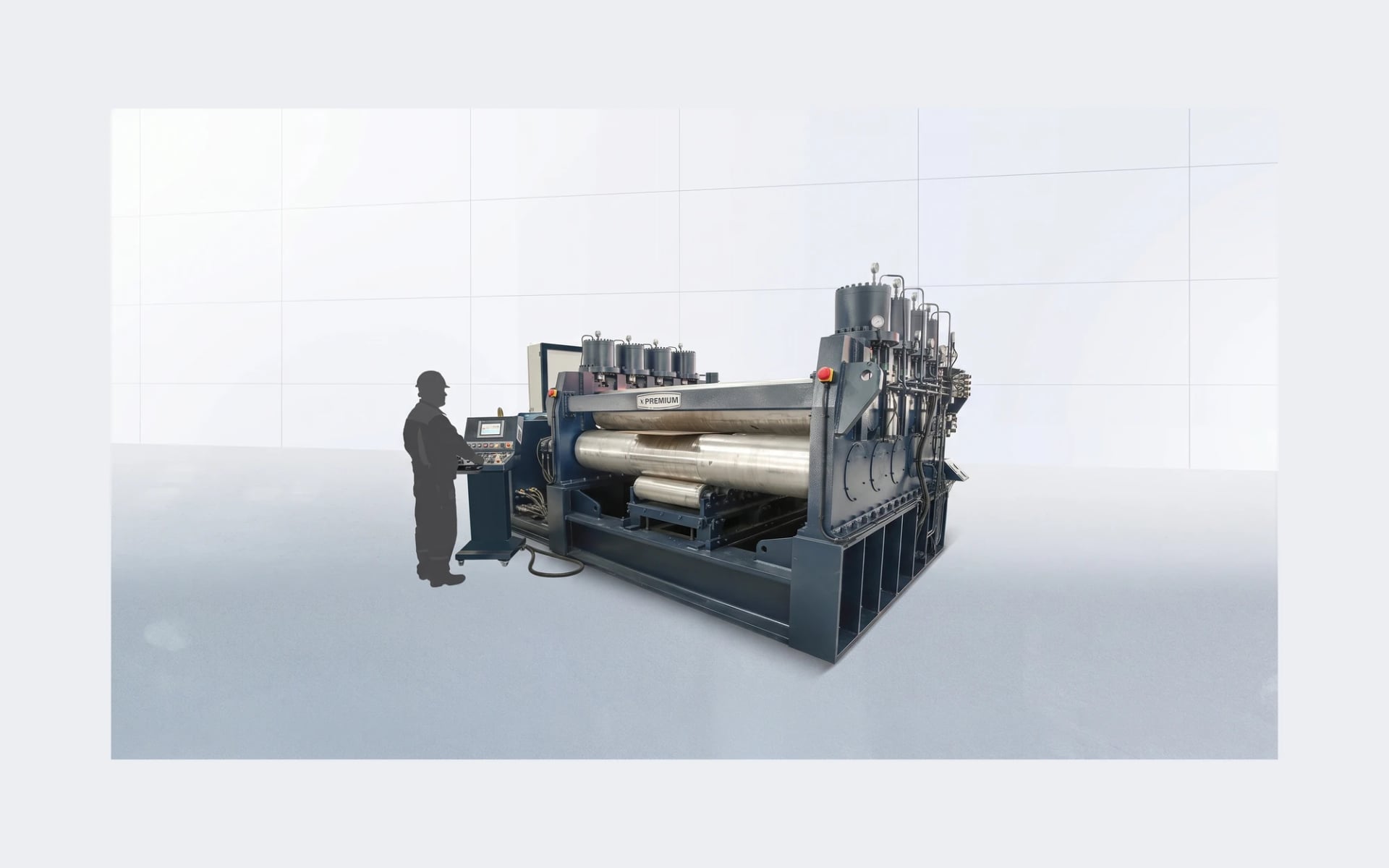

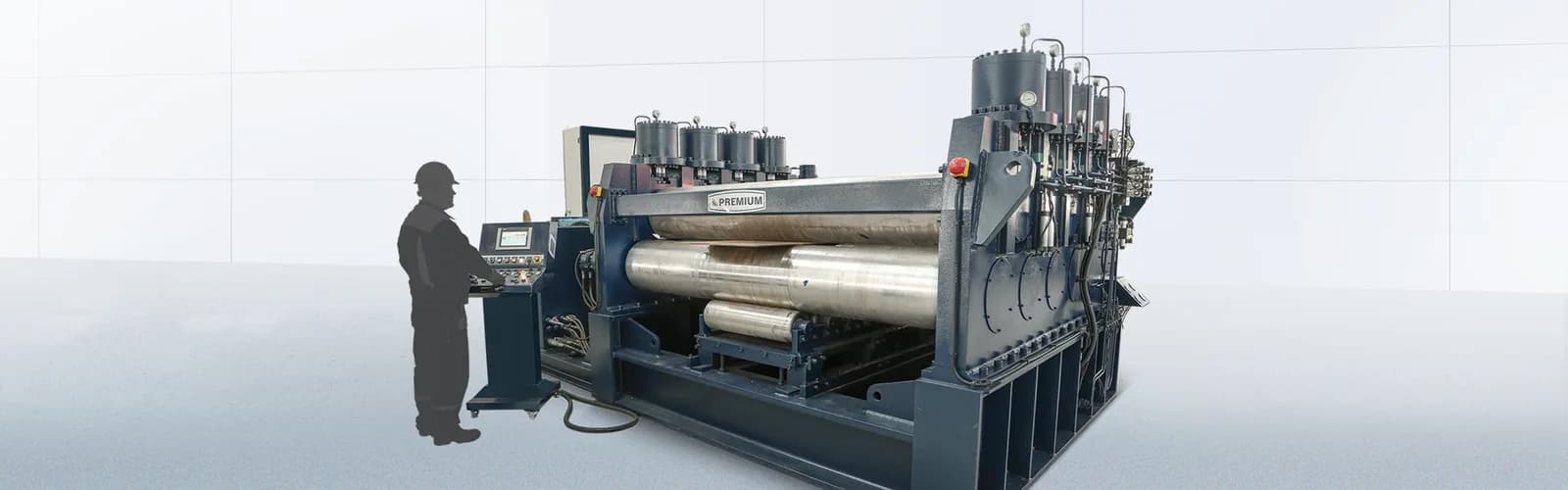

Multi-roll plate straightening machines for correcting flatness in sheet and plate from 3 mm to 60 mm thick
5-roll, 7-roll, or 9-roll
Configuration options
1,000–3,000 mm (39"–118")
Working length range
3–60 mm
Plate thickness range
Not sure if the APSM is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Cutting shops that need incoming plate flat before it reaches the CNC cutting table — improving cut accuracy and part yield
- Fabricators correcting weld distortion and heat-affected warping on assembled plate components
- High-volume operations that need single-pass straightening with a 9-roll machine for maximum throughput
Configuration options
5-roll, 7-roll, or 9-roll
Working length range
1,000–3,000 mm (39"–118")
Plate thickness range
3–60 mm
Max plate width
3,000 mm (118")
Key Features
APSM Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Spherical roller bearings on all rolls handle high loads and slight misalignment without premature wear
- St-52 welded steel frame provides the rigidity needed to maintain roll parallelism under heavy straightening pressure
- Variable speed of rotation on bottom rolls is standard — adjustable to match material grade and thickness
Built-In Extras

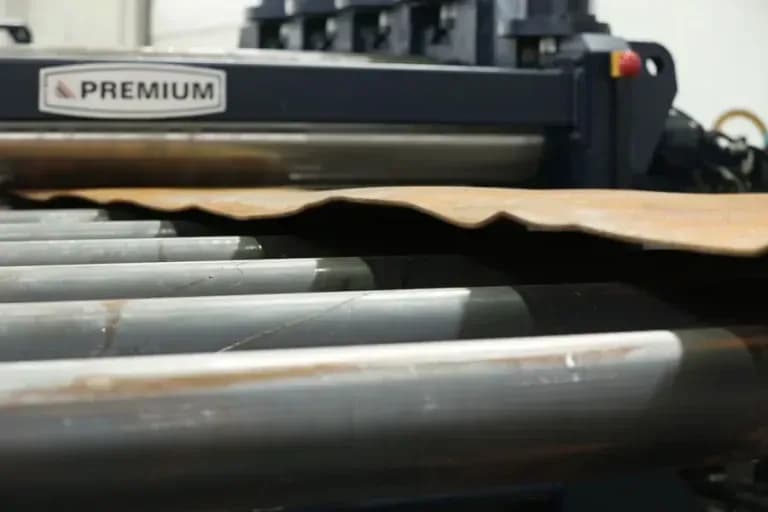

- Straightening rolls manufactured from special steel ensure consistent forming pressure and long service life across production runs
- Nine-roll configuration straightens plate in a single pass for maximum throughput in high-volume operations
- Seven-roll and five-roll configurations offer reduced capital cost while still delivering effective straightening in multiple cycles
- 3D-designed and functionally tested construction verified through advance engineering analysis before production
- Handles the full range of plate products — from thin sheet at 3 mm to heavy plate at 60 mm thick

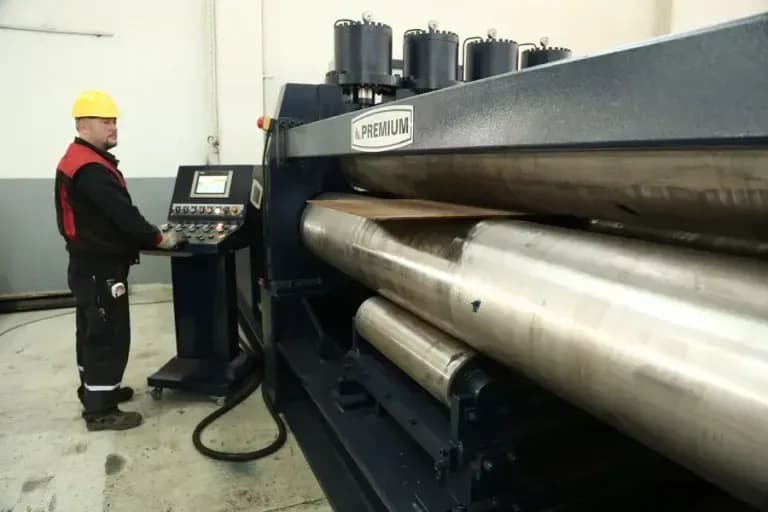

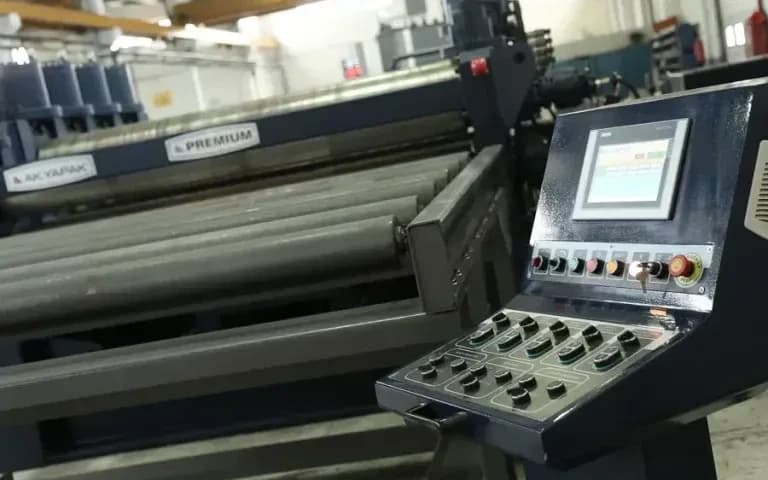

- Separate moveable control panel with digital display for top roll position enables precise, repeatable gap settings
- Working lengths from 1,000 mm to 3,000 mm accommodate plate sizes from narrow strips to full-width mill plate
Gallery
APSM in Detail
Full Specifications
Akyapak APSM Plate Straightening Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Configuration options
- 5-roll, 7-roll, or 9-roll
- Working length range
- 1,000–3,000 mm (39"–118")
- Plate thickness range
- 3–60 mm
- Max plate width
- 3,000 mm (118")
- Motor power range
- 3–150 HP
- Straightening capacity (9-roll)
- Up to 34 mm × 1,000 mm
- Straightening capacity (7-roll)
- Up to 68 mm × 1,500 mm
- Straightening capacity (5-roll)
- Up to 60 mm × 2,000 mm
- Roll material
- Special steel with spherical roller bearings
- Frame construction
- St-52 welded steel
- Bottom roll speed
- Variable speed (standard)
- Control panel
- Separate moveable panel, digital top roll display
| Configuration options | 5-roll, 7-roll, or 9-roll |
| Working length range | 1,000–3,000 mm (39"–118") |
| Plate thickness range | 3–60 mm |
| Max plate width | 3,000 mm (118") |
| Motor power range | 3–150 HP |
| Straightening capacity (9-roll) | Up to 34 mm × 1,000 mm |
| Straightening capacity (7-roll) | Up to 68 mm × 1,500 mm |
| Straightening capacity (5-roll) | Up to 60 mm × 2,000 mm |
| Roll material | Special steel with spherical roller bearings |
| Frame construction | St-52 welded steel |
| Bottom roll speed | Variable speed (standard) |
| Control panel | Separate moveable panel, digital top roll display |
- Straightening rolls manufactured from special steel ensure consistent forming pressure and long service life across production runs
- Spherical roller bearings on all rolls handle high loads and slight misalignment without premature wear
- St-52 welded steel frame provides the rigidity needed to maintain roll parallelism under heavy straightening pressure
- Nine-roll configuration straightens plate in a single pass for maximum throughput in high-volume operations
- Seven-roll and five-roll configurations offer reduced capital cost while still delivering effective straightening in multiple cycles
- Variable speed of rotation on bottom rolls is standard — adjustable to match material grade and thickness
- Separate moveable control panel with digital display for top roll position enables precise, repeatable gap settings
- 3D-designed and functionally tested construction verified through advance engineering analysis before production
- Handles the full range of plate products — from thin sheet at 3 mm to heavy plate at 60 mm thick
- Working lengths from 1,000 mm to 3,000 mm accommodate plate sizes from narrow strips to full-width mill plate
- Pinching rolls for initial material capture
- Supports for bottom rolls
- Hardened and ground rolls for extended life
- Driven top rolls for improved material feeding
- Variable speed of rotation for top rolls

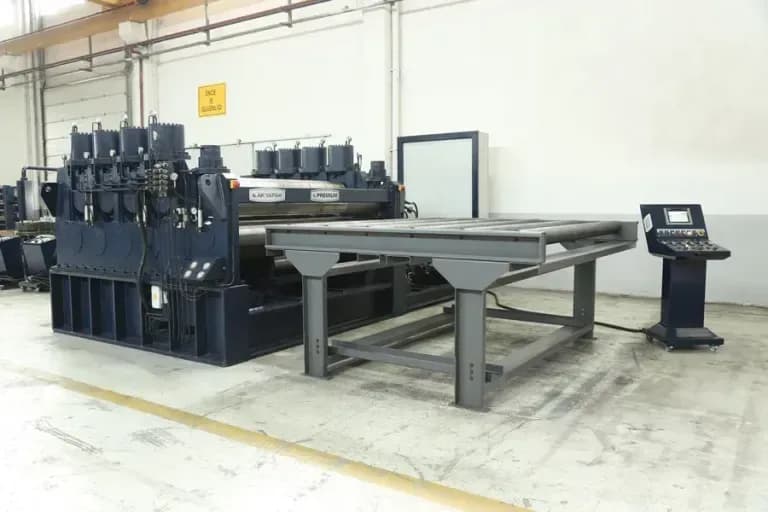

- Infeed/outfeed material feeding tables
- Plate preparation before CNC cutting — ensuring flat material for accurate plasma, laser, and oxyfuel processing
- Weld distortion correction on fabricated plate assemblies
- Mill plate conditioning after transport and storage
- Shipyard plate straightening for hull and structural panel production
- Pressure vessel and boiler plate preparation
- General fabrication shops processing incoming plate stock to flatness tolerances
