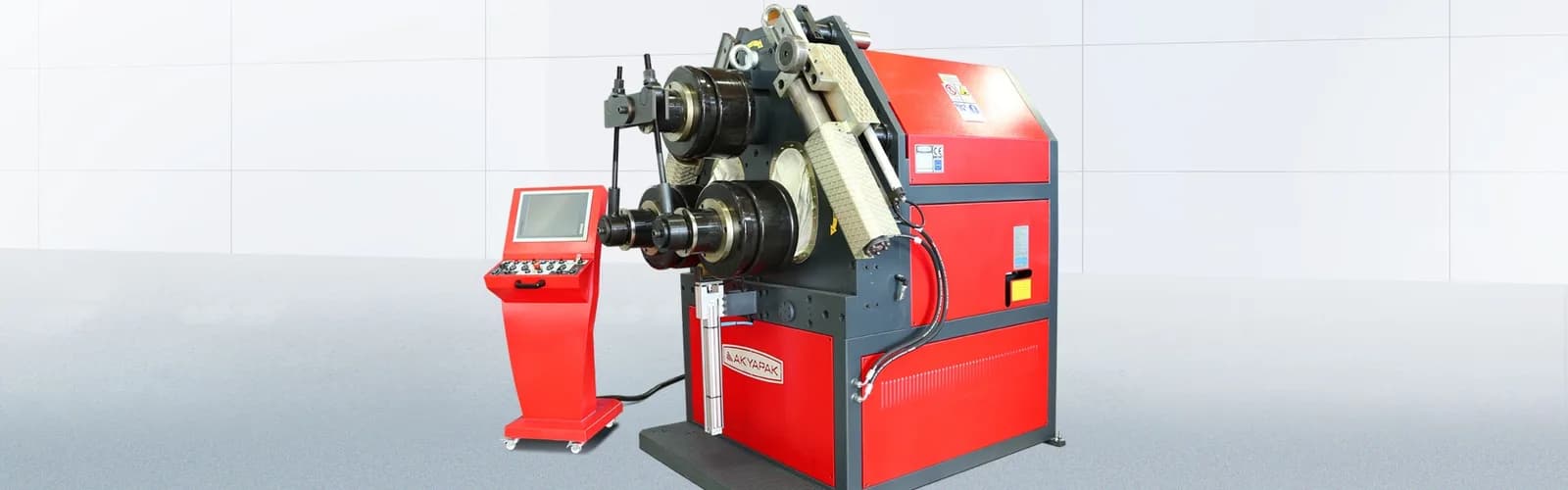

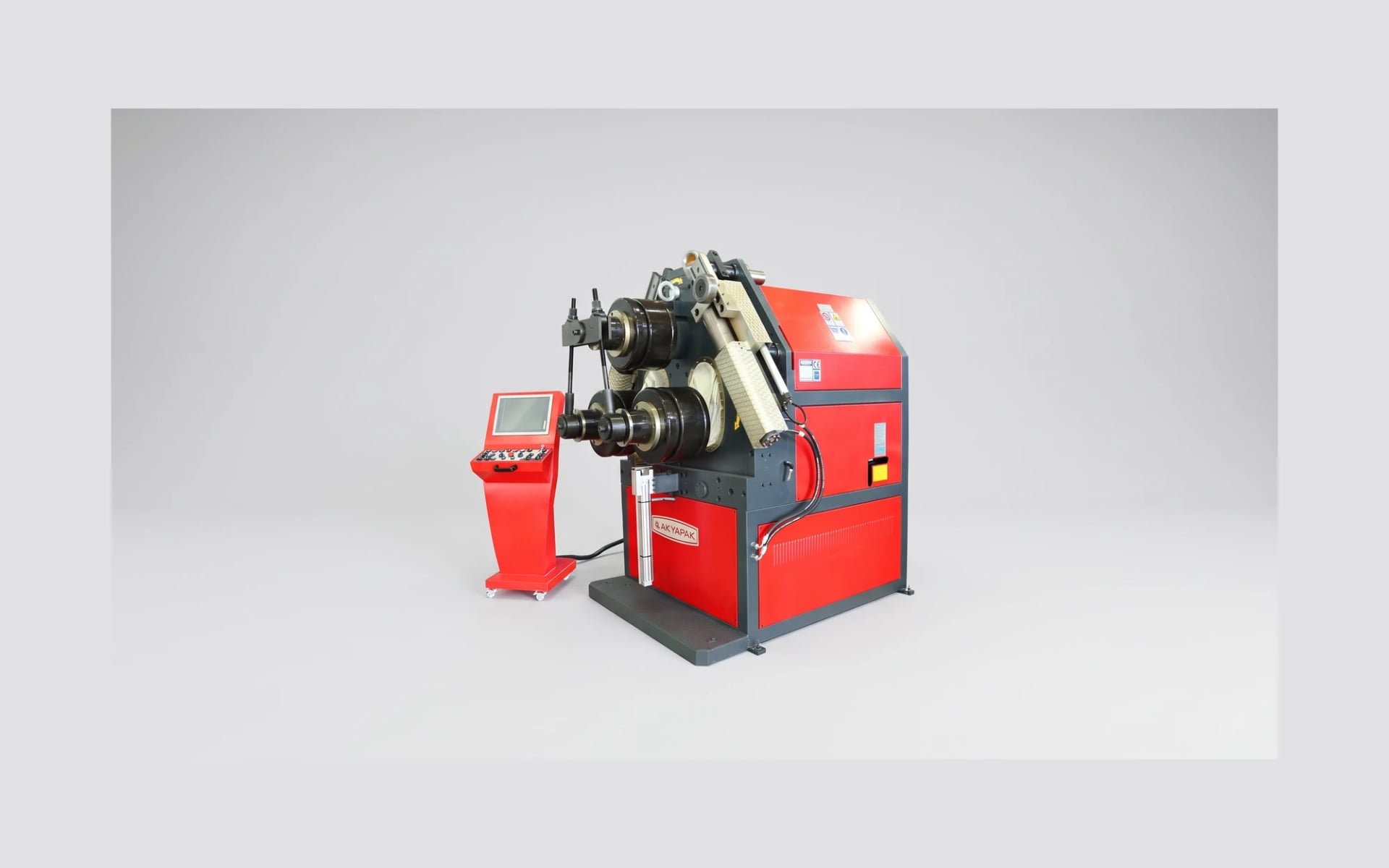

Forming & Tube Bending
APK Medium
by Akyapak
Versatile hydraulic angle rolls for bending profiles, tubes, and flat bar in fabrication shops of every size
APK 240, 180, 121, 101, 81, 61
Series models
Hydraulic motor + planetary gearbox
Drive system
5.4–40 HP (APK 61–APK 240)
Motor power range
Not sure if the APK Medium is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabrication shops that bend a wide variety of profiles and need horizontal-plus-vertical flexibility in a compact footprint
- Operations looking for a professional-grade angle roll without the capital outlay of a heavy-duty machine
- Shops forming tubes, angles, flat bar, and channels for architectural, HVAC, or general fabrication applications
Series models
APK 240, 180, 121, 101, 81, 61
Drive system
Hydraulic motor + planetary gearbox
Motor power range
5.4–40 HP (APK 61–APK 240)
Roll diameter range
6.97–21.65" (177–550 mm)
Key Features
APK Medium Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- St-52 welded steel construction body built for long-term rigidity and dimensional stability under forming loads
- Hardened and ground 42CrMo4 special-steel shafts for consistent accuracy across extended production runs
- Hydraulic motor and planetary gearbox drive delivers smooth, controllable roll speed across the full torque range
Ease of Operation
- Guide rolls are adjustable (manually on APK 101, hydraulically on APK 121 and above) for profile alignment

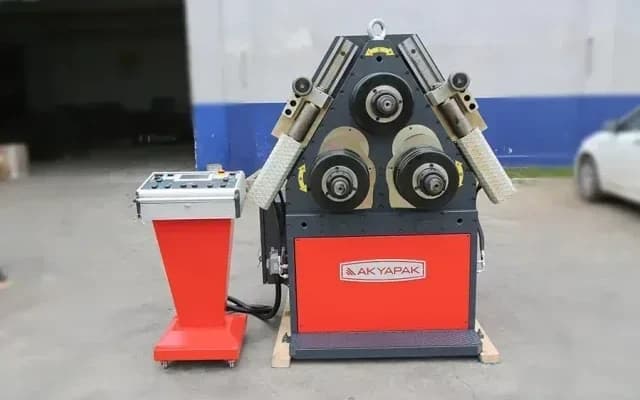

- Separate moveable control panel allows the operator to position for best sightline to the workpiece
Built-In Extras

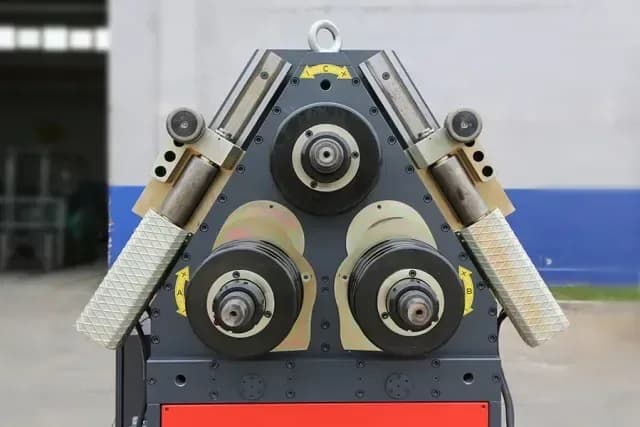

- Hydraulically moveable lower rolls with digital position display for fast, repeatable setup changes
- Both horizontal and vertical working orientations expand the range of formable geometries
- One set of standard rolls included — interchangeable tooling available for tubes, profiles, and specialty sections
- Compact footprint on smaller models (APK 61: 3.1 × 4.6 × 4.8 ft) suits shops with limited floor space
- Certified by CE, ISO 9001-2008, TSEK, and TURQUM for quality and safety compliance

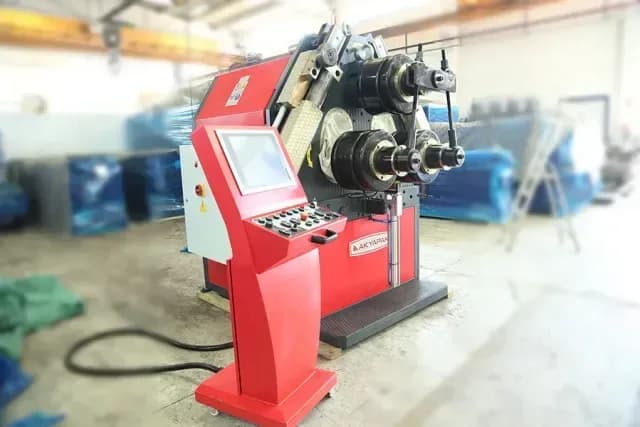

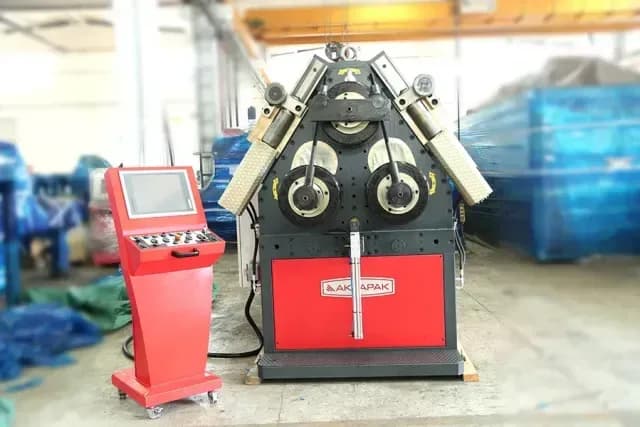

Gallery
APK Medium in Detail
Full Specifications
Akyapak APK Medium Series Angle Roll Technical Details
Complete specifications, standard features, and optional upgrades.
- Series models
- APK 240, 180, 121, 101, 81, 61
- Drive system
- Hydraulic motor + planetary gearbox
- Motor power range
- 5.4–40 HP (APK 61–APK 240)
- Roll diameter range
- 6.97–21.65" (177–550 mm)
- Max section modulus
- 19.5 in³ (APK 240)
- Bending speed
- 0–23 ft/min (variable)
- Max angle leg out
- L6×6" × 1" (APK 240)
- Max beam hard way
- W6×25# (APK 240)
- Max tube
- 8" SCH40 (APK 240)
- Machine weight range
- 2,140–38,580 lbs
- Working orientation
- Horizontal and vertical
- Power supply
- 400 V / 50–60 Hz
- Certifications
- CE, ISO 9001, TSEK, TURQUM
| Series models | APK 240, 180, 121, 101, 81, 61 |
| Drive system | Hydraulic motor + planetary gearbox |
| Motor power range | 5.4–40 HP (APK 61–APK 240) |
| Roll diameter range | 6.97–21.65" (177–550 mm) |
| Max section modulus | 19.5 in³ (APK 240) |
| Bending speed | 0–23 ft/min (variable) |
| Max angle leg out | L6×6" × 1" (APK 240) |
| Max beam hard way | W6×25# (APK 240) |
| Max tube | 8" SCH40 (APK 240) |
| Machine weight range | 2,140–38,580 lbs |
| Working orientation | Horizontal and vertical |
| Power supply | 400 V / 50–60 Hz |
| Certifications | CE, ISO 9001, TSEK, TURQUM |
- St-52 welded steel construction body built for long-term rigidity and dimensional stability under forming loads
- Hardened and ground 42CrMo4 special-steel shafts for consistent accuracy across extended production runs
- Hydraulically moveable lower rolls with digital position display for fast, repeatable setup changes
- Both horizontal and vertical working orientations expand the range of formable geometries
- Hydraulic motor and planetary gearbox drive delivers smooth, controllable roll speed across the full torque range
- Guide rolls are adjustable (manually on APK 101, hydraulically on APK 121 and above) for profile alignment
- Separate moveable control panel allows the operator to position for best sightline to the workpiece
- One set of standard rolls included — interchangeable tooling available for tubes, profiles, and specialty sections
- Compact footprint on smaller models (APK 61: 3.1 × 4.6 × 4.8 ft) suits shops with limited floor space
- Certified by CE, ISO 9001-2008, TSEK, and TURQUM for quality and safety compliance
- Special rolls for tubes, profiles, and angles
- Adjustable guide rolls for angle profiles
- Spiral bending device
- Variable speed of rotation
- NC Playback Control System
- CNC Graphic Control System
- Motors in variable voltage and frequency
- Hydraulically adjustable guide rolls in two directions (APK 121)
- Architectural metalwork — curved handrails, balustrades, window frames, and decorative profiles
- HVAC ductwork and piping bends for mechanical contractors
- Agricultural equipment frame and component forming
- Furniture and fixture manufacturing with curved tube and flat bar elements
- General fabrication shops needing a versatile section bender for mixed-profile work
- Trailer and vehicle body frame bending
Ready to Discuss the APK Medium?
Our team has 19+ years of experience helping Canadian manufacturers find the right cutting and processing equipment.
19+
Years in Business
50+
Machine Models
900+
Happy Customers
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Financing Available
Flexible payment options on qualifying equipment.
Or email us at [email protected]
Related
Explore More Forming & Tube Bending Systems
Compare specifications and find the right machine for your application.
hydraulic 3-roll profile bending machine
APK Heavy
The Akyapak APK Heavy Series delivers the bending force and roll geometry needed to form the heaviest structural profiles, pipe, and plate into precise curves, rings, and spirals. Six models span from the APK 280 at 37 HP to the flagship APK 1000 — one of the most powerful profile benders in production — with 214 HP, 34-inch diameter rolls, and a section modulus capacity exceeding 670 in³. Every machine in the range features a St-52 welded steel frame, three independently hydraulically driven rolls for slip-free material feeding, and infinitely variable speed control for consistent results across varying material grades and section sizes. Side supporters move in three directions to reduce deformation during bending, and hydraulically adjustable guide rolls keep the workpiece aligned through the forming zone. Available from ACM in Cambridge, Ontario with full installation, tooling consultation, and lifecycle service support.
CNC/NC tube and pipe bending machine
ABM
The Akyapak ABM Series covers the full spectrum of tube and pipe bending — from the all-electric ABM E-25 multi-stack bender to the heavy-duty ABM 76 CNC 3 with three-die servo control. These machines bend mild steel, stainless steel, aluminium, and similar materials into simple or complex shapes with repeatable accuracy across both high-volume production and single-piece work. CNC models feature servo-controlled bending, feeding, shifting, and turning axes, a 15-inch colour touchscreen with 3D bend preview, YBC programming mode, and automatic tube length calculation. NC models provide a cost-effective semi-automatic option for shops with moderate throughput requirements. The ABM range serves automotive, furniture, HVAC, insulation, and general fabrication applications where bend quality and repeatability are critical. ACM provides the full ABM range from Cambridge, Ontario with die packages, mandrel tooling, installation, and training.

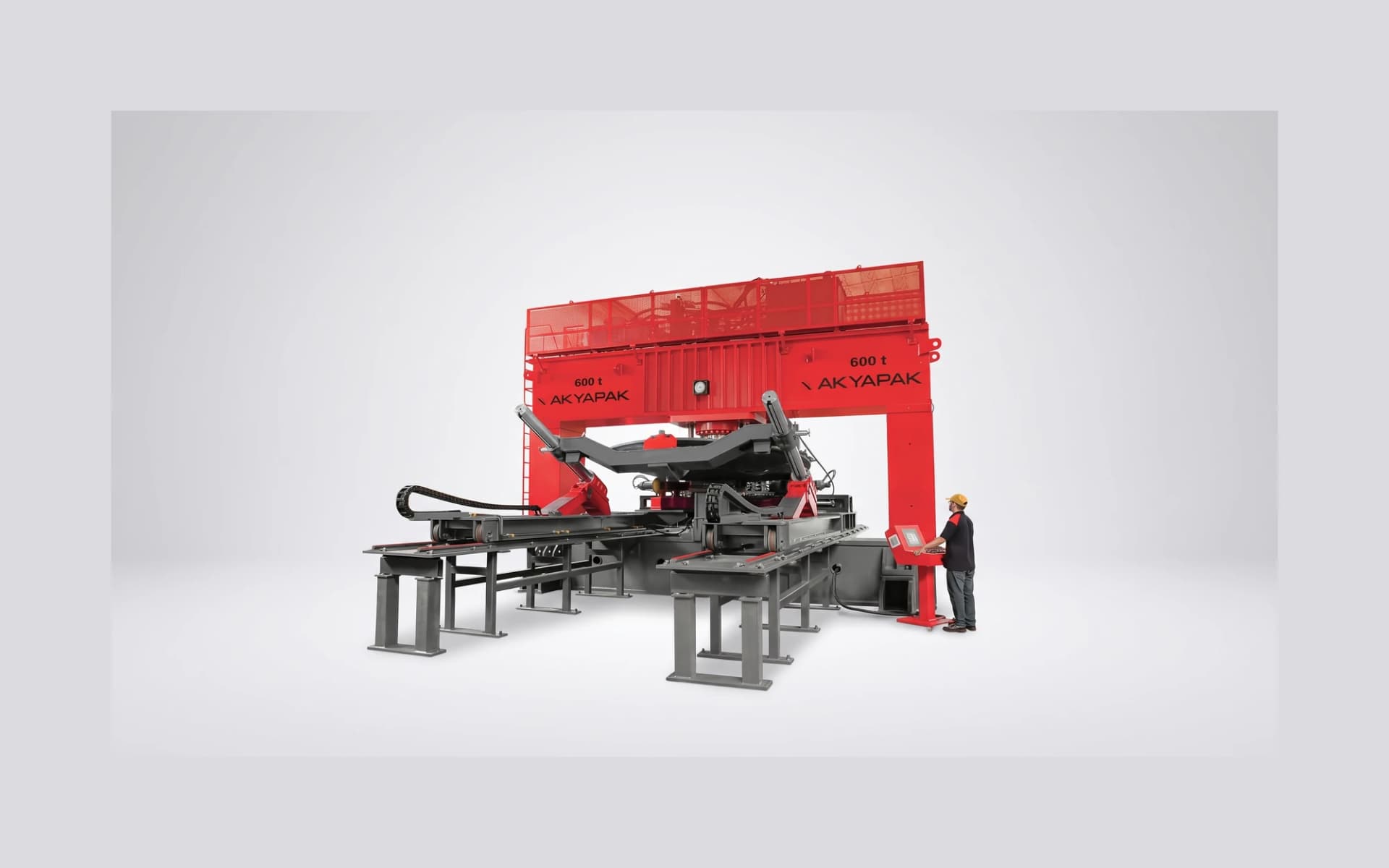

hydraulic dishing press
