Forming & Tube Bending
BMB
by Akyapak

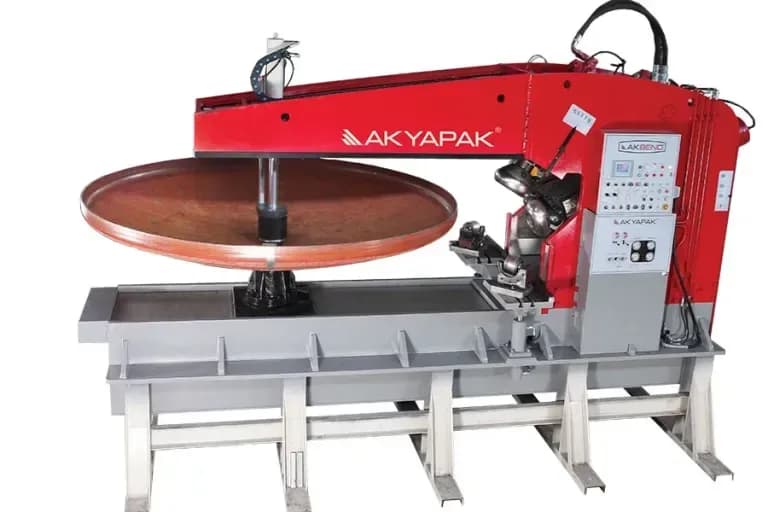

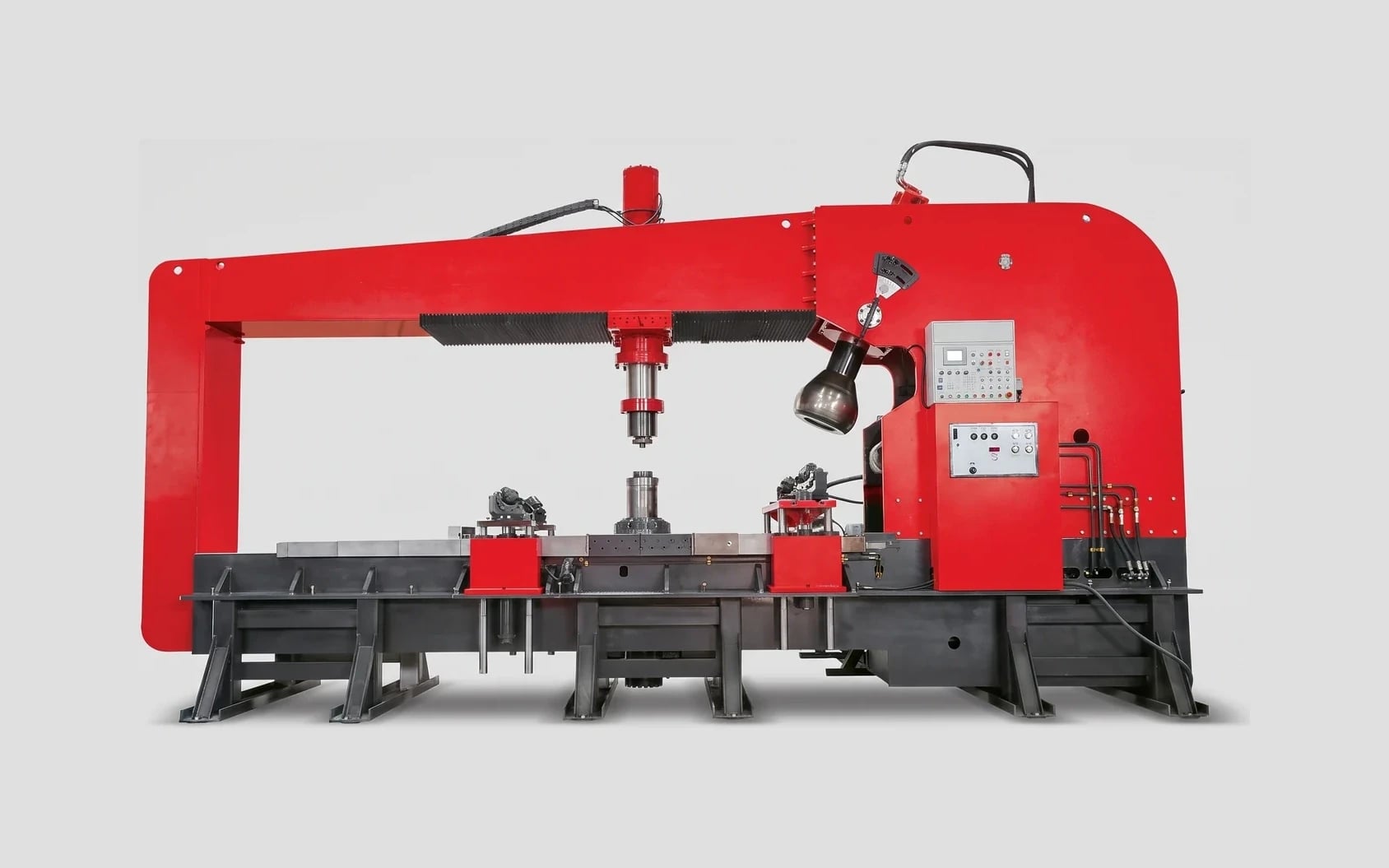

Hydraulic flanging machines for forming tank heads, pressure vessel ends, and dished components from 20" to 33' diameter
20"–33' (500 mm–10 m)
Working diameter range
14 ga–2" (1.9–50 mm)
Thickness range (cold)
Up to 4" (100 mm)
Thickness range (hot)
Not sure if the BMB is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Tank and vessel fabricators who flange dished heads in-house and need low-vibration precision across a wide diameter range
- Shops working with both thin-gauge and heavy-plate material that require proportional hydraulic control for consistent edge quality
- Manufacturers pairing a BMB flanging machine with a BMB-P dishing press for a complete in-house head forming line
Working diameter range
20"–33' (500 mm–10 m)
Thickness range (cold)
14 ga–2" (1.9–50 mm)
Thickness range (hot)
Up to 4" (100 mm)
Frame construction
High-alloy steel, electro-welded, stress relieved
Key Features
BMB Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

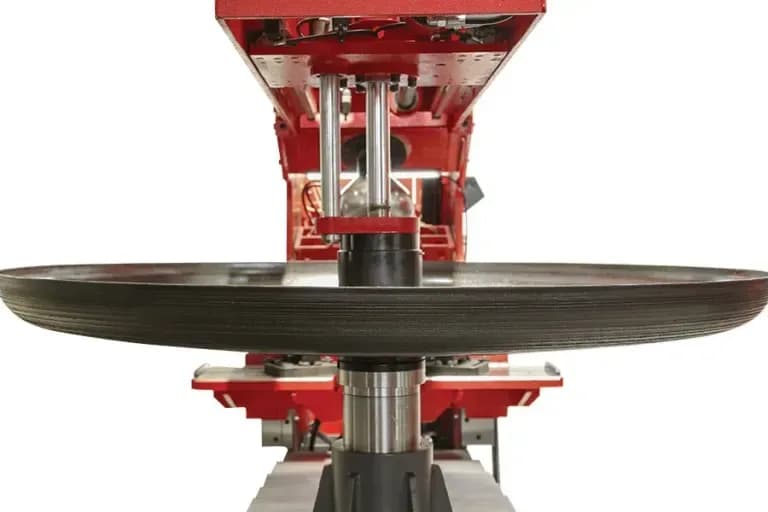

- Both upper and lower head holders driven independently by hydraulic motors and cylinders for precise clamping and rotation control

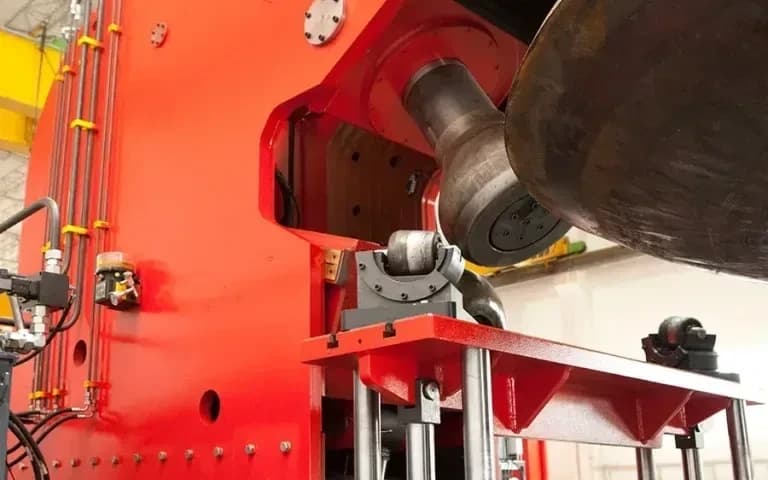

- Radial-piston hydraulic motor drives the knuckle roll for high-speed rotation with consistent torque throughout each flanging pass
- Proportional hydraulic valves provide accurate pressure and speed control during flanging for consistent edge profiles
Ease of Operation
- Built-in overload protection prevents damage from wrong settings — the hydraulic system stops automatically if parameters are exceeded
- Centralised lubrication system via hand pump simplifies routine maintenance across all hydraulic and mechanical points
- User-friendly controls allow operators without extensive forming experience to achieve accurate, repeatable flanging results
Cutting Capability
- Flanging roll driven by three hydraulic cylinders for simultaneous vertical and horizontal movement between the main frame bodies

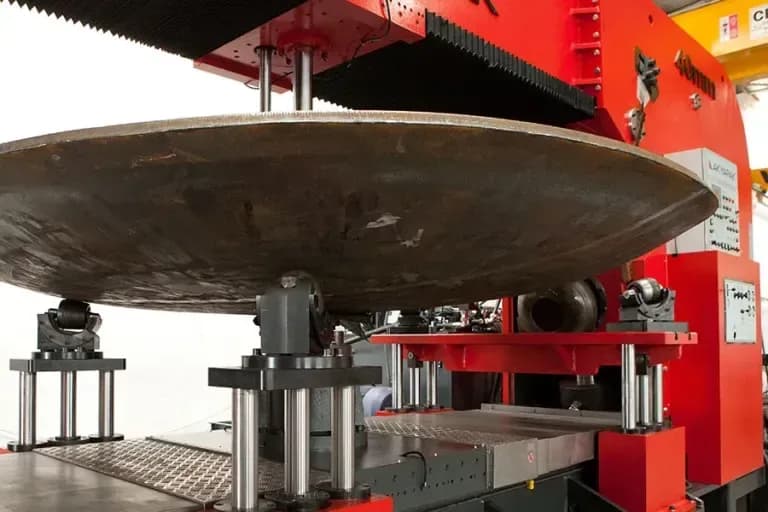

- Lower supporting rolls powered by hydraulic cylinders support the head during flanging and adjust to different blank diameters
Built-In Extras
- Electro-welded, stress-relieved high-alloy steel frame engineered for lowest vibration during flanging — extending component life and reducing surface roughness
- Heat-treated special-steel dies produce clean flanges on steel, stainless steel, and mild steel blanks with or without centre holes
Gallery

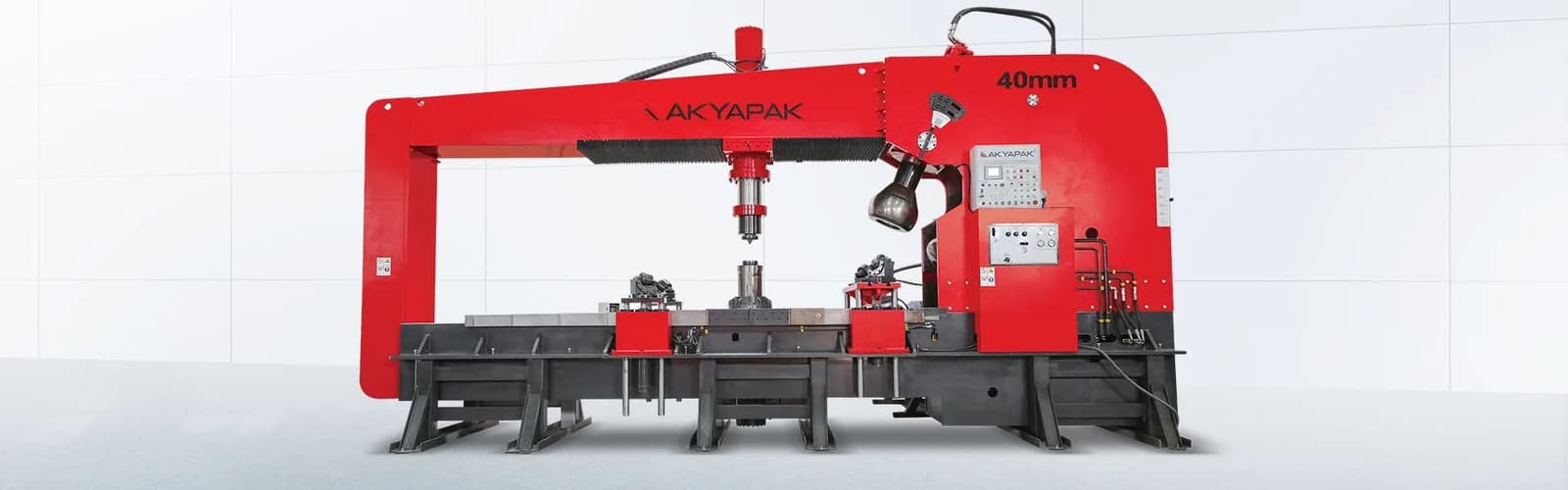

BMB in Detail
Full Specifications
Akyapak BMB Flanging Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Working diameter range
- 20"–33' (500 mm–10 m)
- Thickness range (cold)
- 14 ga–2" (1.9–50 mm)
- Thickness range (hot)
- Up to 4" (100 mm)
- Frame construction
- High-alloy steel, electro-welded, stress relieved
- Head holder drive
- Hydraulic motors + cylinders (upper and lower)
- Knuckle roll drive
- Radial-piston hydraulic motor
- Flanging roll drive
- 3 hydraulic cylinders (vertical + horizontal)
- Die material
- Special steel, heat-treated
- Hydraulic control
- Proportional valves for accurate flanging
- Lubrication
- Centralised hand-pump system
- Overload protection
- Hydraulic system with wrong-setting protection
| Working diameter range | 20"–33' (500 mm–10 m) |
| Thickness range (cold) | 14 ga–2" (1.9–50 mm) |
| Thickness range (hot) | Up to 4" (100 mm) |
| Frame construction | High-alloy steel, electro-welded, stress relieved |
| Head holder drive | Hydraulic motors + cylinders (upper and lower) |
| Knuckle roll drive | Radial-piston hydraulic motor |
| Flanging roll drive | 3 hydraulic cylinders (vertical + horizontal) |
| Die material | Special steel, heat-treated |
| Hydraulic control | Proportional valves for accurate flanging |
| Lubrication | Centralised hand-pump system |
| Overload protection | Hydraulic system with wrong-setting protection |
- Electro-welded, stress-relieved high-alloy steel frame engineered for lowest vibration during flanging — extending component life and reducing surface roughness
- Both upper and lower head holders driven independently by hydraulic motors and cylinders for precise clamping and rotation control
- Radial-piston hydraulic motor drives the knuckle roll for high-speed rotation with consistent torque throughout each flanging pass
- Flanging roll driven by three hydraulic cylinders for simultaneous vertical and horizontal movement between the main frame bodies
- Proportional hydraulic valves provide accurate pressure and speed control during flanging for consistent edge profiles
- Built-in overload protection prevents damage from wrong settings — the hydraulic system stops automatically if parameters are exceeded
- Lower supporting rolls powered by hydraulic cylinders support the head during flanging and adjust to different blank diameters
- Heat-treated special-steel dies produce clean flanges on steel, stainless steel, and mild steel blanks with or without centre holes
- Centralised lubrication system via hand pump simplifies routine maintenance across all hydraulic and mechanical points
- User-friendly controls allow operators without extensive forming experience to achieve accurate, repeatable flanging results
- Automatic flanging function for reduced cycle time
- Custom die sets for non-standard flange profiles
- Hot-forming tooling packages for thick-plate applications
- Extended diameter tooling
- Pressure vessel flanged head production for ASME and PED code work
- Storage tank end forming for oil, gas, chemical, and water industries
- Boiler drum and heat exchanger head flanging
- Shipbuilding and naval vessel component fabrication
- Food, dairy, and pharmaceutical tank head production
- Power generation equipment — steam drums, columns, and separator heads
Ready to Discuss the BMB?
Our team has 19+ years of experience helping Canadian manufacturers find the right cutting and processing equipment.
19+
Years in Business
50+
Machine Models
900+
Happy Customers
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Financing Available
Flexible payment options on qualifying equipment.
Or email us at [email protected]
Related
Explore More Forming & Tube Bending Systems
Compare specifications and find the right machine for your application.

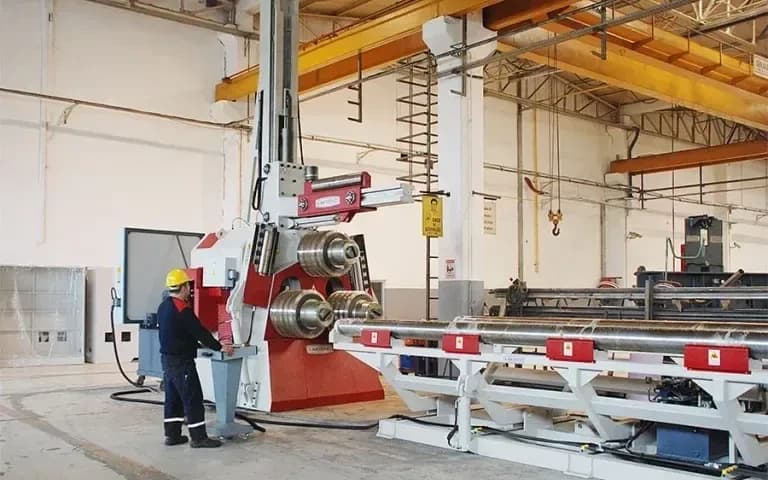

hydraulic 3-roll profile bending machine
APK Heavy
The Akyapak APK Heavy Series delivers the bending force and roll geometry needed to form the heaviest structural profiles, pipe, and plate into precise curves, rings, and spirals. Six models span from the APK 280 at 37 HP to the flagship APK 1000 — one of the most powerful profile benders in production — with 214 HP, 34-inch diameter rolls, and a section modulus capacity exceeding 670 in³. Every machine in the range features a St-52 welded steel frame, three independently hydraulically driven rolls for slip-free material feeding, and infinitely variable speed control for consistent results across varying material grades and section sizes. Side supporters move in three directions to reduce deformation during bending, and hydraulically adjustable guide rolls keep the workpiece aligned through the forming zone. Available from ACM in Cambridge, Ontario with full installation, tooling consultation, and lifecycle service support.

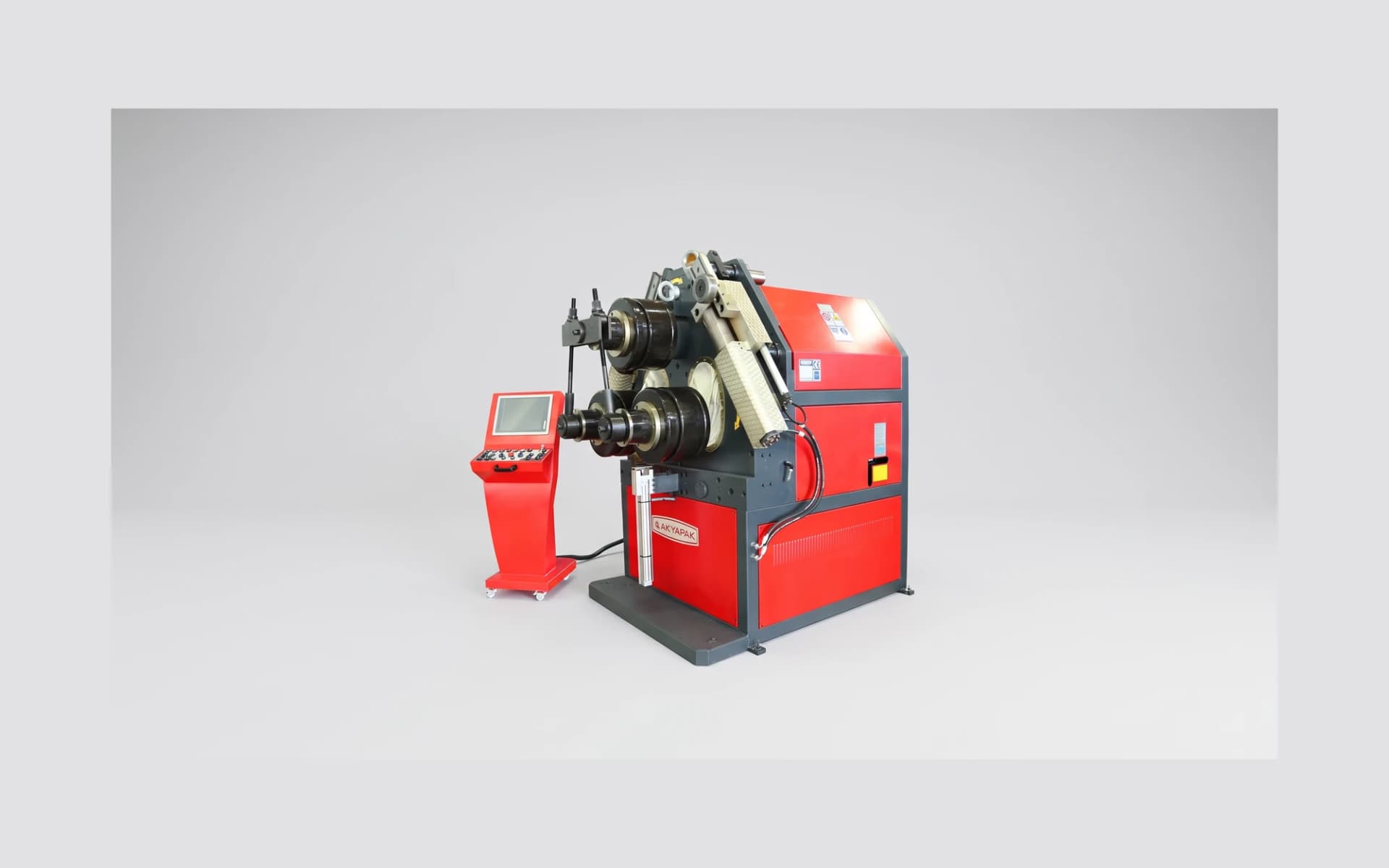

hydraulic/mechanical profile bending machine
APK Medium
The Akyapak APK Medium Series brings professional-grade profile bending capability to shops that need versatility without the footprint of a heavy-duty machine. Six models range from the compact APK 61 at 5.4 HP to the APK 240 at 40 HP, handling angles, T-sections, flat bar, square bar, rounds, tubes, and channels across a broad capacity range. All models feature a St-52 steel construction body, hardened and ground 42CrMo4 special-steel shafts, hydraulically moveable lower rolls, digital position display, and both horizontal and vertical working orientations. Rolls are driven by a hydraulic motor through a planetary gearbox for smooth, controllable forming. ACM supplies every APK Medium model from Ontario with tooling packages, installation, and dedicated after-sales support.

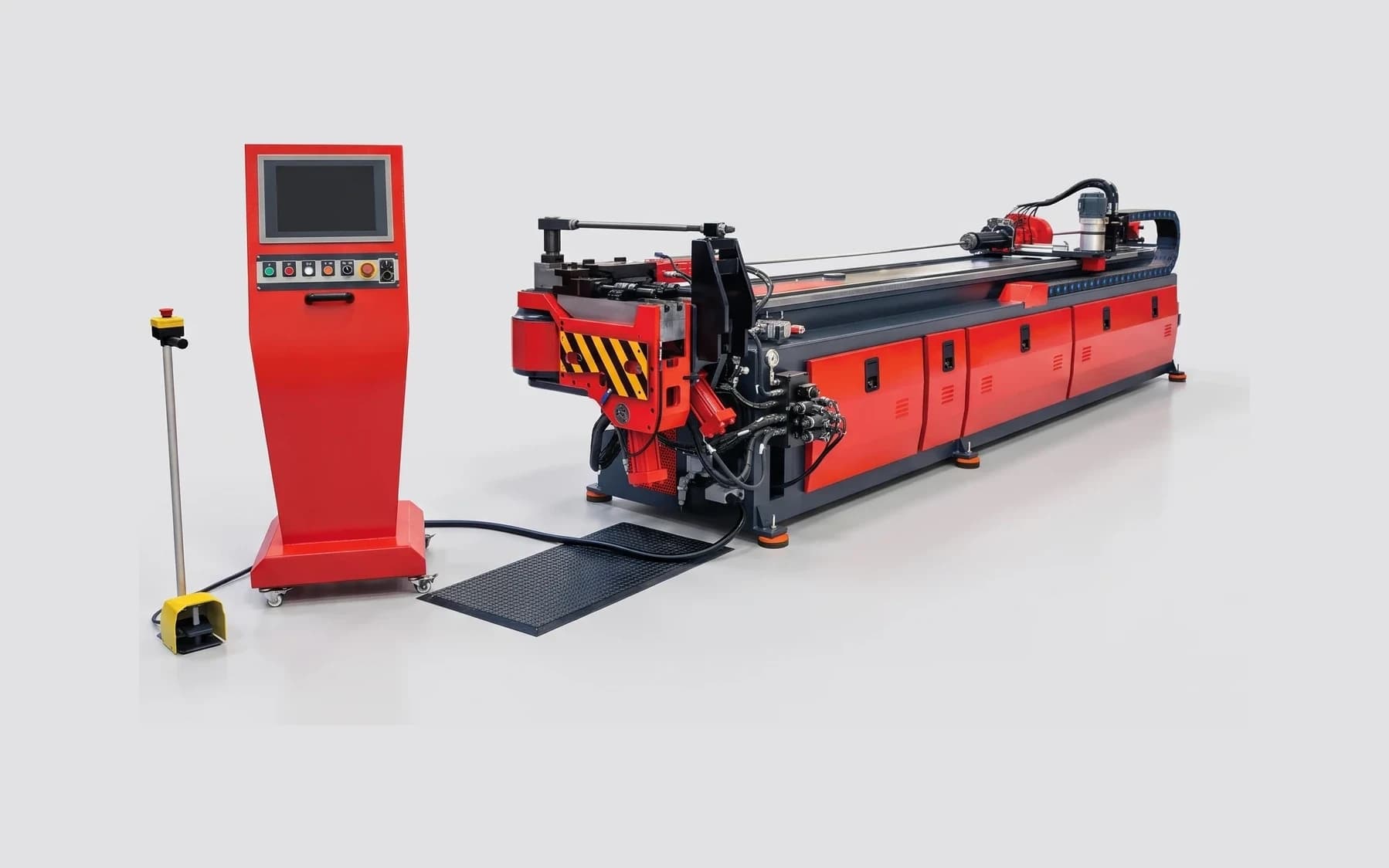

CNC/NC tube and pipe bending machine
