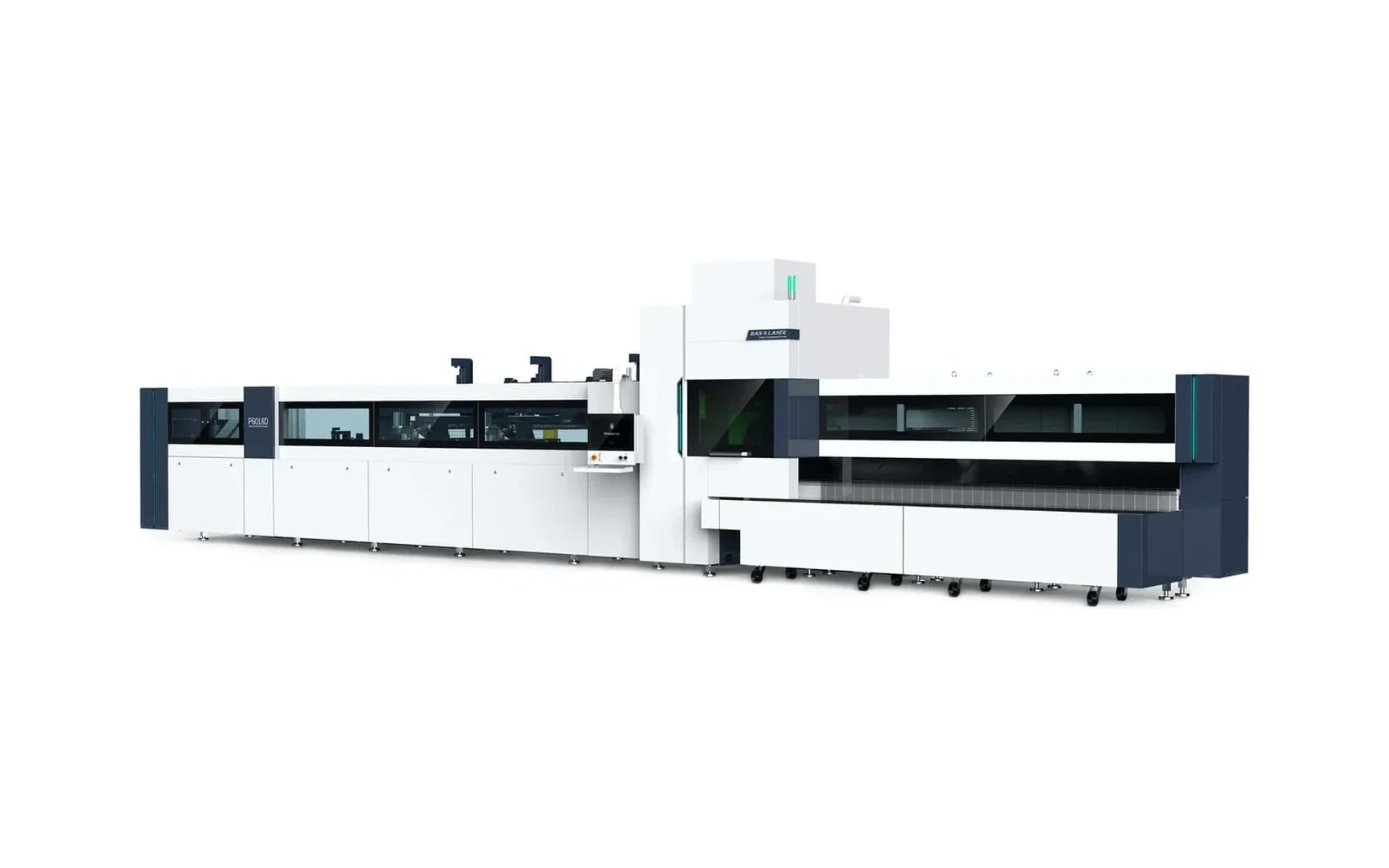

Tube Laser
PD Series - Up to 180mm (7") diameter
by Han's Laser
Small/medium tube laser: 20-180mm, 1-4kW, modular auto feeding
P6010D, P6018D, P8018D, P10018D
Models
1kW, 2kW, 3kW, 4kW (customisable)
Laser source power
20-180 mm diameter (optional: 20-110 mm)
Max machining range
Not sure if the PD Series - Up to 180mm (7") diameter is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Operations focused on small to medium tubes up to 180 mm diameter
- Shops entering tube laser cutting at an accessible 1-4kW power level
- Facilities needing automated tube feeding for high-volume production
- Manufacturers processing tubes up to 12 metres long
Models
P6010D, P6018D, P8018D, P10018D
Laser source power
1kW, 2kW, 3kW, 4kW (customisable)
Max machining range
20-180 mm diameter (optional: 20-110 mm)
Max rotational speed
120 rpm (optional: 150 rpm)
Key Features
PD Series - Up to 180mm (7") diameter Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Short-stroke gripper with high repeatability and digital monitoring for real-time tube size identification

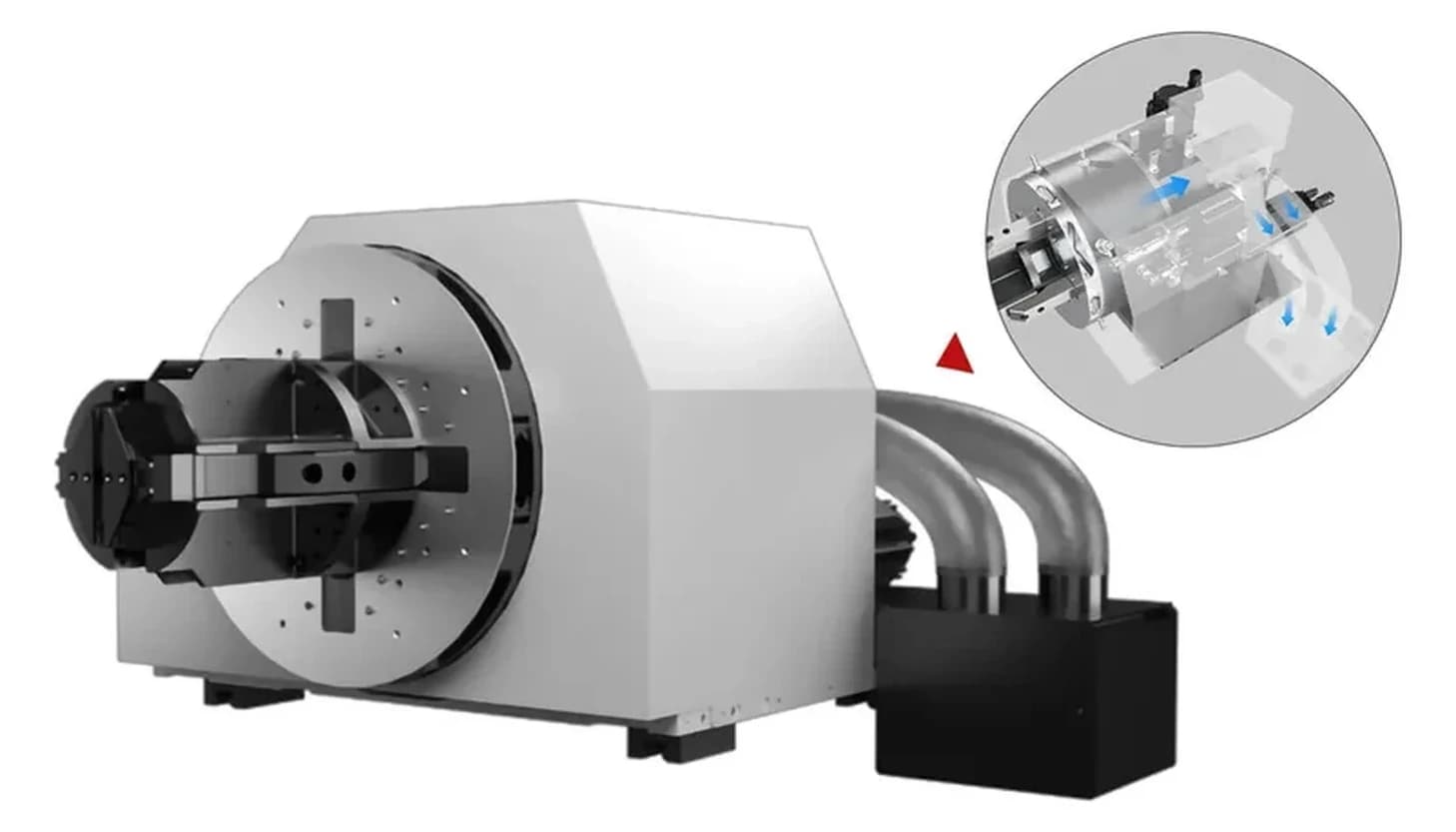

- Rear chuck with exhaust structure to remove high-temperature gas and prevent thermal deformation
- X-axis gear-and-rack transmission with linear guide rail for reliable floating support
Ease of Operation
- High-safety clamping system with pressure maintenance during gas cutoff

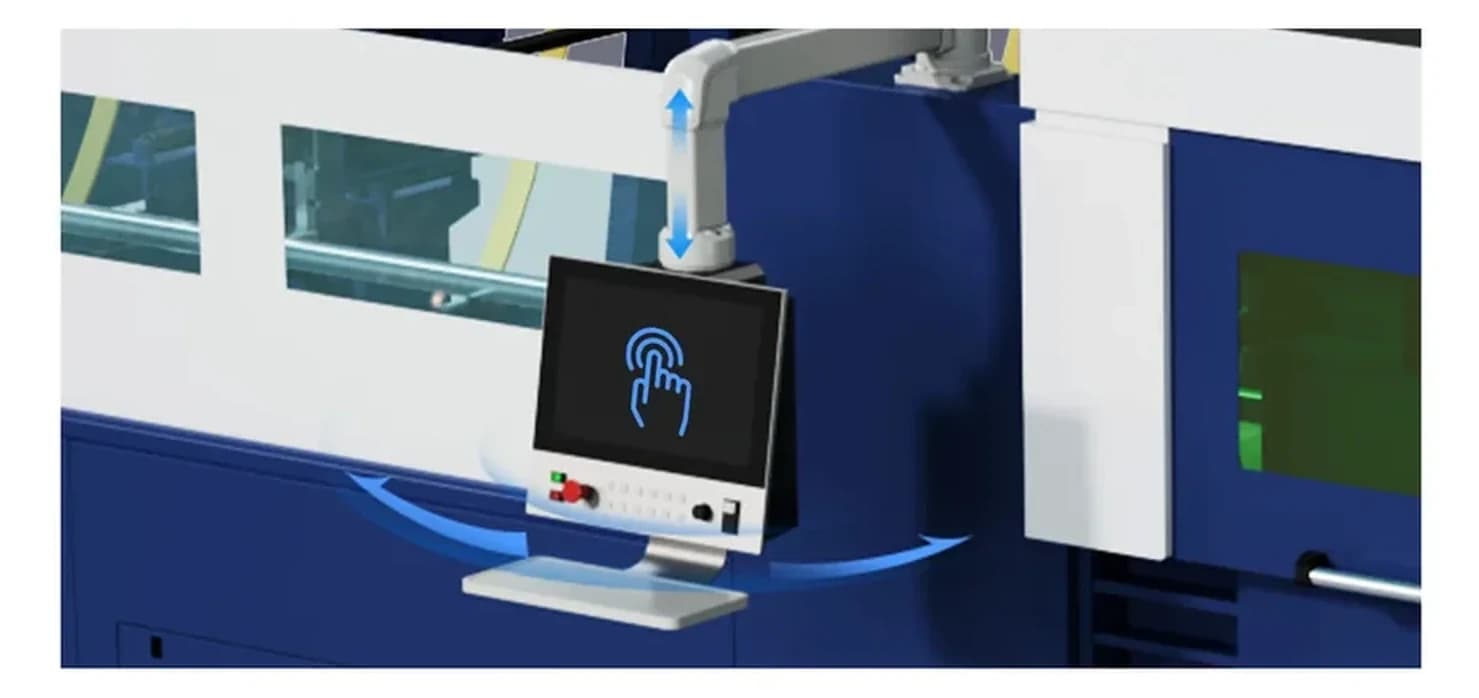

- Height-adjustable console with multi-angle rotation for operator comfort
Built-In Extras

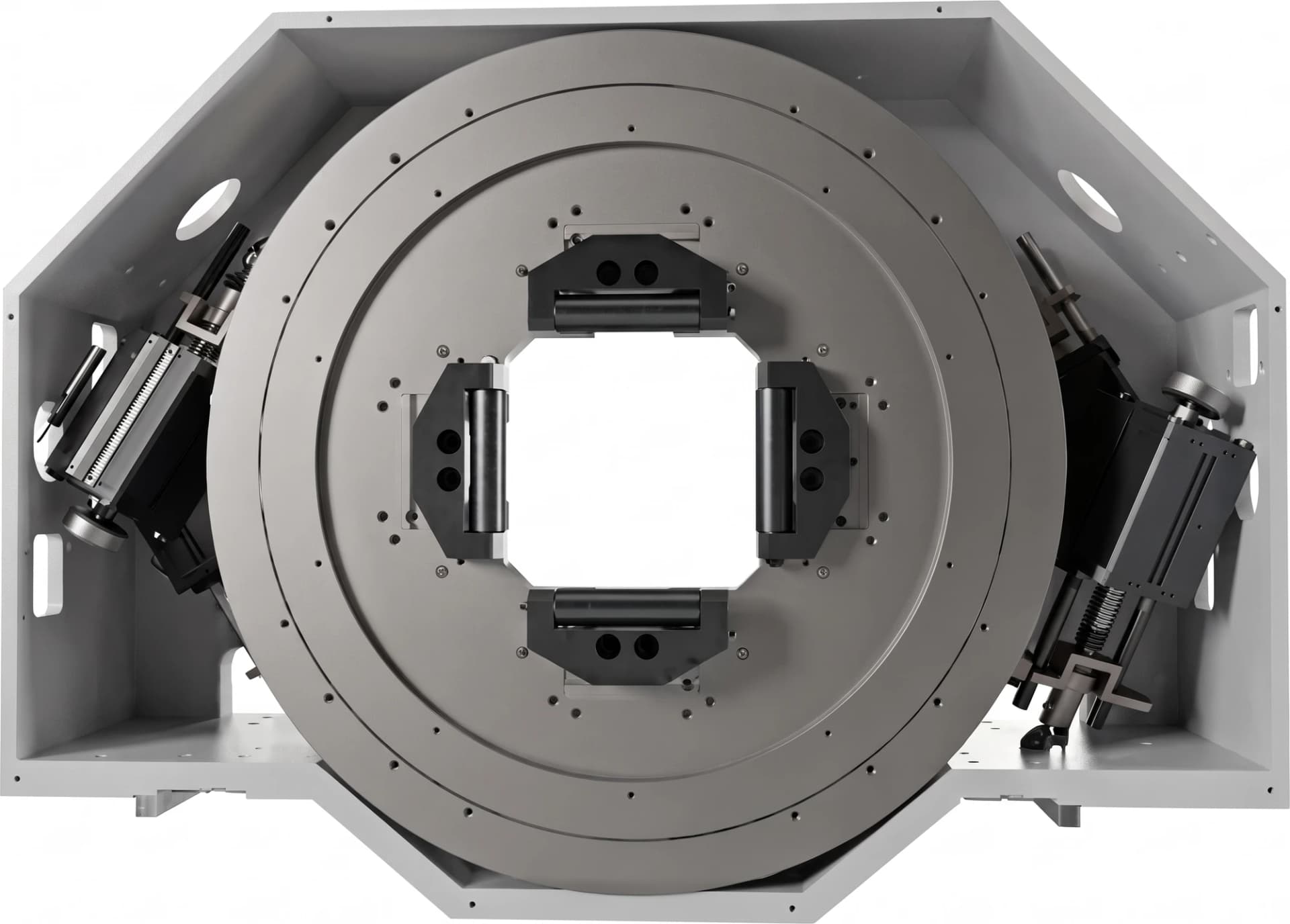

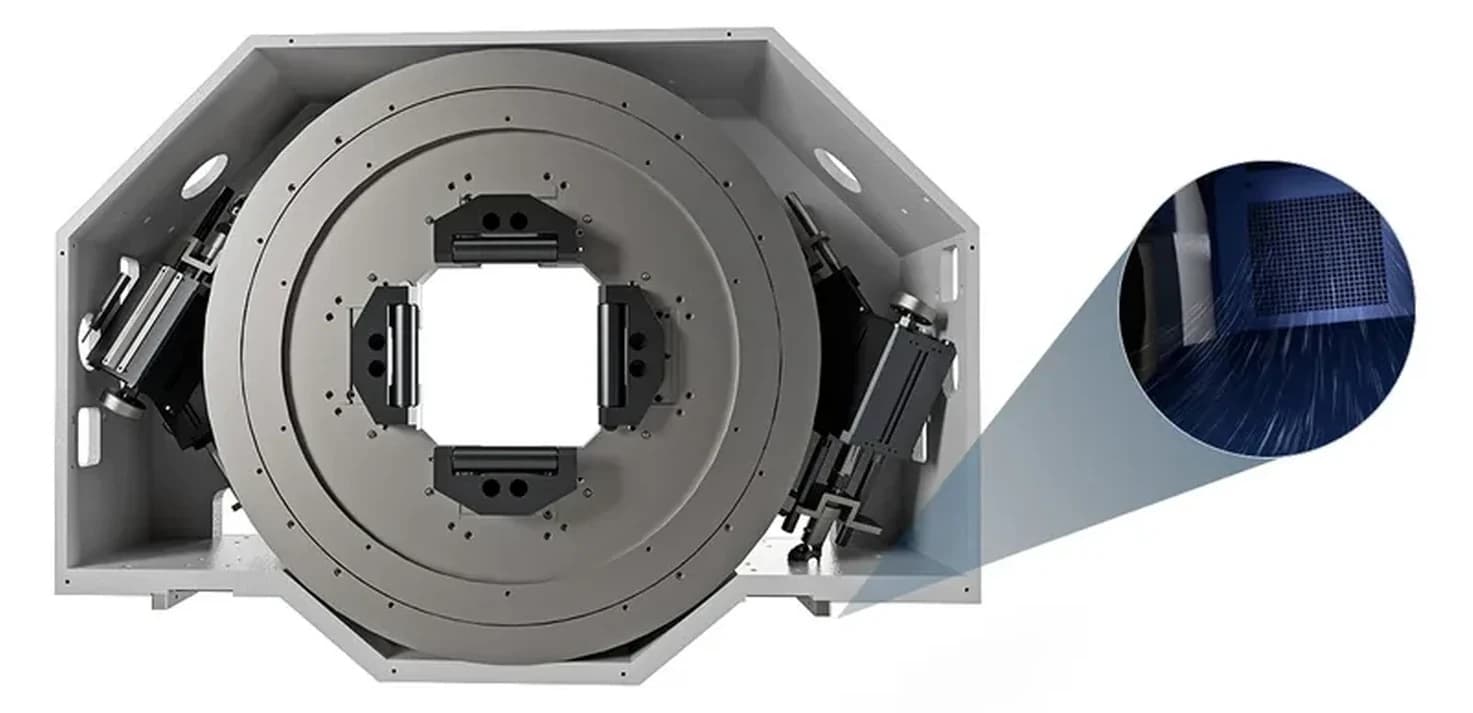

- Fully enclosed dustproof pneumatic claw with self-centering function
- Mechanical transmission chuck with fool-proofing design and internal oil circuit circulation

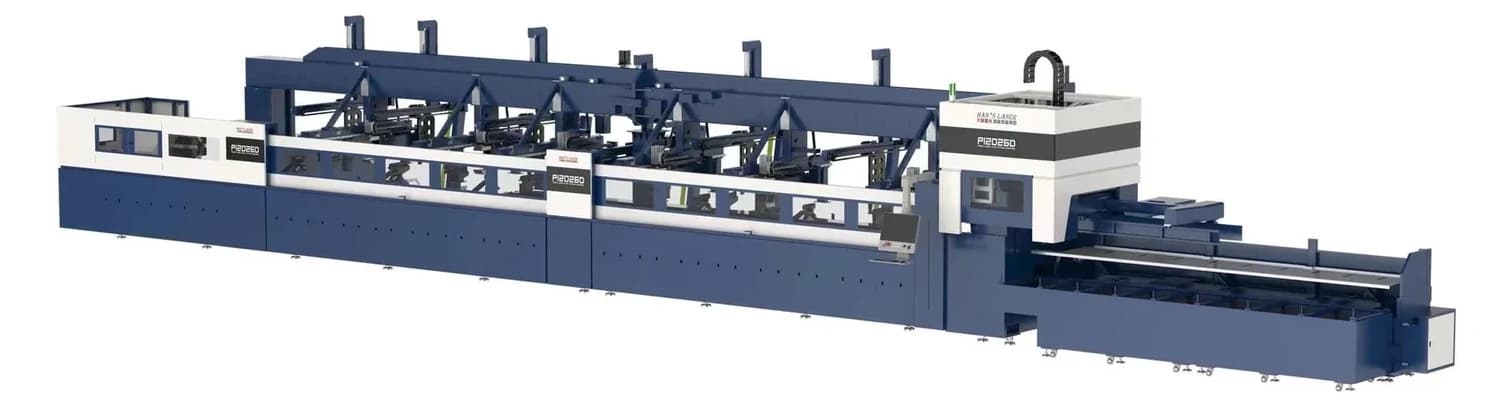

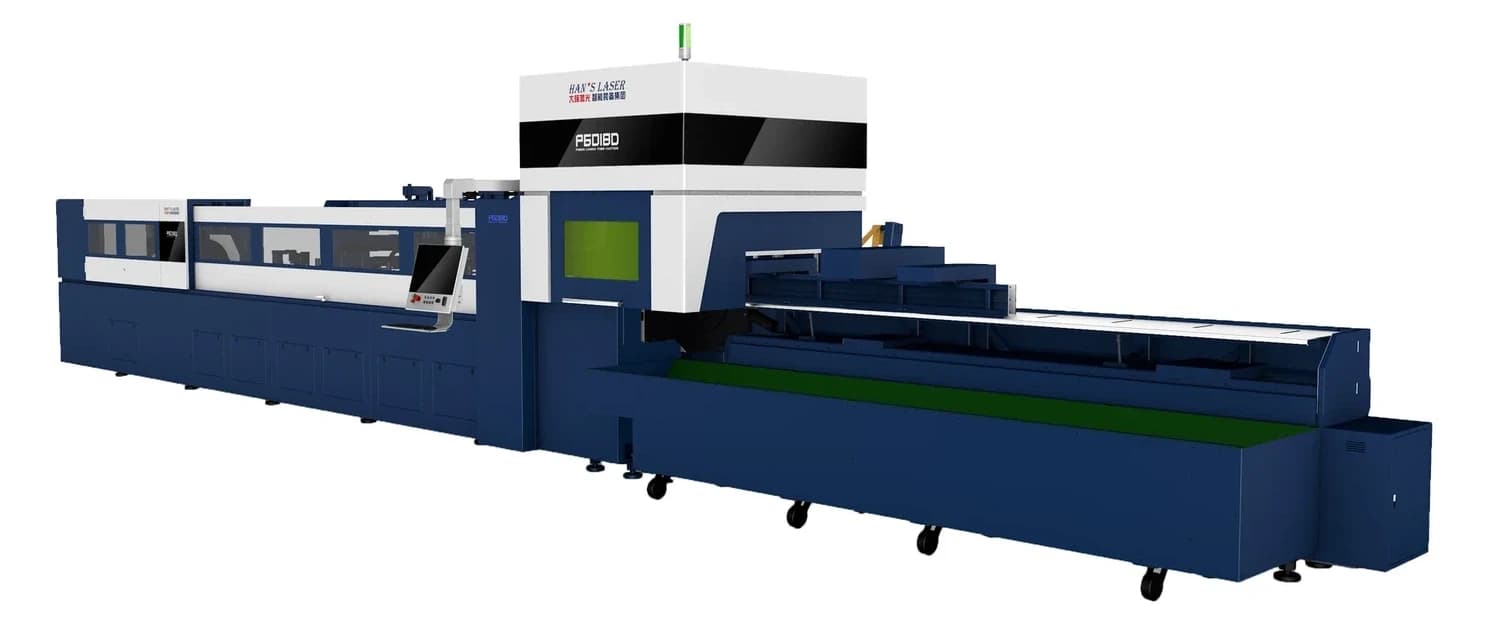

Gallery
PD Series - Up to 180mm (7") diameter in Detail
Full Specifications
Han's PD Series Technical Details
Complete specifications, standard features, and optional upgrades.
- Models
- P6010D, P6018D, P8018D, P10018D
- Laser source power
- 1kW, 2kW, 3kW, 4kW (customisable)
- Max machining range
- 20-180 mm diameter (optional: 20-110 mm)
- Max rotational speed
- 120 rpm (optional: 150 rpm)
- Rapid traverse speed
- 120 m/min
- Max load capacity
- 260 kg
- Max material length
- 12,200 mm
| Models | P6010D, P6018D, P8018D, P10018D |
| Laser source power | 1kW, 2kW, 3kW, 4kW (customisable) |
| Max machining range | 20-180 mm diameter (optional: 20-110 mm) |
| Max rotational speed | 120 rpm (optional: 150 rpm) |
| Rapid traverse speed | 120 m/min |
| Max load capacity | 260 kg |
| Max material length | 12,200 mm |
- Fully enclosed dustproof pneumatic claw with self-centering function
- Mechanical transmission chuck with fool-proofing design and internal oil circuit circulation
- High-safety clamping system with pressure maintenance during gas cutoff
- Short-stroke gripper with high repeatability and digital monitoring for real-time tube size identification
- Rear chuck with exhaust structure to remove high-temperature gas and prevent thermal deformation
- X-axis gear-and-rack transmission with linear guide rail for reliable floating support
- Height-adjustable console with multi-angle rotation for operator comfort

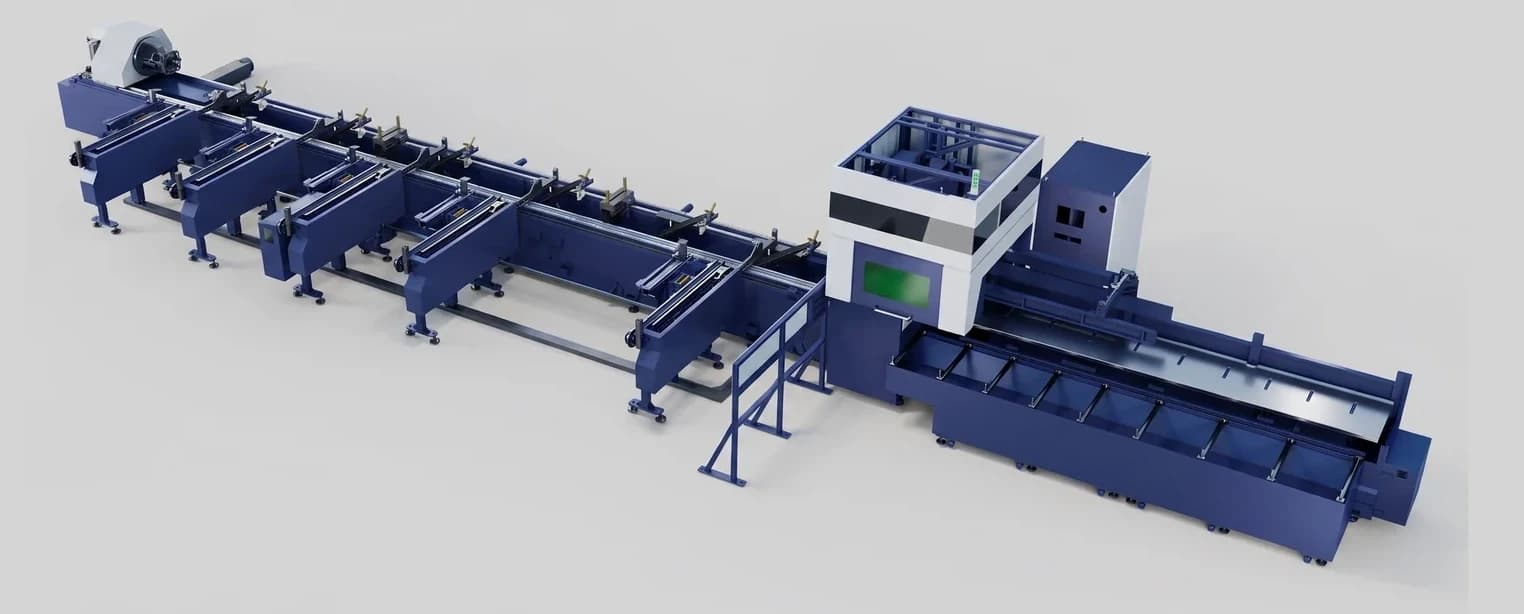

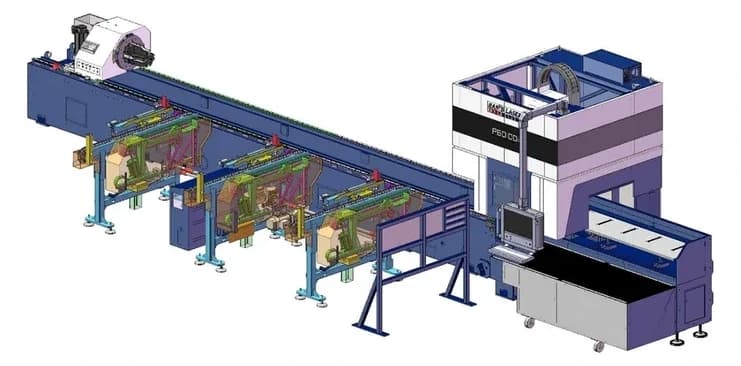

- Semi-automatic feeding (row placement with automatic feed to chuck position)

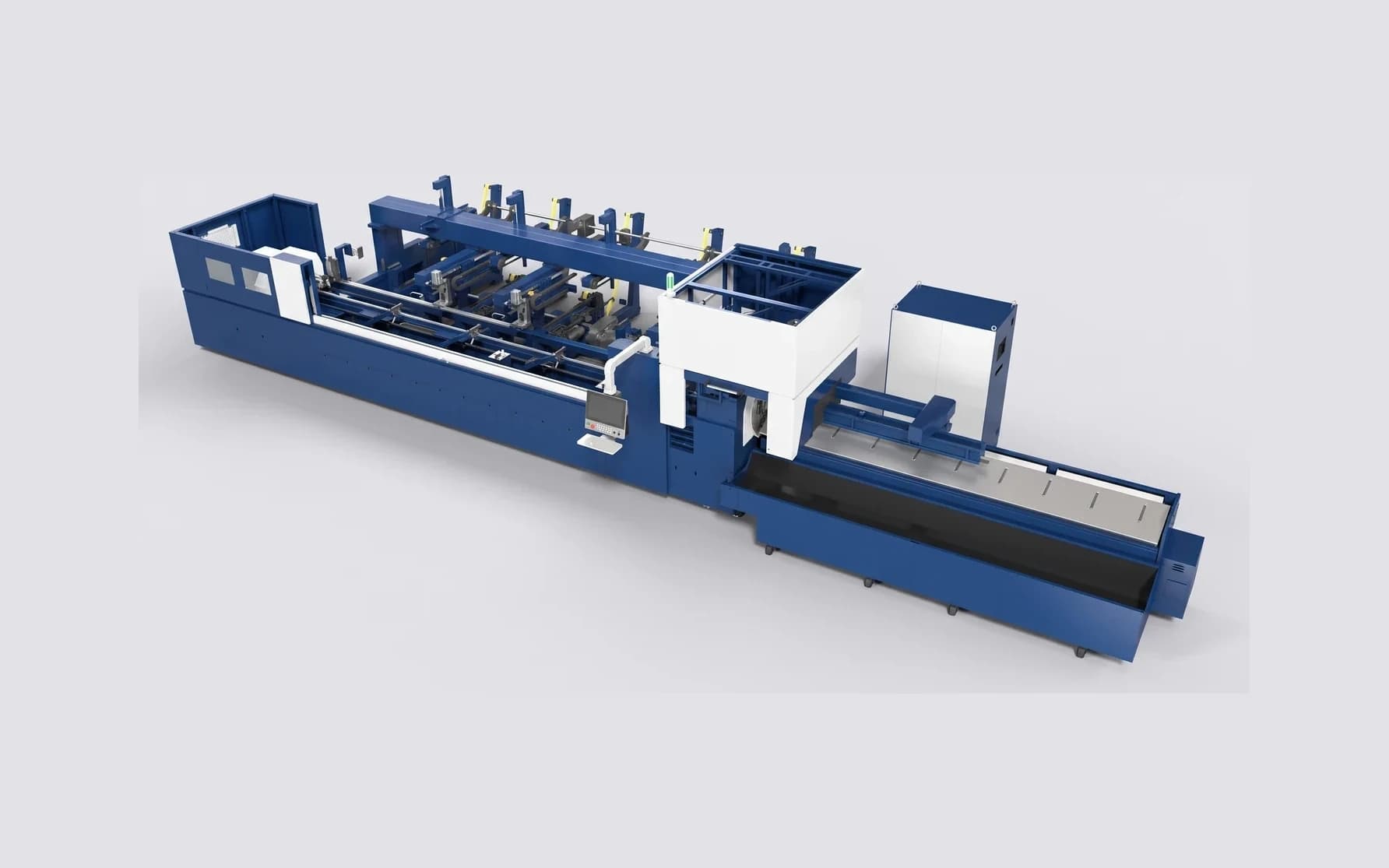

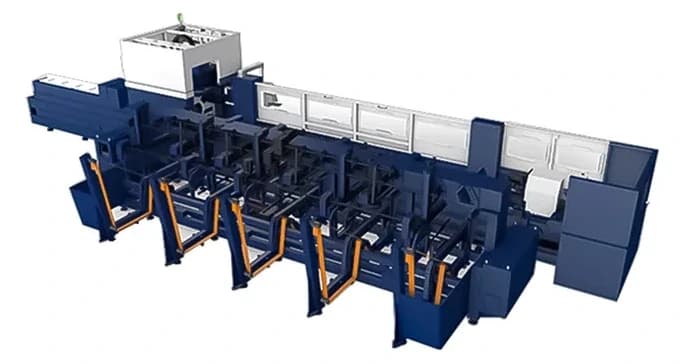

- Fully automatic feeding (bundle silo with automatic loading, feeding, and clamping)
- Roller supporter and fixture unloading supporter
- Two-chuck configuration for common-size workpieces
- Straight cutting torch for standard applications
- Small and medium tube cutting for furniture, fitness equipment, and racking
- Precision tube processing for automotive and HVAC components
- Light structural steel tube fabrication
- High-volume tube cutting with automated feeding
FAQ
PD Series - Up to 180mm (7") diameter Questions
Answers to common questions about the PD Series - Up to 180mm (7") diameter.
The standard range is 20-180 mm diameter, with an optional 20-110 mm configuration for smaller tube work.
Yes. Optional fully automatic feeding loads bundles of tubes from a silo and automatically feeds them to the clamping position, enabling unattended production runs.
