Tube Laser

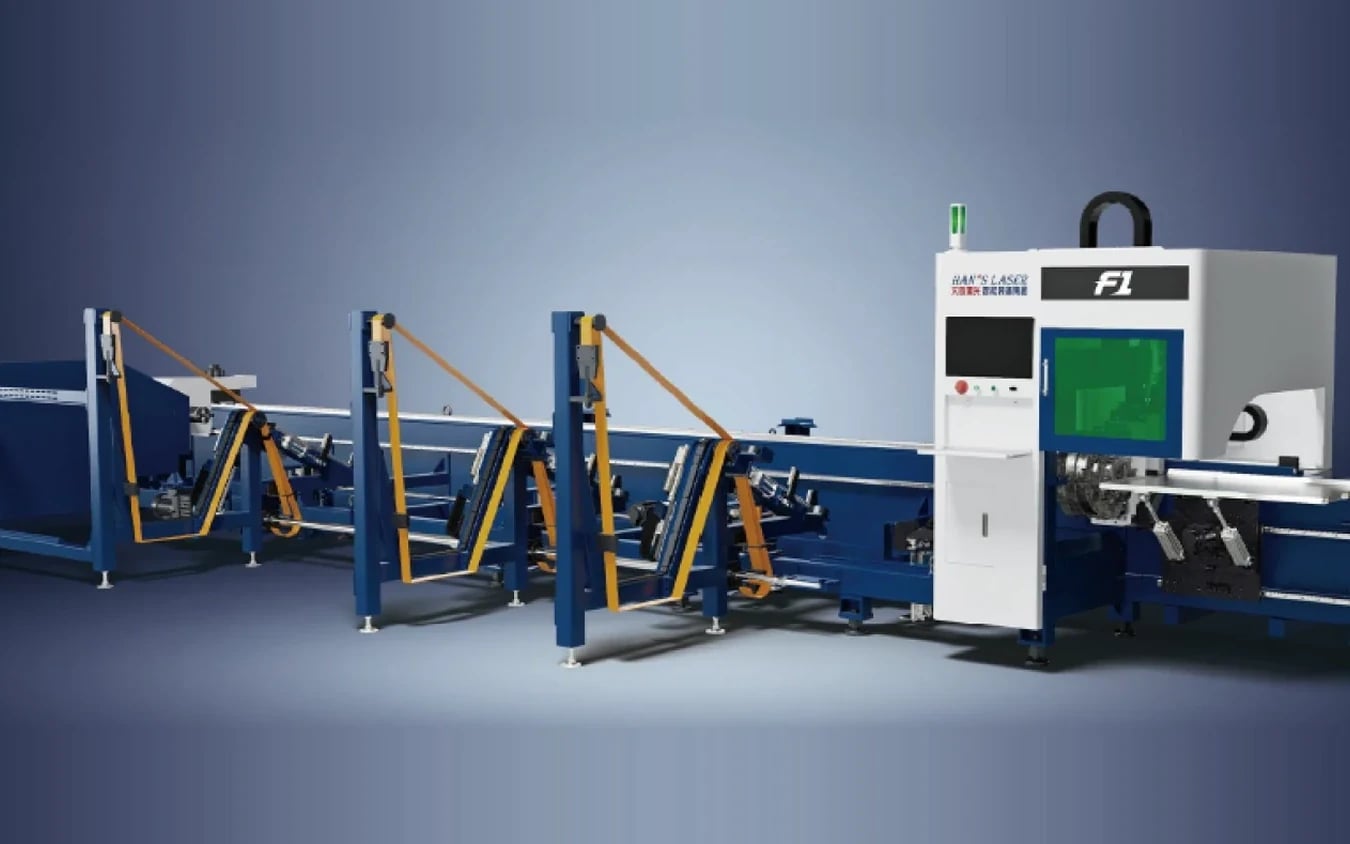

F1 Tube Laser - High speed for small tube
by Han's Laser
High-speed small-tube laser: 10-120 mm round and square, 150 m/min, fast automatic loading
10-120 mm diameter
Tube range (round)
10-120 mm
Tube range (square)
Equal channel steel 5#-8#, equal angle steel 5#-8#
Profile range
Not sure if the F1 Tube Laser - High speed for small tube is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops cutting small to mid round and square tube (10-120 mm) at high speed
- High-throughput operations that need fast, automatic material change
- Fabricators processing angle iron and channel steel up to 5#-8#
- Operations focused on minimal end scrap with short-tail and zero-tail cutting
Tube range (round)
10-120 mm diameter
Tube range (square)
10-120 mm
Profile range
Equal channel steel 5#-8#, equal angle steel 5#-8#
Max traverse speed
150 m/min (Y-axis)
Key Features
F1 Tube Laser - High speed for small tube Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

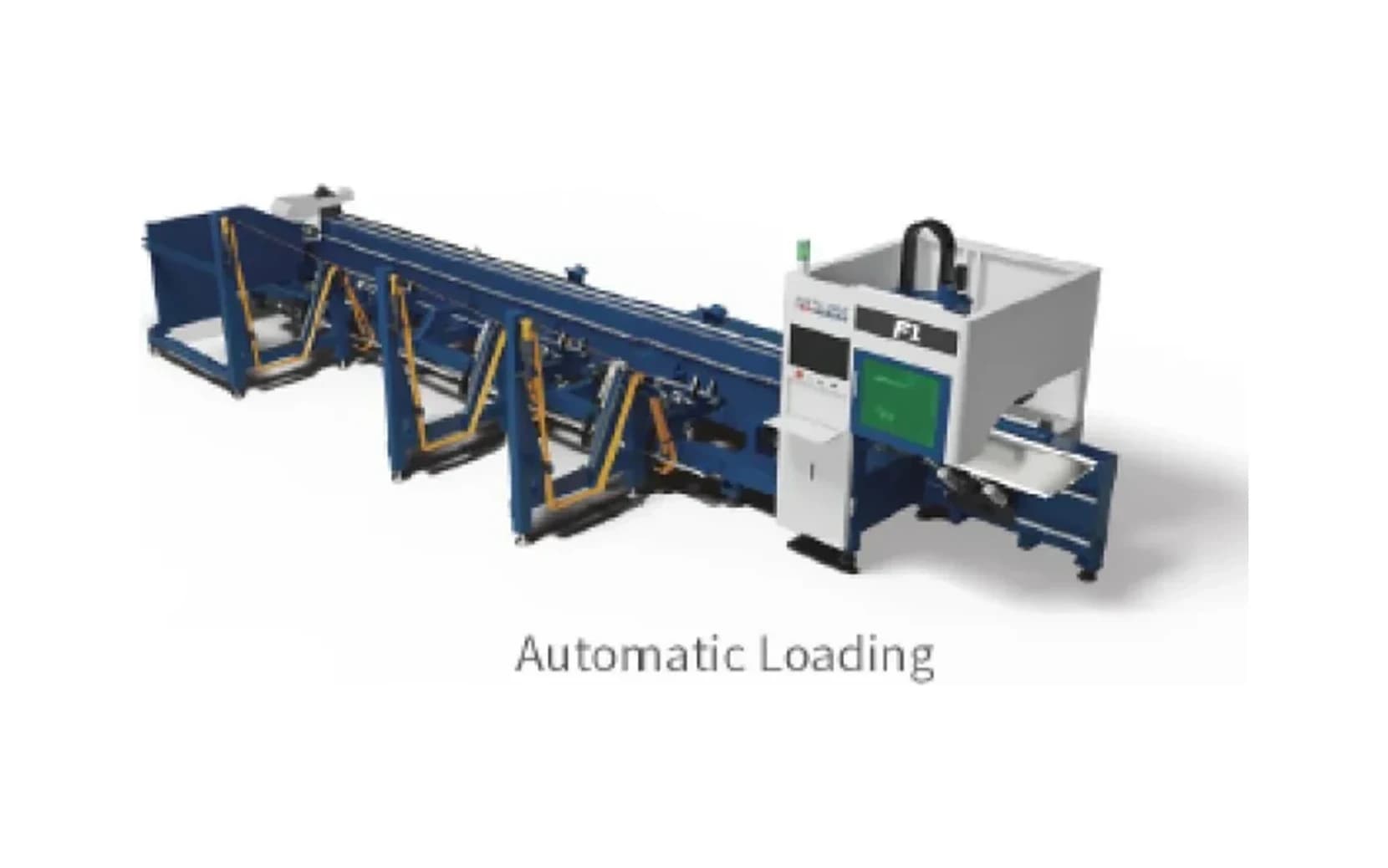

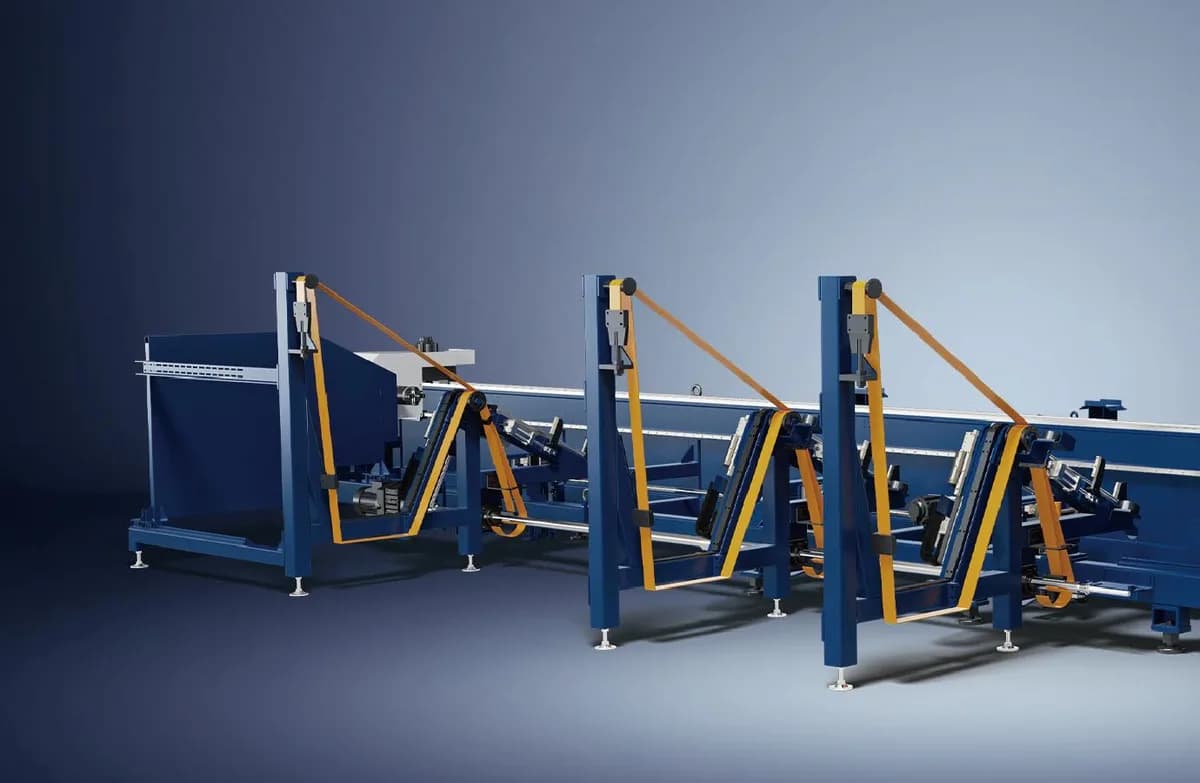

- Standard fully automatic loading for rapid, hands-off material change in batch production
- Servo-driven floating support prevents bending of rectangular and square tube

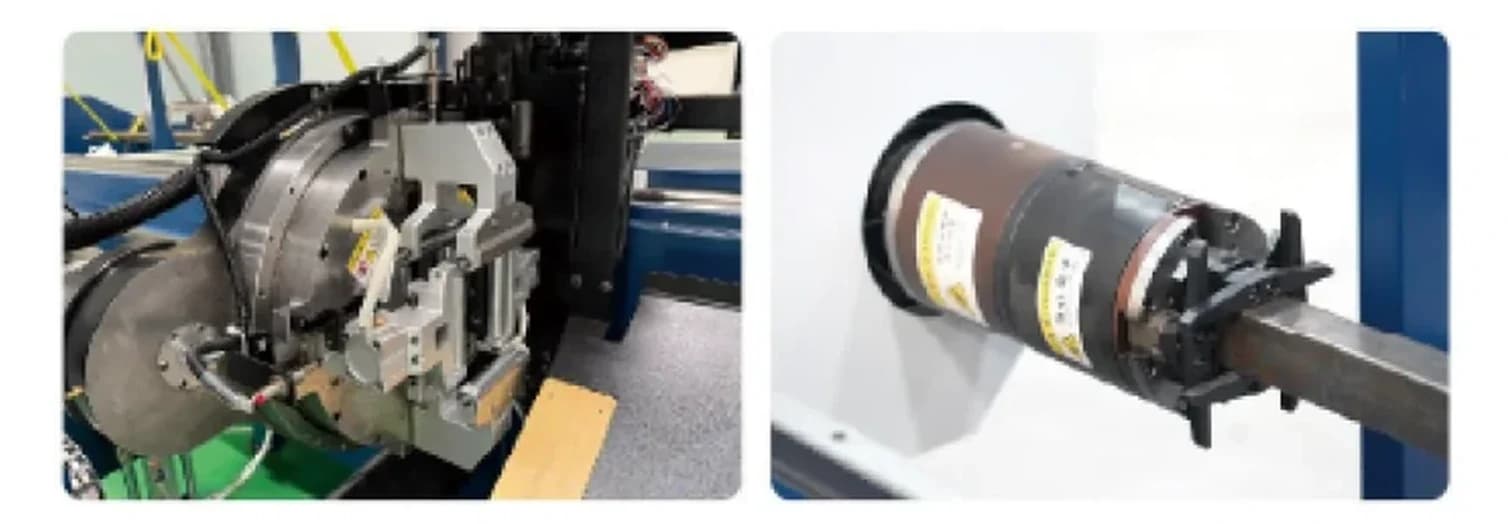

- Precision square-bore chuck with double-roller jaws for durability and a low failure rate
Built-In Extras

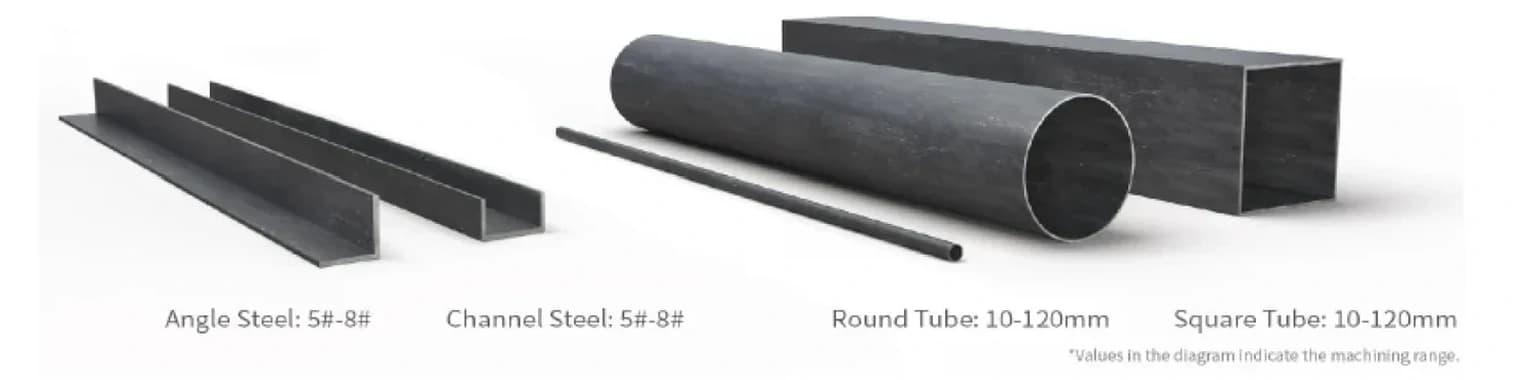

- Built for small tube: round and square profiles, angle iron, and channel steel from 10 to 120 mm
- One-key switching between air, oxygen, and nitrogen to suit material and thickness

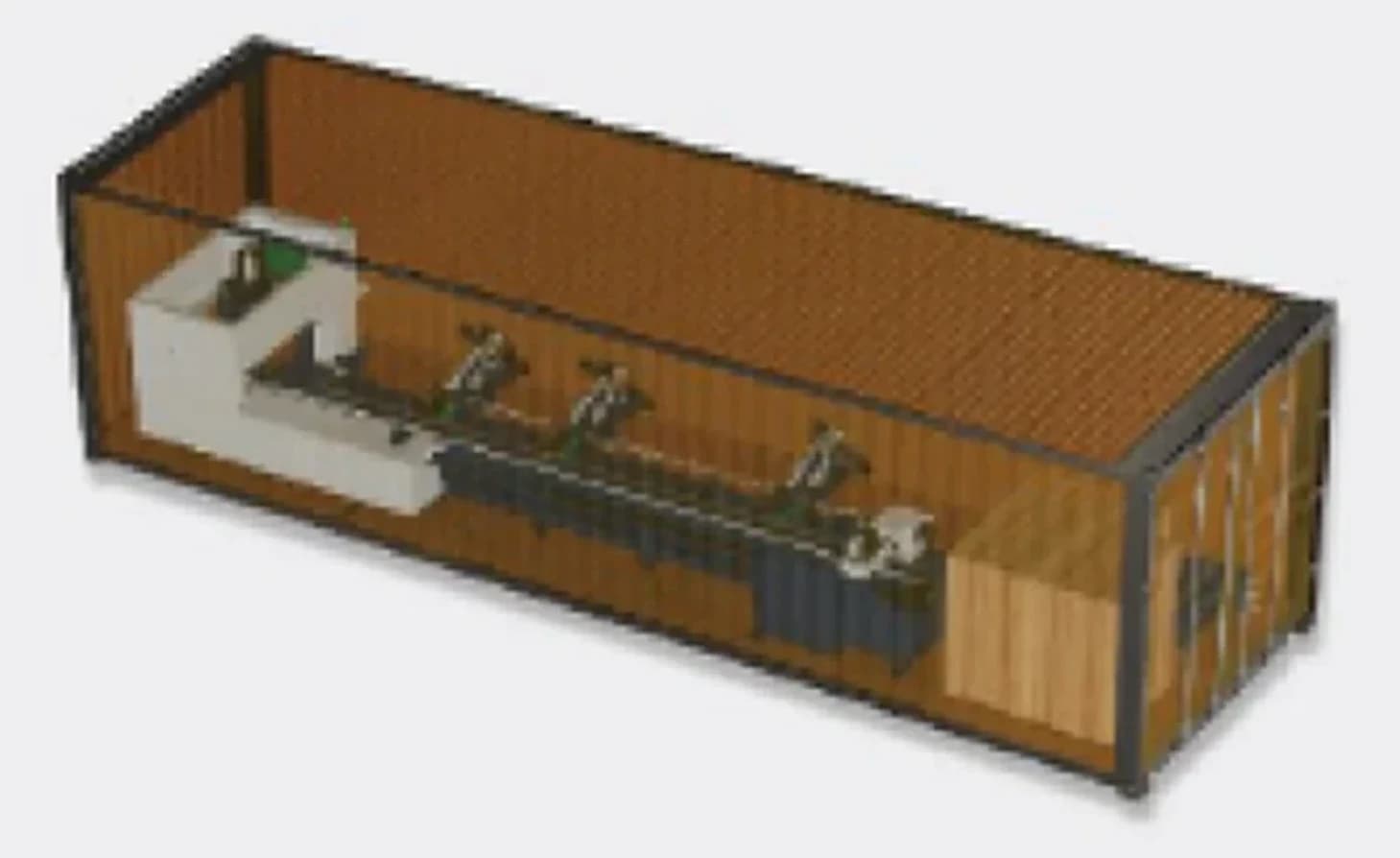

- Ships in a standard 40GP container for straightforward transport

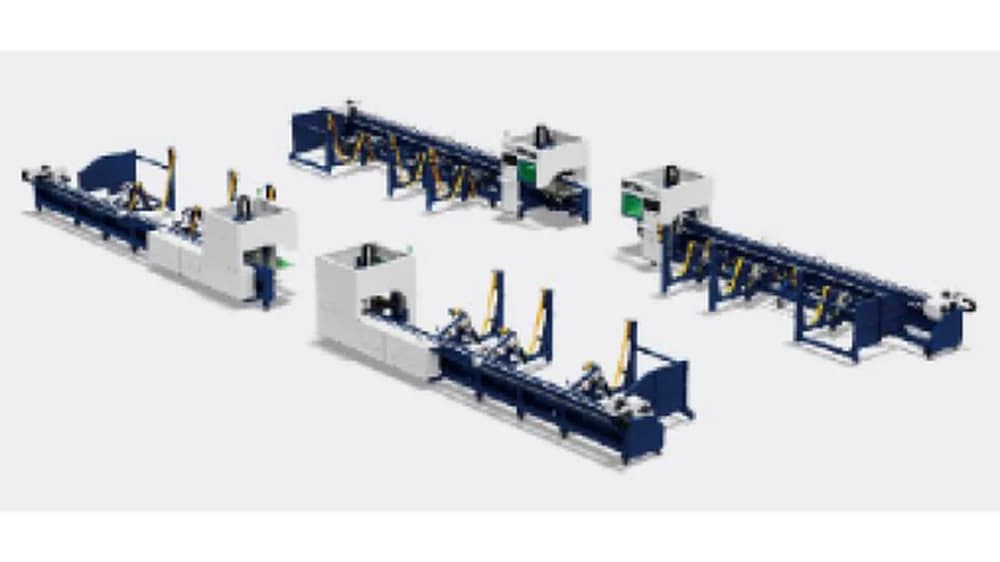

- Modular, symmetrical layout so one operator can manage several machines
- Short-tail and zero-tail cutting to reduce leftover material and production cost
Gallery
F1 Tube Laser - High speed for small tube in Detail
Video
See the F1 Tube Laser - High speed for small tube in Action
Full Specifications
Han's F1 Tube Laser Technical Details
Complete specifications, standard features, and optional upgrades.
- Tube range (round)
- 10-120 mm diameter
- Tube range (square)
- 10-120 mm
- Profile range
- Equal channel steel 5#-8#, equal angle steel 5#-8#
- Max traverse speed
- 150 m/min (Y-axis)
- Max rotation speed
- 150 r/min (B-axis)
- Max acceleration
- 1.5 G
- Loading length
- 5,000-6,500 mm
- Unloading length
- 0-1,500 mm
- Max material weight
- 80 kg (at 6 bar air pressure)
- Machine weight
- Approx. 4 t
- Footprint (L x W x H)
- Approx. 10.5 x 2.8 x 2.5 m
- Tube shapes
- Round, square, angle iron, channel steel
| Tube range (round) | 10-120 mm diameter |
| Tube range (square) | 10-120 mm |
| Profile range | Equal channel steel 5#-8#, equal angle steel 5#-8# |
| Max traverse speed | 150 m/min (Y-axis) |
| Max rotation speed | 150 r/min (B-axis) |
| Max acceleration | 1.5 G |
| Loading length | 5,000-6,500 mm |
| Unloading length | 0-1,500 mm |
| Max material weight | 80 kg (at 6 bar air pressure) |
| Machine weight | Approx. 4 t |
| Footprint (L x W x H) | Approx. 10.5 x 2.8 x 2.5 m |
| Tube shapes | Round, square, angle iron, channel steel |
- Built for small tube: round and square profiles, angle iron, and channel steel from 10 to 120 mm
- Standard fully automatic loading for rapid, hands-off material change in batch production
- One-key switching between air, oxygen, and nitrogen to suit material and thickness
- Servo-driven floating support prevents bending of rectangular and square tube
- Precision square-bore chuck with double-roller jaws for durability and a low failure rate
- Short-tail and zero-tail cutting to reduce leftover material and production cost
- Modular, symmetrical layout so one operator can manage several machines
- Ships in a standard 40GP container for straightforward transport

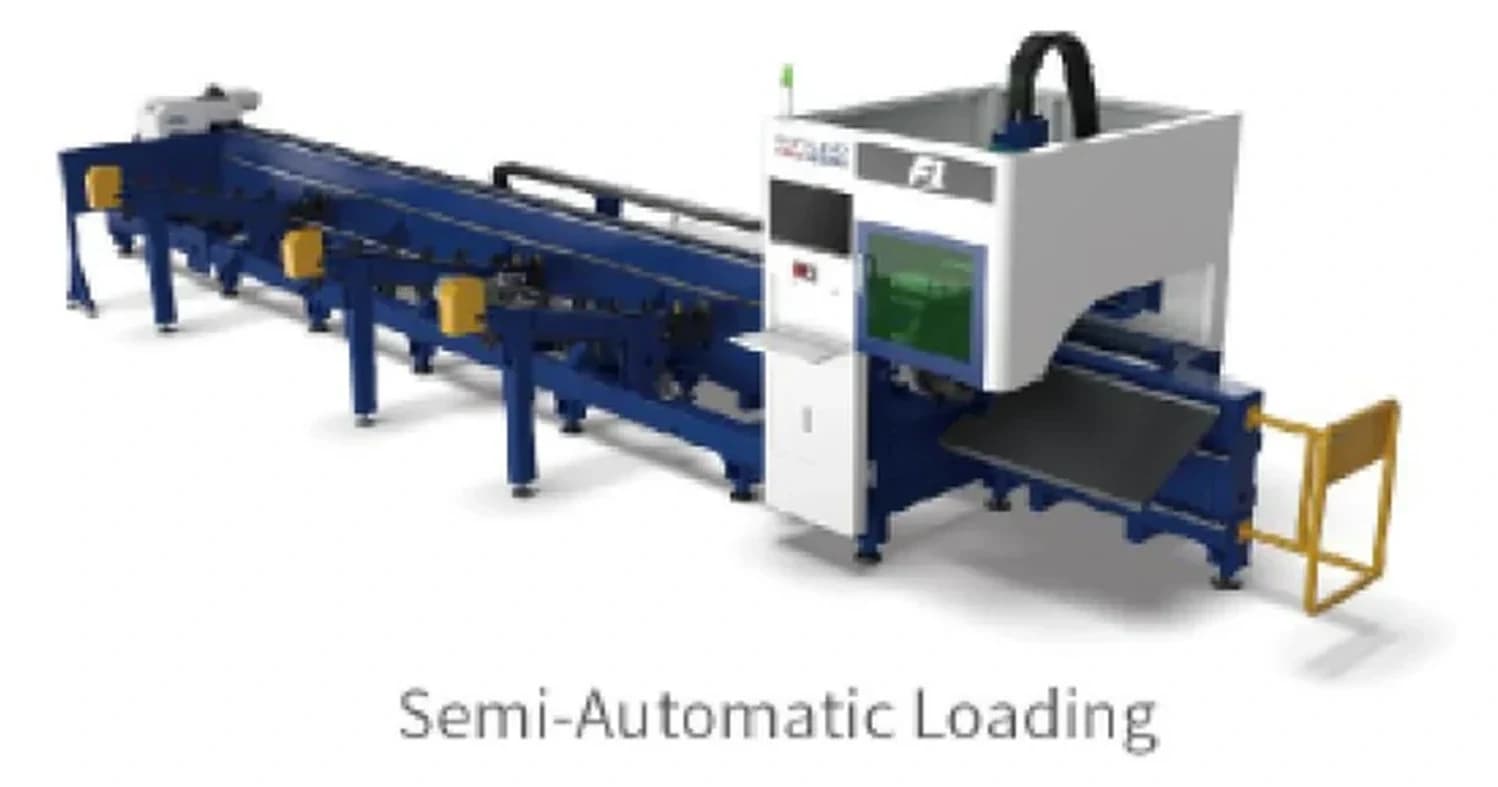

- Semi-automatic loading system for added loading flexibility

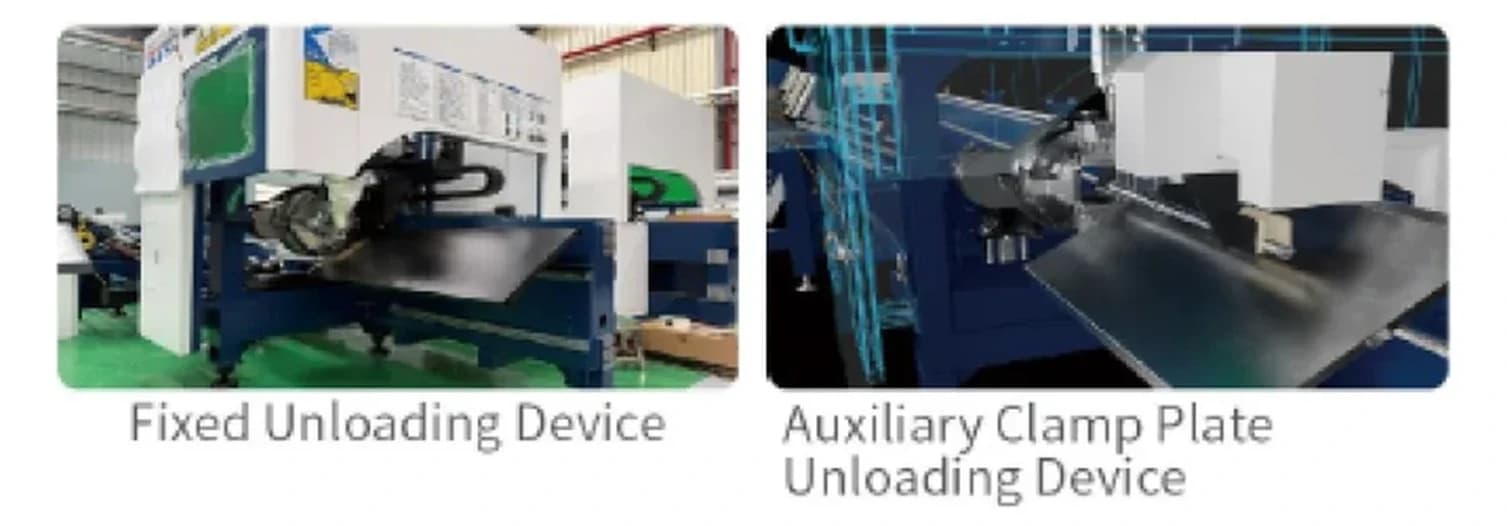

- Auxiliary clamp-plate unloading for scratch-free, residue-free part handling
- Weld detection with intelligent vision to locate weld seams and avoid cutting through welds
- Servo-motor offset for profile cutting and further material savings
- Small-diameter round and square tube cutting for general fabrication
- Angle iron and channel steel processing for light structural work
- High-volume small-tube production for furniture, fitness equipment, and racking
- Component cutting for automotive and motorcycle frame manufacturing
FAQ
F1 Tube Laser - High speed for small tube Questions
Answers to common questions about the F1 Tube Laser - High speed for small tube.
The F1 processes round and square tube from 10 to 120 mm, plus angle iron and channel steel (equal sections 5#-8#), at loading lengths up to 6,500 mm.
Standard fully automatic loading changes material in seconds, and with traverse speeds to 150 m/min and 1.5 G acceleration the F1 is built for high-volume small-tube production.
Yes. Short-tail and zero-tail cutting minimise leftover material, and an optional servo-motor offset supports profile cutting with even less waste.
Yes. ACM stocks, installs, commissions, and services the F1 from our Cambridge, Ontario facility, with local sales, parts, and technical support.
Ready to Discuss the F1 Tube Laser - High speed for small tube?
Our team has 19+ years of experience helping Canadian manufacturers find the right cutting and processing equipment.
19+
Years in Business
50+
Machine Models
900+
Happy Customers
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Financing Available
Flexible payment options on qualifying equipment.
Or email us at [email protected]
Related
Explore More Tube Laser Systems
Compare specifications and find the right machine for your application.
Heavy-duty fiber laser tube cutting system

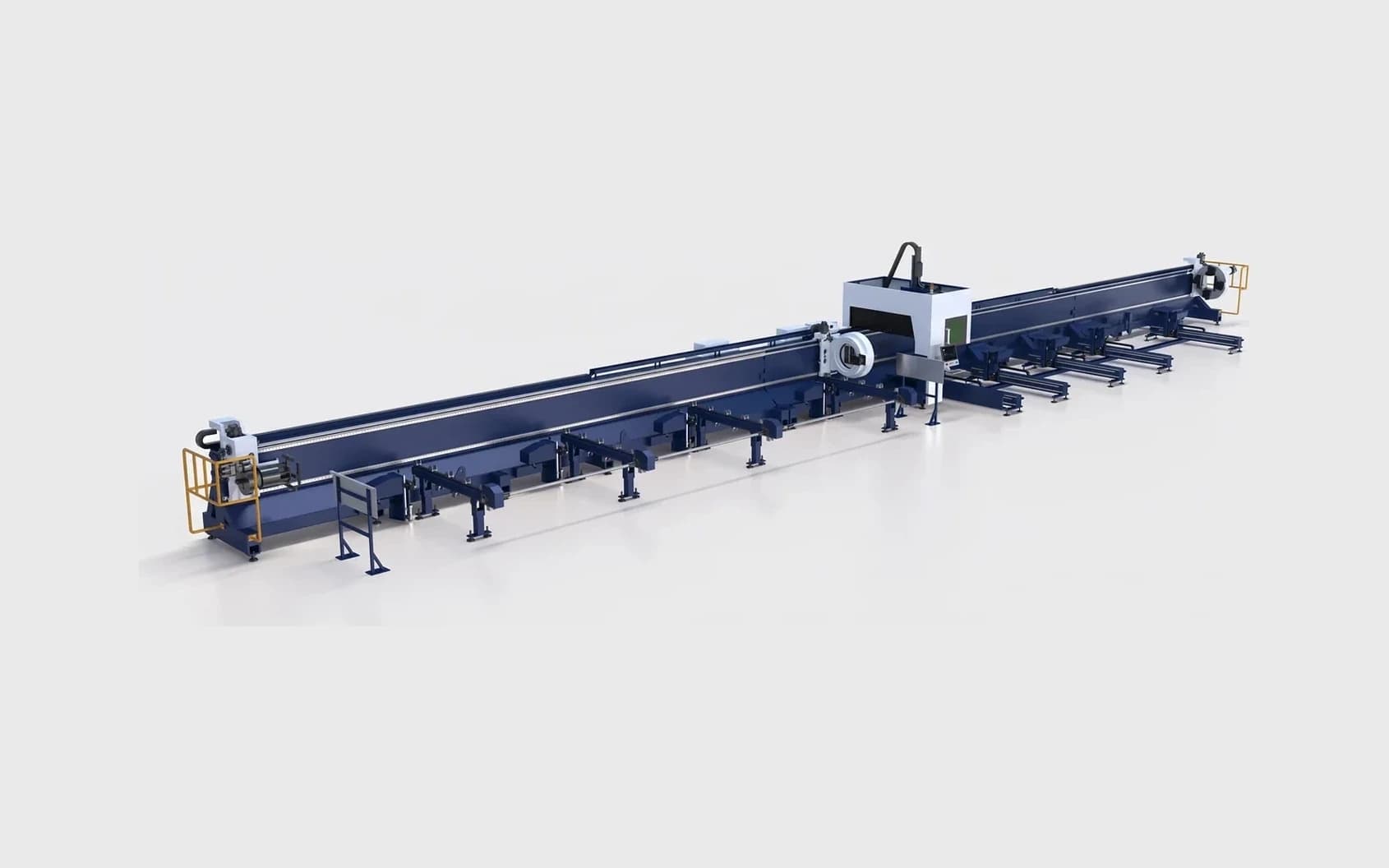

TX Series - Heavy Duty Large Tube
The TX Series is a heavy-duty fiber laser tube cutting system for processing large-diameter carbon steel, stainless steel, and aluminum alloy pipes. With tube capacity up to 660 mm diameter and 2,500 kg load, it handles square, round, and oval profiles up to 12 metres long. Optional bevel cutting and tri/four-chuck configurations support complex structural and pipe fabrication.
Professional fiber laser tube cutting system

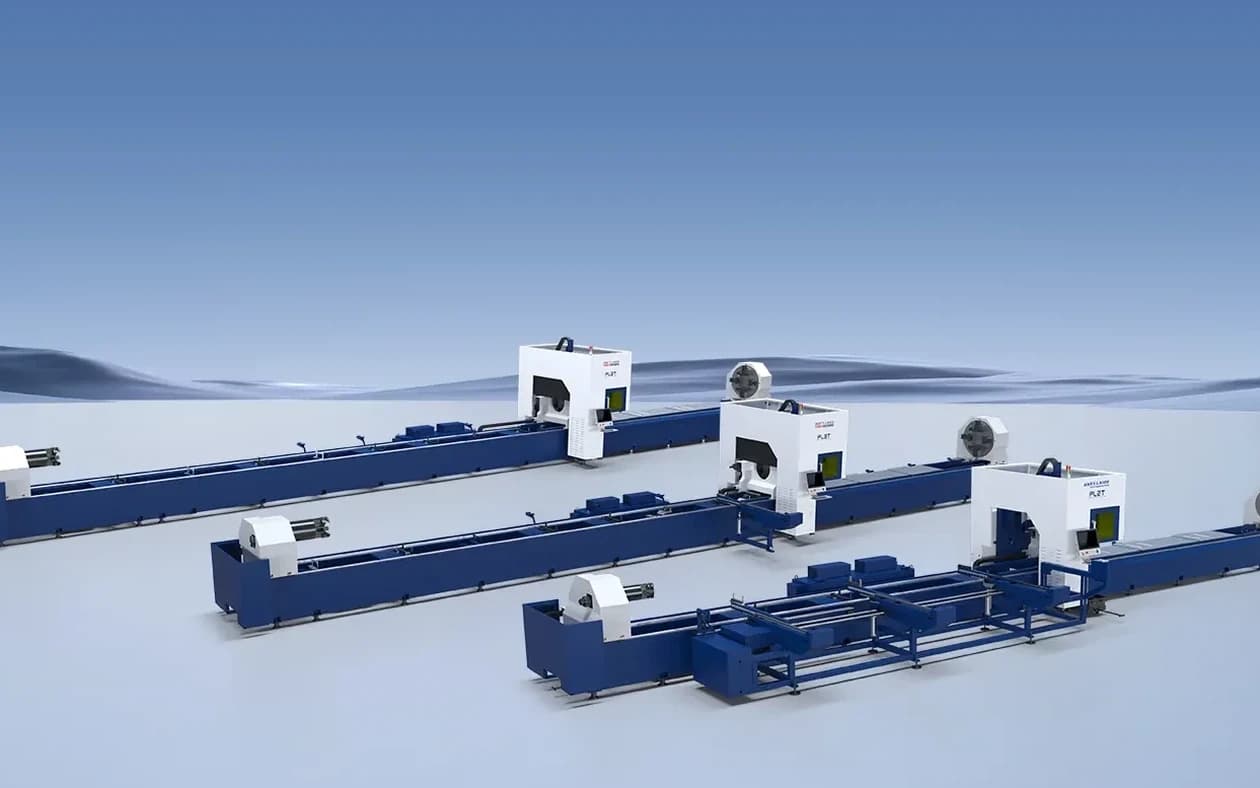

PLT Series - High Speed and flexible
The PLT Series is a professional mid-range fiber laser tube cutting system for cutting carbon steel, stainless steel, copper, and aluminum alloy in square, round, oval, and special-shaped profiles. With modular configurations supporting 6, 9, or 12-metre tube lengths and optional semi-automatic or fully automatic feeding, it covers a wide range of tube processing requirements.

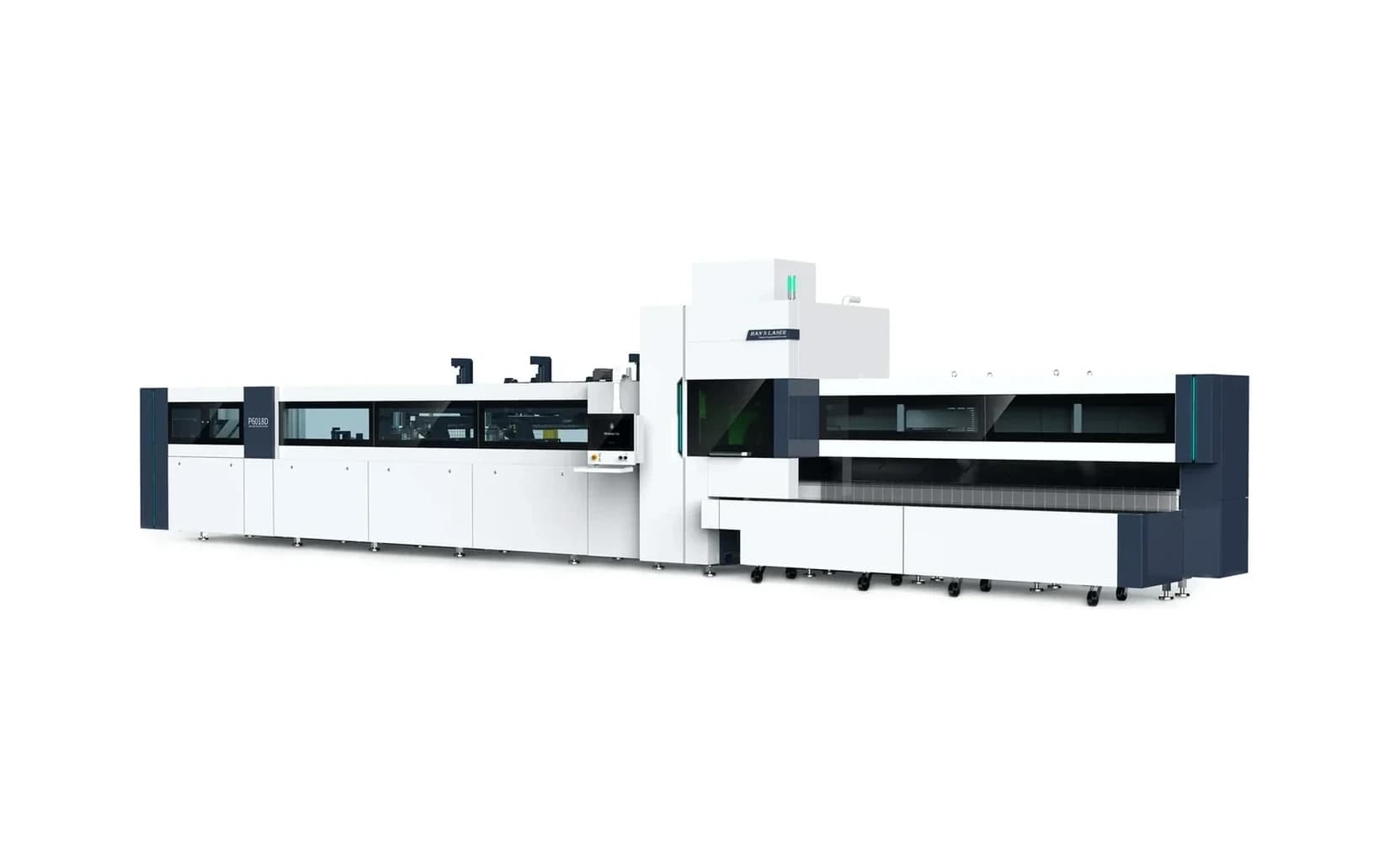

Small and medium tube fiber laser cutting system
