Tube Laser

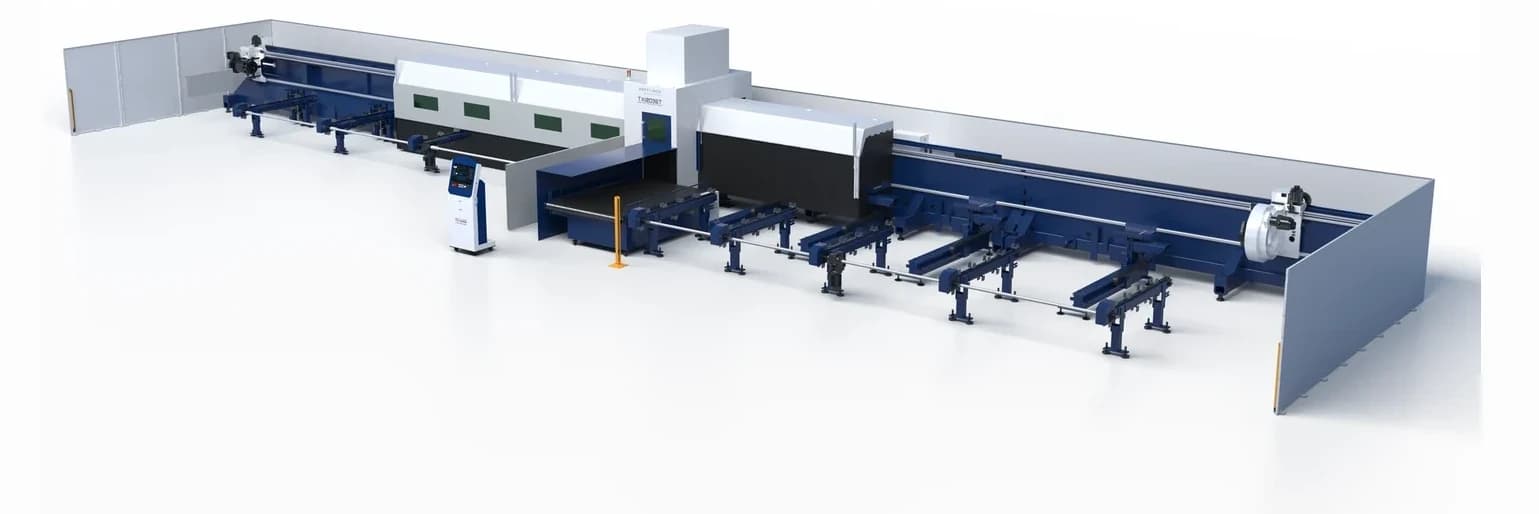

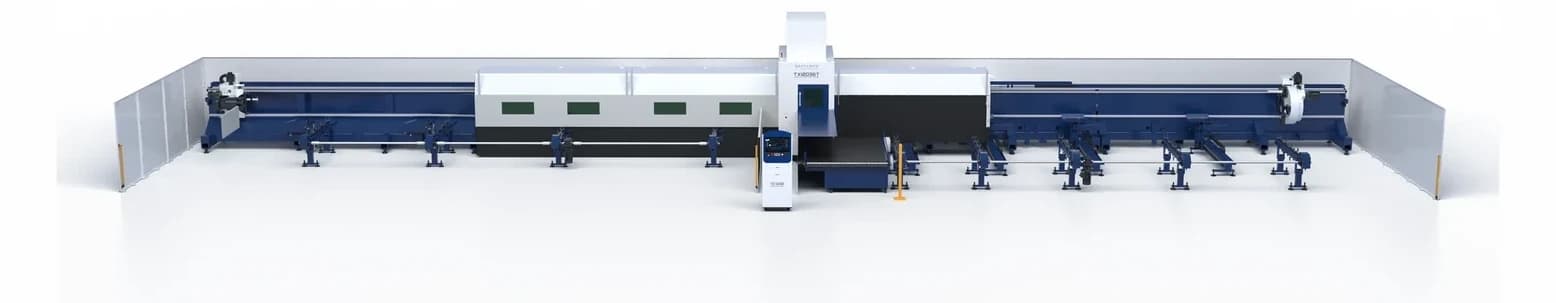

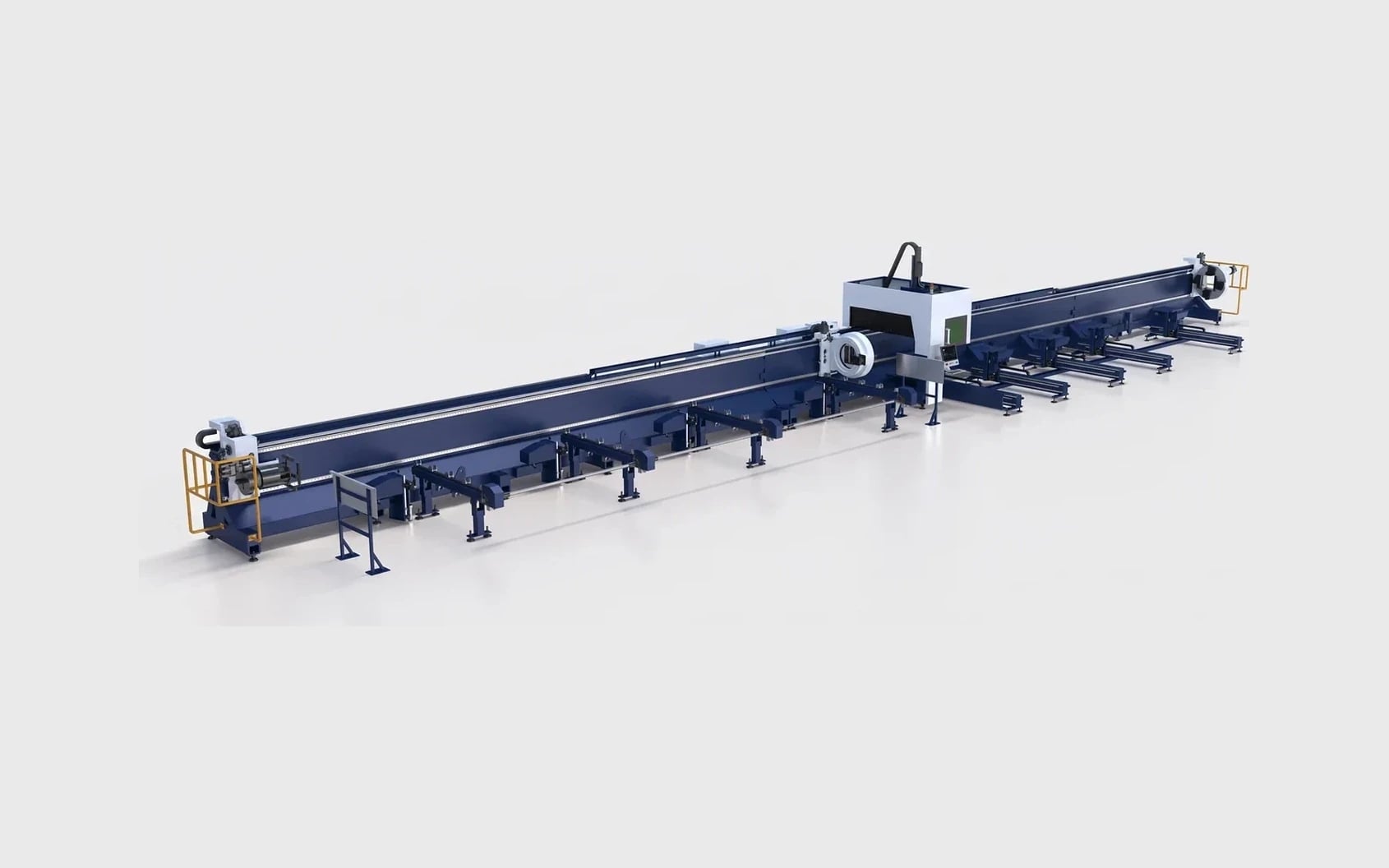

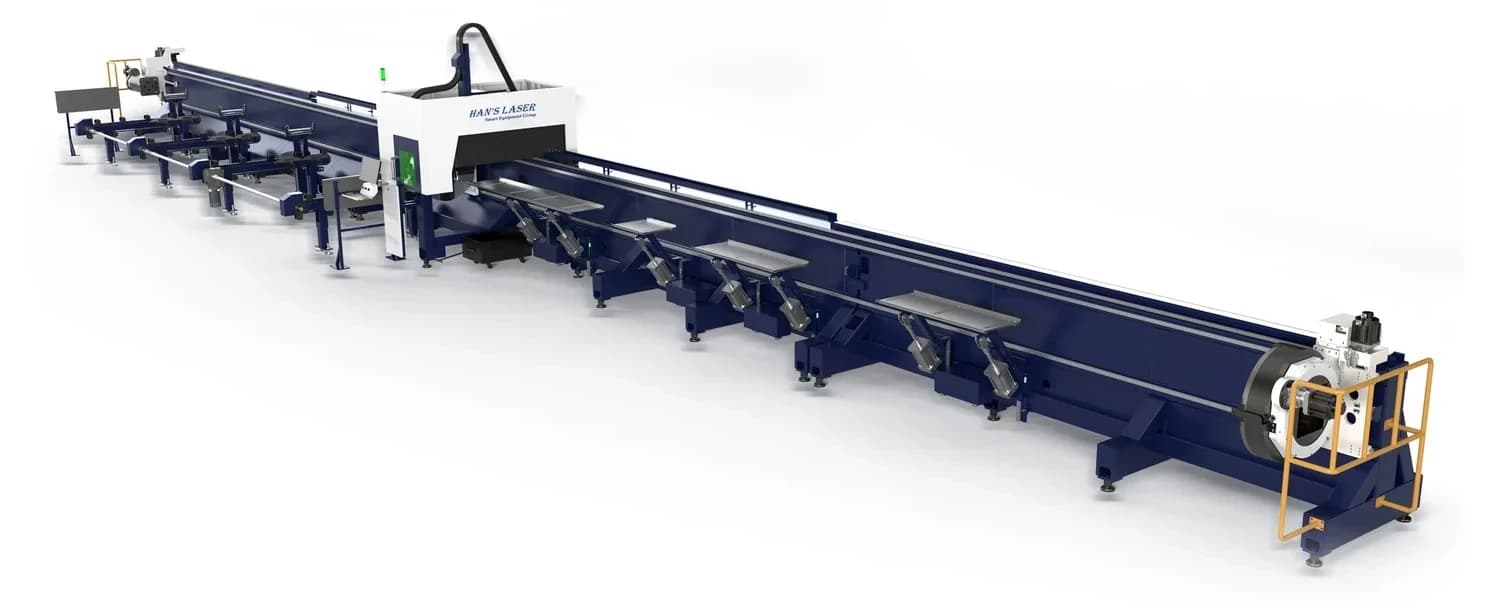

TX Series - Heavy Duty Large Tube
by Han's Laser
Heavy-duty tube laser: up to 660mm diameter, 2,500kg capacity, bevel option
TX12036T, TX12050T, PX12066F
Models
40-360 mm (TX12036T), 50-500 mm (TX12050T), 80-660 mm (PX12066F)
Processing range (round)
40-350 mm (TX12036T), 50-500 mm (TX12050T), 80-450 mm (PX12066F)
Processing range (square)
Not sure if the TX Series - Heavy Duty Large Tube is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Operations processing heavy tubes up to 660 mm diameter and 2,500 kg
- Structural fabricators needing bevel cuts on large pipes for welding
- Facilities handling 12-metre tube lengths with zero-scrap capability
- Heavy industry shops requiring robust, continuous tube laser production
Models
TX12036T, TX12050T, PX12066F
Processing range (round)
40-360 mm (TX12036T), 50-500 mm (TX12050T), 80-660 mm (PX12066F)
Processing range (square)
40-350 mm (TX12036T), 50-500 mm (TX12050T), 80-450 mm (PX12066F)
Max speed
60 m/min (TX), 40 m/min (PX)
Key Features
TX Series - Heavy Duty Large Tube Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Side-mounted bed with precision rack-and-pinion and roller linear guideways
- Four sets of floating unloading pallets for improved processing accuracy
Ease of Operation

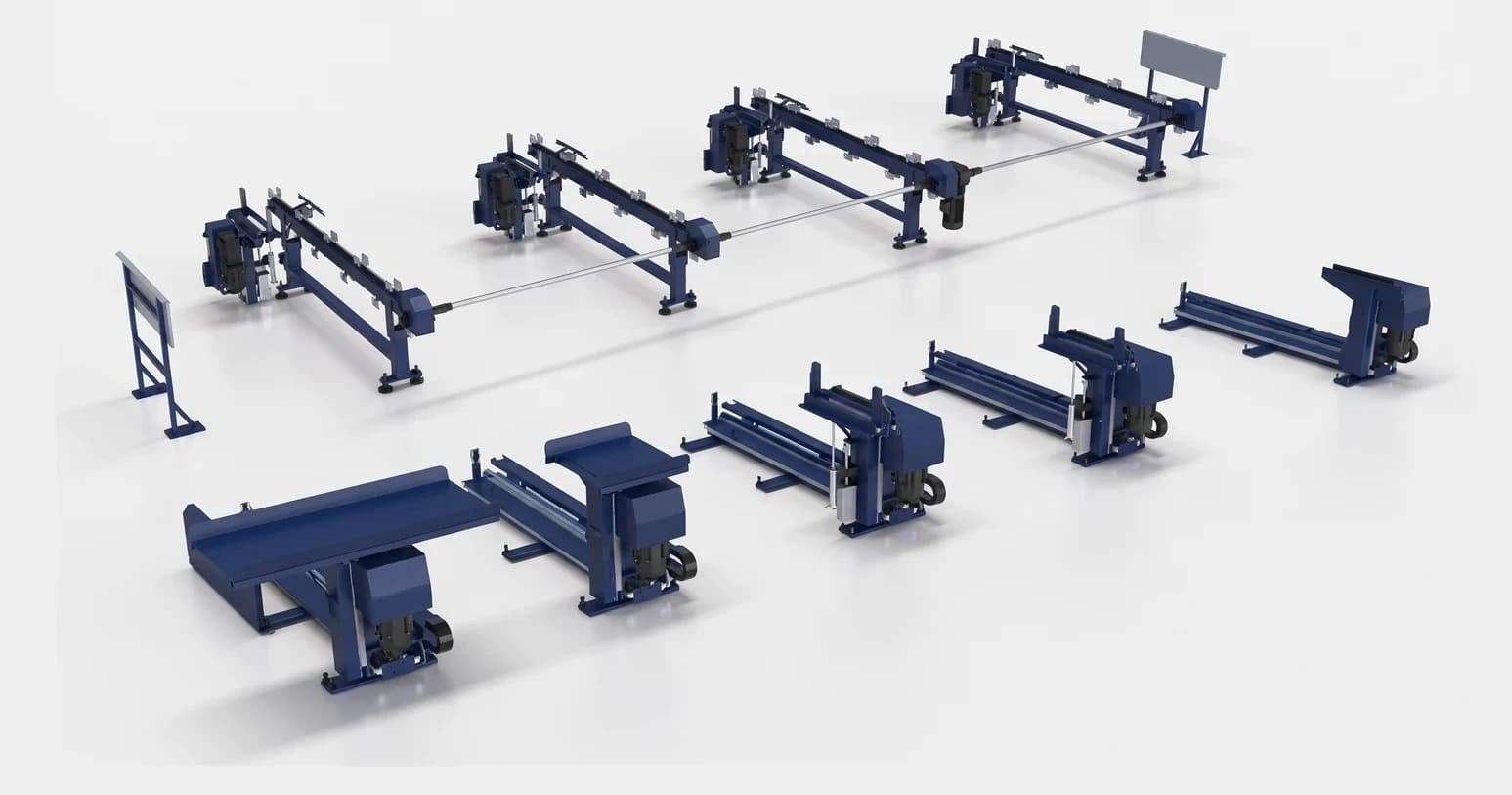

- Semi-automatic loading and unloading standard configuration
- Han's bus control system for fast response and high efficiency
Cutting Capability
- Zero scrap cutting capability (cutting head crosses centre chuck for opposite-direction cuts)

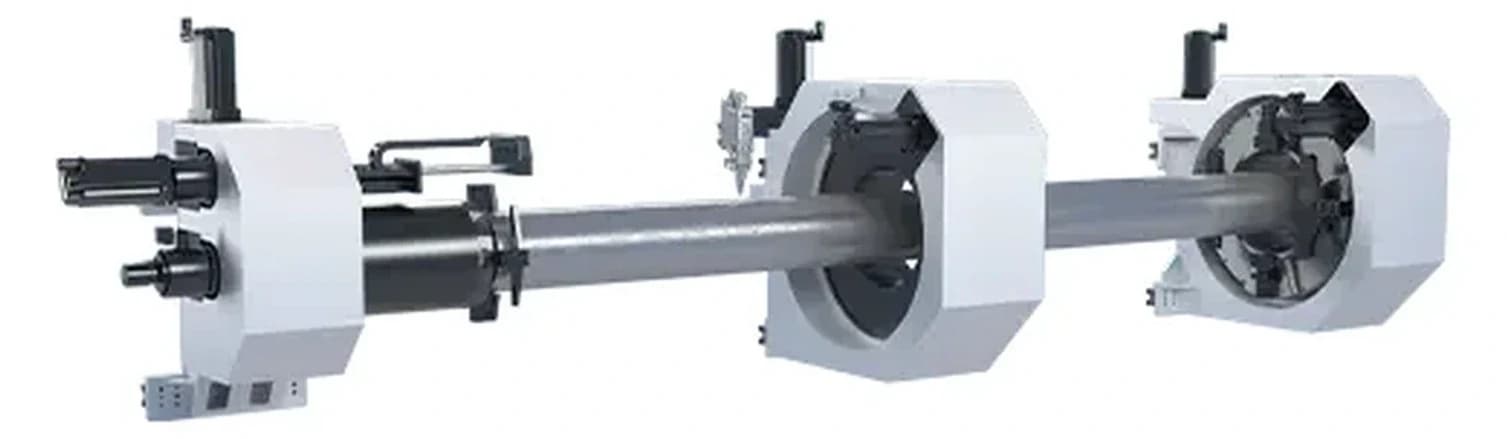

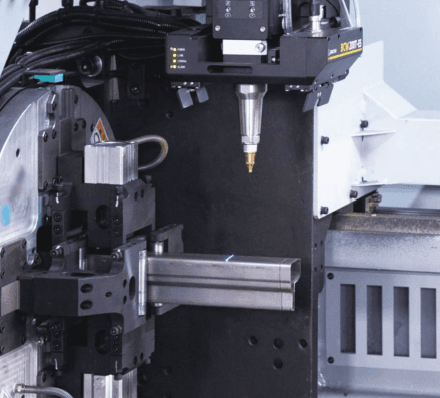

- Full-process integrated chuck system with seamless large/small tube switching
- Follower-assisted support with centering function for sag prevention

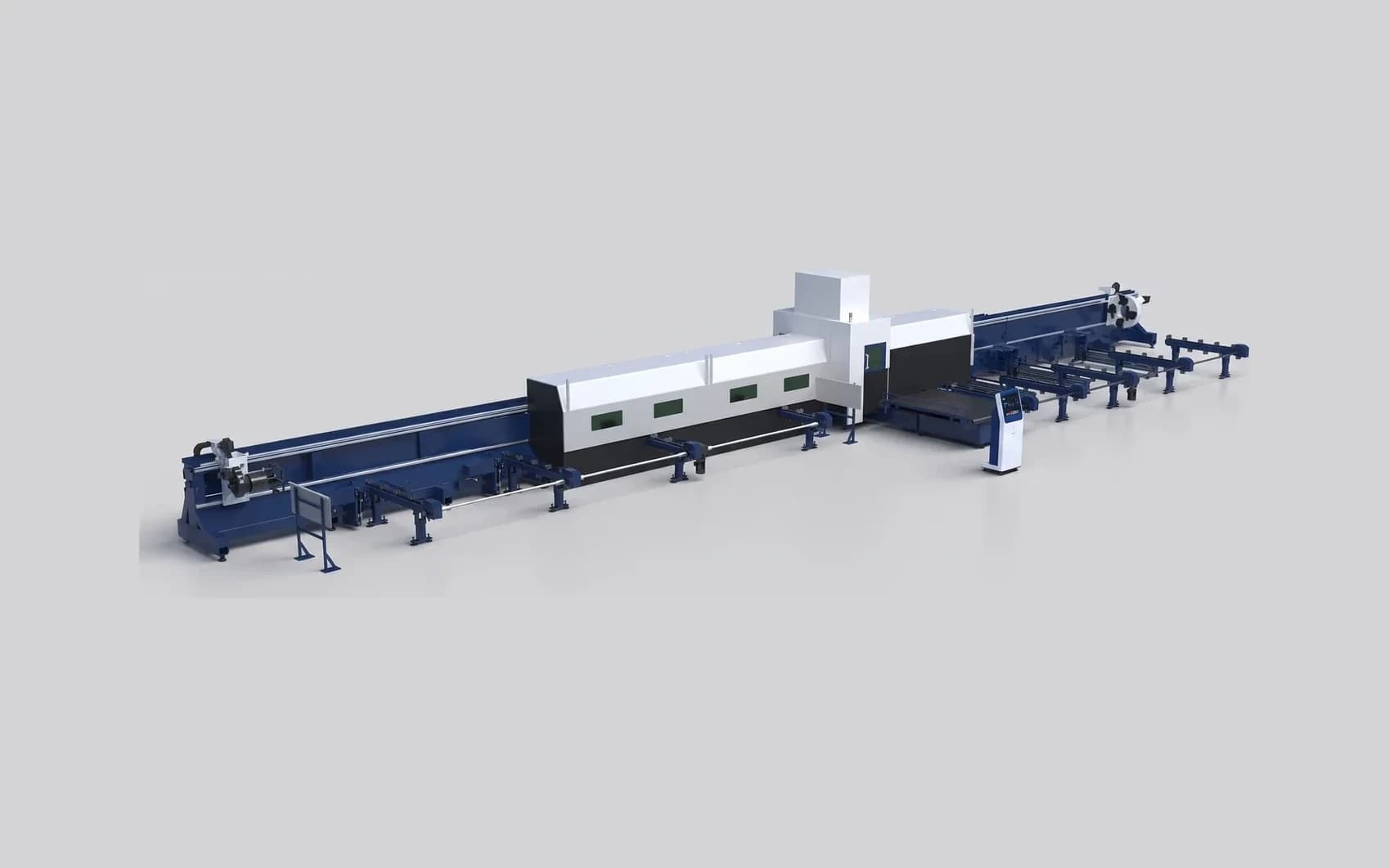

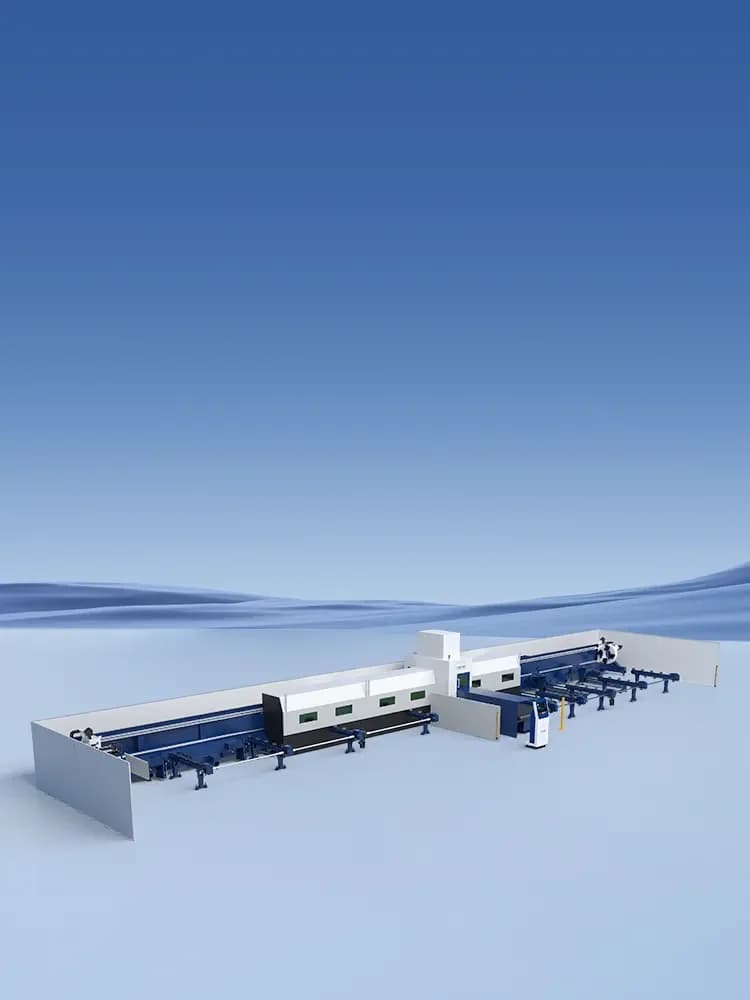

Gallery
TX Series - Heavy Duty Large Tube in Detail
Video
See the TX Series - Heavy Duty Large Tube in Action
Full Specifications
Han's TX Series Technical Details
Complete specifications, standard features, and optional upgrades.
- Models
- TX12036T, TX12050T, PX12066F
- Processing range (round)
- 40-360 mm (TX12036T), 50-500 mm (TX12050T), 80-660 mm (PX12066F)
- Processing range (square)
- 40-350 mm (TX12036T), 50-500 mm (TX12050T), 80-450 mm (PX12066F)
- Max speed
- 60 m/min (TX), 40 m/min (PX)
- Positioning accuracy
- +/-0.05 mm/1000 mm (TX), +/-0.01 mm/1000 mm (PX)
- Repeatability
- +/-0.05 mm (TX), +/-0.01 mm (PX)
- Max tube weight
- 1,200 kg (TX12036T), 2,000 kg (TX12050T), 2,500 kg (PX12066F)
- Unloading length
- Up to 12,000 mm
- Leftover material
- Zero scrap capability (cutting head crosses centre chuck)
- Tube shapes
- Square, round, and oval
| Models | TX12036T, TX12050T, PX12066F |
| Processing range (round) | 40-360 mm (TX12036T), 50-500 mm (TX12050T), 80-660 mm (PX12066F) |
| Processing range (square) | 40-350 mm (TX12036T), 50-500 mm (TX12050T), 80-450 mm (PX12066F) |
| Max speed | 60 m/min (TX), 40 m/min (PX) |
| Positioning accuracy | +/-0.05 mm/1000 mm (TX), +/-0.01 mm/1000 mm (PX) |
| Repeatability | +/-0.05 mm (TX), +/-0.01 mm (PX) |
| Max tube weight | 1,200 kg (TX12036T), 2,000 kg (TX12050T), 2,500 kg (PX12066F) |
| Unloading length | Up to 12,000 mm |
| Leftover material | Zero scrap capability (cutting head crosses centre chuck) |
| Tube shapes | Square, round, and oval |
- Zero scrap cutting capability (cutting head crosses centre chuck for opposite-direction cuts)
- Full-process integrated chuck system with seamless large/small tube switching
- Side-mounted bed with precision rack-and-pinion and roller linear guideways
- Follower-assisted support with centering function for sag prevention
- Semi-automatic loading and unloading standard configuration
- Four sets of floating unloading pallets for improved processing accuracy
- Han's bus control system for fast response and high efficiency

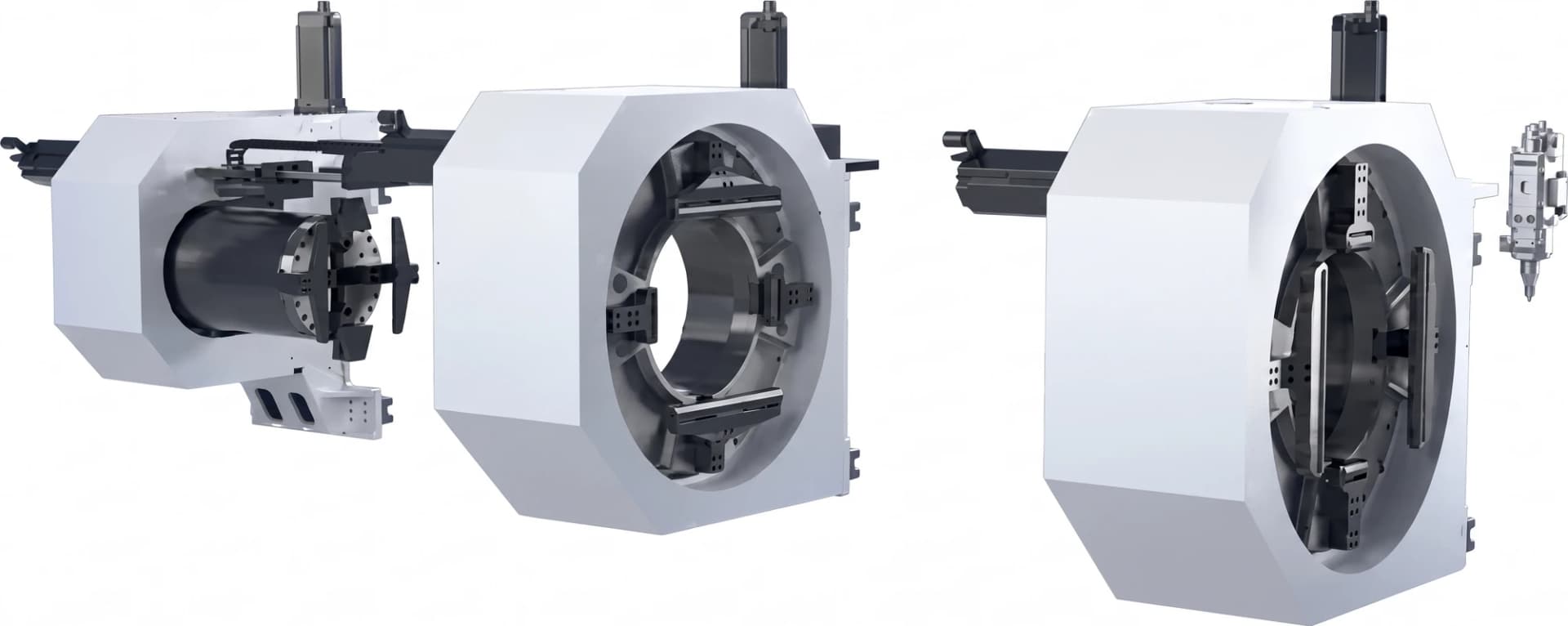

- Tri-chuck heavy-duty configuration (1,500 kg load capacity)

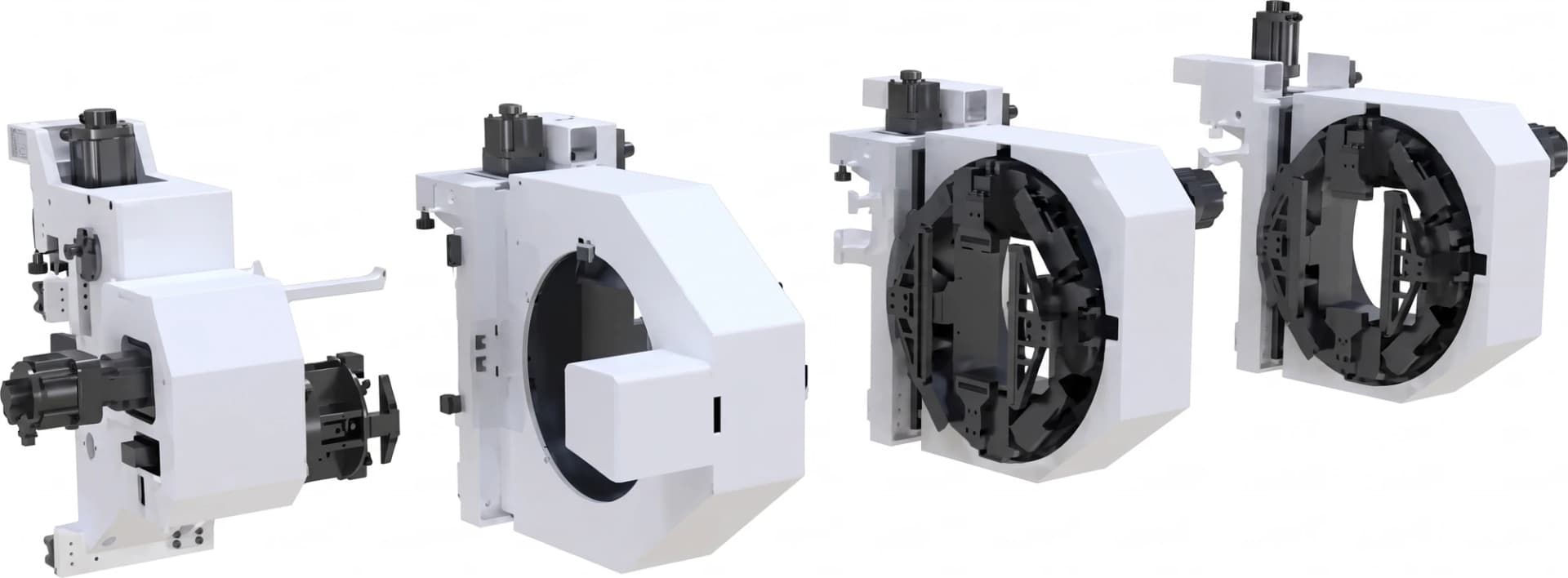

- Four-chuck commutative cutting with multiple clamping methods

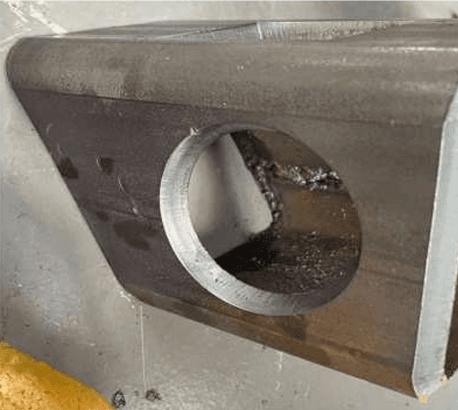

- Bevel cutting head with independent intellectual property (for structural steel and pipe welding)
- +/-45 degree bevel cutting function
- Heavy-duty pipe and tube cutting for structural steel fabrication
- Large-diameter tube processing for oil and gas, construction, and infrastructure
- Square, round, and oval profile cutting for mechanical engineering
- Bevel cutting on tubes for weld preparation in steel structure manufacturing
FAQ
TX Series - Heavy Duty Large Tube Questions
Answers to common questions about the TX Series - Heavy Duty Large Tube.
Depending on the model, the TX Series processes round tubes from 40 mm to 660 mm diameter and square tubes from 40 mm to 500 mm, in lengths up to 12 metres with loads up to 2,500 kg.
Yes. An optional bevel cutting head with +/-45 degree capability is available for weld preparation on structural steel and large pipe applications.
Ready to Discuss the TX Series - Heavy Duty Large Tube?
Our team has 19+ years of experience helping Canadian manufacturers find the right cutting and processing equipment.
19+
Years in Business
50+
Machine Models
900+
Happy Customers
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Financing Available
Flexible payment options on qualifying equipment.
Or email us at [email protected]
Related
Explore More Tube Laser Systems
Compare specifications and find the right machine for your application.
Small and medium tube fiber laser cutting system
PD Series - Up to 180mm (7") diameter
The PD Series is designed for efficient processing of small and medium-diameter tubes up to 180 mm. With laser power from 1kW to 4kW and modular feeding options from manual through fully automatic, it provides an accessible entry point for tube laser cutting with the precision and throughput needed for production environments.
High-speed fiber laser tube cutting system

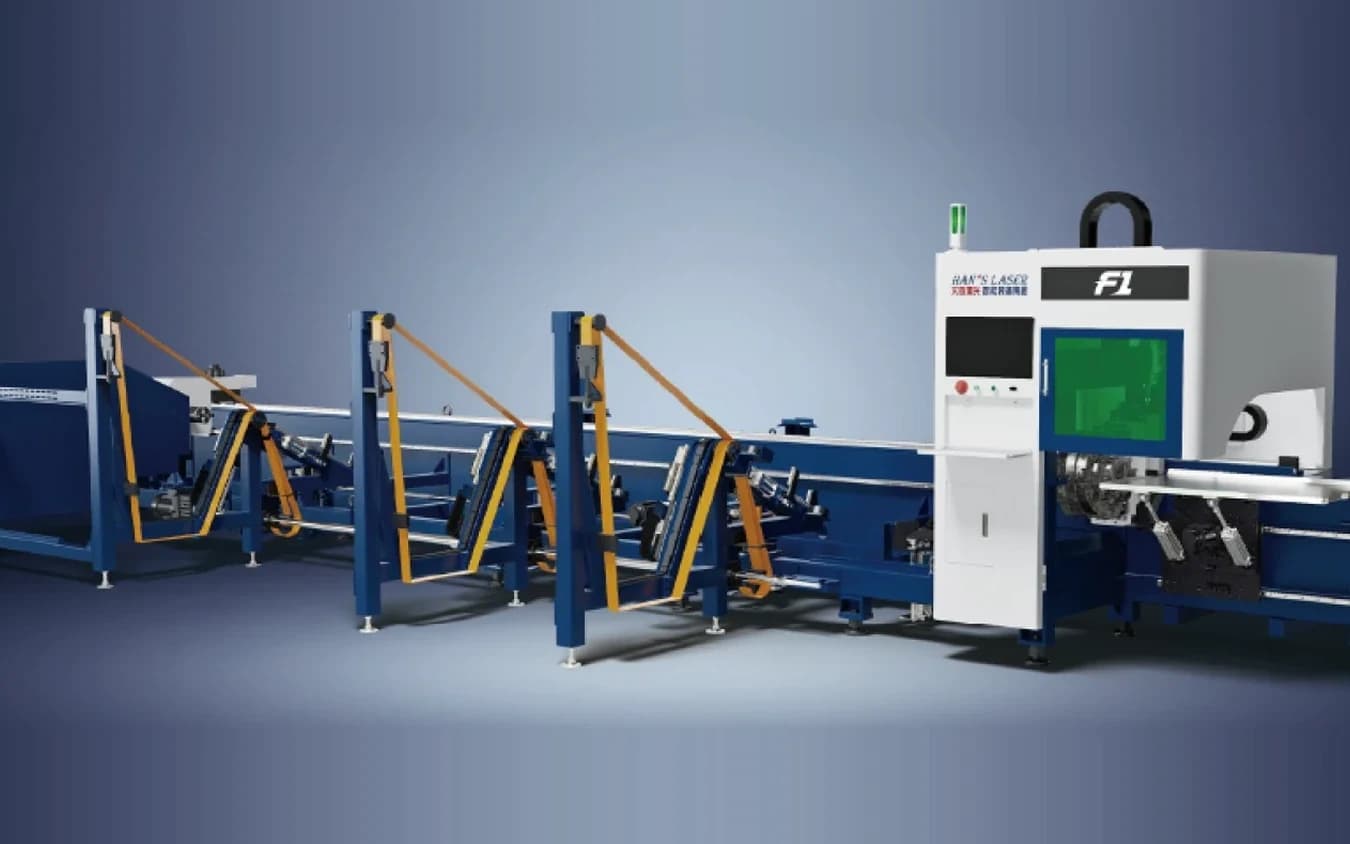

F1 Tube Laser - High speed for small tube
