Welding Automation
SAR
by Akyapak

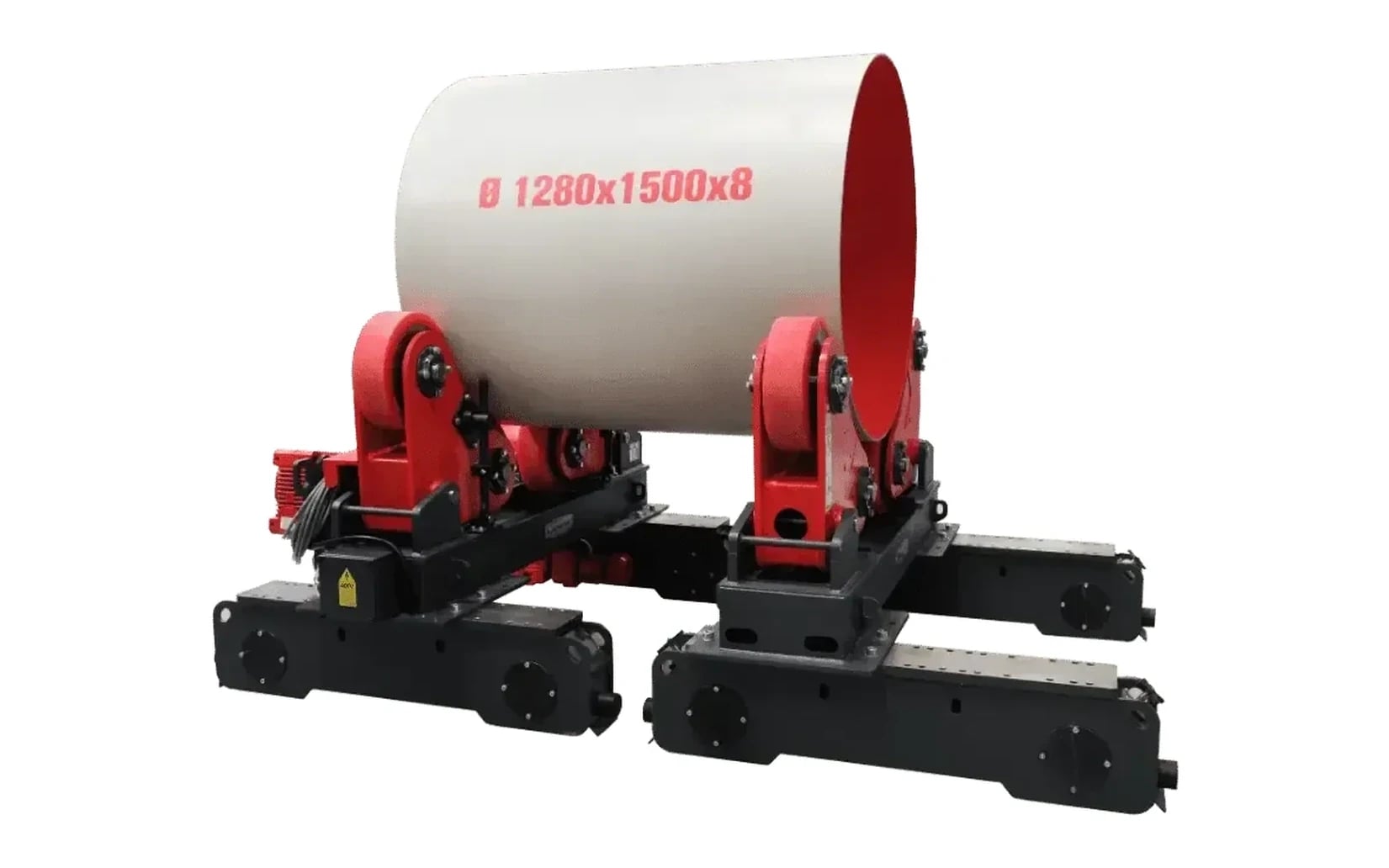

Self-aligning turning rotator that automatically adjusts its four wheels to handle cylindrical workpieces of varying diameter, including parts with different production tolerances.
Self-aligning 4-wheel turning rotator (auto-adjusting wheels)
Configuration
3 to 300 tons (3 to 300 tonnes)
Load Capacity
235 mm (about 9 inches)
Minimum Turning Diameter
Not sure if the SAR is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabricators welding cylindrical workpieces of varying diameter, especially when two joining components have different production tolerances or when the floor is uneven
Configuration
Self-aligning 4-wheel turning rotator (auto-adjusting wheels)
Load Capacity
3 to 300 tons (3 to 300 tonnes)
Minimum Turning Diameter
235 mm (about 9 inches)
Maximum Turning Diameter
7,000 mm (about 23 ft)
Key Features
SAR Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation
- Self-aligning four-wheel design auto-adjusts to changing workpiece diameters
- Material alignment mechanism matches two components with different production-tolerance diameters for a seamless fit
- 5 m corded remote control standard
- Reduces dependence on cranes for both automatic and manual welding processes
Built-In Extras
- Operates on uneven floors and adapts to diverse work environments
- Each polyurethane wheel moves independently for smooth rotation
- Integrates with Akyapak column-boom welding systems for fully co-ordinated circumferential welds
- Adjustable rotation speed with digital display on the remote
Gallery

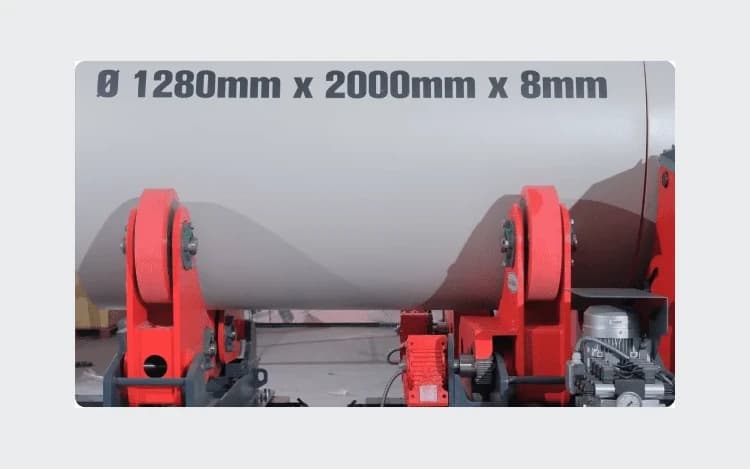

SAR in Detail
Video
See the SAR in Action
Full Specifications
Akyapak SAR Self-Aligning Rotator Technical Details
Complete specifications, standard features, and optional upgrades.
- Configuration
- Self-aligning 4-wheel turning rotator (auto-adjusting wheels)
- Load Capacity
- 3 to 300 tons (3 to 300 tonnes)
- Minimum Turning Diameter
- 235 mm (about 9 inches)
- Maximum Turning Diameter
- 7,000 mm (about 23 ft)
- Wheels
- Four polyurethane, each moving independently, auto-aligning
- Alignment Mechanism
- Material alignment auto-matches two components with different production-tolerance diameters
- Floor Tolerance
- Operates on uneven floors (construction sites, workshops)
- Rotation
- Adjustable speed, bidirectional
- Control
- Remote with 5 m cable; digital speed display (standard turning-roll controller)
- Mounting
- Floor-mounted
- Integration
- Standalone or paired with Akyapak column-boom welding systems
| Configuration | Self-aligning 4-wheel turning rotator (auto-adjusting wheels) |
| Load Capacity | 3 to 300 tons (3 to 300 tonnes) |
| Minimum Turning Diameter | 235 mm (about 9 inches) |
| Maximum Turning Diameter | 7,000 mm (about 23 ft) |
| Wheels | Four polyurethane, each moving independently, auto-aligning |
| Alignment Mechanism | Material alignment auto-matches two components with different production-tolerance diameters |
| Floor Tolerance | Operates on uneven floors (construction sites, workshops) |
| Rotation | Adjustable speed, bidirectional |
| Control | Remote with 5 m cable; digital speed display (standard turning-roll controller) |
| Mounting | Floor-mounted |
| Integration | Standalone or paired with Akyapak column-boom welding systems |
- Self-aligning four-wheel design auto-adjusts to changing workpiece diameters
- Material alignment mechanism matches two components with different production-tolerance diameters for a seamless fit
- Operates on uneven floors and adapts to diverse work environments
- Each polyurethane wheel moves independently for smooth rotation
- Adjustable rotation speed with digital display on the remote
- 5 m corded remote control standard
- Reduces dependence on cranes for both automatic and manual welding processes
- Integrates with Akyapak column-boom welding systems for fully co-ordinated circumferential welds
- Custom configurations for specific workpiece envelopes (contact ACM for sizing)
- Pressure vessel welding
- Tower pipe and reactor fabrication
- Boiler and fuel tank assembly
- Tank fabrication
- Cylindrical workpiece welding on uneven shop floors and construction sites
