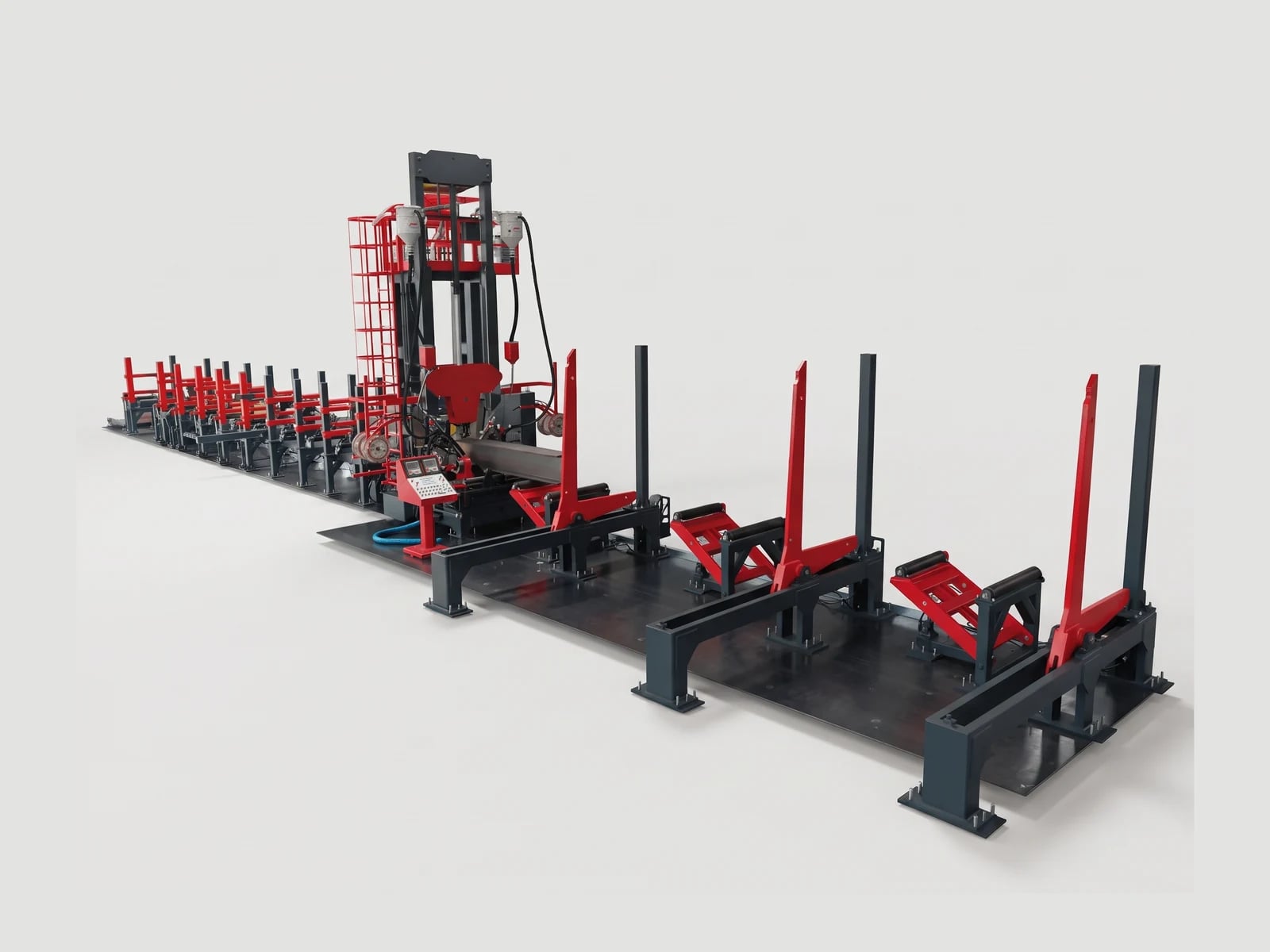

Compact H-beam welding machine that fixes, aligns, and welds custom-sized H-beams with integrated straightening and optional tandem welding torches.

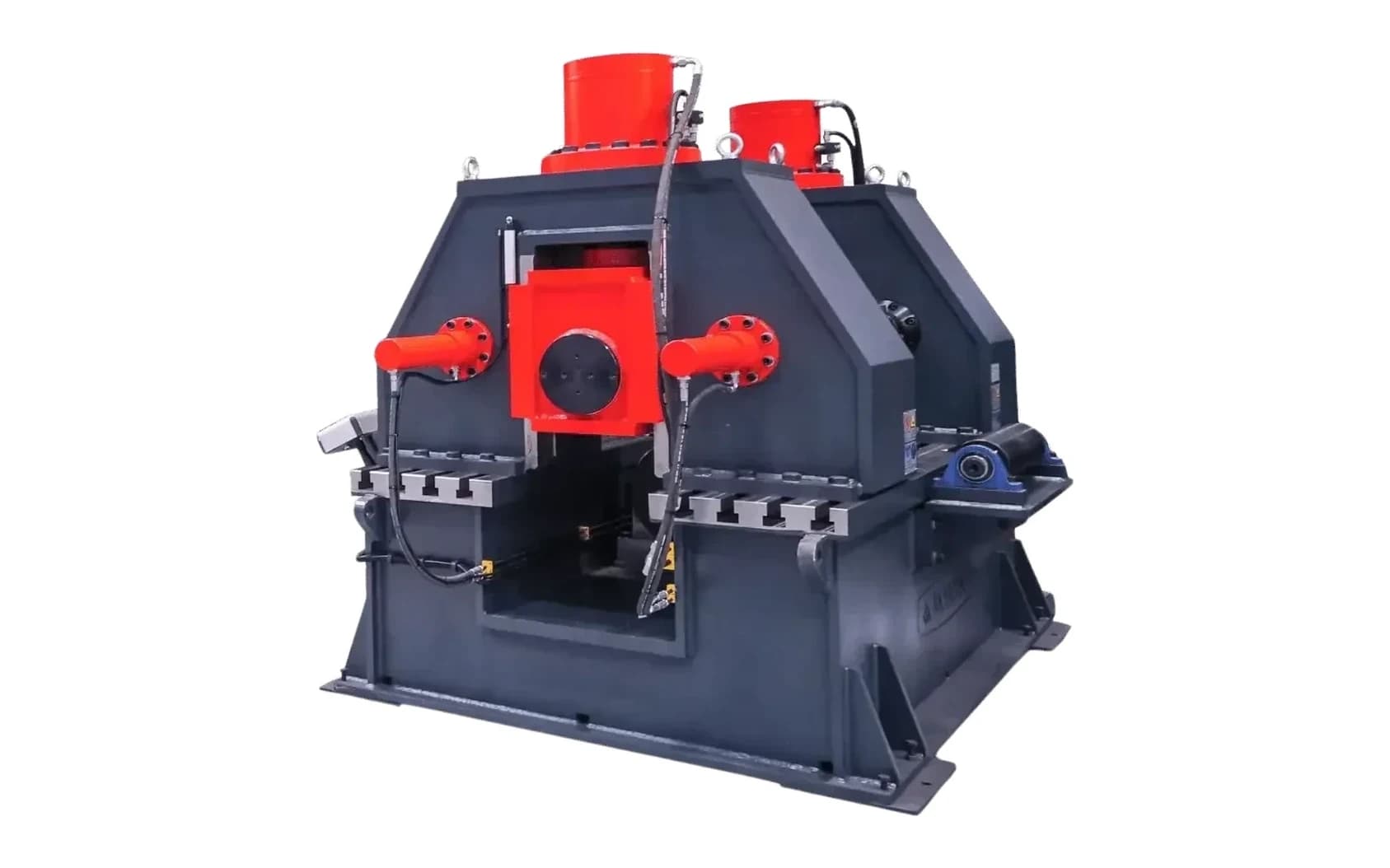

Compact H-beam welding machine with integrated straightening
Configuration
Single or double (tandem) configuration
Welding Torches
Upper hydraulic, adjustable along the web axis
Pressure Cylinder
Not sure if the HBW is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabricators producing custom-sized H-beams in volume who want a compact, space-saving welding machine with integrated straightening
Configuration
Compact H-beam welding machine with integrated straightening
Welding Torches
Single or double (tandem) configuration
Pressure Cylinder
Upper hydraulic, adjustable along the web axis
Max Piston Pressure
12,908 psi (9 tons / 8.16 tonnes)
Key Features
HBW Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Adjustable upper hydraulic pressure cylinder rated to 12,908 psi (9 tons) for precise web-axis pressure
- Sprocket-driven feeding with PLC-regulated encoder feedback for repeatable speed control
- Motor-driven guide rollers centre the web and bottom flange with hydraulic alignment
- Robust structural hull and columns deliver stability under sustained production loads
Cutting Capability
- Compact, space-saving design; among the smallest H-beam welders available
- Integrated beam straightening corrects distortion in line with welding
Video
See the HBW in Action
Full Specifications
Akyapak HBW H-Beam Welding Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Configuration
- Compact H-beam welding machine with integrated straightening
- Welding Torches
- Single or double (tandem) configuration
- Pressure Cylinder
- Upper hydraulic, adjustable along the web axis
- Max Piston Pressure
- 12,908 psi (9 tons / 8.16 tonnes)
- Feeding System
- Sprocket-driven, motor-controlled main roller with encoder feedback and PLC speed control
- Guide Rollers
- Motor-driven web and bottom-flange centring with hydraulic alignment
- Frame
- Heavy-duty structural hull and columns
- Footprint
- Compact, space-saving (most compact on market)
- Workpiece Range
- Custom flange widths, web heights, and thicknesses (contact ACM for sizing)
| Configuration | Compact H-beam welding machine with integrated straightening |
| Welding Torches | Single or double (tandem) configuration |
| Pressure Cylinder | Upper hydraulic, adjustable along the web axis |
| Max Piston Pressure | 12,908 psi (9 tons / 8.16 tonnes) |
| Feeding System | Sprocket-driven, motor-controlled main roller with encoder feedback and PLC speed control |
| Guide Rollers | Motor-driven web and bottom-flange centring with hydraulic alignment |
| Frame | Heavy-duty structural hull and columns |
| Footprint | Compact, space-saving (most compact on market) |
| Workpiece Range | Custom flange widths, web heights, and thicknesses (contact ACM for sizing) |
- Compact, space-saving design; among the smallest H-beam welders available
- Integrated beam straightening corrects distortion in line with welding
- Adjustable upper hydraulic pressure cylinder rated to 12,908 psi (9 tons) for precise web-axis pressure
- Sprocket-driven feeding with PLC-regulated encoder feedback for repeatable speed control
- Motor-driven guide rollers centre the web and bottom flange with hydraulic alignment
- Robust structural hull and columns deliver stability under sustained production loads
- Double (tandem) welding torch configuration for higher welding throughput
- PLC programmable speed presets for repeat workpieces
- Custom-dimension H-beam fabrication for steel construction and infrastructure
- Shipbuilding and offshore structural assembly
- Bridge and structural-component fabrication
- Heavy industrial frame and equipment manufacturing
