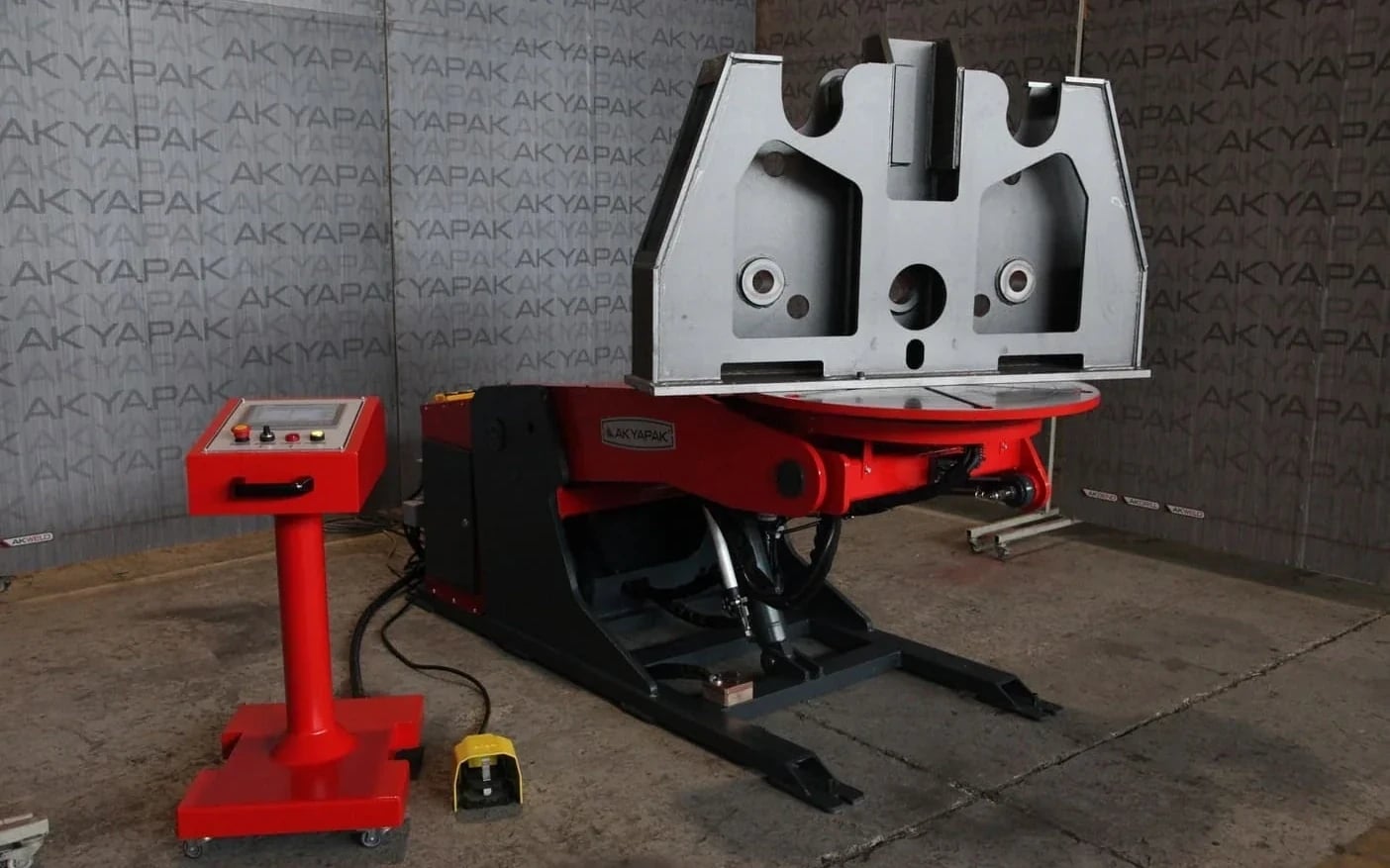

Hydraulic welding positioner with motor-driven rotation and hydraulic tilt that brings workpieces from 500 kg up to 35,000 kg to the optimal weld angle, with PLC control and 5 m corded remote standard.
Hydraulic welding positioner: motor-driven rotation + hydraulic tilt + dual-axis movement
Configuration
500 to 35,000 kg (about 1,100 to 77,000 lb / 0.5 to 35 metric tons)
Load Capacity Range
715 to 2,000 mm (about 28 to 79 inches)
Table Diameter Range
Not sure if the SRH is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabricators welding pressure vessels, tank shells, structural assemblies, or pipe spools from 500 kg to 35,000 kg who need hydraulic tilt control on top of rotation; the flagship welding positioner for premium production cells
Configuration
Hydraulic welding positioner: motor-driven rotation + hydraulic tilt + dual-axis movement
Load Capacity Range
500 to 35,000 kg (about 1,100 to 77,000 lb / 0.5 to 35 metric tons)
Table Diameter Range
715 to 2,000 mm (about 28 to 79 inches)
SRH-500
1,100 lb (500 kg) — 28.1" (715 mm) table dia, 0–115° tilt
Key Features
SRH Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Motor-and-reducer driven rotation table with adjustable speed
- PLC control panel with digital speed indicator monitors rotation in real time
- Vertically adjustable body plus dual-axis rotation for right and left workpiece movement
Built-In Extras
- Hydraulic tilt across 0–115° on SRH-500 through SRH-7000 and 0–90° on SRH-15000 through SRH-35000
- Foot pedal available for hands-free operation
- T-slot table channels secure workpieces throughout the weld cycle
- Welding-earthing mechanism standard (500 A)
- Mechanical angle indicator for tilt position
- 5 m (16 ft) corded remote control standard
Gallery

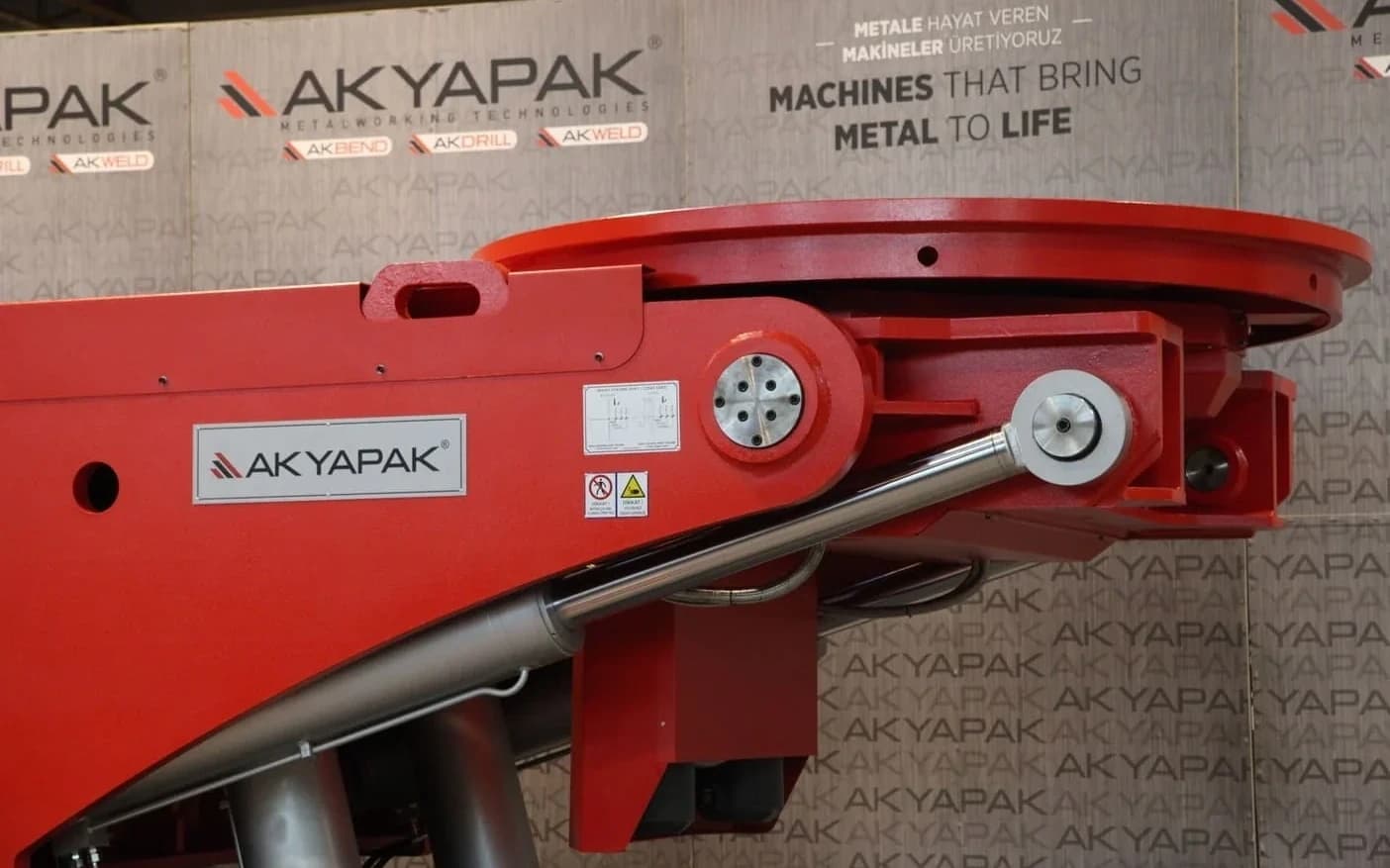

SRH in Detail
Video
See the SRH in Action
Full Specifications
Akyapak SRH Hydraulic Welding Positioner Technical Details
Complete specifications, standard features, and optional upgrades.
- Configuration
- Hydraulic welding positioner: motor-driven rotation + hydraulic tilt + dual-axis movement
- Load Capacity Range
- 500 to 35,000 kg (about 1,100 to 77,000 lb / 0.5 to 35 metric tons)
- Table Diameter Range
- 715 to 2,000 mm (about 28 to 79 inches)
- SRH-500
- 1,100 lb (500 kg) — 28.1" (715 mm) table dia, 0–115° tilt
- SRH-1000
- 2,200 lb (1,000 kg) — 35.4" (900 mm) table dia, 0–115° tilt
- SRH-3500
- 7,700 lb (3,500 kg) — 37.8" (960 mm) table dia, 0–110° tilt
- SRH-7000
- 15,400 lb (7,000 kg) — 51.2" (1,300 mm) table dia, 0–110° tilt
- SRH-15000
- 33,000 lb (15,000 kg) — 63.0" (1,600 mm) table dia, 0–90° tilt
- SRH-25000
- 55,000 lb (25,000 kg) — 78.7" (2,000 mm) table dia, 0–90° tilt
- SRH-35000
- 77,000 lb (35,000 kg) — 78.7" (2,000 mm) table dia, 0–90° tilt
- Larger Models
- Custom configurations beyond SRH-35000 available on request
- Tilt
- Hydraulic 0–115° (SRH-500 through SRH-7000) and 0–90° (SRH-15000 through SRH-35000)
- Rotation Speed
- Adjustable, automatic or manual
- Control Panel
- PLC control panel with digital speed indicator (real-time speed monitoring)
- Axis Movements
- Vertically adjustable body + dual-axis rotation (right and left)
- Workpiece Clamping
- T-slot channels on the rotation table
- Earthing
- 500 A welding-earthing mechanism standard
- Input Power
- 380 V
- Remote Control
- 5 m (16 ft) corded standard; wireless optional
- Mounting
- Floor-fixed (heavy-duty installations)
| Configuration | Hydraulic welding positioner: motor-driven rotation + hydraulic tilt + dual-axis movement |
| Load Capacity Range | 500 to 35,000 kg (about 1,100 to 77,000 lb / 0.5 to 35 metric tons) |
| Table Diameter Range | 715 to 2,000 mm (about 28 to 79 inches) |
| SRH-500 | 1,100 lb (500 kg) — 28.1" (715 mm) table dia, 0–115° tilt |
| SRH-1000 | 2,200 lb (1,000 kg) — 35.4" (900 mm) table dia, 0–115° tilt |
| SRH-3500 | 7,700 lb (3,500 kg) — 37.8" (960 mm) table dia, 0–110° tilt |
| SRH-7000 | 15,400 lb (7,000 kg) — 51.2" (1,300 mm) table dia, 0–110° tilt |
| SRH-15000 | 33,000 lb (15,000 kg) — 63.0" (1,600 mm) table dia, 0–90° tilt |
| SRH-25000 | 55,000 lb (25,000 kg) — 78.7" (2,000 mm) table dia, 0–90° tilt |
| SRH-35000 | 77,000 lb (35,000 kg) — 78.7" (2,000 mm) table dia, 0–90° tilt |
| Larger Models | Custom configurations beyond SRH-35000 available on request |
| Tilt | Hydraulic 0–115° (SRH-500 through SRH-7000) and 0–90° (SRH-15000 through SRH-35000) |
| Rotation Speed | Adjustable, automatic or manual |
| Control Panel | PLC control panel with digital speed indicator (real-time speed monitoring) |
| Axis Movements | Vertically adjustable body + dual-axis rotation (right and left) |
| Workpiece Clamping | T-slot channels on the rotation table |
| Earthing | 500 A welding-earthing mechanism standard |
| Input Power | 380 V |
| Remote Control | 5 m (16 ft) corded standard; wireless optional |
| Mounting | Floor-fixed (heavy-duty installations) |
- Hydraulic tilt across 0–115° on SRH-500 through SRH-7000 and 0–90° on SRH-15000 through SRH-35000
- Motor-and-reducer driven rotation table with adjustable speed
- PLC control panel with digital speed indicator monitors rotation in real time
- Foot pedal available for hands-free operation
- Vertically adjustable body plus dual-axis rotation for right and left workpiece movement
- T-slot table channels secure workpieces throughout the weld cycle
- Welding-earthing mechanism standard (500 A)
- Mechanical angle indicator for tilt position
- 5 m (16 ft) corded remote control standard
- Wireless remote controller
- Programmable automation control for repeatable welding programs
- Larger custom configurations beyond the standard SRH-35000 available on request
- Pressure vessel and tank shell welding
- Pipe spool fabrication
- Structural assembly welding
- Heavy fabrication and shipbuilding
- Production welding cells (paired with column-boom or welding robot)
