Welding Automation
SRP
by Akyapak
Conventional welding positioner that rotates workpieces from 150 kg up to 40,000 kg on table sizes 500 to 3,500 mm with adjustable speed and T-slot clamping.
Conventional welding positioner (rotation table; no hydraulic tilt)
Configuration
150 to 40,000 kg (330 to 88,200 lb / 0.15 to 40 metric tons / 0.17 to 44 US tons)
Load Capacity
500 to 3,500 mm (about 20 to 138 inches)
Table Diameter
Not sure if the SRP is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabricators needing precise workpiece rotation across a wide load range (150 to 40,000 kg) without the cost or complexity of hydraulic tilt actuation
Configuration
Conventional welding positioner (rotation table; no hydraulic tilt)
Load Capacity
150 to 40,000 kg (330 to 88,200 lb / 0.15 to 40 metric tons / 0.17 to 44 US tons)
Table Diameter
500 to 3,500 mm (about 20 to 138 inches)
Rotation Speed
Adjustable, automatic or manual operation
Key Features
SRP Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Adjustable rotation speed in either automatic or manual operation
- Digital real-time speed display on the control panel for quick intervention if needed
- Reduces dependence on cranes and forklifts for direct positioning
Ease of Operation
- Wide load range from 150 kg to 40,000 kg covers light-duty through heavy fabrication
- 5 m (16 ft) corded remote control standard
- Integrates with Akyapak column-boom welding systems and welding robots for co-ordinated welding cells
Built-In Extras
- Table diameters from 500 mm to 3,500 mm match a broad range of workpiece sizes
- T-slot channels on the table hold workpieces securely throughout the weld cycle
Gallery

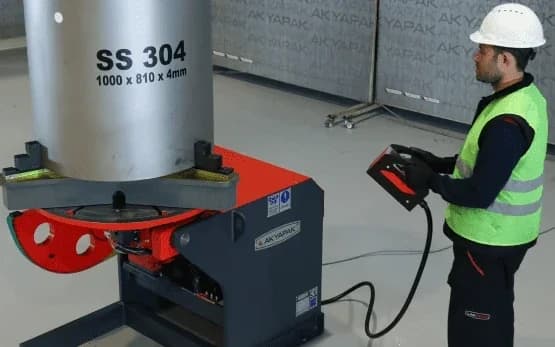

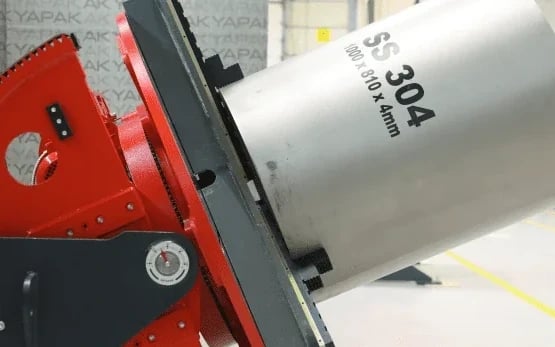

SRP in Detail
Video
See the SRP in Action
Full Specifications
Akyapak SRP Conventional Welding Positioner Technical Details
Complete specifications, standard features, and optional upgrades.
- Configuration
- Conventional welding positioner (rotation table; no hydraulic tilt)
- Load Capacity
- 150 to 40,000 kg (330 to 88,200 lb / 0.15 to 40 metric tons / 0.17 to 44 US tons)
- Table Diameter
- 500 to 3,500 mm (about 20 to 138 inches)
- Rotation Speed
- Adjustable, automatic or manual operation
- Speed Display
- Digital, real-time monitoring on control panel
- Workpiece Clamping
- T-slot channels on the rotation table
- Control
- Remote with 5 m (16 ft) cable
- Mounting
- Floor-mounted
- Integration
- Compatible with Akyapak column-boom welding systems and welding robots
| Configuration | Conventional welding positioner (rotation table; no hydraulic tilt) |
| Load Capacity | 150 to 40,000 kg (330 to 88,200 lb / 0.15 to 40 metric tons / 0.17 to 44 US tons) |
| Table Diameter | 500 to 3,500 mm (about 20 to 138 inches) |
| Rotation Speed | Adjustable, automatic or manual operation |
| Speed Display | Digital, real-time monitoring on control panel |
| Workpiece Clamping | T-slot channels on the rotation table |
| Control | Remote with 5 m (16 ft) cable |
| Mounting | Floor-mounted |
| Integration | Compatible with Akyapak column-boom welding systems and welding robots |
- Wide load range from 150 kg to 40,000 kg covers light-duty through heavy fabrication
- Table diameters from 500 mm to 3,500 mm match a broad range of workpiece sizes
- Adjustable rotation speed in either automatic or manual operation
- Digital real-time speed display on the control panel for quick intervention if needed
- T-slot channels on the table hold workpieces securely throughout the weld cycle
- Reduces dependence on cranes and forklifts for direct positioning
- 5 m (16 ft) corded remote control standard
- Integrates with Akyapak column-boom welding systems and welding robots for co-ordinated welding cells
- Custom configurations within the load and table-diameter range (contact ACM for sizing)
- Pressure vessel and tank welding
- Cylindrical assembly welding
- Steel construction workshop fabrication
- Production welding cells (paired with column-boom or welding robot)
- Heavy fabrication where workpieces require consistent rotation under the welder
