Welding Automation
HR
by Akyapak

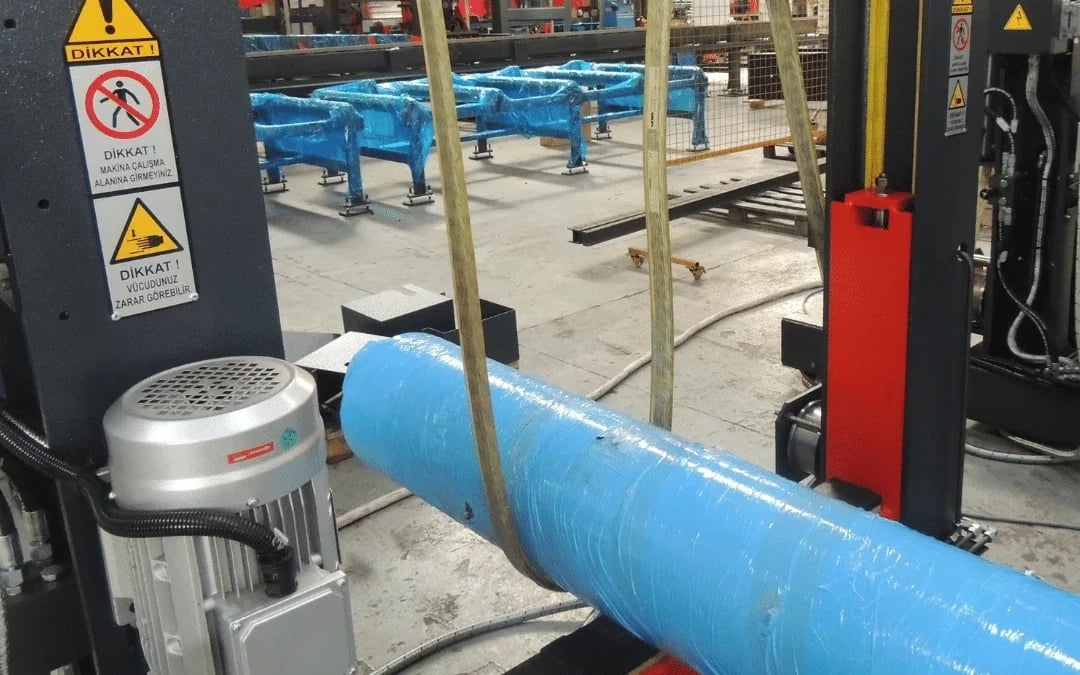

Rope-driven beam rotator with PU-coated endless steel rope and dual driver units that rotate workpieces 450 to 1,200 mm diameter at up to 10,000 kg with synchronous or independent body movement.
Rope-driven beam rotator with dual driver units
Configuration
Endless steel rope coated with PU-polyurethane
Rope
2,500 to 10,000 kg (5,500 to 22,000 lb)
Load Capacity
Not sure if the HR is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabricators welding heavy beams or large cylindrical workpieces with sensitive surfaces who need rope-based rotation without chain marks, and the flexibility of synchronous or independent dual-body movement
Configuration
Rope-driven beam rotator with dual driver units
Rope
Endless steel rope coated with PU-polyurethane
Load Capacity
2,500 to 10,000 kg (5,500 to 22,000 lb)
Rotation Diameter
450 to 1,200 mm (about 18 to 47 in)
Key Features
HR Features
Standard features that set this machine apart in demanding manufacturing environments.
Built-In Extras
- Endless steel rope coated with PU-polyurethane preserves workpiece surface integrity
- Bidirectional rotation in both clockwise and counterclockwise directions
- Elevator system raises and lowers the workpiece for ergonomic welding height
- Rope path protected by the elevator structure to prevent breakage
- Dual-body structure: two bodies translate simultaneously or separately while rotation stays co-ordinated
- Dual driver units operate synchronously for rigid parts or independently for separate-angle adjustments
- 5 m corded remote control standard
- CE safety compliant for heavy-duty industrial use
Gallery

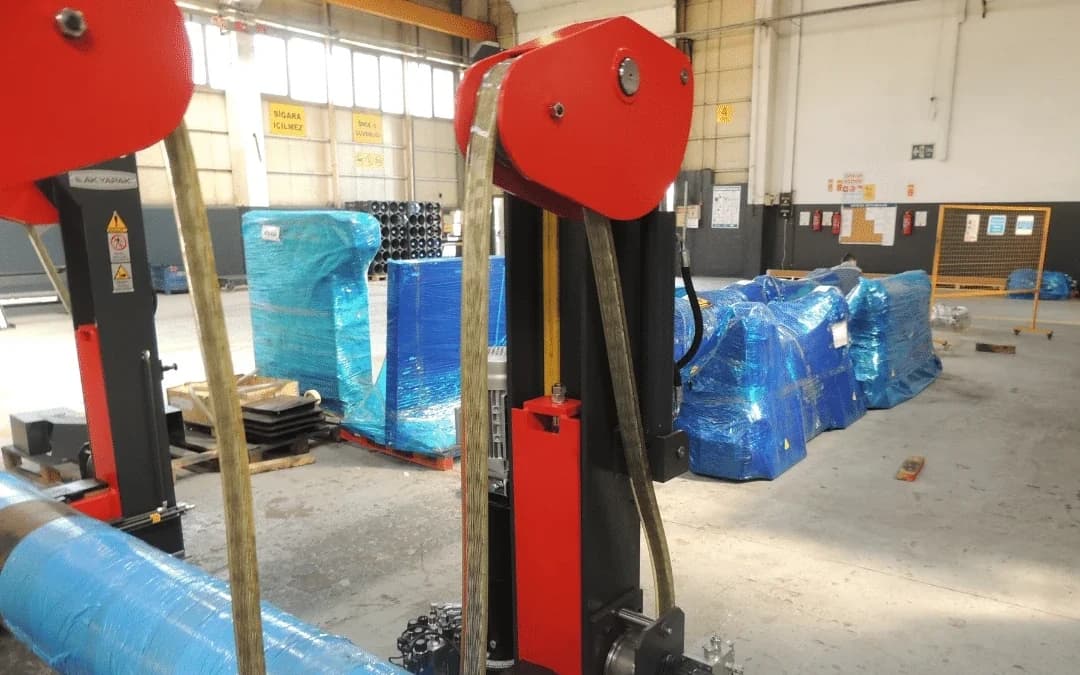

HR in Detail
Video
See the HR in Action
Full Specifications
Akyapak HR Rope Beam Rotator Technical Details
Complete specifications, standard features, and optional upgrades.
- Configuration
- Rope-driven beam rotator with dual driver units
- Rope
- Endless steel rope coated with PU-polyurethane
- Load Capacity
- 2,500 to 10,000 kg (5,500 to 22,000 lb)
- Rotation Diameter
- 450 to 1,200 mm (about 18 to 47 in)
- Driver Units
- Two, synchronous or independent operation
- Rotation
- Bidirectional (clockwise and counterclockwise)
- Height Adjustment
- Elevator system, up and down
- Body Structure
- Dual-body, simultaneous or separate translation; rotation co-ordinated
- Surface Protection
- PU coating prevents marks on workpiece surface
- Safety Compliance
- CE certified
- Control
- Remote with 5 m cable
- Mounting
- Floor-mounted
| Configuration | Rope-driven beam rotator with dual driver units |
| Rope | Endless steel rope coated with PU-polyurethane |
| Load Capacity | 2,500 to 10,000 kg (5,500 to 22,000 lb) |
| Rotation Diameter | 450 to 1,200 mm (about 18 to 47 in) |
| Driver Units | Two, synchronous or independent operation |
| Rotation | Bidirectional (clockwise and counterclockwise) |
| Height Adjustment | Elevator system, up and down |
| Body Structure | Dual-body, simultaneous or separate translation; rotation co-ordinated |
| Surface Protection | PU coating prevents marks on workpiece surface |
| Safety Compliance | CE certified |
| Control | Remote with 5 m cable |
| Mounting | Floor-mounted |
- Endless steel rope coated with PU-polyurethane preserves workpiece surface integrity
- Dual driver units operate synchronously for rigid parts or independently for separate-angle adjustments
- Bidirectional rotation in both clockwise and counterclockwise directions
- Elevator system raises and lowers the workpiece for ergonomic welding height
- Rope path protected by the elevator structure to prevent breakage
- Dual-body structure: two bodies translate simultaneously or separately while rotation stays co-ordinated
- CE safety compliant for heavy-duty industrial use
- 5 m corded remote control standard
- Custom configurations for specific workpiece envelopes (contact ACM for sizing)
- Heavy structural beam welding (H-beams, NPU beams)
- Sensitive-surface workpieces where chain marks are unacceptable (painted, polished, composite)
- Planar-section welding and assembly
- Steel construction and structural fabrication
- Shipyard and infrastructure projects
