Welding Automation
CR
by Akyapak

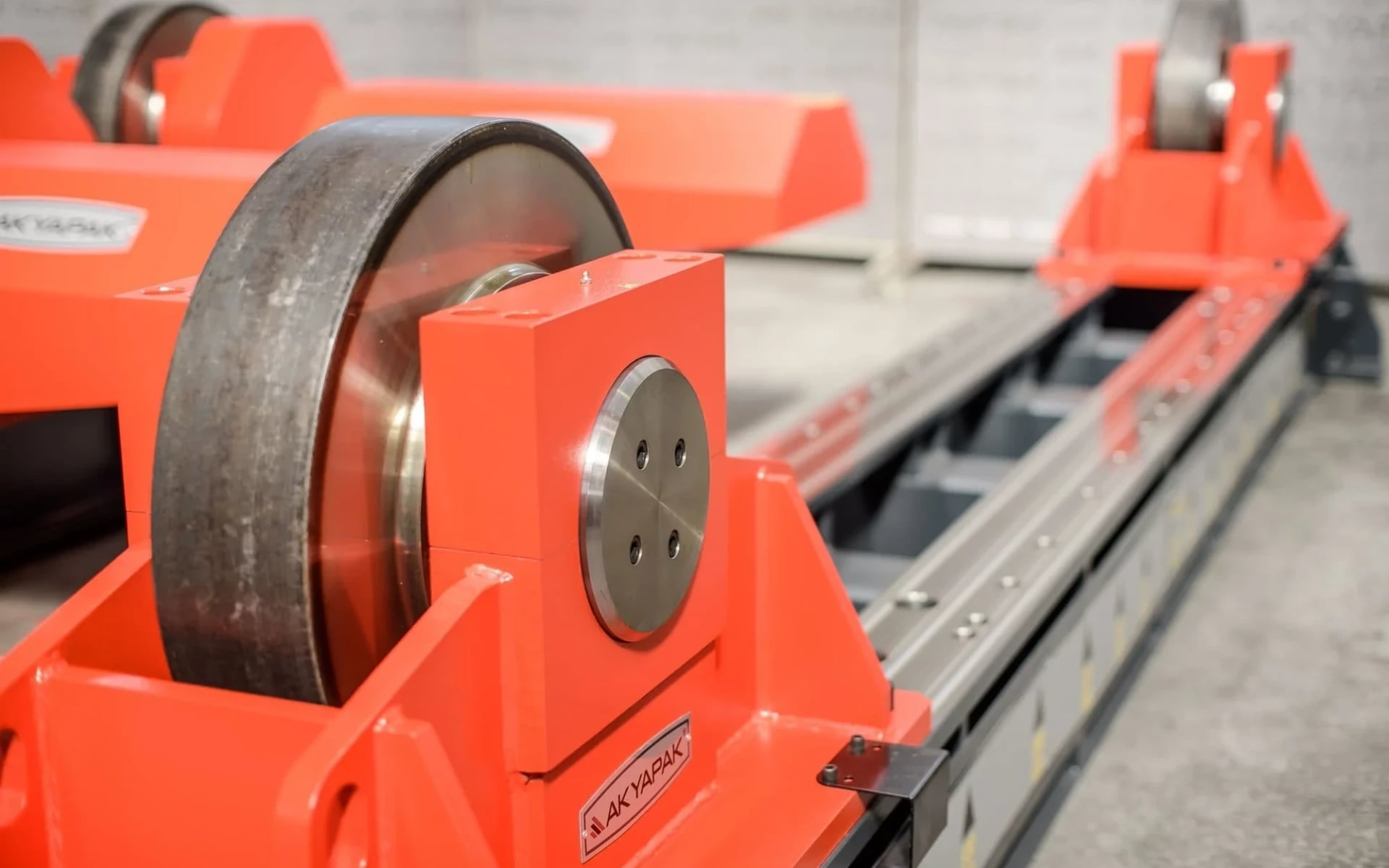

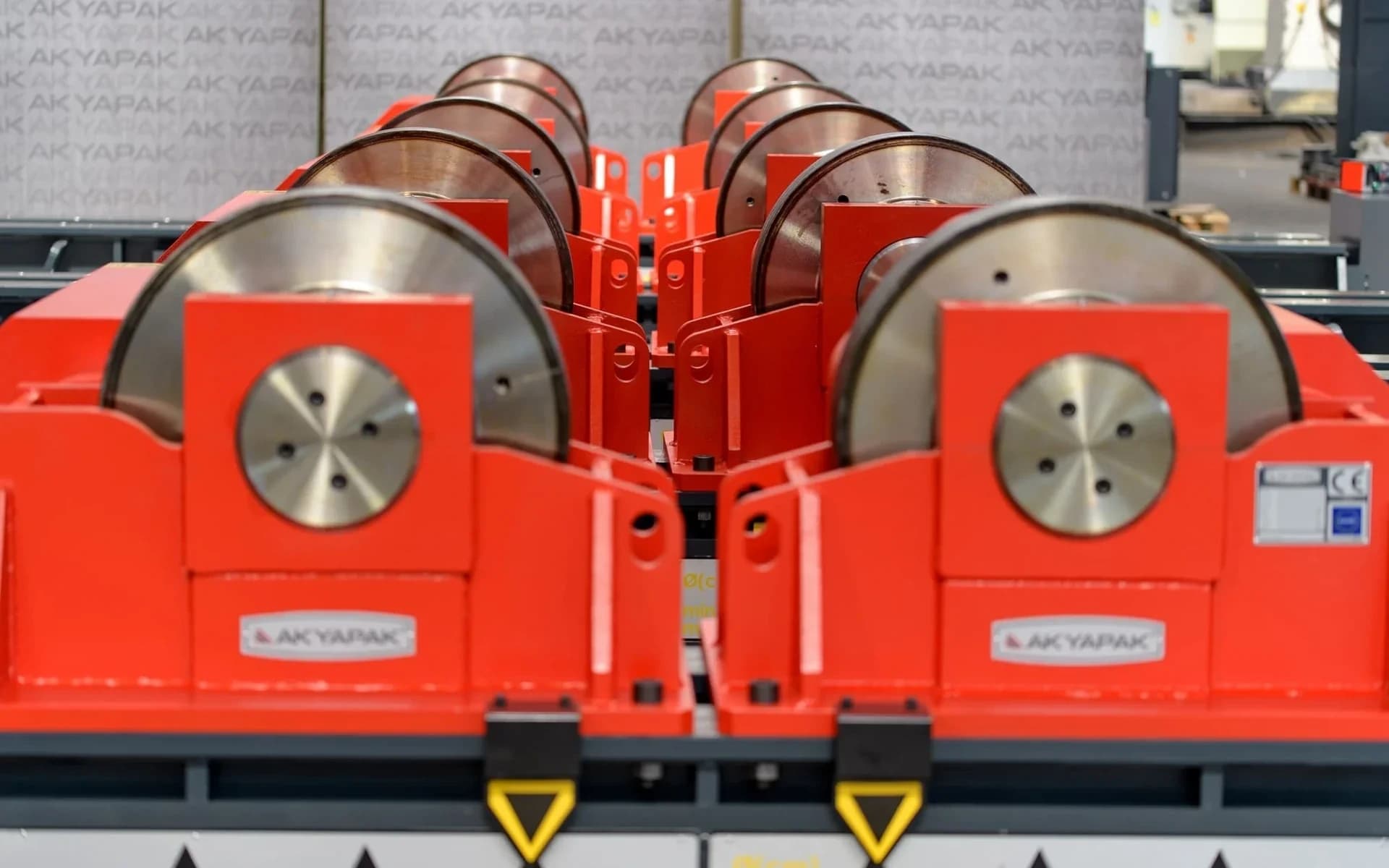

Cost-effective conventional turning rotator with four polyurethane wheels for cylindrical workpieces of consistent diameter, handling 1 to 300 tons standard.
Conventional 4-wheel turning rolls (PU wheels)
Configuration
1 to 300 tons (1 to 300 tonnes)
Standard Load Capacity
Up to 600 tons available for special configurations
Special-Order Capacity
Not sure if the CR is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabricators welding cylindrical workpieces with little variation in diameter who want a cost-effective rotator that eliminates crane handling during the welding pass
Configuration
Conventional 4-wheel turning rolls (PU wheels)
Standard Load Capacity
1 to 300 tons (1 to 300 tonnes)
Special-Order Capacity
Up to 600 tons available for special configurations
Workpiece Diameter Range
2,750 to 8,000 mm (about 9 to 26 ft)
Key Features
CR Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Adjustable rotation speed in both directions
- Digital speed display on the remote control panel
Built-In Extras
- Four impact and vibration-resistant polyurethane wheels for smooth rotation
- Cost-effective design for production welding on workpieces of consistent diameter
- Integrates with Akyapak column-boom welding systems for fully co-ordinated circumferential welds
- 5 m corded remote control for operator-level access
- Each wheel moves separately, supporting consistent contact across the diameter range
Video
See the CR in Action
Full Specifications
Akyapak CR Conventional Rotator Technical Details
Complete specifications, standard features, and optional upgrades.
- Configuration
- Conventional 4-wheel turning rolls (PU wheels)
- Standard Load Capacity
- 1 to 300 tons (1 to 300 tonnes)
- Special-Order Capacity
- Up to 600 tons available for special configurations
- Workpiece Diameter Range
- 2,750 to 8,000 mm (about 9 to 26 ft)
- Wheels
- Four polyurethane wheels, impact and vibration-resistant, each moving separately
- Rotation
- Adjustable speed, bidirectional
- Control
- Remote control with 5 m cable; digital speed display
- Mounting
- Floor-mounted
- Integration
- Pairs with Akyapak column-boom welding systems for circumferential welds
| Configuration | Conventional 4-wheel turning rolls (PU wheels) |
| Standard Load Capacity | 1 to 300 tons (1 to 300 tonnes) |
| Special-Order Capacity | Up to 600 tons available for special configurations |
| Workpiece Diameter Range | 2,750 to 8,000 mm (about 9 to 26 ft) |
| Wheels | Four polyurethane wheels, impact and vibration-resistant, each moving separately |
| Rotation | Adjustable speed, bidirectional |
| Control | Remote control with 5 m cable; digital speed display |
| Mounting | Floor-mounted |
| Integration | Pairs with Akyapak column-boom welding systems for circumferential welds |
- Four impact and vibration-resistant polyurethane wheels for smooth rotation
- Each wheel moves separately, supporting consistent contact across the diameter range
- Adjustable rotation speed in both directions
- Digital speed display on the remote control panel
- 5 m corded remote control for operator-level access
- Cost-effective design for production welding on workpieces of consistent diameter
- Integrates with Akyapak column-boom welding systems for fully co-ordinated circumferential welds
- Special-configuration build with load capacity up to 600 tons
- Pressure vessel and tank welding
- Pipe and pipe spool fabrication
- Cylindrical workpiece assembly in steel construction workshops
- Production welding on rotational components with consistent diameter
