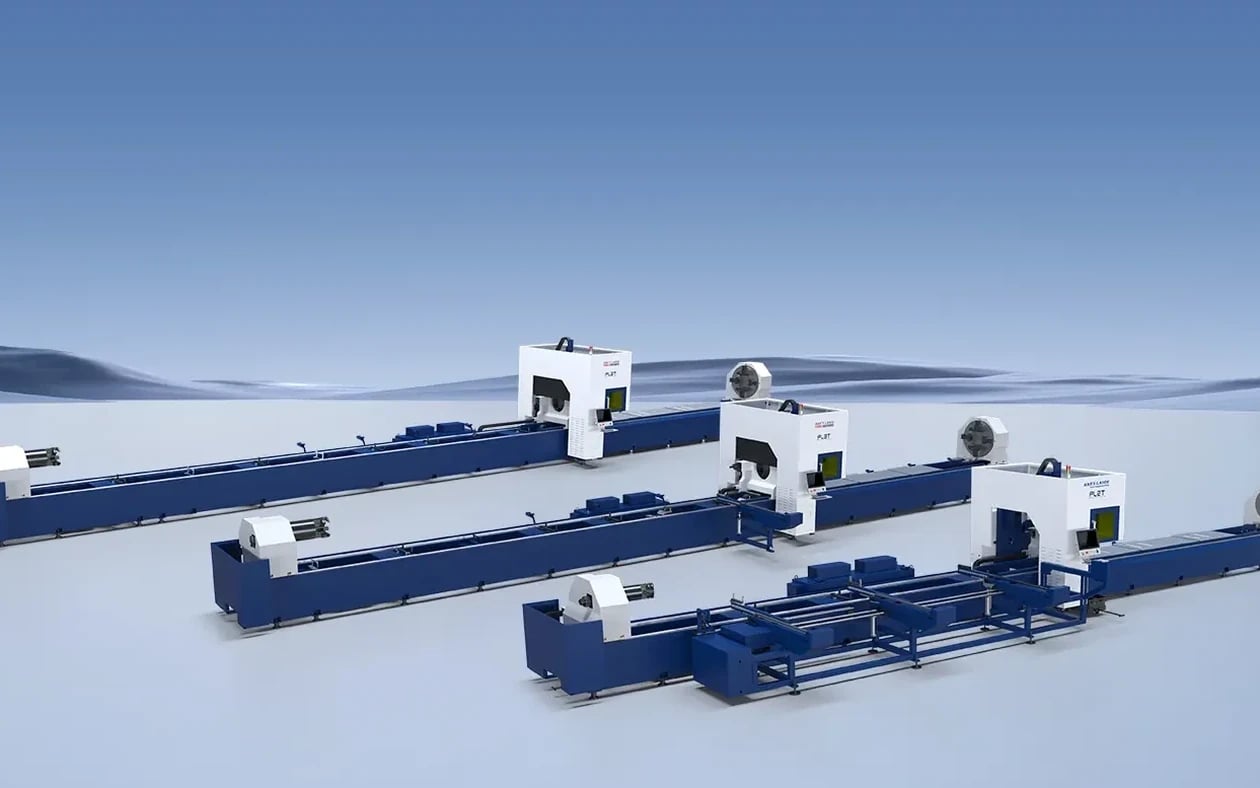

Tube Laser
PLT Series - High Speed and flexible
by Han's Laser
Professional tube laser: 20-360mm, 6/9/12m lengths, auto loading options
PL2T-06, PL2T-09, PL3T-06, PL3T-09, PL3T-12
Models
20-240 mm (PL2T), 20-360 mm (PL3T)
Round tube diameter
20-240 mm (PL2T), 20-350 mm (PL3T)
Square tube side length
Not sure if the PLT Series - High Speed and flexible is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Mid-range tube cutting operations needing flexibility across tube shapes and materials
- Facilities processing tubes from 20 mm to 360 mm in lengths up to 12 metres
- Operations wanting semi-automatic or fully automatic tube feeding capability
- Shops cutting copper and specialty profiles alongside standard steel tubes
Models
PL2T-06, PL2T-09, PL3T-06, PL3T-09, PL3T-12
Round tube diameter
20-240 mm (PL2T), 20-360 mm (PL3T)
Square tube side length
20-240 mm (PL2T), 20-350 mm (PL3T)
Max positioning speed
100 m/min (PL2T), 80 m/min (PL3T)
Key Features
PLT Series - High Speed and flexible Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Horizontal bed structure with high-precision linear guide rails for smooth transmission
- Precision transmission system with contamination prevention for long-term accuracy
- Floating support units with independent servo motors for stable positioning
Ease of Operation
- Fixed unloading with buffer, tilt-slide function, and vision-guided sorting
- 6-metre floating unloading system handling tubes over 300 kg
Cutting Capability
- Triple-chuck system with full-stroke second and third chucks (no gear changes between tube sizes)
- Zero scrap capability (cutting head crosses centre chuck)

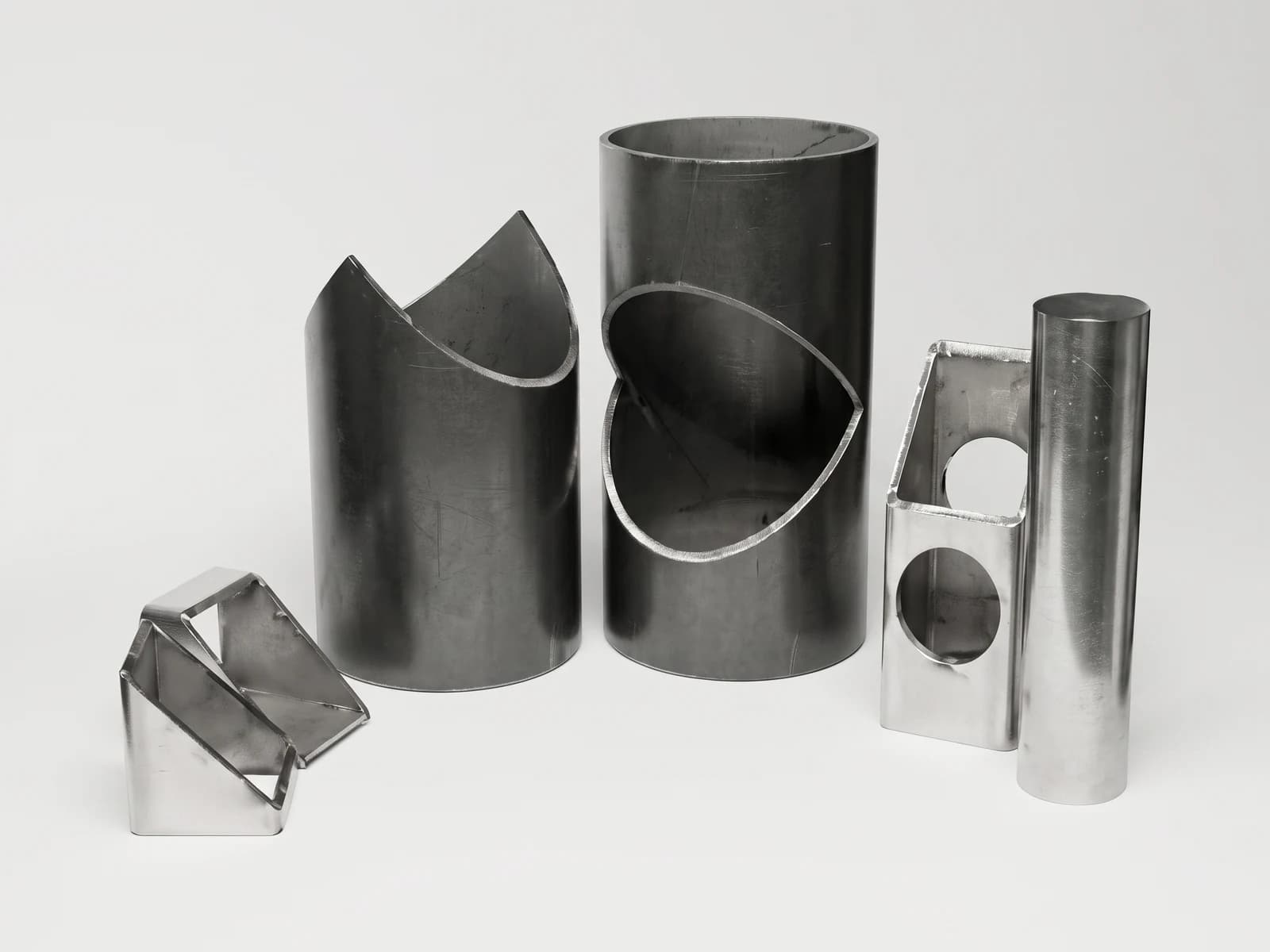

Gallery
PLT Series - High Speed and flexible in Detail
Video
See the PLT Series - High Speed and flexible in Action
Full Specifications
Han's PLT Series Technical Details
Complete specifications, standard features, and optional upgrades.
- Models
- PL2T-06, PL2T-09, PL3T-06, PL3T-09, PL3T-12
- Round tube diameter
- 20-240 mm (PL2T), 20-360 mm (PL3T)
- Square tube side length
- 20-240 mm (PL2T), 20-350 mm (PL3T)
- Max positioning speed
- 100 m/min (PL2T), 80 m/min (PL3T)
- Rotational speed
- 100 rpm (PL2T), 80 rpm (PL3T)
- Positioning accuracy
- +/-0.05 mm/1000 mm
- Repeatability
- +/-0.05 mm
- Max loading length
- 6,200 mm / 9,200 mm / 12,200 mm (model dependent)
- Max tube weight
- 300-850 kg (model dependent)
- Tube shapes
- Square, round, oval, special-shaped profiles
- Materials
- Carbon steel, stainless steel, copper, aluminum alloy
| Models | PL2T-06, PL2T-09, PL3T-06, PL3T-09, PL3T-12 |
| Round tube diameter | 20-240 mm (PL2T), 20-360 mm (PL3T) |
| Square tube side length | 20-240 mm (PL2T), 20-350 mm (PL3T) |
| Max positioning speed | 100 m/min (PL2T), 80 m/min (PL3T) |
| Rotational speed | 100 rpm (PL2T), 80 rpm (PL3T) |
| Positioning accuracy | +/-0.05 mm/1000 mm |
| Repeatability | +/-0.05 mm |
| Max loading length | 6,200 mm / 9,200 mm / 12,200 mm (model dependent) |
| Max tube weight | 300-850 kg (model dependent) |
| Tube shapes | Square, round, oval, special-shaped profiles |
| Materials | Carbon steel, stainless steel, copper, aluminum alloy |
- Horizontal bed structure with high-precision linear guide rails for smooth transmission
- Triple-chuck system with full-stroke second and third chucks (no gear changes between tube sizes)
- Precision transmission system with contamination prevention for long-term accuracy
- Floating support units with independent servo motors for stable positioning
- Zero scrap capability (cutting head crosses centre chuck)
- Fixed unloading with buffer, tilt-slide function, and vision-guided sorting
- 6-metre floating unloading system handling tubes over 300 kg
- Bevel cutting head for weld preparation on structural steel and large pipes
- Semi-automatic loading (row-by-row tube feeding to chuck position)
- Fully automatic loading (bundle-to-chuck, silo-based automatic feeding)
- Professional tube and profile cutting for fabrication and manufacturing
- Processing carbon steel, stainless steel, copper, and aluminum tubes
- Square, round, oval, and special-shaped profile cutting
- Structural steel tube fabrication with optional bevel cutting
- Automated tube processing lines with semi or fully automatic feeding
FAQ
PLT Series - High Speed and flexible Questions
Answers to common questions about the PLT Series - High Speed and flexible.
The PLT Series handles square, round, oval, and special-shaped profiles in carbon steel, stainless steel, copper, and aluminum alloy.
Standard manual loading, optional semi-automatic (row-by-row feeding), and optional fully automatic (bundle silo-based feeding) configurations are available.
