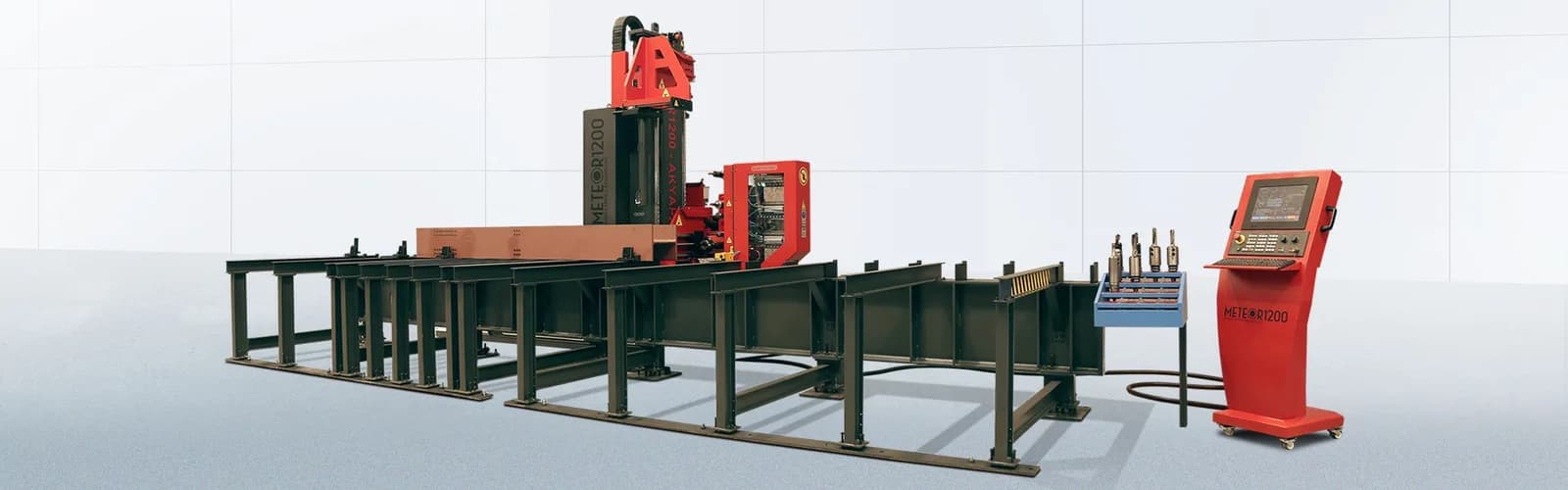

Structural Steel Processing
Meteor 1200
by Akyapak
Space-efficient single-spindle CNC drill line for small to mid-sized steel fabricators processing diverse profiles
1 (single spindle)
Spindle
3/8"–1-1/4" (10–32 mm)
Drilling capacity
10–3,000 rpm
Spindle speed
Not sure if the Meteor 1200 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Smaller fabrication shops entering CNC structural drilling at the most accessible price point
- Operations with limited floor space that need a full-featured drill line in a compact layout
- Fabricators processing moderate volumes of mixed profiles who value simplicity and reliability
Spindle
1 (single spindle)
Drilling capacity
3/8"–1-1/4" (10–32 mm)
Spindle speed
10–3,000 rpm
Spindle motor power
20 HP
Key Features
Meteor 1200 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Single high-speed spindle with 20 HP motor handles drilling, milling, and slot cutting
- High positioning tolerance and repeatability for consistent hole placement
Ease of Operation
- 6-station automatic tool changer for fast changeovers between operations
- Laser automatic tool measurement and material zero referencing
- Siemens CNC control with user-friendly interface for straightforward operation
- Full CNC control eliminates manual layout and reduces operator dependency
Cutting Capability
- Processes beams, angles, flat sheets, and various structural sections up to 47" wide
- Compact layout — the most space-efficient drill line in the Akyapak structural range
Built-In Extras
- Six available working lengths (20–85 ft) to match production throughput requirements
Gallery

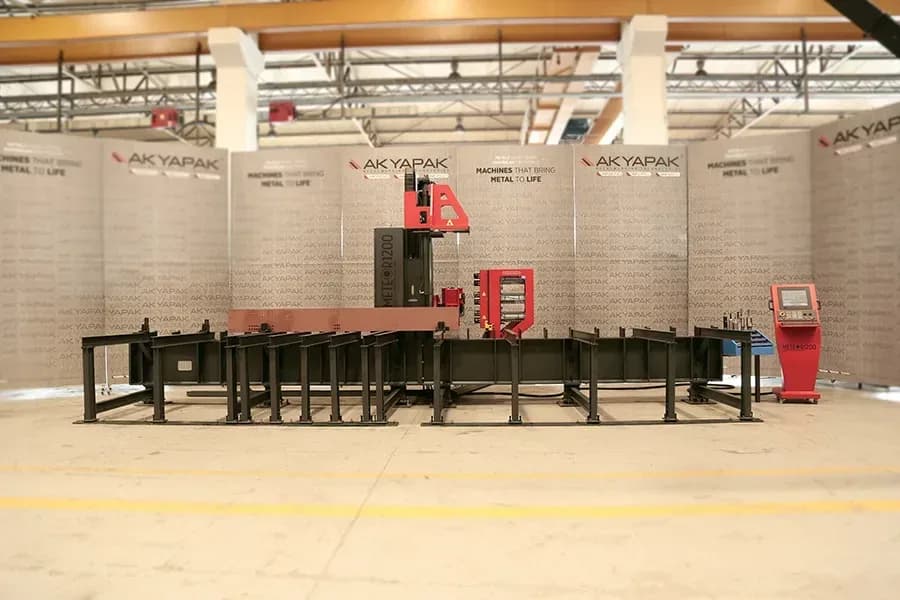

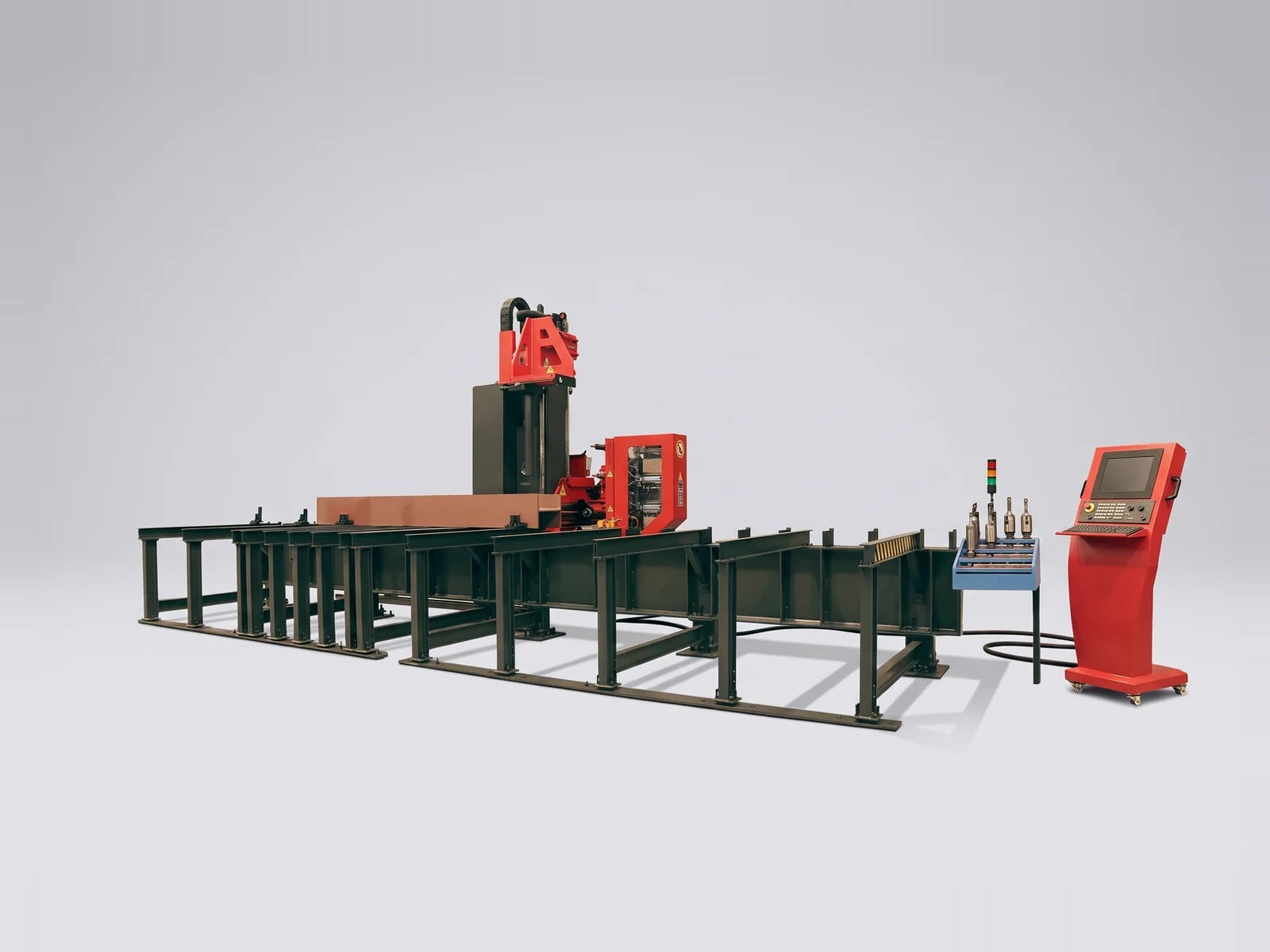

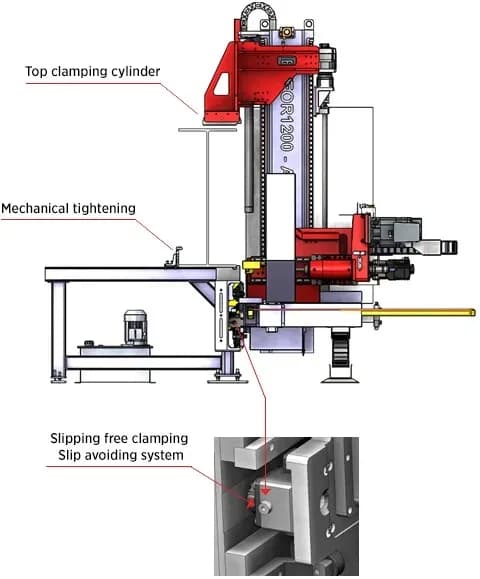

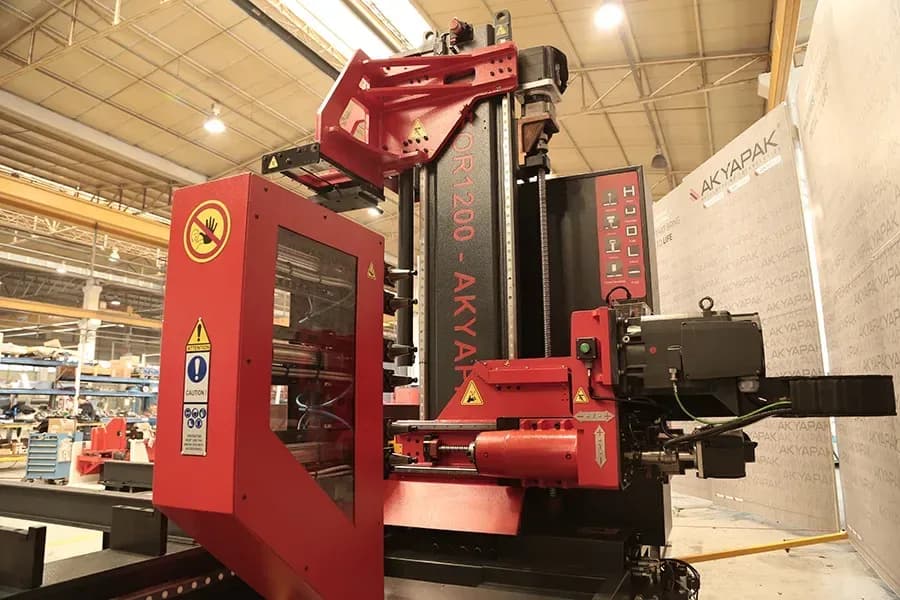

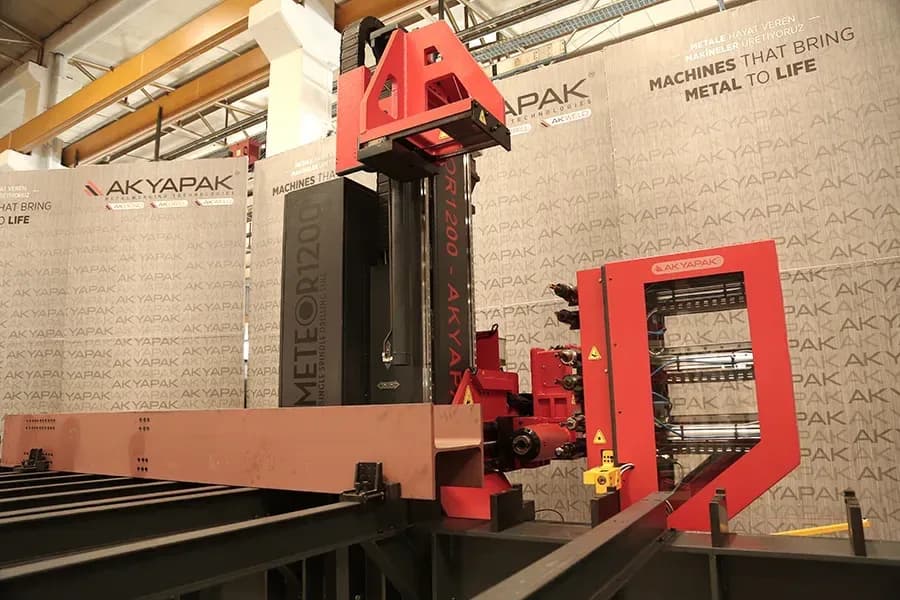

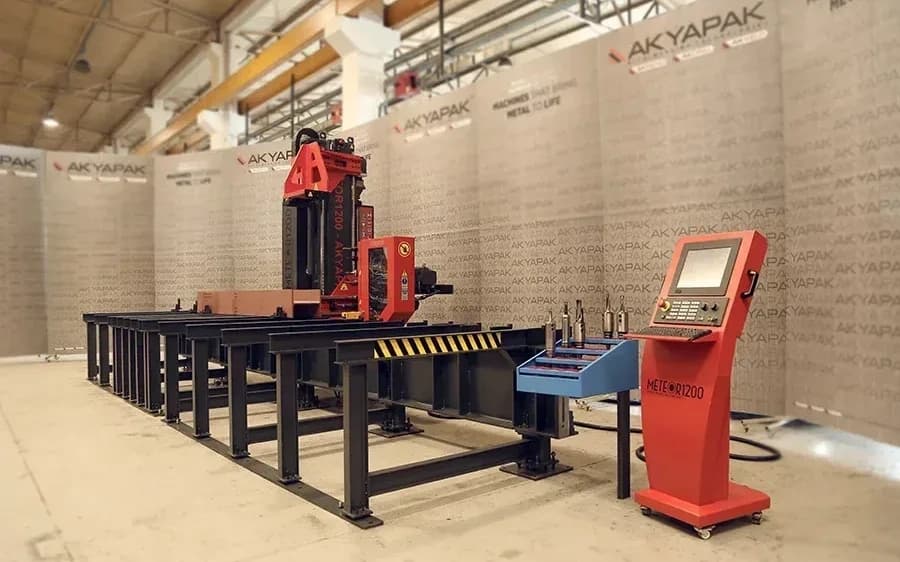

Meteor 1200 in Detail
Full Specifications
Akyapak Meteor 1200 Drilling Line Technical Details
Complete specifications, standard features, and optional upgrades.
- Spindle
- 1 (single spindle)
- Drilling capacity
- 3/8"–1-1/4" (10–32 mm)
- Spindle speed
- 10–3,000 rpm
- Spindle motor power
- 20 HP
- Total power
- 60 HP
- Profile height range
- 2"–47"
- Profile width range
- 2"–47"
- Working lengths
- 20, 33, 46, 59, 72, and 85 ft
- ATC stations
- 6
- Max tool length
- 12.6"
- Support table height
- 39.4"
- Controller
- Siemens
- Machine height
- 124"
- Machine width
- 118"
| Spindle | 1 (single spindle) |
| Drilling capacity | 3/8"–1-1/4" (10–32 mm) |
| Spindle speed | 10–3,000 rpm |
| Spindle motor power | 20 HP |
| Total power | 60 HP |
| Profile height range | 2"–47" |
| Profile width range | 2"–47" |
| Working lengths | 20, 33, 46, 59, 72, and 85 ft |
| ATC stations | 6 |
| Max tool length | 12.6" |
| Support table height | 39.4" |
| Controller | Siemens |
| Machine height | 124" |
| Machine width | 118" |
- Single high-speed spindle with 20 HP motor handles drilling, milling, and slot cutting
- 6-station automatic tool changer for fast changeovers between operations
- Laser automatic tool measurement and material zero referencing
- Processes beams, angles, flat sheets, and various structural sections up to 47" wide
- Six available working lengths (20–85 ft) to match production throughput requirements
- Siemens CNC control with user-friendly interface for straightforward operation
- Compact layout — the most space-efficient drill line in the Akyapak structural range
- High positioning tolerance and repeatability for consistent hole placement
- Full CNC control eliminates manual layout and reduces operator dependency
- Extended working lengths up to 85 feet
- Additional conveyor sections
- Small to mid-sized structural steel fabrication shops
- Steel service centres processing mixed profile orders
- General construction and infrastructure projects
- Job shops handling varied beam and angle work
