Structural Steel Processing
3 ADM Eco
by Akyapak

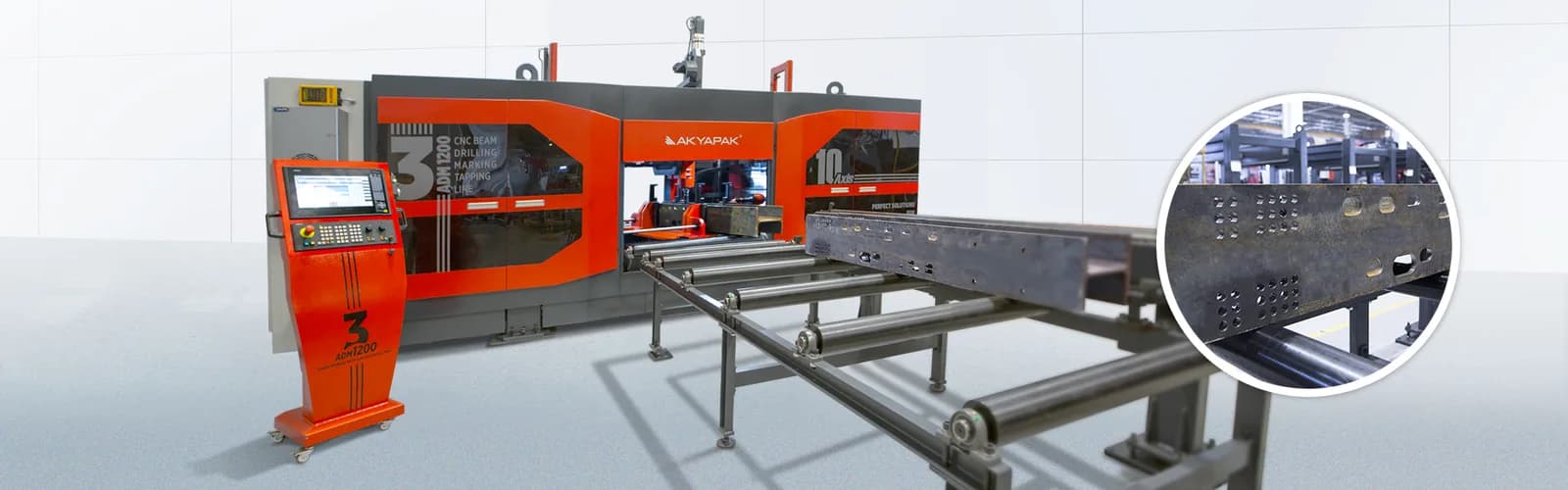

Budget-friendly 7-axis CNC drill line with 3 spindles for shops that need multi-side drilling at a competitive price
7 axes
CNC axes
3 independent (1 vertical, 2 horizontal)
Spindles
10–40 mm (3/8"–1-1/2")
Drilling diameter
Not sure if the 3 ADM Eco is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabrication shops seeking three-spindle CNC drilling capability at a budget-friendly investment level
- Operations stepping up from single-spindle equipment without the cost of a full 10-axis line
- Smaller-footprint facilities that need production-grade beam processing in a compact layout
CNC axes
7 axes
Spindles
3 independent (1 vertical, 2 horizontal)
Drilling diameter
10–40 mm (3/8"–1-1/2")
Spindle speed
50–3,000 rpm (infinitely variable)
Key Features
3 ADM Eco Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

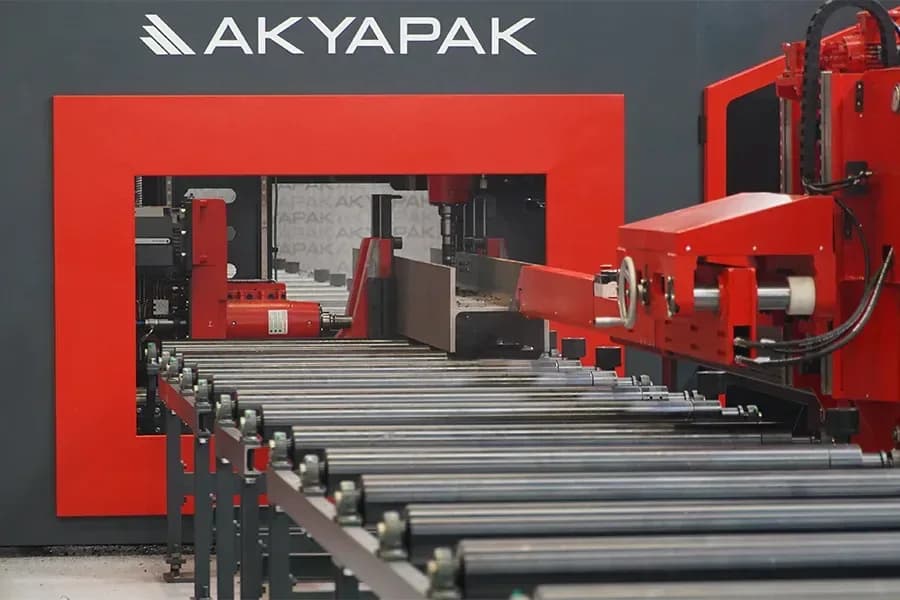

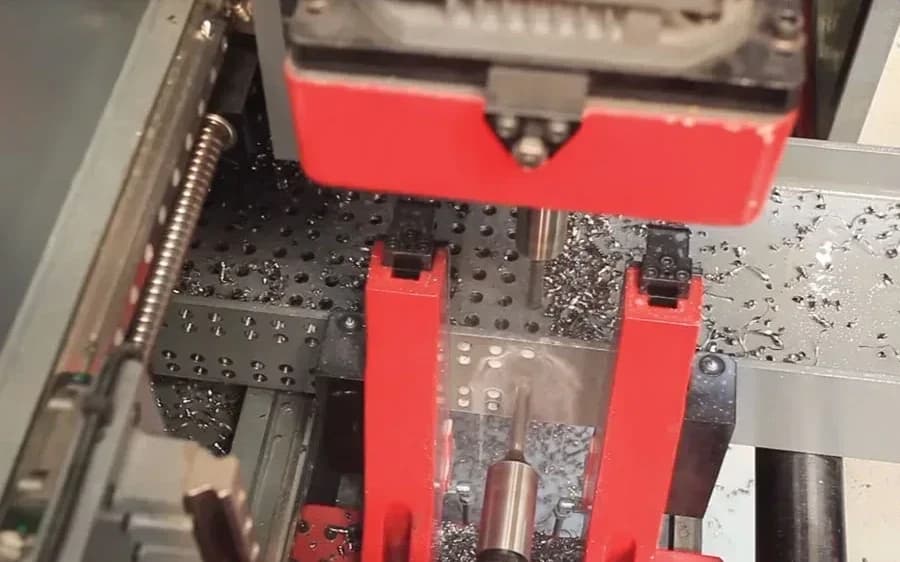

- Three independent spindle units for simultaneous drilling on both flanges and the web
- Automatic material repositioning between horizontal drilling operations via CNC control
- 4-station automatic tool changer per spindle for mixed-operation flexibility
- Roller linear guidance system with servo-driven ball screws for accurate positioning
- Scribe marking on one side as standard equipment
Cutting Capability
- Five operations — drilling, milling, tapping, countersinking, and layout marking
- Processes beams, channels, angles, tubes, and plates up to 1,200 × 500 mm
Built-In Extras
- Compact footprint compared to the full 3 ADM — well suited to tighter shop layouts
- MQL cooling for near-dry machining and minimal coolant management
- Central lubrication system included as standard
- Mitsubishi and Siemens components for proven industrial reliability
Gallery

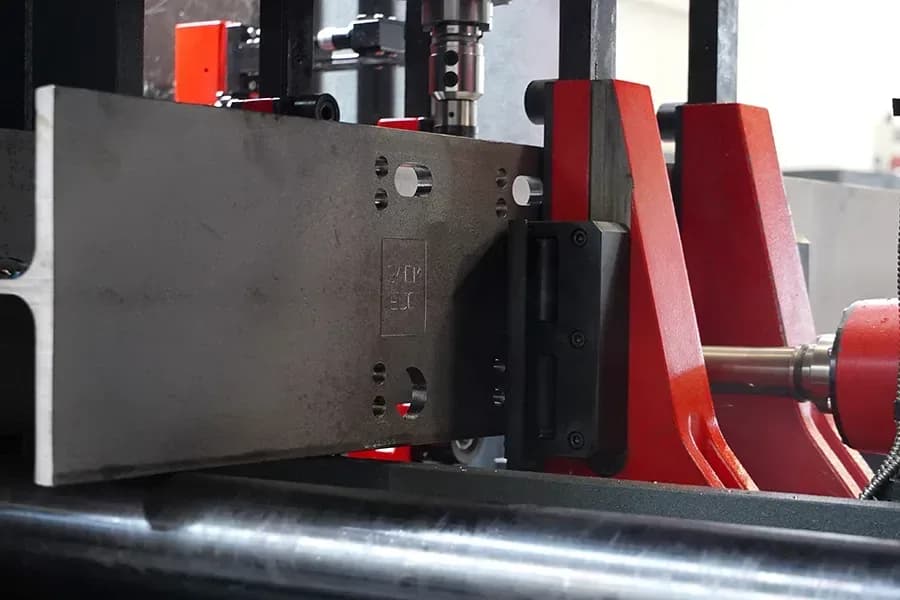

3 ADM Eco in Detail
Full Specifications
Akyapak 3 ADM Eco Beam Drill Line Technical Details
Complete specifications, standard features, and optional upgrades.
- CNC axes
- 7 axes
- Spindles
- 3 independent (1 vertical, 2 horizontal)
- Drilling diameter
- 10–40 mm (3/8"–1-1/2")
- Spindle speed
- 50–3,000 rpm (infinitely variable)
- Spindle motor power
- 11 kW per spindle
- Max beam width
- 1,200 mm (48")
- Max beam height
- 500 mm (20")
- ATC stations
- 4 per spindle (12 total)
- Tool holder
- BT 40 with internal coolant channels
- Conveyor capacity
- 750 kg/m (670 lbs/ft)

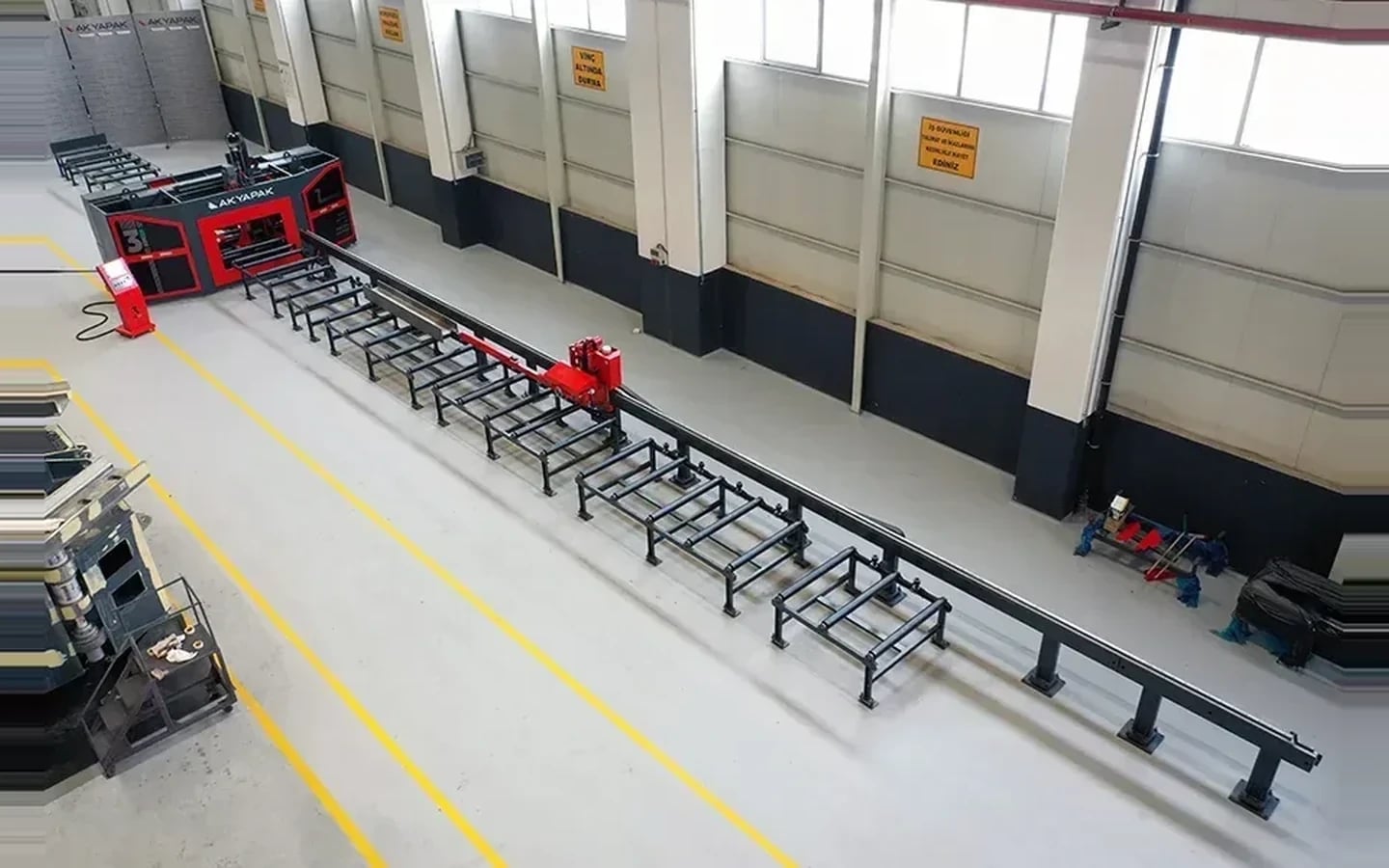

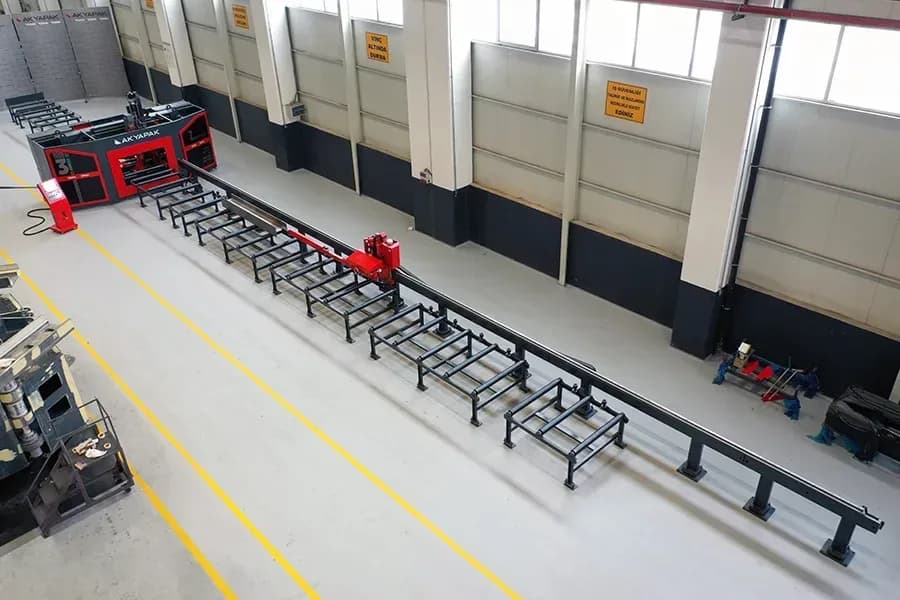

- Infeed / outfeed
- 12 m (40 ft) each

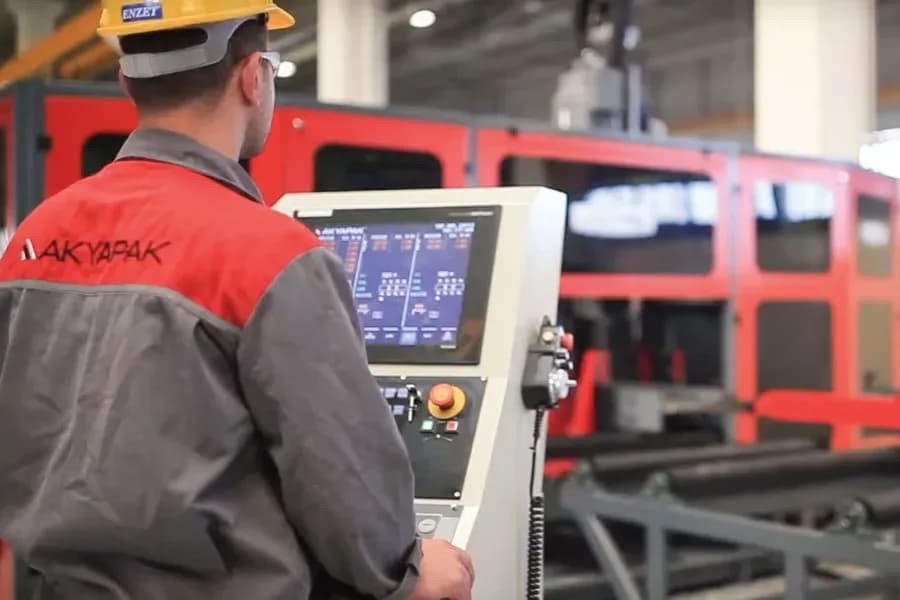

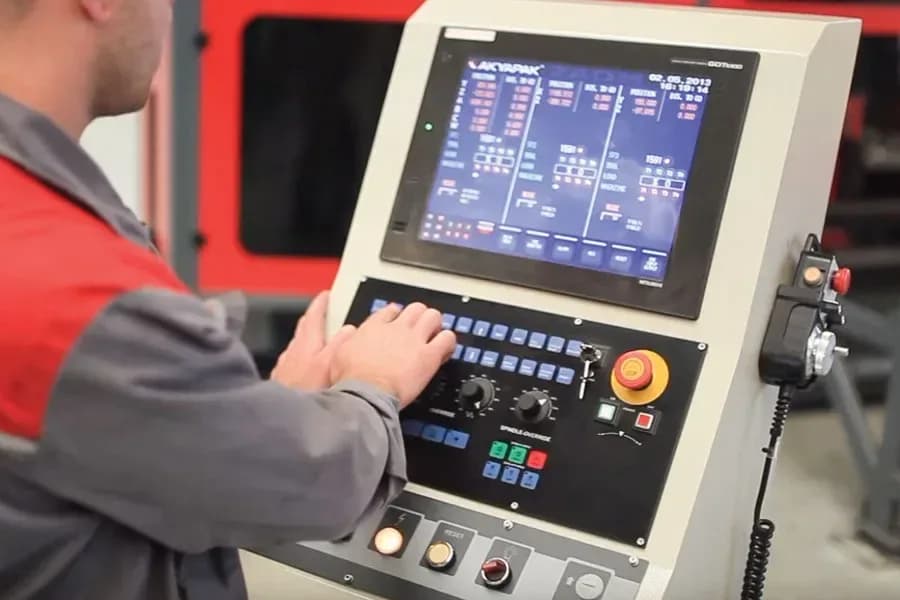

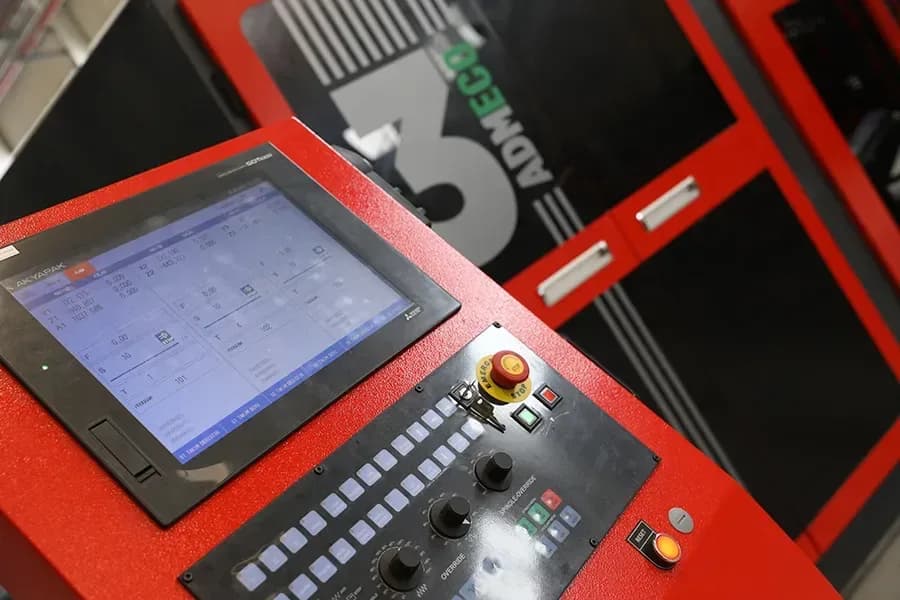

- Control panel
- Mitsubishi / Siemens
- Tool cooling
- MQL (minimum quantity lubrication)
- Weight
- 11,000 kg (24,250 lbs)
- Machine dimensions
- 2,300 × 5,400 × 3,050 mm
| CNC axes | 7 axes |
| Spindles | 3 independent (1 vertical, 2 horizontal) |
| Drilling diameter | 10–40 mm (3/8"–1-1/2") |
| Spindle speed | 50–3,000 rpm (infinitely variable) |
| Spindle motor power | 11 kW per spindle |
| Max beam width | 1,200 mm (48") |
| Max beam height | 500 mm (20") |
| ATC stations | 4 per spindle (12 total) |
| Tool holder | BT 40 with internal coolant channels |
| Conveyor capacity | 750 kg/m (670 lbs/ft) |
| Infeed / outfeed | 12 m (40 ft) each |
| Control panel | Mitsubishi / Siemens |
| Tool cooling | MQL (minimum quantity lubrication) |
| Weight | 11,000 kg (24,250 lbs) |
| Machine dimensions | 2,300 × 5,400 × 3,050 mm |
- Three independent spindle units for simultaneous drilling on both flanges and the web
- Automatic material repositioning between horizontal drilling operations via CNC control
- 4-station automatic tool changer per spindle for mixed-operation flexibility
- Five operations — drilling, milling, tapping, countersinking, and layout marking
- Roller linear guidance system with servo-driven ball screws for accurate positioning
- Compact footprint compared to the full 3 ADM — well suited to tighter shop layouts
- Scribe marking on one side as standard equipment
- MQL cooling for near-dry machining and minimal coolant management
- Processes beams, channels, angles, tubes, and plates up to 1,200 × 500 mm
- Central lubrication system included as standard
- Mitsubishi and Siemens components for proven industrial reliability
- Miter bandsaw integration (AST series)
- Hydraulic marking unit
- Tapping tool for each drilling axis (M10–M24)
- Additional infeed/outfeed conveyor sections
- Chip conveyor system
- Structural steel fabrication for small to mid-sized projects
- Steel service centres processing mixed beam and channel orders
- Bridge, infrastructure, and general construction fabrication
- Job shops handling varied profile work at moderate volumes
