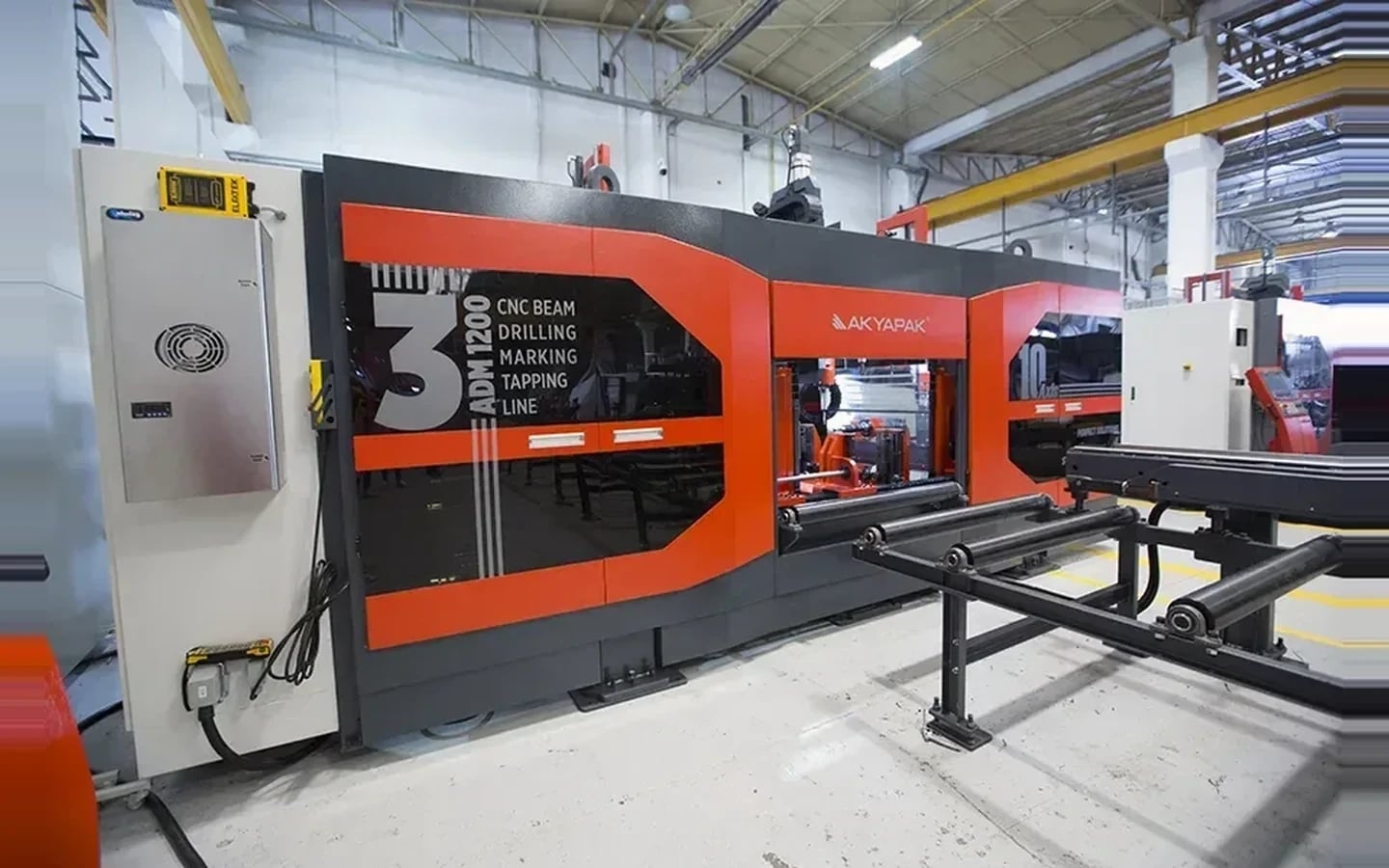

Structural Steel Processing
3 ADM Venera
by Akyapak
Premium 10-axis CNC drill line with BYRED automation, 3 independent spindles, and sensor-driven material handling
10 axes
CNC axes
3 independent (1 vertical, 2 horizontal)
Spindles
10–40 mm (3/8"–1-1/2")
Drilling diameter
Not sure if the 3 ADM Venera is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- High-volume structural steel fabricators seeking maximum automation and minimal operator intervention
- Shops requiring programming-free multi-operation processing on beams, channels, and angles
- Facilities upgrading from manual drill-and-layout workflows to fully integrated CNC production lines
CNC axes
10 axes
Spindles
3 independent (1 vertical, 2 horizontal)
Drilling diameter
10–40 mm (3/8"–1-1/2")
Spindle speed
50–3,000 rpm (infinitely variable)
Key Features
3 ADM Venera Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

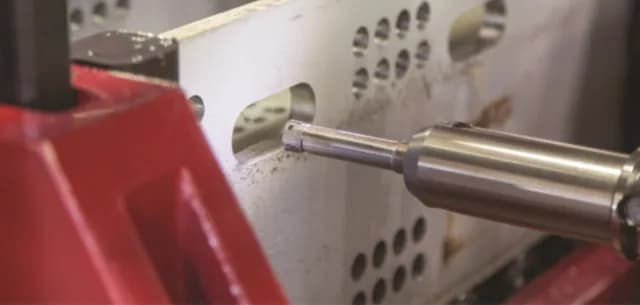

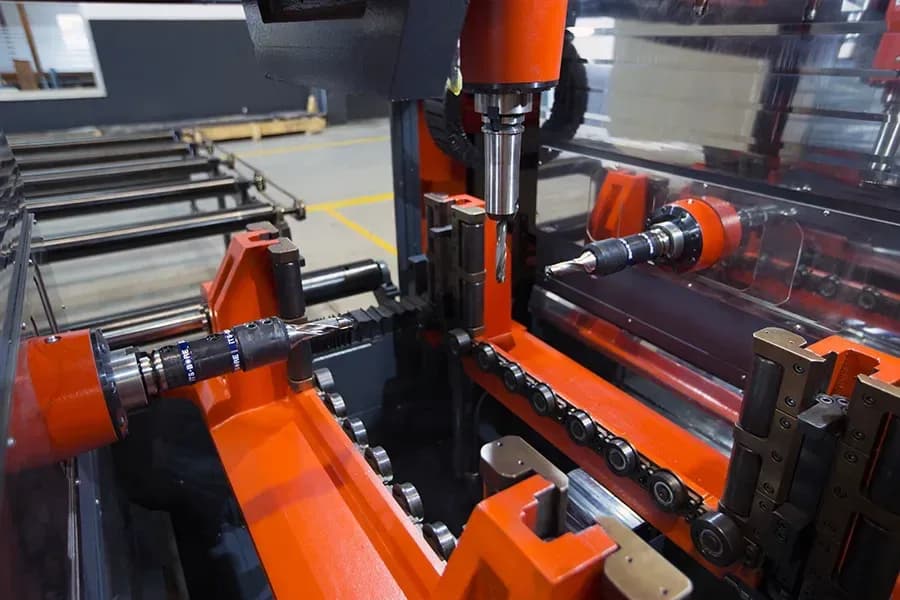

- Three independent spindle units drill, tap, mill, and mark from all three sides simultaneously
- 500 mm sub-axis range on each spindle for multi-hole processing without repositioning the beam
- Fully automated sensor-driven feeding arm with approach deceleration and precision gripping
- 4-station automatic tool changer per spindle eliminates manual changeover downtime
Ease of Operation
- BYRED software integration — programming-free drilling, beveling, cutting, and milling with automatic angle calculation

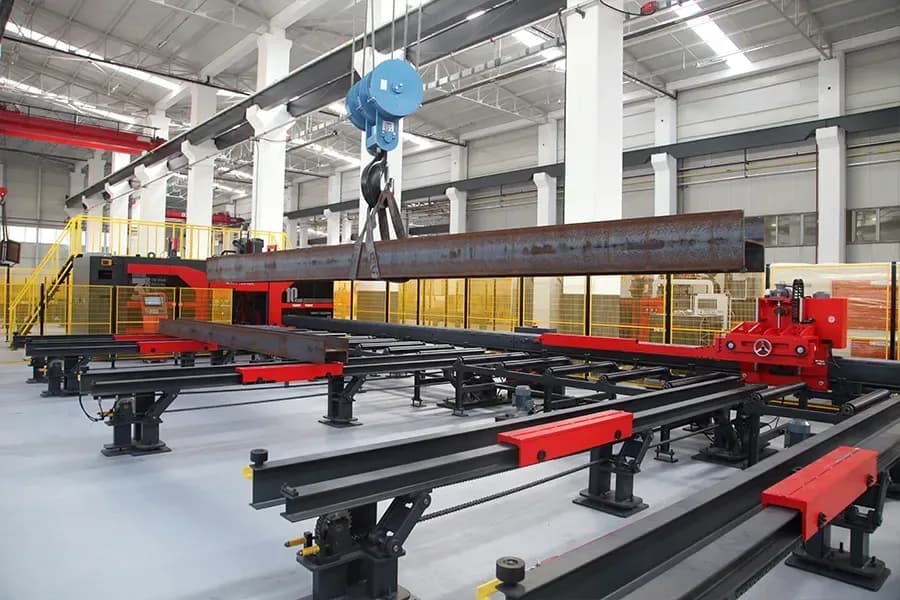

- Automatic transfer table with sensor-supported parallelism for hands-free material flow
- Magnetic length measurement and laser material alignment for reduced operator involvement
Cutting Capability
- Processes H-beams, channels, tubes, angles, and flat plates in a single setup
- Scribe marking on up to 4 surfaces including optional web-bottom marking
- Optional miter bandsaw integration for combined drill-and-cut production lines
Built-In Extras
- MQL tool cooling system for near-dry processing and minimal coolant waste
Gallery
3 ADM Venera in Detail
Full Specifications
Akyapak 3 ADM Venera Beam Drill Line Technical Details
Complete specifications, standard features, and optional upgrades.
- CNC axes
- 10 axes
- Spindles
- 3 independent (1 vertical, 2 horizontal)
- Drilling diameter
- 10–40 mm (3/8"–1-1/2")
- Spindle speed
- 50–3,000 rpm (infinitely variable)
- Spindle motor power
- 22 kW (30 HP) per spindle
- Spindle torque
- 206 lbf·ft
- Sub-axis travel
- 500 mm (20") per spindle
- Max beam width
- 1,200 mm (48")
- Max beam height
- 500 mm (20")
- ATC stations
- 4 per spindle (12 total)
- Tool holder
- BT 40 with internal coolant channels
- Conveyor capacity
- 750 kg/m (670 lbs/ft)
- Infeed / outfeed
- 12 m (40 ft) each
- Control panel
- Mitsubishi / Siemens
- Tool cooling
- MQL (minimum quantity lubrication)
- Weight
- 13,000 kg (28,660 lbs)
- Machine dimensions
- 2,400 × 7,000 × 3,200 mm
| CNC axes | 10 axes |
| Spindles | 3 independent (1 vertical, 2 horizontal) |
| Drilling diameter | 10–40 mm (3/8"–1-1/2") |
| Spindle speed | 50–3,000 rpm (infinitely variable) |
| Spindle motor power | 22 kW (30 HP) per spindle |
| Spindle torque | 206 lbf·ft |
| Sub-axis travel | 500 mm (20") per spindle |
| Max beam width | 1,200 mm (48") |
| Max beam height | 500 mm (20") |
| ATC stations | 4 per spindle (12 total) |
| Tool holder | BT 40 with internal coolant channels |
| Conveyor capacity | 750 kg/m (670 lbs/ft) |
| Infeed / outfeed | 12 m (40 ft) each |
| Control panel | Mitsubishi / Siemens |
| Tool cooling | MQL (minimum quantity lubrication) |
| Weight | 13,000 kg (28,660 lbs) |
| Machine dimensions | 2,400 × 7,000 × 3,200 mm |
- BYRED software integration — programming-free drilling, beveling, cutting, and milling with automatic angle calculation
- Three independent spindle units drill, tap, mill, and mark from all three sides simultaneously
- 500 mm sub-axis range on each spindle for multi-hole processing without repositioning the beam
- Fully automated sensor-driven feeding arm with approach deceleration and precision gripping
- Automatic transfer table with sensor-supported parallelism for hands-free material flow
- Magnetic length measurement and laser material alignment for reduced operator involvement
- 4-station automatic tool changer per spindle eliminates manual changeover downtime
- Processes H-beams, channels, tubes, angles, and flat plates in a single setup
- Scribe marking on up to 4 surfaces including optional web-bottom marking
- MQL tool cooling system for near-dry processing and minimal coolant waste
- Optional miter bandsaw integration for combined drill-and-cut production lines
- Miter bandsaw integration (AST series)
- Hydraulic marking unit for alphanumeric stamping
- Tapping tool for each drilling axis (M10–M24)
- Additional infeed/outfeed conveyor sections
- Chip conveyor system
- Structural steel fabrication for commercial and industrial buildings
- Bridge and infrastructure construction
- Shipyard and marine structural work
- Tower and mast manufacturing
- Heavy equipment and machinery frame production
