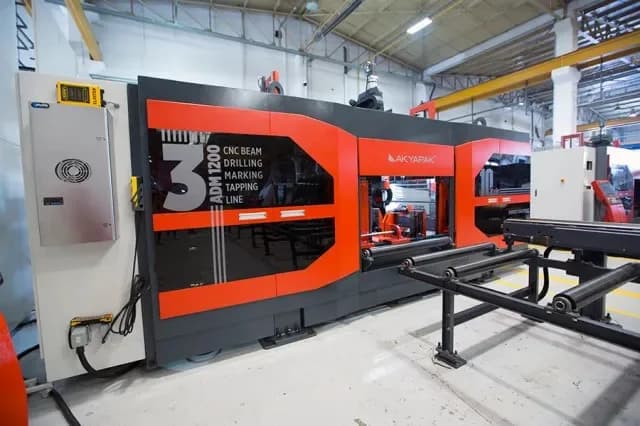

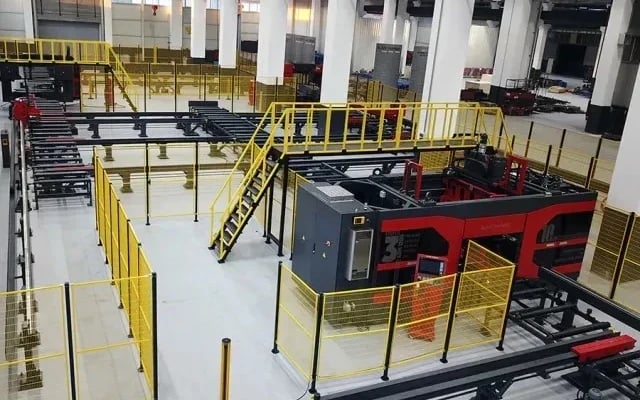

Structural Steel Processing
3 ADM 1200
by Akyapak
10-axis CNC beam drill line with 3 independent spindles, sub-axis traversal, and multi-operation capability
10 axes
CNC axes
3 independent (1 vertical, 2 horizontal)
Spindles
10–40 mm (3/8"–1-1/2")
Drilling diameter
Not sure if the 3 ADM 1200 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Mid- to high-volume structural steel shops needing simultaneous 3-side drilling with sub-axis capability
- Fabricators processing a mix of beams, channels, and angles who value multi-operation flexibility
- Operations looking to replace manual layout and single-spindle drilling with automated CNC throughput
CNC axes
10 axes
Spindles
3 independent (1 vertical, 2 horizontal)
Drilling diameter
10–40 mm (3/8"–1-1/2")
Spindle speed
50–3,000 rpm (infinitely variable)
Key Features
3 ADM 1200 Features
Standard features that set this machine apart in demanding manufacturing environments.

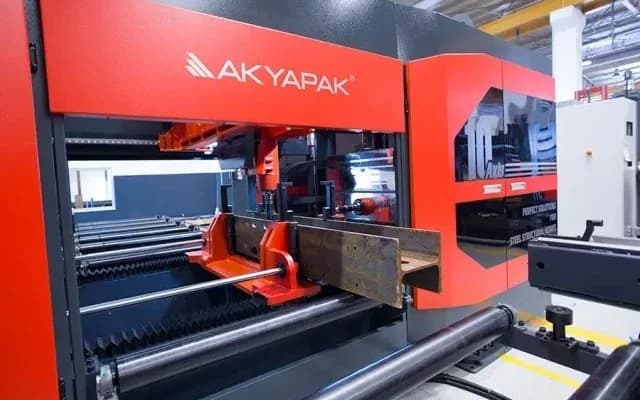

Precision & Performance

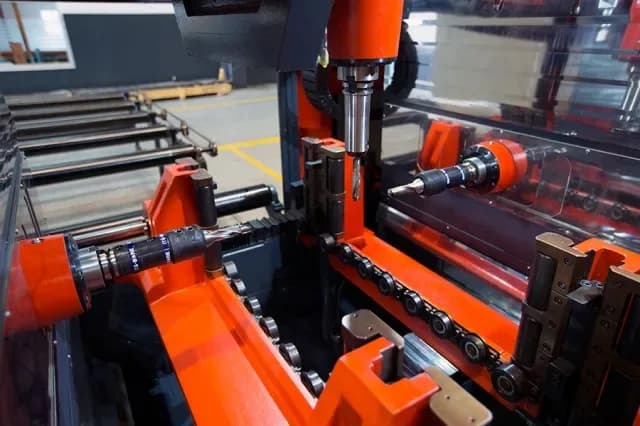

- Three independent servo-driven spindle units for simultaneous 3-side processing of structural profiles
- 500 mm sub-axis on each spindle enables multi-hole patterns without repositioning the beam
- 4-station automatic tool changer per spindle for uninterrupted mixed-operation processing
- Roller linear guidance system with servo-driven ball screws for positioning accuracy
- Gripper feeding arm with laser zero-point referencing for precise material positioning
- Central lubrication system included as standard equipment
Cutting Capability

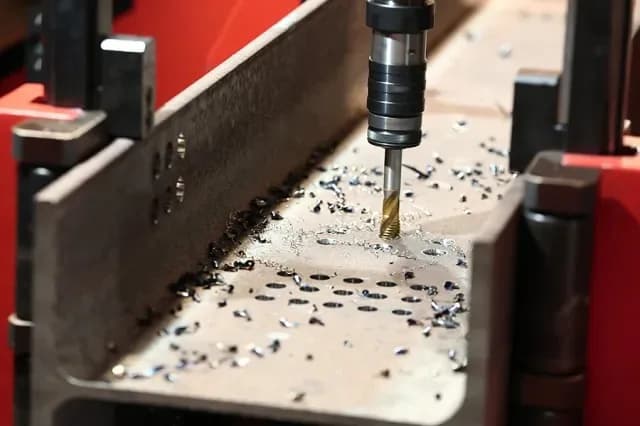

- Five operations in one pass — drilling, milling, tapping, countersinking, and layout marking
- Scribe marking on up to 4 surfaces with optional web-bottom marking unit
- Handles beams, channels, tubes, angles, and flat plates up to 1,200 × 500 mm
Built-In Extras
- MQL cooling eliminates conventional coolant disposal and keeps the work area clean
- Mitsubishi and Siemens drive components for industrial-grade reliability
Gallery
3 ADM 1200 in Detail
Full Specifications
Akyapak 3 ADM 1200 Beam Drill Line Technical Details
Complete specifications, standard features, and optional upgrades.
- CNC axes
- 10 axes
- Spindles
- 3 independent (1 vertical, 2 horizontal)
- Drilling diameter
- 10–40 mm (3/8"–1-1/2")
- Spindle speed
- 50–3,000 rpm (infinitely variable)
- Spindle motor power
- 22 kW (30 HP) per spindle
- Spindle torque
- 206 lbf·ft
- Sub-axis travel
- 500 mm (20") per spindle
- Max beam width
- 1,200 mm (48")
- Max beam height
- 500 mm (20")
- ATC stations
- 4 per spindle (12 total)
- Tool holder
- BT 40 with internal coolant channels
- Conveyor capacity
- 750 kg/m (670 lbs/ft)

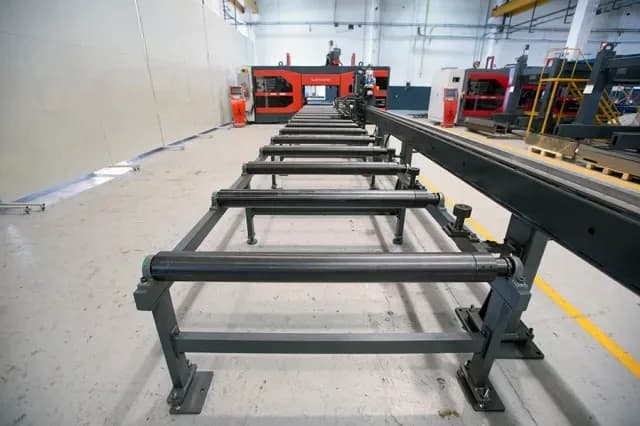

- Infeed / outfeed
- 12 m (40 ft) each
- Control panel
- Mitsubishi / Siemens
- Tool cooling
- MQL (minimum quantity lubrication)
- Weight
- 13,000 kg (28,660 lbs)
- Machine dimensions
- 2,400 × 7,000 × 3,200 mm
| CNC axes | 10 axes |
| Spindles | 3 independent (1 vertical, 2 horizontal) |
| Drilling diameter | 10–40 mm (3/8"–1-1/2") |
| Spindle speed | 50–3,000 rpm (infinitely variable) |
| Spindle motor power | 22 kW (30 HP) per spindle |
| Spindle torque | 206 lbf·ft |
| Sub-axis travel | 500 mm (20") per spindle |
| Max beam width | 1,200 mm (48") |
| Max beam height | 500 mm (20") |
| ATC stations | 4 per spindle (12 total) |
| Tool holder | BT 40 with internal coolant channels |
| Conveyor capacity | 750 kg/m (670 lbs/ft) |
| Infeed / outfeed | 12 m (40 ft) each |
| Control panel | Mitsubishi / Siemens |
| Tool cooling | MQL (minimum quantity lubrication) |
| Weight | 13,000 kg (28,660 lbs) |
| Machine dimensions | 2,400 × 7,000 × 3,200 mm |
- Three independent servo-driven spindle units for simultaneous 3-side processing of structural profiles
- 500 mm sub-axis on each spindle enables multi-hole patterns without repositioning the beam
- Five operations in one pass — drilling, milling, tapping, countersinking, and layout marking
- 4-station automatic tool changer per spindle for uninterrupted mixed-operation processing
- Roller linear guidance system with servo-driven ball screws for positioning accuracy
- Scribe marking on up to 4 surfaces with optional web-bottom marking unit
- Handles beams, channels, tubes, angles, and flat plates up to 1,200 × 500 mm
- Mitsubishi and Siemens drive components for industrial-grade reliability
- Gripper feeding arm with laser zero-point referencing for precise material positioning
- MQL cooling eliminates conventional coolant disposal and keeps the work area clean
- Central lubrication system included as standard equipment

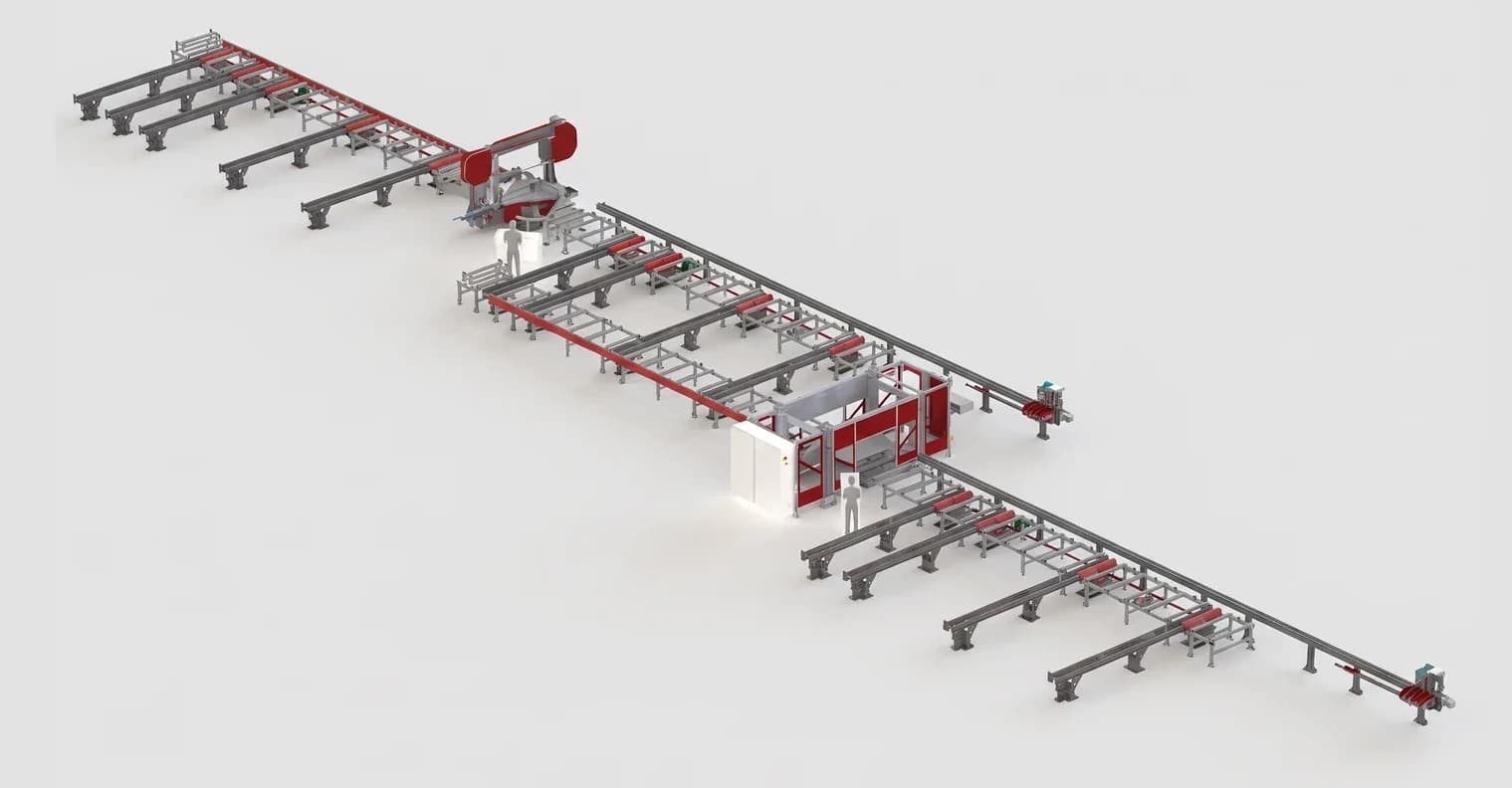

- Miter bandsaw integration (AST series)

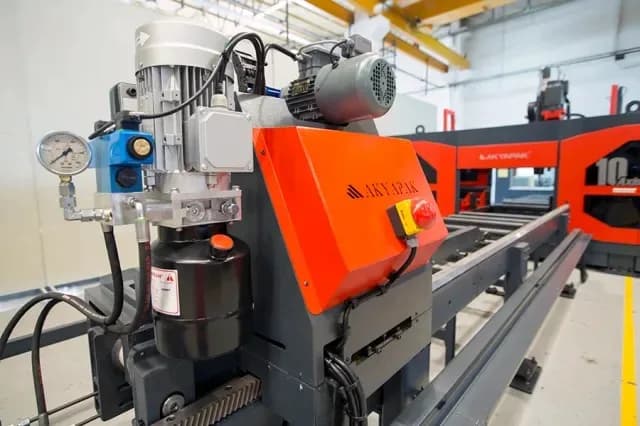

- Hydraulic marking unit for alphanumeric character stamping
- Tapping tool for each drilling axis (M10–M24)
- Beam section measurement system
- Additional infeed/outfeed conveyor sections
- Chip conveyor system
- Structural steel fabrication for buildings and bridges
- Shipyard and marine construction
- Heavy equipment frame manufacturing
- Tower, mast, and infrastructure projects
- General steel construction and fabrication
