Shot Blasting
Sandor R-Line
by Akyapak

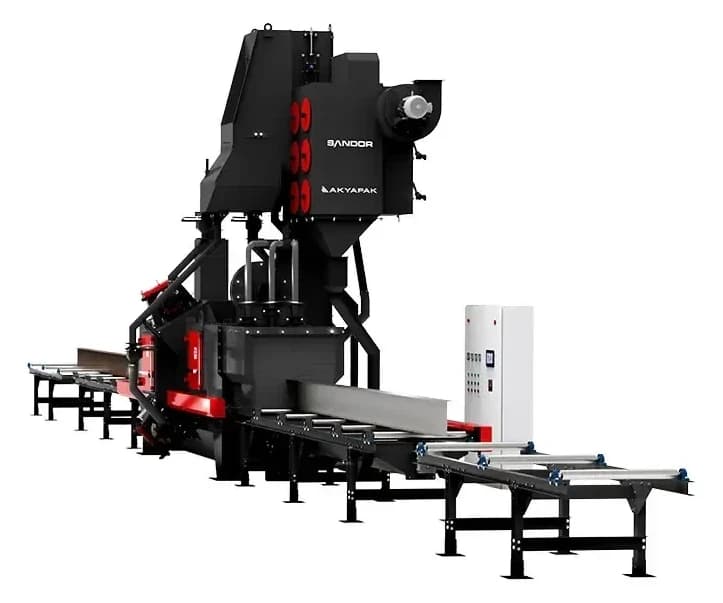

Continuous-feed roller conveyor shot blasting system for high-volume surface preparation of plate, beams, and structural profiles
Roller conveyor pass-through
Machine type
Sandor R 8x1, Sandor R 8x15
Models available
8 high-chrome, 30° angled
Blast turbines
Not sure if the Sandor R-Line is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Steel fabrication shops and service centres processing high volumes of plate, beams, and profiles that need consistent SA 2.5 or SA 3 surface quality
- Production lines requiring continuous through-feed surface preparation without batch loading or manual handling
- Operations that need to integrate shot blasting with downstream painting, priming, or coating systems
Machine type
Roller conveyor pass-through
Models available
Sandor R 8x1, Sandor R 8x15
Blast turbines
8 high-chrome, 30° angled
Turbine power
10–15 HP (7.5–11 kW) per turbine
Key Features
Sandor R-Line Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Fully automated PLC operation — parts detection, turbine activation, speed control, and abrasive flow managed from a central touch panel
- Inverter-driven roller conveyor lets operators fine-tune feed speed from 0.4 to 1.8 m/min to match material type and required finish quality
Ease of Operation
- Integrated abrasive recovery system with screw conveyors, dual-chain bucket elevator, and curtain-type separator keeps shot in circulation and costs down
- Pneumatic CNC abrasive valves control shot flow to each turbine independently for precise, consistent blast intensity

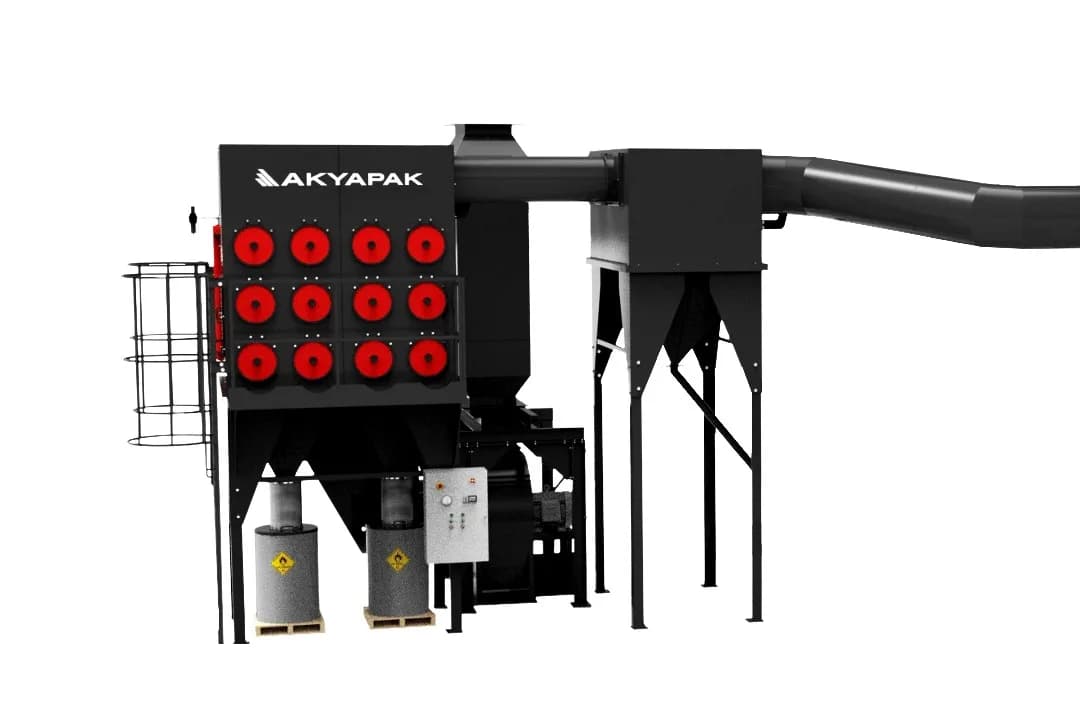

- Cartridge dust collectors with automatic pulse cleaning capture airborne particles and return filtered air to the shop floor
- PLC touch panel with built-in communication module supports remote diagnostics and process monitoring
- Continuous through-feed design eliminates batch loading and manual handling, reducing labour and increasing throughput
- Low-maintenance dual-chain bucket elevator transports abrasive from the blast cabinet to the separator with minimal downtime
Safety & Reliability

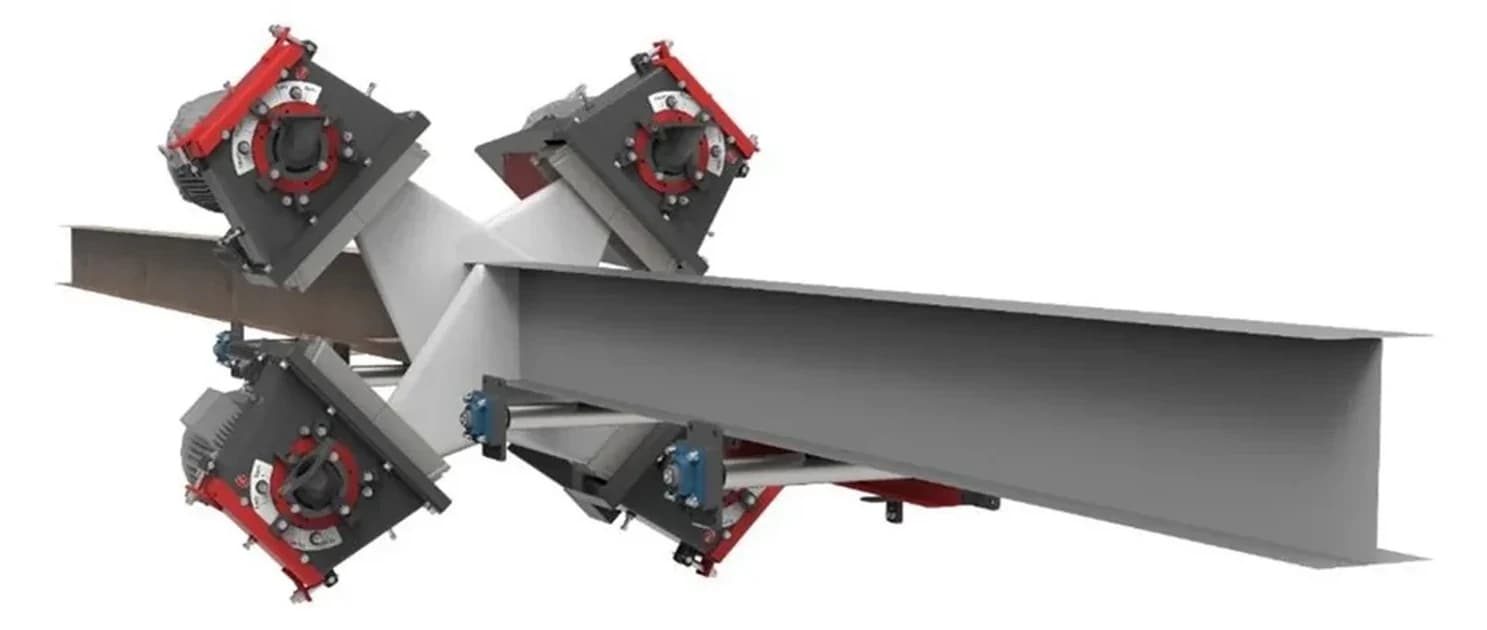

- Eight high-chrome turbines positioned at 30° deliver uniform blast coverage on all surfaces in a single through-feed pass
- Two model configurations cover work widths from 400 to 800 mm — the R 8x15 adds pipe spool capability for versatile production lines
Gallery
Sandor R-Line in Detail
Video
See the Sandor R-Line in Action
Full Specifications
Akyapak Sandor R-Line Roller Conveyor Shot Blasting Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Machine type
- Roller conveyor pass-through
- Models available
- Sandor R 8x1, Sandor R 8x15
- Blast turbines
- 8 high-chrome, 30° angled
- Turbine power
- 10–15 HP (7.5–11 kW) per turbine
- Max work width
- 400–800 mm (16"–31.5")
- Max work height
- 650–1,000 mm (14"–39")
- Workpiece types
- Plate, profiles, pipe spool (R 8x15)
- Working speed
- 0.4–1.8 m/min (inverter-driven)
- Abrasive recovery
- Screw conveyor + bucket elevator + separator
- Dust collection
- Cartridge filters with automatic pulse cleaning
- Control system
- PLC touch panel with remote access module
- Abrasive valve control
- Pneumatic CNC valves per turbine
| Machine type | Roller conveyor pass-through |
| Models available | Sandor R 8x1, Sandor R 8x15 |
| Blast turbines | 8 high-chrome, 30° angled |
| Turbine power | 10–15 HP (7.5–11 kW) per turbine |
| Max work width | 400–800 mm (16"–31.5") |
| Max work height | 650–1,000 mm (14"–39") |
| Workpiece types | Plate, profiles, pipe spool (R 8x15) |
| Working speed | 0.4–1.8 m/min (inverter-driven) |
| Abrasive recovery | Screw conveyor + bucket elevator + separator |
| Dust collection | Cartridge filters with automatic pulse cleaning |
| Control system | PLC touch panel with remote access module |
| Abrasive valve control | Pneumatic CNC valves per turbine |
- Eight high-chrome turbines positioned at 30° deliver uniform blast coverage on all surfaces in a single through-feed pass
- Fully automated PLC operation — parts detection, turbine activation, speed control, and abrasive flow managed from a central touch panel
- Inverter-driven roller conveyor lets operators fine-tune feed speed from 0.4 to 1.8 m/min to match material type and required finish quality
- Integrated abrasive recovery system with screw conveyors, dual-chain bucket elevator, and curtain-type separator keeps shot in circulation and costs down
- Pneumatic CNC abrasive valves control shot flow to each turbine independently for precise, consistent blast intensity
- Cartridge dust collectors with automatic pulse cleaning capture airborne particles and return filtered air to the shop floor
- PLC touch panel with built-in communication module supports remote diagnostics and process monitoring
- Two model configurations cover work widths from 400 to 800 mm — the R 8x15 adds pipe spool capability for versatile production lines
- Continuous through-feed design eliminates batch loading and manual handling, reducing labour and increasing throughput
- Low-maintenance dual-chain bucket elevator transports abrasive from the blast cabinet to the separator with minimal downtime
- Extended inlet and outlet conveyor lengths for longer workpieces
- Primer station integration for inline surface treatment after blasting
- Workpiece pre-heating system for moisture removal before blasting
- Custom passage-width configurations for non-standard material sizes
- Surface preparation of structural steel beams, columns, and plate before painting or coating
- Mill scale and rust removal from H-beams, I-beams, channels, and angles in steel fabrication lines
- Plate cleaning for shipbuilding, bridge construction, and pressure vessel manufacturing
- Inline surface preparation integrated with painting, priming, or coating systems
- Pipe spool exterior cleaning before coating or further processing (R 8x15 model)
- Steel service centre plate preparation for customer-specified surface finishes
