Shot Blasting
Sandor CH-H
by Akyapak

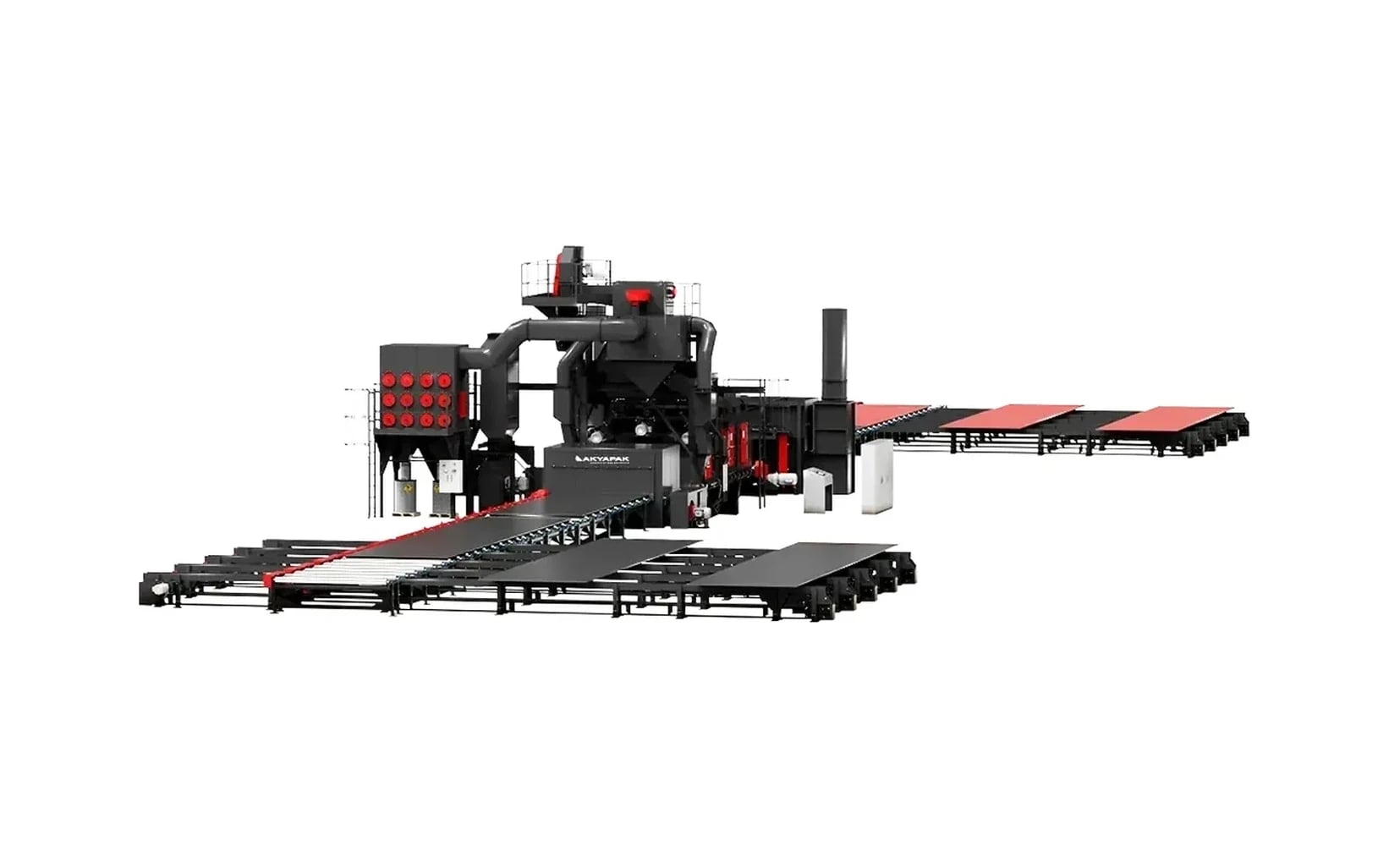

Fully integrated blasting, painting, and drying line for horizontal processing of profiles, plates, and large fabrications on a single production line
Horizontal chamber with integrated paint/dry line
Machine type
Sandor CH 1.5 H, CH 2.5 H, CH 3 H
Models available
4–6 (model dependent), 15/20 HP each
Blast turbines
Not sure if the Sandor CH-H is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabrication shops that need blasting, painting, and drying integrated into a single production line to eliminate flash rust and reduce handling between stages
- Operations processing large, heavy, or wide structural components — profiles, plates, and pipe spools — that load more easily on a horizontal roller conveyor
- Facilities where floor space efficiency and labour reduction demand a combined blast/paint/dry line rather than separate stations
Machine type
Horizontal chamber with integrated paint/dry line
Models available
Sandor CH 1.5 H, CH 2.5 H, CH 3 H
Blast turbines
4–6 (model dependent), 15/20 HP each
Max work width
1,500–3,100 mm (59"–122")
Key Features
Sandor CH-H Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

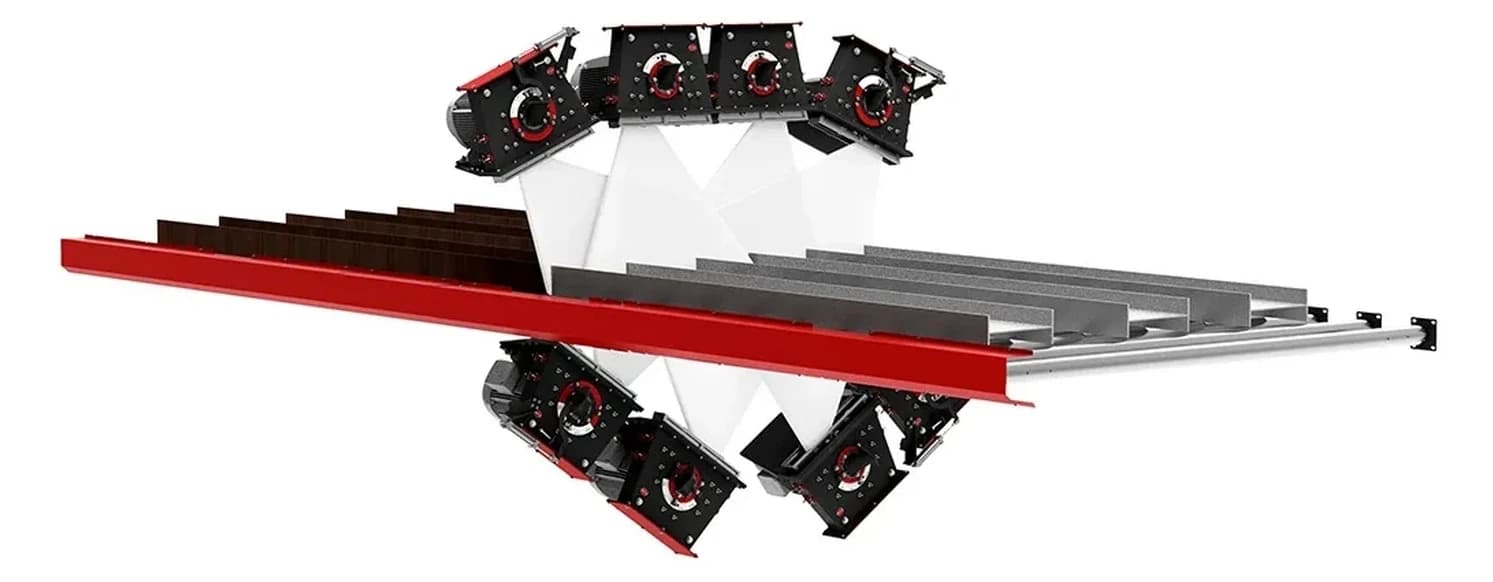

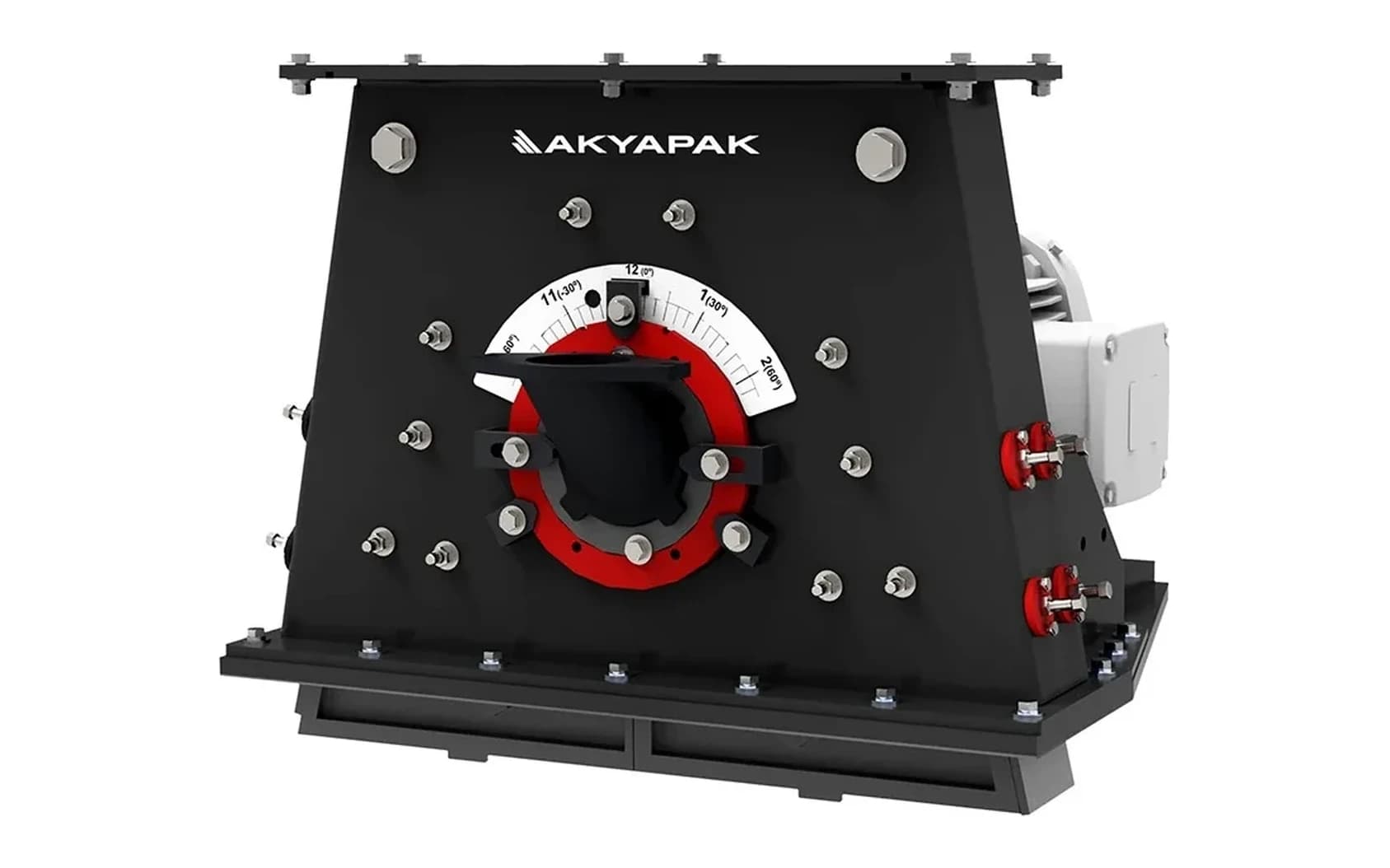

- Four to six turbines rated at 15/20 HP each with innovative angled positioning deliver equal blast distribution across all surfaces, producing smooth, paint-ready finishes
- Inverter-driven working speed from 0.3 to 2.1 m/min lets operators fine-tune throughput to match material type, part geometry, and required surface finish quality
Ease of Operation
- Parallel roller conveyor system adapts to parts of different sizes and shapes, providing unmatched flexibility and seamless material flow through every stage
- PLC-sequenced control coordinates blast cycle, paint application, and drying parameters from a single operator panel for repeatable results across production runs
- Compatible with automatic painting systems and inline drying ovens — eliminates unnecessary steps and optimises your operations for maximum throughput
Safety & Reliability
- Three model configurations cover work widths from 1,500 to 3,100 mm — the CH 1.5 H for narrower profiles and the CH 3 H for wide plate, heavy fabrications, and pipe spools

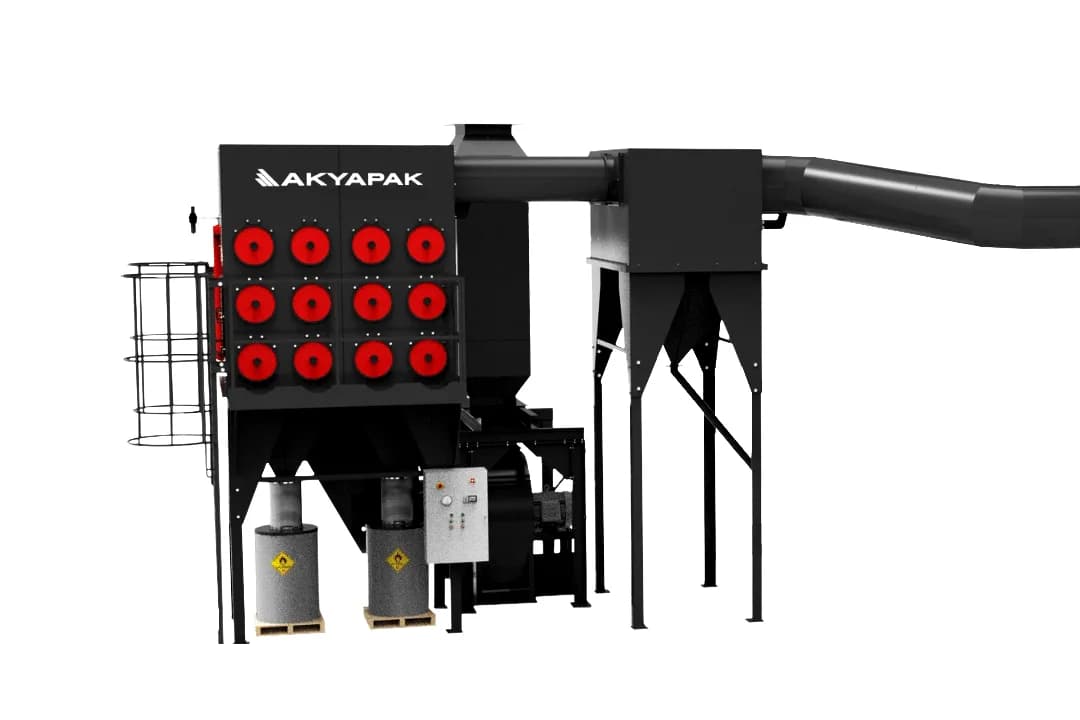

- Advanced dust collection with 99.9% filtration efficiency captures airborne particles at the point of generation, maintaining a clean and safe working environment
- Integrated abrasive recovery system with three-layer steel construction and chrome plating delivers reliable, long-lasting performance under demanding production conditions
Built-In Extras
- Combines blasting, painting, and drying on a single integrated line — parts move from raw steel to coated and cured without manual re-handling or exposure to flash rust
- Single-line workflow reduces floor space requirements compared to separate blasting, painting, and drying stations while cutting labour costs and handling time
Gallery

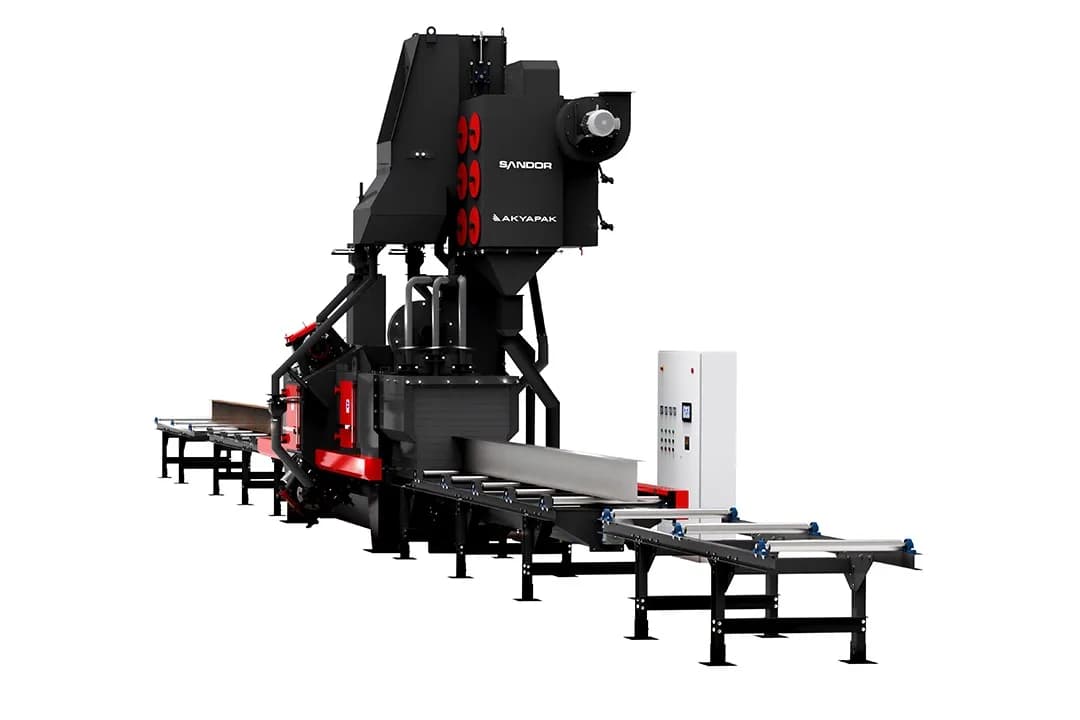

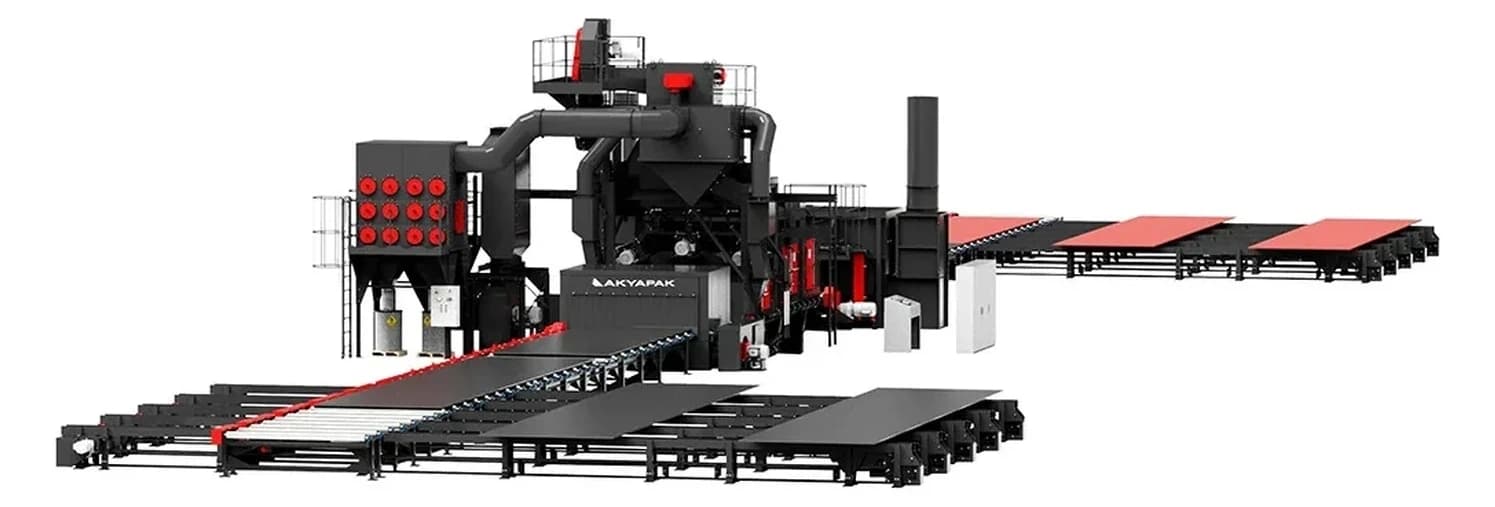

Sandor CH-H in Detail
Video
See the Sandor CH-H in Action
Full Specifications
Akyapak Sandor CH-H Horizontal Chamber Shot Blasting System Technical Details
Complete specifications, standard features, and optional upgrades.
- Machine type
- Horizontal chamber with integrated paint/dry line
- Models available
- Sandor CH 1.5 H, CH 2.5 H, CH 3 H
- Blast turbines
- 4–6 (model dependent), 15/20 HP each
- Max work width
- 1,500–3,100 mm (59"–122")
- Max work height
- 600 mm (23.6")
- Workpiece types
- Profiles, plates, pipe spools
- Working speed
- 0.3–2.1 m/min (inverter-driven)
- Process stages
- Shot blasting → painting → drying
- Conveyor system
- Parallel roller conveyor
- Abrasive recovery
- Three-layer steel with chrome plating
- Dust collection
- Advanced filtration, 99.9% efficiency
- Control system
- PLC with sequenced multi-stage control
| Machine type | Horizontal chamber with integrated paint/dry line |
| Models available | Sandor CH 1.5 H, CH 2.5 H, CH 3 H |
| Blast turbines | 4–6 (model dependent), 15/20 HP each |
| Max work width | 1,500–3,100 mm (59"–122") |
| Max work height | 600 mm (23.6") |
| Workpiece types | Profiles, plates, pipe spools |
| Working speed | 0.3–2.1 m/min (inverter-driven) |
| Process stages | Shot blasting → painting → drying |
| Conveyor system | Parallel roller conveyor |
| Abrasive recovery | Three-layer steel with chrome plating |
| Dust collection | Advanced filtration, 99.9% efficiency |
| Control system | PLC with sequenced multi-stage control |
- Combines blasting, painting, and drying on a single integrated line — parts move from raw steel to coated and cured without manual re-handling or exposure to flash rust
- Four to six turbines rated at 15/20 HP each with innovative angled positioning deliver equal blast distribution across all surfaces, producing smooth, paint-ready finishes
- Three model configurations cover work widths from 1,500 to 3,100 mm — the CH 1.5 H for narrower profiles and the CH 3 H for wide plate, heavy fabrications, and pipe spools
- Parallel roller conveyor system adapts to parts of different sizes and shapes, providing unmatched flexibility and seamless material flow through every stage
- Advanced dust collection with 99.9% filtration efficiency captures airborne particles at the point of generation, maintaining a clean and safe working environment
- Integrated abrasive recovery system with three-layer steel construction and chrome plating delivers reliable, long-lasting performance under demanding production conditions
- Inverter-driven working speed from 0.3 to 2.1 m/min lets operators fine-tune throughput to match material type, part geometry, and required surface finish quality
- PLC-sequenced control coordinates blast cycle, paint application, and drying parameters from a single operator panel for repeatable results across production runs
- Compatible with automatic painting systems and inline drying ovens — eliminates unnecessary steps and optimises your operations for maximum throughput
- Single-line workflow reduces floor space requirements compared to separate blasting, painting, and drying stations while cutting labour costs and handling time
- Inline drying oven configurations (infrared or convection) for different coating systems
- Multiple paint booth options including spray, airless, and electrostatic application
- Extended chamber dimensions for oversized fabrications and structural assemblies
- Custom roller conveyor lengths for longer workpieces and higher-volume production lines
- Pre-heating system for moisture removal before blasting in humid environments
- Complete surface treatment of structural steel profiles and plate — blast, paint, and cure in one line
- Processing heavy fabricated assemblies and weldments that benefit from horizontal roller transport
- Bridge and infrastructure component preparation where blast-to-coat time must be minimised to prevent flash rust
- Shipbuilding panel and sub-assembly surface treatment with integrated primer application
- Wind tower section preparation including surface profiling and protective coating in a single pass
- Heavy equipment frame finishing from raw blast through to final topcoat without manual re-handling
Ready to Discuss the Sandor CH-H?
Our team has 19+ years of experience helping Canadian manufacturers find the right cutting and processing equipment.
19+
Years in Business
50+
Machine Models
900+
Happy Customers
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Financing Available
Flexible payment options on qualifying equipment.
Or email us at [email protected]
Related
Explore More Shot Blasting Systems
Compare specifications and find the right machine for your application.
roller conveyor shot blasting machine

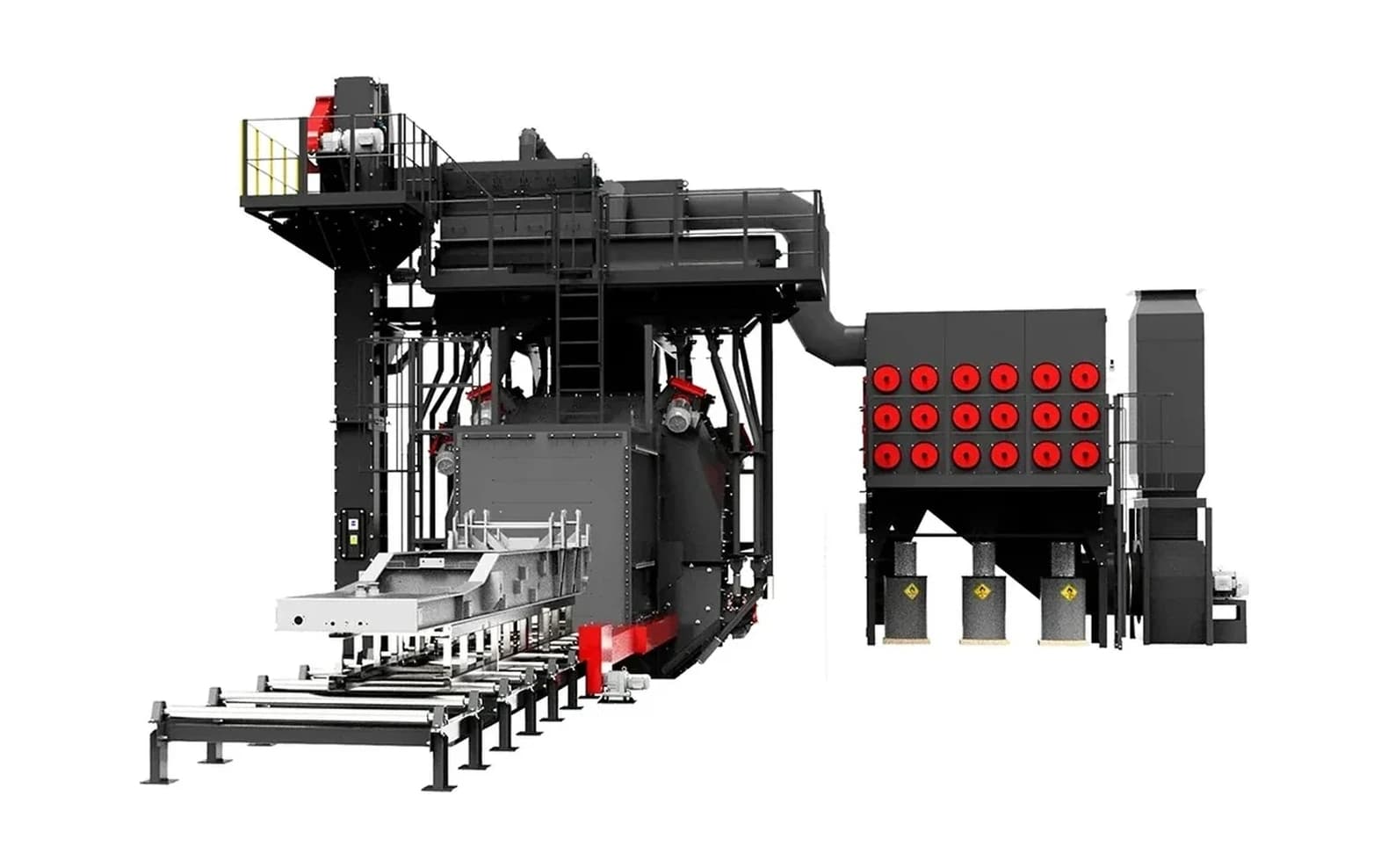

Sandor R-Line
The Sandor R-Line is built for shops that need consistent, high-volume surface preparation without slowing the production line. Workpieces ride powered rollers through a fully enclosed blast cabinet where eight high-chrome turbines, angled at 30 degrees, deliver uniform cleaning across every surface in a single pass. A PLC-based touch panel manages the entire blast cycle — turbine activation, conveyor speed, and abrasive flow — so operators load material at the inlet and collect cleaned parts at the outlet with minimal intervention. The integrated abrasive recovery system uses screw conveyors, a dual-chain bucket elevator, and a curtain-type air separator to recirculate usable shot while removing fines, keeping operating costs predictable and blast quality steady. Cartridge dust collectors with automatic pulse cleaning maintain air quality and meet environmental standards. Available in two configurations — the R 8x1 for plates and profiles up to 400 mm wide, and the R 8x15 for wider work including pipe spools up to 800 mm — the Sandor R-Line scales to match your throughput requirements. ACM supplies the Sandor R-Line from Cambridge, Ontario with installation, commissioning, and ongoing service support.
inline overhead conveyor shot blasting machine

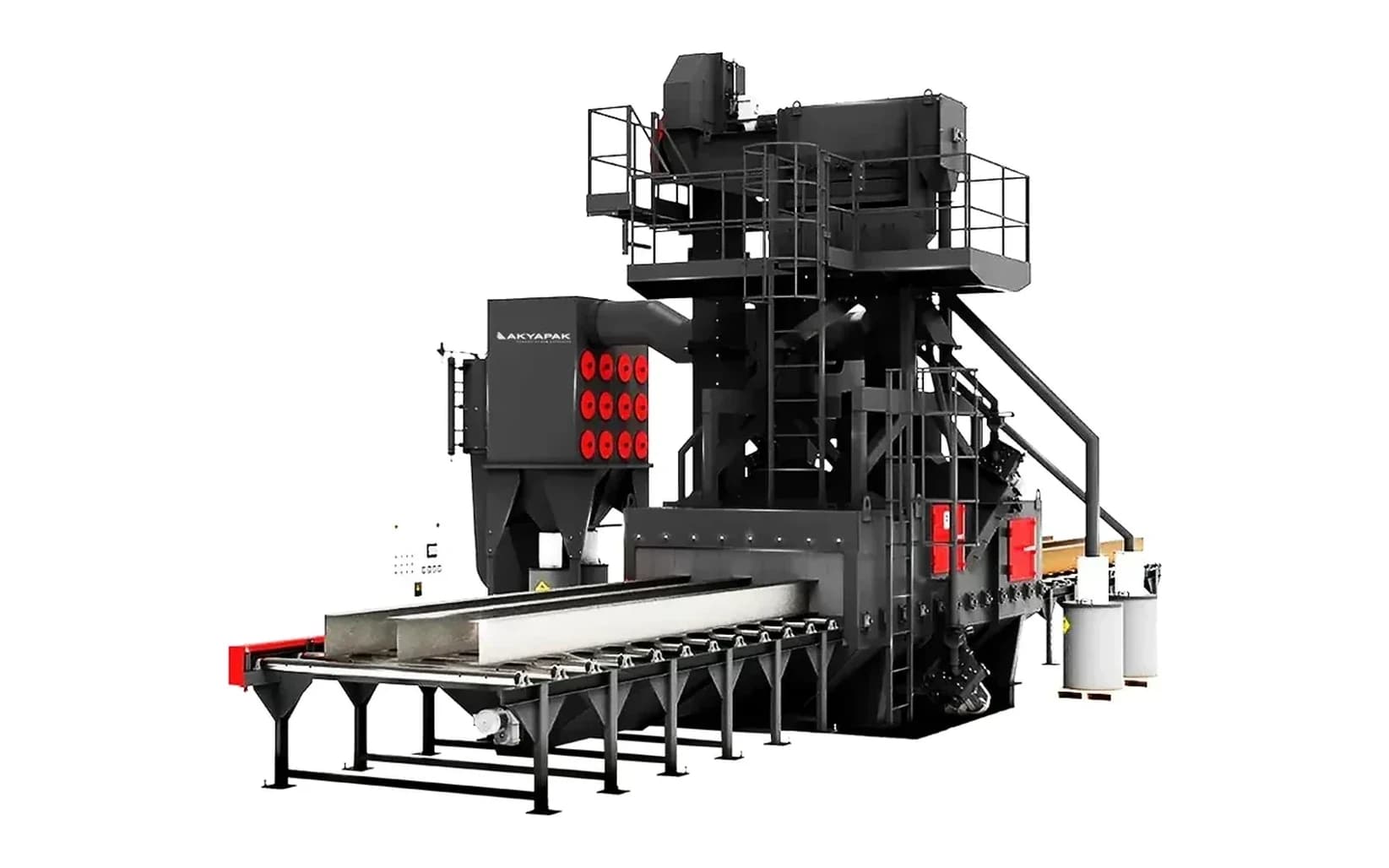

Sandor I-Line
