Shot Blasting
Sandor I-Line
by Akyapak
Automated inline shot blasting system with inclined turbine technology for continuous surface preparation of welded structures, plates, profiles, and pipe spools
Inline overhead conveyor
Machine type
Sandor I 8x17, I 11x13, I 13x14, I 21x8
Models available
4–8 direct-driven, high-chrome impellers
Blast turbines
Not sure if the Sandor I-Line is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabrication shops processing a mix of welded assemblies, structural components, plates, and pipe spools that need consistent surface quality before coating
- Production facilities requiring automated inline surface preparation with continuous throughput and minimal manual labour
- Operations handling complex three-dimensional parts across multiple size ranges that need a single, versatile blasting system
Machine type
Inline overhead conveyor
Models available
Sandor I 8x17, I 11x13, I 13x14, I 21x8
Blast turbines
4–8 direct-driven, high-chrome impellers
Turbine power
15/20 HP per turbine
Key Features
Sandor I-Line Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

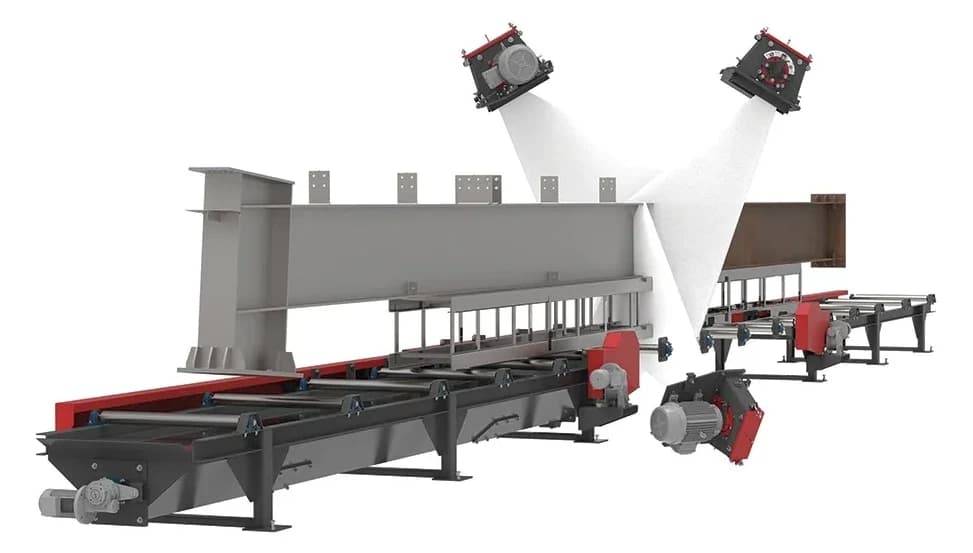

- Inclined turbine positioning at 30–45 degrees provides maximum abrasive coverage with uniform distribution for flawless surface quality before coating
- Fully automated PLC control with pneumatic CNC abrasive valves manages turbine activation, conveyor speed, and shot flow from a single operator panel
Ease of Operation
- Overhead monorail multi-conveyor enables continuous loading and unloading without stopping production, keeping throughput high across shifts
- Complete abrasive recovery circuit with screw conveyors, fully enclosed bucket elevator, and curtain-type air-wash separator recirculates usable shot and removes fines
- Hydraulic transverse loading system with industrial-grade cylinders and variable-drive mechanism provides stable, controlled workpiece movement
- Adjustable air dampers on the abrasive separator and optional diverse flow control plates allow fine-tuning for different material types and surface requirements
Safety & Reliability
- Four model configurations cover work widths from 860 to 2,100 mm and heights to 1,400 mm — from narrow profiles to wide plate and pipe spools

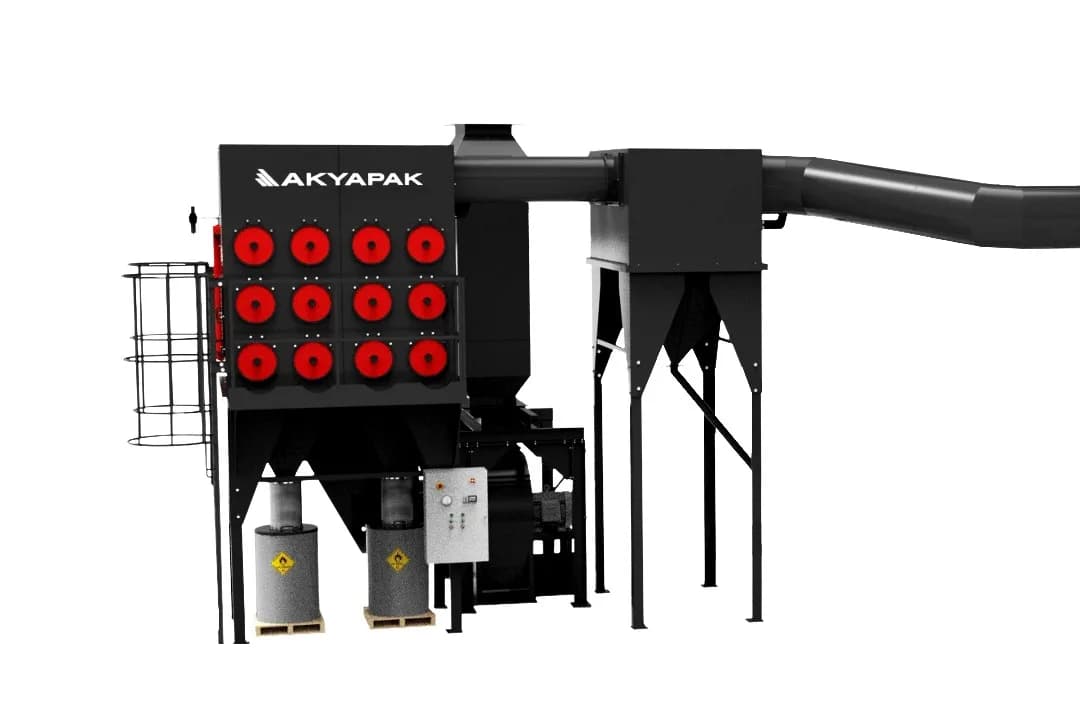

- Replaceable cartridge dust collectors with large surface area capture fine particles at the point of generation for a cleaner, safer shop environment
Built-In Extras
- Heavy manganese steel blast cabinet lining — hot-rolled for hardness and durability — withstands continuous abrasive impact with minimal wear
- Four to eight direct-driven turbines with high-chrome impellers and manganese steel inlet nozzles deliver aggressive, consistent cleaning across complex welded geometries
Gallery

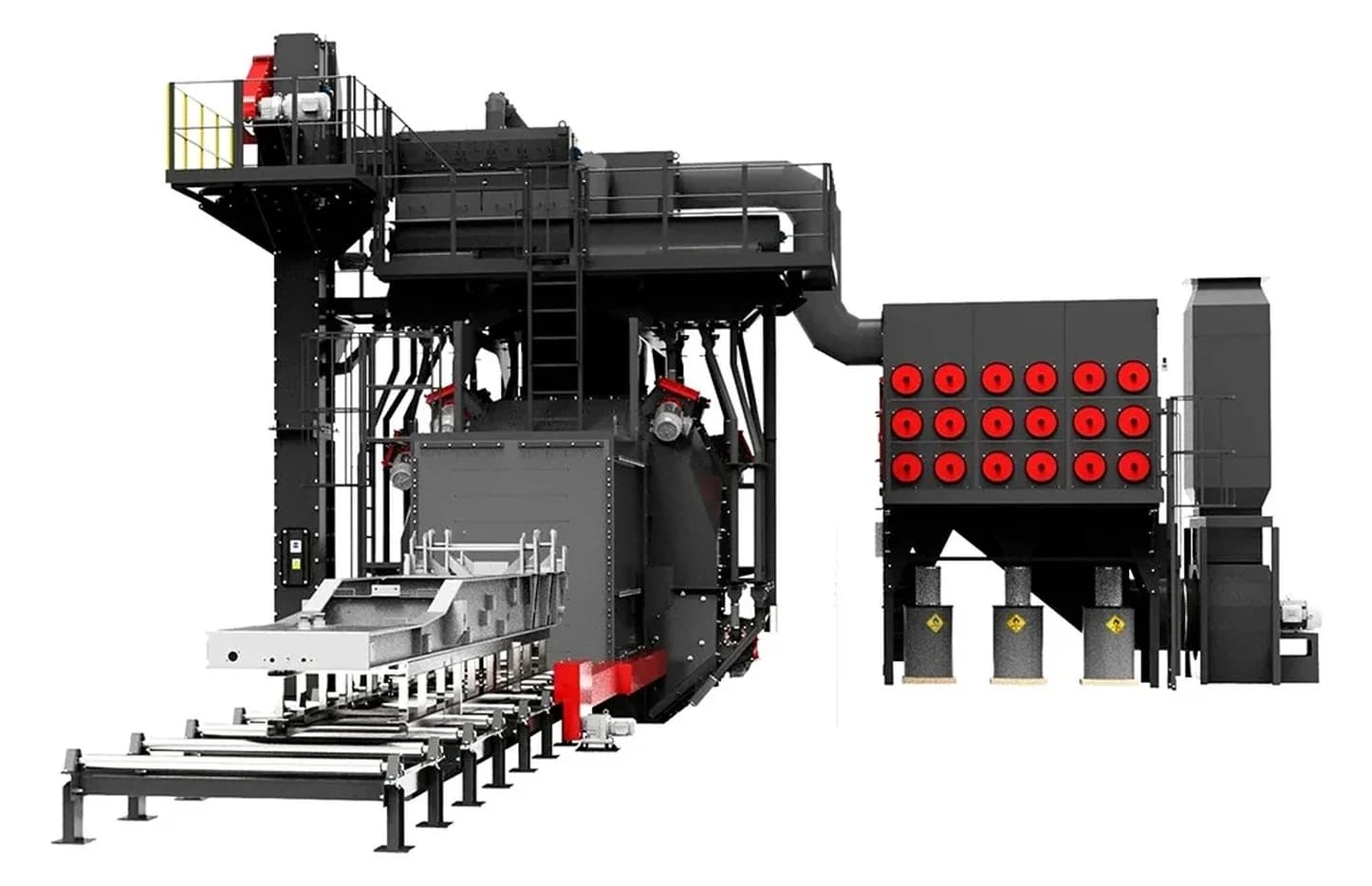

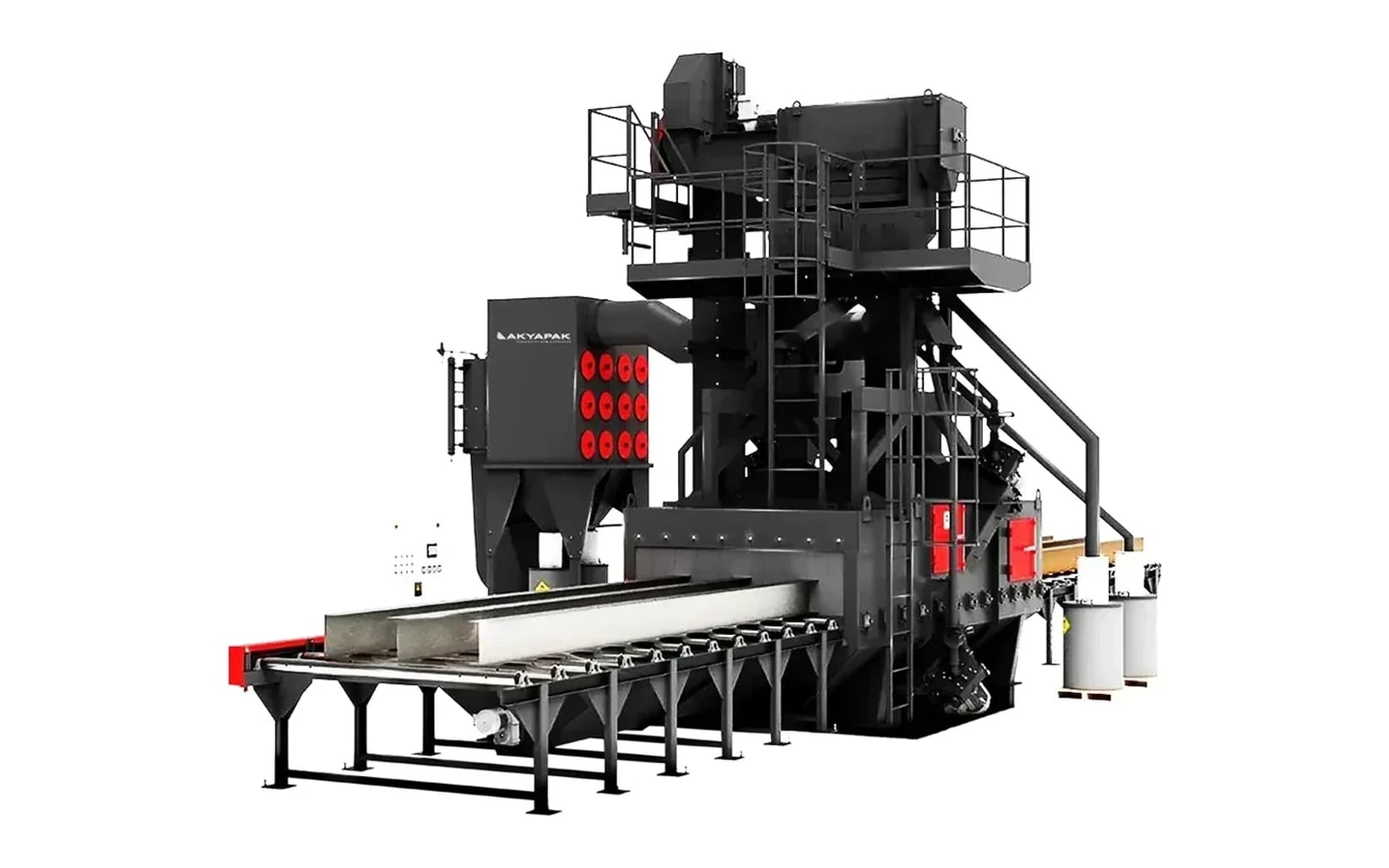

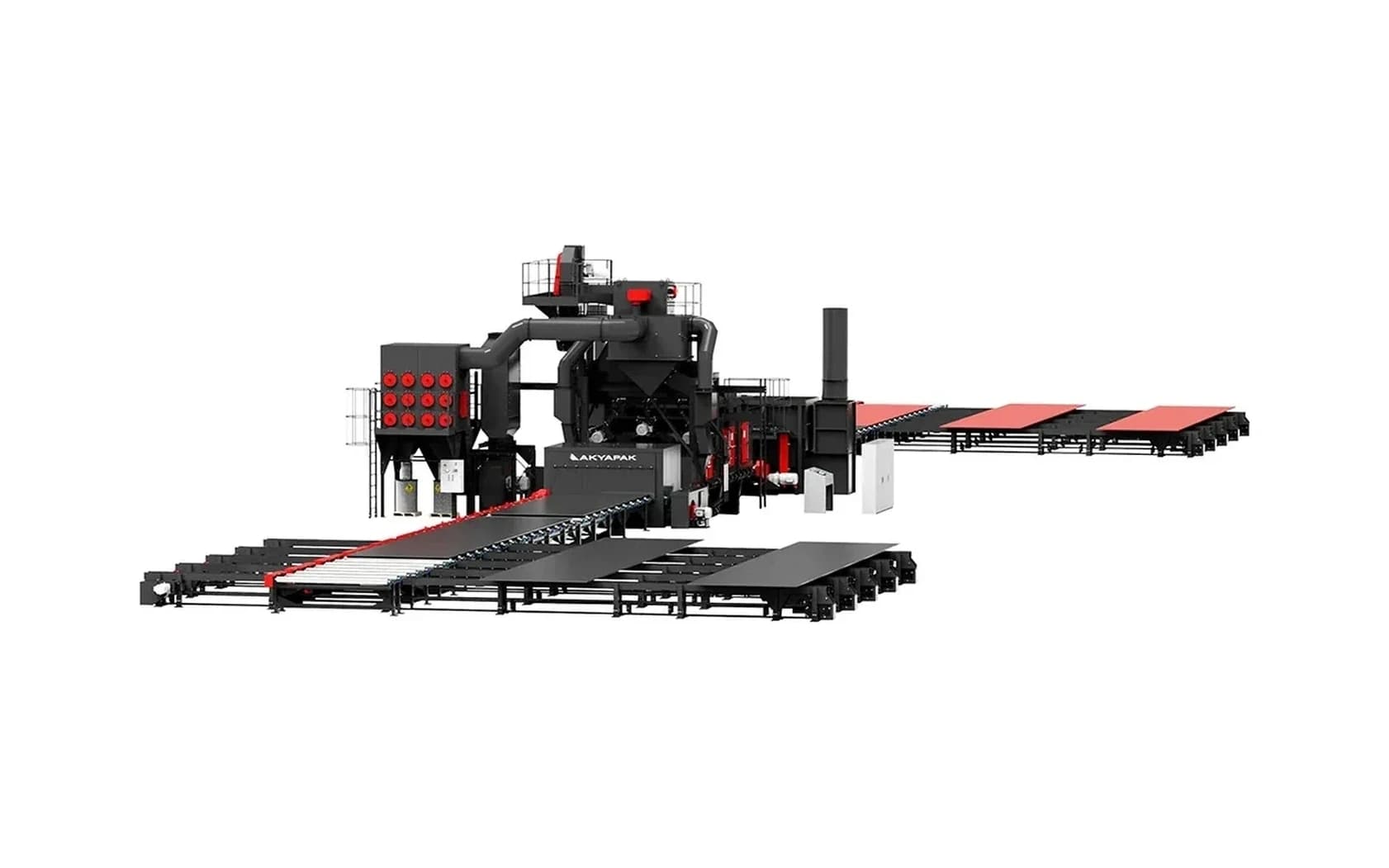

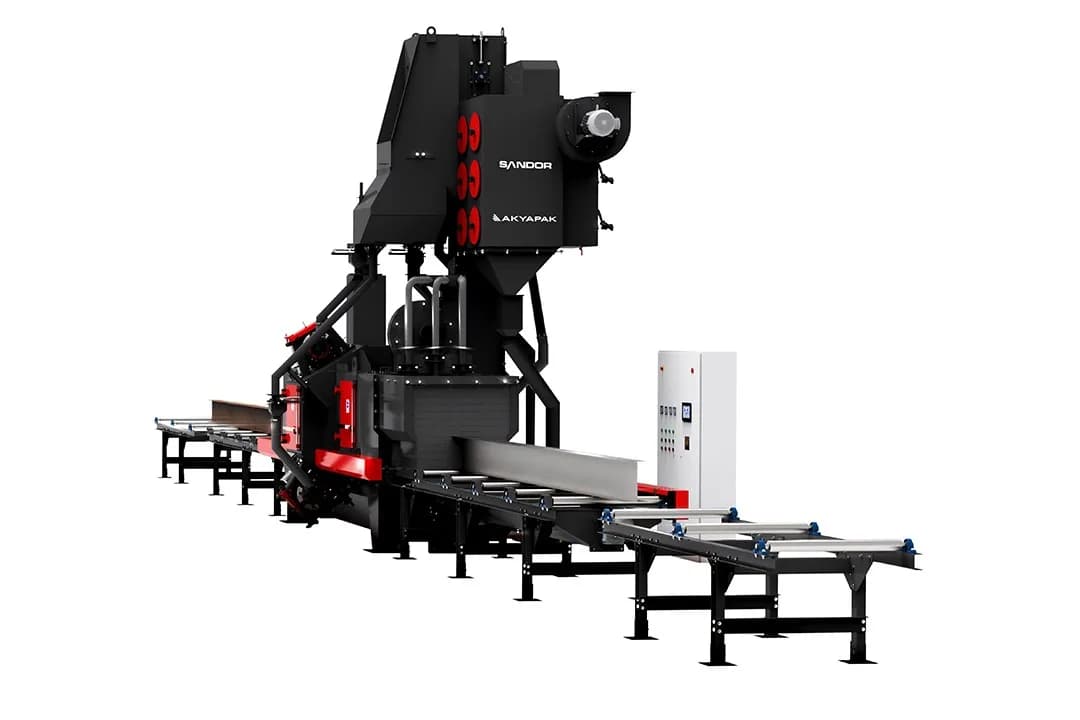

Sandor I-Line in Detail
Video
See the Sandor I-Line in Action
Full Specifications
Akyapak Sandor I-Line Inline Shot Blasting Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Machine type
- Inline overhead conveyor
- Models available
- Sandor I 8x17, I 11x13, I 13x14, I 21x8
- Blast turbines
- 4–8 direct-driven, high-chrome impellers
- Turbine power
- 15/20 HP per turbine
- Max work width
- 860–2,100 mm (31.5"–83")
- Max work height
- 800–1,400 mm
- Workpiece types
- Profiles, structures, plates, pipe spools (model dependent)
- Working speed
- 0.3–1.5 m/min
- Conveyor system
- Overhead monorail multi-conveyor
- Abrasive recovery
- Screw conveyor + bucket elevator + air-wash separator
- Dust collection
- Replaceable cartridge filters with large surface area
- Control system
- PLC with pneumatic CNC abrasive valves
| Machine type | Inline overhead conveyor |
| Models available | Sandor I 8x17, I 11x13, I 13x14, I 21x8 |
| Blast turbines | 4–8 direct-driven, high-chrome impellers |
| Turbine power | 15/20 HP per turbine |
| Max work width | 860–2,100 mm (31.5"–83") |
| Max work height | 800–1,400 mm |
| Workpiece types | Profiles, structures, plates, pipe spools (model dependent) |
| Working speed | 0.3–1.5 m/min |
| Conveyor system | Overhead monorail multi-conveyor |
| Abrasive recovery | Screw conveyor + bucket elevator + air-wash separator |
| Dust collection | Replaceable cartridge filters with large surface area |
| Control system | PLC with pneumatic CNC abrasive valves |
- Four to eight direct-driven turbines with high-chrome impellers and manganese steel inlet nozzles deliver aggressive, consistent cleaning across complex welded geometries
- Inclined turbine positioning at 30–45 degrees provides maximum abrasive coverage with uniform distribution for flawless surface quality before coating
- Overhead monorail multi-conveyor enables continuous loading and unloading without stopping production, keeping throughput high across shifts
- Four model configurations cover work widths from 860 to 2,100 mm and heights to 1,400 mm — from narrow profiles to wide plate and pipe spools
- Fully automated PLC control with pneumatic CNC abrasive valves manages turbine activation, conveyor speed, and shot flow from a single operator panel
- Complete abrasive recovery circuit with screw conveyors, fully enclosed bucket elevator, and curtain-type air-wash separator recirculates usable shot and removes fines
- Replaceable cartridge dust collectors with large surface area capture fine particles at the point of generation for a cleaner, safer shop environment
- Heavy manganese steel blast cabinet lining — hot-rolled for hardness and durability — withstands continuous abrasive impact with minimal wear
- Hydraulic transverse loading system with industrial-grade cylinders and variable-drive mechanism provides stable, controlled workpiece movement
- Adjustable air dampers on the abrasive separator and optional diverse flow control plates allow fine-tuning for different material types and surface requirements
- Diverse flow control plates for varied abrasive distribution patterns
- Extended conveyor configurations for high-volume production lines
- Integrated primer or paint application station downstream of blasting
- Custom passage dimensions for non-standard workpiece sizes
- Remote diagnostics and monitoring via PLC communication module
- Surface preparation of welded structural assemblies before painting or galvanising
- Cleaning fabricated frames, brackets, and housings with complex three-dimensional geometries
- Inline surface treatment of plate and profile work integrated with coating lines
- Pipe spool exterior cleaning and preparation before coating or further processing
- Preparation of shipbuilding sub-assemblies and outfitting components
- Blast cleaning of construction, agricultural, and mining equipment fabrications before coating
