Shot Blasting
Sandor D
by Akyapak
Continuous monorail hook conveyor shot blasting system with 8 to 16 turbines for high-throughput surface preparation of welded structures, plates, profiles, and pipe spools
Continuous monorail hook conveyor
Machine type
Sandor 8x17 D, 16x8 D, 16x17 D, 16x21 D, 26x17 D, 35x17 D
Models available
8, 12, or 16 high-performance direct-drive
Blast turbines
Not sure if the Sandor D is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Large-scale steel fabrication facilities processing a high volume of welded structures, plates, beams, and profiles that need consistent SA 2.5 or SA 3 surface quality at production speed
- Production lines requiring seamless integration of shot blasting with downstream painting, priming, and drying without interrupting material flow
- Operations handling a wide variety of part sizes and geometries that need six model configurations and flexible turbine positioning to cover every workpiece in a single system
Machine type
Continuous monorail hook conveyor
Models available
Sandor 8x17 D, 16x8 D, 16x17 D, 16x21 D, 26x17 D, 35x17 D
Blast turbines
8, 12, or 16 high-performance direct-drive
Turbine power
15–20 HP per turbine
Key Features
Sandor D Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Direct-drive motors with high-chrome steel impeller wheels and manganese steel housings with internal liners provide aggressive blast power with extended service life between wear-part changes
- PLC-based control panel manages turbine activation, conveyor speed, and abrasive flow from a single station, with remote communication module for off-site diagnostics and monitoring
Built-In Extras
- Eight to sixteen high-performance turbines positioned at multiple blast angles deliver homogeneous cleaning quality across every surface of complex welded structures and fabricated assemblies
- Six model configurations span work widths from 800 to 3,500 mm and heights to 2,100 mm — the widest range in the Sandor family for maximum production flexibility
- Double-wall blast chamber built from hardened cast steel plates withstands continuous abrasive impact, while labyrinth seals at every junction prevent shot leakage to the shop floor
- Abrasive separation system uses adjustable skimmer plates and a uniform air-wash curtain to recirculate usable shot and remove fines, keeping blast quality consistent and operating costs low

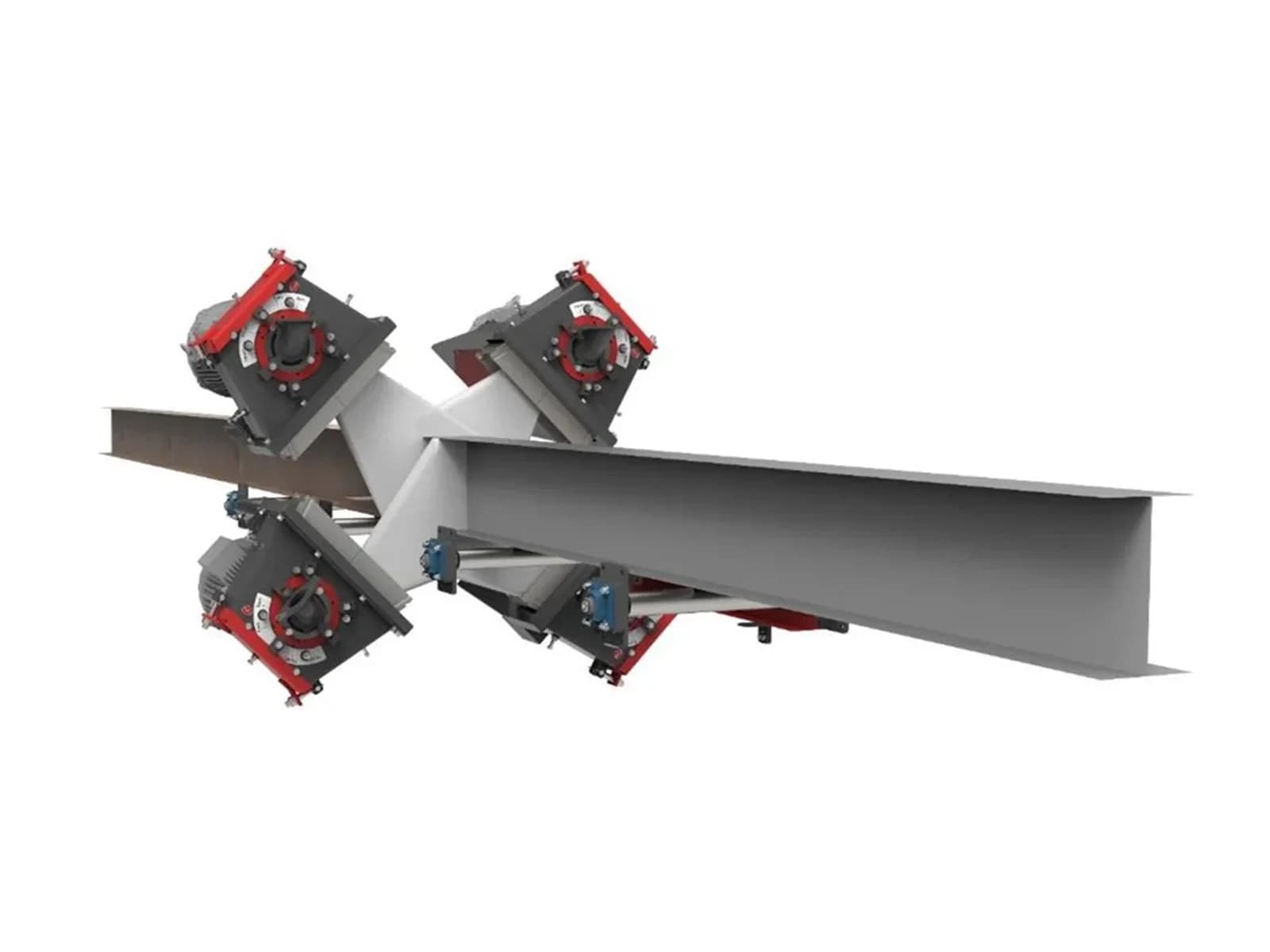

- Turbines are mountable in any position around the blast chamber, allowing the blast pattern to be optimised for each shop’s specific workpiece mix
- Designed for large-scale steel fabrication facilities demanding high throughput, consistent surface finish, and reliable operation across multiple production shifts
- Continuous monorail hook conveyor suspends parts during blasting, enabling seamless in-line integration with painting and drying processes without stopping for loading or unloading
- Handles all types of raw materials and fabrications in a single system — plates, angle profiles, L-beams, H-beams, tubes, pipe spools, and welded structures
Video
See the Sandor D in Action
Full Specifications
Akyapak Sandor D Monorail Hook Conveyor Shot Blasting Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Machine type
- Continuous monorail hook conveyor
- Models available
- Sandor 8x17 D, 16x8 D, 16x17 D, 16x21 D, 26x17 D, 35x17 D
- Blast turbines
- 8, 12, or 16 high-performance direct-drive
- Turbine power
- 15–20 HP per turbine
- Max work width
- 800–3,500 mm (31.5"–138")
- Max work height
- 800–2,100 mm (31.5"–83")
- Workpiece types
- Profiles, structures, plates, pipes, spools, L-/H-beams, tubes
- Working speed
- 0.3–1.5 m/min
- Conveyor system
- Continuous monorail hook conveyor
- Abrasive recovery
- Air-wash separator with adjustable skimmer plate
- Dust collection
- Cartridge filter system
- Control system
- PLC with remote communication module (IEC/NEMA)
| Machine type | Continuous monorail hook conveyor |
| Models available | Sandor 8x17 D, 16x8 D, 16x17 D, 16x21 D, 26x17 D, 35x17 D |
| Blast turbines | 8, 12, or 16 high-performance direct-drive |
| Turbine power | 15–20 HP per turbine |
| Max work width | 800–3,500 mm (31.5"–138") |
| Max work height | 800–2,100 mm (31.5"–83") |
| Workpiece types | Profiles, structures, plates, pipes, spools, L-/H-beams, tubes |
| Working speed | 0.3–1.5 m/min |
| Conveyor system | Continuous monorail hook conveyor |
| Abrasive recovery | Air-wash separator with adjustable skimmer plate |
| Dust collection | Cartridge filter system |
| Control system | PLC with remote communication module (IEC/NEMA) |
- Eight to sixteen high-performance turbines positioned at multiple blast angles deliver homogeneous cleaning quality across every surface of complex welded structures and fabricated assemblies
- Continuous monorail hook conveyor suspends parts during blasting, enabling seamless in-line integration with painting and drying processes without stopping for loading or unloading
- Six model configurations span work widths from 800 to 3,500 mm and heights to 2,100 mm — the widest range in the Sandor family for maximum production flexibility
- Direct-drive motors with high-chrome steel impeller wheels and manganese steel housings with internal liners provide aggressive blast power with extended service life between wear-part changes
- Double-wall blast chamber built from hardened cast steel plates withstands continuous abrasive impact, while labyrinth seals at every junction prevent shot leakage to the shop floor
- PLC-based control panel manages turbine activation, conveyor speed, and abrasive flow from a single station, with remote communication module for off-site diagnostics and monitoring
- Abrasive separation system uses adjustable skimmer plates and a uniform air-wash curtain to recirculate usable shot and remove fines, keeping blast quality consistent and operating costs low
- Turbines are mountable in any position around the blast chamber, allowing the blast pattern to be optimised for each shop’s specific workpiece mix
- Handles all types of raw materials and fabrications in a single system — plates, angle profiles, L-beams, H-beams, tubes, pipe spools, and welded structures
- Designed for large-scale steel fabrication facilities demanding high throughput, consistent surface finish, and reliable operation across multiple production shifts
- Integrated primer or paint application station for continuous surface treatment after blasting
- Extended conveyor configurations for longer production lines
- Custom passage dimensions for non-standard workpiece sizes
- Remote diagnostics and monitoring via PLC communication module
- Drying system integration for inline paint-ready workflow
- Surface preparation of welded structures, spools, and fabricated sub-assemblies before painting or coating
- Continuous cleaning of plates, angle profiles, L-beams, H-beams, and structural sections for steel fabrication lines
- Inline surface preparation integrated with painting, priming, or drying systems for uninterrupted production flow
- Pipe spool and tube exterior cleaning before coating, inspection, or further processing
- Mill scale and rust removal from heavy structural steel in bridge, building, and infrastructure construction
- High-volume surface profiling of mixed raw materials and fabrications for consistent coating adhesion
