Plate Rolls
NG 4-Roll
by Akyapak
Next-generation four-roll plate roll with independent servo-hydraulic control and NextRoll CNC for unmatched bending precision
4-roll hydraulic (NG Series)
Configuration
4-Roll Plate Roll
Machine Type
4-roll (1 top + 1 bottom + 2 side)
Roll Configuration
Not sure if the NG 4-Roll is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabrication shops that demand the highest repeatability and lowest flat-end waste on production plate rolling
- Operations upgrading from older 4-roll machines and looking for full CNC automation with real-time simulation
- Manufacturers rolling cylinders, cones, and complex curves who need individually controlled roll positioning
Configuration
4-roll hydraulic (NG Series)
Machine Type
4-Roll Plate Roll
Roll Configuration
4-roll (1 top + 1 bottom + 2 side)
CNC Control
NextRoll CNC System
Key Features
NG 4-Roll Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Independent servo-hydraulic circuits on every roll deliver extreme positioning precision with no cross-talk between axes
- Single-pass cylinder forming—pinch-and-roll geometry completes a full cylinder without repositioning the plate
- Precision alignment technology streamlines setup and reduces operator intervention between jobs
Ease of Operation
- NextRoll CNC platform provides real-time bending simulation, stored programs, and an intuitive touchscreen interface
- Advanced digital parallelism system continuously monitors and corrects lower and side roll alignment during rolling
- Reinforced yet lighter body frame maintains perfect alignment under heavy loads while reducing overall machine weight
- Full automation and digital integration—program a shape, press start, and the NG handles pre-bend through final pass
- Modular sheet cover design enhances durability while simplifying maintenance and repair access
- Integrated cone bending with position adjustment accessible from the NextRoll control panel
- Hydraulic safety system meets current CE standards for operator protection
Gallery

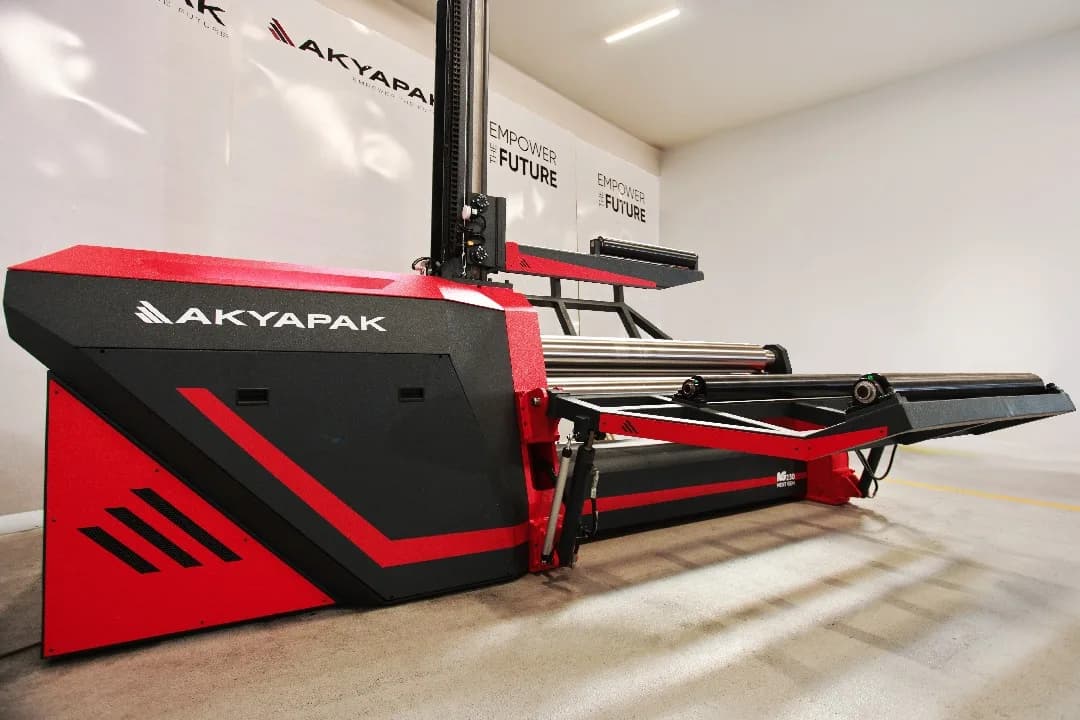

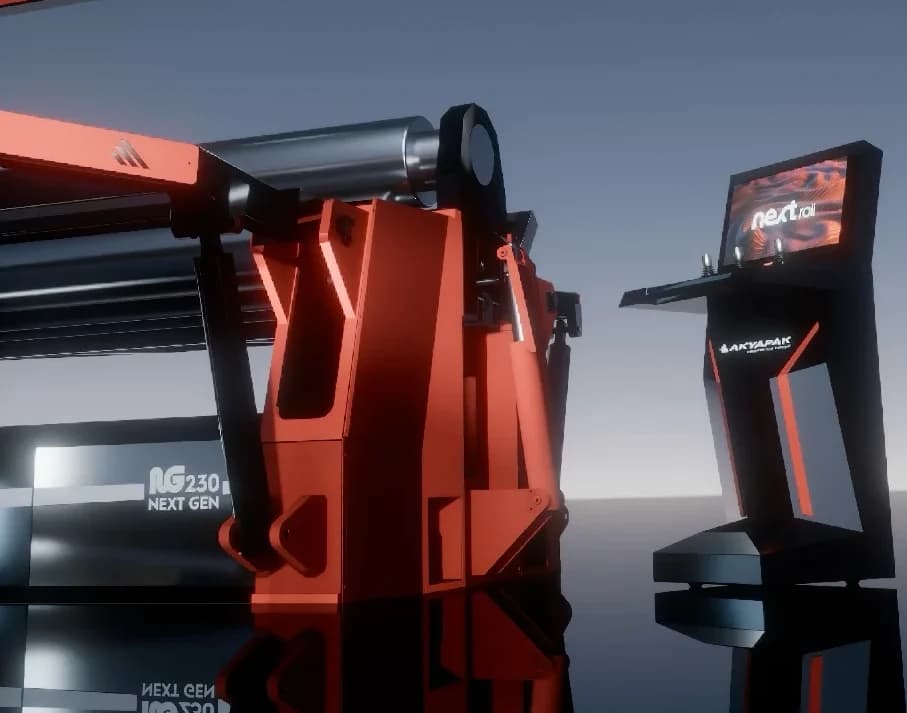

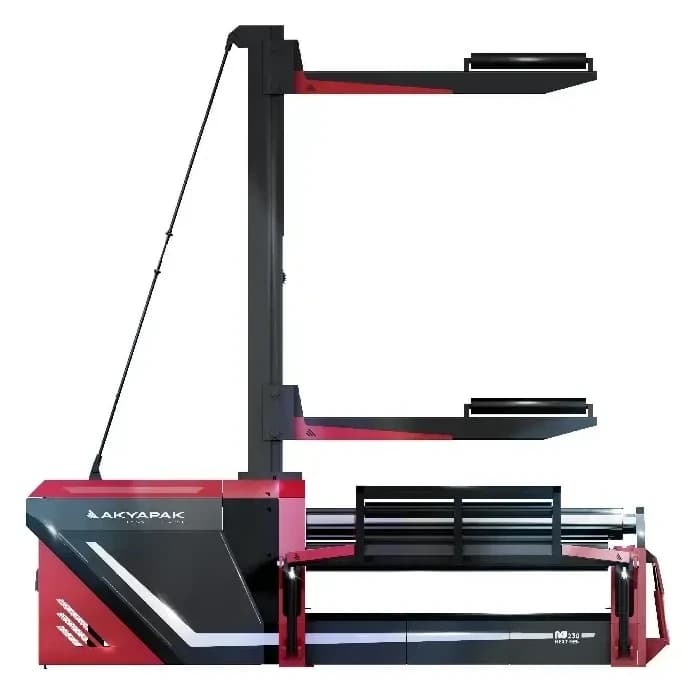

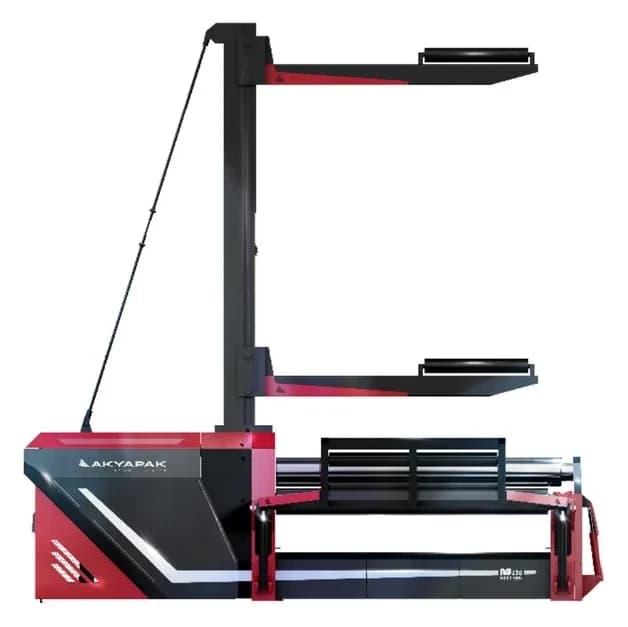

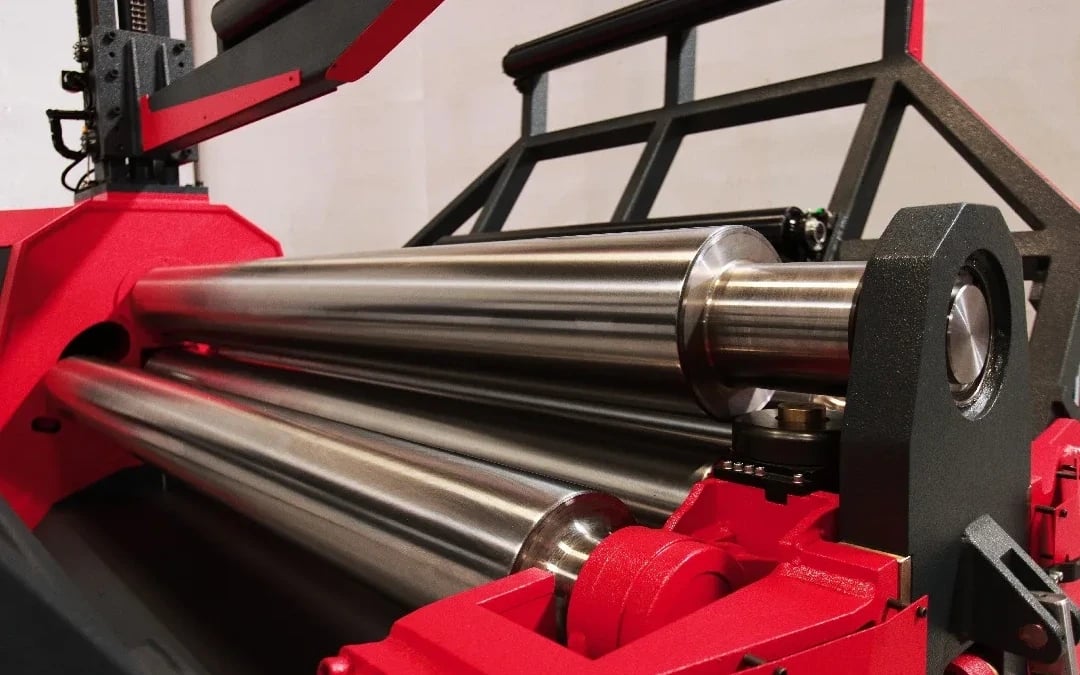

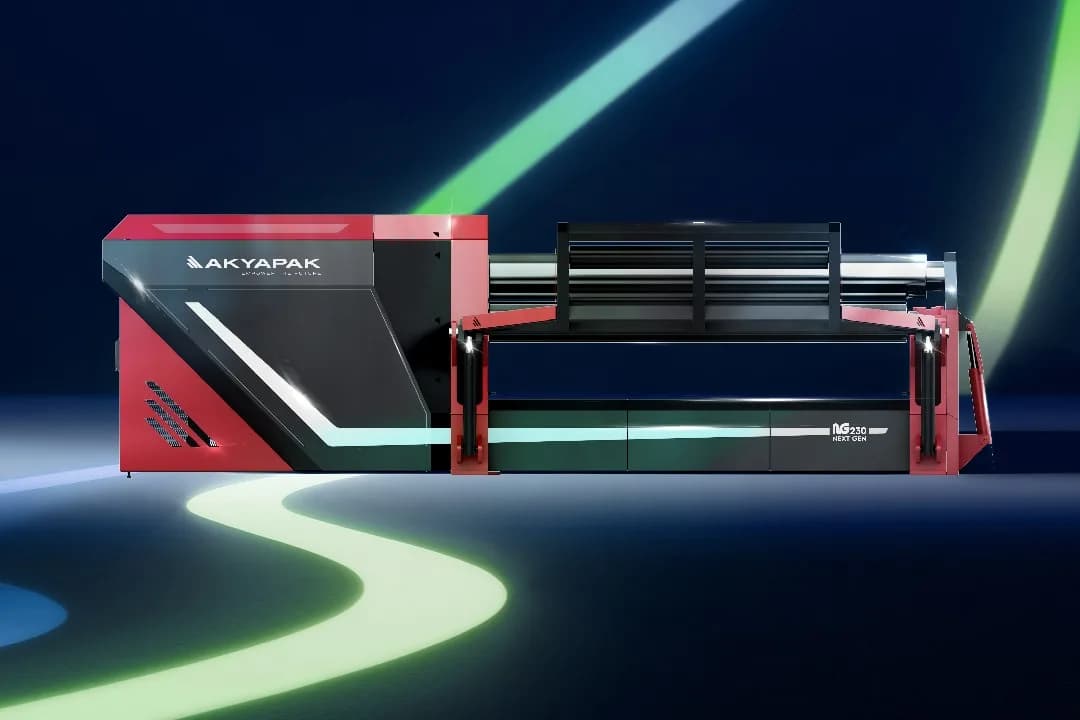

NG 4-Roll in Detail
Video
See the NG 4-Roll in Action
Full Specifications
Akyapak NG 4-Roll Plate Roll Technical Details
Complete specifications, standard features, and optional upgrades.
- Configuration
- 4-roll hydraulic (NG Series)
- Machine Type
- 4-Roll Plate Roll
- Roll Configuration
- 4-roll (1 top + 1 bottom + 2 side)
- CNC Control
- NextRoll CNC System
- Hydraulic System
- Independent servo-hydraulic (each roll)
- Parallelism System
- Advanced digital parallelism
- Body Construction
- Reinforced lightweight frame
- Roll Material
- Ck45 steel, induction hardened 50–60 HRC
- Safety
- Integrated hydraulic safety system
- Certifications
- CE, ISO 9001-2015
| Configuration | 4-roll hydraulic (NG Series) |
| Machine Type | 4-Roll Plate Roll |
| Roll Configuration | 4-roll (1 top + 1 bottom + 2 side) |
| CNC Control | NextRoll CNC System |
| Hydraulic System | Independent servo-hydraulic (each roll) |
| Parallelism System | Advanced digital parallelism |
| Body Construction | Reinforced lightweight frame |
| Roll Material | Ck45 steel, induction hardened 50–60 HRC |
| Safety | Integrated hydraulic safety system |
| Certifications | CE, ISO 9001-2015 |
- Independent servo-hydraulic circuits on every roll deliver extreme positioning precision with no cross-talk between axes
- NextRoll CNC platform provides real-time bending simulation, stored programs, and an intuitive touchscreen interface
- Advanced digital parallelism system continuously monitors and corrects lower and side roll alignment during rolling
- Reinforced yet lighter body frame maintains perfect alignment under heavy loads while reducing overall machine weight
- Full automation and digital integration—program a shape, press start, and the NG handles pre-bend through final pass
- Modular sheet cover design enhances durability while simplifying maintenance and repair access
- Single-pass cylinder forming—pinch-and-roll geometry completes a full cylinder without repositioning the plate
- Precision alignment technology streamlines setup and reduces operator intervention between jobs
- Integrated cone bending with position adjustment accessible from the NextRoll control panel
- Hydraulic safety system meets current CE standards for operator protection
- Extended working lengths for large-diameter shell production
- Plate feeding table—manual, hydraulic, or motorised configurations
- Centre and side supports for rolling oversized shells
- Oil-air cooling system for extended duty cycles
- Automated part ejector for hands-free unloading
- Deflection compensation system for uniform bending across the full width
- Swappable top roll for tighter minimum diameters
- Pressure vessel and tank fabrication
- Wind tower manufacturing
- Shipbuilding and marine construction
- Structural steel and heavy plate forming
- Pipe and tube production
- Silo and hopper manufacturing
