Plate Rolls

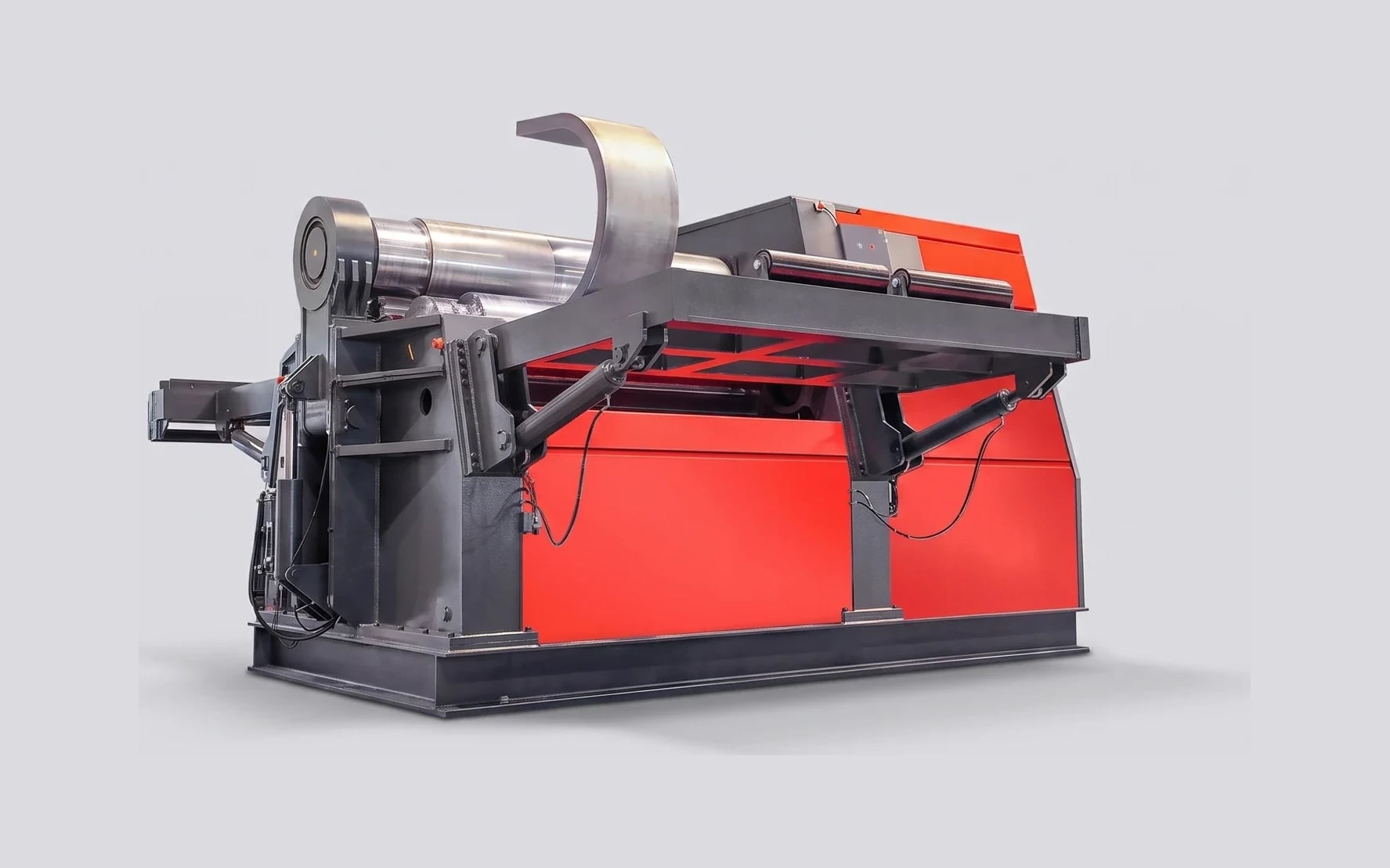

AHS 4-Roll
by Akyapak
Four-roll hydraulic plate roll built to form cylinders, cones, and curves in a single pass across 2–200 mm plate
4-roll hydraulic
Configuration
2 mm to 200 mm (14 ga. to 8")
Max. plate thickness
500 mm to 12,000 mm (20" to 40 ft)
Max. plate width
Not sure if the AHS 4-Roll is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabrication shops rolling cylinders, cones, and elliptical shapes from thick plate
- Heavy industry operations requiring high-speed, single-pass rolling up to 200 mm
- Manufacturers needing CNC-controlled repeatability for production runs
Configuration
4-roll hydraulic
Max. plate thickness
2 mm to 200 mm (14 ga. to 8")
Max. plate width
500 mm to 12,000 mm (20" to 40 ft)
Working length range
1,250 mm to 6,100 mm
Key Features
AHS 4-Roll Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Rolls induction hardened to 50–60 HRC and precision ground for consistent surface contact
- Two-speed rolling — rapid traverse for positioning, slower speed for finish passes
- Spherical roller bearings on every roll for smooth rotation under heavy loads
Ease of Operation
- Integrated cone rolling with position adjustments accessible from the operator panel
- Mobile control station moves with the operator for clear sightlines during rolling
Built-In Extras

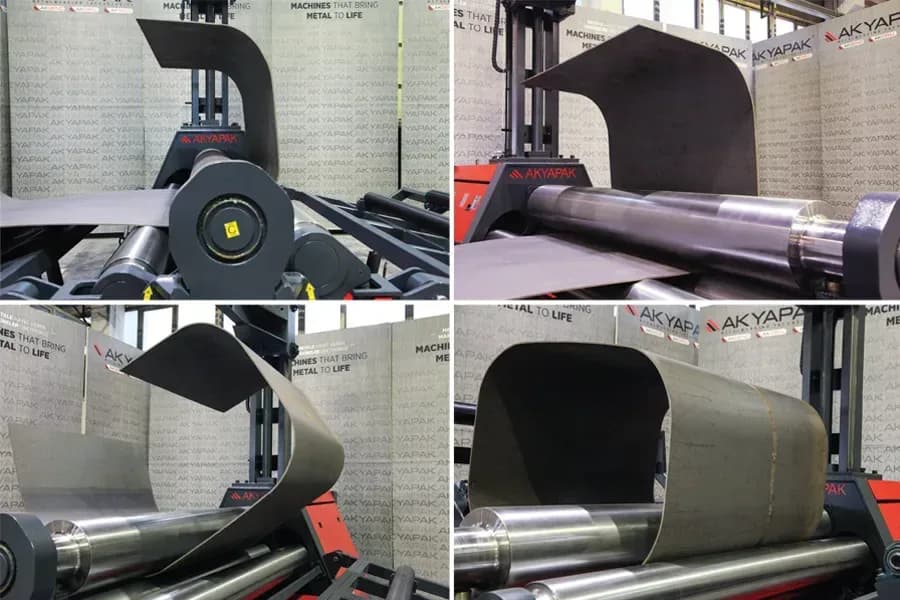

- Pinch-and-roll geometry forms a complete cylinder in one pass — no need to flip or reposition the plate
- Electro-hydraulic calibration keeps all rolls aligned without manual shimming
- Hydraulic drop-end mechanism for fast workpiece removal
- Perimeter safety guarding included as standard
- Planetary lever-arm drive concentrates bending force at the contact point, reducing flat-end waste
Gallery

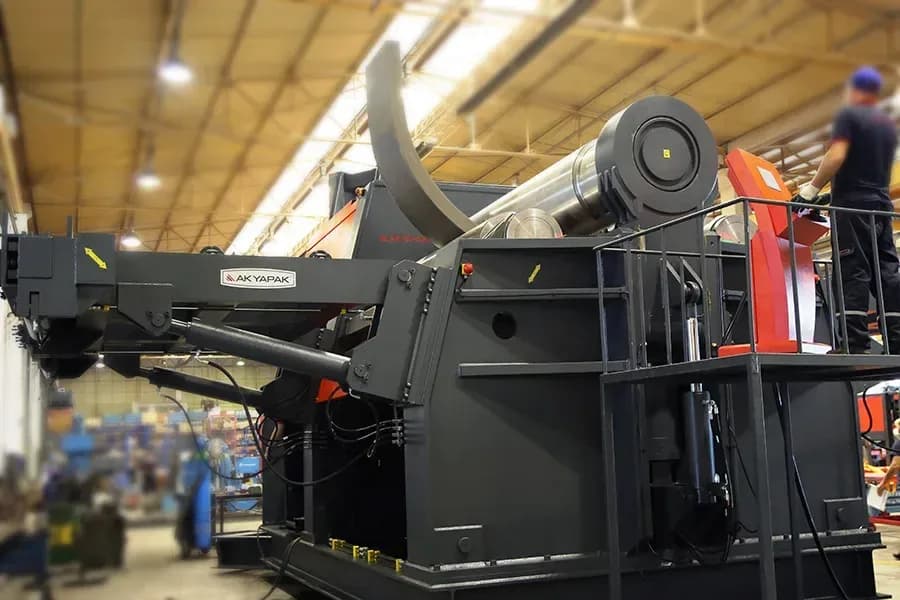

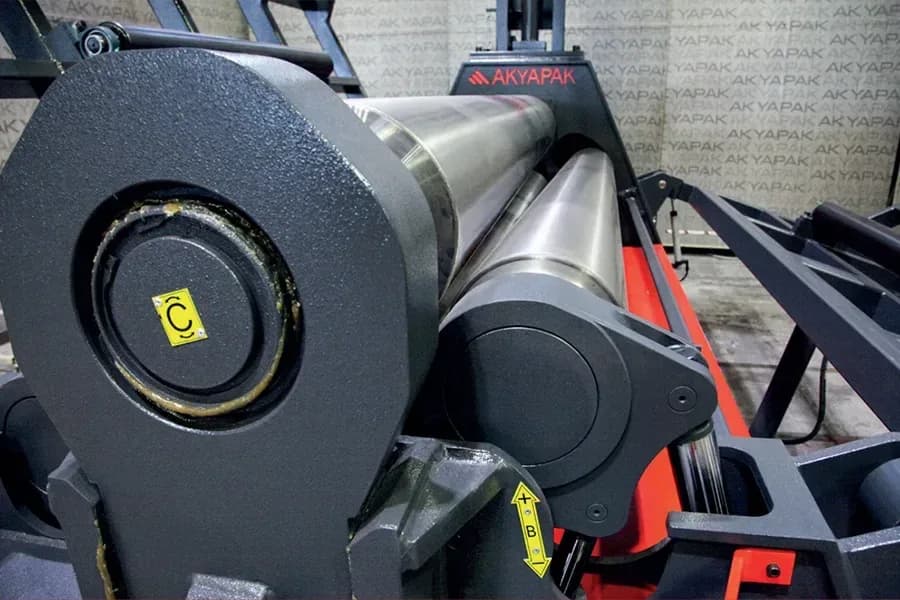

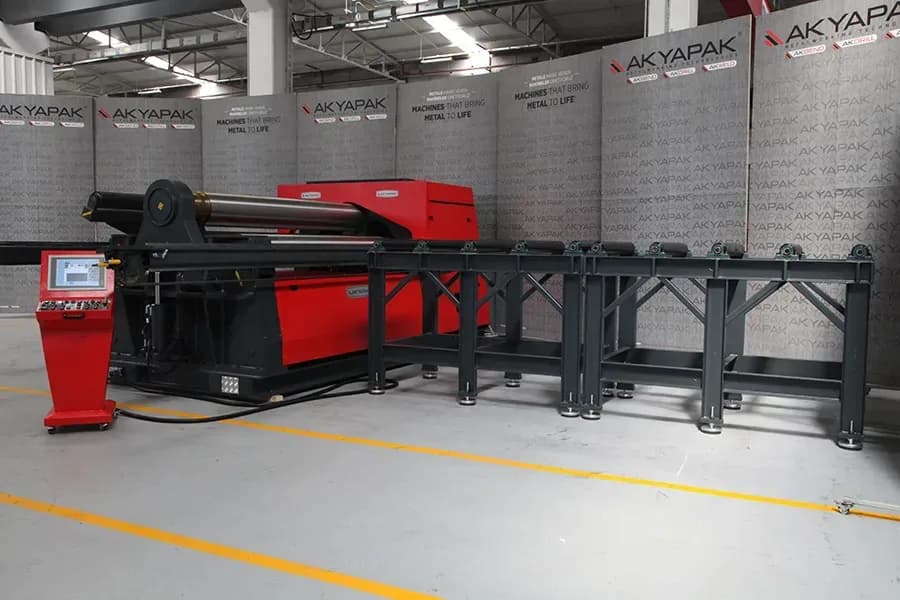

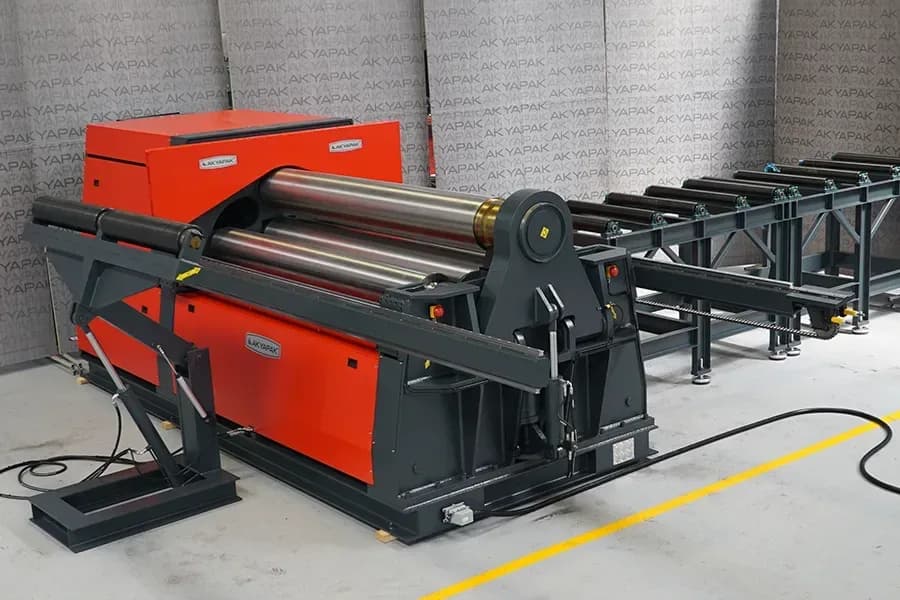

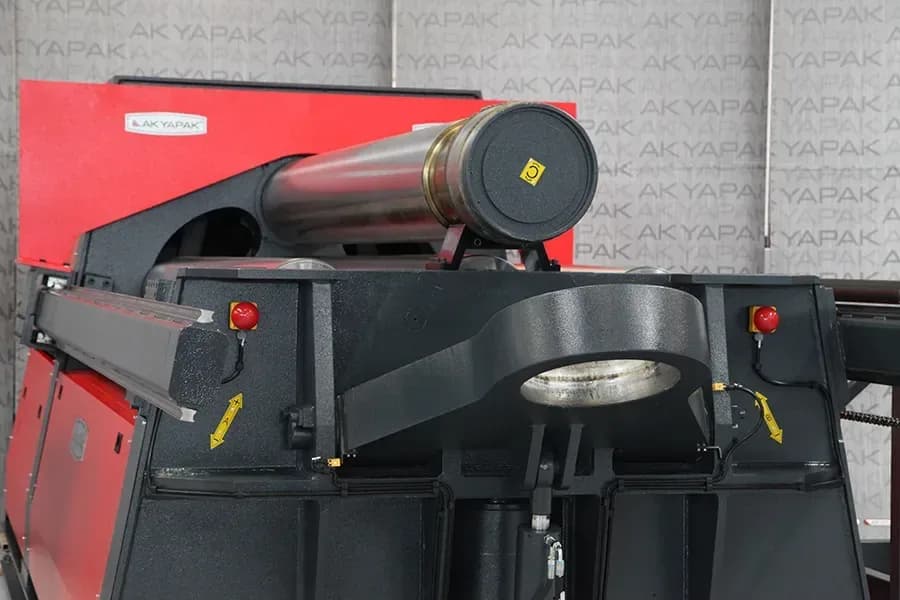

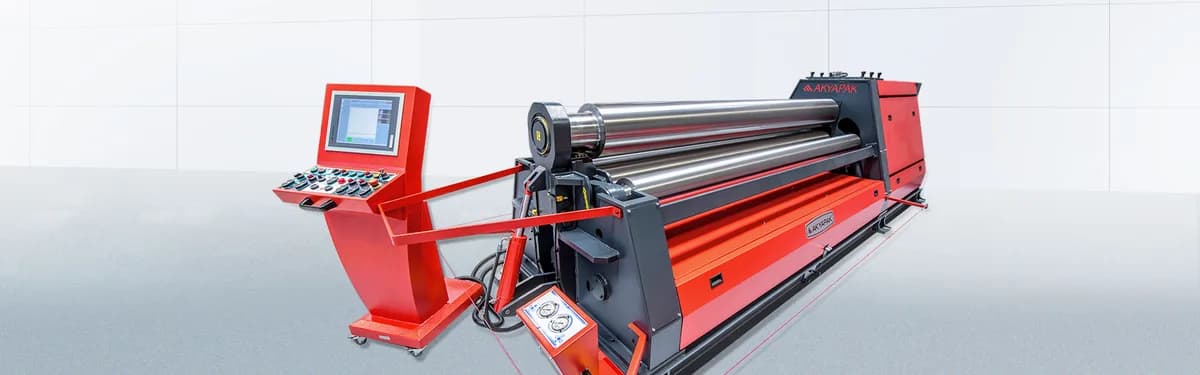

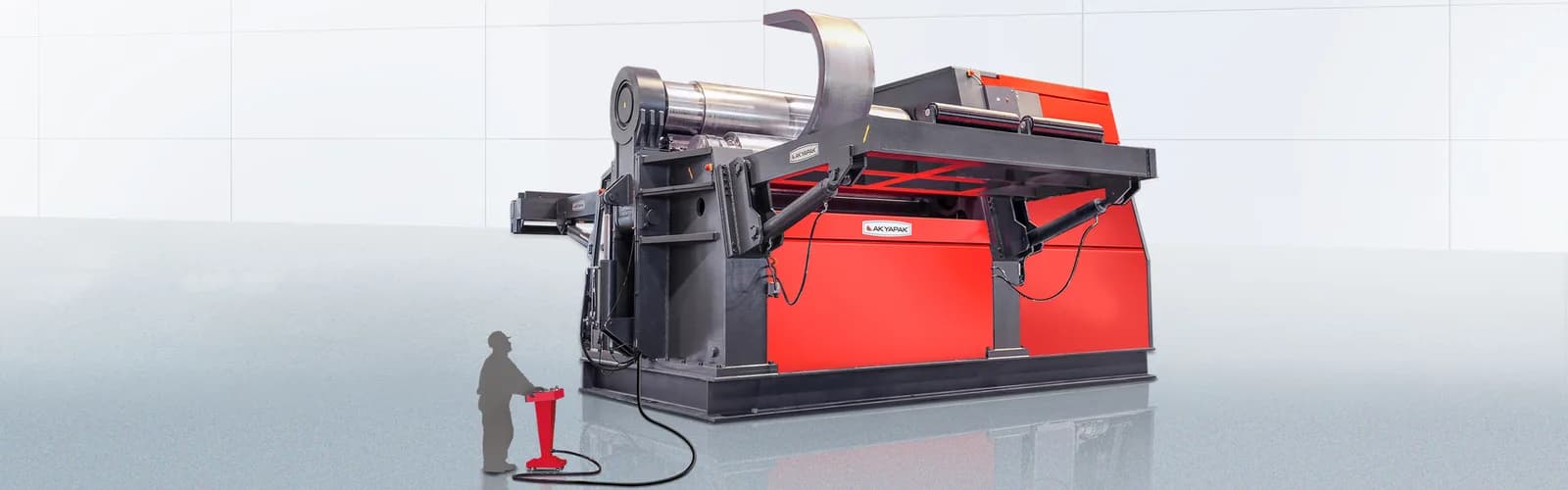

AHS 4-Roll in Detail
Video
See the AHS 4-Roll in Action
Full Specifications
Akyapak AHS 4-Roll Plate Roll Technical Details
Complete specifications, standard features, and optional upgrades.
- Configuration
- 4-roll hydraulic
- Max. plate thickness
- 2 mm to 200 mm (14 ga. to 8")
- Max. plate width
- 500 mm to 12,000 mm (20" to 40 ft)
- Working length range
- 1,250 mm to 6,100 mm
- Motor power range
- 2.2 kW to 280 kW
- Roll material
- Ck45 steel, induction hardened 50–60 HRC
- Frame construction
- Fully welded St-52 steel
- Control options
- NC AK300 / CNC AK400
- Certifications
- CE, ISO 9001-2015, TSEK, TURQUM
| Configuration | 4-roll hydraulic |
| Max. plate thickness | 2 mm to 200 mm (14 ga. to 8") |
| Max. plate width | 500 mm to 12,000 mm (20" to 40 ft) |
| Working length range | 1,250 mm to 6,100 mm |
| Motor power range | 2.2 kW to 280 kW |
| Roll material | Ck45 steel, induction hardened 50–60 HRC |
| Frame construction | Fully welded St-52 steel |
| Control options | NC AK300 / CNC AK400 |
| Certifications | CE, ISO 9001-2015, TSEK, TURQUM |
- Pinch-and-roll geometry forms a complete cylinder in one pass — no need to flip or reposition the plate
- Planetary lever-arm drive concentrates bending force at the contact point, reducing flat-end waste
- Rolls induction hardened to 50–60 HRC and precision ground for consistent surface contact
- Electro-hydraulic calibration keeps all rolls aligned without manual shimming
- Integrated cone rolling with position adjustments accessible from the operator panel
- Hydraulic drop-end mechanism for fast workpiece removal
- Two-speed rolling — rapid traverse for positioning, slower speed for finish passes
- Spherical roller bearings on every roll for smooth rotation under heavy loads
- Mobile control station moves with the operator for clear sightlines during rolling
- Perimeter safety guarding included as standard
- Infinitely variable roll speed for fine process control

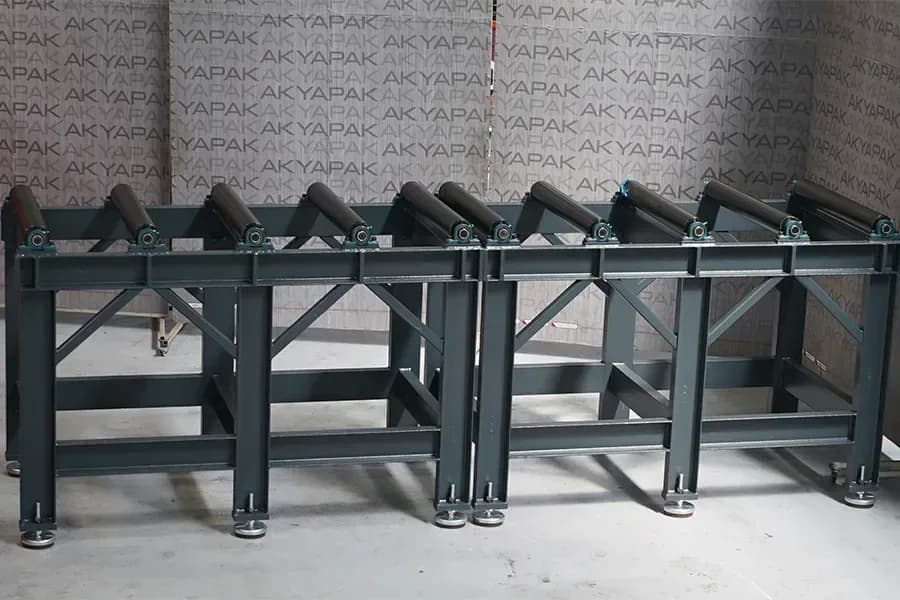

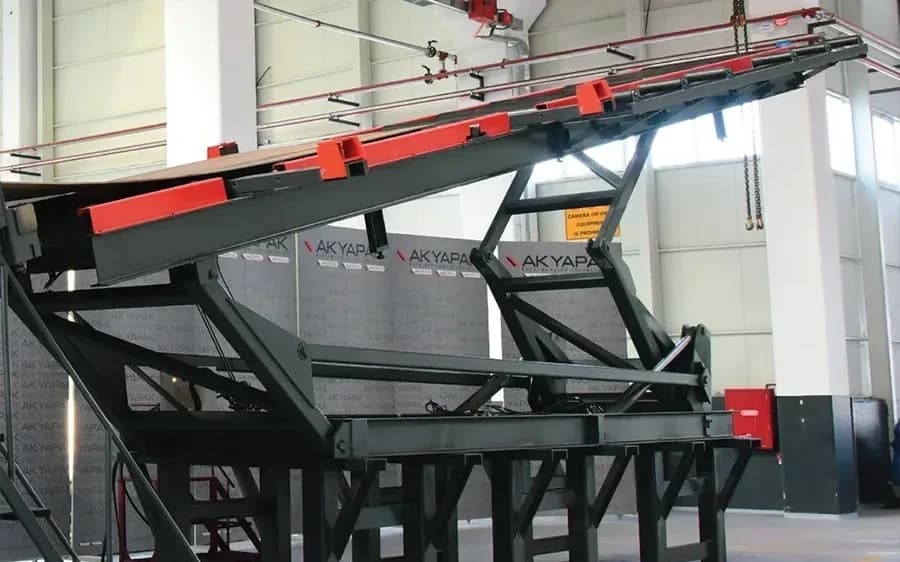

- Plate feeding table — manual, hydraulic, or motorised configurations
- Oil-air cooling system for extended duty cycles
- Centre and side supports for rolling large-diameter shells
- Automated part ejector for hands-free unloading
- Deflection compensation system for uniform bending across the full width
- Swappable top roll for achieving tighter minimum diameters
- NC AK300 playback controller
- CNC AK400 graphic touch-screen controller
- Pressure vessel and tank fabrication
- Wind tower manufacturing
- Shipbuilding and marine construction
- Structural steel and heavy plate forming
- Pipe and tube production
- Silo and hopper manufacturing
