Plate Rolls
AHS-AUTO
by Akyapak

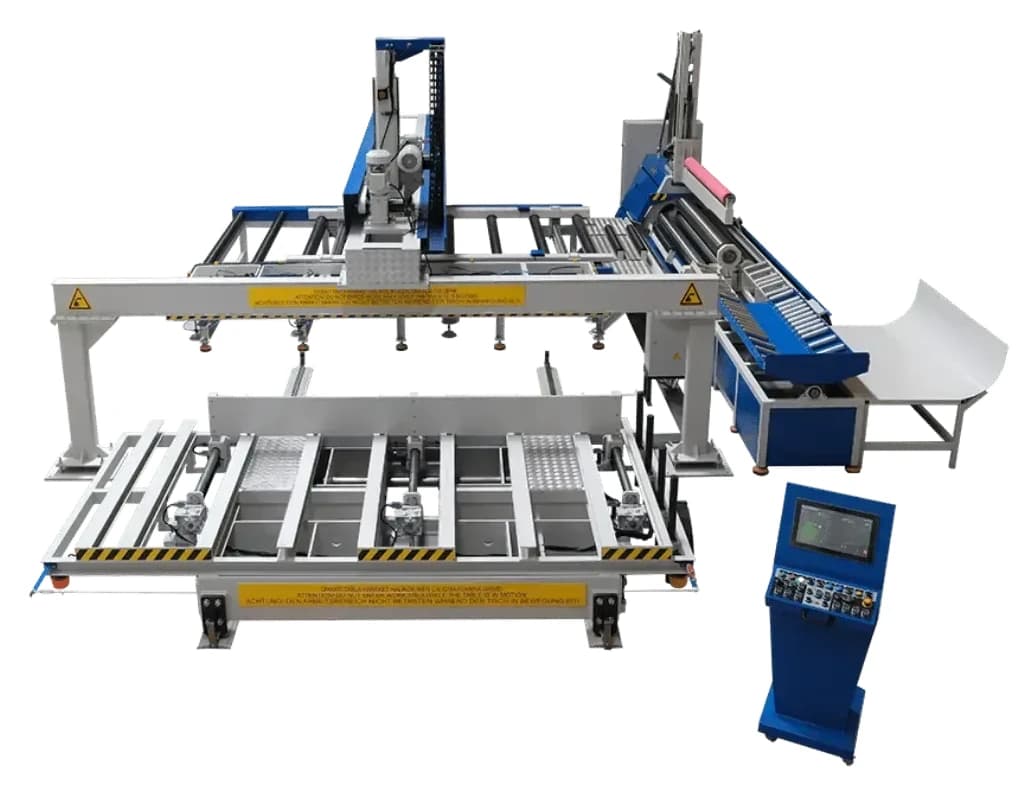

Fully automated four-roll plate rolling line with gantry loader, infeed conveyor, and automatic ejection for continuous non-stop production
4-roll automated rolling line
Machine type
4-roll (1 top + 1 bottom + 2 side)
Roll configuration
Fully automated (gantry loader + infeed conveyor + auto-eject)
Automation level
Not sure if the AHS-AUTO is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- High-volume fabrication shops that need continuous, hands-free plate rolling without an overhead crane
- Production environments where cycle time and throughput are critical — the non-stop rolling cycle eliminates idle time between parts
- Operations looking to upgrade from a manual AHS 4-Roll to a fully automated rolling line
Machine type
4-roll automated rolling line
Roll configuration
4-roll (1 top + 1 bottom + 2 side)
Automation level
Fully automated (gantry loader + infeed conveyor + auto-eject)
Material handling
Pneumatic gantry loader with vacuum lifts
Key Features
AHS-AUTO Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation

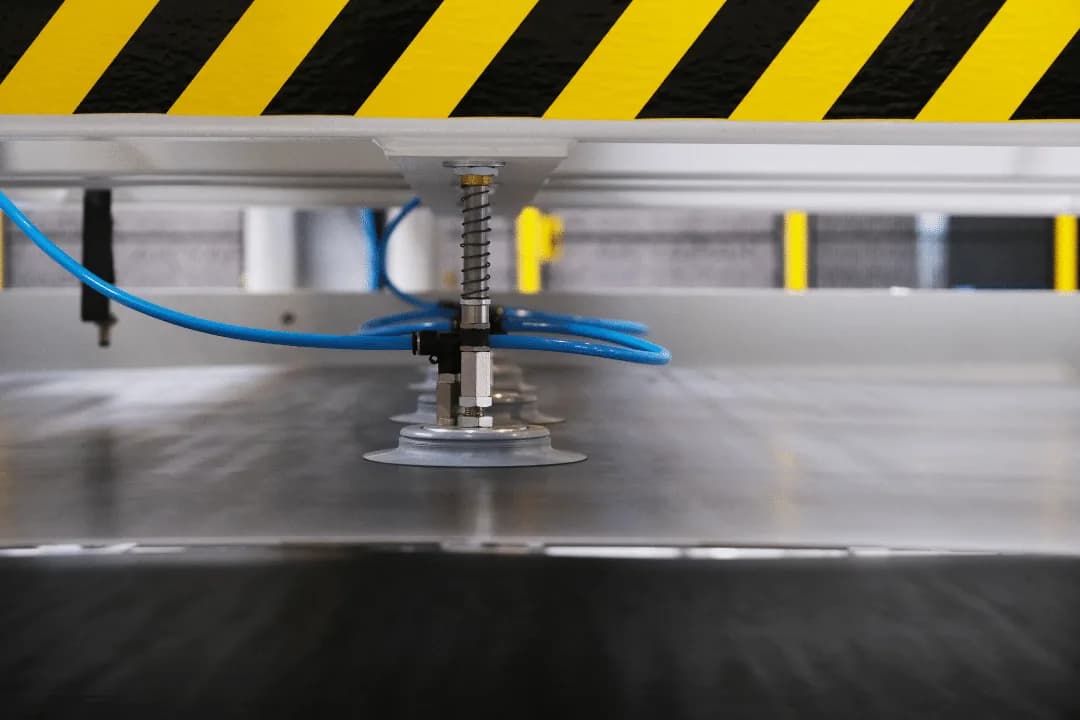

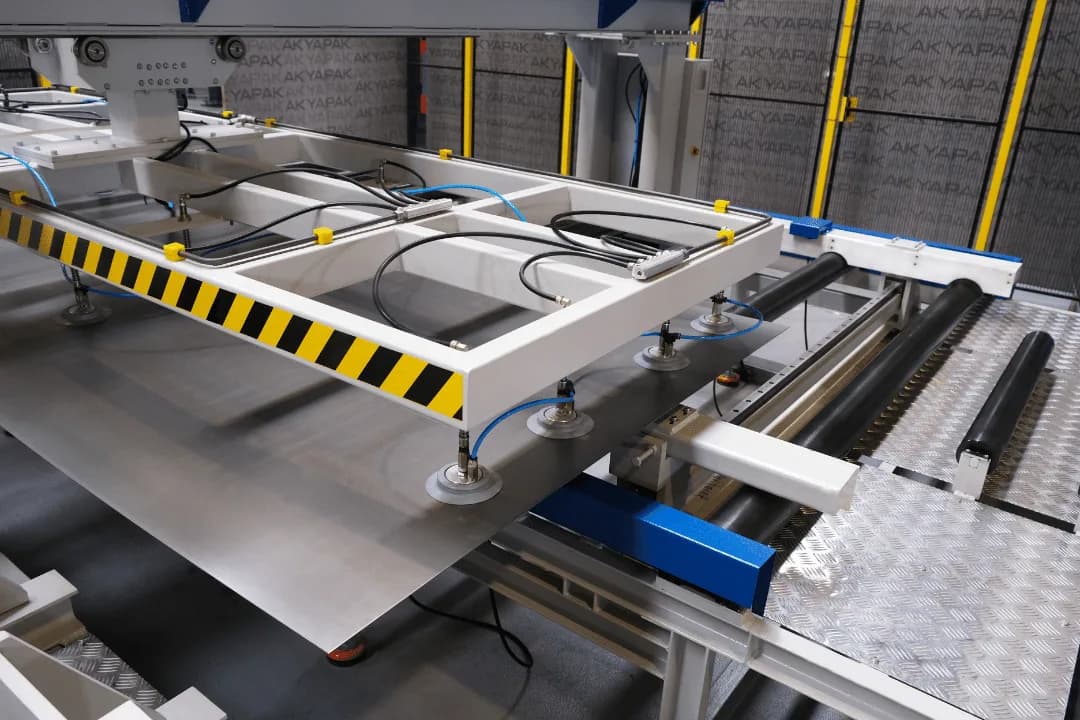

- Pneumatic gantry loader with vacuum lifts pulls plates directly from the stockpile — no overhead crane needed

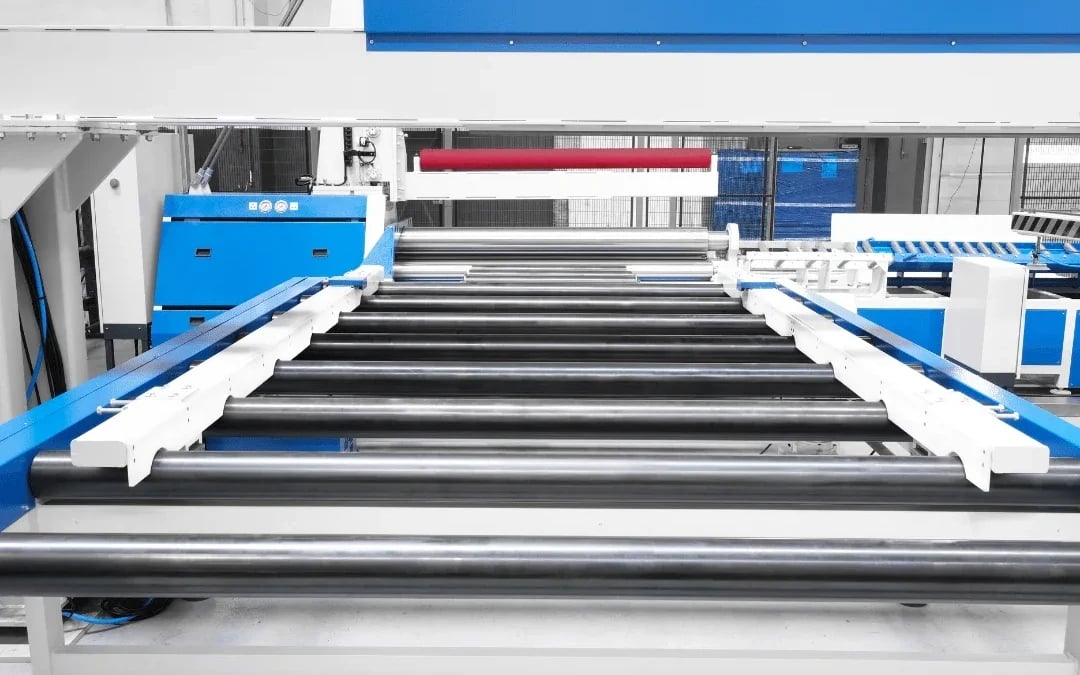

- Infeed conveyor automatically positions each plate for the rolling cycle, eliminating manual feeding
- Fully automated roll-eject-repeat cycle runs continuously without operator intervention between parts

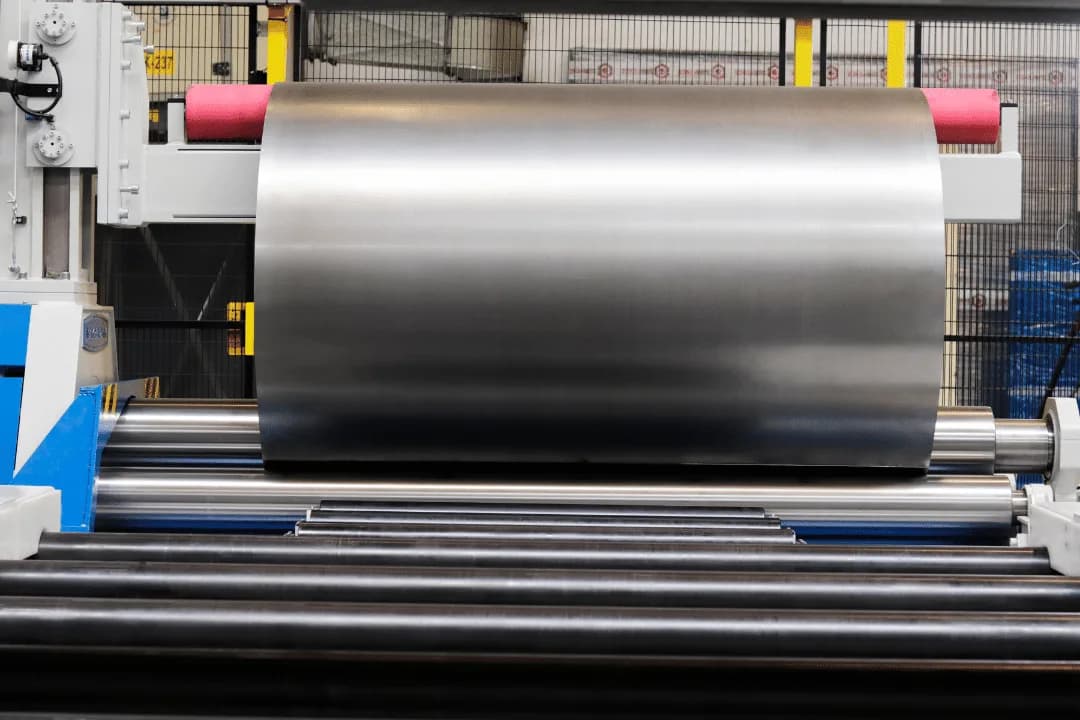

- Automatic ejector system clears finished parts from the machine, keeping the production line moving
Built-In Extras
- Built on the AHS four-roll platform — pinch-and-roll geometry forms a complete cylinder in one pass
- Electro-hydraulic calibration keeps all rolls aligned without manual shimming
- Push-button operation simplifies the entire workflow from raw plate to finished rolled part
- Crane-free design frees up overhead space and removes a common production bottleneck
- Rolls induction hardened to 50–60 HRC and precision ground for consistent surface contact
- Planetary lever-arm drive concentrates bending force at the contact point, reducing flat-end waste
Gallery
AHS-AUTO in Detail
Video
See the AHS-AUTO in Action
Full Specifications
Akyapak AHS-AUTO 4-Roll Automated Rolling Line Technical Details
Complete specifications, standard features, and optional upgrades.
- Machine type
- 4-roll automated rolling line
- Roll configuration
- 4-roll (1 top + 1 bottom + 2 side)
- Automation level
- Fully automated (gantry loader + infeed conveyor + auto-eject)
- Material handling
- Pneumatic gantry loader with vacuum lifts
- Part removal
- Automatic ejector system
- Operation mode
- Continuous non-stop cycle
- Crane requirement
- None (crane-free operation)
- Base platform
- AHS 4-Roll series
- Roll material
- Ck45 steel, induction hardened 50–60 HRC
- Frame construction
- Fully welded St-52 steel
- Certifications
- CE, ISO 9001-2015, TSEK, TURQUM
| Machine type | 4-roll automated rolling line |
| Roll configuration | 4-roll (1 top + 1 bottom + 2 side) |
| Automation level | Fully automated (gantry loader + infeed conveyor + auto-eject) |
| Material handling | Pneumatic gantry loader with vacuum lifts |
| Part removal | Automatic ejector system |
| Operation mode | Continuous non-stop cycle |
| Crane requirement | None (crane-free operation) |
| Base platform | AHS 4-Roll series |
| Roll material | Ck45 steel, induction hardened 50–60 HRC |
| Frame construction | Fully welded St-52 steel |
| Certifications | CE, ISO 9001-2015, TSEK, TURQUM |
- Pneumatic gantry loader with vacuum lifts pulls plates directly from the stockpile — no overhead crane needed
- Infeed conveyor automatically positions each plate for the rolling cycle, eliminating manual feeding
- Fully automated roll-eject-repeat cycle runs continuously without operator intervention between parts
- Automatic ejector system clears finished parts from the machine, keeping the production line moving
- Built on the AHS four-roll platform — pinch-and-roll geometry forms a complete cylinder in one pass
- Planetary lever-arm drive concentrates bending force at the contact point, reducing flat-end waste
- Rolls induction hardened to 50–60 HRC and precision ground for consistent surface contact
- Electro-hydraulic calibration keeps all rolls aligned without manual shimming
- Push-button operation simplifies the entire workflow from raw plate to finished rolled part
- Crane-free design frees up overhead space and removes a common production bottleneck
- CNC AK400 graphic touch-screen controller for programmable rolling sequences
- NC AK300 playback controller
- Integrated cone rolling with position adjustments from the operator panel
- Deflection compensation system for uniform bending across the full width
- Oil-air cooling system for extended duty cycles
- Centre and side supports for rolling large-diameter shells
- High-volume pressure vessel and tank shell production
- Continuous pipe and tube section rolling
- Wind tower shell fabrication lines
- Structural steel forming at production scale
- Silo and hopper manufacturing with minimal downtime
- Any plate rolling operation requiring automated, crane-free material handling
Ready to Discuss the AHS-AUTO?
Our team has 19+ years of experience helping Canadian manufacturers find the right cutting and processing equipment.
19+
Years in Business
50+
Machine Models
900+
Happy Customers
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Financing Available
Flexible payment options on qualifying equipment.
Or email us at [email protected]
Related
Explore More Plate Rolls Systems
Compare specifications and find the right machine for your application.
4-roll hydraulic plate rolling machine
AHS 4-Roll
Built around a four-roll hydraulic configuration, the AHS handles plate from 2 mm up to 200 mm thick and widths spanning 500 mm to 12,000 mm. Its pinch-and-roll approach grips the workpiece between the upper and lower rolls, completing a full cylinder without repositioning the plate. A planetary lever-arm drive system concentrates bending force where it counts, keeping flat-end waste to a minimum. The working range spans models from compact 1,250 mm units to full-production 6,100 mm lines, with NC or CNC control options depending on your throughput needs. AC Machinery supplies and supports the full AHS range from Cambridge, Ontario.
4-roll wind tower bending line
AHS-RK
The AHS-RK pairs a full AHS four-roll platform with column-boom welding stations and turning rotators in a single coordinated production line. Designed for wind energy fabricators, it moves plate from rolling through longitudinal and circumferential welding without manual handling between stages. The result is shorter cycle times, tighter dimensional consistency, and higher daily output on tower shell sections. Backed by over five decades of Akyapak heavy-rolling expertise, the AHS-RK is supplied and supported by AC Machinery from Cambridge, Ontario.

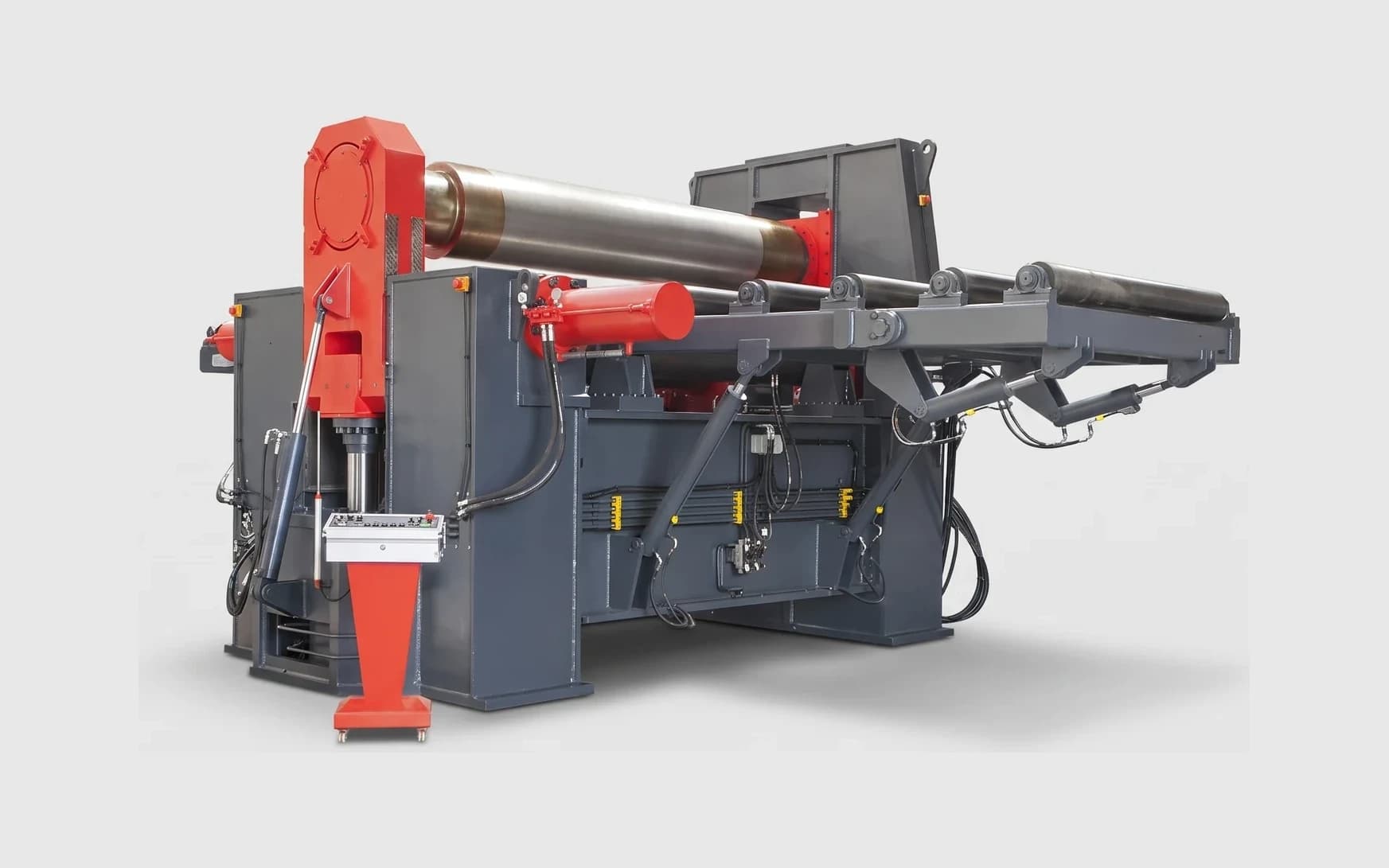

3-roll variable geometry plate rolling machine
