Plate Rolls
AHV
by Akyapak

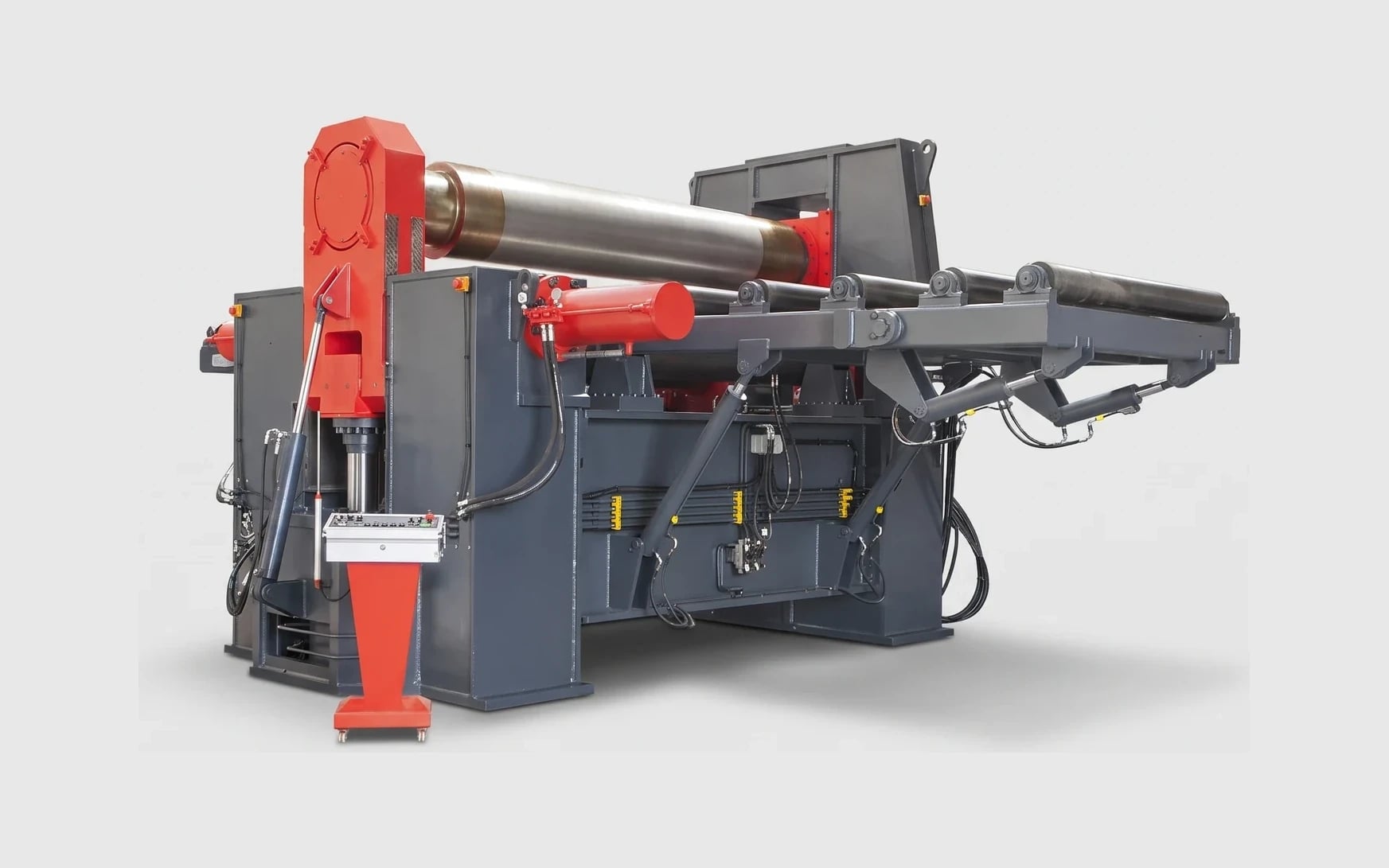

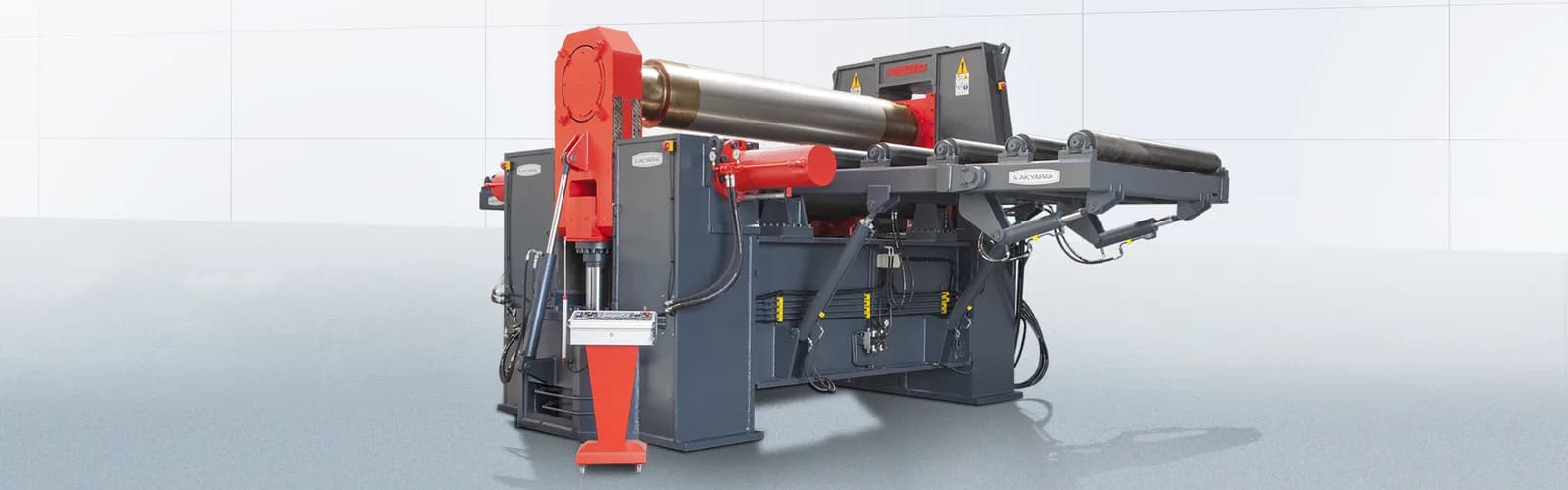

Three-roll variable geometry plate roll with independent roll positioning for heavy plate up to 260 mm
3-roll variable geometry hydraulic
Configuration
3,100 mm (10 ft)
Working length
85 mm to 260 mm depending on model
Max. plate thickness
Not sure if the AHV is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabricators rolling very thick plate (up to 260 mm) who need variable geometry flexibility
- Operations requiring both asymmetric and symmetric roll positioning for different jobs
- Heavy industry manufacturers producing large-diameter vessels and structural components
Configuration
3-roll variable geometry hydraulic
Working length
3,100 mm (10 ft)
Max. plate thickness
85 mm to 260 mm depending on model
Pre-bending thickness
70 mm to 240 mm depending on model
Key Features
AHV Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Independent three-axis roll positioning — top roll vertical, side rolls horizontal — for full geometric control
- Linear guide rails on all moving axes for smooth, repeatable roll travel
- Mobile control station for flexible operator positioning
Ease of Operation
- Electronic parallelism monitoring keeps rolls aligned during heavy bending passes
- Dedicated braking system grips the plate during feeding to prevent slippage and misalignment
- Cone bending capability with adjustments accessible from the operator panel
Built-In Extras
- Switch between asymmetric layout (minimal flat ends) and symmetric stance (peak thickness capacity) without tooling changes
- Rolls induction hardened with a built-in permanent lubrication system
- Full perimeter safety guarding included as standard
Gallery

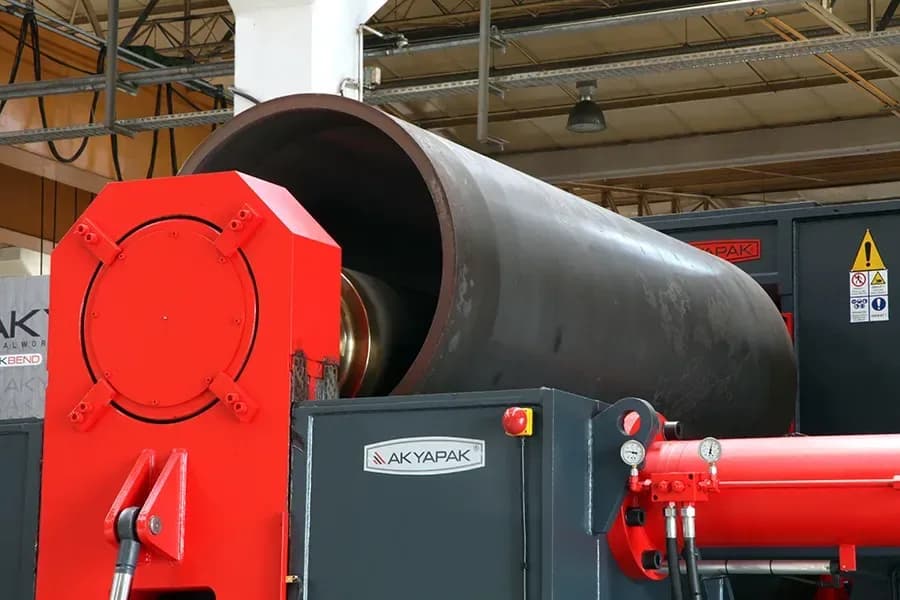

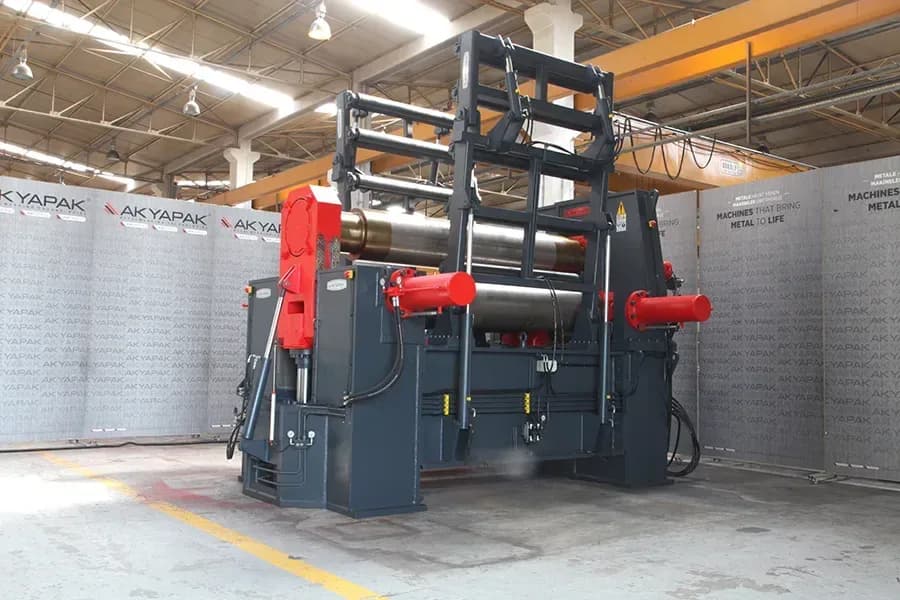

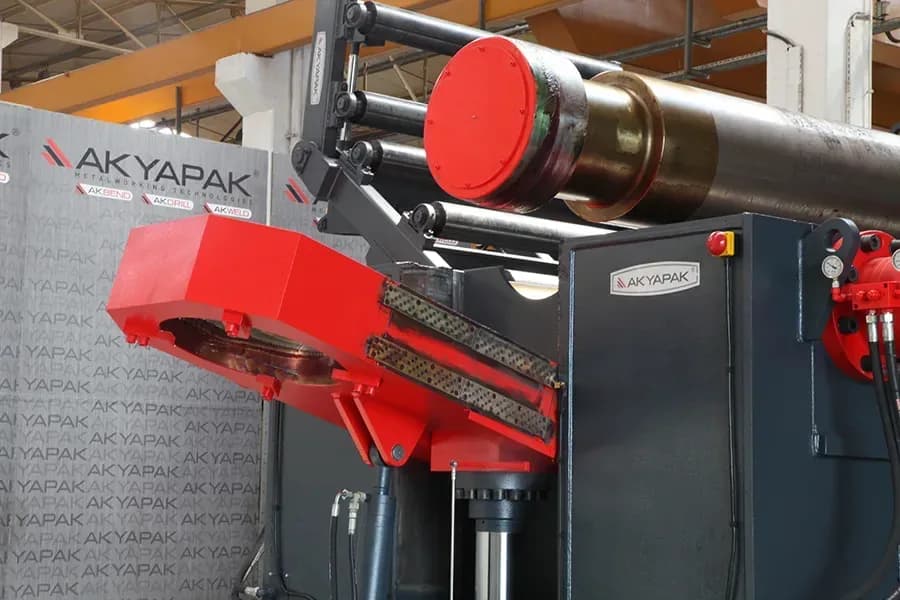

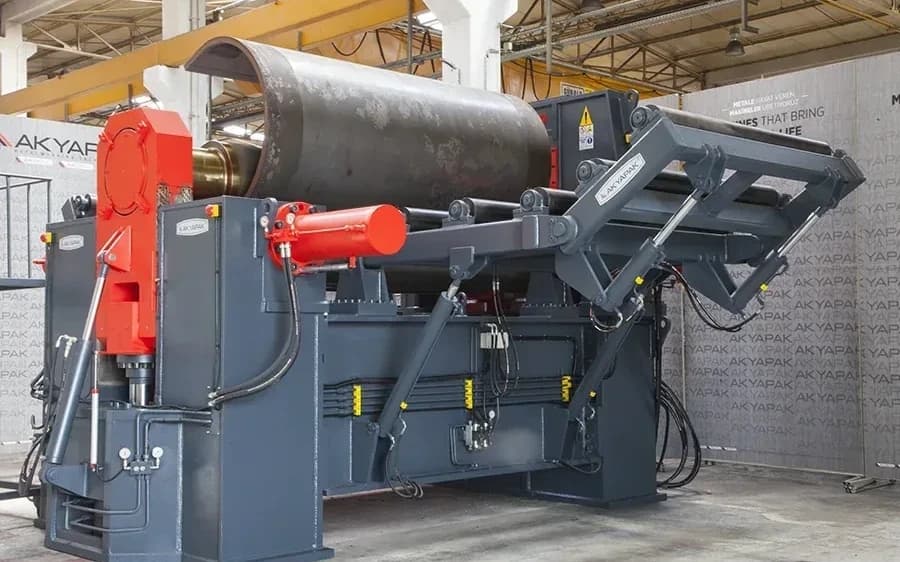

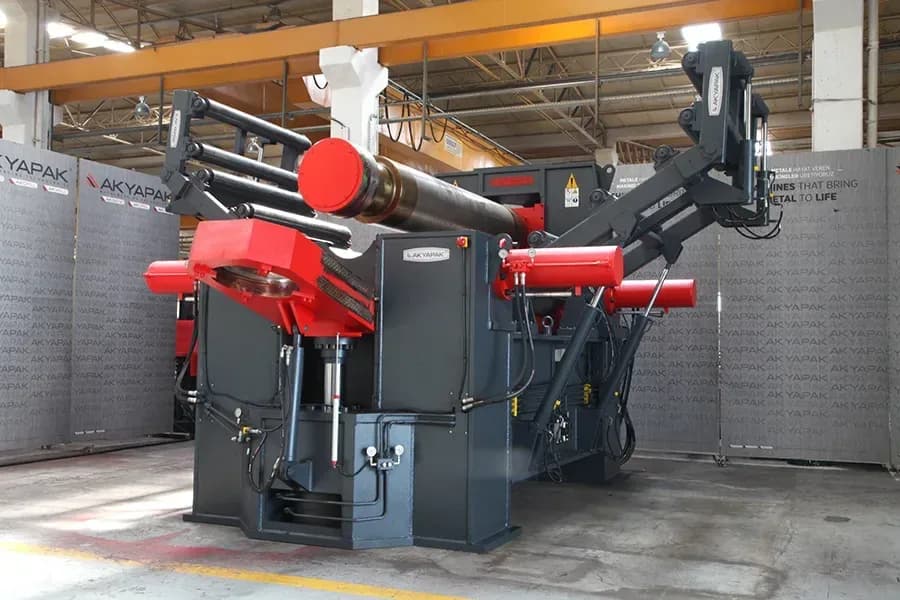

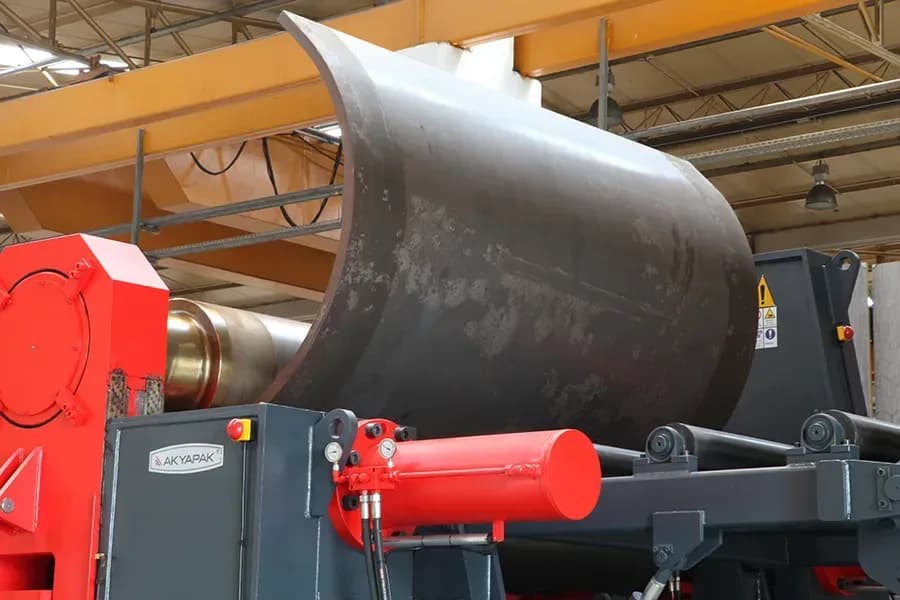

AHV in Detail
Full Specifications
Akyapak AHV 3-Roll Variable Geometry Plate Roll Technical Details
Complete specifications, standard features, and optional upgrades.
- Configuration
- 3-roll variable geometry hydraulic
- Working length
- 3,100 mm (10 ft)
- Max. plate thickness
- 85 mm to 260 mm depending on model
- Pre-bending thickness
- 70 mm to 240 mm depending on model
- Motor power range
- 75 kW to 280 kW
- Weight range
- 48,000 kg to 348,000 kg
- Roll material
- Induction hardened, precision ground
- Frame construction
- Fully welded St-52 steel
- Certifications
- CE, ISO 9001-2015, TSEK, TURQUM
| Configuration | 3-roll variable geometry hydraulic |
| Working length | 3,100 mm (10 ft) |
| Max. plate thickness | 85 mm to 260 mm depending on model |
| Pre-bending thickness | 70 mm to 240 mm depending on model |
| Motor power range | 75 kW to 280 kW |
| Weight range | 48,000 kg to 348,000 kg |
| Roll material | Induction hardened, precision ground |
| Frame construction | Fully welded St-52 steel |
| Certifications | CE, ISO 9001-2015, TSEK, TURQUM |
- Independent three-axis roll positioning — top roll vertical, side rolls horizontal — for full geometric control
- Switch between asymmetric layout (minimal flat ends) and symmetric stance (peak thickness capacity) without tooling changes
- Electronic parallelism monitoring keeps rolls aligned during heavy bending passes
- Dedicated braking system grips the plate during feeding to prevent slippage and misalignment
- Linear guide rails on all moving axes for smooth, repeatable roll travel
- Rolls induction hardened with a built-in permanent lubrication system
- Cone bending capability with adjustments accessible from the operator panel

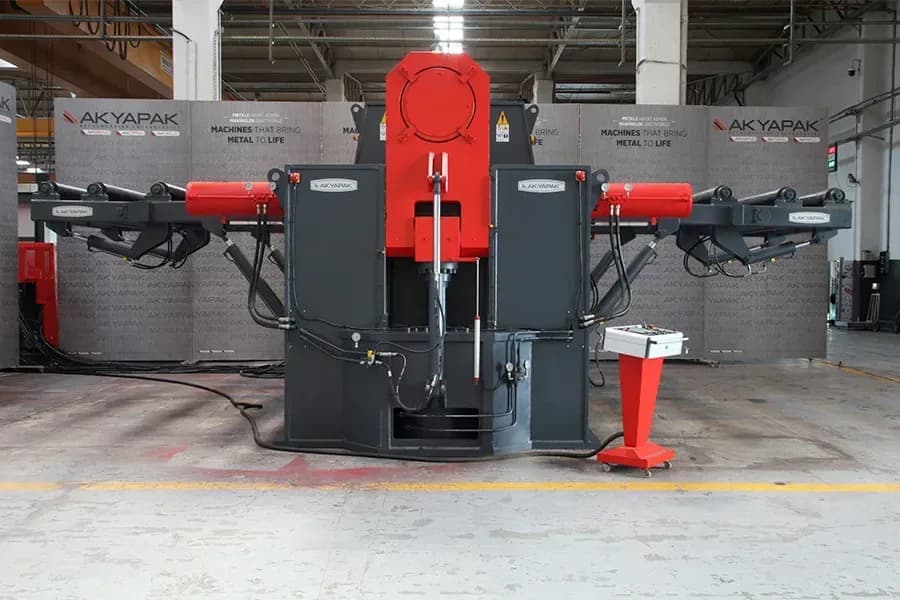

- Mobile control station for flexible operator positioning
- Full perimeter safety guarding included as standard
- Infinitely variable roll rotation speed

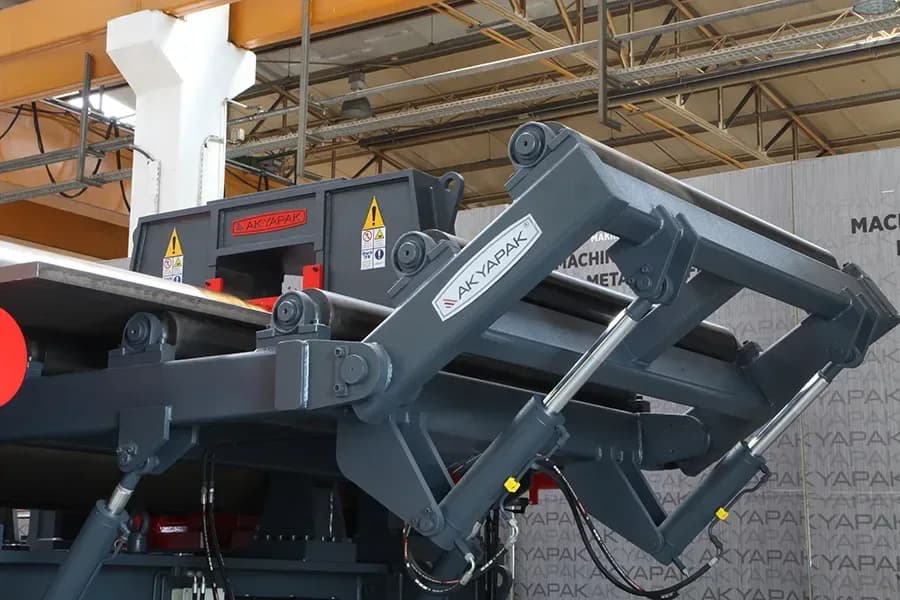

- Plate feeding tables in multiple configurations
- Centre and side supports for oversized workpieces
- Oil-air cooling for sustained heavy-duty operation
- Automated plate loading and part unloading
- Power-driven material ejection system
- Interchangeable top roll for smaller minimum diameters

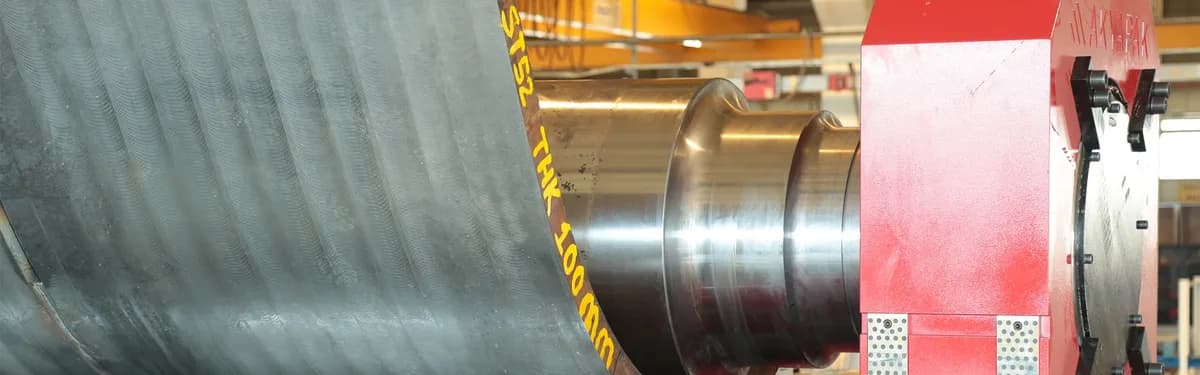

- Heavy plate forming for pressure vessels and tanks
- Thick-wall cylinder and cone production
- Shipbuilding and offshore fabrication
- Wind energy and power generation components
- Heavy structural steel forming
