Plate Rolls
AHK
by Akyapak

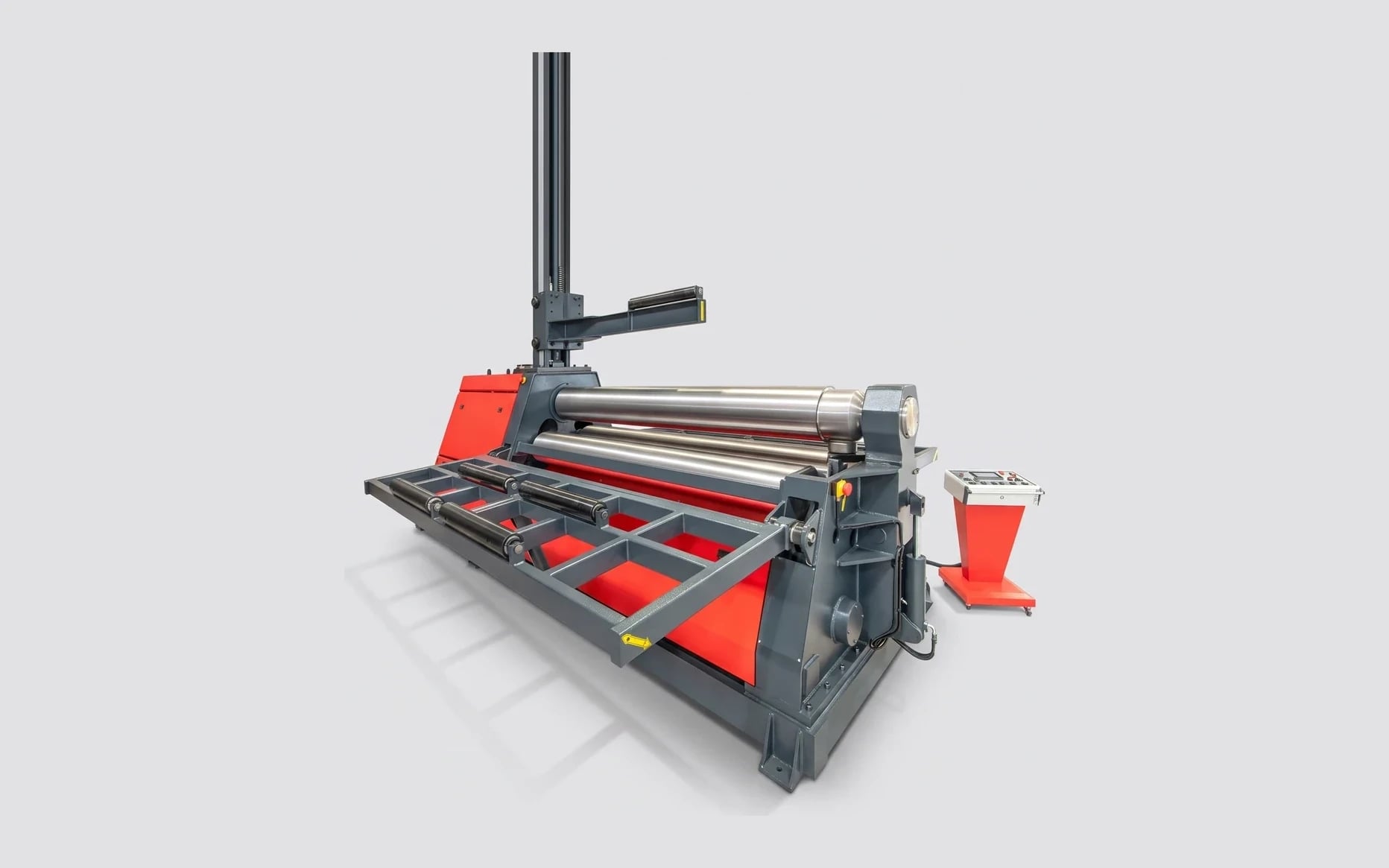

Three-roll hydraulic plate roll with independent drive on every roll, handling 2–200 mm plate up to 12,000 mm wide
3-roll hydraulic, all rolls independently driven
Configuration
2 mm to 200 mm (14 ga. to 8")
Max. plate thickness
500 mm to 12,000 mm (20" to 40 ft)
Max. plate width
Not sure if the AHK is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabrication shops needing a reliable, cost-effective 3-roll plate roll for everyday production
- Operations requiring pre-bending on both sides without re-inserting the plate
- Manufacturers processing plate from light gauge up to 200 mm thick
Configuration
3-roll hydraulic, all rolls independently driven
Max. plate thickness
2 mm to 200 mm (14 ga. to 8")
Max. plate width
500 mm to 12,000 mm (20" to 40 ft)
Working length range
2,100 mm to 4,100 mm (6 ft to 13 ft 3")
Key Features
AHK Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Pre-bends on both sides without removing or repositioning the plate
- Rolls induction hardened and precision ground for long service life and consistent contact
- Two rolling speeds — fast traverse for positioning, reduced speed for finish bending
- Spherical roller bearings support every roll for smooth, low-friction rotation
Ease of Operation
- Integrated cone rolling with opening and position adjustments from the control panel
- Hydraulic drop-end mechanism for quick part removal, operated from the control station
- Mobile control station for unobstructed operator sightlines
Built-In Extras
- Plate braking system holds material firmly during feeding to prevent slippage
- Digital position readout for both side rolls
- Independent hydraulic drive on all three rolls eliminates inter-roll power loss for uniform bending force
Gallery

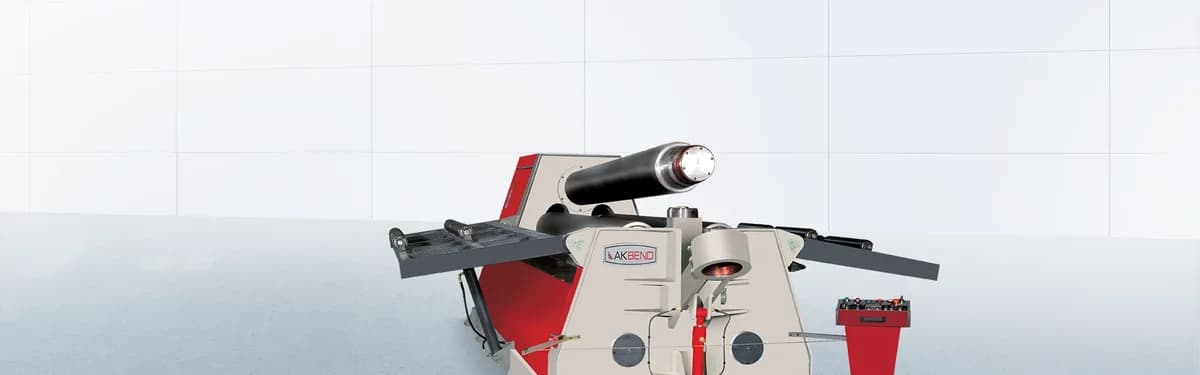

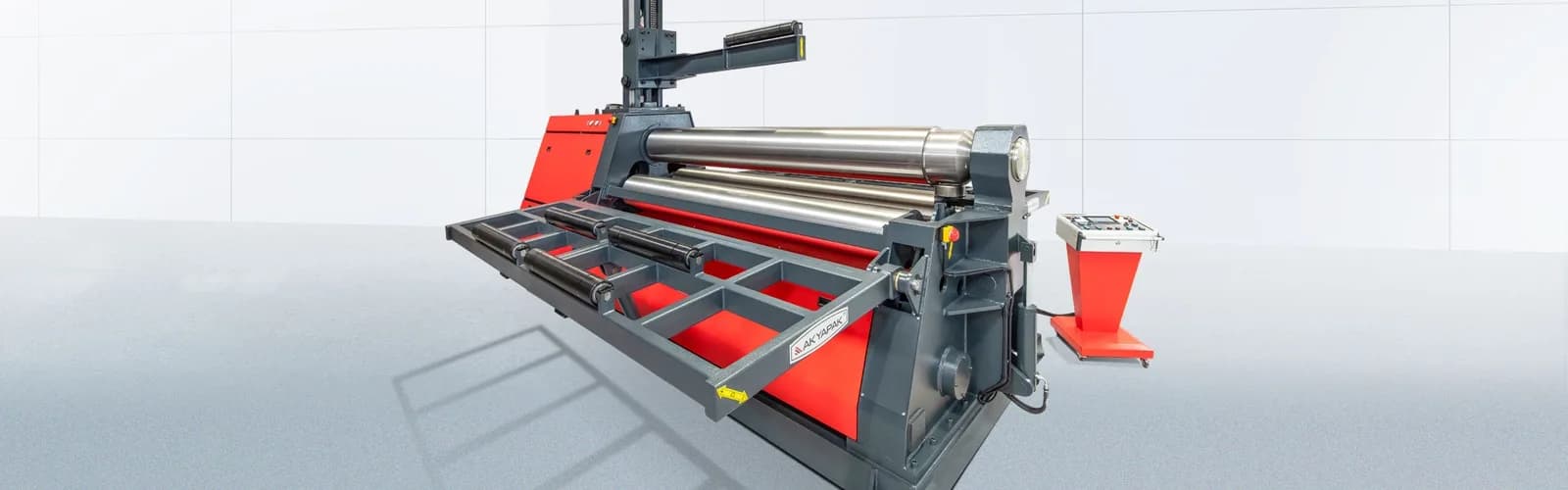

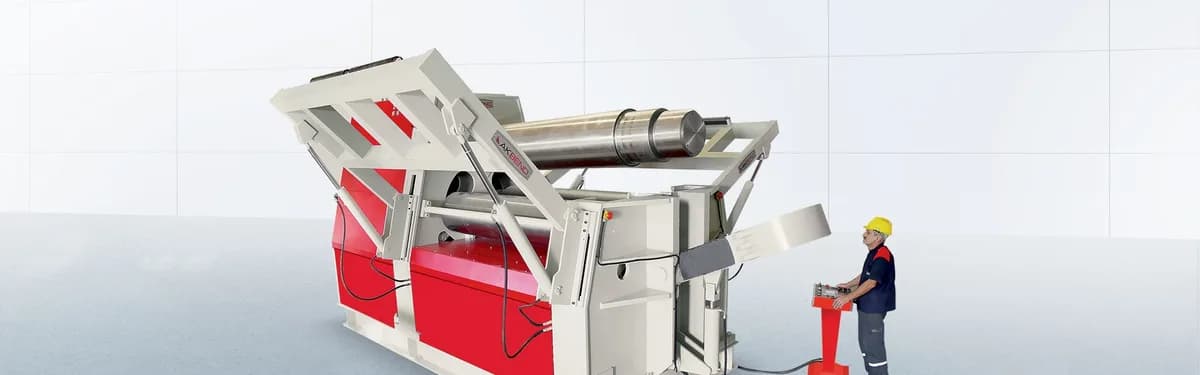

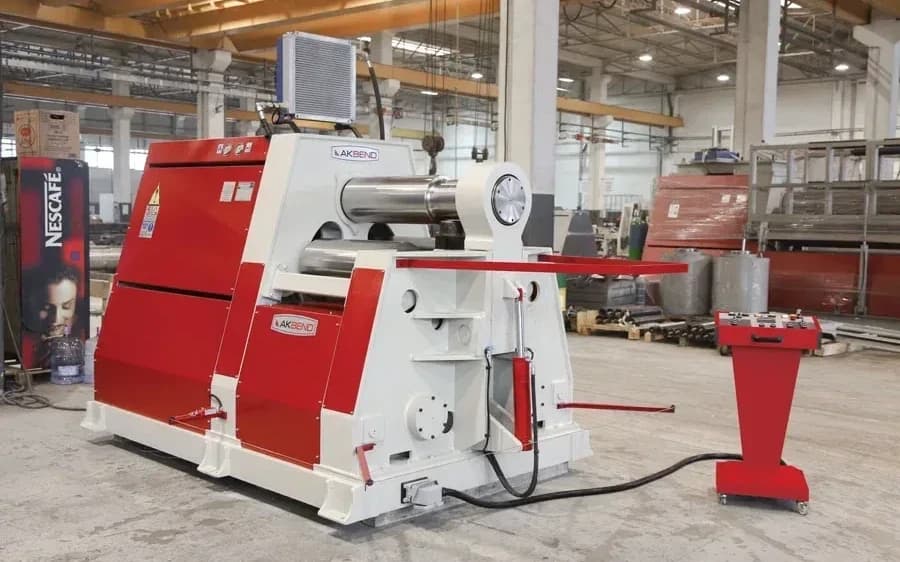

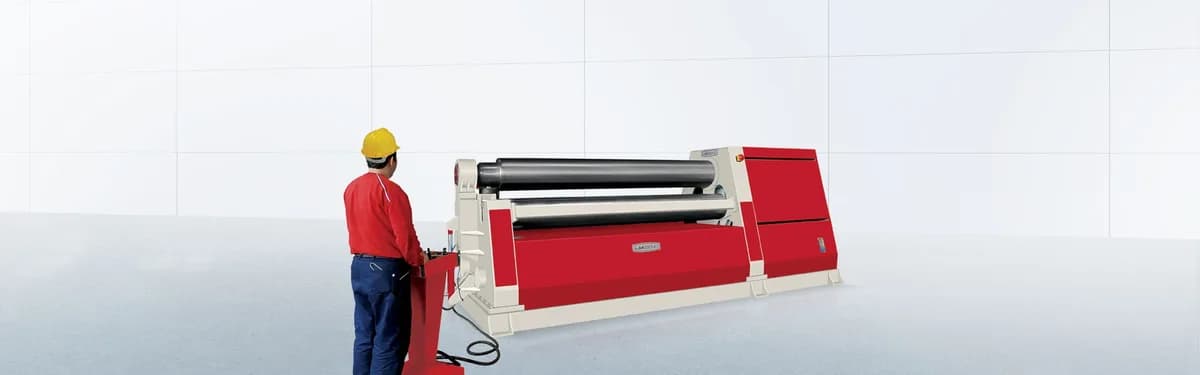

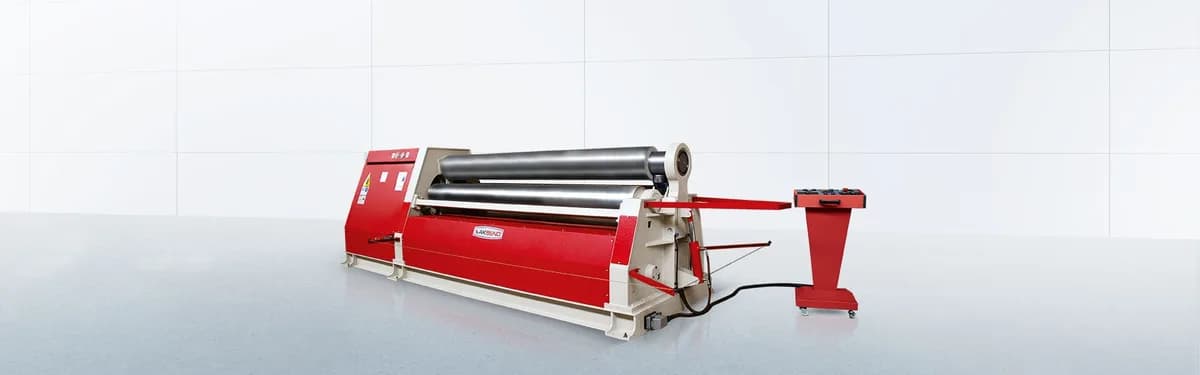

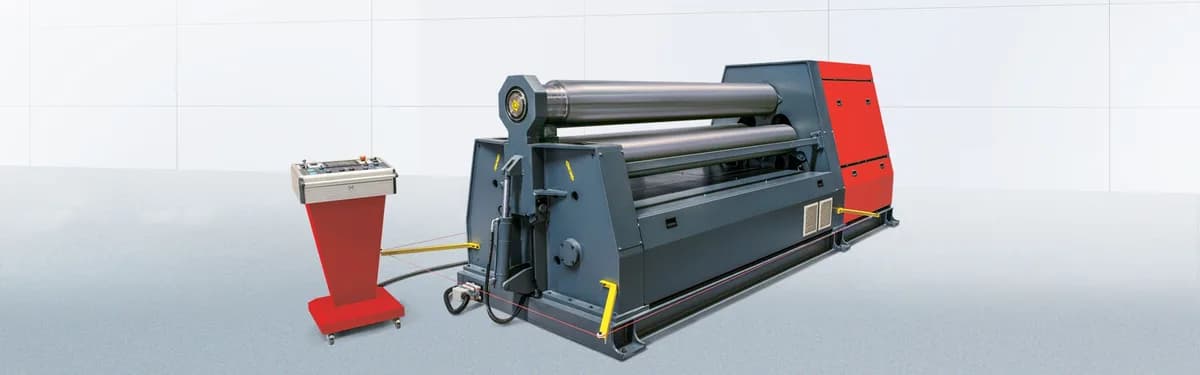

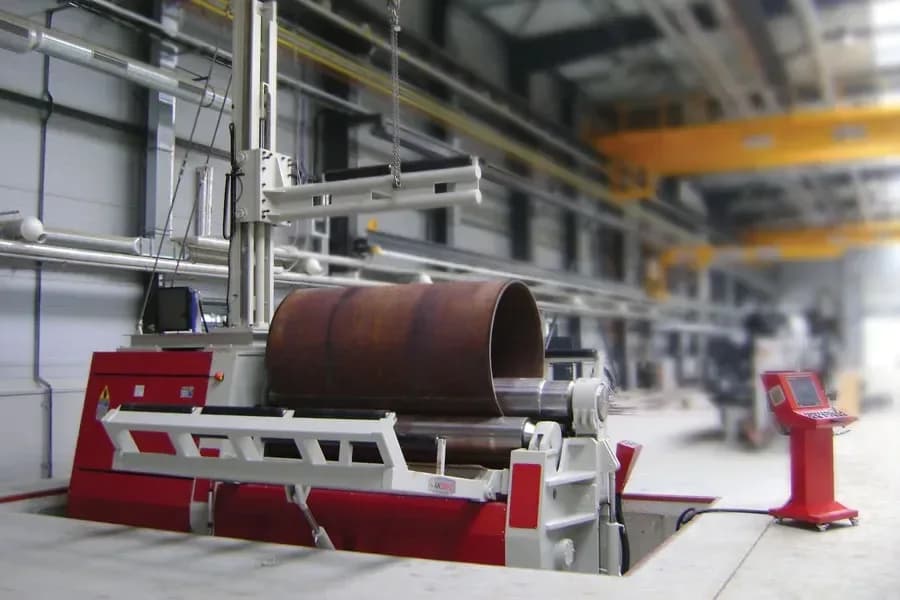

AHK in Detail
Video
See the AHK in Action
Full Specifications
Akyapak AHK 3-Roll Plate Roll Technical Details
Complete specifications, standard features, and optional upgrades.
- Configuration
- 3-roll hydraulic, all rolls independently driven
- Max. plate thickness
- 2 mm to 200 mm (14 ga. to 8")
- Max. plate width
- 500 mm to 12,000 mm (20" to 40 ft)
- Working length range
- 2,100 mm to 4,100 mm (6 ft to 13 ft 3")
- Motor power range
- 2.2 kW to 50 kW
- Roll material
- Induction hardened, precision ground
- Frame construction
- Fully welded St-52 steel
- Certifications
- CE, ISO 9001-2015, TSEK, TURQUM
| Configuration | 3-roll hydraulic, all rolls independently driven |
| Max. plate thickness | 2 mm to 200 mm (14 ga. to 8") |
| Max. plate width | 500 mm to 12,000 mm (20" to 40 ft) |
| Working length range | 2,100 mm to 4,100 mm (6 ft to 13 ft 3") |
| Motor power range | 2.2 kW to 50 kW |
| Roll material | Induction hardened, precision ground |
| Frame construction | Fully welded St-52 steel |
| Certifications | CE, ISO 9001-2015, TSEK, TURQUM |
- Independent hydraulic drive on all three rolls eliminates inter-roll power loss for uniform bending force
- Pre-bends on both sides without removing or repositioning the plate
- Plate braking system holds material firmly during feeding to prevent slippage
- Rolls induction hardened and precision ground for long service life and consistent contact
- Integrated cone rolling with opening and position adjustments from the control panel
- Hydraulic drop-end mechanism for quick part removal, operated from the control station
- Two rolling speeds — fast traverse for positioning, reduced speed for finish bending
- Spherical roller bearings support every roll for smooth, low-friction rotation
- Digital position readout for both side rolls
- Mobile control station for unobstructed operator sightlines
- Infinitely variable roll rotation speed
- Centre and side supports for large-diameter shells
- Plate feeding table in multiple layout options
- Swappable top roll for achieving tighter minimum diameters
- Oil-air cooling system for extended production runs
- Automated material ejector
- Extended-length roll options
- Variable-voltage, variable-frequency motor options
- Cylinder and cone forming from flat plate
- Pressure vessel and tank fabrication
- Structural steel rolling and forming
- Pipe and tube section production
- General metal fabrication and plate bending
Ready to Discuss the AHK?
Our team has 19+ years of experience helping Canadian manufacturers find the right cutting and processing equipment.
19+
Years in Business
50+
Machine Models
900+
Happy Customers
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Financing Available
Flexible payment options on qualifying equipment.
Or email us at [email protected]
Related
Explore More Plate Rolls Systems
Compare specifications and find the right machine for your application.

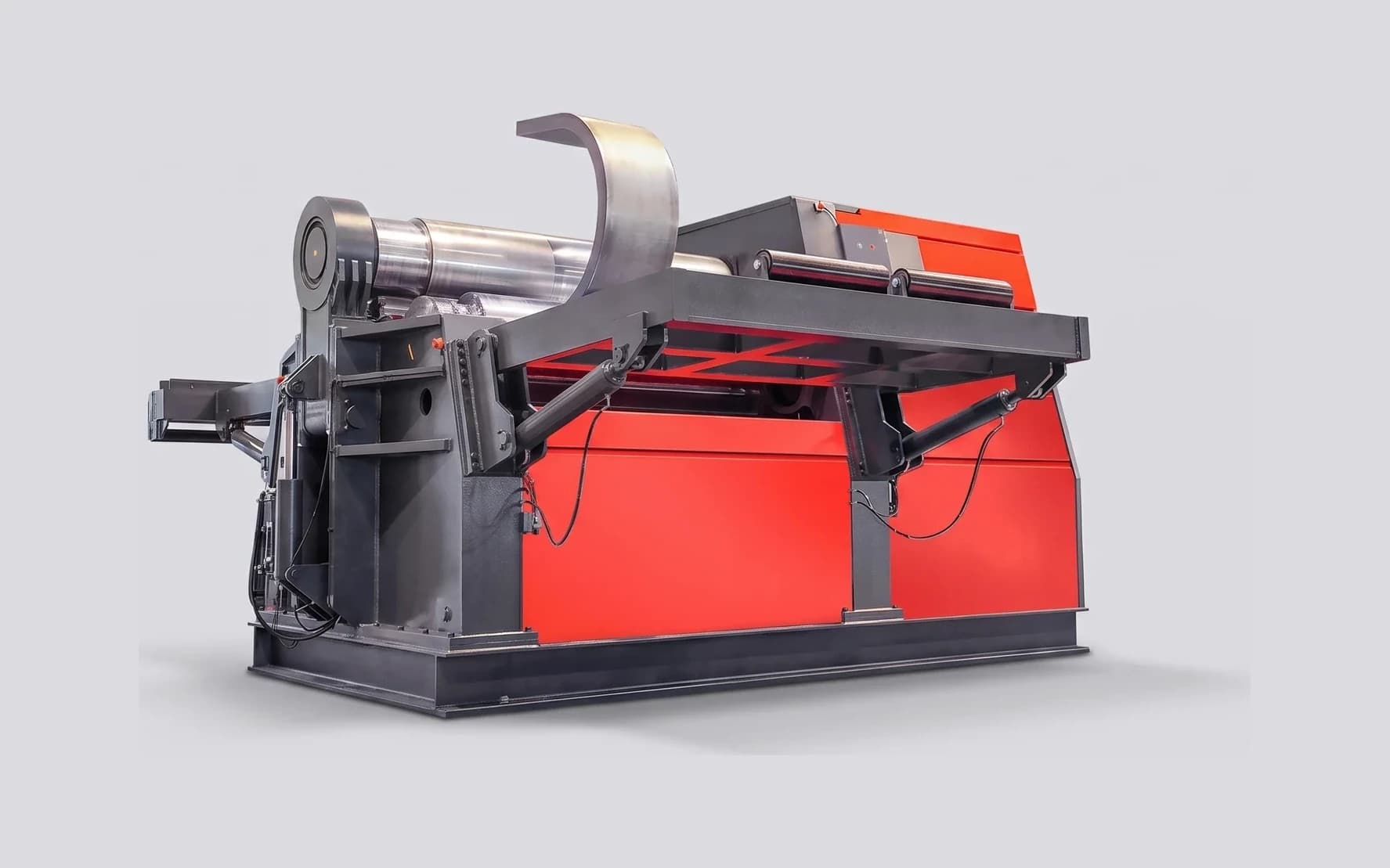

4-roll hydraulic plate rolling machine
AHS 4-Roll
Built around a four-roll hydraulic configuration, the AHS handles plate from 2 mm up to 200 mm thick and widths spanning 500 mm to 12,000 mm. Its pinch-and-roll approach grips the workpiece between the upper and lower rolls, completing a full cylinder without repositioning the plate. A planetary lever-arm drive system concentrates bending force where it counts, keeping flat-end waste to a minimum. The working range spans models from compact 1,250 mm units to full-production 6,100 mm lines, with NC or CNC control options depending on your throughput needs. AC Machinery supplies and supports the full AHS range from Cambridge, Ontario.
4-roll wind tower bending line

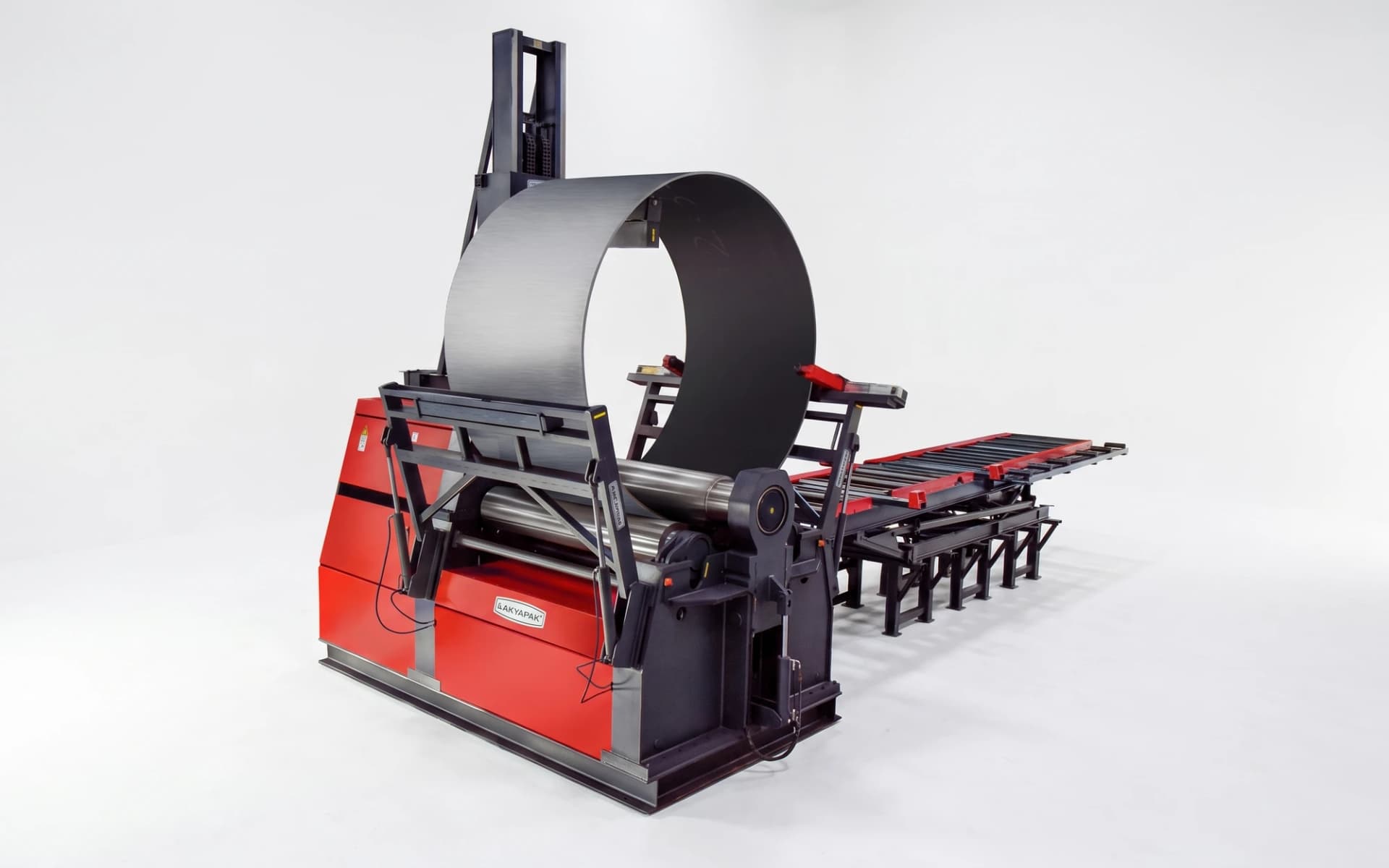

AHS-RK
The AHS-RK pairs a full AHS four-roll platform with column-boom welding stations and turning rotators in a single coordinated production line. Designed for wind energy fabricators, it moves plate from rolling through longitudinal and circumferential welding without manual handling between stages. The result is shorter cycle times, tighter dimensional consistency, and higher daily output on tower shell sections. Backed by over five decades of Akyapak heavy-rolling expertise, the AHS-RK is supplied and supported by AC Machinery from Cambridge, Ontario.

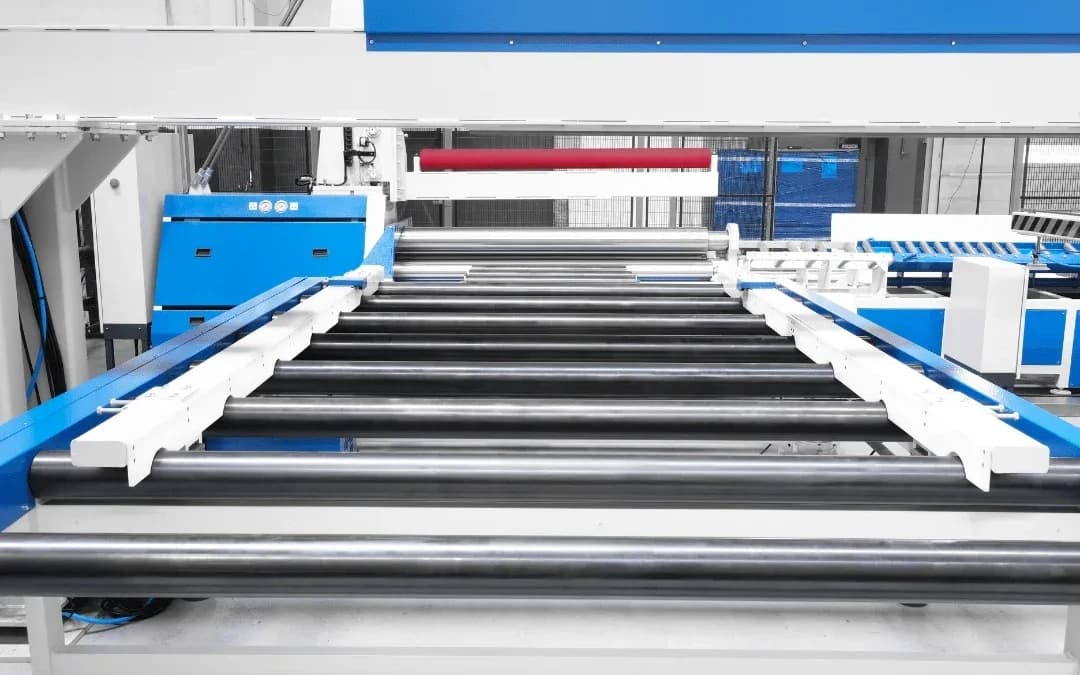

4-roll automated plate rolling line
