Plasma

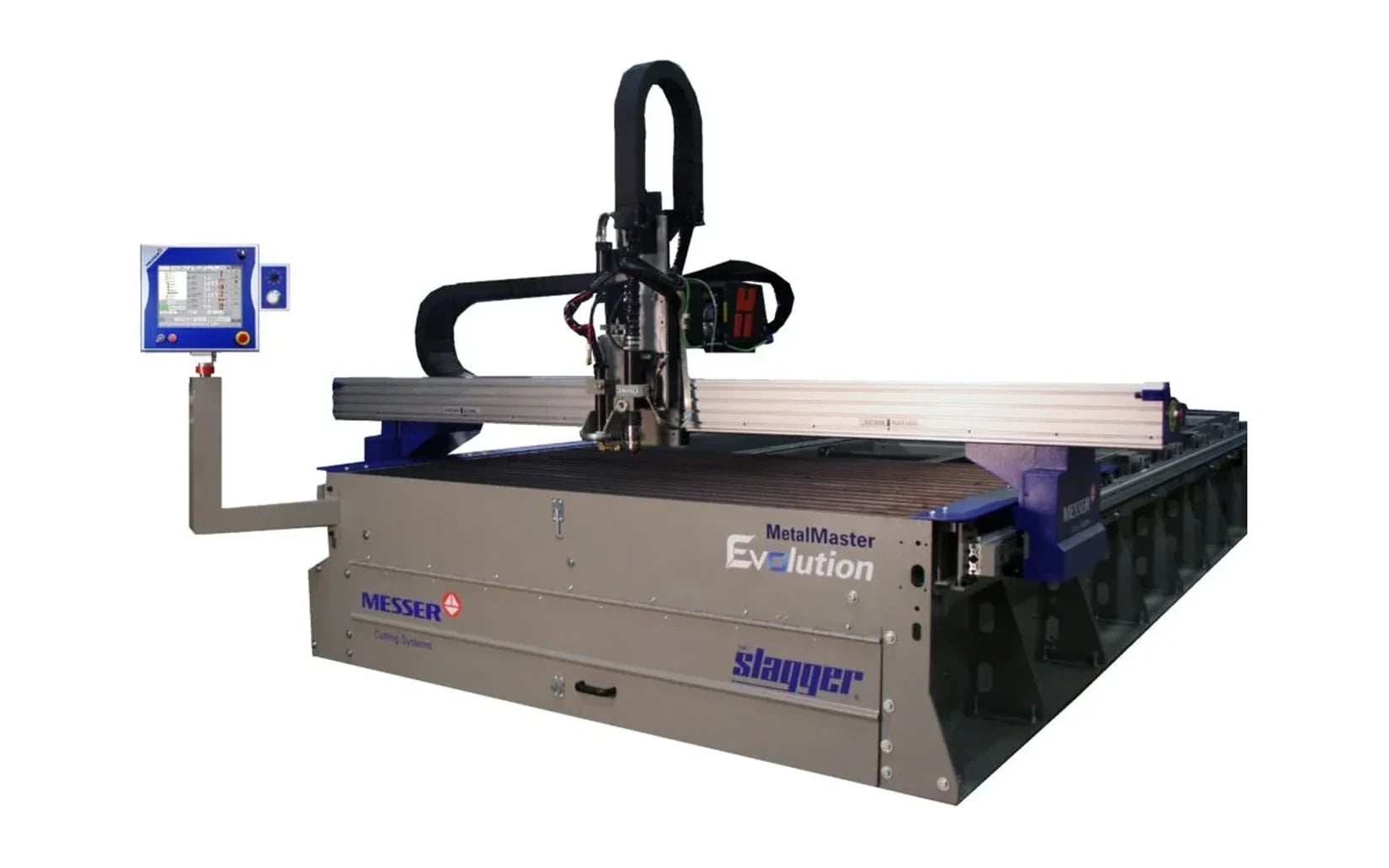

MetalMaster Evolution
Highest acceleration, advanced precision, rack-and-pinion drive
6' (1.8 m), 8' (2.4 m), and 10' (3 m)
Cutting widths
10' expandable in 5' increments up to 50' (15.24 m)
Cutting lengths
26 gauge to 3"
Material thickness
Not sure if the MetalMaster Evolution is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Mid-size fabrication shops seeking a versatile, expandable plasma platform
- Facilities cutting mild steel, stainless steel, and aluminum up to 3" thick
- Operations wanting to consolidate plasma, oxyfuel, drilling, and marking on one machine
- Shops upgrading from manual or older CNC plasma systems
- Teams wanting fast operator onboarding with an intuitive touchscreen CNC
Cutting widths
6' (1.8 m), 8' (2.4 m), and 10' (3 m)
Cutting lengths
10' expandable in 5' increments up to 50' (15.24 m)
Material thickness
26 gauge to 3"
Materials
Mild steel, stainless steel, aluminum
Key Features
MetalMaster Evolution Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

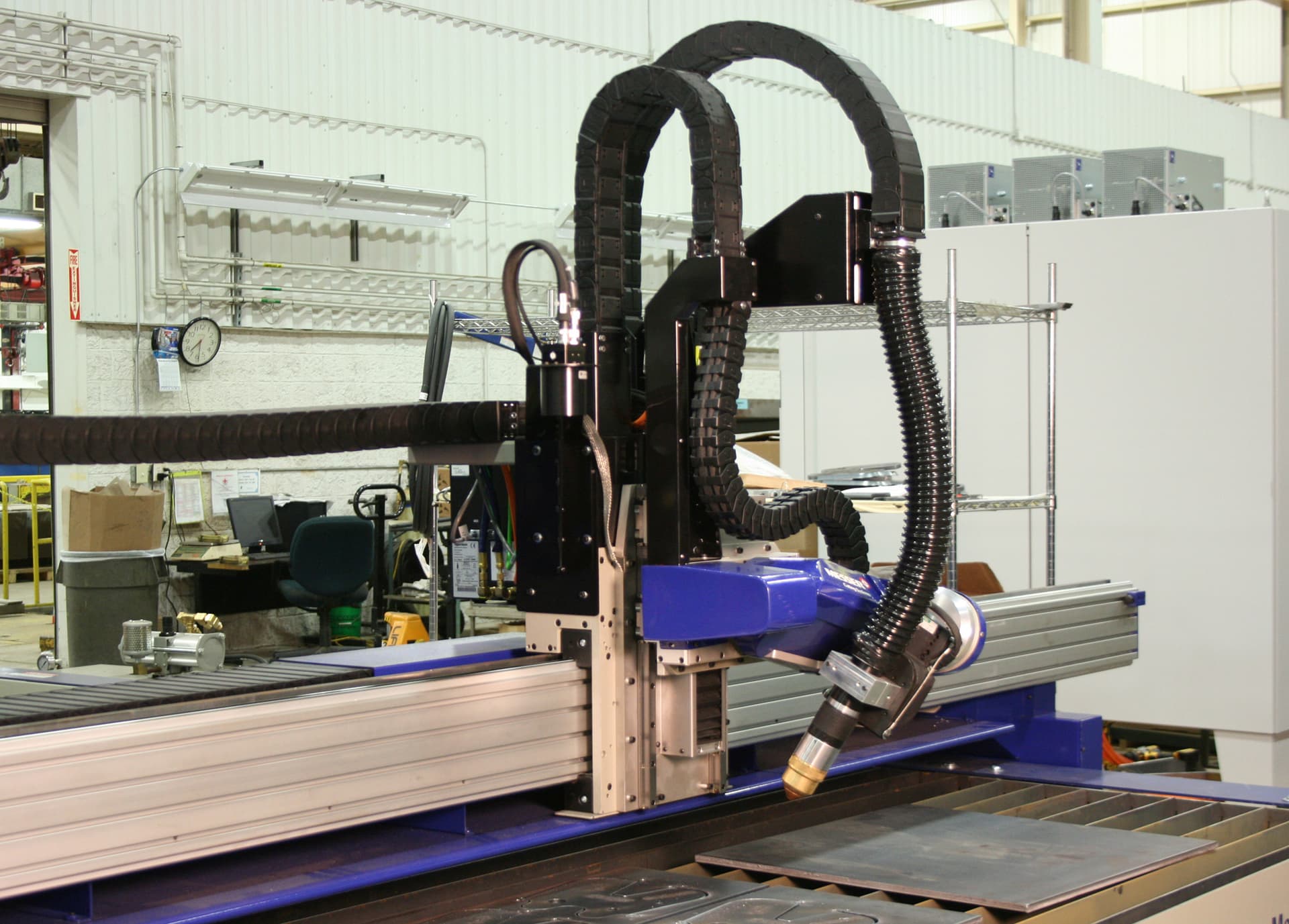

- High-speed CSL200 torch lifter for fast positioning

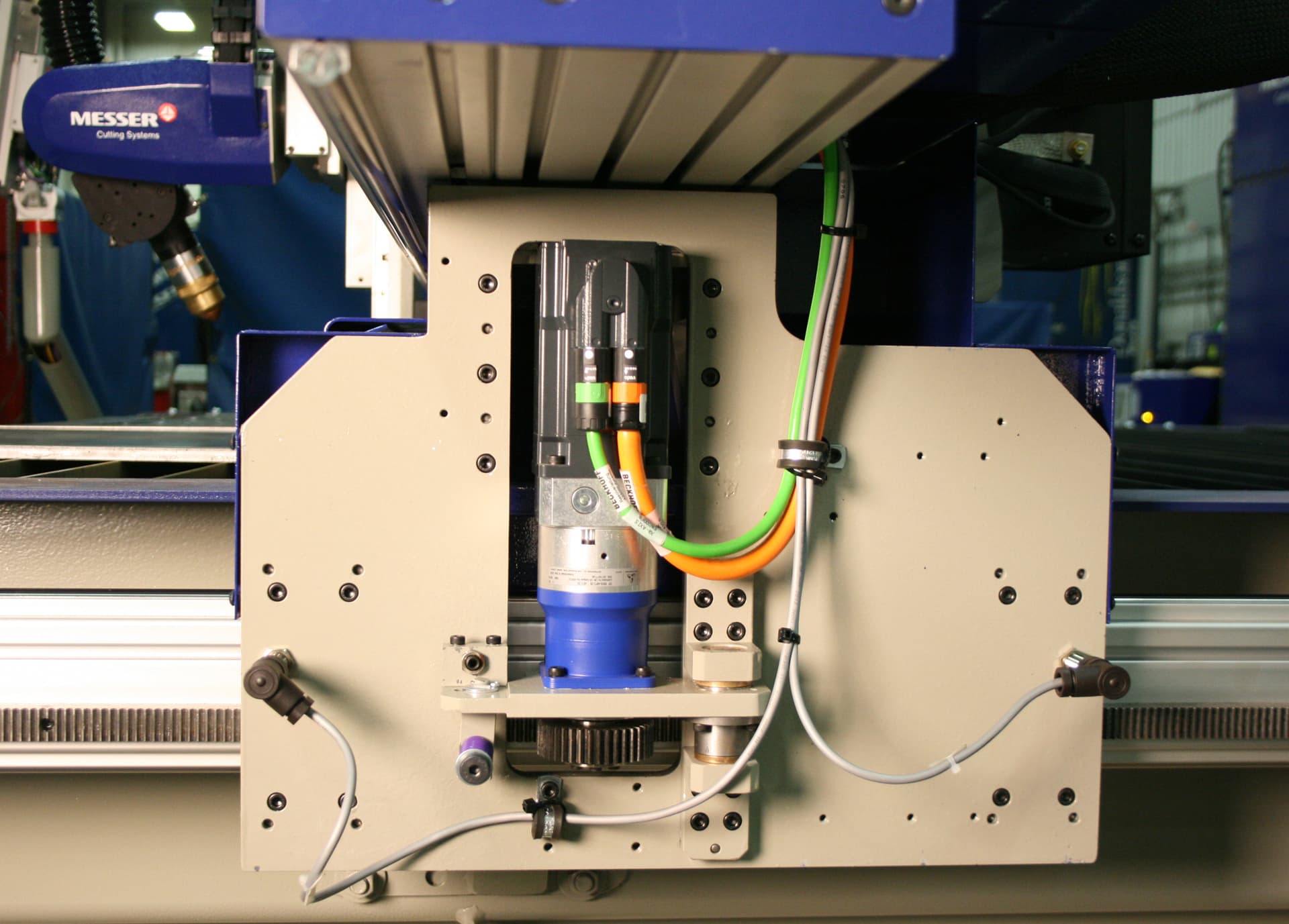

- Precision rack-and-pinion drives with ultra-smooth planetary gearboxes
- Dual X-axis drives for accurate, stable cutting motion
- Gothic arch bearings with eight contact points per carriage for smooth, precise travel
- Cross-braced extruded aluminum beam for high rigidity at reduced weight
Ease of Operation
- Global ControlS CNC with Windows-based touchscreen interface
- Custom shape library, CAD import, and True-Shape Nesting built into control
- Virtual Service™ remote diagnostics and consultation
- Right- or left-hand mounted control console with tilt and swivel
- Modular design for fast installation and relocation
Safety & Reliability
- SureStop collision sensor with easy and accurate reset
- Designed and manufactured to machine tool and ISO 230-2 standards
- UL/CUL certified for Canadian and U.S. operation
Cutting Capability

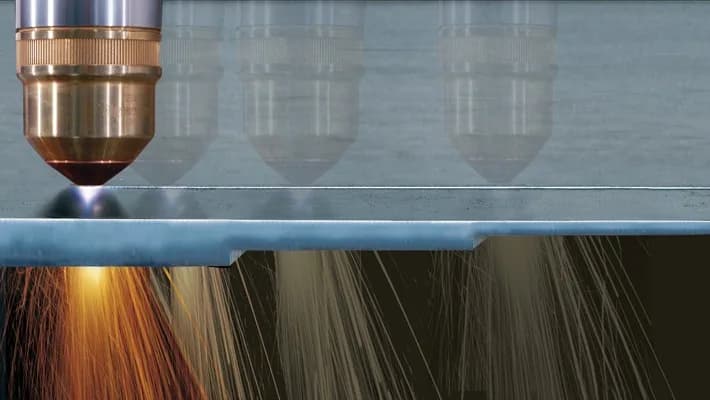

- Advanced plasma technology for consistent piercing and faster cutting
- Expandable table lengths in 5' increments (ways and racks attached via extrusion grooves)
Built-In Extras

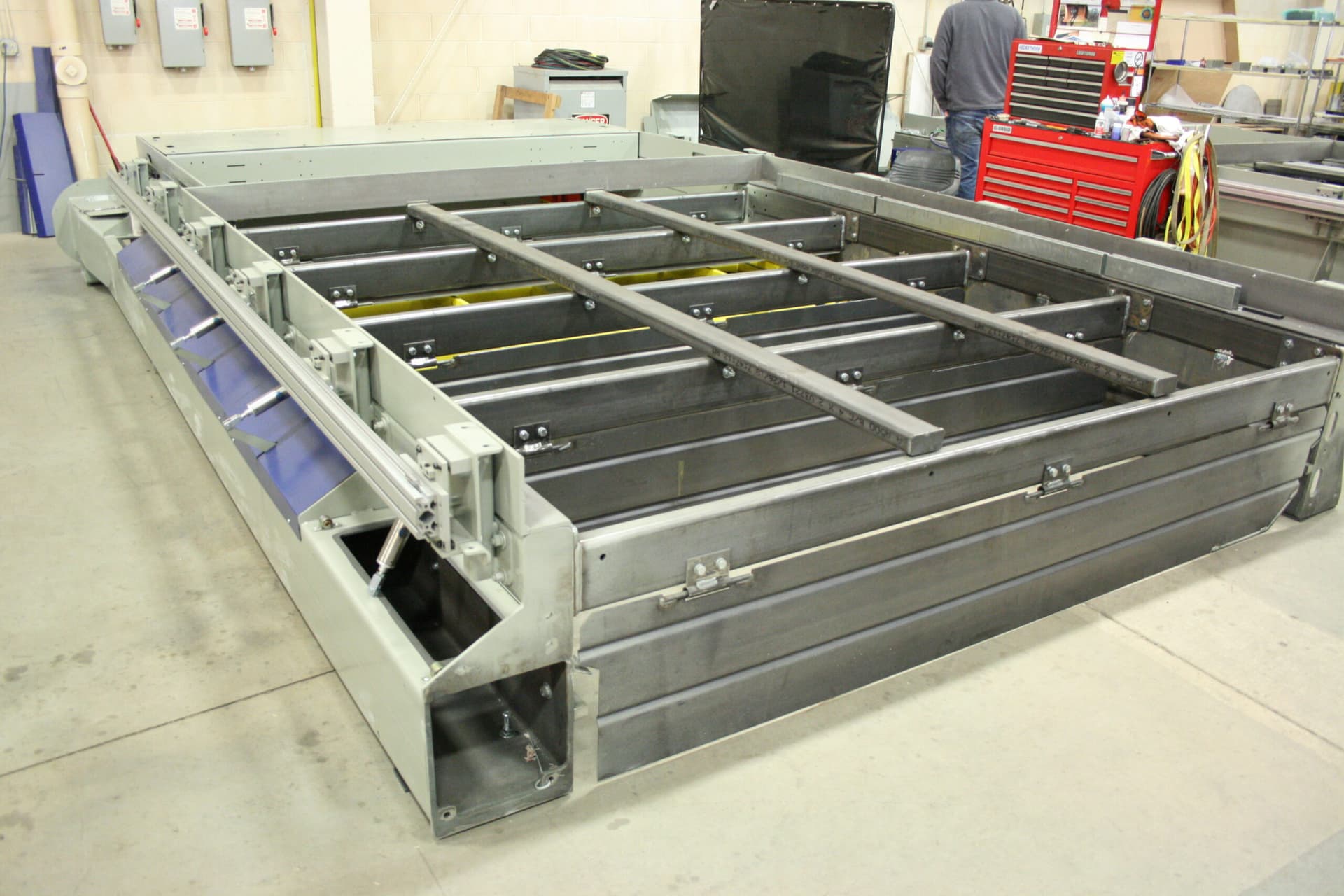

- Slagger® self-cleaning zoned and ducted dry exhaust table (no manual slat cleaning required)
- Multiple reference point positions for efficient start-of-cut locations
Gallery

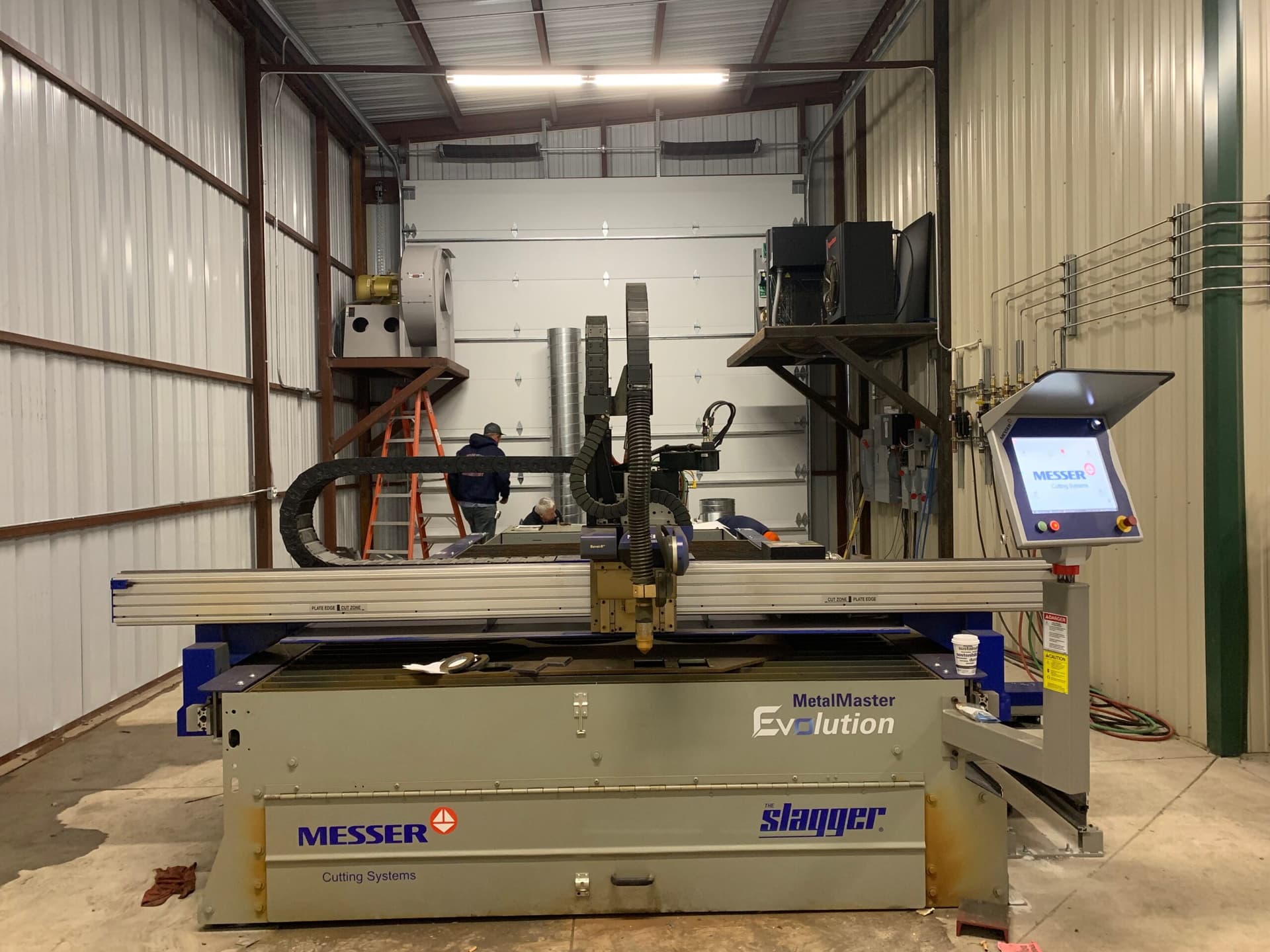

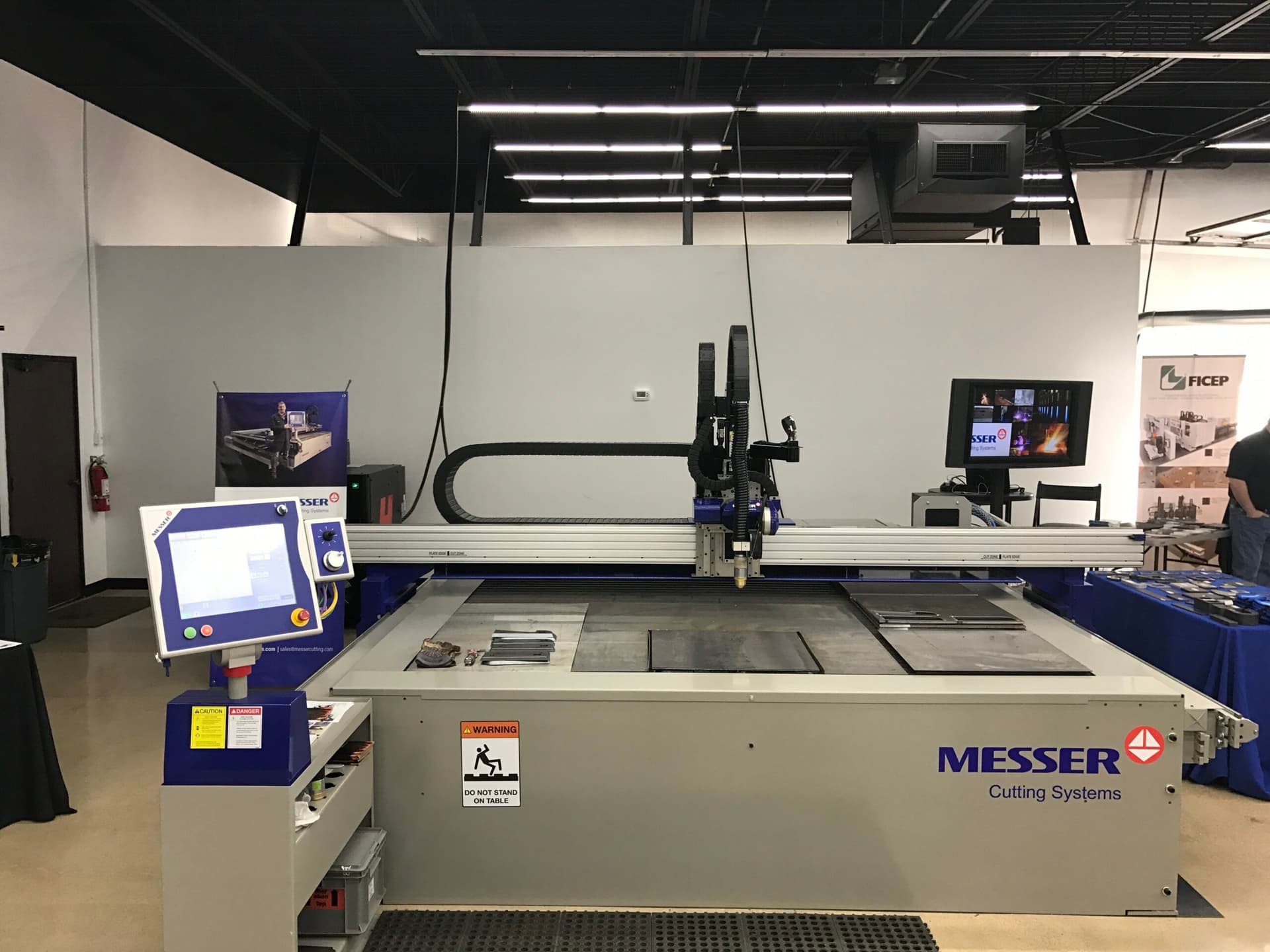

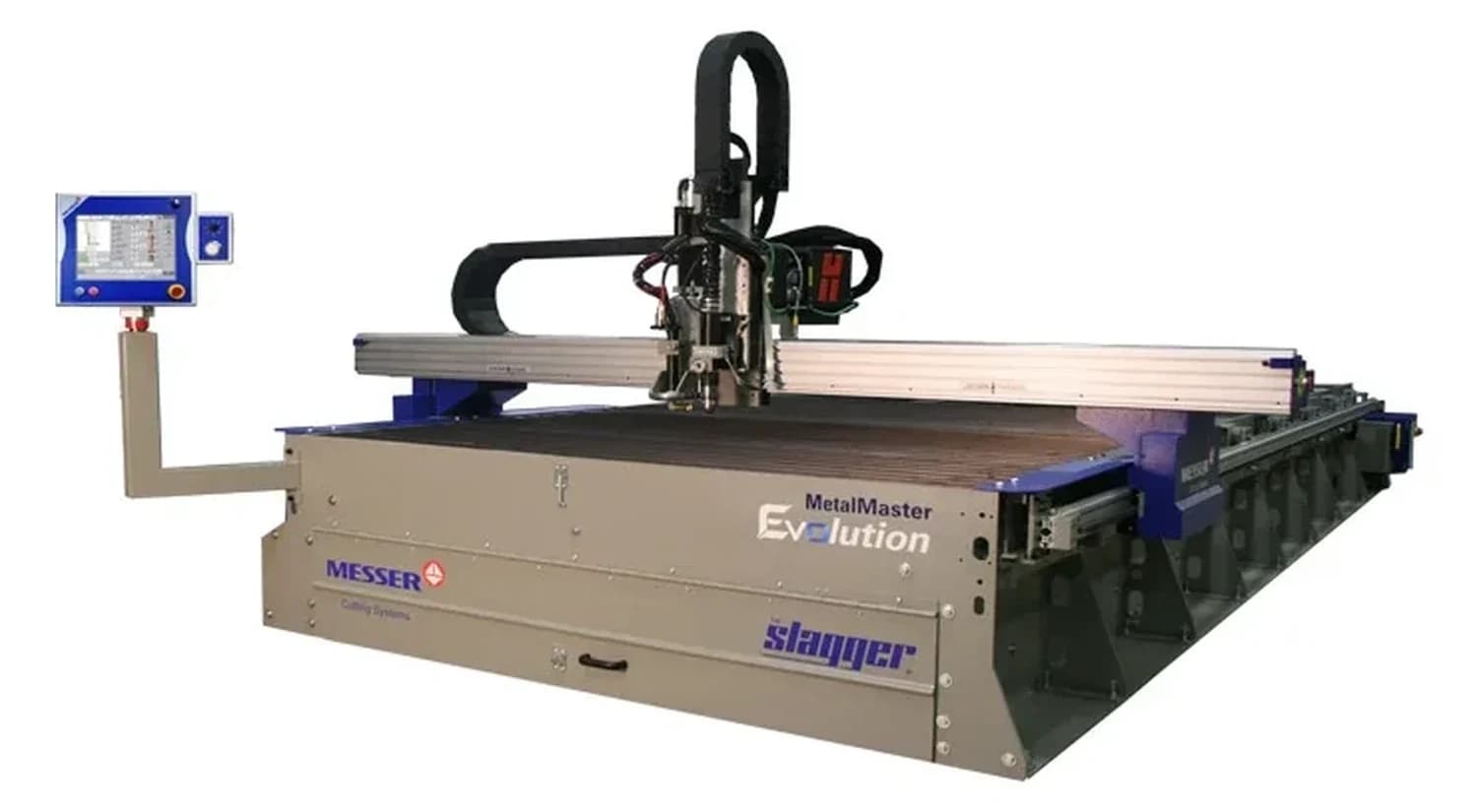

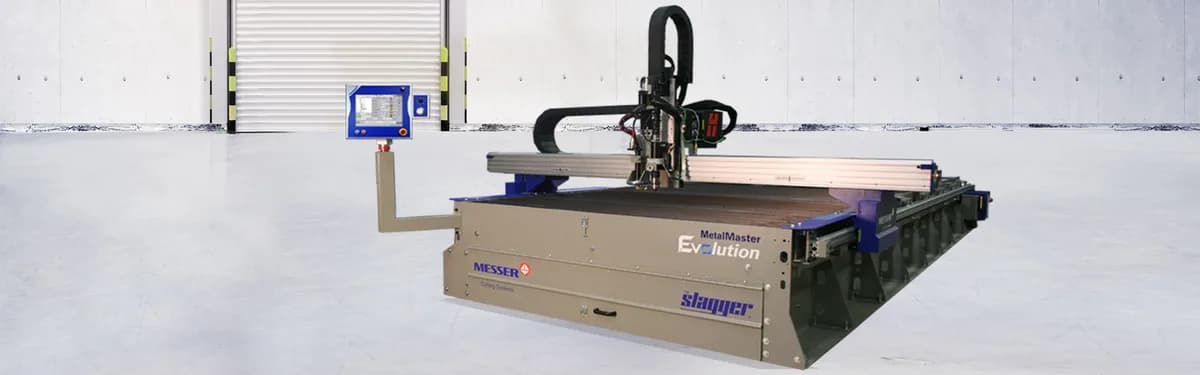

MetalMaster Evolution in Detail
Video
See the MetalMaster Evolution in Action
Full Specifications
MetalMaster Evolution Technical Details
Complete specifications, standard features, and optional upgrades.
- Cutting widths
- 6' (1.8 m), 8' (2.4 m), and 10' (3 m)
- Cutting lengths
- 10' expandable in 5' increments up to 50' (15.24 m)
- Material thickness
- 26 gauge to 3"
- Materials
- Mild steel, stainless steel, aluminum
- Motion accuracy
- +/-0.002" (0.45 mm) over any 6'x10' area, laser interferometer verified
- Positioning speed
- Up to 1,700 IPM
- Acceleration
- 38 in/sec² in all axes
- Contouring speed
- Up to 400 IPM
- Drive system
- Precision rack-and-pinion (X and Y) with ultra-smooth planetary gearboxes and dual X-axis drives
- Bearing system
- Gothic arch bearings on circular ways with eight contact points per carriage
- Beam construction
- Cross-braced extruded aluminum for high rigidity and reduced weight
- Standard table
- Slagger® self-cleaning zoned and ducted dry exhaust table
- CNC control
- Global ControlS (Windows-based) with touchscreen, custom shape library, CAD import, and True-Shape Nesting
| Cutting widths | 6' (1.8 m), 8' (2.4 m), and 10' (3 m) |
| Cutting lengths | 10' expandable in 5' increments up to 50' (15.24 m) |
| Material thickness | 26 gauge to 3" |
| Materials | Mild steel, stainless steel, aluminum |
| Motion accuracy | +/-0.002" (0.45 mm) over any 6'x10' area, laser interferometer verified |
| Positioning speed | Up to 1,700 IPM |
| Acceleration | 38 in/sec² in all axes |
| Contouring speed | Up to 400 IPM |
| Drive system | Precision rack-and-pinion (X and Y) with ultra-smooth planetary gearboxes and dual X-axis drives |
| Bearing system | Gothic arch bearings on circular ways with eight contact points per carriage |
| Beam construction | Cross-braced extruded aluminum for high rigidity and reduced weight |
| Standard table | Slagger® self-cleaning zoned and ducted dry exhaust table |
| CNC control | Global ControlS (Windows-based) with touchscreen, custom shape library, CAD import, and True-Shape Nesting |
- Slagger® self-cleaning zoned and ducted dry exhaust table (no manual slat cleaning required)
- Global ControlS CNC with Windows-based touchscreen interface
- Custom shape library, CAD import, and True-Shape Nesting built into control
- Virtual Service™ remote diagnostics and consultation
- SureStop collision sensor with easy and accurate reset
- High-speed CSL200 torch lifter for fast positioning
- Precision rack-and-pinion drives with ultra-smooth planetary gearboxes
- Dual X-axis drives for accurate, stable cutting motion
- Gothic arch bearings with eight contact points per carriage for smooth, precise travel
- Cross-braced extruded aluminum beam for high rigidity at reduced weight
- Right- or left-hand mounted control console with tilt and swivel
- Multiple reference point positions for efficient start-of-cut locations
- Advanced plasma technology for consistent piercing and faster cutting
- Modular design for fast installation and relocation
- Expandable table lengths in 5' increments (ways and racks attached via extrusion grooves)
- Designed and manufactured to machine tool and ISO 230-2 standards
- UL/CUL certified for Canadian and U.S. operation
- Two plasma torches, each up to 400 amps

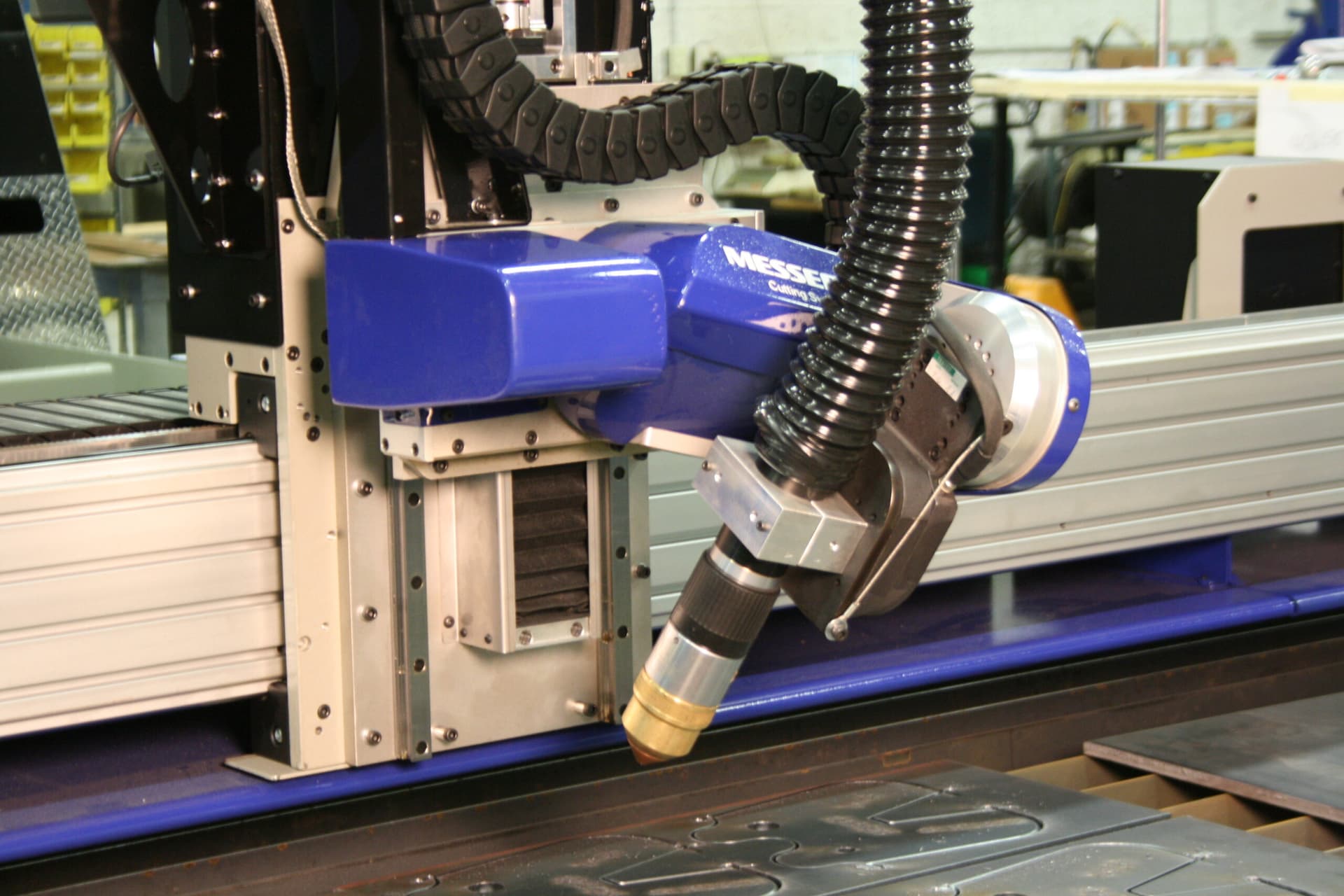

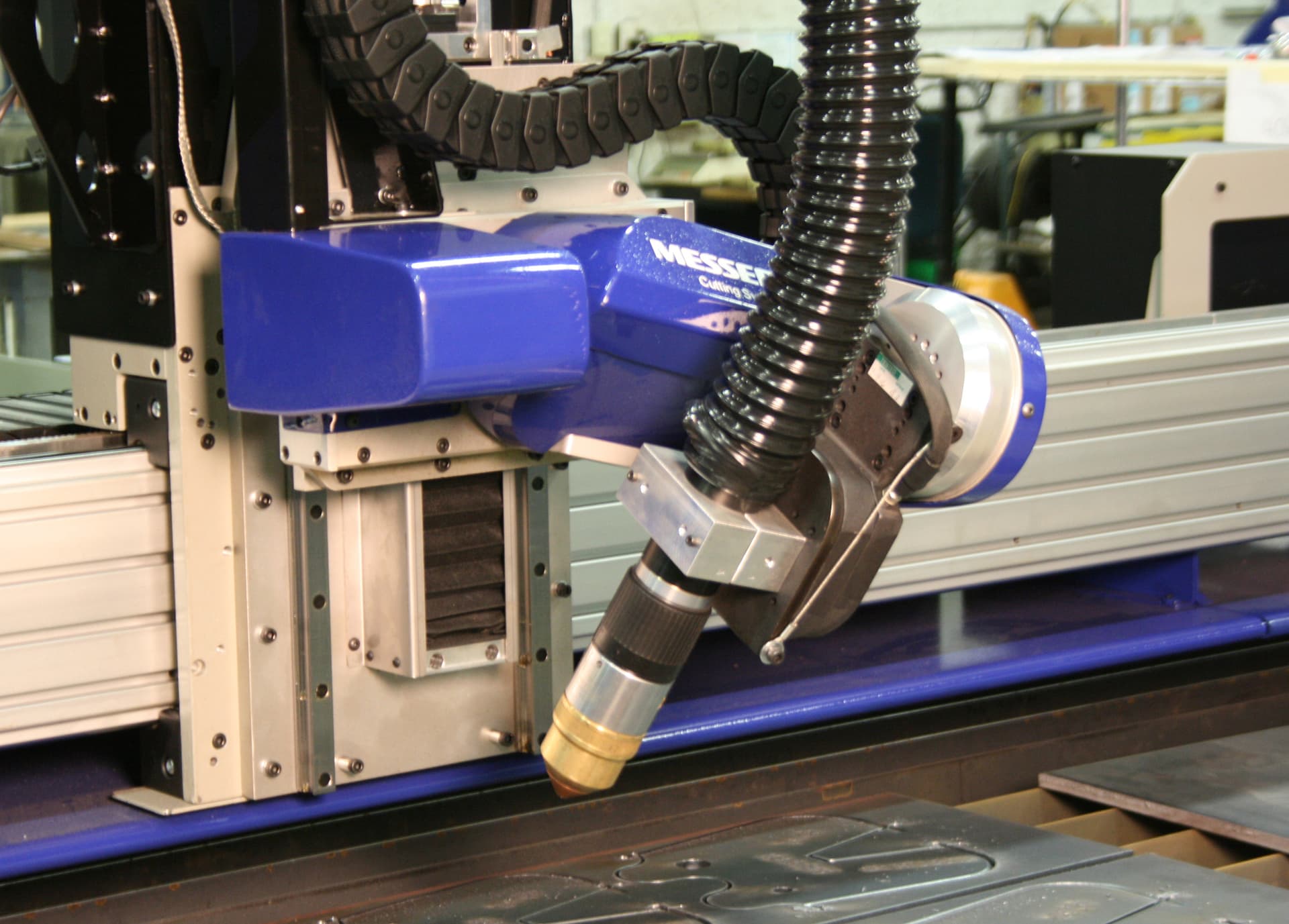

- Bevel-R® 5-axis plasma bevel unit with SureStop
- Compact plasma bevel unit
- Manual plasma stripping bevel unit for X-axis
- Turbo Flame™ oxyfuel cutting torch
- ALFA oxyfuel cutting torch
- Omniflow automated gas regulation system
- FT100 torch ignitor with automatic height control
- SensoMat® PAN height sensing
- Plate markers (plasma, air scribe, inkjet, Telesis® Pinstamp®)
- Digital video camera for remote monitoring
- Laser pointer for visual torch reference
- Drilling up to 3/8" diameter
- Vertical pipe and tube cutting capability
- Water table configuration
- Flex Zone for processing material outside the table
- Enclosure for dust and noise containment
- Slag scoop or slag bucket with pit
- Plasma station outlet equipment
- Plasma air booster
- Two-zoned protection systems
- Operator swing-away glare curtain or glare shield
- Pedestal-mounted console option
- Messer dust collector systems
- Programming and nesting software (OmniWin)
- OmniFab Industry 4.0 suite
- Global Reporter production reporting
- Sentry Service preventive maintenance programme
- Visual Service advanced remote troubleshooting
- Plate processing for general and structural steel fabrication
- Multi-process operations combining plasma, oxyfuel, drilling, bevelling, and marking
- Steel service centres handling sheet and plate material up to 3" thick
- Fabrication shops requiring high accuracy (+/-0.002") with fast positioning
- Operations needing expandable, modular cutting platforms that grow with production
FAQ
MetalMaster Evolution Questions
Answers to common questions about the MetalMaster Evolution.
The MetalMaster Evolution delivers +/-0.002" accuracy with 1,700 IPM positioning and 38 in/sec² acceleration. Its Slagger® self-cleaning table eliminates manual slat cleaning, and the modular design allows table expansion in 5' increments up to 50' long.
Beyond straight plasma cutting, the platform supports plasma bevelling, oxyfuel cutting, drilling up to 3/8", vertical pipe cutting, and multiple marking options (plasma, air scribe, inkjet, Telesis Pinstamp).
Yes. The table extends in 5' increments up to 50' total. Additional processes (oxyfuel, drilling, bevelling, marking) can be added over time without replacing the base machine.
The Evolution handles material from 26 gauge sheet up to 3" plate, depending on plasma system configuration.
Yes. The Slagger self-cleaning unitized table is standard equipment, eliminating manual slat cleaning. An optional water table is also available.
Ready to Discuss the MetalMaster Evolution?
Our team has 19+ years of experience helping Canadian manufacturers find the right cutting and processing equipment.
19+
Years in Business
50+
Machine Models
900+
Happy Customers
Request a Quote
Tell us about your application and we'll recommend the right configuration for your operation.
Financing Available
Flexible payment options on qualifying equipment.
Or email us at [email protected]
Related
Explore More Plasma Systems
Compare specifications and find the right machine for your application.
Compact 5'x10' plasma and oxyfuel cutting machine
MetalMaster 3.0
Designed for manufacturers who need reliable plasma cutting without unnecessary complexity, the MetalMaster 3.0 delivers consistent cut quality, efficient material handling, and dependable day-to-day performance. Engineered by Messer Cutting Systems for precision plate processing, durability, and long-term productivity in demanding fabrication environments. Built for North American fabrication standards, the MetalMaster 3.0 is an ideal solution for shops requiring reliable plasma cutting in a compact format at a low cost. Machines are manufactured in North America and supported and serviced in Ontario, Canada.
Durable unitized plasma/oxyfuel machine

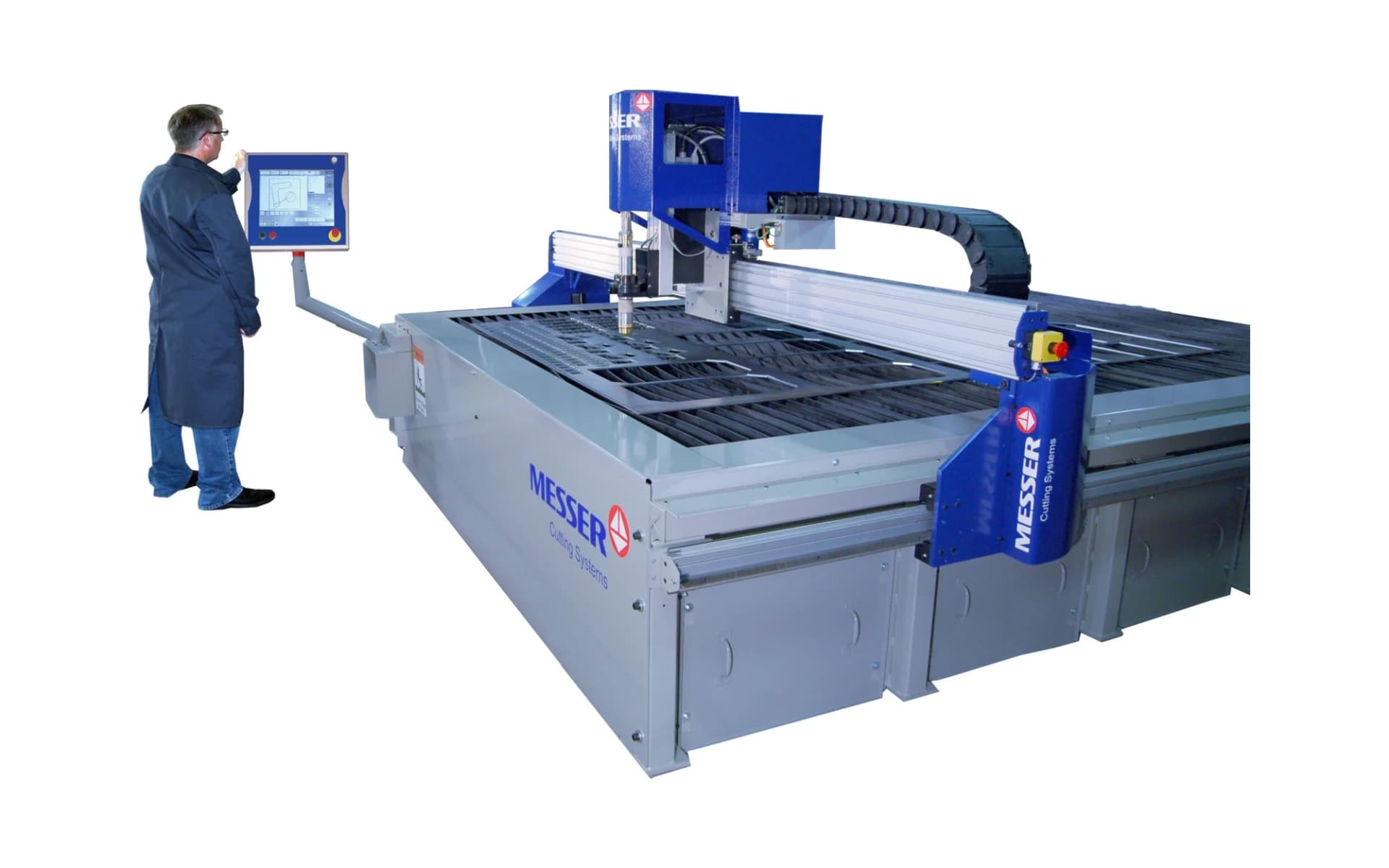

EdgeMax
Durable unitized steel table/frame with optional plasma or oxyfuel capabilities and optional water table. Full capture bearing assemblies and low-mass aluminum beam powered by dual brushless AC motors. Rapid acceleration, precise motion, highly stable platform.
Compact plasma and multi-process cutting system

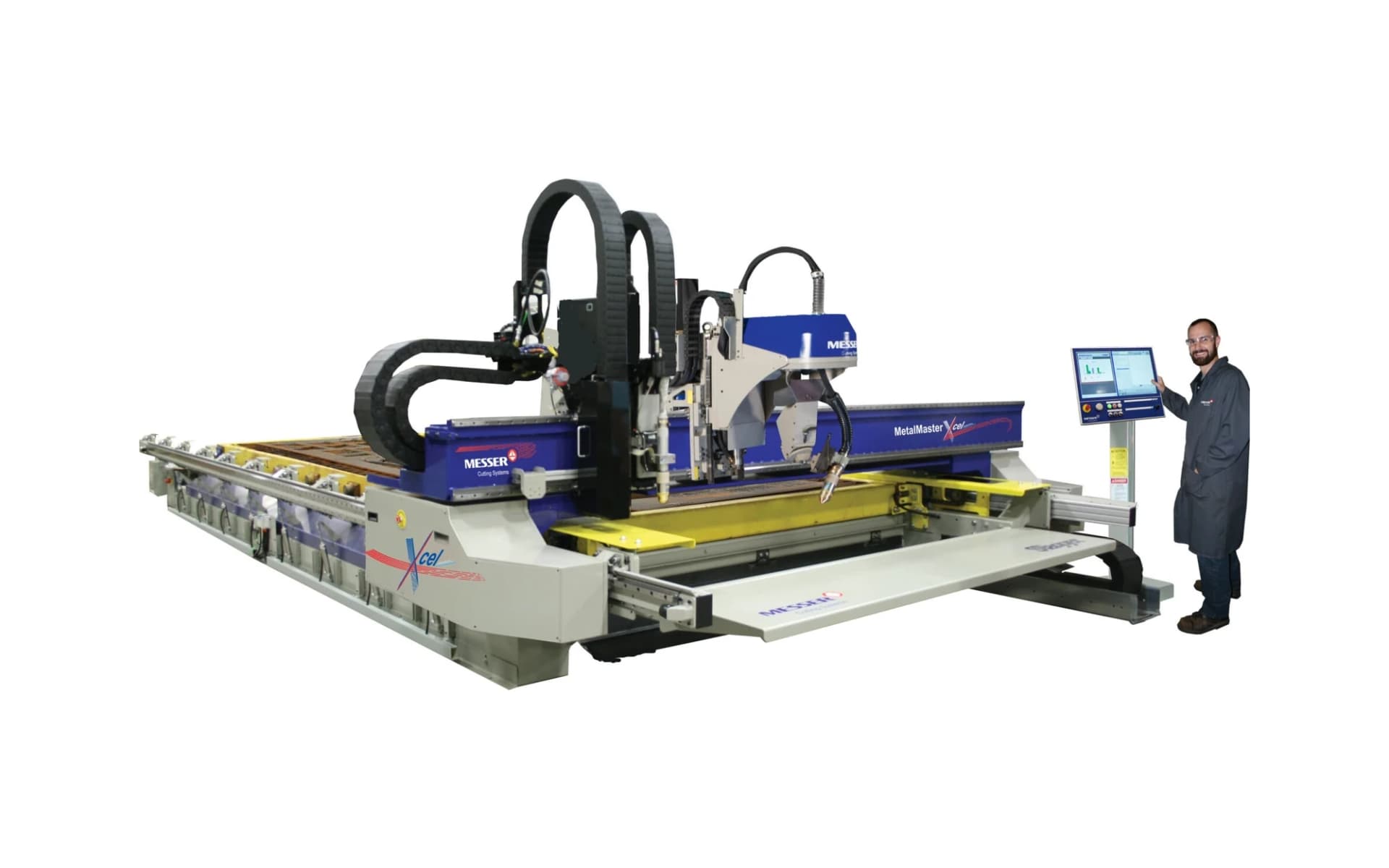

Xcel Plasma
