Robot Coper
PCR41
by Prodevco
Compact 4-face robotic coping system for structural steel and HSS, processing beams up to W30 with cost-effective Hypertherm XPR plasma
4″ × 4″ to 30″ × 16″
H-beam capacity
3″ × 1-1/4″ to 30″ × 16″
Channel capacity
2″ × 2″ to 8″ × 8″

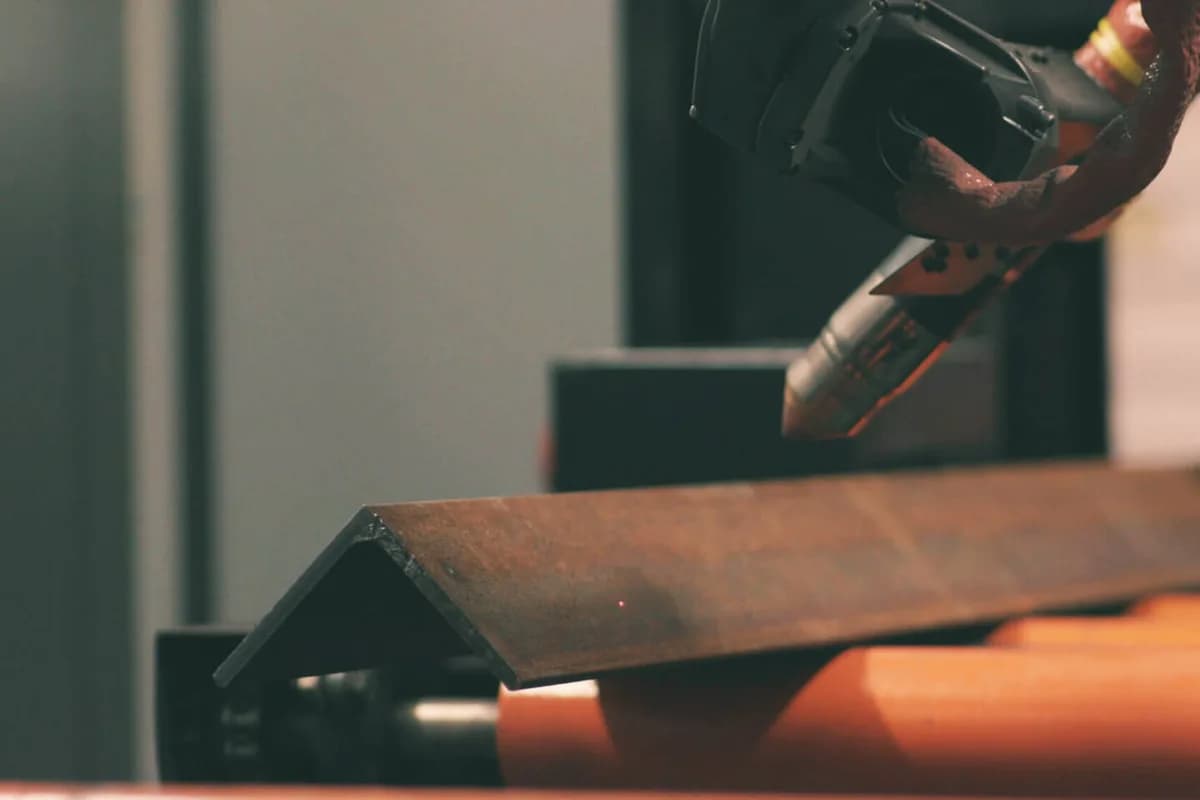

Angle capacity
Not sure if the PCR41 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Steel fabricators and miscellaneous metal shops looking for a cost-effective robotic coping solution with 4-face HSS processing capability
H-beam capacity
4″ × 4″ to 30″ × 16″
Channel capacity
3″ × 1-1/4″ to 30″ × 16″
Angle capacity
2″ × 2″ to 8″ × 8″
HSS capacity
2″ × 2″ to 16″ × 16″
Key Features
PCR41 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

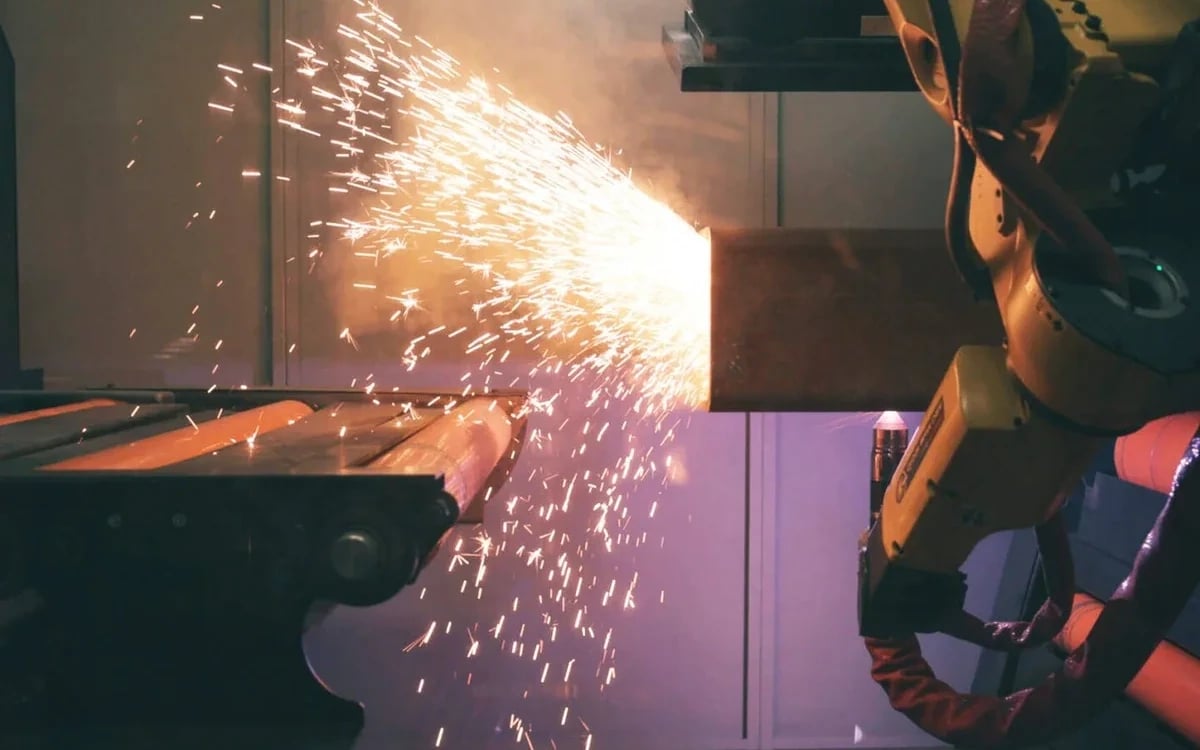

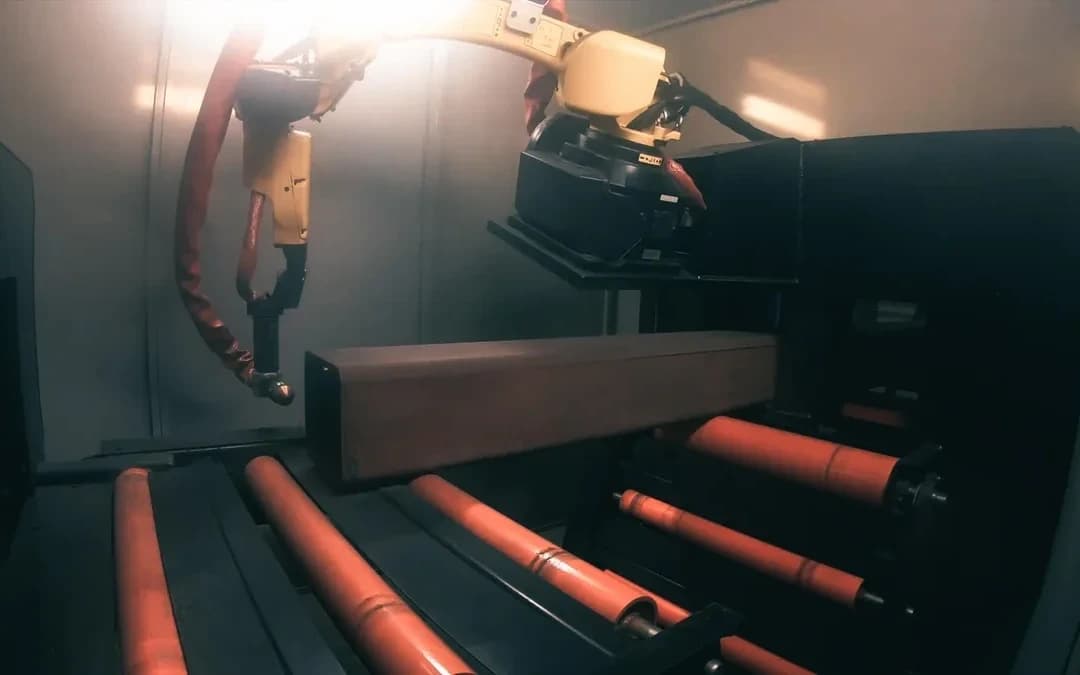

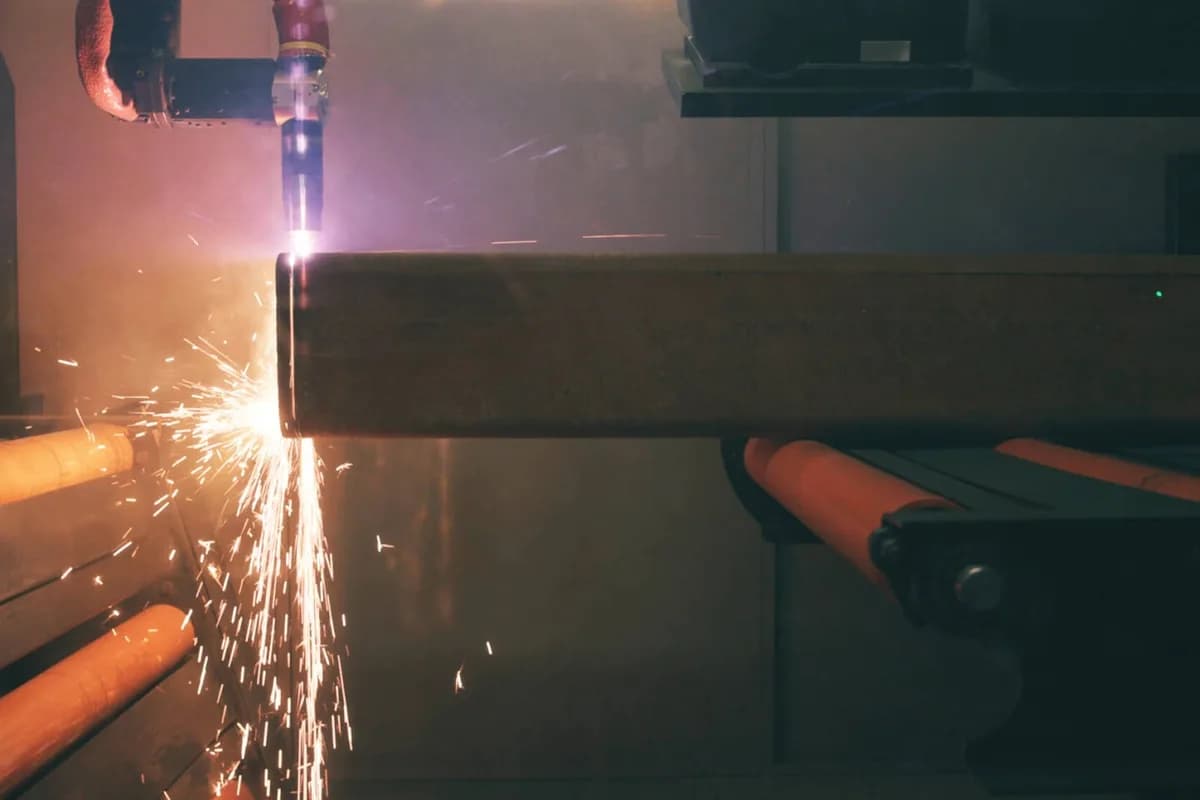

- Processes all four faces of square and rectangular HSS — cuts slots, holes, copes, and markings on every side without repositioning the material

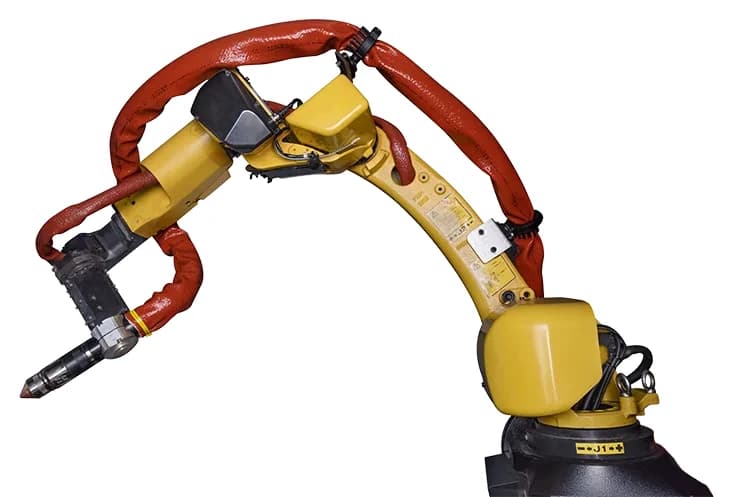

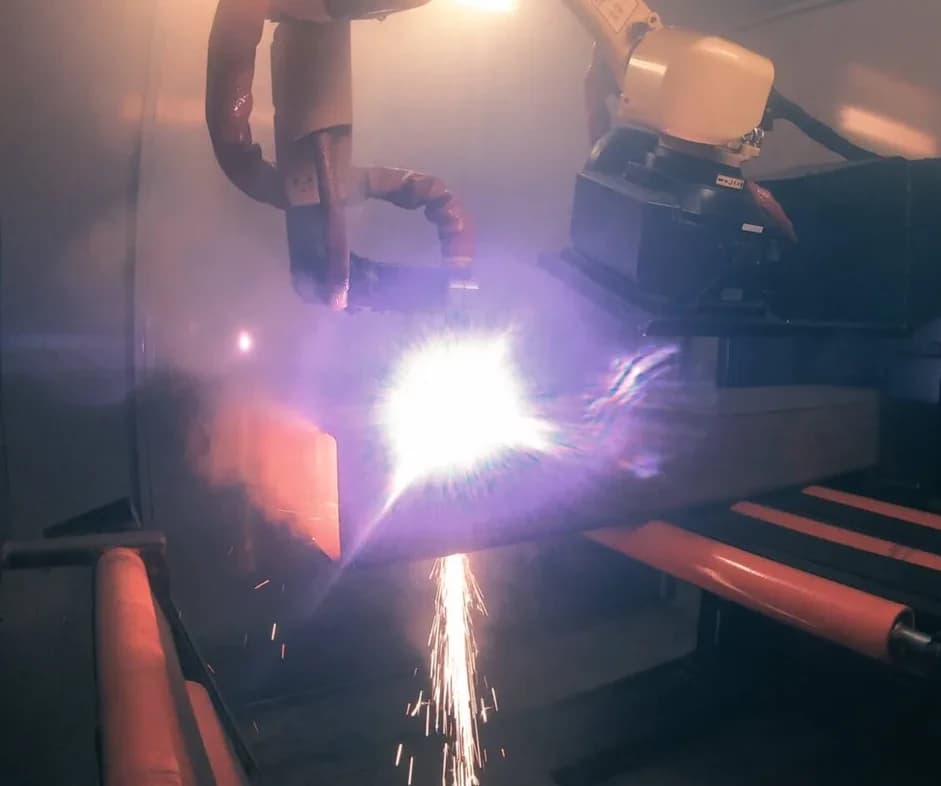

- Fanuc 6-axis industrial robot provides the longest mean time before failure in the industry, keeping maintenance costs low and uptime high
Ease of Operation
- Compact footprint with flexible placement options lets you fit the system into tight shop layouts, with durable conveyor modules available for yard infeed and outfeed
- Advanced laser measuring system with dual rotary encoders detects actual material dimensions before cutting, compensating for mill tolerances automatically
- ProEVS DSTV viewer and editor software lets operators create new parts or modify existing drawings in a process-oriented interface right at the machine

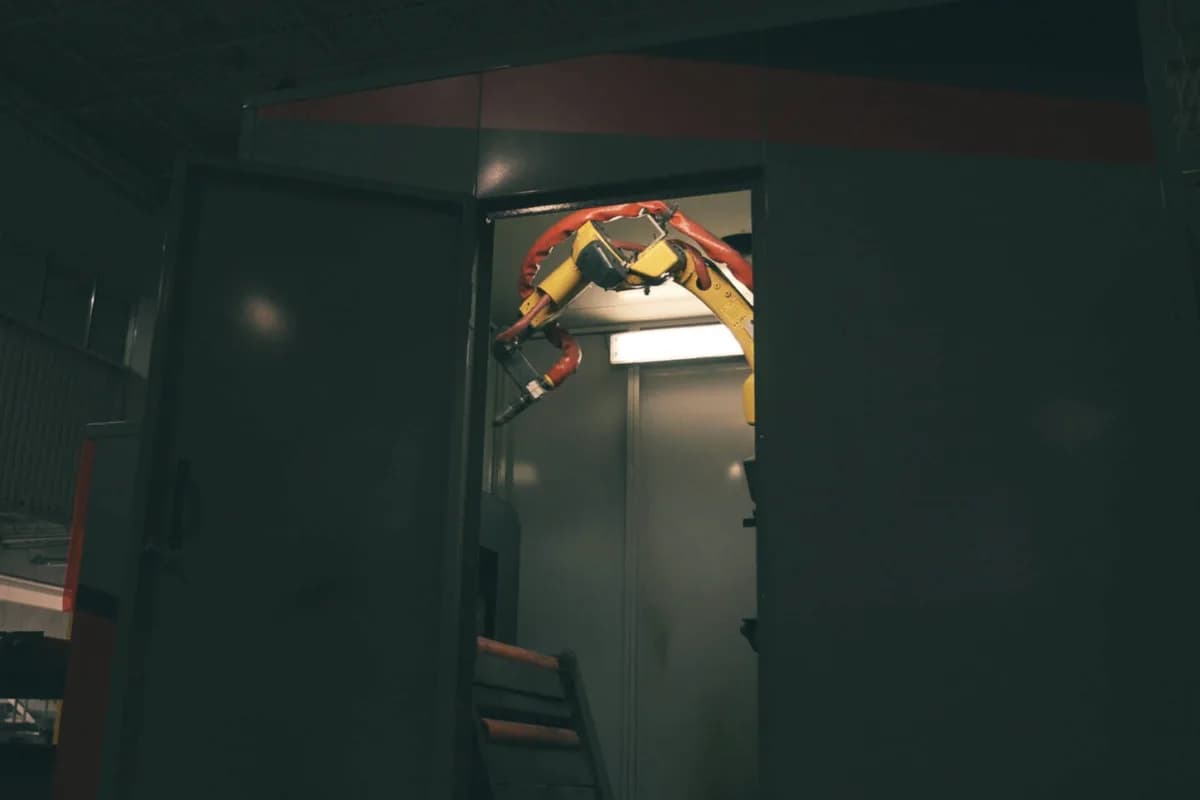

- Internet-connected cameras inside the enclosure enable remote diagnostics and fast troubleshooting without waiting for an on-site service visit
Built-In Extras
- 3D vision measuring delivers fast, accurate measurements without physical probing — reducing cycle time and eliminating probe wear
- Reads DSTV/NC1 files directly from Tekla, SDS/2, GRAITEC, and other major detailing software — no macros or post-processing steps required
Gallery
PCR41 in Detail
Video
See the PCR41 in Action
Full Specifications
Prodevco PCR41 Technical Details
Complete specifications, standard features, and optional upgrades.
- H-beam capacity
- 4″ × 4″ to 30″ × 16″
- Channel capacity
- 3″ × 1-1/4″ to 30″ × 16″
- Angle capacity
- 2″ × 2″ to 8″ × 8″
- HSS capacity
- 2″ × 2″ to 16″ × 16″
- Plate capacity (optional)
- 2″ × 1/8″ to 26″ × 1-1/2″

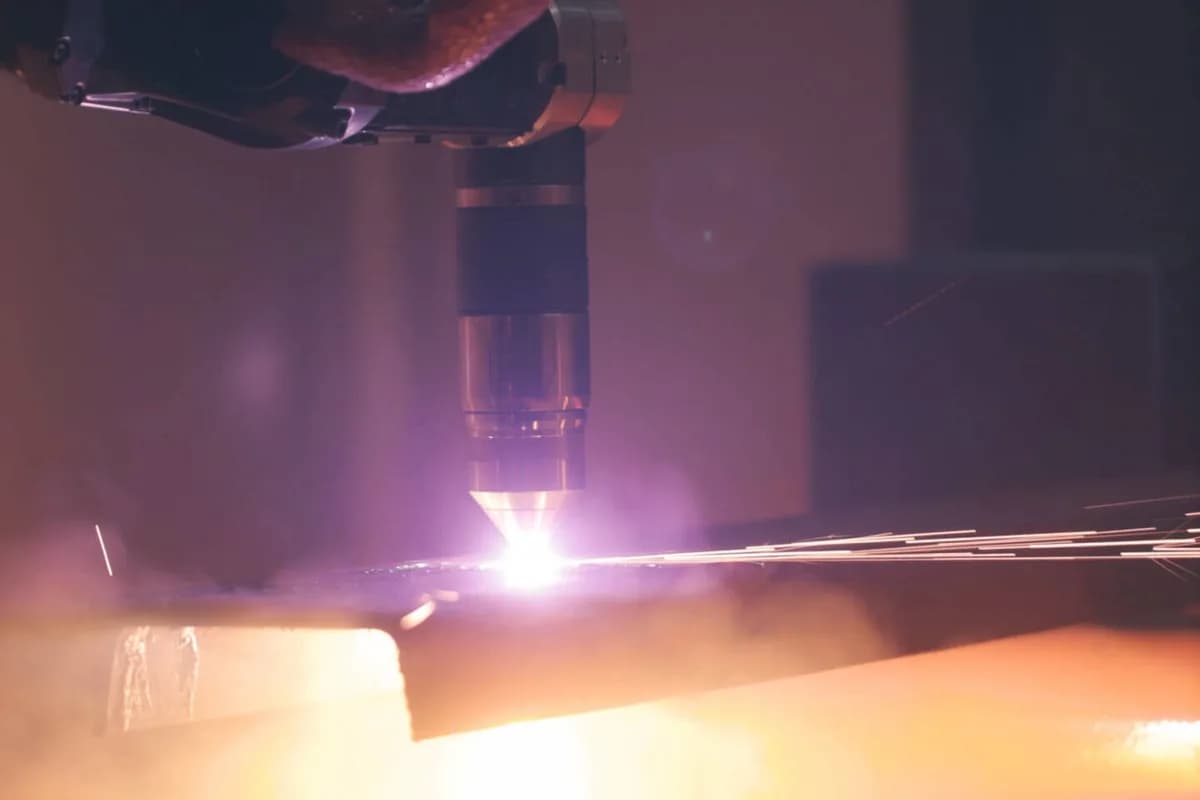

- Plasma source
- Hypertherm XPR 300
- Plasma pierce capacity
- 1-3/4″
- Plasma edge start
- 3″
- Robot type
- Fanuc 6-axis industrial robot
- Control software
- Prodevco ProEVS
- Data input
- DSTV/NC1 (Tekla, SDS/2, GRAITEC)
- Vision system
- Laser measuring + 2 rotary encoders
- 4-face HSS processing
- Yes
| H-beam capacity | 4″ × 4″ to 30″ × 16″ |
| Channel capacity | 3″ × 1-1/4″ to 30″ × 16″ |
| Angle capacity | 2″ × 2″ to 8″ × 8″ |
| HSS capacity | 2″ × 2″ to 16″ × 16″ |
| Plate capacity (optional) | 2″ × 1/8″ to 26″ × 1-1/2″ |
| Plasma source | Hypertherm XPR 300 |
| Plasma pierce capacity | 1-3/4″ |
| Plasma edge start | 3″ |
| Robot type | Fanuc 6-axis industrial robot |
| Control software | Prodevco ProEVS |
| Data input | DSTV/NC1 (Tekla, SDS/2, GRAITEC) |
| Vision system | Laser measuring + 2 rotary encoders |
| 4-face HSS processing | Yes |
- Processes all four faces of square and rectangular HSS — cuts slots, holes, copes, and markings on every side without repositioning the material
- Compact footprint with flexible placement options lets you fit the system into tight shop layouts, with durable conveyor modules available for yard infeed and outfeed
- Advanced laser measuring system with dual rotary encoders detects actual material dimensions before cutting, compensating for mill tolerances automatically
- 3D vision measuring delivers fast, accurate measurements without physical probing — reducing cycle time and eliminating probe wear
- Fanuc 6-axis industrial robot provides the longest mean time before failure in the industry, keeping maintenance costs low and uptime high
- Reads DSTV/NC1 files directly from Tekla, SDS/2, GRAITEC, and other major detailing software — no macros or post-processing steps required
- ProEVS DSTV viewer and editor software lets operators create new parts or modify existing drawings in a process-oriented interface right at the machine
- Internet-connected cameras inside the enclosure enable remote diagnostics and fast troubleshooting without waiting for an on-site service visit
- Plate processing module for material up to 26″ wide and 1-1/2″ thick
- Extended conveyor modules for yard infeed and outfeed to accommodate longer production runs

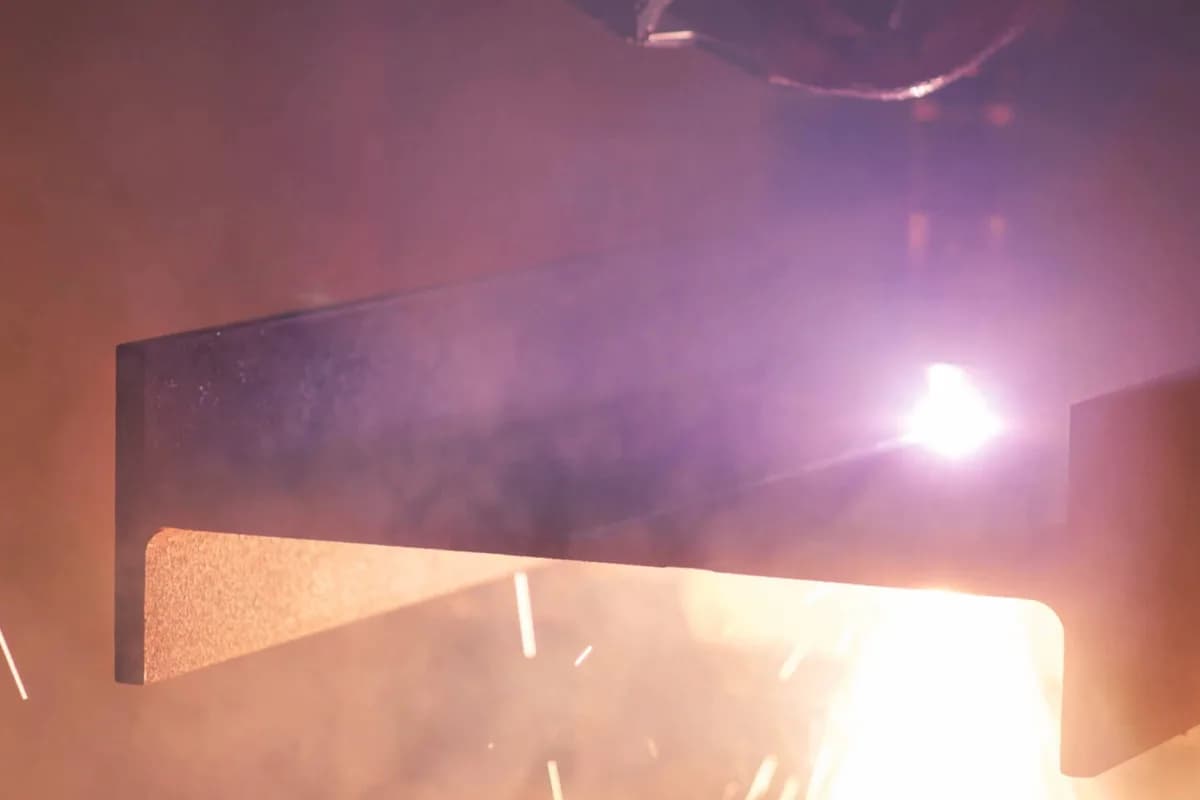

- Structural steel fabrication — copes, notches, holes, and slots in beams and columns
- HSS processing — 4-face cutting on square and rectangular tubing for connections, penetrations, and profiles
- Weld preparation — compound angle cuts and bevels up to 45° for fit-up ready joints
- Beam splitting and layout marking for downstream assembly and identification
- Scribing, pop marks, and lettering for downstream tracking and quality control
