Robot Coper
PCR31
by Prodevco
Compact 6-axis robotic beam coper with integrated plate processing, handling structural steel up to W44 and plate up to 60 inches
44″ × 22″
Beam capacity (H-beams)
44″ × 16″
Beam capacity (channels)
8″ × 8″
Beam capacity (angles)
Not sure if the PCR31 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Structural steel fabricators looking to automate beam coping and plate processing in a single compact cell
Beam capacity (H-beams)
44″ × 22″
Beam capacity (channels)
44″ × 16″
Beam capacity (angles)
8″ × 8″
HSS capacity
20″ × 16″
Key Features
PCR31 Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation

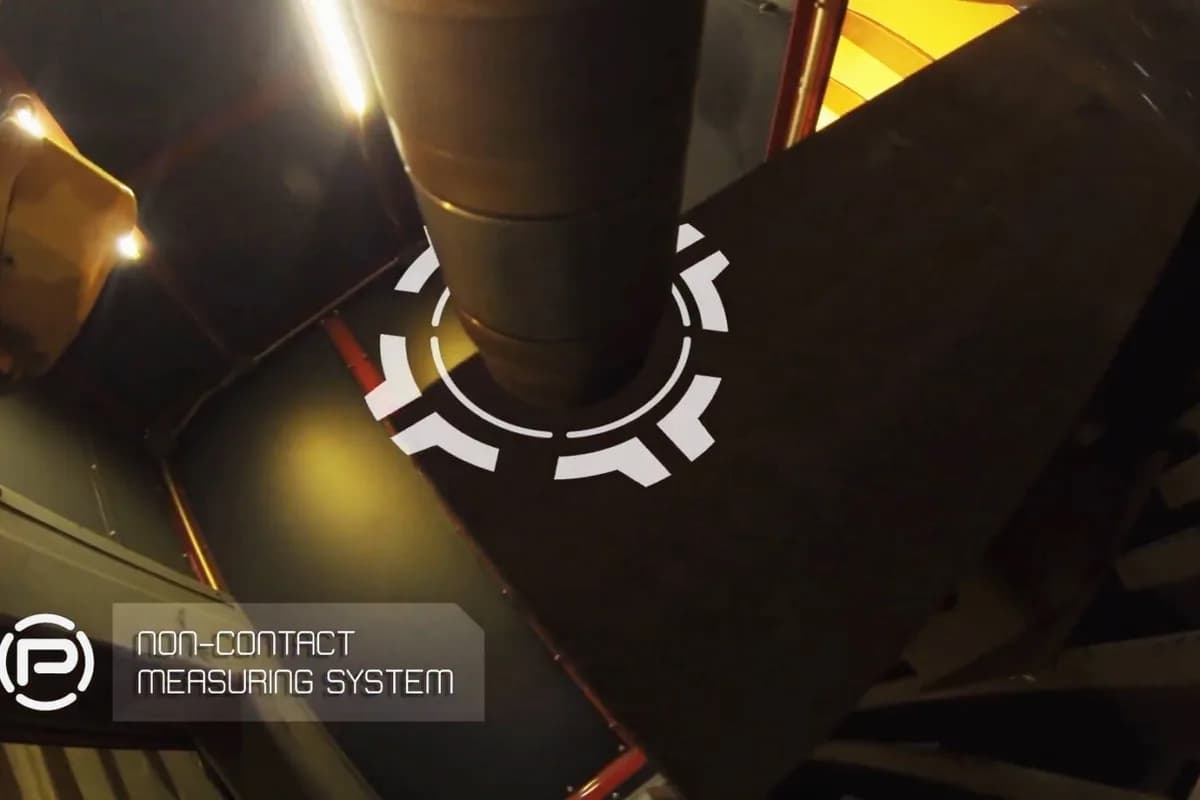

- Onboard 3D Vision System measures actual material dimensions before cutting, automatically compensating for mill tolerances and material variance
- Reads DSTV and DXF files directly from Tekla, SDS/2, GRAITEC, and other major detailing software — no manual programming required

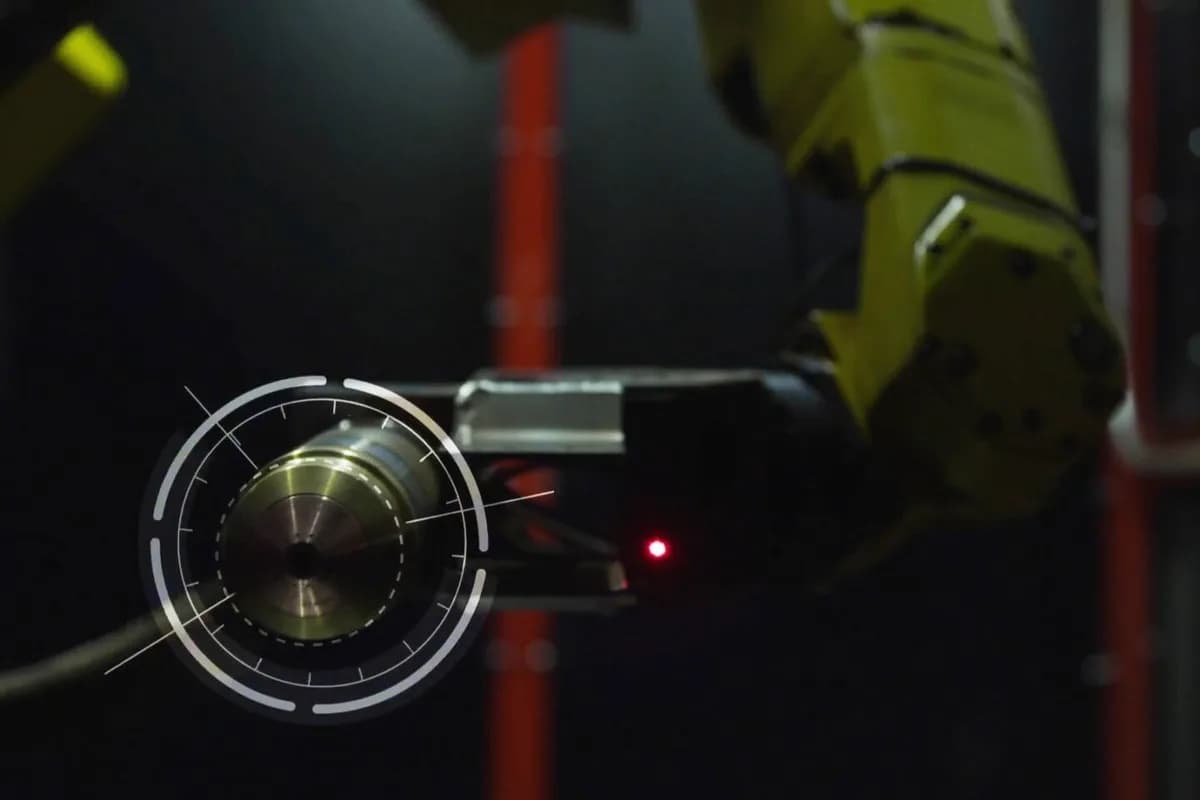

- Integrated torch height control with automatic calibration maintains optimal tip-to-material distance for precise bevel and profile cuts

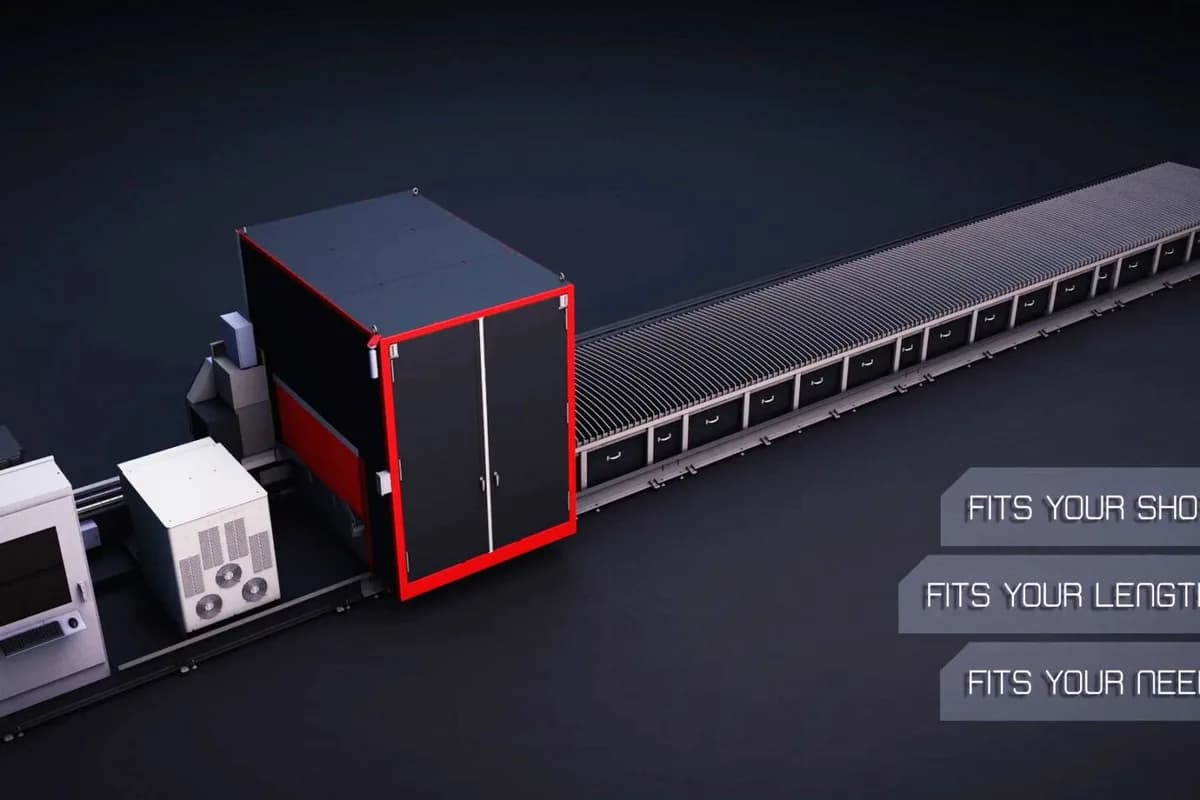

- Compact modular design fits into tight shop layouts, with optional conveyor modules to extend the work envelope for longer beam runs
- Internet-connected cameras enable remote diagnostics and fast support response without waiting for an on-site service visit
Cutting Capability

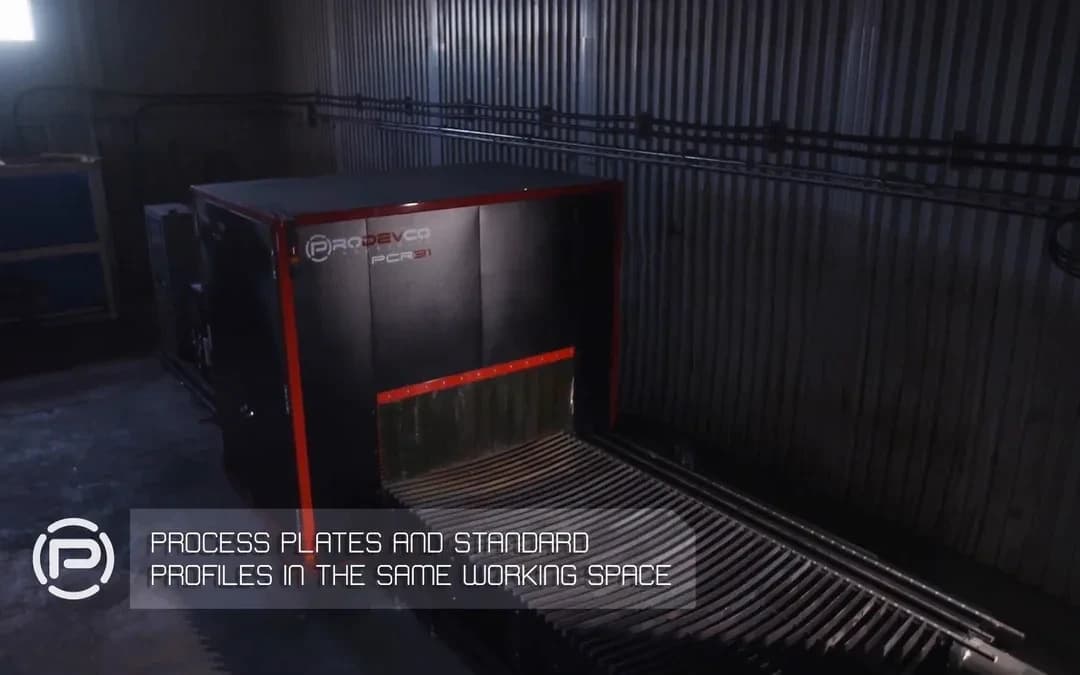

- Handles beam coping and plate processing in a single compact footprint, eliminating the need for separate dedicated machines
- Hypertherm XPR plasma source delivers clean, dross-free cuts on structural steel with minimal secondary finishing
Built-In Extras
- 6-axis robotic arm reaches all sides of the beam for complex 3D cuts including copes, notches, holes, slots, and compound bevels
Gallery
PCR31 in Detail
Video
See the PCR31 in Action
Full Specifications
Prodevco PCR31 Technical Details
Complete specifications, standard features, and optional upgrades.
- Beam capacity (H-beams)
- 44″ × 22″
- Beam capacity (channels)
- 44″ × 16″
- Beam capacity (angles)
- 8″ × 8″
- HSS capacity
- 20″ × 16″
- Plate capacity (standard)
- 48″ × 1-1/2″
- Plate capacity (optional)
- 60″ × 1-1/2″
- Table weight capacity
- 500 lb/linear ft
- Footprint (minimum)
- 20′ L × 8.5′ W × 9′ H
- Additional modules
- 11.5′ L × 8.5′ W × 9′ H each
- Plasma source
- Hypertherm XPR
- Robot type
- 6-axis industrial robot
- Control software
- Prodevco proprietary
- Data input
- DSTV, DXF (Tekla, SDS/2, GRAITEC)
- Vision system
- 3D Vision System
| Beam capacity (H-beams) | 44″ × 22″ |
| Beam capacity (channels) | 44″ × 16″ |
| Beam capacity (angles) | 8″ × 8″ |
| HSS capacity | 20″ × 16″ |
| Plate capacity (standard) | 48″ × 1-1/2″ |
| Plate capacity (optional) | 60″ × 1-1/2″ |
| Table weight capacity | 500 lb/linear ft |
| Footprint (minimum) | 20′ L × 8.5′ W × 9′ H |
| Additional modules | 11.5′ L × 8.5′ W × 9′ H each |
| Plasma source | Hypertherm XPR |
| Robot type | 6-axis industrial robot |
| Control software | Prodevco proprietary |
| Data input | DSTV, DXF (Tekla, SDS/2, GRAITEC) |
| Vision system | 3D Vision System |
- Handles beam coping and plate processing in a single compact footprint, eliminating the need for separate dedicated machines
- 6-axis robotic arm reaches all sides of the beam for complex 3D cuts including copes, notches, holes, slots, and compound bevels
- Onboard 3D Vision System measures actual material dimensions before cutting, automatically compensating for mill tolerances and material variance
- Reads DSTV and DXF files directly from Tekla, SDS/2, GRAITEC, and other major detailing software — no manual programming required
- Integrated torch height control with automatic calibration maintains optimal tip-to-material distance for precise bevel and profile cuts
- Hypertherm XPR plasma source delivers clean, dross-free cuts on structural steel with minimal secondary finishing
- Compact modular design fits into tight shop layouts, with optional conveyor modules to extend the work envelope for longer beam runs
- Internet-connected cameras enable remote diagnostics and fast support response without waiting for an on-site service visit
- Extended plate processing capability handling material up to 60 inches wide
- Additional conveyor modules for longer beam runs and higher throughput
- Upgraded plasma amperage options (130A, 260A, or 400A) to match your material thickness and cut speed requirements

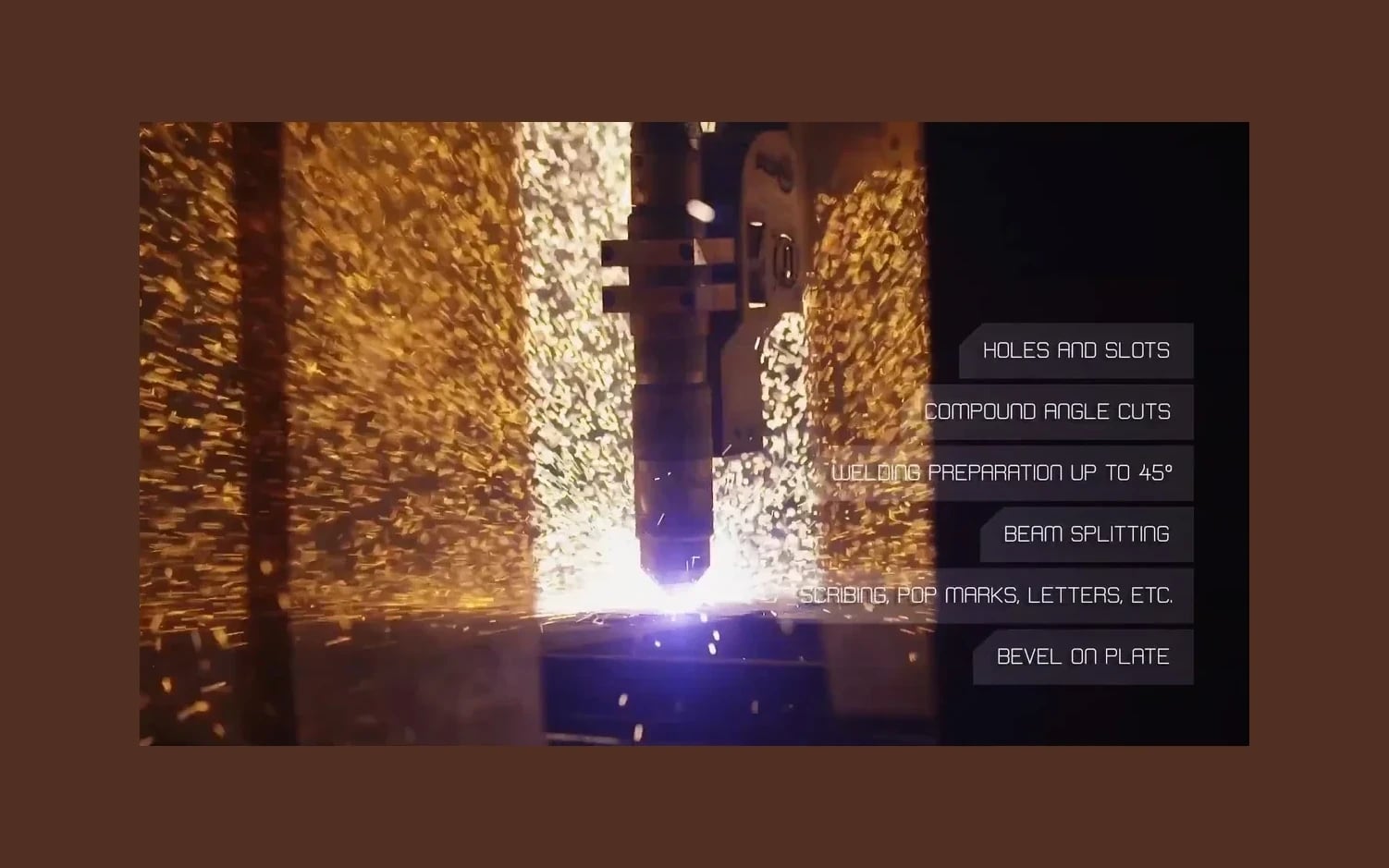

- Structural steel fabrication — copes, notches, bolt holes, slots, and complex profiles in beams and columns
- Weld preparation — compound angle cuts and bevels up to 45° for fit-up ready connections
- Plate processing — holes, slots, and cut profiles in plate up to 60 inches wide
- Beam splitting and layout marking for downstream assembly
- Bridge and building steel fabrication requiring high-volume, repeatable coping and profiling
