Messer FiberBlade V 3015 Demo w NEW 12kW Fiber Laser
- Year
- 2025
- Model
- FBV 3015
- Location
- Cambridge, Ontario, Canada
- Condition
- Demo unit / Very low usage
$298,293 USD
This unit has been sold. We may have similar equipment available, so let us know what you're looking for.
Or call 905-581-1191
Photos
Messer FiberBlade V 3015 Demo w NEW 12kW Fiber Laser — Photo Gallery
About This Listing
Equipment Details

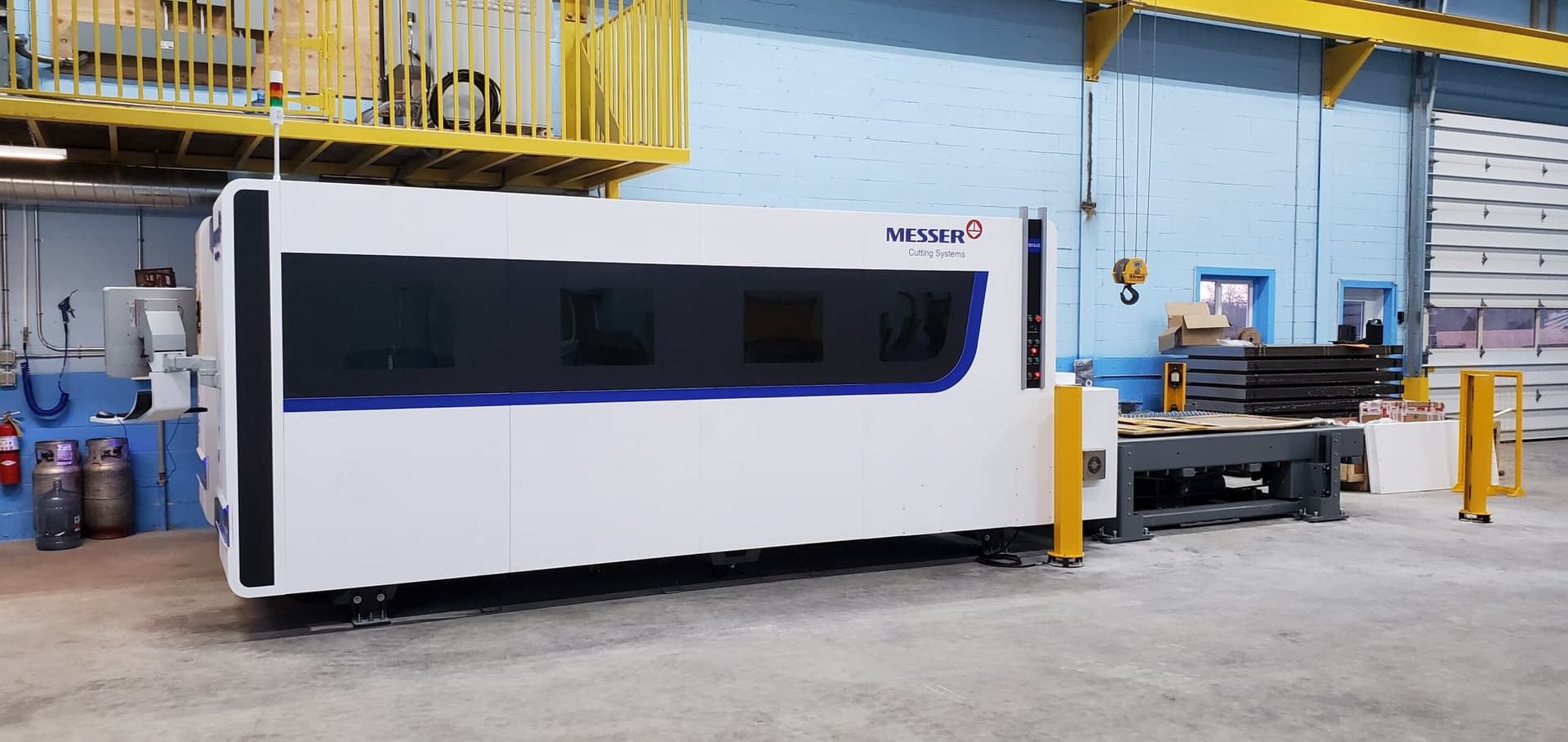

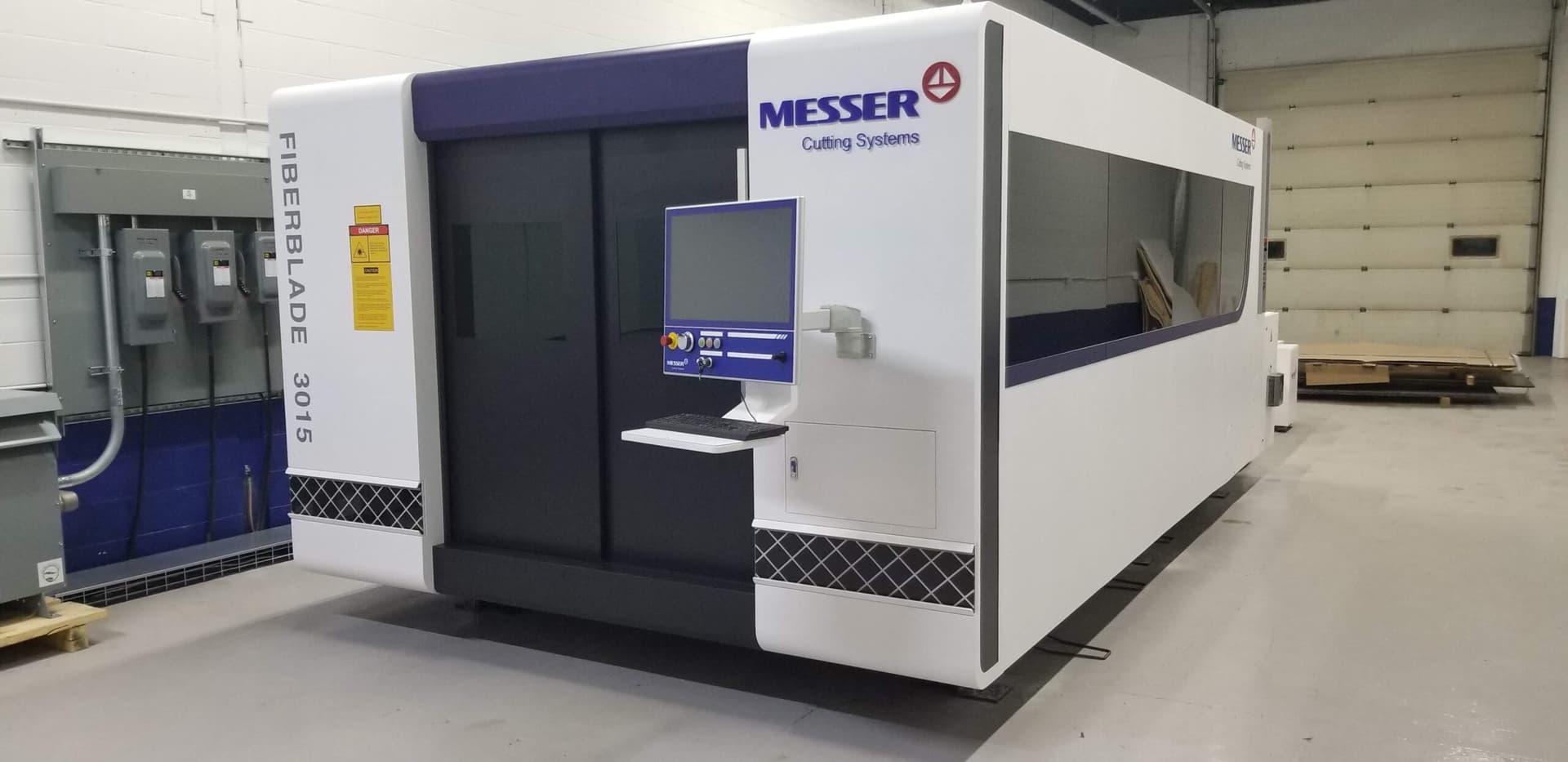

A 12kW FiberBlade V demonstration unit, available now rather than on the usual build schedule. This is the 3015 configuration, a 5' x 10' bed, with the Precitec Procutter 2.0 cutting head and its own laser chiller. The machine has been used for demonstration and testing only. It is available for shipment from the end of September. Delivery within Ontario, installation, operator and maintenance training, ESA approval and the Pre-Start Health and Safety Review are all included in the price. The last two are the Ontario electrical and pre-start safety approvals a buyer would otherwise have to arrange and pay for separately. Service, spare parts and support come from our own team here in Cambridge.
Demonstration unit. Used for demonstration and testing only, never in production.
Highlights
Key Features
- Automatic nozzle cleaning on the machine pallet frame
- Collision protection and nozzle-area pressure monitoring at the head
- Gas filters and regulators supplied at each gas source
- Light Curtain Safety Systems and CSA approved enclosure included
Specifications
Messer FiberBlade V 3015 Demo w NEW 12kW Fiber Laser Technical Specs
- Laser power
- 12 kW
- Laser source
- Max Photonics Max ELITE, 12 kW
- Working area
- 3050 x 1525 mm (120" x 60")
- Maximum laser capacity
- 1-1/4" (32 mm)
- Maximum table capacity
- 1" (25 mm) with both shuttle tables carrying full sheets
- Cutting head
- Precitec Procutter 2.0
- Laser chiller
- IPG LC430
- Table design
- Downdraft dual-tray shuttle table
- Acceleration
- 1.5 G
- Maximum positioning speed (X, Y)
- 120 m/min (4,724 in/min)
- Maximum simultaneous positioning speed
- 169 m/min (6,653 in/min)
- Positioning accuracy
- +/- 0.03 mm (0.0012")
- Repeatability
- +/- 0.01 mm (0.0004")
- Z-axis travel
- 120 mm (4.72")
- CNC control
- Messer Global Connect, 18.5" touchscreen
| Laser power | 12 kW |
| Laser source | Max Photonics Max ELITE, 12 kW |
| Working area | 3050 x 1525 mm (120" x 60") |
| Maximum laser capacity | 1-1/4" (32 mm) |
| Maximum table capacity | 1" (25 mm) with both shuttle tables carrying full sheets |
| Cutting head | Precitec Procutter 2.0 |
| Laser chiller | IPG LC430 |
| Table design | Downdraft dual-tray shuttle table |
| Acceleration | 1.5 G |
| Maximum positioning speed (X, Y) | 120 m/min (4,724 in/min) |
| Maximum simultaneous positioning speed | 169 m/min (6,653 in/min) |
| Positioning accuracy | +/- 0.03 mm (0.0012") |
| Repeatability | +/- 0.01 mm (0.0004") |
| Z-axis travel | 120 mm (4.72") |
| CNC control | Messer Global Connect, 18.5" touchscreen |
What's Included
Equipment Package
Included
- Delivery within Ontario, FOB truck
- Installation supervision
- Operator and maintenance training on site
- ESA approval
- Pre-Start Health and Safety Review (PHSR)
- Laser chiller
- Gas filters and regulators
- One year parts and labour warranty
- Two year parts warranty on the Max ELITE laser
- Full installation, operator and maintenance documentation
Not Included
- Taxes, duties, tariffs and brokerage fees
- Freight outside Ontario
- Unloading and positioning at the customer's facility
- Transformer, dust collector and duct kit, available as options
- Electrical supply, air ducting and gas lines to the machine
- Nesting software, available as an option
Documents
Service Records & Reports
Similar Equipment
Looking for something like this?
This unit has been sold, but we may have similar Messer Cutting Systems equipment available. Tell us what you're looking for.
New Equipment
New equivalents we supply
This unit has been sold. We supply new Messer Cutting Systems equipment and can quote a comparable machine.
Large-format fiber laser processing system

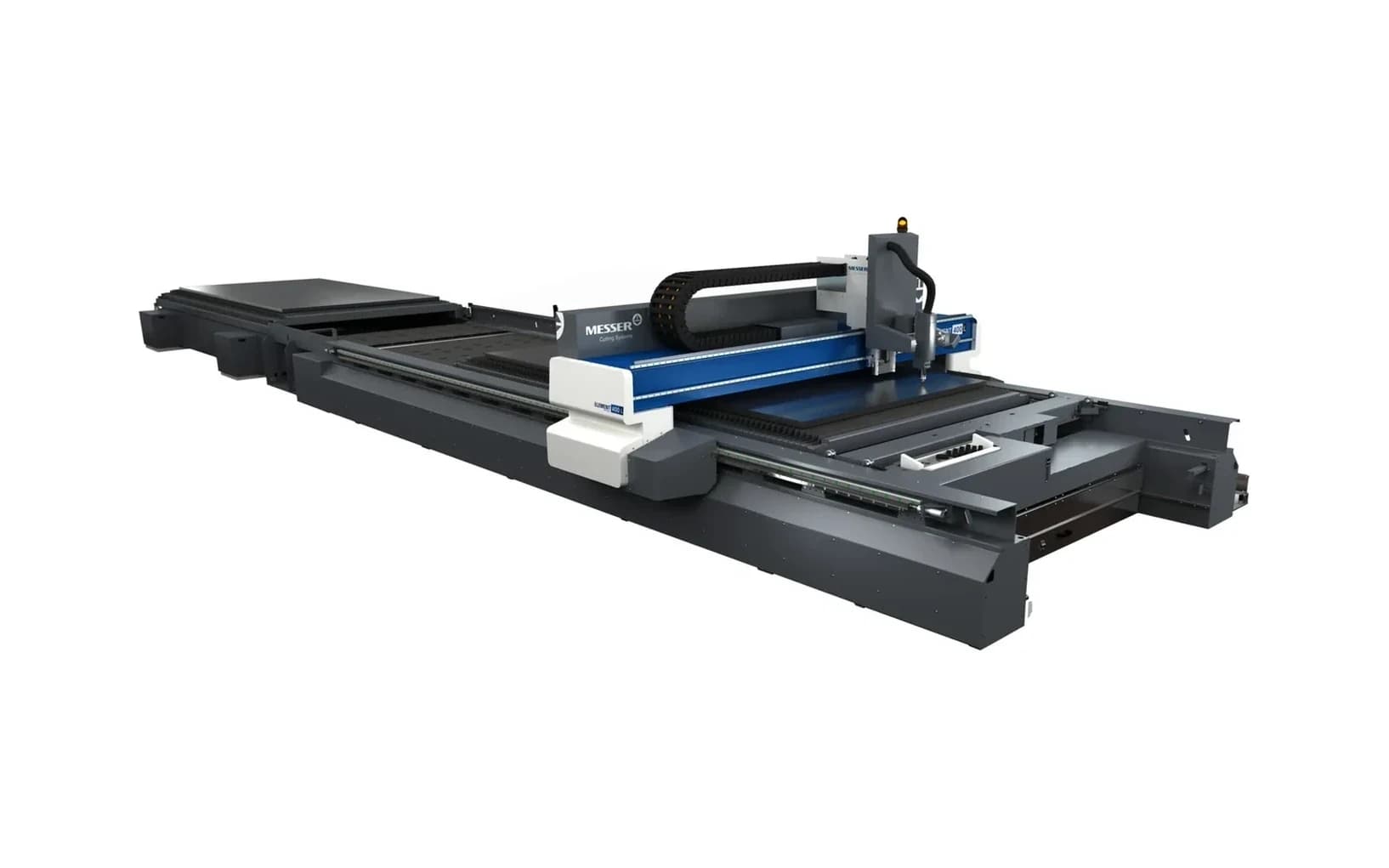

Element 400 Laser
The Element 400L is the powerhouse of large format laser processing systems. With laser bevelling, inkjet marking, pinstamp marking, dual head laser cutting, and laser/plasma combination cutting, the Element 400L is the right choice for heavy cutting applications up to 10'x55'. Designed for fabricators needing a customizable, full-featured cutting platform with Global Connect CNC control.
Fiber laser cutting system

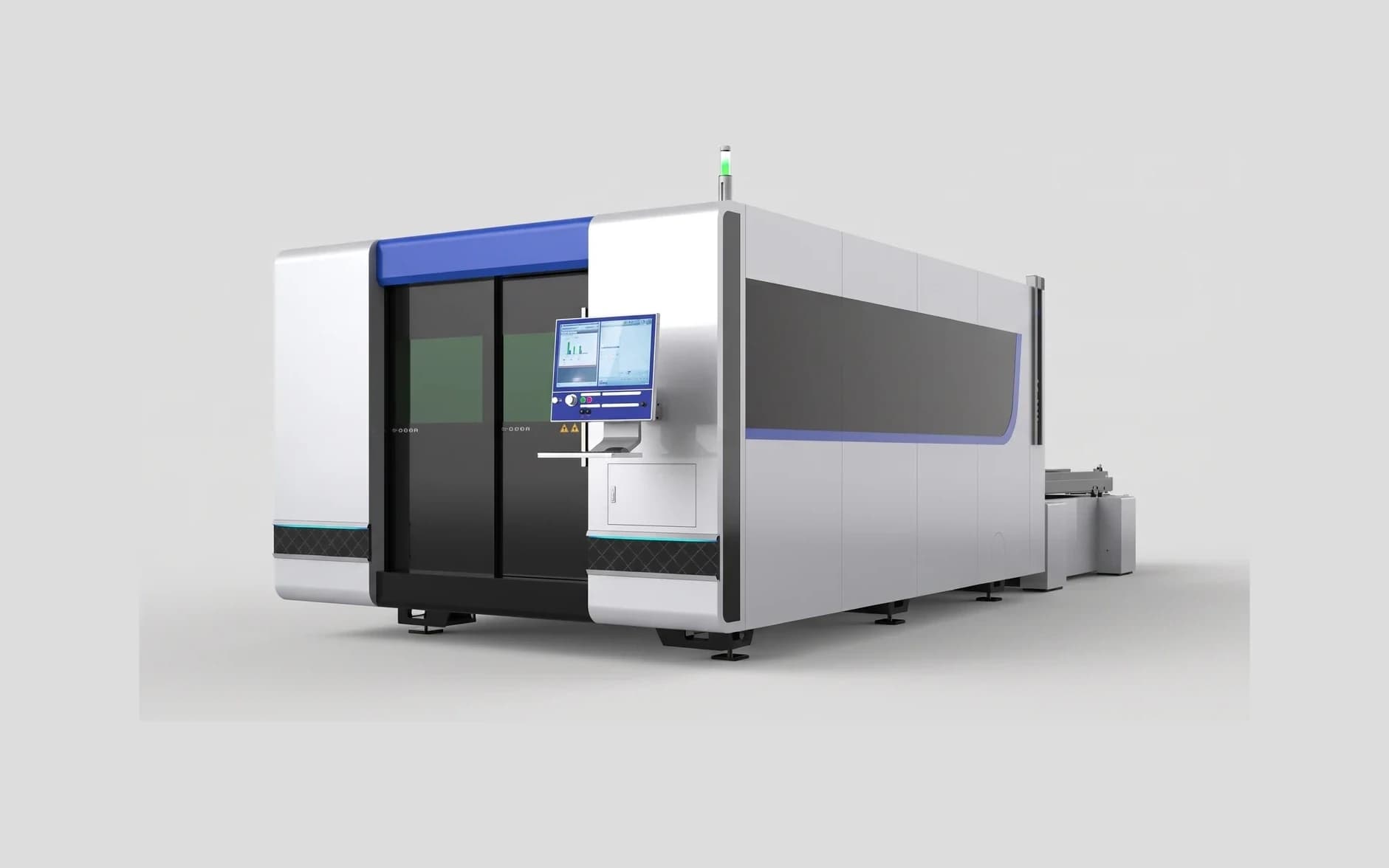

Messer FiberBlade
