CNC Drilling & Milling
GD40
Compact high-performance CNC drill unit delivering AISC-compliant precision on Messer Element gantry cutting platforms
1-9/16" (40mm)
Max drilling diameter
Suhner, CAT 40 taper
Spindle
Drilling, tapping, counter-boring, counter-sinking
Operations
Not sure if the GD40 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Steel fabricators who need AISC-compliant holes without a standalone drill line
- Shops looking to consolidate drilling and cutting onto one gantry to save floor space
- Production environments running mixed plate work that combines cutting, drilling, and marking
Max drilling diameter
1-9/16" (40mm)
Spindle
Suhner, CAT 40 taper
Operations
Drilling, tapping, counter-boring, counter-sinking
Tool changer
Pneumatic draw bar, fully automated
Key Features
GD40 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance

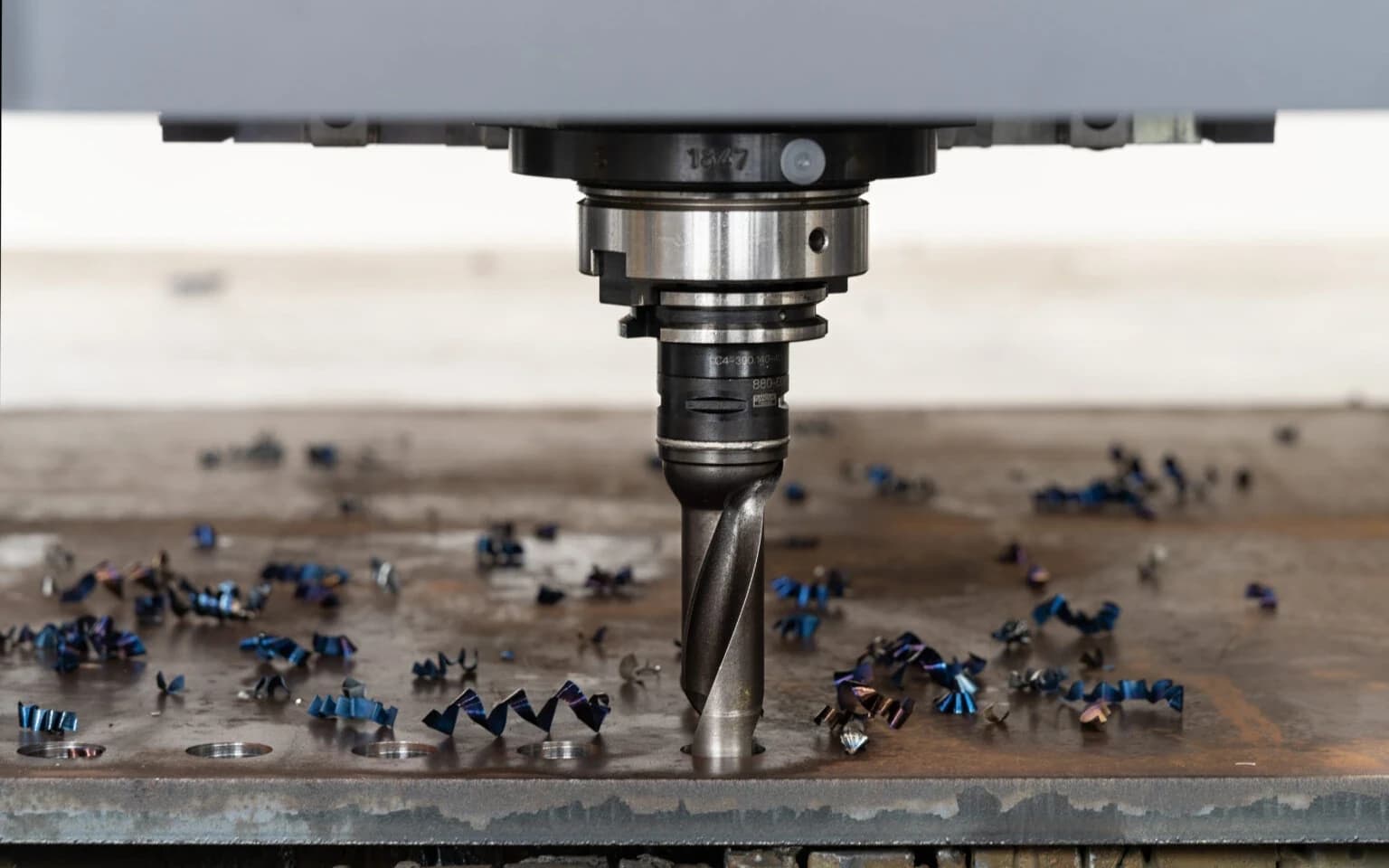

- Handles all common structural bolt hole sizes up to 1-9/16" through a precision Suhner CAT 40 spindle
- Servo-driven material clamp grips the plate surface automatically before each drilling cycle
- Independent Y-axis motor positions the drill carriage precisely and parks it clear of cutting heads when idle
- Built-in tool length measurement verifies depth accuracy on every tool change, removing manual setup steps
Cutting Capability
- Narrow-profile frame fits onto Element gantry systems without consuming additional floor space in your shop
- Drill, tap, counter-bore, and counter-sink — four operations from a single head on one gantry

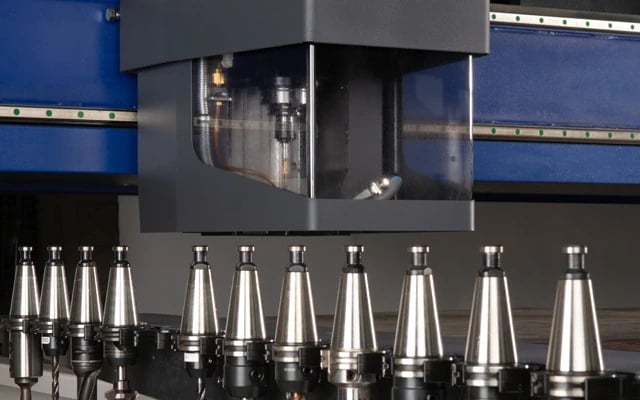

- Expandable 12-tool storage rack keeps your most-used tooling ready without manual swaps
- Carriage locking mechanism eliminates vibration and drift during high-force drilling operations
- Minimum quantity lubrication (MQL) feeds through the tool or via external nozzle, extending tool life while reducing coolant waste
Built-In Extras
- Automated pneumatic tool changes run unattended across multiple hole sizes and operations
- Global Connect touchscreen control with OmniWin CAD/CAM provides a single interface for drilling and cutting programs
- Air blast clearing keeps the hole area free of chips between operations for consistent hole quality
Video
See the GD40 in Action
Full Specifications
Messer GD40 Drill Unit Technical Details
Complete specifications, standard features, and optional upgrades.
- Max drilling diameter
- 1-9/16" (40mm)
- Spindle
- Suhner, CAT 40 taper
- Operations
- Drilling, tapping, counter-boring, counter-sinking
- Tool changer
- Pneumatic draw bar, fully automated
- Tool storage
- Optional 12-tool capacity
- Lubrication
- MQL (through-tool or external nozzle)
- Work holding
- Servo-controlled hold-down with auto surface detection
- Control system
- 64-bit Windows 11, Global Connect
- Display
- 18.5" touch screen
- Software
- OmniWin CAD/CAM
| Max drilling diameter | 1-9/16" (40mm) |
| Spindle | Suhner, CAT 40 taper |
| Operations | Drilling, tapping, counter-boring, counter-sinking |
| Tool changer | Pneumatic draw bar, fully automated |
| Tool storage | Optional 12-tool capacity |
| Lubrication | MQL (through-tool or external nozzle) |
| Work holding | Servo-controlled hold-down with auto surface detection |
| Control system | 64-bit Windows 11, Global Connect |
| Display | 18.5" touch screen |
| Software | OmniWin CAD/CAM |
- Narrow-profile frame fits onto Element gantry systems without consuming additional floor space in your shop
- Handles all common structural bolt hole sizes up to 1-9/16" through a precision Suhner CAT 40 spindle
- Drill, tap, counter-bore, and counter-sink — four operations from a single head on one gantry
- Automated pneumatic tool changes run unattended across multiple hole sizes and operations
- Expandable 12-tool storage rack keeps your most-used tooling ready without manual swaps
- Servo-driven material clamp grips the plate surface automatically before each drilling cycle
- Independent Y-axis motor positions the drill carriage precisely and parks it clear of cutting heads when idle
- Carriage locking mechanism eliminates vibration and drift during high-force drilling operations
- Built-in tool length measurement verifies depth accuracy on every tool change, removing manual setup steps
- Minimum quantity lubrication (MQL) feeds through the tool or via external nozzle, extending tool life while reducing coolant waste
- Air blast clearing keeps the hole area free of chips between operations for consistent hole quality
- Global Connect touchscreen control with OmniWin CAD/CAM provides a single interface for drilling and cutting programs
- Expanded tool storage beyond 12 positions with flexible rack mounting
- External MQL nozzle for applications where through-tool delivery is not suitable
- Structural steel fabrication meeting AISC bolt hole tolerances
- Production bolt hole drilling in beams, columns, and connection plates
- Thread tapping for bolted connections in plate and structural members
- Counter-bore and counter-sink preparation for flush-mount fasteners
- Combined drilling, plasma cutting, and marking in a single gantry setup
