Gantry Machining
Artos
by Akyapak
Bridge-type CNC gantry milling centre with Siemens 840D control for heavy plate face milling, drilling, tapping, and deep-hole operations

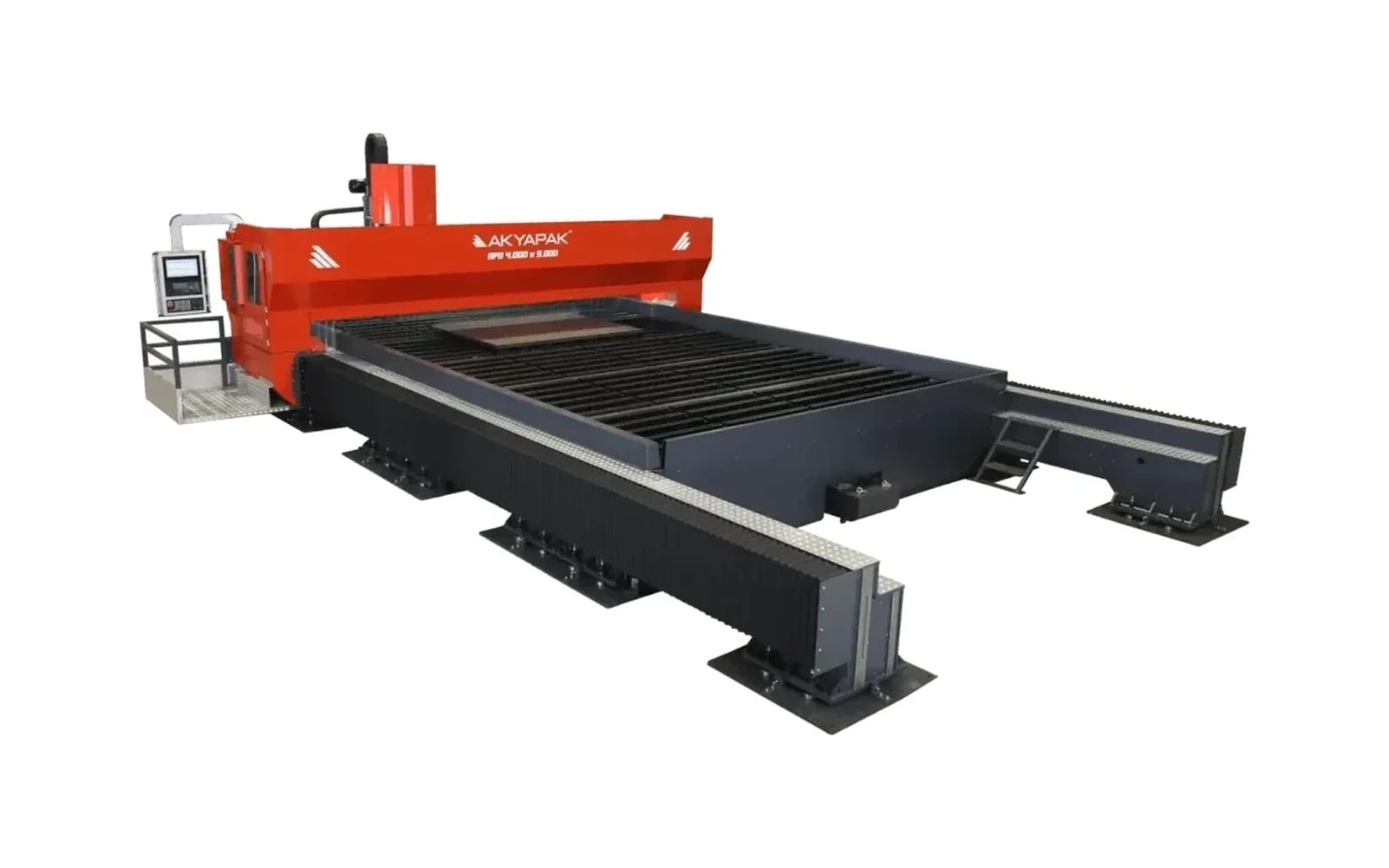

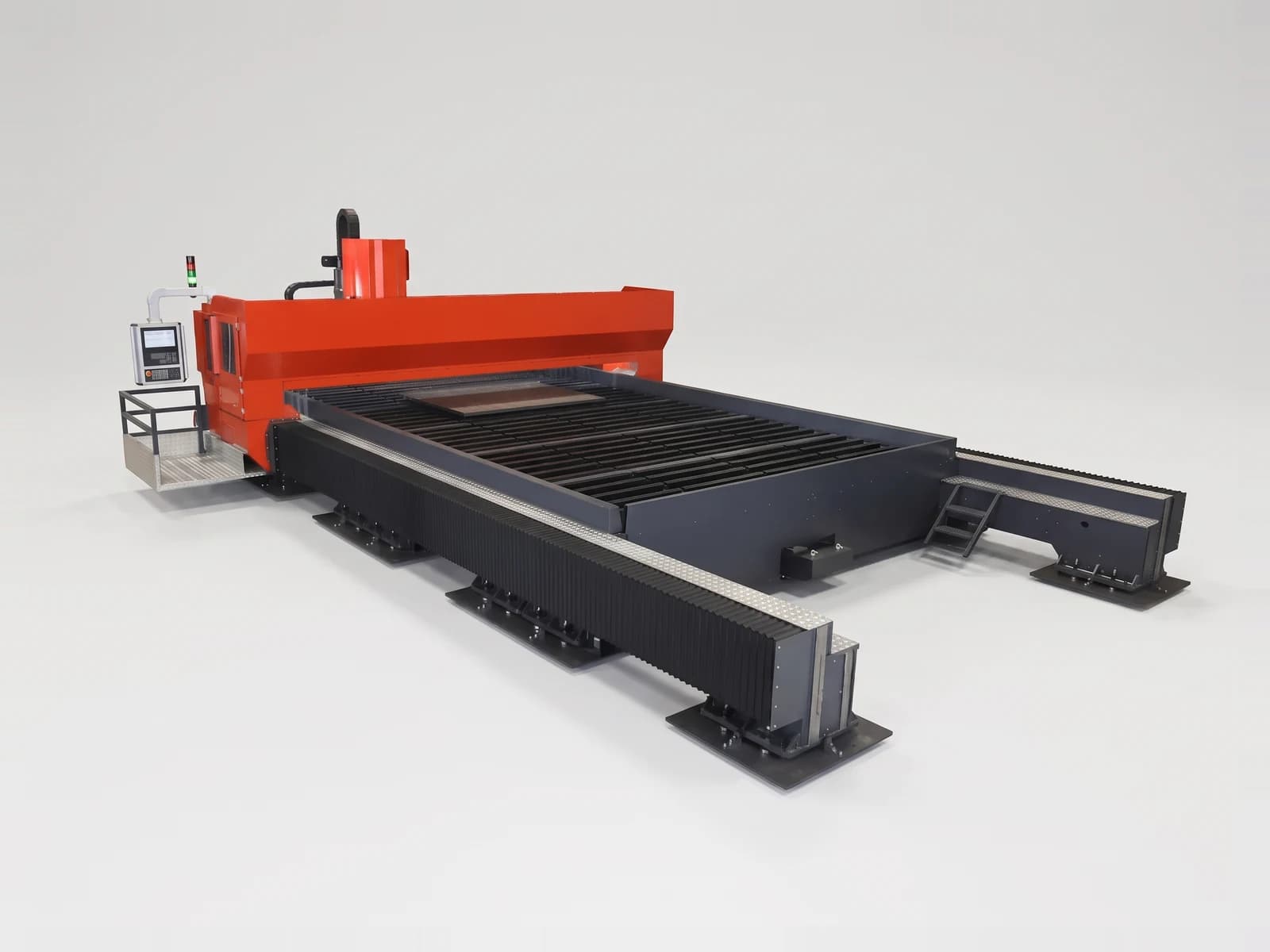

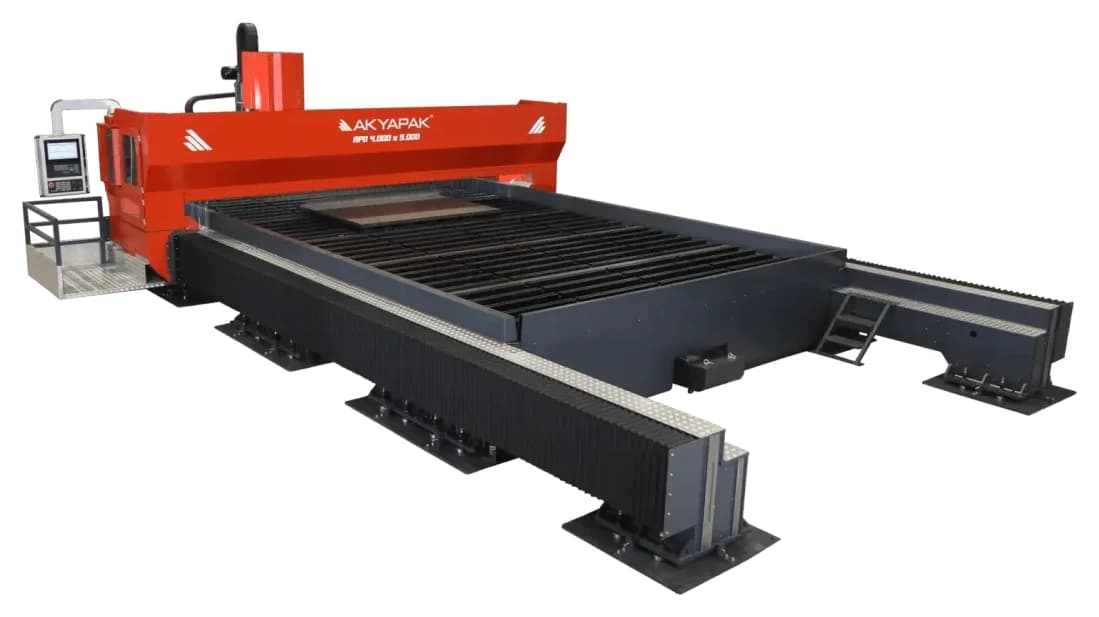

Bridge-type CNC gantry milling centre
Machine type
Siemens Sinumerik 840D Solution Line
Control system
30 kW
Spindle power
Not sure if the Artos is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Fabricators who need to machine oversized plates, weldments, and structures that exceed the travel of conventional machining centres
- Steel construction shops requiring combined milling, drilling, and tapping on heavy plate in a single setup
- Operations that value Siemens 840D control capability and the rigidity of a portal-frame design for sustained heavy-duty cutting
Machine type
Bridge-type CNC gantry milling centre
Control system
Siemens Sinumerik 840D Solution Line
Spindle power
30 kW
Spindle taper
BT50
Key Features
Artos Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Monoblock welded-steel body provides exceptional rigidity and vibration damping for sustained heavy-duty machining

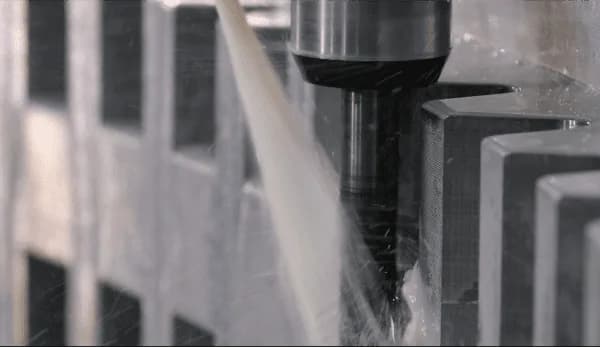

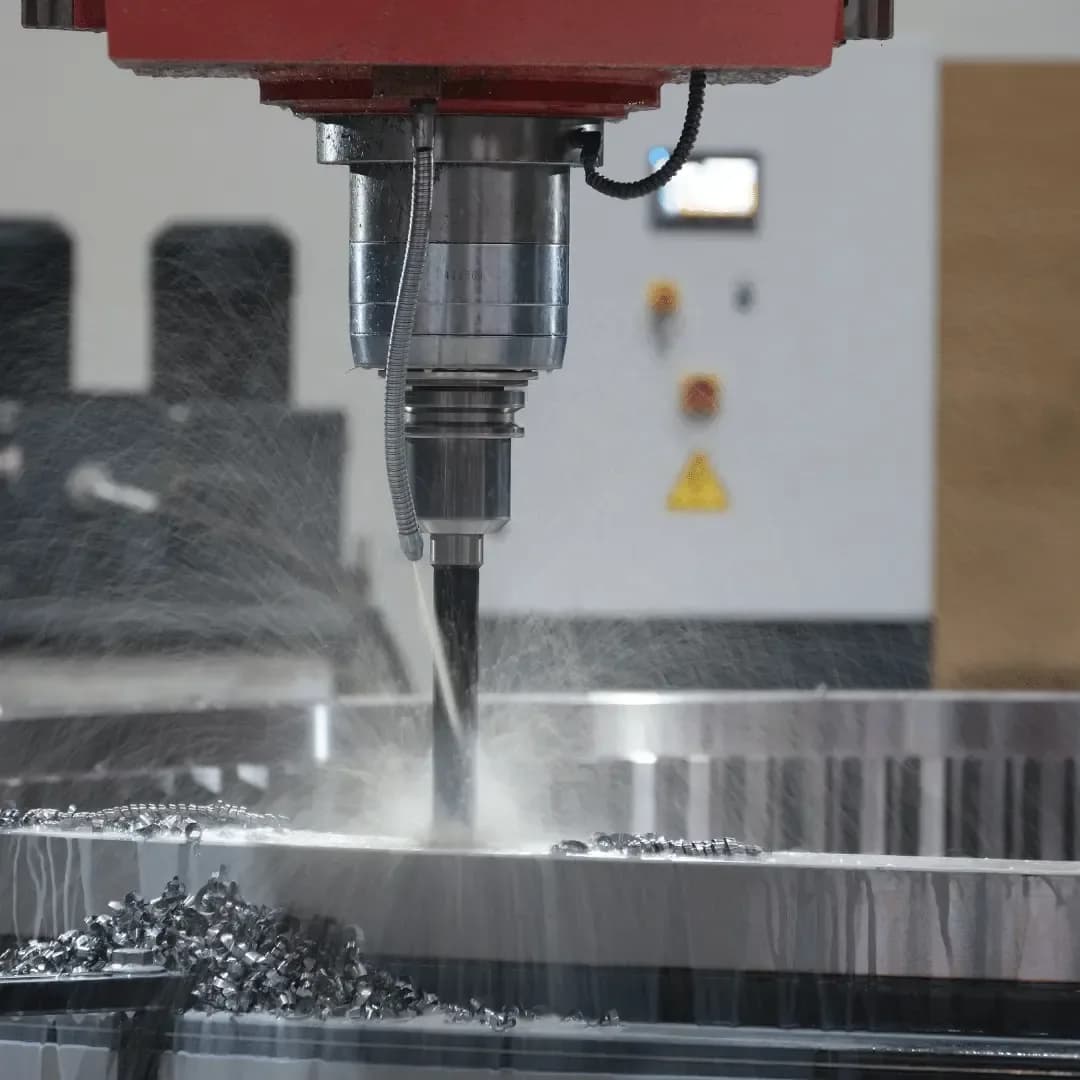

- 30 kW BT50 spindle handles face milling, end milling, drilling, tapping, and deep-hole drilling on heavy plate and weldments
- Preloaded servo motors on all axes deliver precise positioning under continuous cutting loads
- High-quality linear bearings ensure smooth, backlash-free motion across the full travel range
- Bridge-type (portal) design maintains spindle rigidity across the full working envelope
- Automatic lubrication system reduces maintenance intervals and protects bearing surfaces
Ease of Operation
- Siemens Sinumerik 840D Solution Line CNC — industry-leading control platform with full conversational programming and tool management

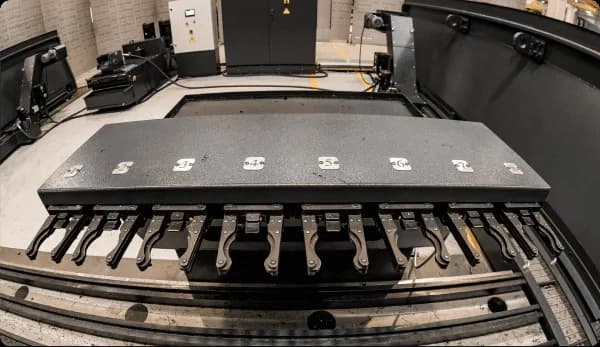

- 8-station automatic tool changer eliminates manual intervention between operations for faster cycle times
Built-In Extras
- 5,200 × 5,200 mm T-slot table accommodates oversized workpieces that exceed conventional machining centre capacity
- Multi-operation capability consolidates face milling, drilling, tapping, and deep-hole work onto a single machine

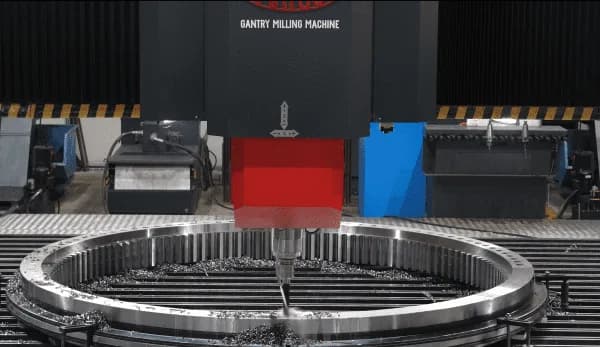

Gallery
Artos in Detail
Video
See the Artos in Action
Full Specifications
Akyapak Artos CNC Gantry Milling Machine Technical Details
Complete specifications, standard features, and optional upgrades.
- Machine type
- Bridge-type CNC gantry milling centre
- Control system
- Siemens Sinumerik 840D Solution Line
- Spindle power
- 30 kW
- Spindle taper
- BT50
- Spindle speed
- Up to 3,000 RPM
- Table size
- 5,200 × 5,200 mm (T-slots: 27× M20)
- Tool changer
- 8-station automatic (opt. 16 or 32)
- Body construction
- Monoblock welded steel, stress-relieved
- Axis drive
- Preloaded servo motors, all axes
- Guide system
- High-precision linear bearings
- Operations
- Face milling, end milling, drilling, tapping, deep-hole drilling
- Certifications
- CE
| Machine type | Bridge-type CNC gantry milling centre |
| Control system | Siemens Sinumerik 840D Solution Line |
| Spindle power | 30 kW |
| Spindle taper | BT50 |
| Spindle speed | Up to 3,000 RPM |
| Table size | 5,200 × 5,200 mm (T-slots: 27× M20) |
| Tool changer | 8-station automatic (opt. 16 or 32) |
| Body construction | Monoblock welded steel, stress-relieved |
| Axis drive | Preloaded servo motors, all axes |
| Guide system | High-precision linear bearings |
| Operations | Face milling, end milling, drilling, tapping, deep-hole drilling |
| Certifications | CE |
- Monoblock welded-steel body provides exceptional rigidity and vibration damping for sustained heavy-duty machining
- Siemens Sinumerik 840D Solution Line CNC — industry-leading control platform with full conversational programming and tool management
- 30 kW BT50 spindle handles face milling, end milling, drilling, tapping, and deep-hole drilling on heavy plate and weldments
- 8-station automatic tool changer eliminates manual intervention between operations for faster cycle times
- Preloaded servo motors on all axes deliver precise positioning under continuous cutting loads
- High-quality linear bearings ensure smooth, backlash-free motion across the full travel range
- 5,200 × 5,200 mm T-slot table accommodates oversized workpieces that exceed conventional machining centre capacity
- Bridge-type (portal) design maintains spindle rigidity across the full working envelope
- Automatic lubrication system reduces maintenance intervals and protects bearing surfaces
- Multi-operation capability consolidates face milling, drilling, tapping, and deep-hole work onto a single machine
- 16-station automatic tool changer for extended unattended operation
- 32-station automatic tool changer for complex multi-tool programs
- Custom table sizes to match specific workpiece dimensions
- Additional tooling packages for specialised applications

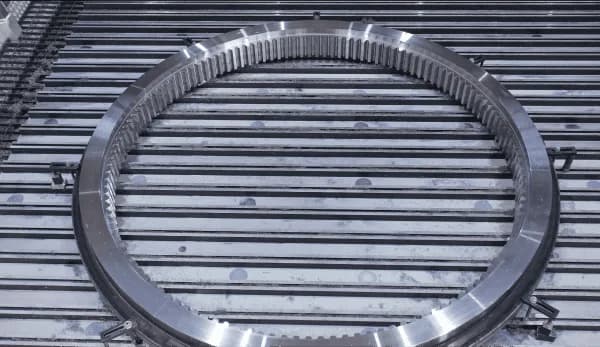

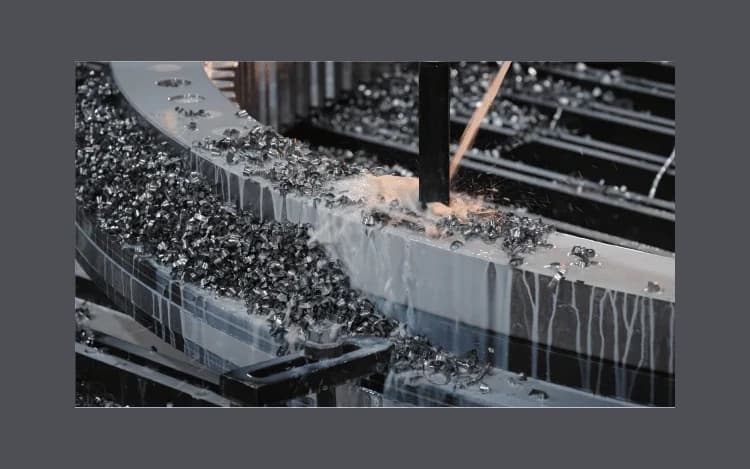

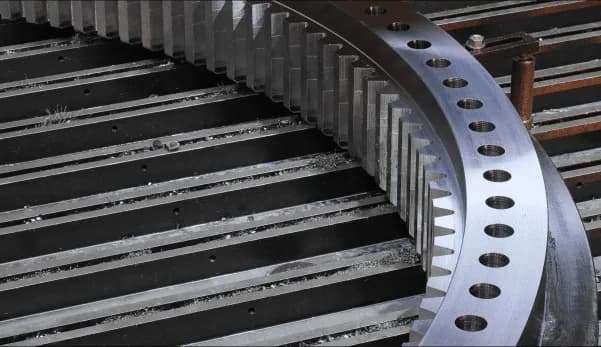

- Face milling and surface finishing of wind tower base flanges and ring sections
- Bolt-hole pattern drilling on large structural connection plates
- Precision milling of pressure vessel heads, shells, and mounting surfaces
- Shipbuilding component machining — hull plates, deck structures, and mounting pads
- Heavy equipment frame and chassis surface preparation
- Bridge and infrastructure connection plate machining
