Automation
ALU Series
by Han's Laser

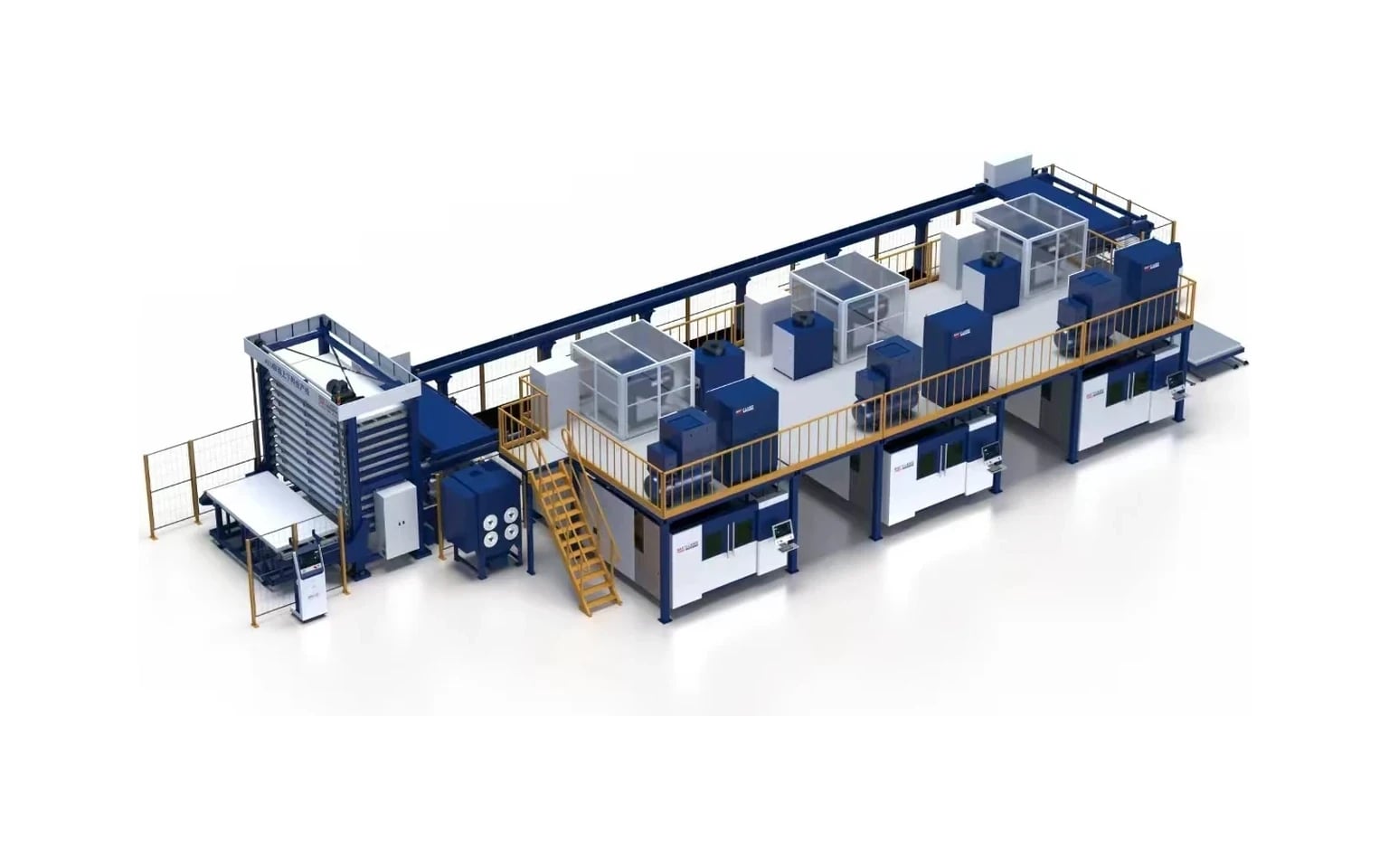

Full-cycle automation: servo-driven loading, multi-tower storage, and fork unloading at up to 60 m/min
ALU3015-B, ALU4020-B
Models
3,000 x 1,500 x 20 mm (3015-B), 4,000 x 2,000 x 16 mm (4020-B)
Max sheet size
Up to 60 m/min
Horizontal travel speed
Not sure if the ALU Series is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Operations seeking full-cycle automation from raw sheet to sorted finished parts
- Fabricators running 3015 or 4020 format laser cutters at high utilization
- Facilities needing scalable 1-to-N configurations for multi-machine production lines
- Shops requiring MES/ERP integration for production tracking and scheduling
Models
ALU3015-B, ALU4020-B
Max sheet size
3,000 x 1,500 x 20 mm (3015-B), 4,000 x 2,000 x 16 mm (4020-B)
Horizontal travel speed
Up to 60 m/min
Lift speed
Up to 9 m/min
Key Features
ALU Series Features
Standard features that set this machine apart in demanding manufacturing environments.
Ease of Operation

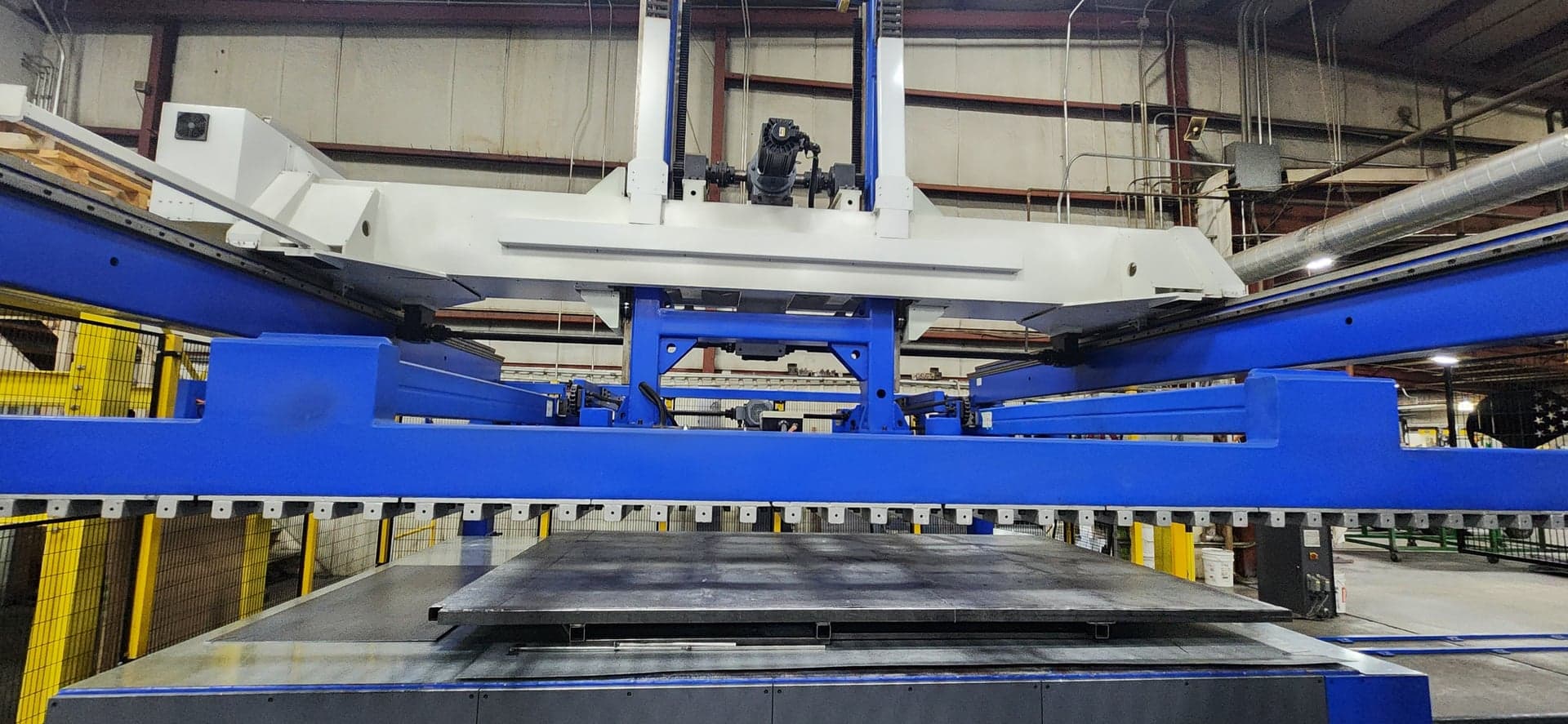

- Embrace-style fork unloading robot with reinforced steel tubing and anti-jamming angled tips

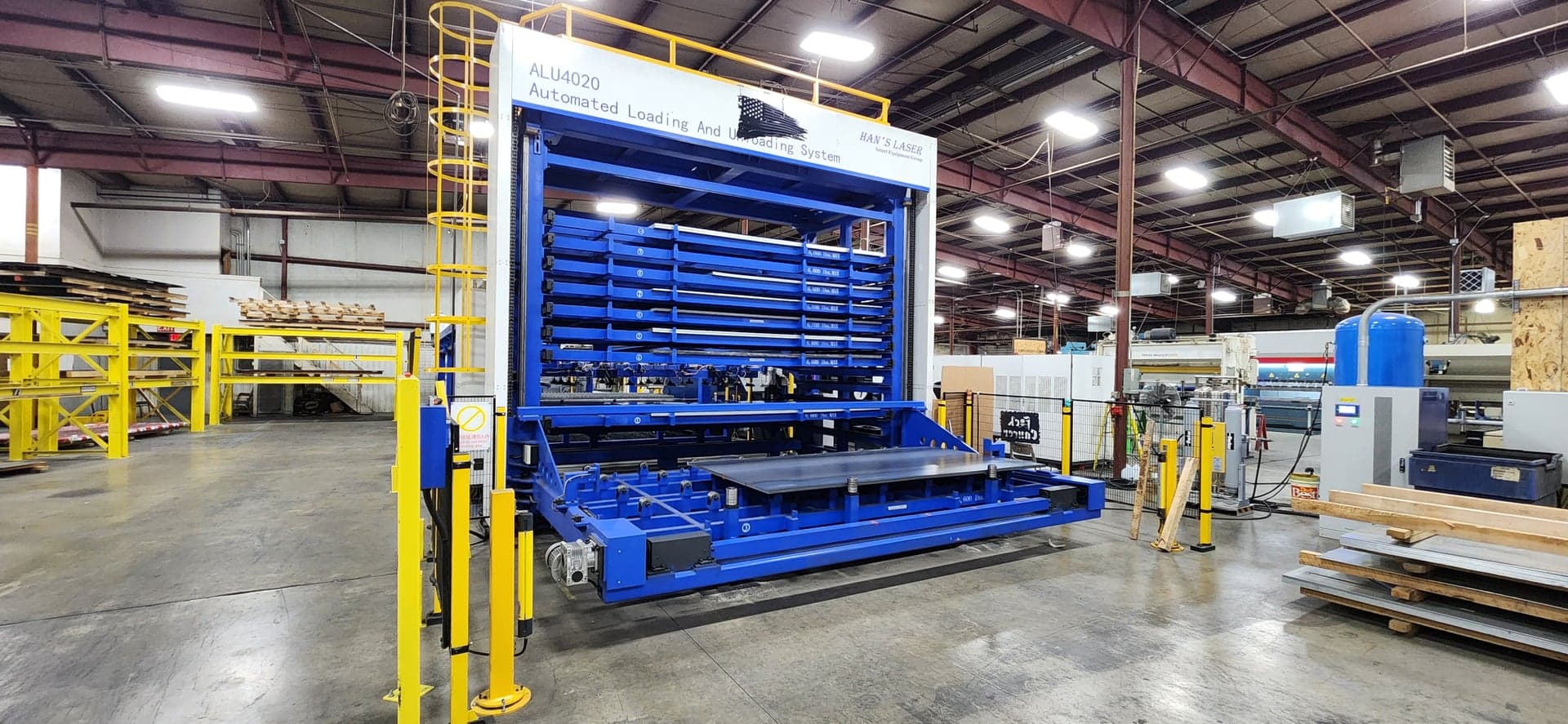

- Multi-tower storage with automatic weight and height detection and over-limit alarms

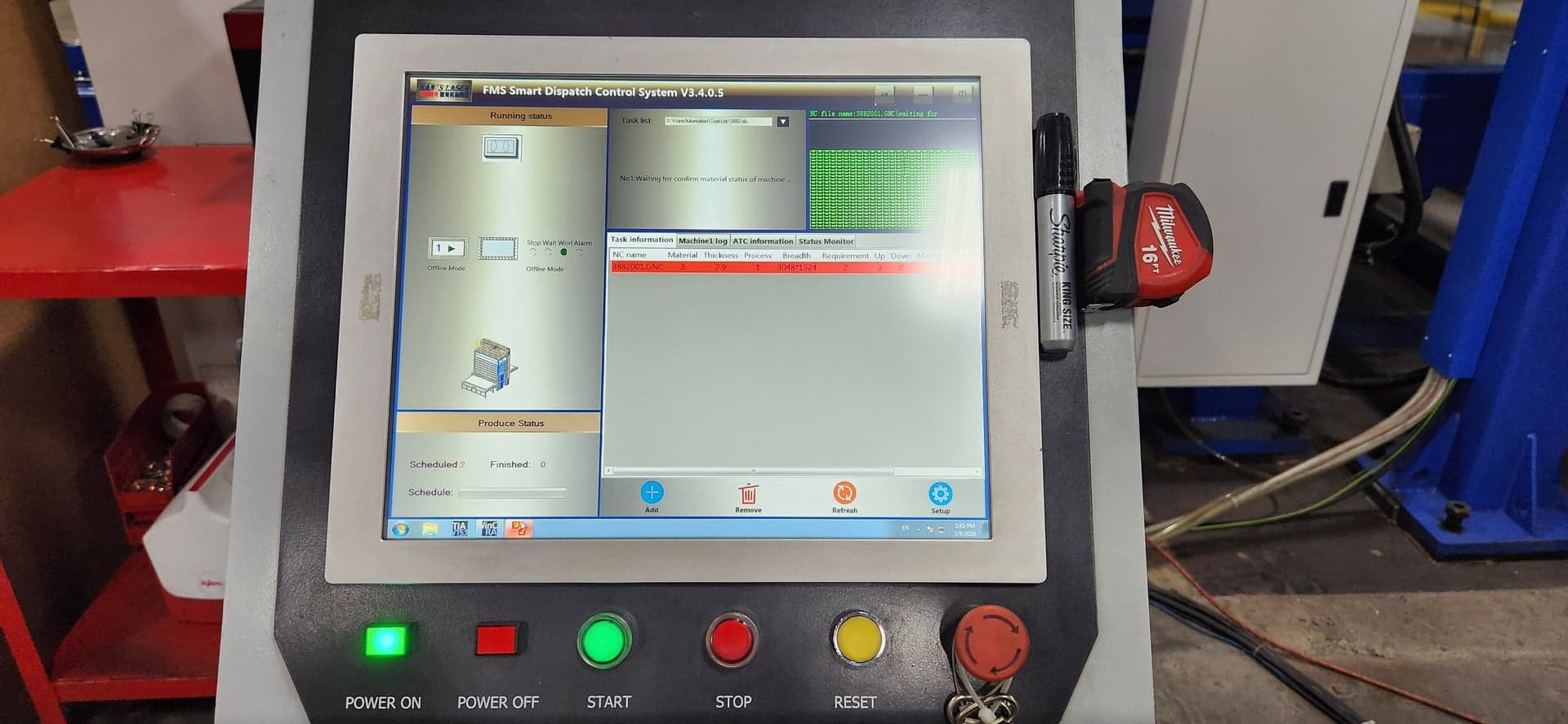

- Integrated FMS scheduling with one-click task assignment and real-time monitoring dashboard
- Automatic sheet thickness detection to prevent processing errors
Built-In Extras
- Double-layer sorting table with alternating levels, each rated to 3 tonnes

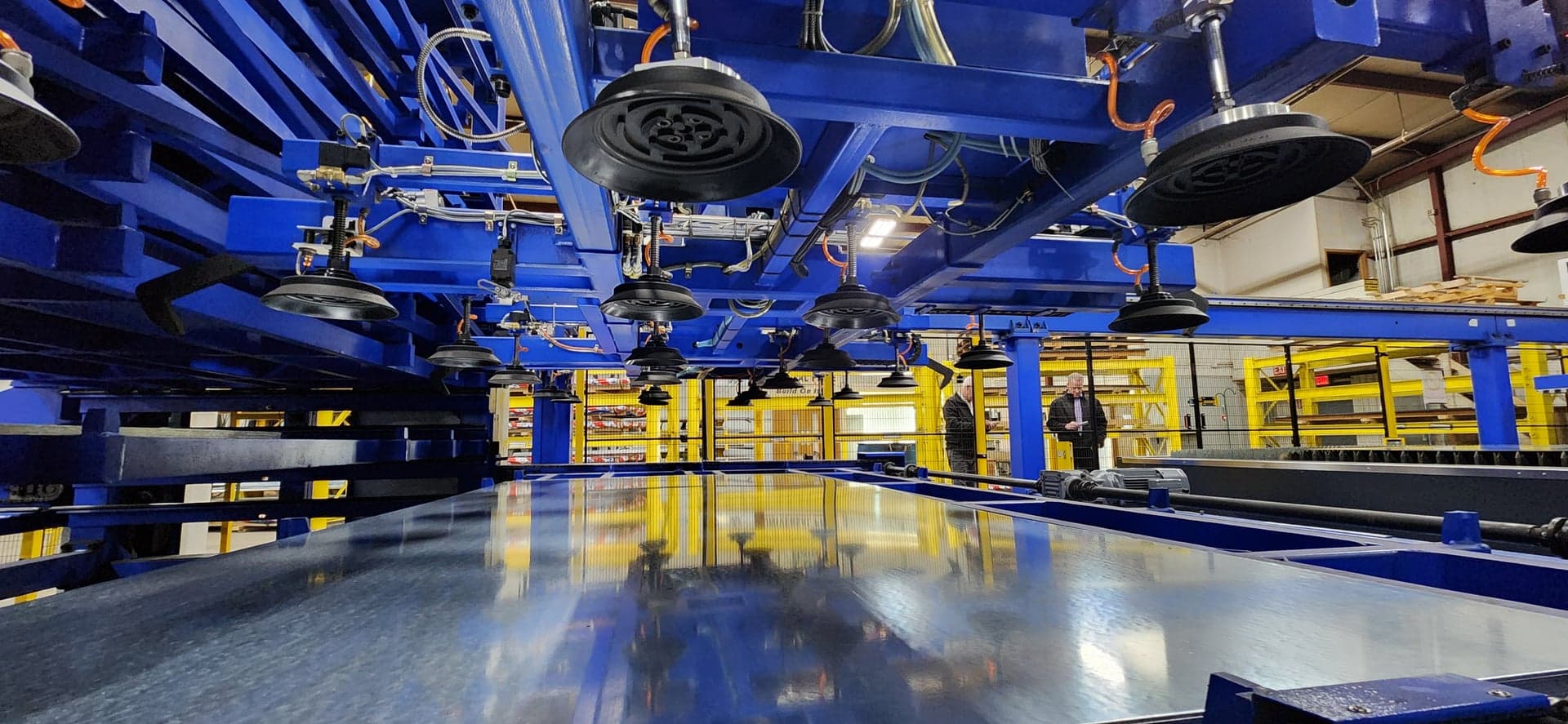

- Servo-controlled vacuum loading robot with independent suction-cup zones and automatic sheet separation
Gallery
ALU Series in Detail
Video
See the ALU Series in Action
Full Specifications
Han's ALU Series Technical Details
Complete specifications, standard features, and optional upgrades.
- Models
- ALU3015-B, ALU4020-B
- Max sheet size
- 3,000 x 1,500 x 20 mm (3015-B), 4,000 x 2,000 x 16 mm (4020-B)
- Horizontal travel speed
- Up to 60 m/min
- Lift speed
- Up to 9 m/min
- Fork speed
- Up to 10 m/min
- Positioning accuracy
- +/- 1 mm
- Rack load capacity
- 3 tonnes per level
- Storage configurations
- 10, 15, 20, 30, or 40 slots (single or dual tower)
- Cart capacity
- 3 tonnes, 20 m/min travel
- Control
- PLC with FMS scheduling, optional MES integration
| Models | ALU3015-B, ALU4020-B |
| Max sheet size | 3,000 x 1,500 x 20 mm (3015-B), 4,000 x 2,000 x 16 mm (4020-B) |
| Horizontal travel speed | Up to 60 m/min |
| Lift speed | Up to 9 m/min |
| Fork speed | Up to 10 m/min |
| Positioning accuracy | +/- 1 mm |
| Rack load capacity | 3 tonnes per level |
| Storage configurations | 10, 15, 20, 30, or 40 slots (single or dual tower) |
| Cart capacity | 3 tonnes, 20 m/min travel |
| Control | PLC with FMS scheduling, optional MES integration |
- Servo-controlled vacuum loading robot with independent suction-cup zones and automatic sheet separation
- Embrace-style fork unloading robot with reinforced steel tubing and anti-jamming angled tips
- Double-layer sorting table with alternating levels, each rated to 3 tonnes
- Multi-tower storage with automatic weight and height detection and over-limit alarms
- Integrated FMS scheduling with one-click task assignment and real-time monitoring dashboard
- Automatic sheet thickness detection to prevent processing errors
- Scratch-proof unloading robot for sensitive material finishes
- Dual-column material racks and raw material carts
- Workpiece traceability with automatic labelling and laser marking
- 1-to-N expansion connecting up to four cutting machines from shared storage
- High-volume sheet metal fabrication requiring continuous, unattended laser cutting
- Multi-shift operations where material handling bottlenecks limit throughput
- Facilities running multiple laser cutting machines from centralized sheet storage
- Shops transitioning to lights-out or reduced-operator production
FAQ
ALU Series Questions
Answers to common questions about the ALU Series.
The ALU3015-B handles sheets up to 3,000 x 1,500 x 20 mm. The ALU4020-B handles sheets up to 4,000 x 2,000 x 16 mm. Both models support single or dual tower storage with 10 to 40 rack positions.
Yes. The system supports 1-to-N configurations, connecting up to four cutting machines to shared storage towers. The FMS scheduling platform coordinates job assignment across all connected machines.
The ALU includes an FMS scheduling platform with real-time monitoring and operation logging. It connects to MES and ERP systems through standard interfaces, and the optional workpiece traceability module adds automatic labelling for full production tracking.
