Messer Cutting Systems
Messer Titan III Plasma and Oxyfuel Cutting System
- Year
- 2020
- Model
- Titan III, 16 ft
- Location
- Sudbury, Ontario, Canada
- Condition
- Good, one owner from new
This unit has been sold. We may have similar equipment available, so let us know what you're looking for.
Or call 905-581-1191
Photos

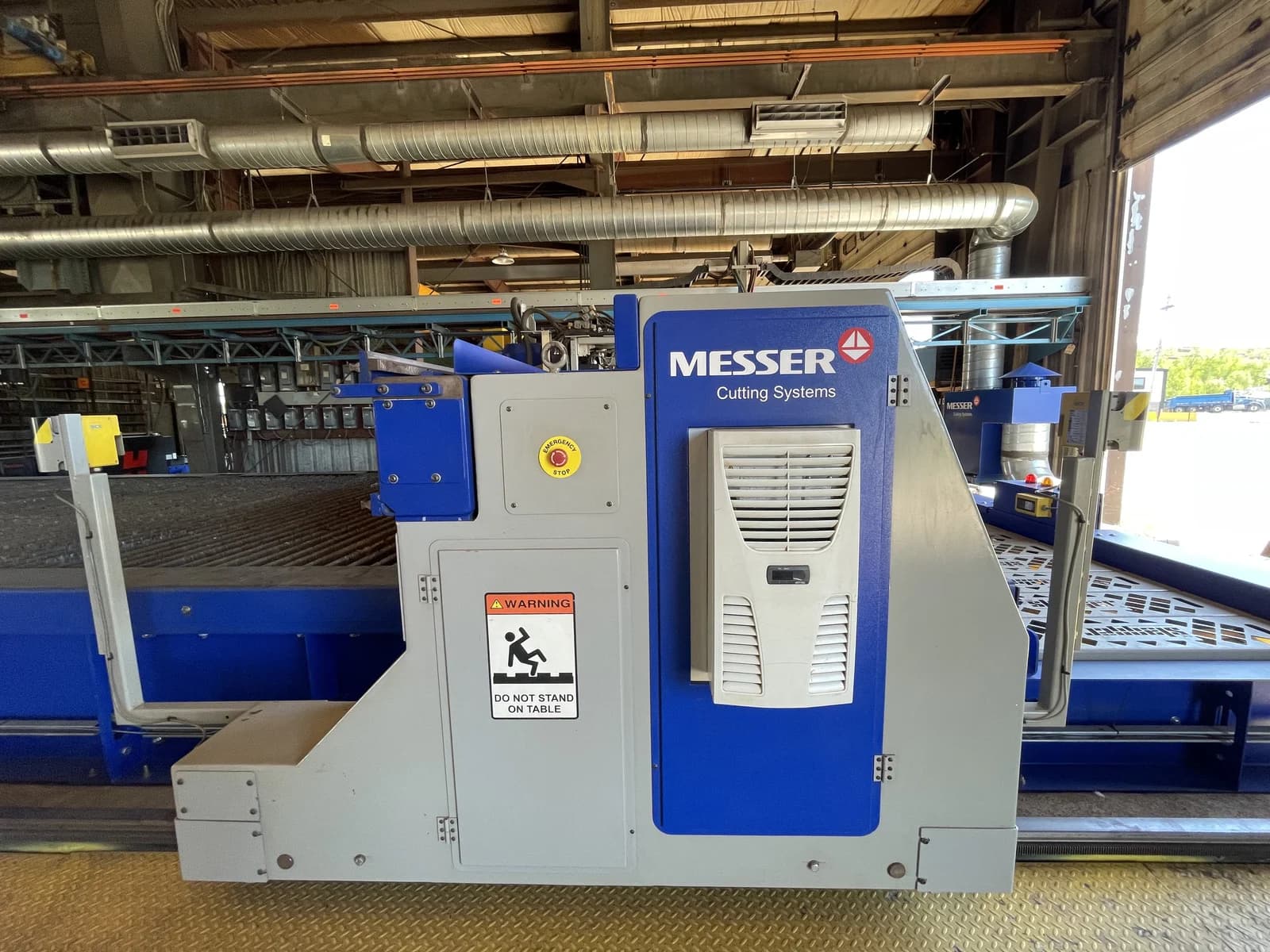

Messer Titan III Plasma and Oxyfuel Cutting System — Photo Gallery
About This Listing
Equipment Details
A Messer Titan III plasma and oxyfuel cutting system, sold by AC Machinery. The Titan III is a heavy gantry machine built for shops cutting plate all day. This one was configured with both processes on the same beam: a Hypertherm HPR400XD plasma system with a programmable bevel head, and an oxyfuel station for heavier plate. A 15 foot by 45 foot Slagger table and a Camfil dust collector went with it, so the buyer took delivery of a complete installation rather than a machine and a list of things still to source. It was built in 2020, installed new in the spring of 2021, and had one owner from new. We are showing it here because it has sold. If you are looking at a Titan III, or at replacing an older gantry, talk to us about what is available and what it would cost to put a comparable system on your floor.
Built in 2020 and installed new in the spring of 2021 in Sudbury, Ontario, where it ran with a single owner until we sold it in September 2026. It shipped and was removed complete, with the plasma system, bevel head, oxyfuel station, cutting table and dust collector all present.
Highlights
Key Features
- Plasma and oxyfuel on one gantry, so a single machine covers production plate and heavy plate
- Programmable bevel head, which puts weld prep on the cutting machine instead of a second operation
- True Hole bolt hole quality on mild steel, licensed from Hypertherm into the Messer control
- Slagger table clears slag and smoke without shutting the machine down
- Plate alignment camera, so the operator squares the program to the plate rather than the plate to the machine
- Rail cleaning brushes and gear rack air purge, which is what keeps a gantry accurate in a dirty shop
- Remote diagnostics built into the control
Specifications
Messer Titan III Plasma and Oxyfuel Cutting System Technical Specs
- Cutting width
- 16 ft (225.5 in rail gauge)
- Rail length
- 55.8 ft
- Effective cut length
- 47.8 ft
- Positioning speed
- 1,700 in/min
- Beam
- 8 in x 12 in machined steel cross section
- Drives
- Brushless AC servo with planetary gearboxes, X and Y
- Positioning accuracy
- 0.018 in over 72 in travel, X and Y
- Repeatability
- 0.005 in, X and Y
- Control
- Messer Global ControlPlus, 24 in colour touch screen
- Plasma
- Hypertherm HPR400XD with automatic gas console
- Bevel head
- Global Rotator Delta, 460 degrees rotation, 52 degrees tilt
- Oxyfuel
- One ALFA torch with magnetic height sensing
- Oxyfuel gas control
- Omniflow automatic gas controller
- Oxyfuel lifter
- SmartLifter SL200, 7.87 in stroke
- Cutting table
- 15 ft x 45 ft 4 in Slagger, 13 ft x 43 ft cutting surface
- Table capacity
- Supports plate up to 4 in across the full surface
- Dust collector
- Camfil Gold Series X-Flo GSX12/25, 7,800 CFM, 25 HP
- Machine power
- 480 VAC, 3 phase, 18 A (control and drives)
| Cutting width | 16 ft (225.5 in rail gauge) |
| Rail length | 55.8 ft |
| Effective cut length | 47.8 ft |
| Positioning speed | 1,700 in/min |
| Beam | 8 in x 12 in machined steel cross section |
| Drives | Brushless AC servo with planetary gearboxes, X and Y |
| Positioning accuracy | 0.018 in over 72 in travel, X and Y |
| Repeatability | 0.005 in, X and Y |
| Control | Messer Global ControlPlus, 24 in colour touch screen |
| Plasma | Hypertherm HPR400XD with automatic gas console |
| Bevel head | Global Rotator Delta, 460 degrees rotation, 52 degrees tilt |
| Oxyfuel | One ALFA torch with magnetic height sensing |
| Oxyfuel gas control | Omniflow automatic gas controller |
| Oxyfuel lifter | SmartLifter SL200, 7.87 in stroke |
| Cutting table | 15 ft x 45 ft 4 in Slagger, 13 ft x 43 ft cutting surface |
| Table capacity | Supports plate up to 4 in across the full surface |
| Dust collector | Camfil Gold Series X-Flo GSX12/25, 7,800 CFM, 25 HP |
| Machine power | 480 VAC, 3 phase, 18 A (control and drives) |
What's Included
Equipment Package
Included
- Hypertherm HPR400XD plasma power supply and automatic gas console
- Global Rotator Delta bevel head and OmniBevel programming software
- ALFA oxyfuel torch, Omniflow gas control and SmartLifter SL200
- 15 ft x 45 ft 4 in Slagger cutting table with wireless remote
- Camfil Gold Series X-Flo dust collector, spark traps and remote start
- Plate alignment camera
Similar Equipment
Looking for something like this?
This unit has been sold, but we may have similar Messer Cutting Systems equipment available. Tell us what you're looking for.
New Equipment
New equivalents we supply
This unit has been sold. We supply new Messer Cutting Systems equipment and can quote a comparable machine.
Durable unitized plasma/oxyfuel machine
EdgeMax
Durable unitized steel table/frame with optional plasma or oxyfuel capabilities and optional water table. Full capture bearing assemblies and low-mass aluminum beam powered by dual brushless AC motors. Rapid acceleration, precise motion, highly stable platform.
Large format gantry cutting system
Element 400 Gantry
The Element 400 Gantry features a rack-and-pinion drive system, large cutting areas, and customizable configurations. A versatile gantry platform for multi-process operations including plasma and oxyfuel cutting.
High-productivity unitized plasma system

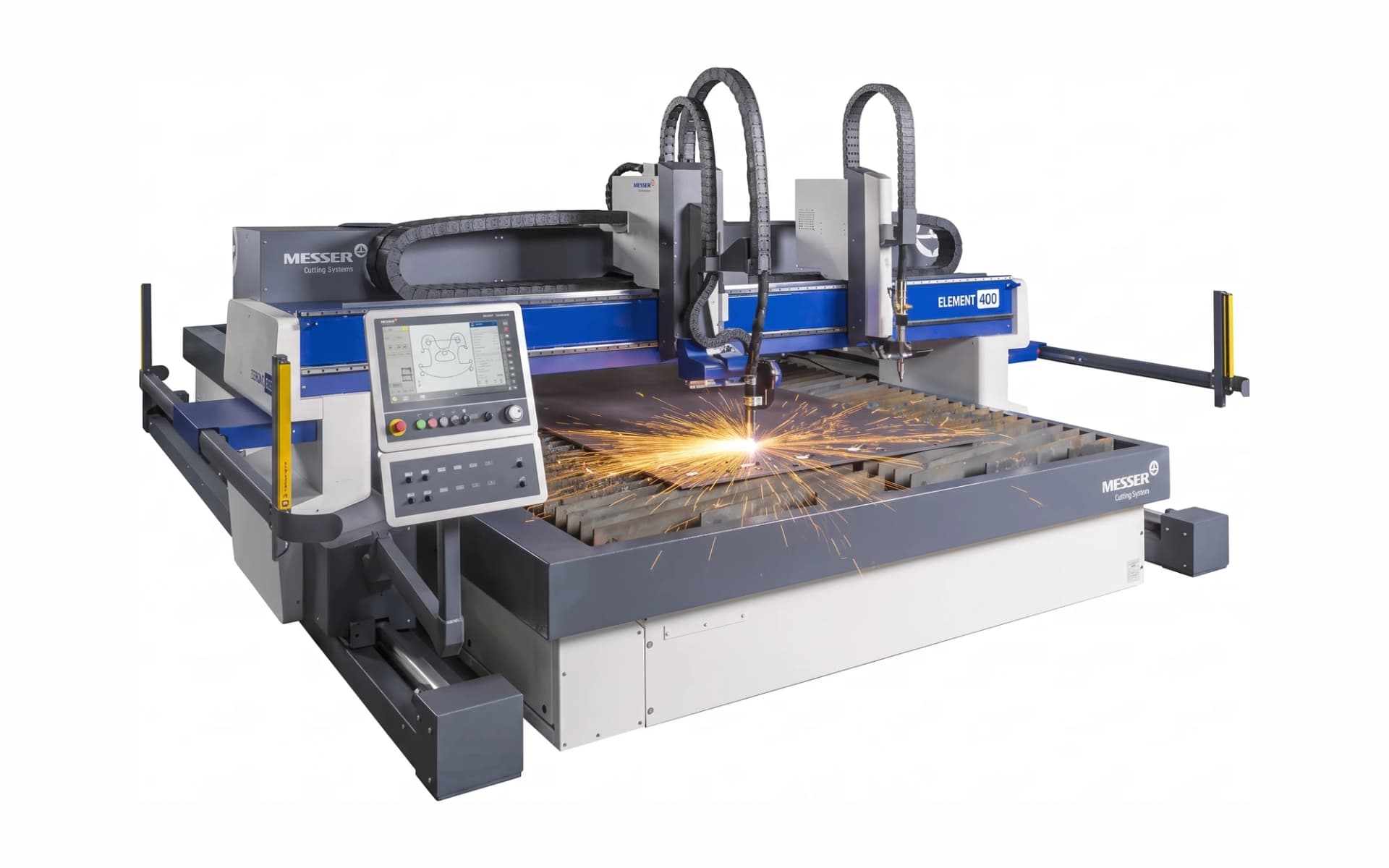

Element 400 Unitized
