High-speed, high-precision unitized plasma cutting with Industry 4.0 connectivity.

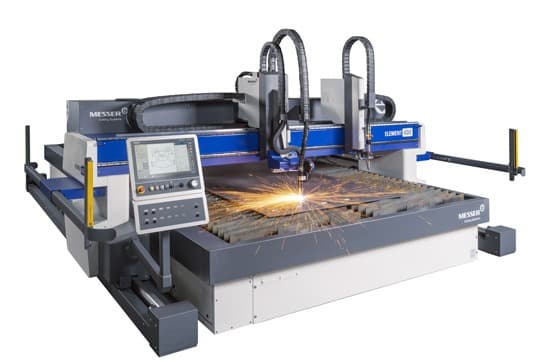

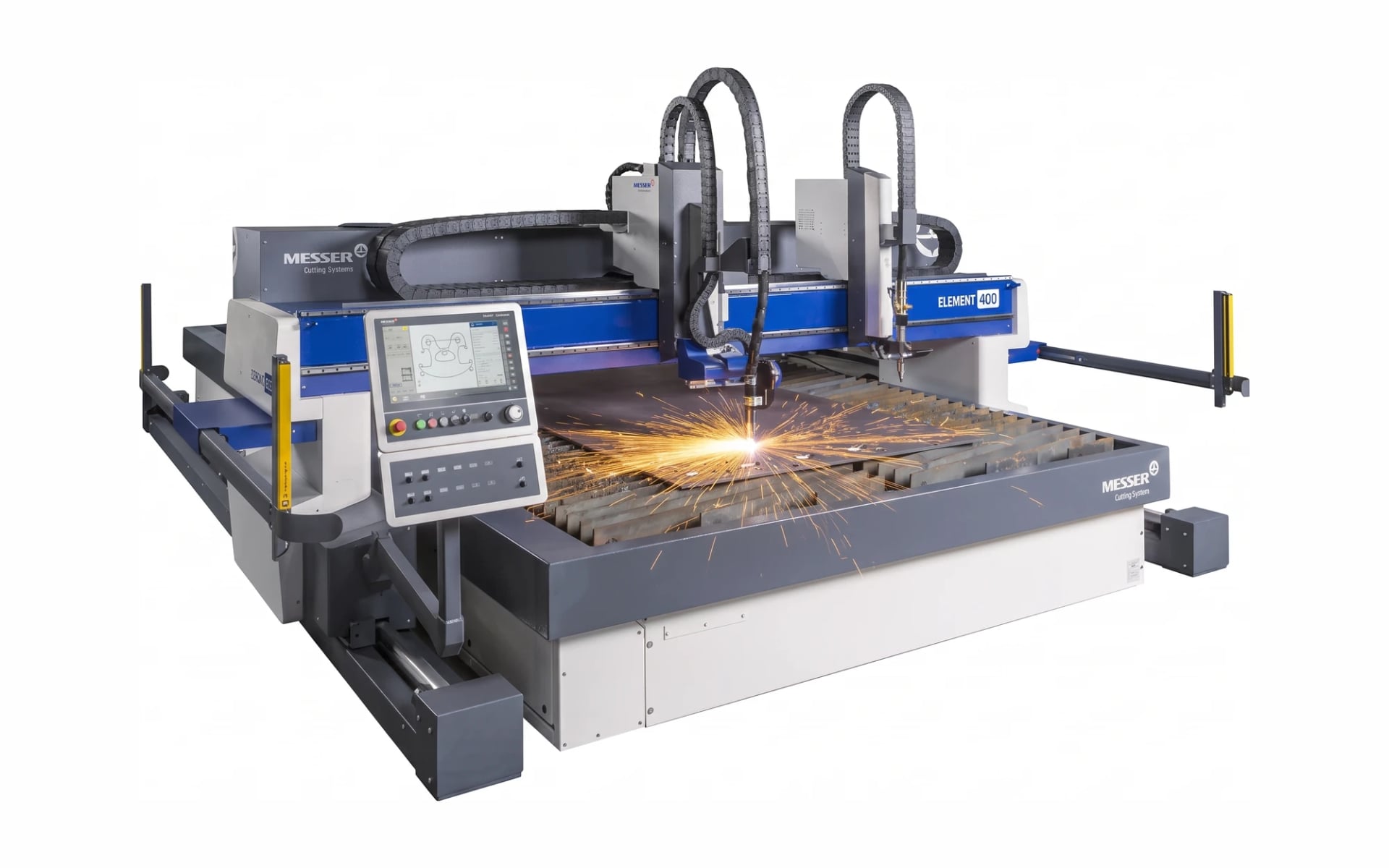

Developed with productivity and part quality as the primary design drivers, the Messer Element 400 Unitized Plasma Cutting Machine delivers exceptional cutting performance in a compact, self-contained table configuration. With top speeds of up to 5,511 inches per minute, 1G acceleration for sharp cornering, and advanced motion control, the Element 400 Unitized minimizes low-speed dross while maximizing throughput and cut consistency.
Designed for modern fabrication environments, this system supports Industry 4.0 paperless factory connectivity, allowing manufacturers to integrate cutting operations directly into digital production workflows.
Machines manufactured in North America.
Overview: What Makes the Element 400 Unitized Different
Unlike gantry-style rail systems, the Element 400 Unitized is a fully integrated cutting table engineered for shops that need industrial plasma performance without excessive floor space or installation complexity.
Its rigid unitized frame, high-speed drives, and intelligent CNC control allow operators to maintain cut quality at higher speeds — particularly in tight geometry where slower machines struggle with dross formation and edge degradation.
This makes the Element 400 Unitized ideal for production environments that value speed, repeatability, and digital workflow integration.
Key Features & Benefits
- High-speed cutting performance for sheet and plate production.
- Excellent cut quality and edge finish across steel, stainless steel, and aluminum.
- Flexible configurations – multiple bed sizes and laser power options up to 20 kW.
- Lower operating cost compared to COâ‚‚ laser systems.
- Automation-ready platform with shuttle table and optional material handling.
- Stocked and supported in Ontario with local technicians and parts.
Looking for a rail-mounted cutting system for larger-format production? Compare the Element 400 Gantry.
Standard Features
- Helical rack and pinion drive systems provide smooth, vibration-free machine motion and best cut quality
- 2,600 IPM top speed minimizes non-cutting machine time and increases output
- Enclosed powertrack in both axes is standard
- Up to six torch stations (maximum two plasma stations)
- Up to three torch stations will cover full rated cutting width

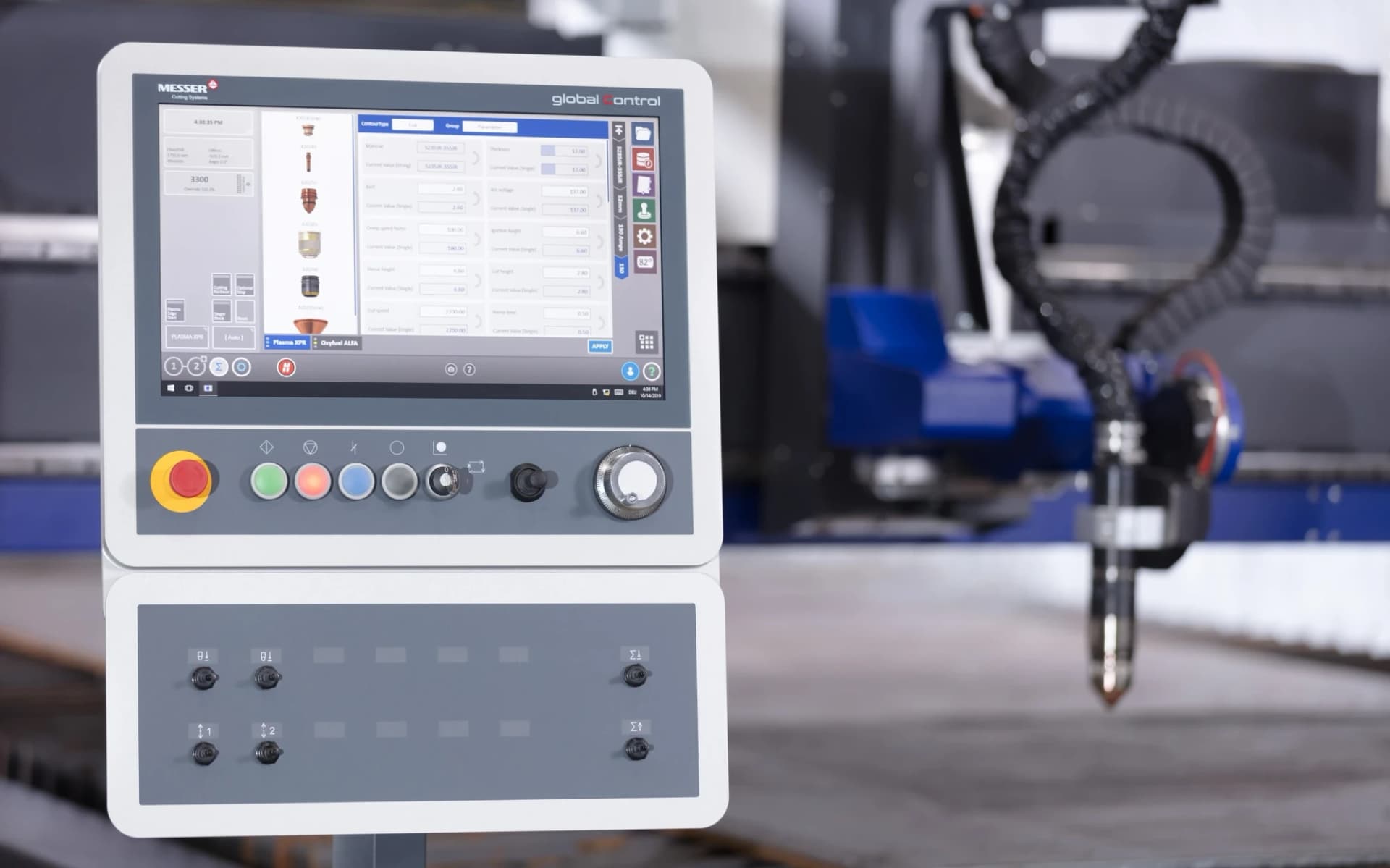

- Easy-to-operate Global Connect CNC control equipped with 18.5” touchscreen provides a clear overview of all production data
- Right- or left-hand mounted control console with tilt and swivel for operator comfort
- SureStop collision sensor with easy and accurate reset

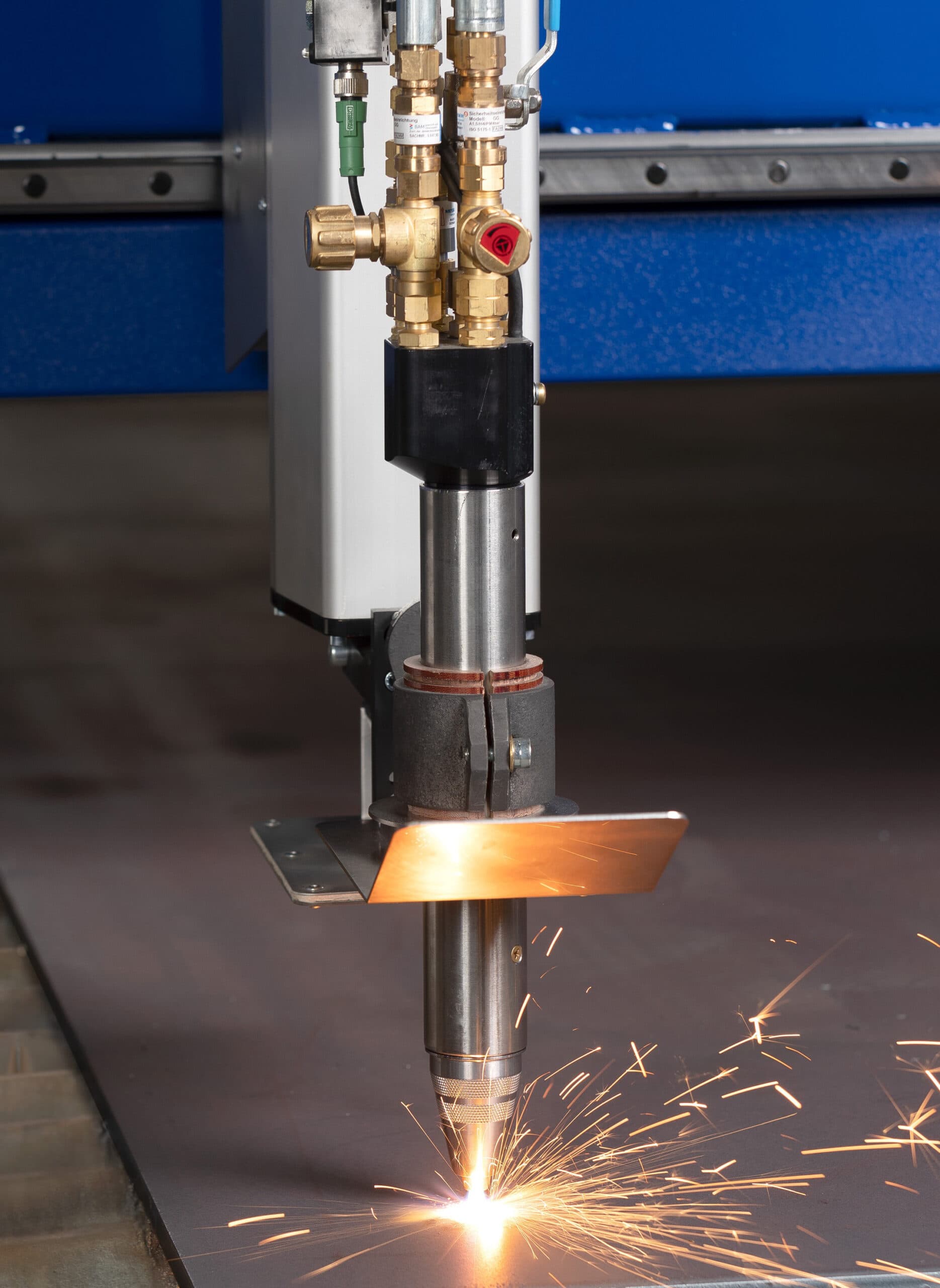

- Advanced oxyfuel technology provides consistent piercing and faster cutting
- Virtual Service™ remote consultation and diagnostics
Industry 4.0 & Smart Factory Integration
The Element 400 Unitized is built to support modern, data-driven manufacturing environments.
Industry 4.0 capabilities include:
- Paperless production workflows
- Job and production data connectivity
- Integration with Messer Global Connect CNC ecosystem
- Compatibility with nesting and production management software
This allows manufacturers to monitor, manage, and optimize cutting operations in real time — reducing downtime and improving throughput.
Optional Features & Automation
- Helical rack and pinion drive systems provide smooth, vibration-free machine motion and best cut quality
- 5,500 IPM top speed minimizes non-cutting machine time and increases output
- Enclosed powertrack in both axes is standard
- Up to six torch stations (maximum two plasma stations)
- Up to three torch stations will cover full rated cutting width
- Easy-to-operate Global Connect CNC control equipped with 18.5” touchscreen provides a clear overview of all production data
- Right- or left-hand mounted control console with tilt and swivel for operator comfort
- SureStop collision sensor with easy and accurate reset
- Advanced oxyfuel technology provides consistent piercing and faster cutting
- Virtual Service™ remote consultation and diagnostics
Plasma Cutting Processes
Supported processes include:
- High-definition plasma cutting

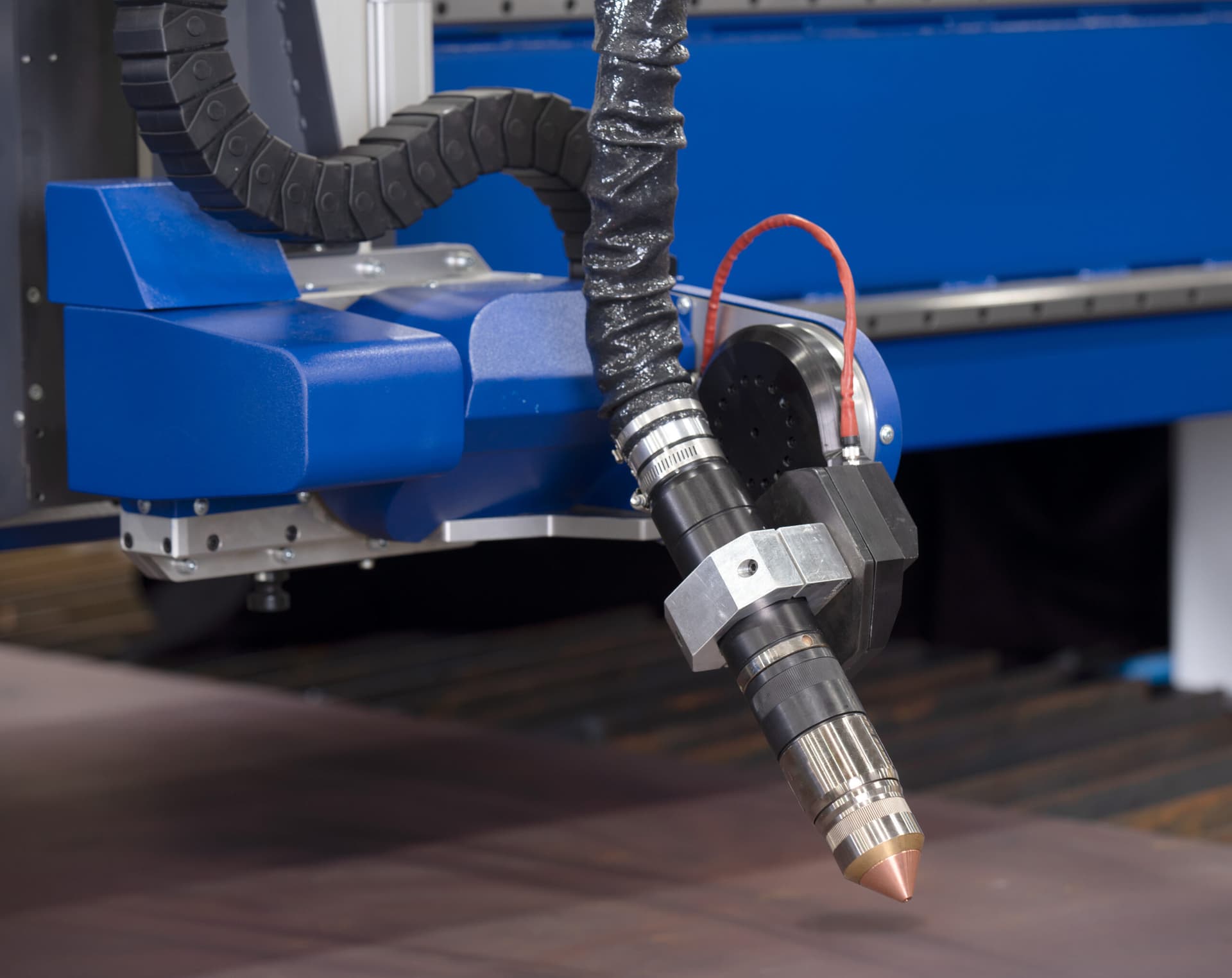

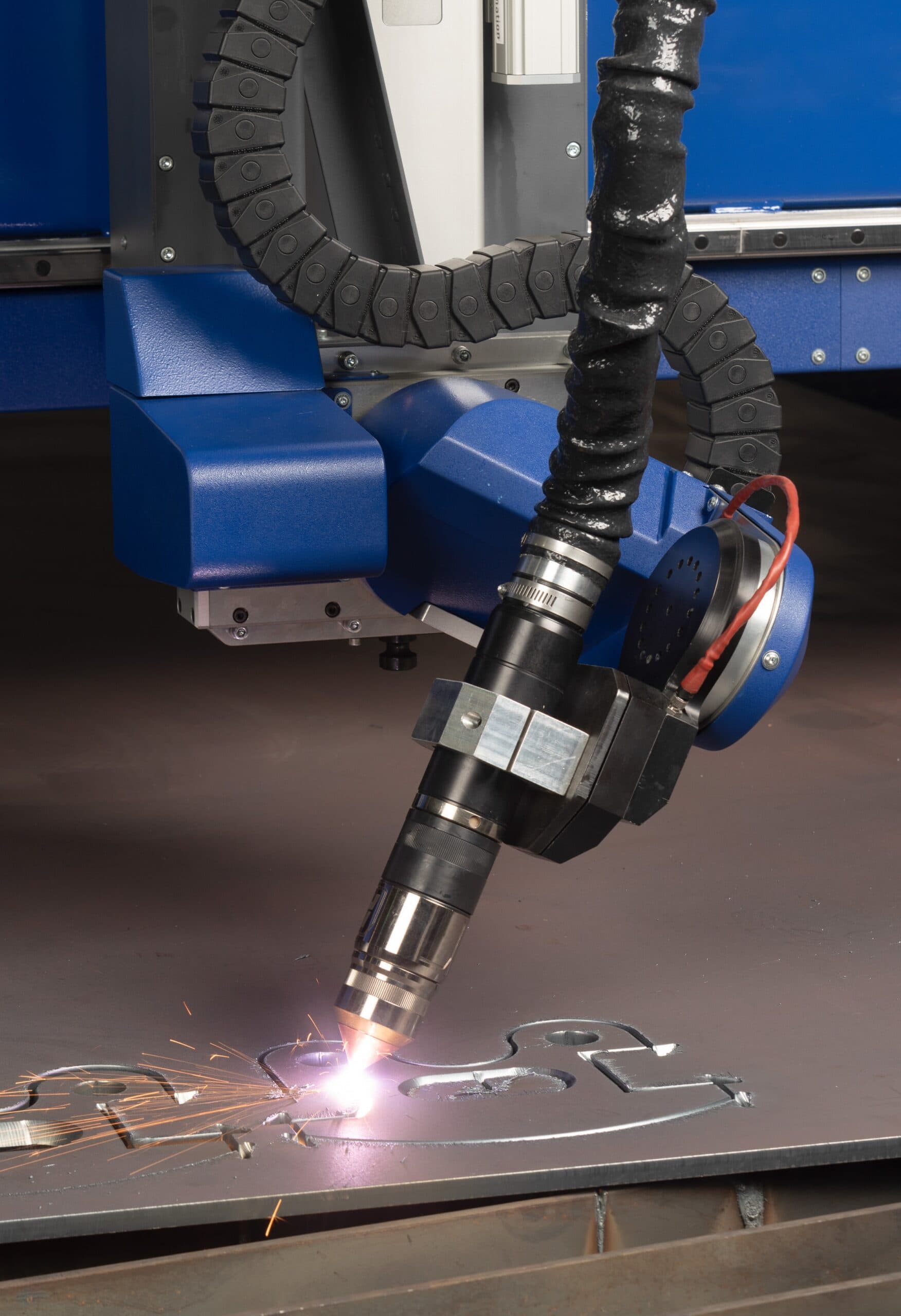

- Plasma bevel cutting (optional) for weld preparation
- Part marking (ink-jet or pinstamp options)
These capabilities make the Element 400 Unitized suitable for both straight profile cutting and downstream fabrication requirements.
Service, Installation & Support in Ontario
Automated Cutting Machinery provides:
- Local installation and commissioning
- Operator training and application support
- Preventative maintenance programs
- Technical service and spare parts support
Ensuring long-term performance and uptime in Canadian fabrication environments based in Cambridge, Ontario, Canada.
Technical Specifications
Specifications and included options vary by build; final configuration is confirmed during consultation.
Top speed:
up to 5,511 inches per minute
Acceleration:
up to 1G (improves cornering and reduces low-speed dross)
Motion system:
high-speed industrial motion design intended for precision parts and high throughput
Connectivity:
Industry 4.0 / paperless factory connectivity for digital production workflows
Options available:
configurations intended to maximize output and minimize downtime (application-dependent)
Best Suited For
The Element 400 Unitized is ideal for:
- Fabrication shops cutting plate and sheet at high speeds
- Manufacturers seeking reduced dross on fine features and sharp corners
- Operations upgrading older plasma tables to modern CNC performance
- Facilities pursuing paperless, Industry 4.0-aligned production
- Shops that want turnkey installation without gantry rail infrastructure
Frequently Asked Questions
How is the Element 400 Unitized different from older plasma tables?
It delivers significantly higher speeds, faster acceleration, reduced low-speed dross, and Industry 4.0 connectivity not available on legacy systems.
Is this machine suitable for high-precision parts?
Yes. The 1G acceleration and optimized motion control help maintain cut quality on tight geometries and sharp corners.
Does it support digital production workflows?
Yes. The system is designed for paperless factory environments and modern CNC integration.
Does Automated Cutting Machinery provide ongoing support?
Yes — we offer service contracts, on-site repairs, preventive maintenance, remote monitoring, and parts support, all delivered by local Ontario-based technicians.
Speak With an Element 400 Unitized Specialist
Explore whether the Element 400 Unitized Plasma Cutting Machine fits your material thickness, part geometry, and production goals. Share a few details below and we’ll respond within 24 business hours with recommendations and next steps.
