FiberBlade

Flexible sizing from 5’x10’ up to 8’x20’ and laser wattages up to 20kw.

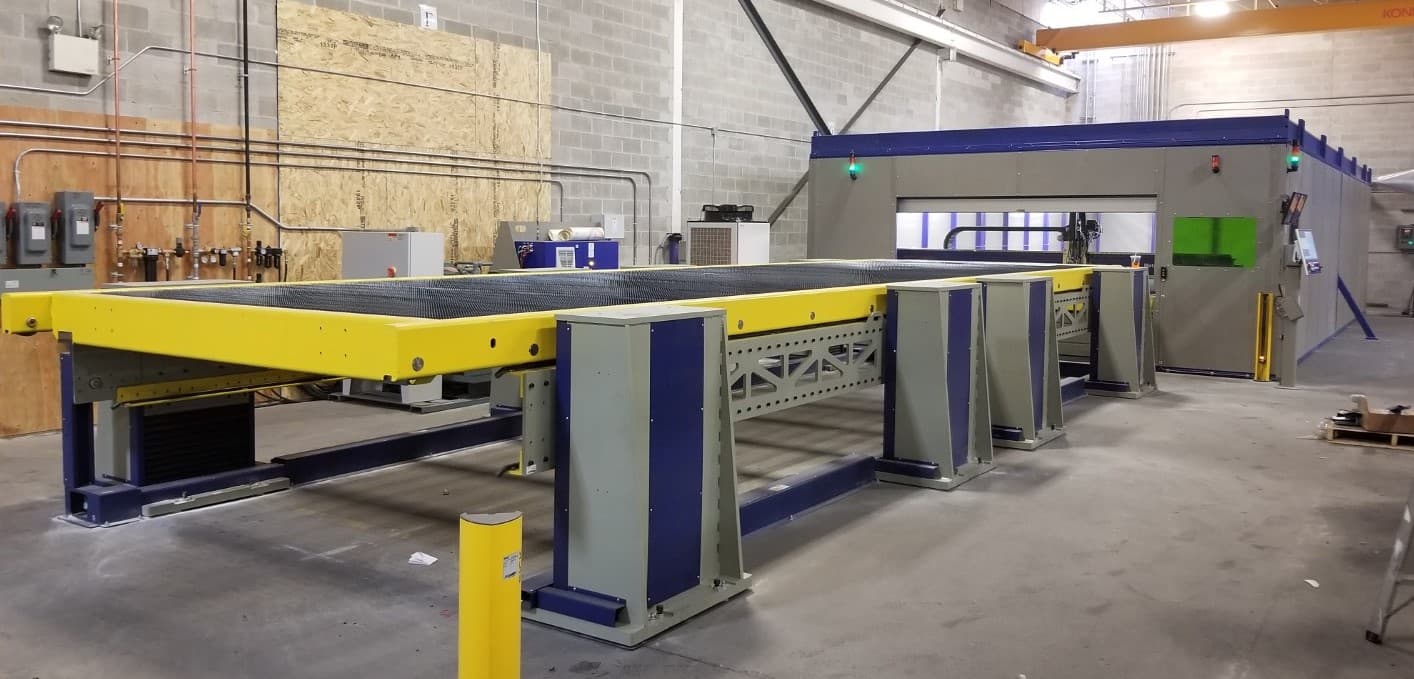

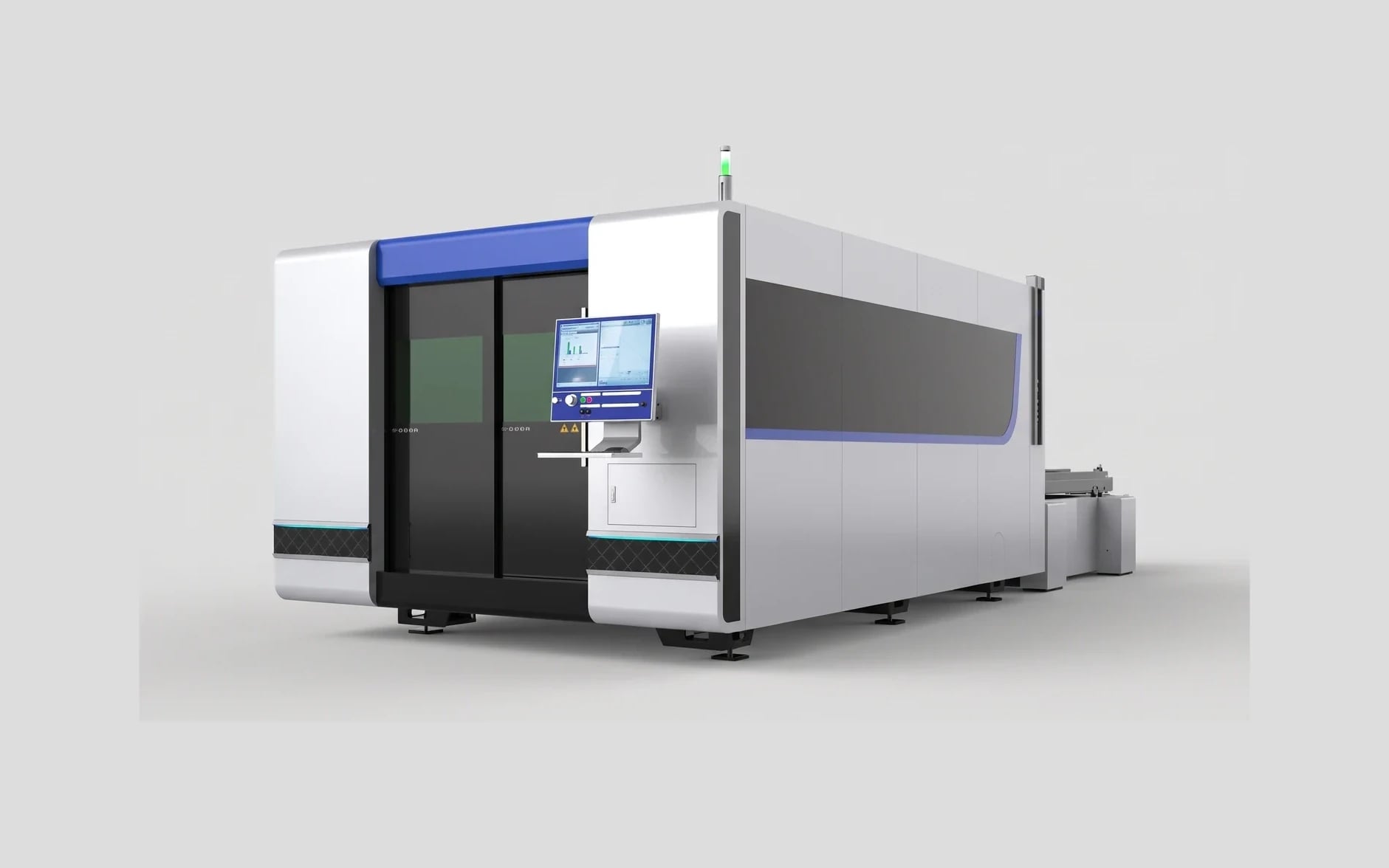

The FiberBlade V by Messer Cutting Systems is an all-around, high-speed, precision fiber laser cutting machine designed for exceptional accuracy and efficiency in metal processing. With advanced technology and customizable features, it ensures optimal performance and flexibility for diverse cutting applications.

Machines stocked in Ontario, Canada.

Specifications

  • Bed sizes of

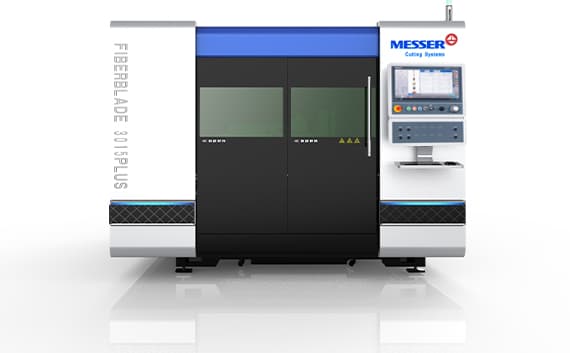

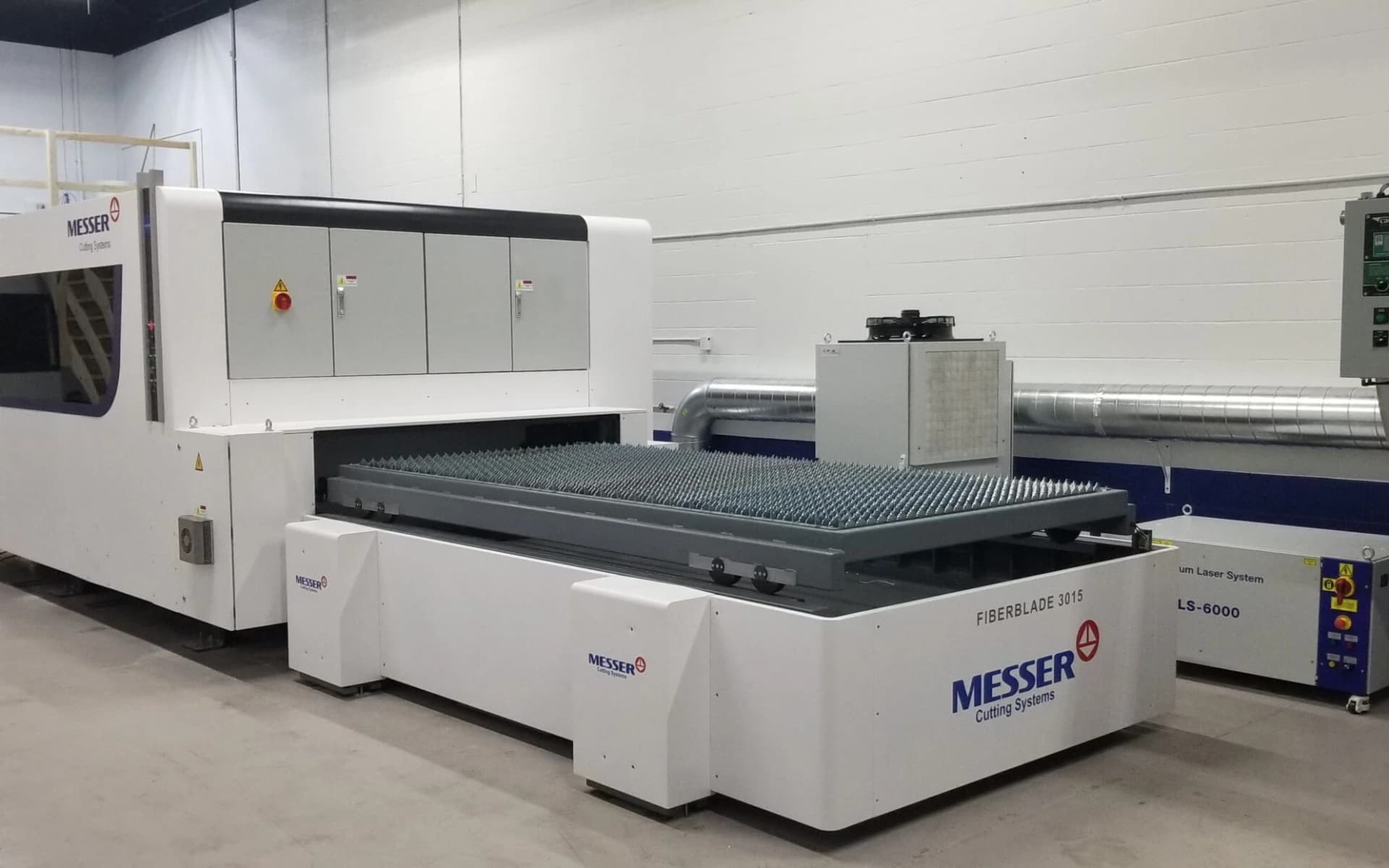

    • 3015 (60”x120”

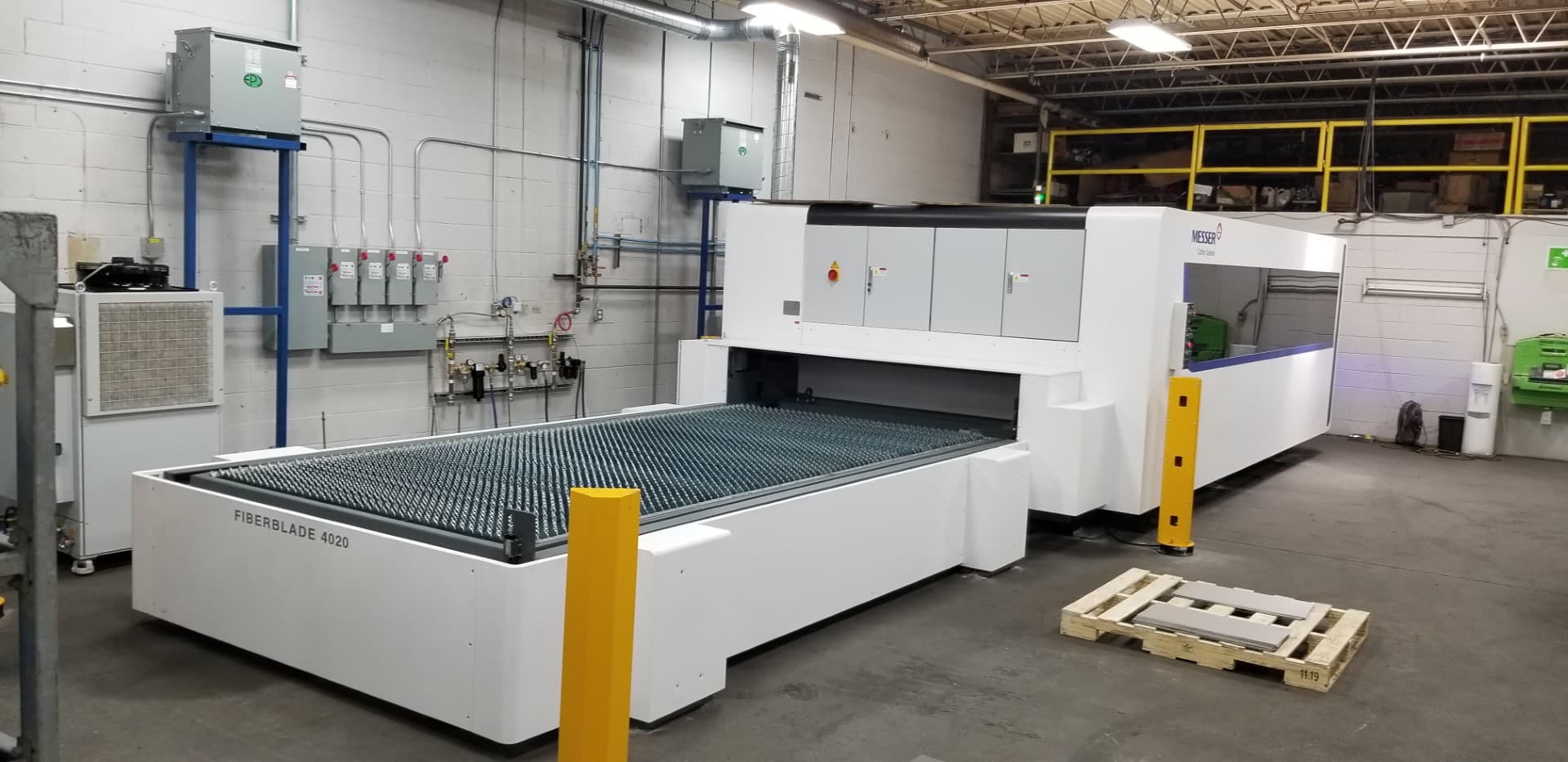

    • 4020 (80”x160”)

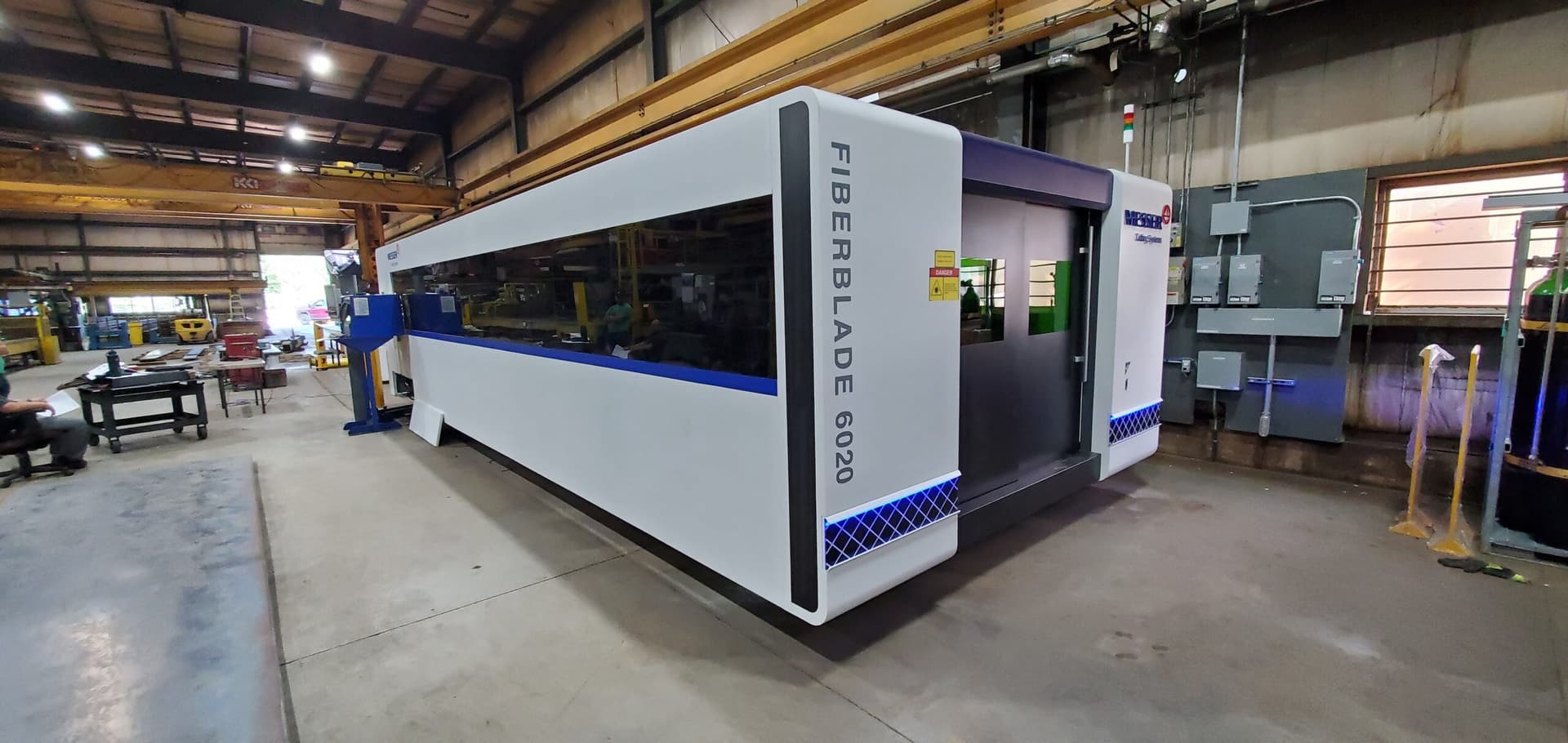

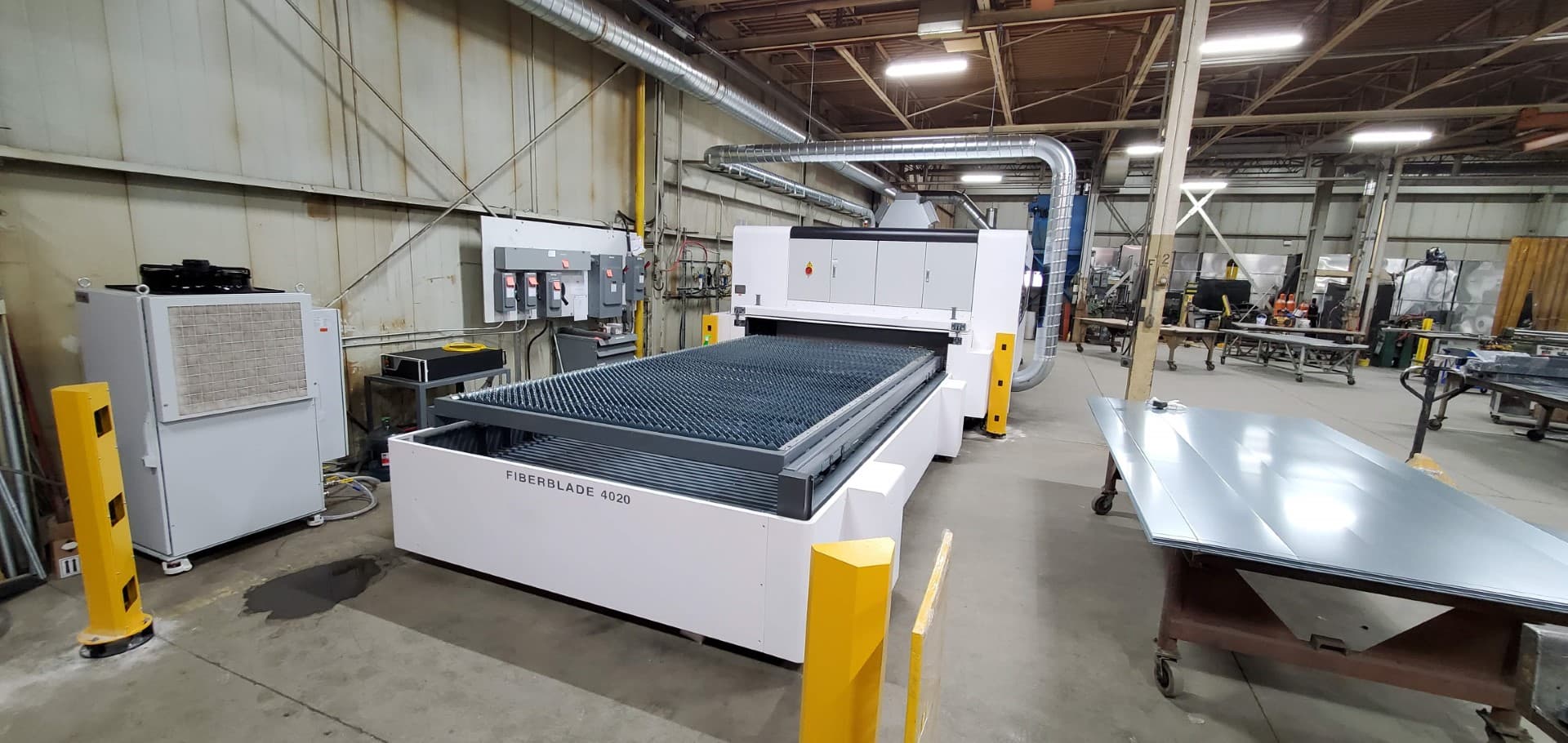

    • 6020 (80”x248”)
    • 6025 (100“x248”)
  • Laser cutting to 25mm (1.0”) with optional 40mm (1.5”) capacity
  • Maximum positioning speed 169 m/min (6653 inches/min)
  • 1.5G acceleration (optional 2.5G)
  • Positioning accuracy +/- 0.03mm (0.0012”)
  • Positioning repeatability +/- 0.01mm (0.0004”)

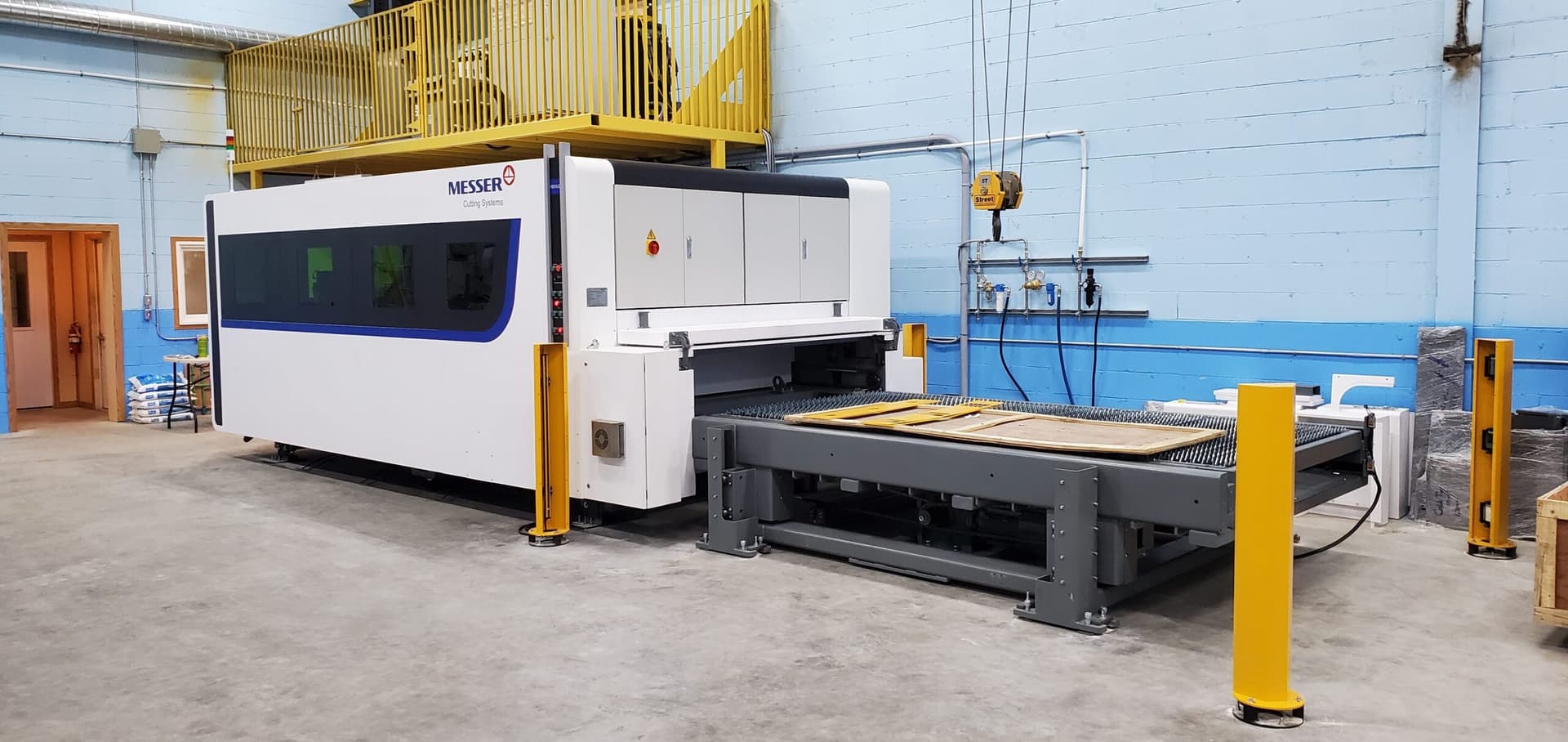

  • Downdraft dual tray shuttle table standard

Processes

  • Fiber laser from 2kw to 20kw

Standard Features

  • Messer “Global Connect” newest generation CNC control made by Beckhoff Automation
  • Battery backup and electrical filters for surge and noise protection
  • Two (2) tray shuttle table with 1.5” material capacity
  • Load/unload light barrier safety systems

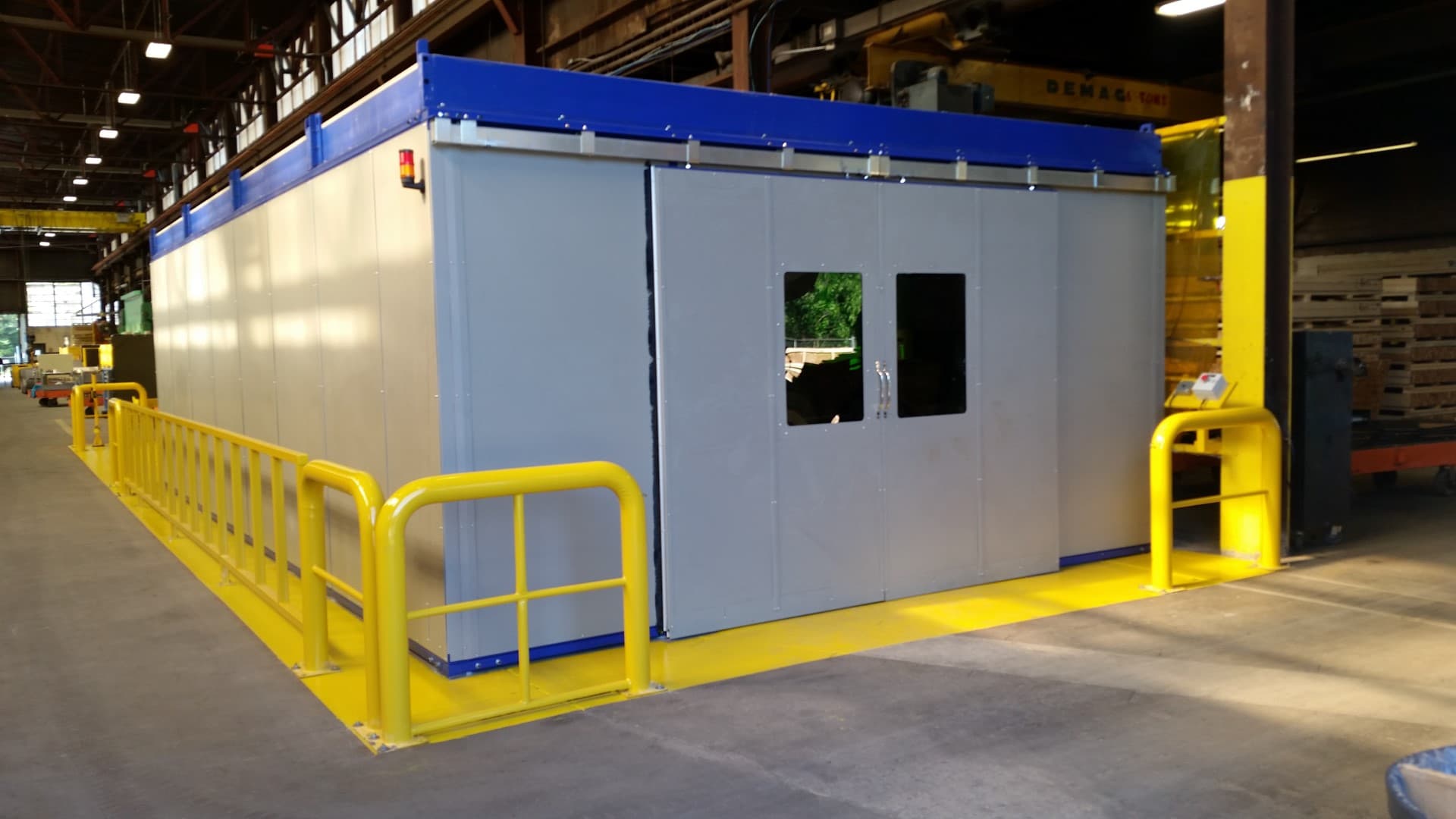

  • Safety enclosure rated to meet Canadian safety requirements
  • Production viewing cameras
  • IPG Photonics fiber lasers up to 20kw are standard offering
  • IPG laser chillers up to 20kw
  • Precitec Procutter 2.0 laser heads up to 20kw
    • Fully sealed head around critical optics for maximum reliability
    • Automatic optic temperature monitoring with integrated safety systems
    • Built in reflected light monitoring to measure optic wear/contamination
    • LED diagnostics lighting for quick visual indication of key performance indicators
    • High speed height sensing and collision protection
    • Quick change windows
    • Auto focus
  • Automatic plate alignment
  • Automatic machine shut down options
  • Job queue loading and job looping
  • Scan cut and zip cut increase productivity by minimizing unnecessary machine motion between cuts
  • Fast jump and ultra jump increase productivity and minimize lifter motion
  • Automatic nozzle cleaning
  • Piercing cross jet
  • Laser Edge Machining (LEM)
  • Laser MDC “Jerk” settings allow for increased accelerations for added productivity and maximum part quality.
  • Automatic greasing systems

Optional Features

  • Material Handling Automation with Storage retrieval tower system.
  • Laser Nozzle Changer (LNC) with automatic nozzle quality checking
  • Laser ZOOM head for automatic beam magnification adjustments to maximum quality and speed over a wide range of material thickness.
  • Machine Insights software
    • Production tracking
    • Error tracking
    • Performance (OEE) tracking in real time
    • Job reports
    • Remote monitoring
  • Messer OMNIWIN nesting software
  • Dust collector (self cleaning with HEPA filters)
  • Ducting kits
  • Gas infeed filter and regulator assemblies
  • 600/480V input transformers
  • Nitrogen generators
